Semi-automatic Generation of OrBAC Security Rules for Cooperative

Organizations using Model-Driven Engineering

Irvin Dongo and Vanea Chiprianov

LIUPPA, University of Pau, Anglet, France

Keywords:

Interoperability, Access Control, OrBAC, MDE, Ontology Matching.

Abstract:

In an environment of increasing cooperation and interoperability, organizations share resources and services

between them to increase their return on investment. But to control the use of shared resources, it is necessary

to apply access control policies which are related to how organizations control and secure their scenarios of

cooperation. In this paper, we perform a Systematic Literature Review on the current solutions to deﬁne access

control policies for cooperative organizations. As a result, we identify limitations such as manual negotiation

for establishing policies. To address these limitations, we introduce the Semi-Automatic Generation of Access

Rules Based on OrBAC (SAGARBO) component which allows semi-automatic generation of security rules

based on Model-driven engineering. This reduces negotiation time and the work of the security administrator.

1 INTRODUCTION

Organizations exchange services to obtain beneﬁts

such as increased proﬁt or quality of the ﬁnal prod-

uct or service. These services involve users, different

kind of resources. But for cooperation to be success-

ful it is necessary to control the use of services and

other resources. For this, one of the most common

mechanisms used is access control. An access con-

trol policy allows authorization or denial of the use

of resources by a consumer organization. Describing

access control policies for cooperative organizations

consists in establishing several security rules that have

to be accepted and veriﬁed by each cooperative orga-

nization. Conﬂicts can arise between these security

rules. There can also exist redundant rules. Verifying

such rules when the number of cooperative organiza-

tions is big, results in a lot of work for the security

administrators of each organization.

For organizations to cooperate, they need to inter-

operate. To have secure cooperation, we need to ad-

dress interoperability between organizations’ access

control policies. Consequently, our research question

is how to deﬁne security rules for access control that

ensure interoperability between organizations?

An important mechanism in access control is Role

Bases Access Control (RBAC), where the security

policy deﬁnes authorizations to roles and users ac-

quire permissions that are assigned to their roles.

However, in the context of interoperability, the main

entity is organization. In the work of (Kalam et al.,

2003), the concept of Organization is added to RBAC,

resulting in OrBAC. This introduces the main features

for a secure communication between organizations. It

is possible to manage multiple security policies asso-

ciated with different organizations.

In (Muante-Arzapalo, 2014), the author compares

different access control models and concludes that

the OrBAC model is the only one that has the con-

cepts of all the other models and additionally new

concepts such as Organization, Prohibition, Delega-

tion and Rule prioritization. That is why OrBAC is

semantically, the richest model. Another advantage

is the fact that there are tools for managing security

rules based on OrBAC, for example, MotOrBAC

However, most recent works that use OrBAC se-

curity rules for organization interoperability, have

limitations related especially to the manual establish-

ment of the policies, which makes the work of the se-

curity administrator longer. To address this, we pro-

pose a component which, using Model Driven En-

gineering and ontology matching techniques, semi-

automatically generates such security rules.

In section 2 we present a literature review about

interoperability of OrBAC access control policies. In

section 3, we introduce our proposal, its requirements,

architecture and implementation. To showcase it, we

present a medical case study in section 4.

http://orbac.org/?page id=12

Dongo, I. and Chiprianov, V.

Semi-automatic Generation of OrBAC Security Rules for Cooperative Organizations using Model-Driven Engineering.

In Proceedings of the 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering (ENASE 2016), pages 43-50

ISBN: 978-989-758-189-2

2 STATE OF THE ART

To have a complete view of the works developed

on the issue of cooperation and interoperability be-

tween organizations and OrBAC access control poli-

cies, we performed a literature review in the repos-

itories: Scopus, ACM Digital Library, IEEEXplore,

SpringerLink, ScienceDirect. This allows ﬁnding re-

lated works to our research question - how to deﬁne

security rules for the OrBAC access control model

that insure interoperability between organizations.

We use the keywords “OrBAC interoperability”

because the “OrBAC” model contains the entity Orga-

nization which is essential for our research question;

and “interoperability” because it is related to cooper-

ation between organizations.

After searching the databases using the chosen

keywords, we obtained 95 papers. Among the search

results, after reading the title, keywords, and ab-

stracts, and applying the following exclusion criteria:

1. Related to OrBAC as a extesion or based on this

2. Context of System to System

3. Access control for organizations

we selected 17 papers. By analyzing their references,

we found one additional paper.

Figure 1 shows the sequence of work carried out

from 2005 until 2015 (October), organized into 3

groups. OrBAC was introduced in a paper in 2003

(Kalam et al., 2003) and the ﬁrst work on OrBAC in-

teroperability appears in 2005. The works inside each

group of Virtual Organizations and respectively Web

Services share the same architecture. Other works in

the Mixed Works group, all have different architec-

tures. A branch in each group presents the works that

are based on previous works in the same branch.

2.1 Virtual Organizations

Several works use Virtual Organizations (VO) as a

starting point to establish access control. A VO al-

lows interaction between cooperative organizations to

share resources in order to accomplish common goals.

Using VOs, (Nasser et al., 2005a) emphasizes the

need to establish boundaries between users and re-

sources introduced by various partners in an entrusted

environment. The author proposes a new method to

automate the creation of VOs based on OrBAC. How-

ever, the negotiation between organizations is manual

and the time to establish common security rules for

this collaboration is long. In (Nasser et al., 2005b)

a new method, based on (Nasser et al., 2005a), is

introduced to dynamically build VOs based on Or-

BAC. The proposal mentions the negotiation process

but does not specify how it is done.

(Cuppens et al., 2006) propose an OrBAC exten-

sion adding new predicates - Organization to Organi-

zation (O2O). The main advantage is that each orga-

nization can maintain the same roles without needing

to add new or existing roles. But to ﬁnd such com-

patibility it is required to perform a manual process in

the same way as the negotiation process.

The work of (Coma et al., 2008) is based on

(O2O) (Cuppens et al., 2006). Additionally, the au-

thors propose different types of compatibility rela-

tions between entities. To discover them, “ontology

mapping” is used. The main advantages are a detailed

access control management and maintaining the com-

putational time of the derivation process polynomial.

(Coma-Brebel et al., 2008) provides a context on-

tology to be combined with an ontological represen-

tation of the OrBAC model. It can handle different

types of context such as time, space, but also increases

the work of security administrators to establish secu-

rity policies. In (Coma et al., 2010), there is a detailed

explanation of the work of (Cuppens et al., 2006),

(Coma et al., 2008) and (Coma-Brebel et al., 2008).

It proposes other steps such as license, management

policy, privacy, type of communication between orga-

nizations P2P (Peer to Peer).

(El Maarabani et al., 2011) propose to verify se-

curity requirements by transforming security rules

(O2O) to “Linear Temporal Logic” (LTL), thus de-

tecting real-time conﬂicts and violations of rules.

In this group of VOs, we can mention as main

drawback of all approaches, the need to create a new

VO for each cooperation. Also establishing the secu-

rity rules is the responsibility of the administrator.

2.2 Web Services

From the analysis of the state of the art, we identiﬁed

another group of works, based on Web Services. Web

Services offer more ﬂexibility and quality at runtime

for choosing or changing services that cooperate.

(El Kalam et al., 2007) proposes an open, dis-

tributed and collaborative web services environment

for interoperability between organizations, which

contains a new model and mechanism called ”Poly-

OrBAC”. Its main advantage is allowing each sys-

tem to manage their own resources, services, security

policies, etc. However, establishing a security policy

needs a manual negotiation process.

In (Baina et al., 2008) the authors use the work of

(El Kalam et al., 2007) to handle security in critical

systems. However, each organization is responsible

for the authentication of users when they access the

services of other organizations. (Kalam et al., 2009),

applies the concepts from (El Kalam et al., 2007)

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

Figure 1: State of the Art.

to critical systems. For interoperability it is neces-

sary to create new security rules. However, this pro-

cess is performed manually and it is often difﬁcult for

the security administrator. (Deswarte, 2011) contin-

ues in the environment of critical infrastructures and

addresses similar problems as those in (Baina et al.,

2008). The authors propose to add “e-Contracts” to

PolyOrBAC to express and check the interaction of

web services. In the work of (Baina and Laarouchi,

2012) an extension of OrBAC, joined with the To-

tel integrity model, is presented. The authors address

the OrBAC limitation about it not guaranteeing the

integrity against corruption of the entity Object.

As a general limitation of works using web ser-

vices, we found that the way to establish security rules

remains manual. For this reason the security admin-

istrator needs to invest a lot of effort and time for es-

tablishing or deﬁning them.

2.3 Mixed Works

In this group we ﬁnd other related OrBAC proposals

that extend the model or apply its concepts to related

issues such as communication between devices, etc.

(El Kalam and Deswarte, 2006), continue working

in the context of access control policies for collabora-

tive, heterogeneous and distributed systems. They ex-

tend OrBAC adding concepts “View in Organization”

(ViO), “Role in Orgazanition” (RiO) and “Activity in

Organization”(AiO), which are new relationships re-

spectively between the entities View, Role and Activ-

ity and the entity Organization. It allows to manage

security policy in detail but increases the complexity.

On the other hand (Abi Haidar et al., 2009) fo-

cuses on the negotiation process. They propose an

architecture with negotiation and exception treatment

modules. However, to get a positive result a long time

is required in many cases.

In the work of (Preda et al., 2011) the authors ad-

dress the control of security of devices between or-

ganizations. It improves the OrBAC model by inte-

grating concepts of action speciﬁcation languages, so

as to enable reasoning about the evolution of the pol-

icy status as soon as actions are detected. One of the

main disadvantages is that there can be lag time be-

tween devices, in addition to being able to introduce

“DoS” attacks on the PDP (Policy Decision Point).

(Toumi et al., 2012) performed a comparative

study between different proposals based on existing

models such as RBAC and OrBAC. They identify

3 groups with similar characteristics based on dy-

namism, abstraction, management complexity and ex-

pressibility. In the ﬁrst group, called Super Organiza-

tion, they analyze Multi-OrBAc, TeaM based Access

Control (TMAC). In the second group, they analyze

the proposal O2O which is also analyzed by us. An-

other group is based on different technologies such as

Poly-OrBAC and OrBAC in VOs.

In the context of trust related to distributed sys-

tems, (Toumi et al., 2013) proposes a trust ontology

based on OrBAC. A trust framework allows us to have

more dynamic and interactive policies.

When addressing secure interoperability between

organizations, their credibility, critically, integrity are

highly important. An extension of OrBAC that takes

into consideration these integrity issues is advanced

in (Ameziane El Hassani et al., 2015).

2.4 Discussion

As observed in the analysis of the state of the art, there

are two main types of realizing secure environments:

virtual private organizations and Web services. Both

have advantages and disadvantages, but the choice be-

tween them often depends on what organizations want

to share. For example, if we need a closed secure en-

vironment, we should use a virtual private organiza-

tion, but lack of ﬂexibility is a disadvantage in this

kind of cooperation. However, Web services can have

a ﬂexible and dynamic cooperation.

An important point is the process of negotiation

between the different organizations, which tends to be

manual (Nasser et al., 2005a), (Nasser et al., 2005b),

(Cuppens et al., 2006) and in many cases, only pro-

vide the high level description of the negotiation pro-

cess without detailing how this can be done (Nasser

et al., 2005a), (Nasser et al., 2005b), (Coma et al.,

2008) and (Coma et al., 2010). This is a limitation

Semi-automatic Generation of OrBAC Security Rules for Cooperative Organizations using Model-Driven Engineering

of the proposed works, because in an environment of

cooperation, the negotiation process is complicated.

It is important to emphasize the role of the se-

curity administrator in interoperability - to grant ac-

cess to resources of the organization. This is dis-

cussed in works such as (Coma-Brebel et al., 2008),

(Kalam et al., 2009), which propose giving the secu-

rity administrator more responsibilities to deﬁne ﬁne-

grained security rules. This will further complicate

their tasks. Whereas, our contribution will reduce

their work.

In this section, we presented our literature review.

A related work of survey was performed by (Toumi

et al., 2012), presented in Mixed Works. They iden-

tify 3 groups, like us, but different from ours. The

authors conclude that each solution may improve its

performances by adapting some other approaches; on

the other hand, the administration of security policies

would become more difﬁcult, just as we identiﬁed.

After analyzing the state of the art, we identiﬁed 2

main limitations about the manual negotiation process

and the work of the administrator. We focus on in-

creasing the automatization degree of the negotiation

process between cooperative organizations in order to

facilitate the work of the security administrator.

Furthermore, ontologies are also presented in se-

curity policies (Coma et al., 2008), (Coma-Brebel

et al., 2008), (Coma et al., 2010) to model organi-

zation knowledge and information. Due to the fact

that ontologies can be used to describe and analyze

knowledge, we use them to discover the similarities

of certain types of entities in organizations.

3 PROPOSAL: GENERATING

SECURITY RULES

As a solution to the problems identiﬁed in the state of

the art, we generate semi automatically access control

rules to resources from existing rules within the orga-

nization that provides these resources. For this, we

focus on similar roles in different organizations. We

describe roles, actions and resources of each organiza-

tion using ontologies and discover similarity between

roles using ontology matching algorithms.

To develop our proposal, we use a software

engineering approach, starting from requirements,

through architecture and implementation.

3.1 Requirements

We identiﬁed the following requirements from our

analysis of the state of the art:

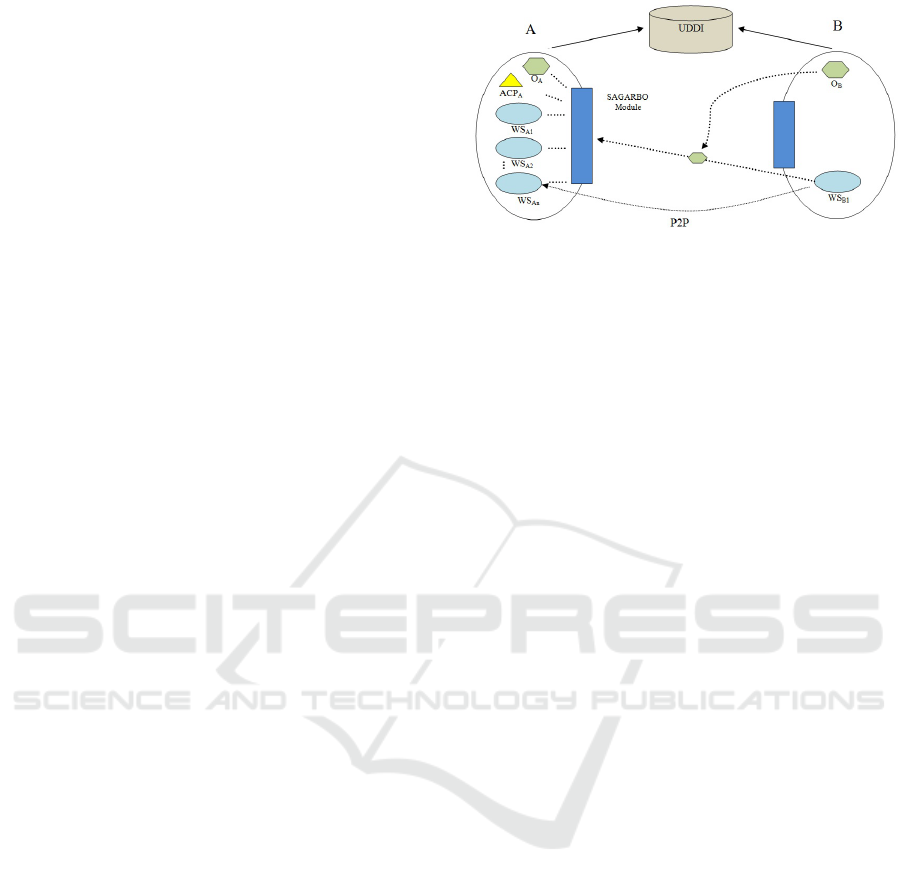

Figure 2: Interoperability Architecture for access control

rules generation.

• Interoperability architecture, a requirement com-

ing from our research questions.

• Access control policies based on OrBAC, to pre-

serve the security of resources within organiza-

tions, security policies that restrict access and use

of the resources are necessary.

• Describing organization entities, we consider that

similar roles in two organizations will have simi-

lar security rules.

3.2 Architecture

In order to fulﬁll the identiﬁed requirements, we pro-

pose the architecture that follows. To satisfy the in-

teroperability architecture requirement, we decide to

base our architecture on the Service Oriented Archi-

tecture (SOA) paradigm. This places our proposal in

the category of works that we identiﬁed in the state

of the art, dealing with web services. Our OrBAC re-

quirement means that our architecture needs to gener-

ate new OrBAC access control policies. To answer the

requirement of describing organization entities, one

common way to describe semantics of web services

and the context in which these operate inside the or-

ganization, is ontology.

3.2.1 Structural Architecture

In ﬁgure 2, we present the structure of our architec-

ture. Organization B consumes a web service of A.

Organization B discovers the web service which best

satisﬁes its requirements (W S

). This process uses

the UDDI repository. After that, to enable coopera-

tion among them, organization B sends A a request

to use its web service. Together with this request, it

also sends its ontology describing its resources (O

Organization A receives this request and its Semi-

Automatic Generation of Access Rules Based on Or-

BAC (SAGARBO) component analyzes it.

This architecture has the novelty of using a new

component that we call SAGARBO. The SAGARBO

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

component works with the ontology and the access

control policy of organization A (ACP

) and the on-

tology of organization B to generate security rules for

organization A (provider), using Model-driven engi-

neering. We will explain more about it in Section 3.4.

Organization B also has a SAGARBO component be-

cause it can offer its web services and other resources

to other organizations. However, this component is

mandatory when organization B is just the provider.

3.2.2 Behavioral Architecture

After presenting the structure of our architecture, we

focus on its behavior. For this, we introduce a process

based on (El Kalam et al., 2007).

Phase 1:

1. Each organization that wishes to provide services,

must publish them in a web service registry, for

example UDDI.

2. Other organizations may discover and use the web

service.

3. Organizations negotiate among themselves. For

this, the consumer organization shares its pub-

lic information in one ontology, especially the re-

sources it needs and does not have. The provider

organization uses matching algorithms to ﬁnd

similarity between entities requested by the con-

sumer and those that belong to the provider.

4. Organizations establish a technical contract

(based on the legal one) and jointly deﬁne security

rules. In the negotiation process, by applying a

matching algorithm between entities, SAGARBO

generates a list of new security rules for the

provider, using its existing rules.

5. From the list of new security rules, the adminis-

trator decides which rule can be selected in accor-

dance with the previously established contract.

Phase 2: At runtime, if a user wants to perform an

activity and requires any resource of the web service,

the provider organization checks the user’s identity

and makes a decision based on its security policy and

the role of the user. It ﬁnally authorizes or denies ac-

cess. This is done through a Peer to Peer protocol

(P2P), i.e. using a direct connection after all the steps

of the ﬁrst phase have been performed.

3.3 Ontology and Ontology Matching

An ontology allows to describe knowledge in a partic-

ular area using a speciﬁc vocabulary. The vocabulary

describes the conceptual elements and relationships

between them (Chandrasekaran et al., 1999). To ﬁnd

similar entities in ontologies from different organiza-

tions, it is necessary to use matching algorithms. For

our requirement of similarity between entities, we an-

alyzed ontology matching approaches based on sys-

tematic literature reviews, such as (Choi et al., 2006)

and (Pavel and Euzenat, 2013). In the work (Pavel and

Euzenat, 2013), there is an analysis of the most recent

matching tools (SAMBO, Falcon, DSSim, RiMOM,

AsMOV, Anchor-Flood and Agreement Maker); this

is the reason why we have chosen to analyze the tools

reviewed in this work. To choose a particular tool for

our proposal, we have established the following selec-

tion criteria:

• The ability to read an OWL format because on-

tologies are commonly described in this format.

• A terminological analysis because it is a funda-

mental technique to ﬁnd similar terms.

• Structural analysis - recognizing similar substruc-

ture between properties.

• Semantic analysis increases the success percent-

age but also increases the complexity of the tool.

• Free access, but not necessarily open source - be-

cause we are not interested in developing or ex-

tending an ontology matching tool.

• A graphical interface would facilitate tool use.

The ones that meet our minimum selection criteria

of lexical and structural analysis are: Sambo, Falcon,

DSsim, AsMOV and Agreement Maker. Regarding

the free access criterion, only Falcon meets it. There-

fore, if we want to take in account the semantic crite-

rion as well, there are still no tools that satisfy it. In

conclusion, we retain Falcon.

Falcon allows us to see the similarity between

the entities of 2 ontologies. The minimum similarity

value is 0 and the maximum 1. As the two ontologies

are different, it is improbable to ﬁnd two entities with

similarity 1. That is why we have to deﬁne a thresh-

old above which we consider the entities to be similar.

This threshold generates more or less rules depending

if it is closer to 0 or to 1, respectively.

3.4 Model Transformation

In Model-driven engineering (MDE), models con-

form to Meta-Models (MM), like a program conforms

to the grammar of the programming language. A

Model Transformation (MT) is the automatic genera-

tion of target model(s) from source model(s), accord-

ing to a set of transformation rules.

We are deﬁning an MT to generate the access con-

trol policies for the provider organization. It takes as

inputs the access control policies of the provider and

Semi-automatic Generation of OrBAC Security Rules for Cooperative Organizations using Model-Driven Engineering

the list of matching roles from the consumer with sim-

ilar roles from the provider and generates the new ac-

cess control policies for the provider. The access con-

trol policies, for both consumer and provider organi-

zations, conform to the OrBAC MM, and the match-

ing list conforms to the MM used by Falcon.

The generated access control policies are pre-

sented to the security administrator, who decides

which to keep. Through repeated trial and error, the

administrator determines which threshold to use.

4 CASE STUDY

In the health domain, there are several actors, some

of them in different organizations. Each of them

may need permissions and/or restrictions to access re-

sources such as medical records, prescriptions.

Our case study is based on the SELKIS

project.

From this, we focus on two medical organizations:

Radio3D and HealthCare and a web service called

HealthCareWebService (HCWS) provided by Health-

Care. Radio3D is an enterprise that provides services

of radiology and technology for making diagnoses.

HealthCare is a government hospital that has patient

records and shares them with other institutions in the

same ﬁeld. HCWS allows us reading and modifying

information and medical records of patients.

The establishment of the secure cooperation be-

tween these two organizations follows our proposal

and is described in the following subsection.

4.1 Cooperation Scenario

A patient goes to HealthCare for a routine control.

The doctor asks for an exam consisting of X-Rays.

The patient chooses Radio3D. (S)he goes to the

medical secretary, who opens a session in the Ra-

dio3D software and searches the patient’s ID in the

system. (S)he cannot ﬁnd the patient so (s)he opens

the registration form to create a new record. The reg-

istration form uses the HCWS to automatically read

the patient’s public information from HealthCare and

write it in the Radio3D software.

Later, the Radio3D radiologist performs a diag-

nostic based on the X-Rays images. This diagnostic

also takes into account the medical record of the pa-

tient in the HCWS in order to have greater support

in the diagnostic. When the diagnostic is complete,

the radiologist stores it as a result in the Radio3D

software and sends this information to the HCWS, to

store it. When the patient goes back to HealthCare,

lacl.univ-paris12.fr/selkis

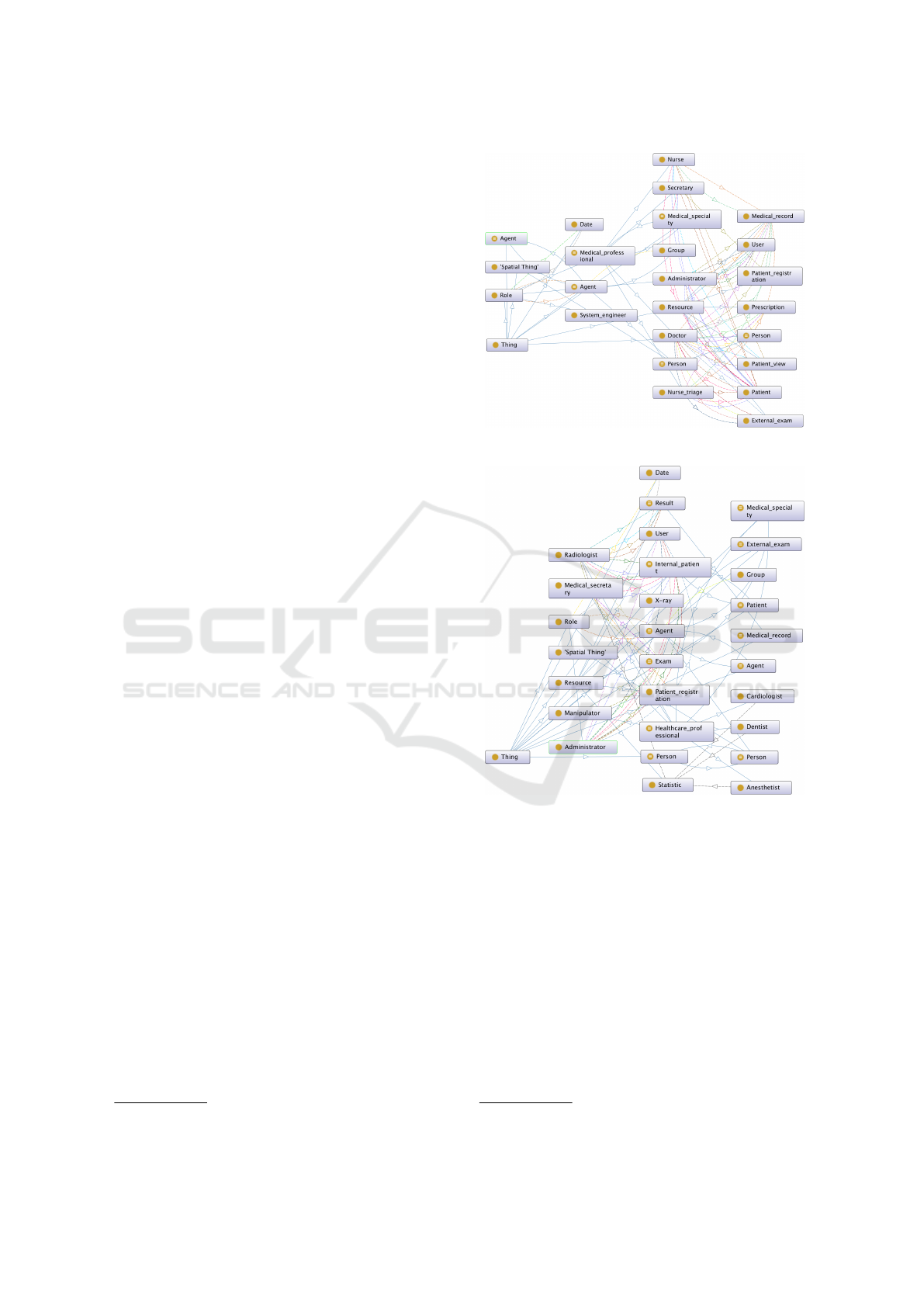

Figure 3: HealthCare Ontology.

Figure 4: Radio3D Ontology.

the doctor will have the diagnostic of the X-Rays and

(s)he can take the best action for the illness.

In HealthCare, there are 24 security rules, inspired

from the SELKIS project. For our scenario, the Ra-

dio3D secretary needs the authorization to read the

public information of the patient. Also, the Radiolo-

gist in Radio3D needs the access right to read a Med-

ical Record and to add the results of the analysis. In

total, it is necessary to add three new security rules in

order to satisfy the cooperation requirements.

4.2 Ontologies

For developing the ontologies, we used Prot

http://protege.stanford.edu/

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering

free, open-source ontology editor. They contain and

describe entities like Role, Resource, actions, used in

deﬁning and generating access control policies. The

ontologies are based on Participation Schema

and

some properties of the FOAF vocabulary

In ﬁgure 3, the ontology of the HealthCare organi-

zation is presented. There are two main entities: Re-

source and Role. The relations between resources and

roles represent the actions the roles can execute on

the resources. These may be of type: ”read”, ”add”,

”modify”, ”delete”, ”search”. Figure 4 describes the

same for the Radio3D ontology. In the same way for

the Radio3D ontology, ﬁgure 4, we can see resources,

roles and relations as actions.

4.3 Experiments and Generated Access

Control Rules

We tested our solution in two different cases. In the

ﬁrst one we generated security rules which have a

high probability to be accepted by the security ad-

ministrator because in the ontology matching step,

the roles have a high similarity, and they can even be

equivalent or equal. Therefore in this case we ﬁx the

similarity threshold to 0.75. Security rules generated

by this matching threshold are most often retained by

the administrator, but it is possible that other security

rules are required. So this high threshold may gener-

ate a pertinent but most likely incomplete set of secu-

rity rules. Thus the administrator may need to write

additional security rules, which demands a relatively

high cognitive effort.

In the second case, we produce a greater amount

of security rules. The administrator will have more

choices. This increases the time they spend on select-

ing the security rules, but decreases the time and effort

spent on writing additional rules. Therefore, this case

may further facilitate the work of the security admin-

istrator. In this case, we ﬁx the threshold to 0.35.

4.3.1 Generated Access Control Rules for

Threshold 0.75

For the threshold 0.75, our approach generates 8

new security rules because of the similarity between

the roles Administrator (HealthCare)- Administra-

tor (Radio3D) and Secretary (HealthCare) - Medi-

cal Secretary (Radio3D). We obtain the new gen-

erated rules: Radio3D Medical secretary 1, Ra-

dio3D Medical secretary 2, Radio3D Administra-

tor 1, Radio3D Administrator 2, Radio3D Admin-

istrator 3, Radio3D Administrator 4, Radio3D Ad-

http://vocab.org/participation/schema-20080925

http://xmlns.com/foaf/spec/

ministrator 5, Radio3D Administrator 6. The secu-

rity administrator chooses the security rules that sat-

isfy the cooperation. However, only one such rule is

generated - the authorization for the Medical Secre-

tary to read public information of the patient in Heath-

Care organization. The security administrator has to

create two other security rules.

4.3.2 Generated Access Control Rules for

Threshold 0.35

For the threshold 0.35, we obtained 16 new secu-

rity rules for the similarity between roles Adminis-

trator(HealthCare) - Administrator (Radio3D), Secre-

tary (HealthCare) - Medical Secretary(Radio3D) and

Doctor(HealthCare) - Radiologist (Radio3D). In this

case, the security administrator chooses the new rules

for the cooperative scenario and (s)he ﬁnds all the 3

required security rules.

5 CONCLUSION

In this paper we investigated the issue of deﬁning se-

curity rules for access control to ensure interoperabil-

ity between organizations. We performed a literature

review on OrBAC-based cooperation.

This allowed us to reﬁne the research question and

focus on the issues of the manual negotiation process

and reducing the work of the security administrator.

To solve these problems, we proposed an archi-

tecture based on the work of (El Kalam et al., 2007).

It introduces the Semi-Automatic Generation of Ac-

cess Rules Based on OrBAC (SAGARBO) compo-

nent that allows the provider organization to semi-

automatically generate security rules. For this, we use

model driven engineering and ontology matching. We

developed a case study based on the Selkis project.

We describe the needs of the organizations, as well

the roles, actions and resources using ontologies and

security rules. Using the ontology matching tool Fal-

con, which we selected, we detect the entities which

have a similarity greater than a certain threshold.

Our proposal can be classiﬁed as part of the

Web Services group of works which we identiﬁed

in the state of the art. The works in this group are

mainly based on PolyOrBAC. Like PolyOrBAC, our

approach uses an open, distributed and collaborative

web service environment. However, where PolyOr-

BAC employs a manual negotiation process, we use a

semi-automatic generation approach in order to facil-

itate the work of the security administrator.

Our proposal uses a similarity threshold less than

100%. That is why it is not completely certain that a

Semi-automatic Generation of OrBAC Security Rules for Cooperative Organizations using Model-Driven Engineering

totally automatic generation process of security rules

could ensure the security of all resources. Therefore

the ultimate validation of the security rules is the de-

cision of the administrator. However, even if the se-

curity administrator has to deﬁne some of the security

rules, their effort of creating them is still reduced.

A limitation of our approach is the sharing of in-

formation in the ontology of the consumer organiza-

tion. This ontology may include essential and sensi-

tive information of the organization. Regarding the

ontology matching, it is possible to apply other meth-

ods and tools, which may increase the accuracy of

the results. For the moment we only use roles for

the matching analysis, but other entities like resources

and actions could be used to improve the similarity.

REFERENCES

Abi Haidar, D., Cuppens-Boulahia, N., Cuppens, F., and

Debar, H. (2009). Xena: an access negotiation frame-

work using xacml. Annales des t

ecommunications-

Annals of telecommunications, 64(1-2):155 – 169.

Ameziane El Hassani, A., Abou El Kalam, A., Bouhoula,

A., Abassi, R., and Ait Ouahman, A. (2015). Integrity-

orbac: A new model to preserve critical infrastructures

integrity. Int. J. Inf. Secur., 14(4):367–385.

Baina, A., Kalam, A., Deswarte, Y., and Kaaniche, M.

(2008). Collaborative access control for critical infras-

tructures. In Papa, M. and Shenoi, S., editors, Crit-

ical Infrastructure Protection II, volume 290 of The

International Federation for Information Processing,

pages 189–201. Springer US.

Baina, A. and Laarouchi, Y. (2012). Multilevel-orbac:

Multi-level integrity management in organization

based access control framework. In Multimedia

Computing and Systems (ICMCS), 2012 International

Conference on, pages 933–938.

Chandrasekaran, B., Josephson, J. R., and Benjamins, V. R.

(1999). What are ontologies, and why do we need

them? IEEE Intelligent Systems, 14(1):20–26.

Choi, N., Song, I.-Y., and Han, H. (2006). A survey on

ontology mapping.

Coma, C., Cuppens-Boulahia, N., and Cuppens, F. (2010).

Secure interoperability with o2o contracts. In Web-

Based Information Technologies and Distributed Sys-

tems, volume 2 of Atlantis Ambient and Pervasive In-

telligence, pages 257–292.

Coma, C., Cuppens-Boulahia, N., Cuppens, F., and Cavalli,

A. R. (2008). Interoperability of context based system

policies using o2o contract. In Chbeir, R., Dipanda,

A., and Y

etongnon, K., editors, SITIS, pages 137–144.

IEEE Computer Society.

Coma-Brebel, C., Cuppens-Boulahia, N., Cuppens, F., and

Cavalli, A. R. (2008). Context ontology for secure

interoperability. In ARES 2008 : Third international

conference on availability, reliability and security.

Cuppens, F., Cuppens-Boulahia, N., and Coma, C. (2006).

O2o: Virtual private organizations to manage security

policy interoperability. In Bagchi, A. and Atluri, V.,

editors, Information Systems Security, volume 4332

of LNCS, pages 101–115.

Deswarte, Y. (2011). Protecting critical infrastructures

while preserving each organization’s autonomy. In

Natarajan, R. and Ojo, A., editors, Distributed Com-

puting and Internet Technology, volume 6536 of

LNCS, pages 15–34.

El Kalam, A., Deswarte, Y., Baina, A., and Kaaniche, M.

(2007). Access control for collaborative systems: A

web services based approach. In Web Services, 2007.

ICWS 2007. IEEE International Conference on, pages

1064–1071.

El Kalam, A. A. and Deswarte, Y. (2006). Multi-orbac:

A new access control model for distributed, heteroge-

neous and collaborative systems. In 8th IEEE Inter-

national Symposium on Systems and Information Se-

curity.

El Maarabani, M., Cavalli, A., Hwang, I., and Zaidi, F.

(2011). Veriﬁcation of interoperability security poli-

cies by model checking. In High-Assurance Systems

Engineering (HASE), 2011 IEEE 13th International

Symposium on, pages 376–381.

Kalam, A., Baida, R., Balbiani, P., Benferhat, S., Cuppens,

F., Deswarte, Y., Miege, A., Saurel, C., and Trouessin,

G. (2003). Organization based access control. In Poli-

cies for Distributed Systems and Networks, IEEE 4th

Intl Wksh on, pages 120–131.

Kalam, A. A. E., Deswarte, Y., Baina, A., and Ka

aniche,

M. (2009). Polyorbac: A security framework for crit-

ical infrastructures. International Journal of Critical

Infrastructure Protection, 2(4):154 – 169.

Muante-Arzapalo, D. Y. (2014). Une approche base sur

l’Ing

enierie Dirig

ee par les mod

eles pour identiﬁer,

concevoir et

evaluer des aspects s

ecurit

e. PhD thesis,

Universit

e de Pau et des Pays de L’Adour.

Nasser, B., Laborde, R., Benzekri, A., Barr

ere, F., and

Kamel, M. (2005a). Access control model for inter-

organizational grid virtual organizations. In Meers-

man, R., Tari, Z., and Herrero, P., editors, On the

Move to Meaningful Internet Systems 2005: OTM

2005 Workshops, volume 3762 of LNCS, pages 537–

551.

Nasser, B., Laborde, R., Benzekri, A., Barrere, F., and

Kamel, M. (2005b). Dynamic creation of inter-

organizational grid virtual organizations. In e-Science

and Grid Computing, 2005. First International Con-

ference on, pages 8 pp.–412.

Pavel, S. and Euzenat, J. (2013). Ontology matching: State

of the art and future challenges. IEEE Trans. on

Knowl. and Data Eng., 25(1):158–176.

Preda, S., Cuppens, F., Cuppens-Boulahia, N., Garcia-

Alfaro, J., and Toutain, L. (2011). Dynamic deploy-

ment of context-aware access control policies for con-

strained security devices. Journal of Systems and Soft-

ware, 84(7):1144 – 1159.

Toumi, K., Andr

es, C., and Cavalli, A. R. (2013). Trust

ontology based on access control parameters in multi-

organization environments. In SITIS, pages 285–292.

Toumi, K., Cavalli, A., and El Maarabani, M. (2012). Role

based interoperability security policies in collabora-

tive systems. In Collaboration Technologies and Sys-

tems (CTS), 2012 International Conference on, pages

471–477.

ENASE 2016 - 11th International Conference on Evaluation of Novel Software Approaches to Software Engineering
