An Episode-based Approach to Identify Website User Access Patterns

Madhuka Udantha, Surangika Ranathunga and Gihan Dias

Department of Computer Science and Engineering, University of Moratuwa, Colombo, Sri Lanka

Keywords: Web Usage Mining, Pattern Mining, Regular Expressions, Anomaly Detection.

Abstract: Mining web access log data is a popular technique to identify frequent access patterns of website users.

There are many mining techniques such as clustering, sequential pattern mining and association rule mining

to identify these frequent access patterns. Each can find interesting access patterns and group the users, but

they cannot identify the slight differences between accesses patterns included in individual clusters. But in

reality these could refer to important information about attacks. This paper introduces a methodology to

identify these access patterns at a much lower level than what is provided by traditional clustering

techniques, such as nearest neighbour based techniques and classification techniques. This technique makes

use of the concept of episodes to represent web sessions. These episodes are expressed in the form of

regular expressions. To the best of our knowledge, this is the first time to apply the concept of regular

expressions to identify user access patterns in web server log data. In addition to identifying frequent

patterns, we demonstrate that this technique is able to identify access patterns that occur rarely, which

would have been simply treated as noise in traditional clustering mechanisms.

1 INTRODUCTION

In a website, web access logs record user

navigations and other activities such as searching,

site registering and editing web pages. Access logs

are semi-structured files. Log records consist of user

Internet Protocol (IP) address, HTTP status code,

timestamp, web request URI, user agent, HTTP

referrer and HTTP request type. The log records are

distributed and occupy a large volume. A web

session is a collection of web requests from a user

with a unique IP address during a specified period of

time. Web sessions can be very long. Therefore

processing and web log mining can be difficult.

Even though web log files contain valuable

information, above reasons make it less viable to

manually extract this information. A method to

extract this valuable information would help detect

anomalies and help website administration on

Human Computer Interaction (HCI) improvements.

In web usage mining, there are many

methodologies to identify user access patterns.

These include clustering, Apriori algorithms, web

access pattern tree (WAP-tree) and mining frequent

patterns (Facca and Lanzi, 2005). But in these

methods it is difficult to determine how each session

deviates from other sessions in the same group or

cluster. It is important to find these slight differences

between sessions. These seemingly insignificant

changes could be the most important for a domain

expert as they may resemble anomalies such as an

attack.

One of the limitations in k-means (Hartigan and

John, 1979) and other clustering mechanisms is that

they remove noise from the data( Fu and Sandhu,

1999). Here important data or patterns might be lost.

For example, an attacker’s access sequence might be

discarded as noise since it may be considered as an

outlier. When data contains noise, the completeness

of the system lowers due to data being lost as noise.

One technique to identify these anomalies is by only

considering outliers, but this will not work if the

pattern is inside a cluster. If insider a cluster, the

slight difference between the attacker’s access

pattern is not obvious.

A session is a collection of episodes. An episode

is a sequence of access pages that has a semantic

meaning (Srivastava and Cooley, 2000). For

example in a commercial website, an episode would

refer to payment. This involves pages {payment

page, enter credit card details,

confirmation}.Similarly, login episode contains

pages {home page, enter credentials, user account}

and purchase episode contains pages {shopping cart,

add items to cart, checkout, confirm} (page access

Udantha M., Ranathunga S. and Dias G.

An Episode-based Approach to Identify Website User Access Patterns.

DOI: 10.5220/0005752703430350

In Proceedings of the 5th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2016), pages 343-350

ISBN: 978-989-758-173-1

343

occurs in the given order).

This paper presents a mechanism to identify

these access patterns using regular expressions

(regex) (Garofalakis and Rastogi, 1999), which is a

technique very commonly used for similar tasks in

domains such as genetic algorithms and text

searching (Goldberg, 2006). A regex is a special text

string for describing a particular pattern (Liang and

Tianyi, 2014). When an episode is represented as a

regular expression, it reduces the volume of session

data. When the episodes are represented by regular

expressions, slight changes to major changes can be

easily identified. Slight changes can be detected

through the repetitions and alterations of individual

pages. Major changes can be detected by repetitions

and alternation of page groups.

The identified episodes are stored in a suffix

array that keeps track of the episode count. This is

an improved version of normal suffix array (Manber

and Myers, 1991).

System results are evaluated quantitatively and

qualitatively and they were conducted on three web

sites from different domains: non-profit

organization, financial institution and educational

institution. Interesting patterns and attacks

(Chandola et al., 2009) were identified and some of

them were not even known by the domain experts.

Rest of the paper is organized as follows. Section

2 reviews related work regard to web log pre-

processing, web session clustering, regular

expressions and episodes (sub sequences). In section

3 we describe the implemented system. Section 4

presents the evaluation and section 6 concludes the

paper.

2 RELATED WORK

There are many web-based sites to cater for

unending user requirements. These websites contain

user access logs that contain important information

such as access sequence patterns and web traffic.

Web mining and web session mining discover and

extract the above hidden information ( Fu and

Sandhu, 1999).

Before web session mining, web log data

cleaning and pre-processing is needed. Web log pre-

processing contains two main units, cleaning log

data and user session identification. The log data

cleaning steps include data selection, normalization,

cleaning and transformation (Aye, 2011). Web log

data pre-processing is a complex process and takes

more than half of the time of the total log mining

process (Cooley et al., 2013). The purpose of data

cleaning is the removal of outliers or irrelevant data.

User session identification unit consists of user

identification, session identification and user access

path completion (Srivastava and Cooley, 2000). This

is the most common log pre-processing order in web

usage mining.

2.1 Web Session Mining Techniques

Most of the related research efforts focus on three

main paradigms: association rules (Hipp et al.,

2000), sequential patterns (Iváncsy and Vajk, 2006),

and clustering (Langhnoja et al., 2013). Clustering

has been widely used in web usage mining to group

similar sessions. For instance divisive hierarchical

clustering techniques are used to group web site

users according to their interests (Kim and Chan,

2003). Genetic Algorithms are used to improve the

results of clustering through user feedback (Holland,

1992).

Clustering based techniques rely on the following

assumption: normal data instances lay close to their

closest cluster centroid, while anomalies are far

away from their closest cluster centroid (Nazeer and

Sebastian, 2009). This technique declares any data

instance that does not belong to any cluster as

anomalous. A disadvantage of such techniques is

that they are not optimized to find anomalies, since

the main aim of the underlying clustering algorithm

is to find clusters. If any attacker or malicious user

performs as a normal user, they will be in the same

cluster with the normal user, and will not be

identified.

Association rule mining and clustering are

combined into a method called association rule

hypergraph partitioning(Han and Karypis,

1998).This algorithm can handle higher dimensional

data sets, but it can only find frequent item sets that

have support greater than a specified threshold and it

could lose some interesting patterns.

Mining web log datasets has been extensively

studied using Frequent Pattern Mining (FPM) (Han

et al., 2007). Since item sequences are not

considered in these studies, interesting patterns are

missed.

The studies of sequential pattern mining have

been extended in several different ways. (Yun and

Leggett, 2006) proposed an approach with weighted

sequential pattern mining in large sequence

databases (WSpan) to push the weight constraints

into the sequential pattern growth. WSpan

introduces a weight range and weight is taken from a

defined weight range, but still it has a limitation as

the range is pre-defined. W-support (weight support)

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

344

measurement(Sun and Bai, 2008) is not

recommended for dense data sets as well. In

sequential pattern mining, researchers face pattern

growth problem (Yu and Korkmaz, 2015). In

sequential mining, huge numbers of patterns are

detected and the length of the patterns is also large.

Anomaly score of a data instance is computed as

the sum of its distances from its k nearest neighbours

(Wang and Tsong-Li, 1994). Defining distance

measures between instances can be challenging

when the data is complex and malicious users also

act like normal users. In nearest neighbour

techniques, if the data has normal instances that do

not have enough close neighbours or if the data has

anomalies that have enough close neighbours, the

technique fails to label them correctly, resulting in

missed anomalies.

Density based anomaly detection techniques such

as local outlier factor (Pokrajac and Hartford, 2007),

and Distance-based outliers (Knorr et al., 2000)

estimate the density of the neighbourhood of each

data instance. An instance that lies in a

neighbourhood with low density is declared to be

anomalous while an instance that lies in a dense

neighbourhood is declared to be normal. Density

based techniques perform poorly if the data has

regions of varying densities. In web logs there are

many areas of varying densities as there are multiple

levels and groups of users for web sites.

2.2 Episodes in Sequences and Regular

Expressions

Episode is not a new concept in the domain of web

usage mining. Frequent episodes have been

identified in sequences, where episodes specify the

temporal before-and-after relationship, but without

timing-interval restrictions (Mannila et. al., 1995).

WebSIFT theoretically presents episode

identification for web session mining, which is used

in sequential pattern mining (Srivastava and Cooley,

2000). However, this technique has not been

implemented. (Yu and Korkmaz, 2015) were able to

identify general structures spanning over multiple

sequences by detecting the most common sub-

sequences (e.g., the pages visited). They are not able

to handle repeating (looping) sequences.

Regular expression is a sequence of symbols and

characters expressing a pattern, mainly for use in

pattern matching with strings (Liang and Tianyi,

2014). The simplest regular expression is a single

literal character except for the special meta

characters *+?()|. The use of regular expressions has

been presented as a sequential pattern mining

process (Han et al., 2007). However, regular

expressions are not used in web session pattern

detection. The suffix array (SA) (Manber and Myers,

1991) of any string T is an array of length |T | such

that SA[i] = j, where T [j : |T |] is the i-th

lexicographically smallest suffix of T. The suffix

array for any string of length |T | can be constructed

in O(|T |) time (Kasai et al.,1997). Suffix array is a

popular data structure in genetic algorithms to find

the longest pattern (Huo et al., 2014). But in web

sessions we need to identify all the patterns in

sessions and they are not as long as genetic datasets.

3 EPISODE BASED SYSTEM

Our system contains three modules. First is the web

log data cleaning module, which is responsible for

purifying the web access log data by removing

unwanted parameters. Web sessions are built from

this module.

The second module generates regular

expressions by processing web sessions. These

regular expressions are indexed with the count of

results.

The final module groups the regular expressions

by looking at their similarity and the count of their

occurrences in a web session. Those regular

expressions are indexed and stored in suffix arrays.

Suffix array used in this work is improved with the

occurrence count. Therefore most common regex

can be found easily. The groups represent episodes

that have semantic meaning to understand the

website user activities. Sessions are updated with

episodes. Figure 1 shows the modular architecture of

the implemented system.

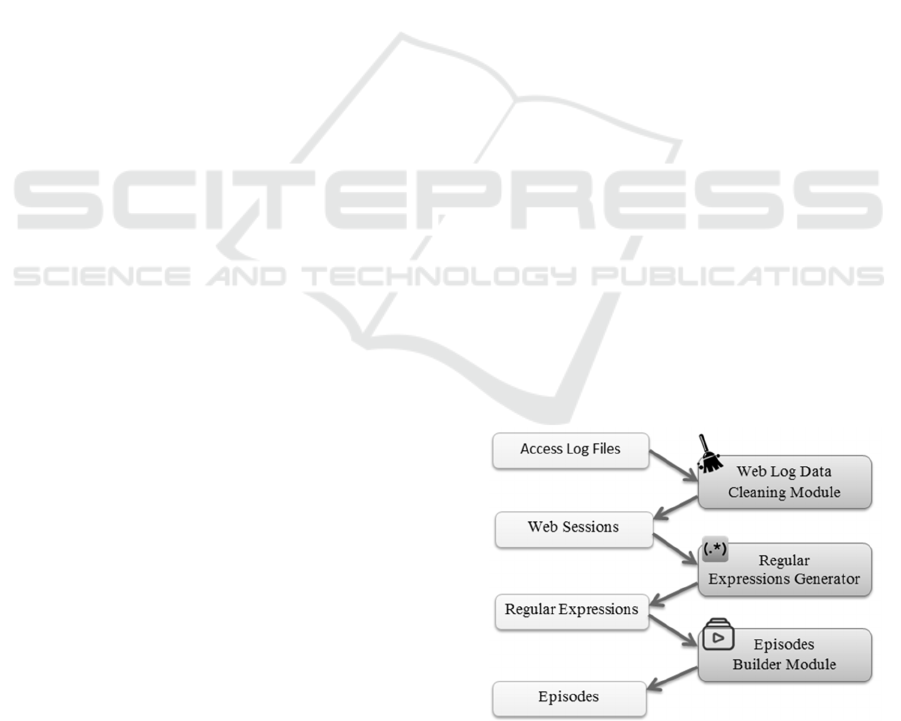

Figure 1: System architecture.

An Episode-based Approach to Identify Website User Access Patterns

345

3.1 Web Log Data Cleaning Module

Web log data cleaning module is responsible for

cleaning web log data and identifying web user

sessions. We read the server access logs and filter

the log records. There are access logs with different

sizes that are created daily or weekly. Filtered and

structured log records are appended to one file called

‘log’. Log data are cleaned using three steps as

shown in Figure 2. Sessions are generated by

grouping ‘IP’ or 'IP' and 'Agent'. These web user

sessions are included in a session file. Each URL is

given a unique number (integer). Mapping file

contains the mapping of these integer numbers to the

URLs.The mapping file is sorted and the similarities

between the URLs are found by looking at argument

length and argument name in the URLs. Once these

arguments are removed, only one entry per URL is

left on the mapping file.

The most requested pages for a time period can

be retrieved by counting the number of web page

requests. The new mapping file for most common

pages (page occurrence count can be adjusted) is

built.

Figure 2: Web log data cleaning module.

3.2 Regular Expressions Generator

Figure 3: Regular Expressions Generator.

The regular expressions generator in Figure 3

contains three components. They are session

subsequence builder, suffix array builder and regex

builder.

Output of the session subsequence builder, i.e.

sub-sequences (page sequences) are stored in a list

similar to improved suffix array. The suffix array

builder outputs an improved suffix array of sub-

sequences and the regex builder outputs a list of

regular expressions.

As explained in section 2, suffix arrays have

been commonly used to identify the longest pattern

in genetic algorithms(Pham and Duc, 2012) and on-

line string searches (Wang et al., 2012). When using

suffix arrays for web sessions, the limitation of

suffix array approach is that it does not uniquely

identify page sequences that are situated in the

middle section of a session. Therefore session

subsequence builder generates an sub-sequences

(Sidorov et al., 2014) from sessions. Lengths of sub

sequences are configured manually or in default

mode it has a fixed range from 2 to the length of the

sessions.

The sub-sequences are stored with a suffix. We

introduce new feature column for suffix array called

count that represents the occurrence count. When

there is a suffix count for suffix array, it reduces the

suffix array length and enables to find sub-sequences

distribution as well. It is a data structure used,

among others, in full text indices, data compression

algorithms and within the field of bioinformatics

(Arnau et al., 2014). In here we are using this

technique for page sequences compression and to

increase performance of our system.

Table 1 represents a sample session (session no.

101) in a normal sorted suffix array. Table header i

represents the string charter index and here it is the

session page index. If we used sorted suffix array,

we would not be able to find all the patterns in

sessions. This is because some page sequences such

as {34,34,23}, {34,12,11} are missed from the

middle part of the session string.

Session no. 101: 12, 34, 34, 23, 11, 45

Table 1: Sorted Suffix Array.

Suffix i

$ 7

11, 45 $ 5

12, 34, 34, 23, 11, 45 $ 1

23, 11, 45 $ 4

34, 23, 11, 45 $ 3

34, 34, 23, 11, 45 $ 2

45 $ 6

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

346

A suffix is part of a user page access sequence in

sessions. Table 2 shows an improved sorted suffix

array with index; a unique number for suffix is

assigned and it is built from sub-sequences. Suffix

count is an important part in our system as it

represents the commonness of user accesses. From

count we can get the most common and uncommon

user access patterns.

Session no 101: 12, 34, 34, 23, 11, 45

Table 2: Sorted suffix array from sub-sequences.

Index Suffix Coun

1 11

45 1

2 12

34 1

3 12

34 1

4 12

23 1

5 12

11 1

6 12

45 1

7 23

11 1

8 23

45 1

9 34

45 1

10 34

11 1

11 34

23 1

12 34

45 1

13 34

11 1

14 34

23 1

15 34

34 1

When a new subsequence is picked from a

session, it is added to the sorted suffix array if it

does not exist there. But if it exists, count of suffix is

incremented by one. The suffixes (page sequences)

are processed in the regular expression engine and

regular expressions are its output.

We have used page sequences as strings. There

are few syntax patterns for regex. Here we used

traditional UNIX egrep regular expression syntax

(Sidhu and Reetinder, 2007).

3.3 Regular Expression Episode

Representation

Let web page P be denoted as P and Session S as

S=P[1]P[2]...P[n] and let P[i,j] denote an episode of

S ranging from i to j. A regular expression can be

mapped to any page sequence and it can be called an

episode.

When we map episodes to sessions, there can be

alternations, repetitions and concatenations. Suppose

ande

are two regexes from sub-sequences n of

session s, and n

and n

are sub-sequences of session

s. if e

matches n

and e

matches n

, then e

matches n

or n

, and e

matches n

For example, Figure 4 shows a session with page

order accessed by a user. There are page repeating

patterns as shown in sections (a) and (b). Regex for

a is [P

](2) and for b is P

[2] . Session s can be

updated as in Figure 5. There are no overlapping

episodes in the session in Figure 5. Regexes in the

middle are also considered.

Figure 4: Sample session with page sequence.

Figure 5: Session with episode representation.

4 EVALUATION

Here we present two quantitative and one qualitative

experiment done during the system evaluation. A

university website, a financial institution website

and a non-profit organization website are considered

in our evaluations. These website are denoted by U,

F and N respectively from here onwards.

4.1 Results

Firstly we discuss the two quantitative experiments.

In the first experiment, we cluster the three sites U,

F and N using DBSCAN and k-means. First we run

the algorithms with web page occurrences in the

session. Then the algorithms are run with episode

based sessions. Completeness is a standard way to

verify the effectiveness of clustering

mechanisms(Andrew, 2007). A clustering result

satisfies completeness if all the data points that are

members of a given class are elements of the same

cluster.

Figure 6 shows the results on a bar chart. We can

see that our episode-based approach gives a better

performance with respect to completeness.

User sessions are built from log data of website

U, F and N. We ran the k-means and DBSCAN

clustering several times with different parameters.

We got results with completeness. Figure 6 presents

the best count for completeness for each cluster

technique. Domain experts labelled the clusters and

data records. Labelled data set is used to evaluate the

An Episode-based Approach to Identify Website User Access Patterns

347

system for completeness. Frequent pattern mining

algorithm, given large amount of user groups

(clusters) those groups are meaningless. Sequential

pattern mining gave good results for the sample data

(one week period), but for the whole dataset (four

month dataset) gave performance issues due to the

pattern growing problem.

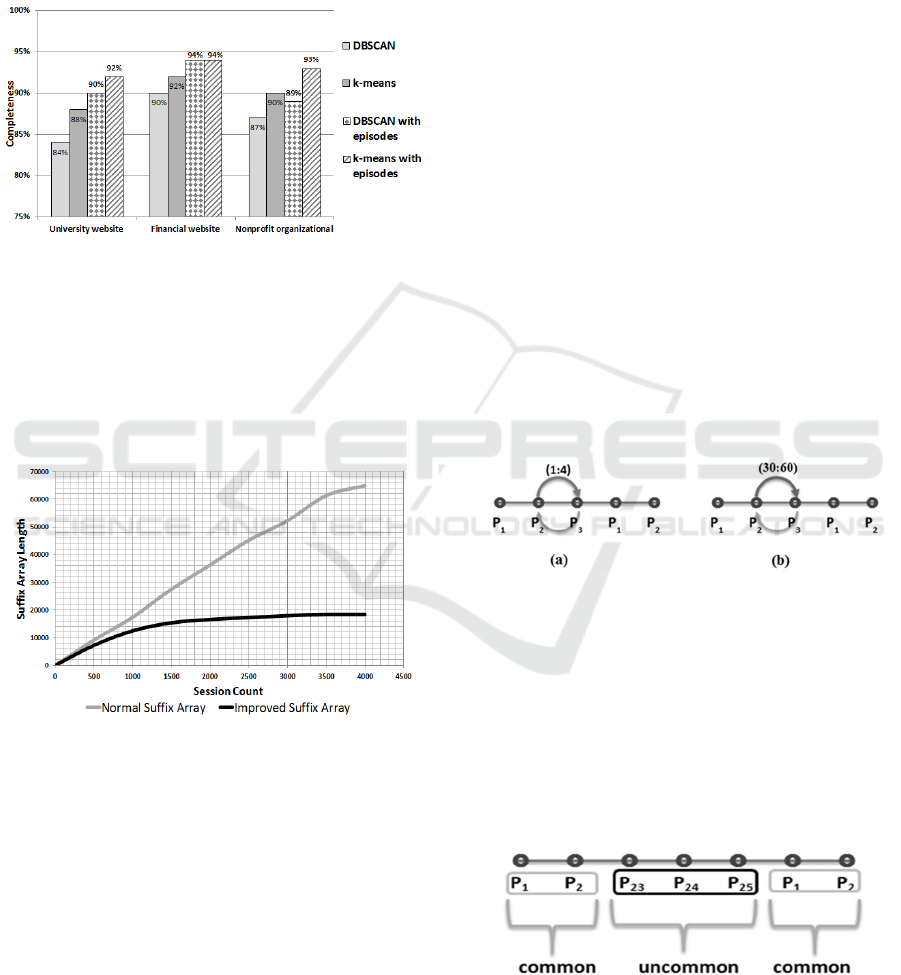

Figure 6: Completeness of Clustering algorithms and our

system.

In the second experiment, we improved the suffix

array by introducing the suffix count. This

improvement reduced the length of the array. This is

due to the array only containing unique suffixes with

session count. So we can identify the most common

suffixes of all the sessions.

Figure 7: Suffix Array length growth for the two suffix

array versions in website N.

As shown in Figure 7, the normal suffix array

represents a linear relationship with session count

and suffix array length. The improved suffix array

comes to a steady state when session count is

increased.

4.2 Identifying Attacks on a Website

In the qualitative experiment we demonstrate how

we found two attacks and some other interesting

user patterns in website N.

We have a list of episodes with regex

representation and each episode has the occurrence

count stored in the improved suffix array. The most

common episodes can be identified from the count.

Also we can find the most similar episode for any

given episode.

By looking at count distribution we can find

interesting patterns. If a particular episode has a less

count value in the suffix array, and the similarity

between this episode and others is less, then this

episode could most probably be an attack. If regex

similarity is high, count is low and episode repeating

count is very high, then this also could be an attack.

After inspecting the particular session and log record

references (where the user was previously browsing)

we can confirm whether this is an attack or not.

Time gap between web requests sent can be used to

confirm whether the interesting pattern belongs to a

human user or a malicious tool.

Using the approach just discussed above, we

detected some attacks and below we will explain

them. An attack was detected and the attacker’s web

session sequence was like a normal user access

pattern. In Figure 8 (a), normal user access pattern

contains 1 to 4 episodes repeating and (b) attacker

pattern also repeats the same episode (page

sequences) but the repeating count was very high

from 30 to 60.

Figure 8: (a) Normal user pattern. (b) Attacker pattern.

The second attacker sends few requests to

common pages such as home page and contact page

denoted by p

and p

as shown in Figure 9. Then he

sends requests to admin pages (p

, p

) and login

pages (p

), which a normal user does not request in

this sequence. Web pages p

and p

are also admin

pages that normal website user does not access. He

repeats this process again for many times. Figure 9

shows the page request sequences.

Figure 9: Sample web session attack.

Therefore we can see that the attackers

camouflage themselves as common users but

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

348

examining their user patterns can expose their

malicious behaviour.

Above attack patterns are contained in one

session or few sessions. Therefore DBSCAN or

density techniques will not pick them as interesting

patterns as they have low densities. In k-means those

sessions are inside a cluster as they are similar to

normal user patterns. Therefore above explained

attacks or interesting patterns are not identified by

density based technique, nearest neighbour analysis

technique or cluster technique.

Common user patterns are nicely highlighted

when we go through the access patterns.

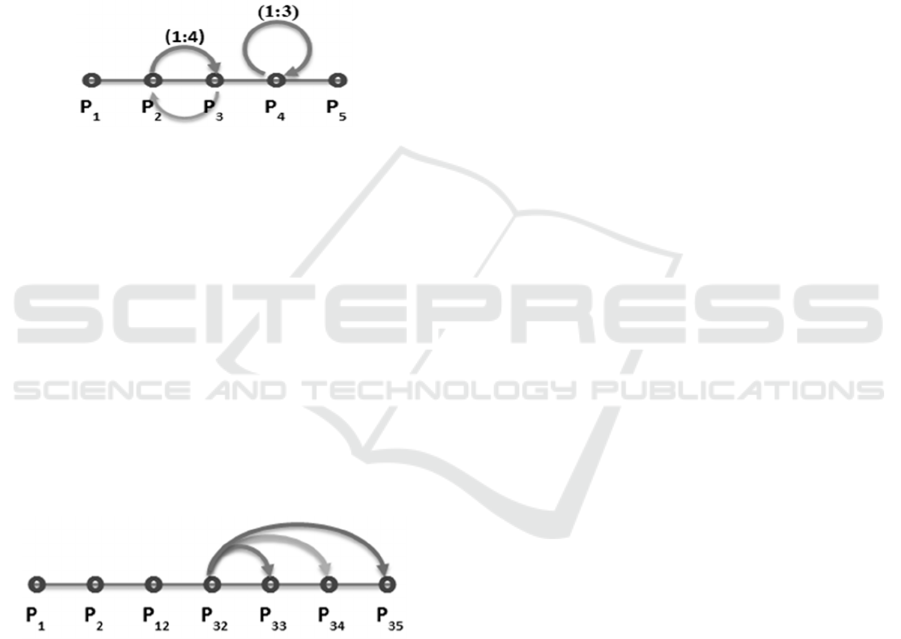

Figure 10: Search user access pattern, P

= home page, P

= feature list page, P

= search page, P

= Result page, P

= result detail page.

Figure 10 shows the search user access pattern.

User comes to P

(home page) then he moves to

feature list page, P

where it lists down web site

features. He picks the search feature from feature list

page and he navigates to search page, P

. He loops

for 1 to 4 times between pages P

and P

as in Figure

10. After he finds the interesting results, he sorts and

filters the results in result page, P

. The Page P

looped for 1 to 3 times. Then he finds the correct

result and goes to the detail view of the result item

. Figure 10 represents the regular expression by

, (P

){1:4},P

{1:3},P

Figure 11: Article readers access patterns in website N, P

= article list, P

, P

and P

are article pages.

Figure 11 shows the access pattern of

alternation. He navigates through P

, P

and P

is page that list articles. User can select from the

alternatives P

, P

and P

, the article he prefers.P

, P

| P

) is the regex of Figure 11.

Most of the users use only about 5% of the

website functionality and some users loop through

few of the web pages over and over again. This leads

to better understanding of human interaction and

interfaces of a web site. It brings about better

designs in HCI and resolves navigational and other

access issues in a website.

5 CONCLUSIONS

This paper presented an episode- based approach to

identify website access patterns of users. Although

regular expressions have been commonly used in

many other domains to identify string patterns, this

is the first time for them to be applied in identifying

website access patterns. The use of regular

expressions not only identifies the common access

patterns, but also the rare access patterns, which

could refer to anomalies such as attacks. We

demonstrated that the completeness of this approach

is considerably higher than the same of some

popular clustering algorithms.

Currently we have not considered the ‘not’

notation in regex. Therefore we cannot include them

in our representations. In future we are going to

implement the ‘not’ notation in our solution and

cover all meta characters in regex such as [^], ?and \.

ACKNOWLEDGEMENTS

This research was supported by the LK Domain

Registry, Sri Lanka. We thank our colleagues from

Research Division of LK Domain Registry who

provided insight and expertise that greatly assisted

the research.

REFERENCES

Arnau, V. et al., 2014. Acceleration of short and long

DNA read mapping without loss of accuracy using

suffix array. , 30(23), pp.3396–3398.

Aye, T., 2011. Web log cleaning for mining of web usage

patterns. Computer Research and Development

(ICCRD), 2011.

Chandola, V., Banerjee, A. & Kumar, V., 2009. Anomaly

detection: A survey. ACM Computing Surveys

(CSUR), p.74.

Cooley, R., Mobasher, B. & Srivastava, J., 2013. Data

Preparation for Mining World Wide Web Browsing

Patterns. Knowledge and Information Systems, 1(1),

pp.5–32.

EH Han, G Karypis, V Kumar, B.M., 1998. Hypergraph

Based Clustering in High-Dimensional Data Sets : A

Summary of Results. IEEE Data Eng, 21.1, pp.15–22.

Facca, F.M. & Lanzi, P.L., 2005. Mining interesting

An Episode-based Approach to Identify Website User Access Patterns

349

knowledge from weblogs: a survey. Data &

Knowledge Engineering, 53(3), pp.225–241.

Goldberg, D.E., 2006. Genetic Algorithms in Search ,

Optimization , and Machine Learning, Pearson

Education India.

Han, J. et al., 2007. Frequent pattern mining: current status

and future directions. Data Mining and Knowledge

Discovery, 15(1), pp.55–86.

Hartigan, John A., and M.A.W., 1979. A K-Means

Clustering Algorith. Applied statistics, pp.100–108.

Hipp, Jochen, Ulrich Güntzer, and G.N., 2000. Algorithms

for Association Rule Mining – A General Survey and

Comparison. ACM sigkdd explorations newsletter 2.1,

pp.58–64.

Holland., J., 1992. Adaptation in natural and artificial

systems: an introductory analysis with applications to

biology, control, and artificial intelligence, MIT press.

Huo, H. et al., 2014. A Practical Implementation of

Compressed Suffix Arrays with Applications to Self-

Indexing. 2014 Data Compression Conference, (2),

pp.292–301.

Iváncsy, R. & Vajk, I., 2006. Frequent Pattern Mining in

Web Log Data. , 3(1), pp.77–90.

J Srivastava, R Cooley, M.D., 2000. Web Usage Mining :

Discovery and Applications of Usage Patterns from

Web Data. ACM SIGKDD Explorations Newsletter

1.2, pp.12–23.

Kasai, T. et al., Computation in Suffix Arrays and Its

Applications. , pp.181–192.

Kim, H.R. & Chan, P.K., 2003. Learning implicit user

interest hierarchy for context in personalization.

Proceedings of the 8th international conference on

Intelligent user interfaces - IUI ’03, p.101.

Knorr, E.M., Ng, R.T. & Tucakov, V., 2000. Distance-

based outliers: algorithms and applications. The VLDB

Journal The International Journal on Very Large Data

Bases, 8(3-4), pp.237–253.

Langhnoja, S.G., Barot, M.P. & Mehta, D.B., 2013. Web

Usage Mining to Discover Visitor Group with

Common Behavior Using DBSCAN Clustering

Algorithm. , 2(7), pp.169–173.

Liang, Tianyi, et al., 2014. A DPLL ( T ) Theory Solver

for a Theory of Strings and Regular Expressions.

Computer Aided Verification. Springer International

Publishing, pp.1–22.

Manber, U. & Myers, G., 1991. Suffix arrays: A new

method for on-line string searches.

Mannila, Heikki, Hannu Toivonen, and A.I.V., 1995.

Discovering frequent episodes in sequences Extended

abstract. In The first Conference on Knowledge

Discovery and Data Mining.

MN Garofalakis, R Rastogi, K.S., 1999. SPIRIT :

Sequential Pattern Mining with Regular Expression

Constraints. VLDB. Vol. 99, pp.223–234.

Nazeer, K.A.A. & Sebastian, M.P., 2009. Improving the

Accuracy and Efficiency of the k-means Clustering

Algorithm. , I, pp.1–5.

Pham, Duc, and D.K., 2012. Intelligent optimisation

techniques- genetic algorithms, tabu search, simulated

annealing and neural networks.pdf

, Springer Science

& Business Media.

Pokrajac, D. & Hartford, E., 2007. Incremental Local

Outlier Detection for Data Streams. , (April).

Rosenberg, Andrew, and J.H., 2007. V-Measure: A

Conditional Entropy-Based External Cluster

Evaluation Measure. EMNLP-CoNLL. Vol. 7, pp.1–2.

Sidhu, Reetinder, and V.K.P., 2007. Regular expression

matching can be simple and fast. Perls Dev. Conf.

Sidorov, G. et al., 2014. Syntactic sub-sequences as

machine learning features for natural language

processing. Expert Systems with Applications 41.3,

(Cic), pp.853–860.

Sun, K. & Bai, F., 2008. Mining Weighted Association

Rules without Preassigned Weights. , 20(4), pp.489–

495.

Wang, L. et al., 2012. A Complete Suffix Array-Based

String Match Search Algorithm of Sliding Windows.

2012 Fifth International Symposium on Computational

Intelligence and Design, pp.210–213.

Wang, Jason Tsong-Li, et al., 1994. Combinatorial pattern

discovery for scientific data: Some preliminary results.

ACM SIGMOD Record. Vol. 23. No. 2, pp.1–2.

Y Fu, K Sandhu, M.S., 1999. Clustering of Web Users

Based on Access Patterns. KDD Workshop on Web

Mining. San Diego, CA. Springer-Verlag.

Yu, X. & Korkmaz, T., 2015. Heavy path based super-

sequence frequent pattern mining on web log dataset.

Artificial Intelligence Research, 4(2), pp.1–12.

Yun, U. & Leggett, J.J., 2006. WSpan: Weighted

Sequential pattern mining in large sequence databases.

2006 3rd International IEEE Conference Intelligent

Systems, pp.512–517.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

350
