A Robust Particle Filtering Approach with Spatially-dependent Template

Selection for Medical Ultrasound Tracking Applications

Marco Carletti

, Diego Dall’Alba

, Marco Cristani

1,2

and Paolo Fiorini

Department of Computer Science, University of Verona, I-37134, Verona, Italy

Istituto di Scienze e Tecnologie della Cognizione (ISTCnr), Consiglio Nazionale delle Ricerche (CNR), Trento, Italy

Keywords:

Medical Image Applications, Ultrasound Tracking, Particle Filtering, Template Selection, Motion Flow.

Abstract:

Tracking moving organs captured by ultrasound imaging techniques is of fundamental importance in many

applications, from image-guided radiotherapy to minimally invasive surgery. Due to operative constraints,

tracking has to be carried out on-line, facing classic computer vision problems that are still unsolved in the

community. One of them is the update of the template, which is necessary to avoid drifting phenomena in

the case of template-based tracking. In this paper, we offer an innovative and robust solution to this problem,

exploiting a simple yet important aspect which often holds in biomedical scenarios: in many cases, the target

(a blood vessel, cyst or localized lesion) exists in a semi-static operative ﬁeld, where the unique motion is due

to organs that are subjected to quasi-periodic movements. This leads the target to occupy certain areas of the

scene at some times, exhibiting particular visual layouts. Our solution exploits this scenario, and consists into

a template-based particle ﬁltering strategy equipped with a spatially-localized vocabulary, which in practice

suggests the tracker the most suitable template to be used among a set of available ones, depending on the

proposal distribution. Experiments have been performed on the MICCAI CLUST 2015 benchmark, reaching

an accuracy (i.e. mean tracking error) of 1.11 mm and a precision of 1.53 mm. These results widely satisfy the

clinical requirements imposed by image guided surgical procedure and show fostering future developments.

1 INTRODUCTION

Surgical practice is constantly replacing traditional

invasive approaches with minimally invasive surg-

eries (MISs), which provide many beneﬁts for the

patient such as reduced post-operative complications

and faster recovery. These MISs require accurate po-

sitioning of the surgical tools to guarantee the cor-

rect treatment of the diseased area. Although these

procedures could be performed blindly, the introduc-

tion of medical image guidance could improve the

outcome of the procedure even in case of very com-

plex cases. This image guidance is further important

when the target area is moving, for instance due to

breathing motions in abdominal and thoracic areas.

The tracking of respiratory dynamics requires a real

time feedback and error in order of 1 mm to guaran-

tee the expected precision and accuracy of the proce-

dure; moreover, the tracking method should guaran-

tee its processing performance over a long period of

time (in the order of several minutes) compatible with

the duration of the most critical step of the procedure

(De Luca et al., 2013).

Between all the possible image guidance tech-

nologies, ultrasound (US) image provides some inter-

esting characteristics that could not be found in other

medical image modalities (such as computer tomog-

raphy (CT) or magnetic resonance imaging (MRI)):

US is not based on ionizing radiation, the acquisition

device does not require a dedicated room since the

scanner is compact and lightweight and US is able to

acquire images in real time, with very high acquisi-

tion rate up to 100 frames per second. Unfortunately,

all these interesting characteristics come at the cost of

lower contrast and spatial details compared to other

modalities and strong presence of non-Gaussian noise

with complex statistical properties, usually referred

as speckle. According to (Douglas et al., 2001), the

US guided percutaneous procedures are constantly in-

creasing in United States, due to the continuous im-

provement of scanner technology and lower costs.

More than 90% of the total procedures are performed

under US guidance for cancer management, which is

the second most common cause of death in United

States (Siegel et al., 2015).

All the structures in abdominal and pelvic areas

524

Carletti, M., Dall’Alba, D., Cristani, M. and Fiorini, P.

A Robust Particle Filtering Approach with Spatially-dependent Template Selection for Medical Ultrasound Tracking Applications.

DOI: 10.5220/0005725505220531

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 524-533

ISBN: 978-989-758-175-5

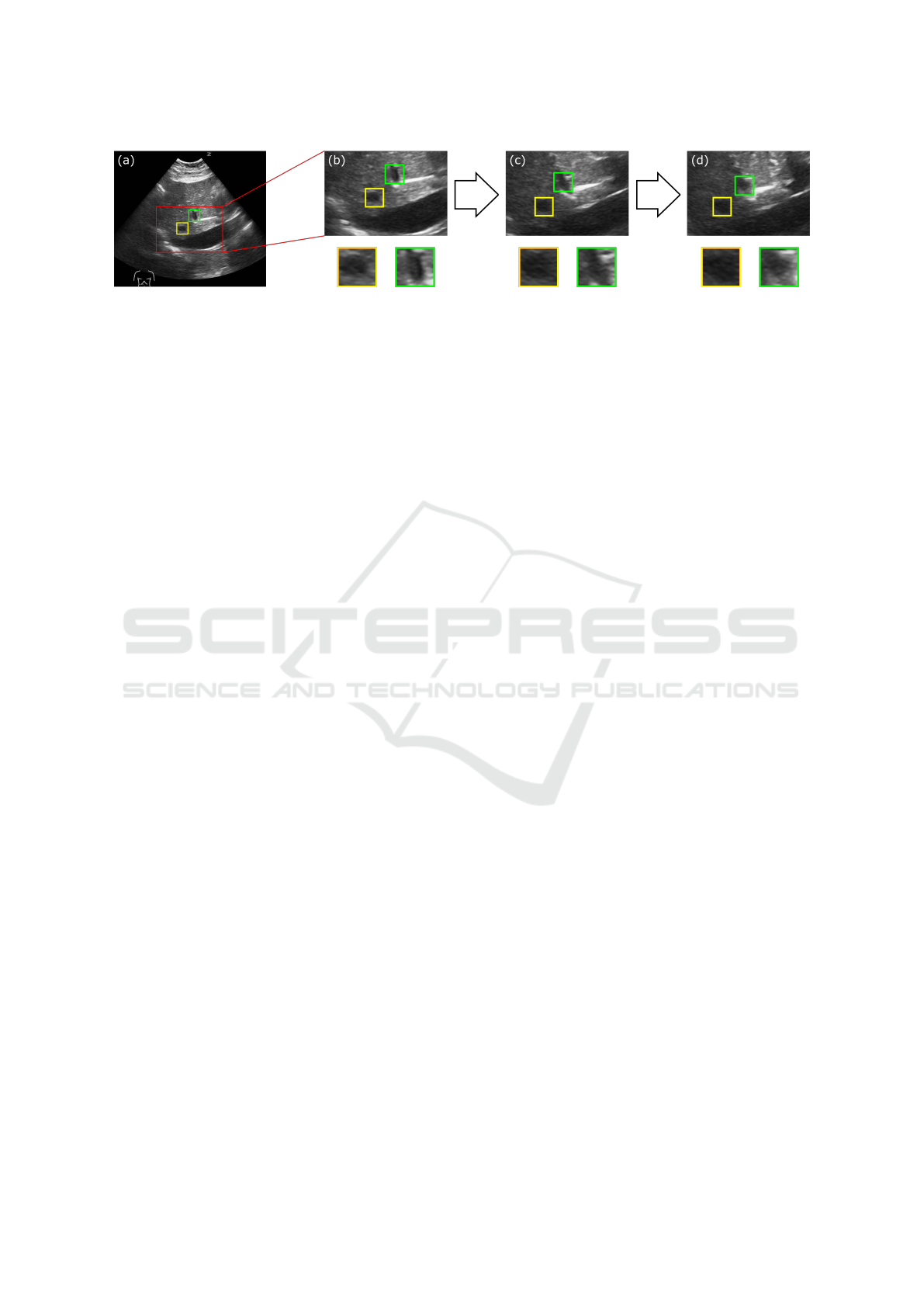

Figure 1: The ﬁgure shows the strong changes in the appearance of different regions of interest, extracted in different temporal

and spatial positions of the image sequence. In (a), the original frame extracted from the US sequence MED-05-1 with the

regions of interest in the highlighted boxes. From (b) to (d) the appearance of the corresponding regions at different instants

of the sequence.

are subjected to breathing motions, that makes re-

ally complex an accurate targeting of pathological ar-

eas for diagnosis and treatment. These regions have

been tracked on US sequences using different ap-

proaches: speckle tracking, optical ﬂow, intensity-

based, feature-based and hybrid methods (see Section

2 for a review).

In all these cases tracking has to face classical

problems which are still of interest in the computer

vision community, like the model drifting (Matthews

et al., 2004; Rattani et al., 2009). This problem holds

in the template-based tracking strategies, where the

object to track is modeled by an exemplar; such ex-

emplar has to be chosen in order to match with the

moving target, and in principle should be able to cope

with changes in appearance, pose, illumination etc.

Unfortunately, a single template does not meet these

requirements, and strategies of template updating are

needed. In general, these strategies modify the ap-

pearance of the target to track, employing mecha-

nisms of soft renewal given by online learning tech-

niques (Matthews et al., 2004; Rattani et al., 2009).

In biomedical applications, online strategies are often

not capable to cope with the dramatic changes that the

object of interest undergoes in the target area (as vis-

ible in Figure 1), resulting in very frequent tracking

failures.

In this paper, we present a tracking approach that

represents a valid solution for the problem of the

model drifting, which is especially suited to scenar-

ios characterized by the following constraints:

• The sensor that captures the target area is static,

that is, the unique motion in the scene is due to

foreground entities; one or more of these moving

entities are the targets to track;

• The moving entities follow quasi periodic trajec-

tories, possibly changing their appearances dras-

tically and where a given appearance could be

statistically associated to a given position in the

tracking area.

These constrains are really common in US guided

surgical procedures, since the most common causes

of physiological deformation and movements are

breathing motions and hearth beat, which are both

highly repetitive (despite the temporal frequency may

change). Even if we release the ﬁrst constraint, we

can still use an external tracking system to compen-

sate for the movement of the US sensor (Mercier

et al., 2005).

An example of such constraints are reported in

Figure 1, in which liver vessels subjected to breath-

ing motions and deformations are considered. These

requirements are very typical in the case of structures

subjected to respiration motion on US sequences: our

claim is that these phenomena have been never taken

actively into account, and this is a mistake, since on

the contrary they could be exploited as advantages.

The proposed approach consists in a particle ﬁlter-

ing framework (Isard and Blake, 1998), in which the

target is tracked by employing an advanced template

matching procedure in the observation step; the nov-

elty lies on the fact that the template is not unique, but

it is chosen among a dictionary of templates, and that

these templates are selected in dependence on the po-

sition in which the target is assumed to be (that is,

checking the position of each particle as it is sam-

pled from the proposal distribution). The dictionary

is built by a semi-automatic training stage, in which

the only supervision required to the user amounts to a

selection of a small set of ground truth positions of the

target(s) (max 30 locations): once the positions have

been deﬁned, a non parametric clustering approach

(afﬁnity propagation (Frey and Dueck, 2007)) operat-

ing on the x,y coordinates and the visual appearance

individuates those zones that more reliably could be

represented by a given template. The approach has

also a single parameter to set, which is the width of

the observation window, plus the duration of the dic-

tionary training stage, which however is usually set

by following medical guidelines (see Section 4 for de-

tail). This promotes our approach for practical use by

medicians. Also, an automatic procedure to rescue

the failure of tracking is proposed exploiting the as-

A Robust Particle Filtering Approach with Spatially-dependent Template Selection for Medical Ultrasound Tracking Applications

525

sumption of the localization of the target.

Extensive experiments have been performed on

the MICCAI CLUST 2015 benchmark, showing on

24 video sequences very convincing results; in partic-

ular, on the benchmark data we overcome all the com-

parative baselines, reaching an average accuracy (i.e.

mean tracking error) of 1.11 mm and a precision of

1.53 mm. Moreover, these results widely satisfy the

clinical requirements imposed by common US guided

surgical procedures.

The paper is structured as follows: literature re-

view is presented in Section 2, while in Section 3 the

proposed tracking method is described. In Section 4

the evaluation procedure and results are described and

discussed, and, ﬁnally, Section 5 is left for the conclu-

sion and future development of the proposed method.

2 LITERATURE REVIEW

Considering the physical principles behind US image

formation, speckle tracking has been applied to US bi-

dimensional images in (Lubinski et al., 1999), while

the tri-dimensional case has been studied in (Har-

ris et al., 2010) and (Lediju et al., 2010). These

approaches suffer from the technical and hardware

limitations of the actual US scanners and the com-

plex deformation and motion of tissues imaged with

US; therefore, these methods do not obtain perfor-

mance compatible with the challenging clinical con-

ditions. Estimating the optical ﬂow in US image

is a very complex problem due to poor data char-

acteristics. Despite all these limits, a differential

approach called Iterative Conditional Models (ICM)

has been originally introduced in (Geman and Ge-

man, 1984), and later its computational performances

have been improved in (Liu, 2009). Phase Con-

gruency (PC) (Kovesi, 2003) is a processing tech-

nique based on frequency analysis that is robust to

noise, intensity variation and artifacts. As a result

of these properties, PC analysis has been used to

overcome the described US limitations in different

applications in (DallAlba and Fiorini, 2015) (Gau-

tama and Van Hulle, 2002), (Tomasi et al., 2010).

Many block matching (BM) methods have been ap-

plied to US tracking, for instance a multi-scale ap-

proach based on spectral principal component anal-

ysis (PCA) (De Luca et al., 2013) is able to obtain

tracking accuracy in the order of 1 mm. Other multi-

scale and iterative approaches have been presented

in (Bouguet, 2001) and (Farneb

ack, 2003) with com-

parable results.

A similar approach to BM is Template Matching

(TM), where a template is deﬁned at the beginning

of the tracking process and is matched in subsequent

images under the assumption of invariant appearance

of the template. In US images, it is very difﬁcult that

this assumption is satisﬁed, therefore improved meth-

ods have been proposed in literature based on tem-

plate updating (Matthews et al., 2004; Rattani et al.,

2009) or dictionaries (Mei et al., 2007).

Most of the available TM and BM methods are

based on raw pixel intensity; instead, feature based

methods extract more structured information from US

images. Edge information were among the ﬁrst fea-

tures used; for instance, in (Guerrero et al., 2007), a

probabilistic edge detector method combined with a

Kalman ﬁlter obtains results comparable to the one

of an expert clinician on the segmentation and track-

ing of vessels. Other methods for the same clinical

problem are presented in (Angelova and Mihaylova,

2011) and (Zhang et al., 2010), based respectively on

Multi Model Particle Filter and snake segmentation

supported by a Bayesian ﬁlter. Another type of fea-

ture used for US tracking is the salient point extrac-

tion, even if it is not clear how to obtain a stable and

robust extraction in US images. Despite this limit,

salient points have been used for multi-modal image

registration in (Wong and Bishop, 2008) and image

matching in (DallAlba and Fiorini, 2015).

Hybrid methods have been introduced to over-

come the limitations of all the approaches previously

described, by combining two or more of them in a

single framework. A BM method combining PC and

intensity information to deﬁne an improved similarity

metric is described in (Cifor et al., 2012). The same

group extends the previous work for the diffeomor-

phic registration of 2D images (Cifor et al., 2013).

In (K

onig et al., 2014), the authors propose a multi-

resolution approach for vessel tracking based on rect-

angular templates for the computation of Normalized

Gradient Field (NGF). In (Somphone et al., 2014),

a sparse demons approach is proposed for the mini-

mization of tracking drift in long US image sequence,

with the goal of minimizing a previously deﬁned en-

ergy function (Thirion, 1998).

At this point, one may ask why other modern

strategies of tracking cannot be taken into account,

as the one of tracking with the support of a detector.

The presence of a detector in a tracking pipeline may

serve to initialize the tracker with a proper template

(Holzer et al., 2015), to create consecutive detections

to be associated in the target-by-detection paradigm

(Avidan, 2007), to help the tracking in the observation

step by suggesting where the object most probably lo-

cates (Breitenstein et al., 2009), or to work indepen-

dently on the tracker in a joint framework, updating

its detection model in an online fashion (Kalal et al.,

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

526

2012). In all the cases, a robust detector has to be

available, which is not a standard assumption in the

case of biomedical applications, where the object of

interest is often poorly distinguishable from the sur-

rounding background and whose appearance changes

radically (as visible in Figure 1).

For this reason, other approaches are often taken

into account, such as the template-based techniques

(previously explained), but also recipes based on B-

splines (Barbosa et al., 2012) or level sets (Dekel

et al., 2013).

3 METHOD

The approach follows the standard pipeline of the par-

ticle ﬁltering procedure (Isard and Blake, 1998), com-

posed by the phases of sampling, dynamics appli-

cation and observation, anticipated by a preliminary

step of initialization. Also, as an extension of the ob-

servation phase, a procedure to resolve the tracking

failure is proposed. The observation and the initial-

ization steps are the ones which embed the novelties

of our approach. In the following, each of these steps

will be explained in the details.

3.1 Initialization

The initialization serves to individuate the ﬁrst po-

sition where the object to track is located, but most

importantly to build the spatially dependent template

dictionary D before the tracking starts. To reduce the

noise of the images, each frame in the sequences is

preprocessed with a median ﬁlter, using a square 3×3

support area.

The idea is to let the human operator select a few

ground truth points in the image sequence (using a

simple interface which can stop/play the streaming to

ease the annotation with a single mouse click for each

object of interest), storing at each selection the x, y

coordinates and the visual appearance of the object

of interest, in terms of an array of grayscale values.

Concerning the appearance modeling, the user selects

a particular ﬁxed dimension d ∈ R

that individuates

a rectangular patch, so that the point selected by the

user corresponds to the center of the observation win-

dow. The selection of the observation window size

is in practice the only parameter the user has to set

(in addition to the training points) and the values of

all the remaining parameters are dependent on these

numbers, which will be kept ﬁxed during the whole

tracking procedure. After the template selection, the

arrays composed by coordinates and visual appear-

ance of the training locations are given to the afﬁn-

ity propagation clustering approach (Frey and Dueck,

2007), which provides a set of regions in which each

one of them is represented by as a single template, as

visible in Figure 2. In particular, the afﬁnity propaga-

tion builds a similarity matrix S between the training

arrays, where at position i j corresponds the following

similarity measure:

S(i, j) = kp

− p

(ssim(T

, T

) − 1) (1)

Above, the ﬁrst factor is the square euclidean distance

between the selected training points p

and p

, mul-

tiplied by a visual similarity score that is modeled

by the structural similarity measure (ssim) of (Wang

et al., 2004), that compares the templates T

and T

centered in p

and p

. In practice, the probability of

a point to be the centroid of a cluster augments when

the point is far or dissimilar to the others.

The structural similarity exploits the luminance,

contrast and structural components of two n-

dimensional signals and computes a bounded score

which describes the perceived quality (or similarity)

between them. The ssim function is upper bounded

to 1 but is not lower bounded. Despite this fact, we

found that considering as zero the negative results of

ssim does not provide visible side effects in the pro-

posed system. Based on the S matrix, the afﬁnity

propagation algorithm iterates until a partitioning of

the training points is obtained, automatically selecting

also the number of clusters. In the experiments, ap-

proximately 30 training points are required to obtain

complete classiﬁcation from the clustering method,

ensuring the convergence of the propagation proce-

dure in less than 200 iterations (see the experiments

Section 4). The clustering algorithm returns the dic-

tionary of reference templates. For each cluster, it is

selected the nearest point to the centroid, in an eu-

clidean distance sense, and its appearance is used as

reference.

3.2 Sampling

Given the initial position of the target to track, a set

of np particles is initialized with uniform weight and

spread over the location (see later for the automatic

selection of np). The spread g ∈ R

is equal to

g = 0.4d, so the 99% of the particles are included

in the region of interest. After the ﬁrst iteration, the

sampling stage simply accounts for the previous pos-

terior distribution to select those particles that more

probably represent the state of the target. In particu-

lar, the state of the target is represented by its location

= [u v]

in terms of centroid of the bounding box

and appearance. In conclusion, the state of a particle

at time t is:

= hl

, T

i (2)

A Robust Particle Filtering Approach with Spatially-dependent Template Selection for Medical Ultrasound Tracking Applications

527

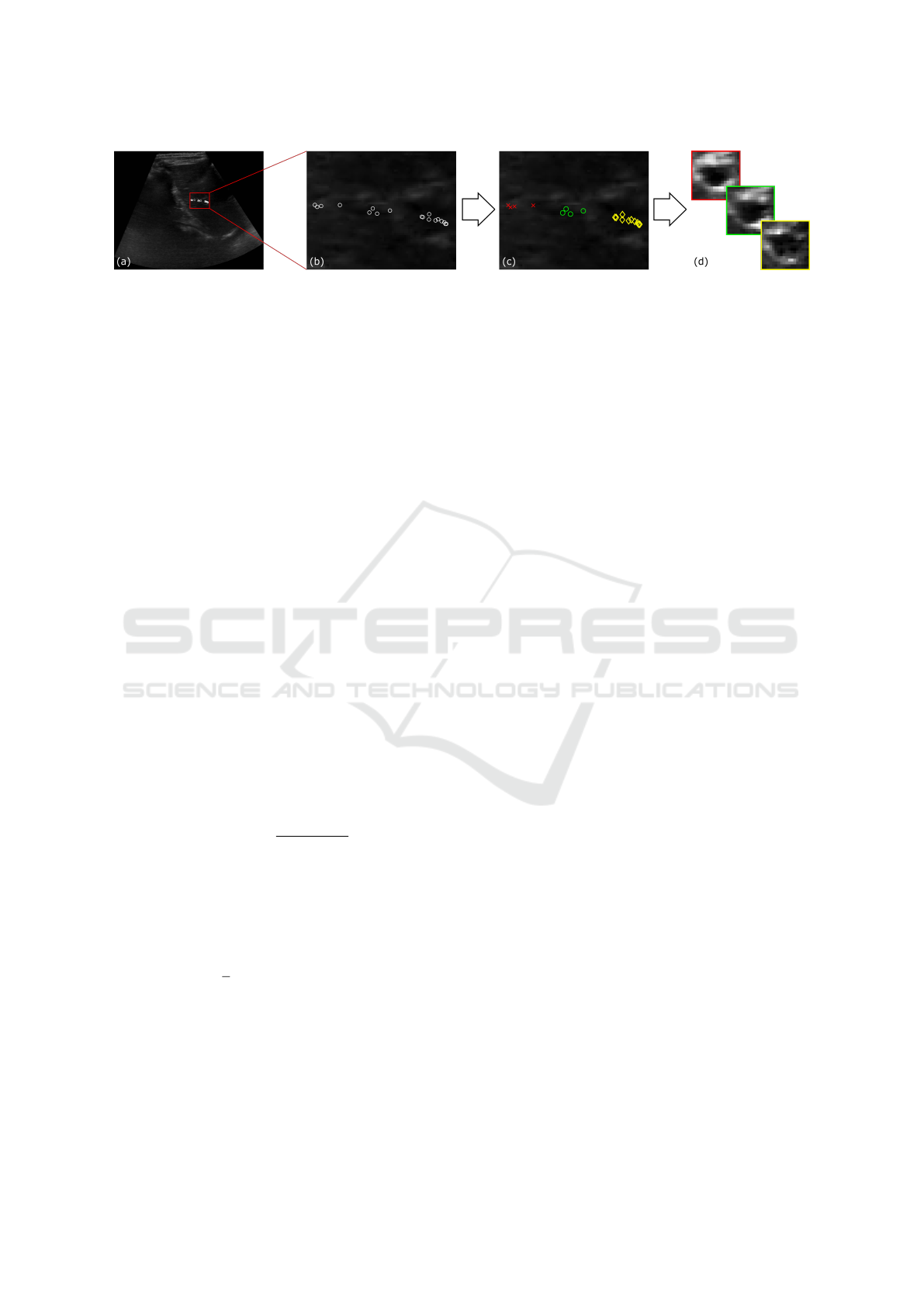

Figure 2: The template dictionary is obtained from the clustering of the user annotations and the selection of the most

representative template for each cluster. See text for more details. Images (a) and (b) are the original and zoomed frames,

where the user selects the target positions used in the training phase; (c) represents the result of the clustering procedure and

(d) is the vocabulary built with the nearest elements to the centroid of each cluster.

3.3 Dynamics Application

The dynamics of the target is a probabilistic distribu-

tion composed by different elements: h, that is the

story of the target at the previous time frame t − 1;

f, that is the averaged intensity and the mean vector

of the motion ﬂow modeling the global motion in the

observation area, computed over the observation win-

dow; ﬁnally, a Gaussian random variable, modeling

the noise of the sensor. In particular, the history com-

ponent is the last speed vector computed as the differ-

ence between the previous two estimated state loca-

tions:

= l

t−1

− l

t−2

(3)

The motion ﬂow is computed using the algorithm pro-

posed by (Liu, 2009), that performs a conjugate gradi-

ent analysis based on a multiresolution approach. The

method demonstrates a very efﬁcient way to solve the

motion ﬂow problem since, instead of considering the

entire frame, this algorithm performs the computa-

tion only on the observation window of the target. To

reduce the noise inﬂuence in the motion estimation,

an entropy analysis is formulated. Let F be the ﬂow

map composed by N speed vectors computed via (Liu,

2009). We introduce the normalized entropy measure

H(F) = −

∑

log

(4)

If H(F) is lower than a conﬁdence threshold (in this

case 0.05), the ﬂow component f is discarded, consid-

ering the history twice. The dynamic distribution is

obtained from the combination of the previous com-

ponents, that is

(f + h) + N (l

t−1

, g

), (5)

where the ﬁrst and second member are respectively

the deterministic and stochastic component.

3.4 Observation

The observation step exploits the dictionary of the

templates, which is built in the initialization step (pre-

viously described in Section 3.1). In practice, af-

ter the application of the dynamics, each sample has

a novel position that is compared against the dictio-

nary created during initialization, selecting the near-

est neighborhood in terms of spatial location. This

indicates the most suitable template to compare the

sample with, where the comparison is carried out us-

ing the ssim measure between the observation window

centered over the hypothesized sample location and

the chosen template. Since the dimensions of the re-

gion of interest of the target is ﬁxed (i.e. it is the only

free parameter of the proposed method), it is possi-

ble to extract a template T

from the current frame

centered in the target location l

. The extracted patch

is then compared with the reference dictionary built

in the initialization stage by the structural similarity

measure, producing the conﬁdence π

of the current

state x

as:

= p(x

) = ssim(T

, D(l

)) (6)

where D(l

) selects from the dictionary the closest ref-

erence template to x

. The extraction probability of

a particle depends on its conﬁdence computed at the

time t − 1.

This is a hard selection strategy (at the end, one

sample is associated with only one template), which

has been compared against a soft variation (the sam-

ple is assigned to a mixture of templates, each of them

weighted by a quantity proportional to the distance

w.r.t. the sample) without exhibiting clear advantages.

Therefore, it has been preferred the hard selection op-

tion, which in addition is faster in terms of computa-

tional performance.

3.5 Rescue Procedure

Tracking failures occur when a few frames are lost or

the instantaneous motion of the target is greater than

the observation window size. When the system loses

the target, we notice a unique behaviour in the like-

lihood function estimation that drops to 20% of con-

ﬁdence, as shown in Figure 3. Also, if the target is

lost it is reasonable to assume that it is located in the

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

528

neighborhood of the last valid estimated status of the

tracker.

Following these assumptions, we propose here a

rescue procedure, which is triggered when the likeli-

hood function returns a value L ∈ [0, 1] below a user

deﬁned threshold θ ∈ [0, 1]. The strategy consists

in temporarily disabling the deterministic component

and amplifying the stochastic gain g, which becomes:

g =

2 − L

2.5

d (7)

Due to experimental evidence (on a small subset of se-

quences), we deﬁne θ = 0.2. The deactivation of the

deterministic component is necessary because we do

not know what causes the loss of the target. The res-

cue procedure gives robustness to the system, avoid-

ing the manual reinitialization by the user. When

L ≥ θ the spread g returns to its original value as de-

scribed in Section 3.2.

4 EXPERIMENTS

The proposed algorithm needs the tuning of only one

parameter: the dimensions of the observation window

d ∈ N

. Concerning the number of breathing cycles

nbc ∈ N during which the user selects the training

points, we set it equal to 10 as suggested in (De Luca

et al., 2013). Please note that there are other two pa-

rameters the user could optionally tune: the number of

particles np ∈ N and the gain g ∈ R

of the stochas-

tic component of each particle ﬁlter. We propose an

autotuning procedure to avoid any calibration phase.

Once the user has set the dimensions of the windows,

we compute the other parameters as:

np =

kdk

(8)

g =

2.5

d (9)

The equation 8 gives a good compromise between ef-

ﬁciency and robustness of the system. The gain in

equation 9 is set to include the 99% of the particles

in the observation window assuming normal distribu-

tion.

4.1 Benchmarks

We evaluate our system on the training data from the

MICCAI CLUST 2015 benchmark (only training data

are available at the moment of writing, since test-

ing data will be released after the publication of the

CLUST 2015 results), composed of 24 US sequences,

that we call datasets in the rest of the paper. The

benchmark is subdivided in four categories accord-

ing to the US setup used for the image acquisition:

CIL (2 vids), ETH (12 vids), ICR (4 vids) and MED

(8 vids). Each image sequence has duration between

1 and 10 minutes, with a mean number of frames of

3408±1142. Detailed information about each dataset

are reported in Table 1.

Table 1: Datasets statistics. Im.res indicates the real size

that corresponds to one pixel in the scene.

Dataset Num. Im.rate Im.res. Num.

Name Imgs. (Hz) (mm) Points

CIL-01 1342 18 0.50 2

CIL-02 1075 18 0.50 1

ETH-01-1 3652 25 0.71 2

ETH-01-2 4650 25 0.71 2

ETH-02-1 2620 16 0.40 1

ETH-02-2 4878 16 0.40 1

ETH-03-1 4588 17 0.36 1

ETH-03-2 4191 17 0.36 1

ETH-04-1 5247 15 0.42 2

ETH-04-2 4510 15 0.42 2

ETH-05-1 4615 15 0.40 2

ETH-05-2 3829 15 0.40 2

ICR-01 4858 18 0.41 3

ICR-02 3481 18 0.41 2

ICR-03 3481 18 0.41 3

ICR-04 3481 18 0.41 4

MED-01-1 2455 20 0.41 3

MED-02-1 2458 20 0.41 3

MED-02-2 2443 20 0.41 3

MED-02-3 2436 20 0.41 5

MED-03-1 2442 20 0.41 2

MED-03-2 2450 20 0.41 3

MED-04-1 3304 20 0.41 1

MED-05-1 3304 20 0.41 2

The benchmark provides ground truth measure-

ments that consist in the coordinates of the targets for

a subset of all the frames (approximately 10%). To

compare our system with other approaches we com-

pute three score values, according to the ones used in

the original benchmark: mean tracking error (MTE)

for the accuracy, that is the mean of the absolute posi-

tion error between our measurements and the ground

truth annotations, the standard deviation (STD), that

is calculated as the norm of the square root of position

error variance, and the 95

percentile of the position

errors. Lower values indicate better performance.

To better understand the contribution of each part

of the proposed method, we consider the following

cases:

B - Base : the dictionary only contains the ﬁrst ob-

servation window centered on the target;

R - Rescue : as the previous case, but with the addi-

A Robust Particle Filtering Approach with Spatially-dependent Template Selection for Medical Ultrasound Tracking Applications

529

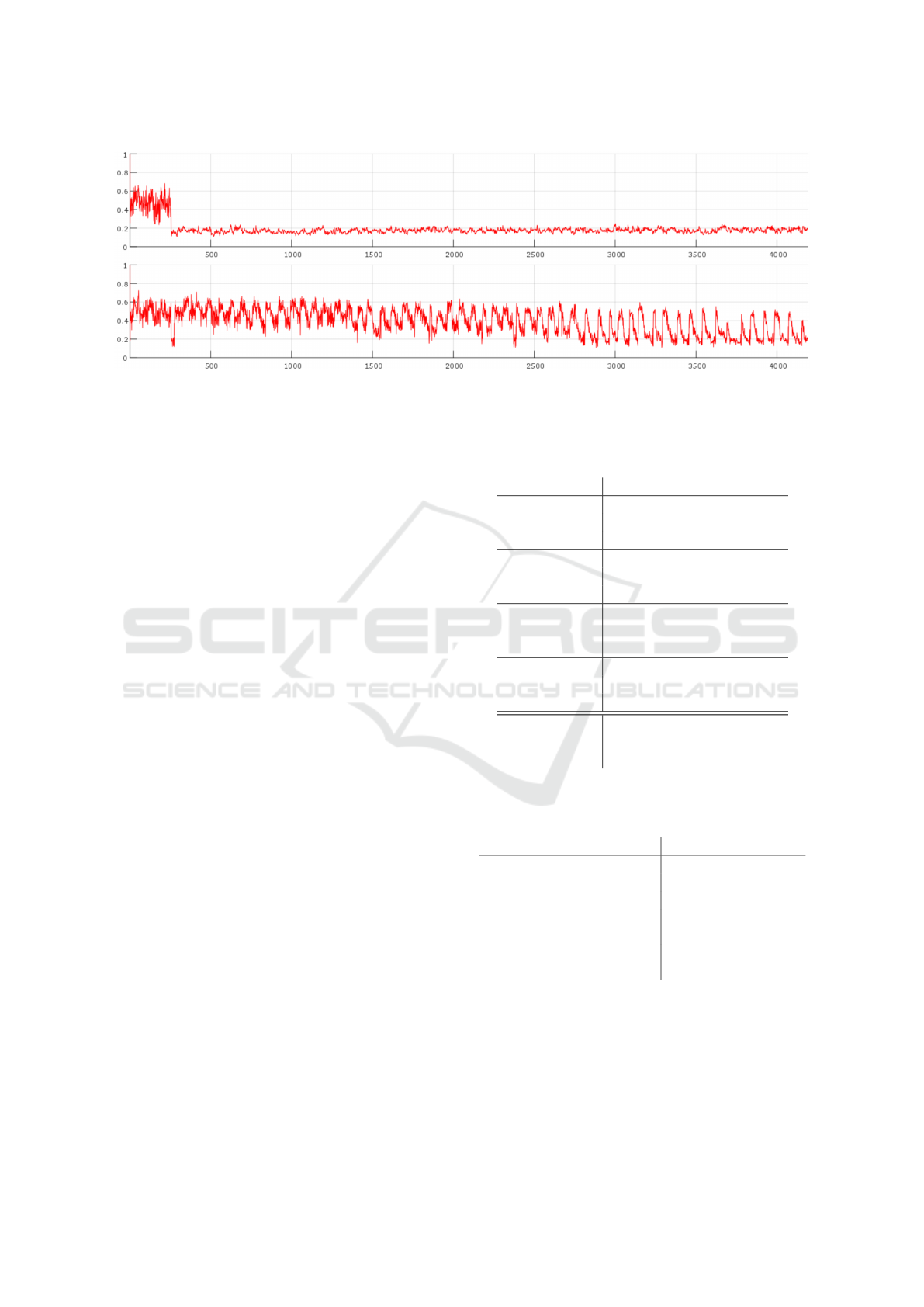

Figure 3: The ﬁgure shows the likelihood estimation of the target in the ETH-03-2 dataset before and after the activation of

the rescue procedure (respectively the upper and lower images). After the tracking error at frame 255, the target is lost by the

tracking system. The oscillations in the lower image are due to the breathing of the patient. On the axes, the number of frames

(X) and the normalized conﬁdence (Y).

tion of the rescue procedure;

D - Dictionary : the dictionary is introduced as de-

scribed in Section 3;

RD - Rescue+Dictionary : the combination of the

previous case and the rescue procedure.

The results of each considered case are presented

in Table 2.

The results of the D-case demonstrate the pos-

itive impact of the template dictionary if compared

to the B-case, showing a best accuracy and precision

in almost all the sequences. Concerning the rescue

procedure (R-case), its activation improves the accu-

racy performance by 10% if compared to the B-case.

When both dictionary and rescue procedure are em-

ployed (RD-case), the performance of the method de-

creases the tracking error of 10% if compared the pre-

vious cases. In particular, if compared with the B-

case, the impact of the dictionary and the rescue pro-

cedure improves the overall performance of more than

30%. These ﬁnal results demonstrate the accuracy of

the method, which is slightly higher than 1 mm. This

is an interesting result if compared to clinical require-

ments (Keall et al., 2006; Shirato et al., 2007) where

high accuracy and robustness are foundamental char-

acteristics. If compared with the CLUST 2014 works,

that are shown in Table 3, our algorithm achieves

competitive results.

The results of the RD-case prove the necessity of

a rescue procedure to give robustness against track-

ing errors. Despite the simplicity of the proposed ap-

proach, the results are very encouraging.

Another interesting comparison is made with the

approach proposed by (De Luca et al., 2013). Using

afﬁne registration, the method achieves an accuracy

of 0.9 mm but requires manual reinitialization when

a frame drop accours. Also, the algorithm is com-

putationally expensive and does not ensure real-time

Table 2: Results of the proposed method on different

datasets. Error in millimiters.

Base R D RD

CIL

MTE 1.71 1.62 1.38 1.28

STD 1.58 1.58 1.13 1.09

95P 2.67 2.50 1.91 1.72

ETH

MTE 2.20 1.58 1.16 1.06

STD 2.37 2.03 1.68 1.69

95P 5.93 5.21 3.16 2.31

ICR

MTE 0.83 0.77 0.75 0.69

STD 1.04 0.98 1.11 1.11

95P 1.59 1.46 1.46 1.26

MED

MTE 1.74 1.92 1.77 1.41

STD 2.40 2.72 2.86 2.22

95P 5.30 5.60 6.80 3.84

Total

MTE 1.62 1.47 1.23 1.11

STD 1.85 1.83 1.70 1.53

95P 3.87 3.69 3.33 2.28

Table 3: CLUST 2014 challenge results of 2D point-

landmark tracking. Results are in millimetres and ranked

according to increasing mean tracking error.

MTE STD 95P

onig et al., 2014) 1.51 1.88 4.06

(Rothl

ubbers et al., 2014) 1.52 1.38 4.08

(Kondo, 2014) 1.83 3.16 4.82

(Benz et al., 2014) 1.84 2.42 5.34

ubke and Grozea, 2014) 1.91 2.47 5.32

(Somphone et al., 2014) 2.00 2.87 5.59

(O’Shea et al., 2014) 2.61 3.78 7.98

processing. A second solution uses a fast BM ap-

proach that achieves lower accuracy (2.18 mm). With

a preliminary training approach, similar to the one

proposed in our work, (De Luca et al., 2013) reaches

an accuracy of 0.84 mm in the ﬁrst case and 0.97 in

the second one. Our solution overcomes the compu-

tational complexity of the referred solution exploiting

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

530

a fast particle ﬁlter approach with an acceptable de-

crease in the results. The proposed method works up

to 15 Hz and the computational complexity for one in-

stance of the system (each instance is a single target)

is proportional to the number of particles, for each

one we calculate the structural similarity, and the size

of the observation window. The complexity is then

O(kdk

) but, since the observation windows are usu-

ally small (in the order of 20 × 20 pixels) the high

exponent is not a signiﬁcant limitation.

Our algorithm runs up to 15 Hz in Matlab R2015a

on a Intel Core i7-2670QM@2.2GHz and achieves a

mean accuracy of 1.11 ± 1.53 mm with a mean 95

percentile of 2.28 mm when frame drops occur. The

reference vocabulary gives a signiﬁcant boost in the

accuracy results, but only with the rescue procedure

the system achieves robustness against outliers.

5 CONCLUSIONS AND FUTURE

WORKS

In this paper a novel approach for tracking in 2D US

image sequences is proposed. The presented tech-

nique consists in a particle ﬁlter framework in which

the target is tracked exploiting its semi-periodic dy-

namics and by building a spatially-localized vocab-

ulary with a semi-automatic learning phase. Also,

a rescue procedure is developed to face the problem

of fast movements of the scene or frame drops. Our

method takes advantage from the intrinsic noise ro-

bustness of the CONDENSATION algorithm (Isard

and Blake, 1998), the structural similarity measure

(Wang et al., 2004) that evaluates the similarity be-

tween two images in a perception sense and the fast

optical ﬂow approach proposed by (Liu, 2009). Also,

the proposed approach requires the tuning of only one

parameter, that is the dimensions of the observation

window.

The results conﬁrm our assumptions about the

modeling of the variation of the appearance of the

target by exploiting the periodicity of the dynamics.

Using a single template as reference is a fast solution

but suffers from signiﬁcant variations of the template.

The vocabulary allows to better describe the appear-

ance model and the space where the target moves,

giving robustness to the system. Unfortunately, the

vocabulary does not manage degenerated cases like

frame drops or fast movements of the scene. The pro-

posed rescue procedure allows to resolve these prob-

lems and gives a signiﬁcant boost to the overall per-

formance. Results are very promising if compared

with the clinical requirements and the state-of-the-art

solutions.

Future works include a CPU/GPU implementation

to further reduce the lag caused by the computational

complexity. Other optimizations may concern the us-

age of a faster image similarity metrics and optical

ﬂow algorithm, especially for a possible 3D exten-

sion. Also, the median ﬁlter used to reduce the noise

should be used only in the neighborhood of the target.

REFERENCES

Angelova, D. and Mihaylova, L. (2011). Contour segmenta-

tion in 2d ultrasound medical images with particle ﬁl-

tering. Machine Vision and Applications, 22(3):551–

561.

Avidan, S. (2007). Ensemble tracking. Pattern Analy-

sis and Machine Intelligence, IEEE Transactions on,

29(2):261–271.

Barbosa, D., Bernard, O., Heyde, B., Dietenbeck, T., Houle,

H., Friboulet, D., and D’hooge, J. (2012). B-spline ex-

plicit active tracking of surfaces (beats): Application

to real-time 3d segmentation and tracking of the left

ventricle in 3d echocardiography. In Ultrasonics Sym-

posium (IUS), 2012 IEEE International, pages 224–

227. IEEE.

Benz, T., Kowarschik, M., and Navab, N. (2014). Kernel-

based tracking in ultrasound sequences of liver. Chal-

lenge on Liver Ultrasound Tracking CLUST 2014,

page 21.

Bouguet, J.-Y. (2001). Pyramidal implementation of the

afﬁne lucas kanade feature tracker description of the

algorithm. Intel Corporation, 5:1–10.

Breitenstein, M. D., Reichlin, F., Leibe, B., Koller-Meier,

E., and Van Gool, L. (2009). Robust tracking-by-

detection using a detector conﬁdence particle ﬁlter. In

Computer Vision, 2009 IEEE 12th International Con-

ference on, pages 1515–1522. IEEE.

Cifor, A., Risser, L., Chung, D., Anderson, E. M., Schnabel,

J., et al. (2012). Hybrid feature-based log-demons reg-

istration for tumour tracking in 2-d liver ultrasound

images. In Biomedical Imaging (ISBI), 2012 9th IEEE

International Symposium on, pages 724–727. IEEE.

Cifor, A., Risser, L., Chung, D., Anderson, E. M., Schn-

abel, J., et al. (2013). Hybrid feature-based diffeomor-

phic registration for tumor tracking in 2-d liver ultra-

sound images. Medical Imaging, IEEE Transactions

on, 32(9):1647–1656.

DallAlba, D. and Fiorini, P. (2015). Bipco: ultrasound fea-

ture points based on phase congruency detector and

binary pattern descriptor. International journal of

computer assisted radiology and surgery, 10(6):843–

854.

De Luca, V., Tschannen, M., Sz

ekely, G., and Tan-

ner, C. (2013). A learning-based approach for

fast and robust vessel tracking in long ultra-

sound sequences. In Medical Image Computing

and Computer-Assisted Intervention–MICCAI 2013,

pages 518–525. Springer.

A Robust Particle Filtering Approach with Spatially-dependent Template Selection for Medical Ultrasound Tracking Applications

531

Dekel, S., Sochen, N., and Avidan, S. (2013). Incremental

Level Set Tracking. Springer.

Douglas, B. R., Charboneau, J. W., and Reading, C. C.

(2001). Ultrasound-guided intervention: Expand-

ing horizons. Radiologic Clinics of North America,

39(3):415 – 428.

Farneb

ack, G. (2003). Two-frame motion estimation based

on polynomial expansion. In Image Analysis, pages

363–370. Springer.

Frey, B. J. and Dueck, D. (2007). Clustering by

passing messages between data points. science,

315(5814):972–976.

Gautama, T. and Van Hulle, M. M. (2002). A phase-based

approach to the estimation of the optical ﬂow ﬁeld us-

ing spatial ﬁltering. Neural Networks, IEEE Transac-

tions on, 13(5):1127–1136.

Geman, S. and Geman, D. (1984). Stochastic relaxation,

gibbs distributions, and the bayesian restoration of

images. Pattern Analysis and Machine Intelligence,

IEEE Transactions on, (6):721–741.

Guerrero, J., Salcudean, S. E., Mcewen, J., Masri, B., Nico-

laou, S., et al. (2007). Real-time vessel segmenta-

tion and tracking for ultrasound imaging applications.

Medical Imaging, IEEE Transactions on, 26(8):1079–

1090.

Harris, E. J., Miller, N. R., Bamber, J. C., Symonds-Tayler,

J. R. N., and Evans, P. M. (2010). Speckle tracking

in a phantom and feature-based tracking in liver in the

presence of respiratory motion using 4d ultrasound.

Physics in medicine and biology, 55(12):3363.

Holzer, S., Ilic, S., Tan, D., Pollefeys, M., and Navab, N.

(2015). Efﬁcient learning of linear predictors for tem-

plate tracking. International Journal of Computer Vi-

sion, 111(1):12–28.

Isard, M. and Blake, A. (1998). Condensationconditional

density propagation for visual tracking. International

journal of computer vision, 29(1):5–28.

Kalal, Z., Mikolajczyk, K., and Matas, J. (2012). Tracking-

learning-detection. Pattern Analysis and Machine In-

telligence, IEEE Transactions on, 34(7):1409–1422.

Keall, P. J., Mageras, G. S., Balter, J. M., Emery, R. S.,

Forster, K. M., Jiang, S. B., Kapatoes, J. M., Low,

D. A., Murphy, M. J., Murray, B. R., et al. (2006). The

management of respiratory motion in radiation oncol-

ogy report of aapm task group 76a). Medical physics,

33(10):3874–3900.

Kondo, S. (2014). Liver ultrasound tracking using long-

term and short-term template matching. Challenge on

Liver Ultrasound Tracking CLUST 2014, page 13.

onig, L., Kipshagen, T., and R

uhaak, J. (2014). A

non-linear image registration scheme for real-time

liver ultrasound tracking using normalized gradient

ﬁelds. Challenge on Liver Ultrasound Tracking

CLUST 2014, page 29.

Kovesi, P. (2003). Phase congruency detects corners and

edges. In The australian pattern recognition society

conference: DICTA 2003.

Lediju, M., Byram, B. C., Harris, E. J., Evans, P. M., Bam-

ber, J. C., et al. (2010). 3d liver tracking using a matrix

array: Implications for ultrasonic guidance of imrt.

In Ultrasonics Symposium (IUS), 2010 IEEE, pages

1628–1631. IEEE.

Liu, C. (2009). Beyond pixels: exploring new representa-

tions and applications for motion analysis. PhD the-

sis, Citeseer.

Lubinski, M., Emelianov, S. Y., O’Donnell, M., et al.

(1999). Speckle tracking methods for ultrasonic elas-

ticity imaging using short-time correlation. Ultra-

sonics, Ferroelectrics, and Frequency Control, IEEE

Transactions on, 46(1):82–96.

ubke, D. and Grozea, C. (2014). High performance on-

line motion tracking in abdominal ultrasound imag-

ing. Challenge on Liver Ultrasound Tracking CLUST

2014.

Matthews, I., Ishikawa, T., and Baker, S. (2004). The tem-

plate update problem. IEEE Transactions on Pattern

Analysis & Machine Intelligence, (6):810–815.

Mei, X., Zhou, S. K., and Porikli, F. (2007). Probabilistic

visual tracking via robust template matching and in-

cremental subspace update. In Multimedia and Expo,

2007 IEEE International Conference on, pages 1818–

1821. IEEE.

Mercier, L., Langø, T., Lindseth, F., and Collins, L. D.

(2005). A review of calibration techniques for free-

hand 3-d ultrasound systems. Ultrasound in medicine

& biology, 31(2):143–165.

O’Shea, T., Bamber, J., and Harris, E. (2014). Liver fea-

ture motion estimation in long high frame rate 2d ul-

trasound sequences. Challenge on Liver Ultrasound

Tracking CLUST 2014.

Rattani, A., Freni, B., Marcialis, G. L., and Roli, F. (2009).

Template update methods in adaptive biometric sys-

tems: a critical review. In Advances in Biometrics,

pages 847–856. Springer.

Rothl

ubbers, S., Schwaab, J., Jenne, J., and G

unther, M.

(2014). Miccai clust 2014: Bayesian real-time liver

feature ultrasound tracking. Challenge on Liver Ul-

trasound Tracking. MICCAI, pages 45–52.

Shirato, H., Shimizu, S., Kitamura, K., and Onimaru, R.

(2007). Organ motion in image-guided radiotherapy:

lessons from real-time tumor-tracking radiotherapy.

International Journal of Clinical Oncology, 12(1):8–

16.

Siegel, R. L., Miller, K. D., and Jemal, A. (2015). Cancer

statistics, 2015. CA: A Cancer Journal for Clinicians,

65(1):5–29.

Somphone, O., Allaire, S., Mory, B., and Dufour, C. (2014).

Live feature tracking in ultrasound liver sequences

with sparse demons. Challenge on Liver Ultrasound

Tracking CLUST 2014, page 53.

Thirion, J.-P. (1998). Image matching as a diffusion pro-

cess: an analogy with maxwell’s demons. Medical

image analysis, 2(3):243–260.

Tomasi, M., Barranco, F., Vanegas, M., D

ıaz, J., and Ros,

E. (2010). Fine grain pipeline architecture for high

performance phase-based optical ﬂow computation.

Journal of Systems Architecture, 56(11):577–587.

Wang, Z., Bovik, A. C., Sheikh, H. R., and Simoncelli, E. P.

(2004). Image quality assessment: from error visibil-

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

532

ity to structural similarity. Image Processing, IEEE

Transactions on, 13(4):600–612.

Wong, A. and Bishop, W. (2008). Efﬁcient least squares

fusion of mri and ct images using a phase congruency

model. Pattern Recognition Letters, 29(3):173–180.

Zhang, X., G

unther, M., and Bongers, A. (2010). Real-time

organ tracking in ultrasound imaging using active con-

tours and conditional density propagation. In Medi-

cal Imaging and Augmented Reality, pages 286–294.

Springer.

A Robust Particle Filtering Approach with Spatially-dependent Template Selection for Medical Ultrasound Tracking Applications

533
