A Benchmark of Computational Models of Saliency to Predict
Human Fixations in Videos
Shoaib Azam
, Syed Omer Gilani
, Moongu Jeon
, Rehan Yousaf
and Jeong Bae Kim
School of Information and Communication, Gwangju Institute of Science and Technology, Gwangju, Republic of Korea
National University of Sciences and Technology, Islamabad, Pakistan
Department Management of Technology, Pukyong National University, Busan, Republic of Korea
Keywords: Saliency Benchmark of Videos, Scoring Metrics, Fixation Maps.
Abstract: In many applications of computer graphics and design, robotics and computer vision, there is always a need
to predict where human looks in the scene. However this is still a challenging task that how human visual
system certainly works. A number of computational models have been designed using different approaches
to estimate the human visual system. Most of these models have been tested on images and performance is
calculated on this basis. A benchmark is made using images to see the immediate comparison between the
models. Apart from that there is no benchmark on videos, to alleviate this problem we have a created a
benchmark of six computational models implemented on 12 videos which have been viewed by 15 observers
in a free viewing task. Further a weighted theory (both manual and automatic) is designed and implemented
on videos using these six models which improved Area under the ROC. We have found that Graph Based
Visual Saliency (GBVS) and Random Centre Surround Models have outperformed the other models.
Saliency has been discussed and implemented in so
many ways on images and many computational
models have been defined in this respect. Each
computational model is at best as an individual
technique and also has proven the psychology of the
human visual system. There is no such method to
judge an individual technique until and unless it is
compared to some standard or state of the art. But
comparing different models gives you the basic idea
about how good a model is and how bad a model is.
Previously, many people have done comparison
between models and got results to improve the
technique but this has been done only on static images
(Judd et al., 2012); (Privitera and Stark, 2000);
(Parkhurst et al., 2002); (Ouerhani, 2003); (Elazary
and Itti, 2008); (Henderson et al., 2007); (Bruce and
Tsotsos, 2006); (Itti, 2005); (Peters et al., 2005);
(Yubing et al., 2010); (Yubing et al., 2011). Our goal
is to pick up certain saliency models (Borji and Itti,
2010) and apply them on videos. After applying these
models on the videos we will compare these models
with each other and generate fixation map, through
which we compute the Area Under Receiver
Operating Characteristic Curve (AUC score) (Borji et
al., 2013a); (Borji et al., 2013b).
(AUC) and set our own benchmark in which we
will only be dealing with videos. Further, we have
designed a weighted algorithm for saliency
computation. It includes both manual and automatic
weight assigning. For this AUC is also calculated.
For performing our goal we have taken a dataset
(Hadizadeh et al., 2012) which includes 15 observer
and 6 models which we will be comparing. These
models will be applied on 12 videos having the
following details (name and frames) are Foreman
(300 frames), Bus (150 frames), City (300 frames),
Crew (300 frames), Flower Garden (250 frames),
Mother and Daughter (300 frames), Soccer (300
frames), Stefan (90 frames), Mobile Calendar (300
frames), Harbor (300 frames), Hall Monitor (300
frames) and Tempete (260 frames).The dataset which
we are using is generated with a free viewing task, it
states that the participants are not restricted to see
particular object in the scene.
No doubt the models are very near to the human
visual system but a small difference still shows there
is a big room for improvement.
Azam, S., Gilani, S., Jeon, M., Yousaf, R. and Kim, J.
A Benchmark of Computational Models of Saliency to Predict Human Fixations in Videos.
DOI: 10.5220/0005678701340142
In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 134-142
ISBN: 978-989-758-175-5
2016 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
We have made the following contribution to the
computational models and the human fixations:
We have used only 6 saliency models (which are
the major attention models in last ten years).
We have applied these models on 12 videos.
For each video with having specified number of
frames we have computed their saliency maps
with all the said 6 models.
We have used the eye tracking dataset of 15
observers for creating the fixation map for each
We have calculated the AUC (Borji et al., 2013a);
(Borji et al., 2013b) score as scoring metric for all
the videos, each containing specified frames.
Most importantly we have designed our own
“weighted optimal algorithm” which assigns
weight to the models automatically also manually
as “user weighted algorithm” and computed the
AUC (Borji et al., 2013a); (Borji et al., 2013b)
scores, hence giving out weighted combination of
models showing the best possible results.
All the computational models follow the same
procedure in computing the saliency map. The main
ides was first introduced by Itti and Koch (Koch and
Ullman, 1985). The saliency map is basically
generated on the basis of features in parallel and by
combining the features values gives us the saliency
To compute different features at different scales
the model computes many pyramids of the input
image. Most commonly used image features are
intensity, colour and orientation. These features are
again divided into sub features. The feature maps are
generated through centre surround method or
difference of Gaussian (DoG) (Young, 1987). These
features map are added up and finally normalized and
weighted combined giving up the saliency map. This
technique is purely bottom up. Models do use top
down technique too (Borji and Itti, 2010).
In videos models are applied to each frame for
computing the saliency map. Then these frames are
again synchronized to the videos. The procedure for
generating the saliency map varies a little bit
according to the each computational model. But the
main idea remains the same.
The models which we are using for generating
saliency map are as follows.
1) The first model which we are using is by Achanta
et al., (2008). This model uses a simple technique
which extracts objects from the background. This
is done through subtraction of common part
which is the background.
2) Secondly we have context aware saliency
(Goferman et al., 2010) model. This model
emphasizes on locating the most important part of
the image which has the main contents of
information but not just salient object.
3) Saliency detection based on wavelet (Nevrez et
al., 2013) is the third model. This model focuses
on extracting the low level features through
wavelet transform then it creates the feature map
which clearly points out the features such as edges
and texture.
4) Fourthly we have graph based visual saliency
model (Harel et al., 2007) (GBVS) is a two steps
procedure which contains making of activation
maps on specific feature channels and then
normalizes it according to the others map which
it has to combine with.
5) The fifth model we have is called random
surround (Vikram et al., 2012) model. This model
follows a simple procedure to calculate the image
saliencies which consists of computing local
saliencies over some random regions in the
rectangular shape according to the task interest.
Then the Gaussian filter is applied to remove the
noise from the images. Colour space is generated
and divided in to L*,a* and b* channels. Saliency
maps are generated in these channels. Besides n
random sub windows are produced over each of
L*,a* and b* channel. The final saliency map is
generated by fusing the Euclidean norm of
saliency calculated in three above channels.
6) The last model is the spatio-temporal saliency
detection through Fourier transforms (Guo et al.,
2008). In this model the technique uses the phase
spectrum to calculate the saliency map. It is
similar in procedure to the amplitude spectrum
used by spectral residual model but varies in the
component of focus that is phase.

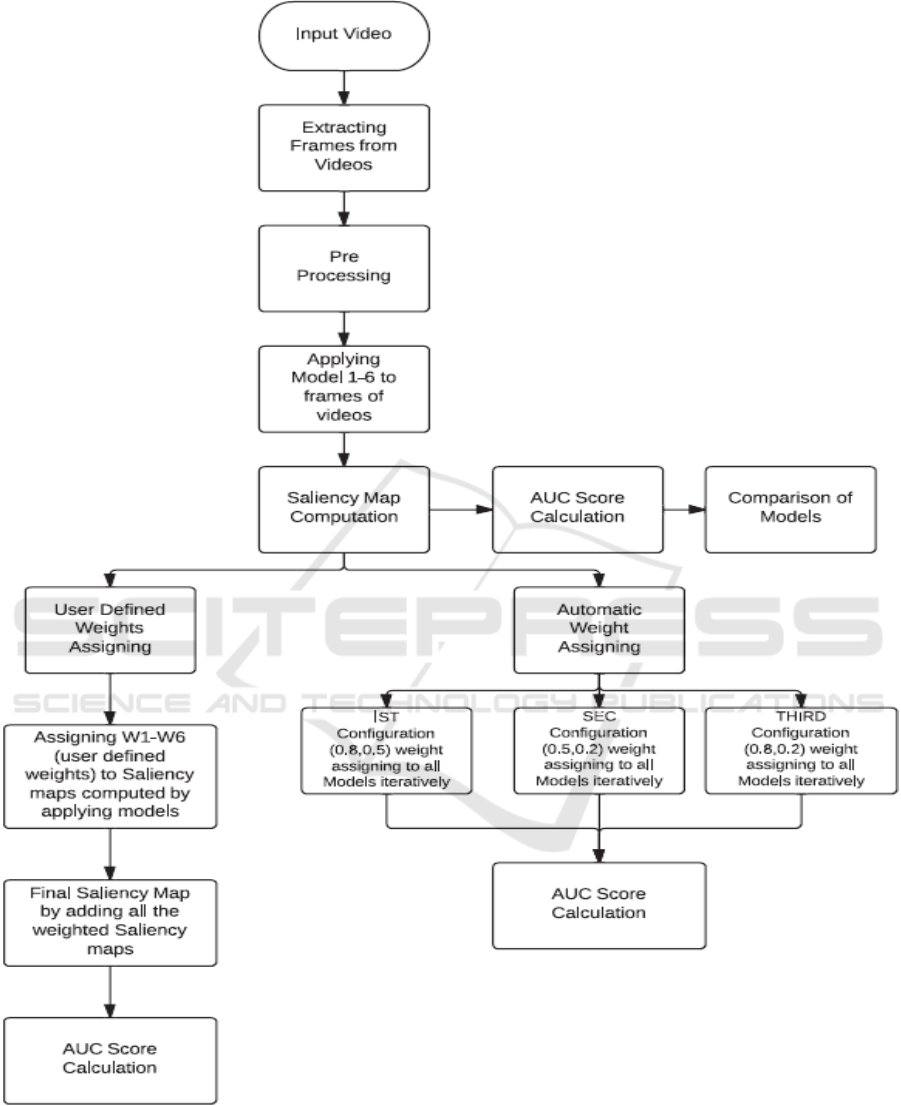

Our proposed methodology consists of 6 saliency
computational models which we are applying on
videos and computing their saliency maps. The
computational models which we are using are Spatio-
A Benchmark of Computational Models of Saliency to Predict Human Fixations in Videos
temporal Saliency Detection through Fourier
transform (Guo et al., 2008), Random Surround
model (Vikram et al., 2012), Saliency detection on
Wavelets (Nevrez et al., 2013), Graph based Visual
Saliency Model (Harel et al., 2007), Context Aware
Saliency Model (Goferman et al., 2010) and Achanta
et al., (2008) model. These 6 models are applied to 12
video sets each containing specified frames. For
instance, the first model is applied to a 12 video which
gives us the saliency maps according to number of
frames of the video and by using the similar pattern
all the models have been applied to all the videos each
giving us saliency maps depending on their number
of frames.
Now the dataset (Hadizadeh et al., 2012) which
we are using have been viewed by 15 observers in a
free viewing scenario and their eye tracking data is
used to compute fixation map for frames of a video.
These fixation maps are computed for all the 12
videos sets. So we have the saliency maps for all the
videos along with the fixation maps. These fixation
maps are then used for the calculation of AUC score.
We are using the Ali Borji’s (Borji et al., 2013a);
(Borji et al., 2013b) implementation to compute the
AUC score to compare the results of the machine
visual system and human visual system. We have
calculated the score for each video containing
different number of frames for all the 6 models
individually. This process gives us the comparison of
each model with another and its comparison with the
human visual system.
After computing the AUC score we have assigned
weights to the models. Mathematically weights are
using the following equation.
In the above equation S is final saliency map
computed, wi is weight assigned to model, Mi is the
respective model and n is the total number of models.
Here in our case n is equal to 6 as we have used six
models. There are two methods of assigning the
i) Automatic Weight Assigning
ii) Manual Assigning(User Assigning)
4.1 Automatic Weight Assigning
In automatic assigning there are three configurations
for assigning the weights automatically. In first
configuration of automatic weight assigning Model 1
has been assigned 0.8 weights and the rest of other
models have been assigned 0.5, then model 2 with 0.8
weight and the others with 0.5 and this process carry
on iteratively. Using this arrangement 6 combination
has been made. In the second configuration 0.5 and
0.2 are the weights assigned to the models in the
similar manner making 6 combinations. In the third
configuration 0.8 and 0.2 are the weights assigned to
the models again in the similar manner making 6
combinations. After weight assigning AUC score is
computed with the weighted saliency map for all the
videos. Basically we have chosen three types of
weights 0.8 (maximum weight), 0.5(middle weight)
and 0.2 (minimum weight).
4.2 Manual Weight Assigning
The second method for weight assigning is the
manual weight assigning method. In this procedure
the user enters the weights for each computational
model depending upon the result of model. The
process then computes the saliency map according to
weights assigned by the user under the perspective of
equation (1). After weight assigning, the AUC is used
as a scoring metric to evaluate the saliency maps.
Further, as we have used six models yet there is a
room to add more models and see which models has
fruitful result on videos.
The following flow diagrams show the overall
procedure of proposed methodology.
6.1 Saliency Models Results
The above results shows the saliency maps of six
videos which has been obtained by implementing six
models on them. By observing these models we can
say that the models whose results are clearer and
distinct may have better approximation or nearer to
human visual system, however this is not the case and
can be analysed by the results of AUC.
6.2 Model Performance for Videos
The above table shows the mean AUC score for the 6
models which have been computed on the 12 videos.
As it can be seen from the table that in different
videos different model has outperformed the other
models, but in most of the cases it is GBVS and
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
Figure 1: Flowchart of Saliency Map Computation and User Defined and Automatic Weight Assigning.
A Benchmark of Computational Models of Saliency to Predict Human Fixations in Videos
Video 1 Video 2 Video 3 Video 4 Video 5 Video 6
Phase Fourier
Random Centre
Figure 2: Saliency maps from 6 models of 6 videos.
Table 1: Performance of all six models using AUC implemented on videos. Name of video is also given. For AUC, higher
values are better.
AUC Score of Models Implemented on Videos
S.NO Video Name Achanta Context GBVS Phase Fourier Random Surround Wavelets
1 Bus 0.4574 0.6700 0.7235 0.4825
2 City 0.6114 0.6460 0.7484 0.5425
3 Crew 0.5085 0.5344
0.4843 0.5302 0.5407
4 Flower Garden 0.4346 0.5104
0.4426 0.8156 0.5316
5 Foreman 0.5153 0.6667
0.5193 0.6072 0.3410
6 Hall Monitor 0.4061 0.4390 0.4864 0.4816
7 Harbor 0.4846 0.3920
0.4385 0.7339 0.5232
8 Mobile 0.3297 0.3495
0.4777 0.6004 0.3914
9 Mother 0.4093 0.6467 0.6884 0.4906 0.6713
10 Soccer 0.6764 0.3749 0.7108 0.4670
11 Stefan 0.5802 0.8743
0.6349 0.8735 0.6037
12 Tampete 0.5150 0.7362 0.7287 0.6573
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
Random Surround Model that outperformed the other
models. Like in videos (named) BUS and City,
Random Surround Model has the better AUC and it is
approaching to one. However, in videos (named)
Crew, Flower Garden and Foreman, GBVS has better
results as compared to other one. There is only one
video named Mother, in which Wavelet based model
has better results.
6.3 Manual Weight Assigning (User’s
Defined) Results
In manual weight assigning table, the mean AUC
scores of all videos except video 6, 8 and 10 have
been increased. This weight assigning is random
depending upon the result of models (shown to user)
before assigning weights. For this assigning we have
selected or assigned the following weights to the
Table 2: Performance Score of Manual Weight Assigning
(AUC Score).
AUC Score of Manual Weight Assigning
S.NO Video Name AUC Score
1 Bus 0.7237
2 City 0.6877
3 Crew 0.6193
4 Flower Garden 0.7279
5 Foreman 0.7581
Hall Monitor 0.3603
7 Harbor 0.7818
Mobile 0.5797
9 Mother 0.7066
Soccer 0.3198
11 Stefan 0.8391
12 Tampete 0.7291
6.4 Automatic Weight Assigning
The above tables show the mean AUC scores of IST,
SEC and THIRD configuration of automatic weight
assigning. The assigning has been made using the
probabilities as 0.8, 0.5 and 0.2 as maximum, medium
and minimum to the models in specified
configuration. Using this behaviour three
configuration has been made. If we see the IST
configuration of automatic weight assigning, the
weights are assigned as 0.8 and 0.5 in a manner that
that in first module (MODULE 1) the weights
assigned to models are shown in Table 7. Using the
same technique the modules of other two
configuration has been achieved.
By considering the AUC scores of IST, SEC and
THIRD configuration with the AUC scores of
original videos, we can see that there is significant
amount of increased. However in some cases, there is
decreased in the AUC scores of entire videos due to
error in obtaining the fixation data for it. This can be
seen in Video 6. So, by viewing it overall there is 20
% improvement in the AUC scores using automatic
weight assigning. However the individual increase in
some cases is above 50 %. But we are more concerned
by overall result. Depending upon this the best
configuration which gives this performance is SEC
We have performed the comparison between 6
different computational models and their saliency
maps. We have also computed the AUC of the
saliency map for the accuracy of computational
models for videos.
We have designed the weighted algorithm for the
saliency maps and using this we have computed their
AUC score as well. The weighted method is for both
user defined weights and automatic weights
assigning, thus make the algorithm more flexible and
leaving a room for further enhancement and addition
of further models, comparison in future work
The future work will include that more videos dataset
can be used for both parts. Further video dataset
where observer is explicitly asked to view a certain
object will be included, so that the performance of
computational model is being analysed in not free
viewing videos. More saliency computational models
will be used to predict the human fixation in videos.
This work was supported by Institute for Information
& communications Technology Promotion (IITP)
grant funded by the Korea Government (MSIP)
(No.B0101-15-0525, Development of global multi-
target tracking and event prediction techniques based
on real-time large-scale video analysis) and Centre
for Integrated Smart Sensors as Global Frontier
A Benchmark of Computational Models of Saliency to Predict Human Fixations in Videos
Table 3: Weight Assigned to Models in Manual Weight Assigning.
Weight Assigned to Models
Models Achanta Context GBVS Phase Fourier Random Surround Wavelets
Weights(0-1) 0.5 0.6 0.8 0.4 0.7 0.8
Table 4: Performance Score of Automatic Weight Assigning of IST Configuration (AUC Score).
AUC Score of IST Configuration of Automatic Weight Assigning
S.NO Video Name Module 1 Module 2 Module 3 Module 4 Module 5 Module 6
1 Bus 0.7043 0.6922 0.6953 0.7097 0.6977 0.6968
2 City 0.6853 0.6848 0.6878 0.6898 0.6867 0.6799
3 Crew 0.6448 0.6409 0.6284 0.6300 0.6428 0.6239
4 Flower Garden 0.7378 0.7387 0.7252 0.7246 0.7335 0.7192
5 Foreman 0.7770 0.7726 0.7664 0.7791 0.7712 0.7690
6 Hall Monitor 0.3649 0.3573 0.3655 0.3728 0.3574 0.3543
7 Harbor 0.7698 0.7673 0.7671 0.7783 0.7778 0.7871
8 Mobile 0.5749 0.5706 0.5678 0.5817 0.5744 0.5636
9 Mother 0.6712 0.6790 0.6810 0.6834 0.7047 0.6896
10 Soccer 0.5451 0.5454 0.5449 0.5449 0.5451 0.5451
11 Stefan 0.8332 0.8339 0.8572 0.8411 0.8494 0.8734
12 Tampete 0.7235 0.7180 0.7189 0.7211 0.7315 0.7185
Table 5: Performance Score of Automatic Weight Assigning of SEC Configuration (AUC Score).
AUC Score of SEC Configuration of Automatic Weight Assigning
S.NO Video Name Module 1 Module 2 Module 3 Module 4 Module 5 Module 6
1 Bus 0.6948 0.7044 0.7063 0.7280 0.7139 0.6967
2 City 0.7015 0.6966 0.6996 0.7186 0.6927 0.6977
3 Crew 0.6510 0.6373 0.6208 0.6277 0.6374 0.6199
4 Flower Garden 0.7107 0.7428 0.7199 0.7274 0.7051 0.7278
5 Foreman 0.7522 0.7747 0.7779 0.7760 0.7821 0.7788
6 Hall Monitor 0.3683 0.3685 0.3631 0.3730 0.3746 0.3578
7 Harbor 0.7700 0.7581 0.7756 0.7490 0.7588 0.7801
8 Mobile 0.5873 0.6111 0.6023 0.5784 0.5880 0.6095
9 Mother 0.6850 0.7022 0.6817 0.6821 0.6812 0.6787
10 Soccer 0.5442 0.5449 0.5437 0.5447 0.5449 0.5444
11 Stefan 0.8483 0.8664 0.8631 0.8689 0.8693 0.8545
12 Tampete 0.7273 0.7291 0.7167 0.7396 0.7266 0.7270
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
Table 6: Performance Score of Automatic Weight Assigning of THIRD Configuration (AUC Score).
AUC Score of THIRD Configuration of Automatic Weight Assigning
S.NO Video Name Module 1 Module 2 Module 3 Module 4 Module 5 Module 6
1 Bus 0.6936 0.7098 0.7001 0.6916 0.7021 0.7088
2 City 0.7089 0.6850 0.6999 0.6848 0.6833 0.6686
3 Crew 0.6284 0.6408 0.6341 0.6318 0.6306 0.6353
4 Flower Garden 0.7042 0.7296 0.7271 0.7224 0.7247 0.7222
5 Foreman 0.7648 0.7685 0.7710 0.7745 0.7641 0.7558
6 Hall Monitor 0.3546 0.3629 0.3626 0.3560 0.3660 0.3717
7 Harbor 0.7702 0.7717 0.7604 0.7797 0.7802 0.7688
8 Mobile 0.5756 0.5996 0.5880 0.6086 0.5867 0.5996
9 Mother 0.7121 0.6977 0.6958 0.7003 0.6602 0.6801
10 Soccer 0.5448 0.5451 0.5453 0.5455 0.5453 0.5456
11 Stefan 0.8635 0.8659 0.8738 0.8556 0.8628 0.8780
12 Tampete 0.7232 0.7255 0.7254 0.7094 0.7133 0.7198
Table 7: Complete Weight assigning in automatic weight assigning configuration. Example of IST configuration.
S. No Achanta Context GBVS Phase Fourier Random Surround Wavelets
Module 1 0.8 0.5 0.5 0.5 0.5 0.5
Module 2 0.5 0.8 0.5 0.5 0.5 0.5
Module 3 0.5 0.5 0.8 0.5 0.5 0.5
Module 4 0.5 0.5 0.5 0.8 0.5 0.5
Module 5 0.5 0.5 0.5 0.5 0.8 0.5
Module 6 0.5 0.5 0.5 0.5 0.5 0.8
Ali Borji, Member, IEEE, Dicky N. Sihite, and Laurent Itti,
Member, IEEE, 2013(a). Quantitative Analysis of
Human-Model Agreement in Visual Saliency Modeling:
A Comparative Study, In IEEE Trans. Image
Processing, VOL. 22, NO. 1.2013.
Ali Borji, Hamed R. Tavakoli, Dicky N. Sihite, Laurent Itti,
2013(b). Analysis of scores, datasets, and models in
visual saliency prediction, In ICCV 2013.
Ali Borji, Member, IEEE, and Laurent Itti, Member, IEEE,
2010. State-of-the-art in Visual Attention Modeling, In
IEEE Trans. Pattern Anal. Mach. Intell, 2010.
C. Guo, Qi Ma and Liming Zhang, 2008.Spatio-temporal
Saliency detection using phase spectrum of quaternion
Fourier transforms. In CVPR, 2008.
C. Koch and S. Ullman, 1985. Shifts in selective visual
attention: towards the underlying neural circuitry.
Human Neurobiology, 4:219–227, 1985.
C. M. Privitera and Lawrence W. Stark, 2000. Algorithms
for defining visual regions-of-interest: Comparison
with eye fixations. IEEE Trans. Pattern Anal. Mach.
Intell., 22:970–982, Sep’ 2000.
D. Parkhurst, Klinton Law, and Ernst Niebur, 2002.
Modeling the role of salience in the allocation of overt
visual attention. Vision Research, 42(1):107 – 123,
H. Hadizadeh, M. J. Enriquez, and I. V. Bajić, 2012.Eye-
tracking database for a set of standard video
sequences," IEEE Trans. Image Processing, vol. 21, no.
2, pp. 898-903, Feb. 2012.
J. Harel, C. Koch, and P. Perona 2007. Graph based visual
saliency, In Advances in Neural Information
Processing Systems. MIT Press.
J. M. Henderson, J. R. Brockmole, M. S. Castelhano, and
M. Mack, 2007. Visual saliency does not account for
eye movements during visual search in real-world
scenes. Eye Movement Research: Insights into Mind
and Brain, 2007.
L. Elazary and L. Itti, 2008. Interesting objects are visually
salient. J. Vis., 8(3):1–15, 3 2008.
L. Itti, 2005. Quantifying the contribution of low-level
saliency to human eye movements in dynamic scenes.
Visual Cognition, 12:1093–1123, 2005.
Nevrez Imamoglu, Weisi Lin, and Yuming Fang, 2013. A
Saliency Detection Model Using Low-Level Features
Based on Wavelet Transform. IEEE Trans. Multimedia
15(1): 96-105 (January 2013).
N. Bruce and J. Tsotsos, 2006. Saliency based on
information maximization. In Y. Weiss, B. Sch¨olkopf,
and J. Platt, editors, Advances in Neural Information
A Benchmark of Computational Models of Saliency to Predict Human Fixations in Videos
Processing Systems 18, pages 155–162. MIT Press,
Cambridge, MA, 2006.
R. Achanta, F. Estrada, P. Wils and S. Süsstrunk, 2008.
Salient Region Detection and Segmentation, In ICVS,
2008, Vol. 5008, Springer Lecture Notes in Computer
Science, pp. 66-75, 2008.
Stas Goferman, Lihi Zelnik-Manor, and Ayellet Tal,
2010.Context aware saliency detection. In CVPR’10,
pages 2376–2383, 2010.
Tilke Judd, FrØdo Durand, and Antonio Torralba, 2012. A
Benchmark of Computational Models of Saliency to
Predict Human Fixations. MIT Computer Science and
Artificial Intelligence Laboratory Technical Report,
January 13, 2012.
Vikram T. N., Tscherepanow M. and Wrede B., 2012. A
saliency map based on sampling an image into random
rectangular regions of interest, In Pattern Recognition
Yubing Tong, Faouzi Alaya Cheikh, Fahad Fazal Elahi
Guraya, Hubert Konik and Alain Tremeau, 2011. A
Spatiotemporal Saliency Model for Video Surveillance.
3(1):241-263, Journal of Cognitive Computing.
Yubing Tong, Faouzi Alaya Cheikh, Hubert Konik and
Alain Tremeau, 2010. Full reference image quality
assessment based on saliency map analysis (Journal of
Imaging Science and Technology, 54(3):030503-
030514, 2010.
Young, Richard (1987). The Gaussian derivative model for
spatial vision: I. Retinal mechanisms. Spatial Vision 2
(4): 273–293(21).
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
