Generic and Distributed Runtime Environment for

Model-driven Game Development

Sebastian Apel and Volkmar Schau

Department of Computer Science, Friedrich Schiller University Jena, Ernst-Abbe-Platz 2, 07743, Jena, Germany

Keywords:

Software Architecture, Adaptive, Generic Infrastructure, Game Model, Model-Driven Game Development,

Massive Multiplayer Online Games.

Abstract:

Massive multiplayer online games are large-scaled distributed systems to handle a huge amount of simultane-

ous players. Thus, development costs can be enormous. To deal with this, it is necessary to reduce redundant

development steps in such distributed systems, e.g. by using code generators and model analysers to build

components from already existing knowledge. Such knowledge could be the unique game logic. This paper

reports realized approaches to derivate infrastructure from that logic within our middleware. Getting through

this is achieved by using an abstract meta model for game design processes, harvest information from those

design results and generate infrastructure for communication, controlling and persistance. Finally we evalutes

its applicableness and useablity in multiple game projects.

1 INTRODUCTION

In the last decades gaming is dominated by online

games – everybody wants to play, sometimes with

friends, sometimes against them – furthermore, they

want to play by browser, phones or in social net-

works. Such large-scaled distributed and complex

systems could need a high amount of development

efforts. Moreover, social, role-playing or shooter

games have an intersection of their architectural com-

ponents. Constructing such Massive Multiplayer On-

line Games (MMOG) requires an architecture to man-

age a high number of players, handle their requests

and persist their states.

A common MMOG architecture is based on

client-server structures (Chen et al., 2013; Bharambe

et al., 2006). The server in general contains a con-

tinuously simulated game logic, a database to persist

game states and a component to handle requests re-

ceived from clients. The clients on the other side man-

ages subsets of the game state, loaded from the server,

can communicate over networks the servers by using

a message handler and provides components to han-

dle visual and auditive elements of the game (Chen

et al., 2013).

The main difference between concepts for this

kind of games can be found in their game logic. This

logic describes core elements of a game and the de-

pendencies between them. Furthermore, this is the

unique part of a game idea. Each unique game idea

has to model and implement the logic as well as

construct the infrastructure components around. The

question would be about which of these infrastruc-

ture components around game logics can be derived

and generated by using code generators and a generic

runtime environment. Another important question is

how to design the architecture to execute such games

with generic infrastructure?

The primary objective is to provide a game mid-

dleware. The GameEngine, our middleware, has to

provide methods to add individual game logics, de-

rives required infrastructural knowledge from them

and generates the corresponding components. Using

this engine would reduce the amount of development

effort and avoids bulky reimplementation of redun-

dant components.

To achieve the goal of generic components, based

on a previously modeled game logic, three steps will

be necessary and part of our work: (1) an efﬁcient ab-

stract communication layer which avoids calculation

overhead mostly triggered by abstraction (Apel et al.,

2014), (2) a mechanism to derive information from

game logic to generate infrastructure for our game and

(3) a meta model for game logics as an entry point for

derivation processes and as development support.

This paper will evaluate the question about the

useablity and applicableness of this middleware

within different kind of game projects. The experi-

Apel, S. and Schau, V.

Generic and Distributed Runtime Environment for Model-driven Game Development.

DOI: 10.5220/0005652306230630

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 623-630

ISBN: 978-989-758-168-7

623

Zone 1

Server

Zone 2

Zone ...

Room 1

Room 2

Room ...

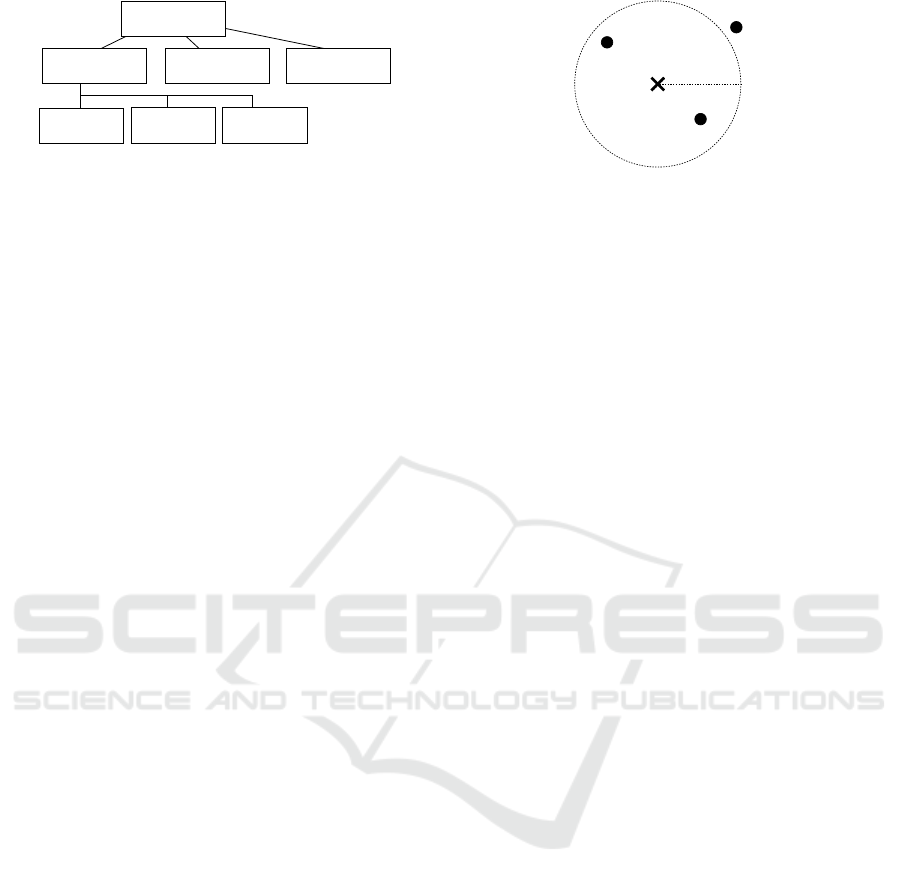

Figure 1: Visualization of a room-based communication

structure (gotoAndPlay(), 2011).

mentees are supposed to deﬁne their own game idea

and going through their model-driven engineering

process until they reach their ﬁnal platform indepen-

dend game model. The intended game projects are

circumscribed to location-based browsergames, a spe-

cial subtype of MMOGs. Finally each team has to

implemented their model and should executed the im-

plementation within the runtime environment of our

middleware in addition to some kind of client-side vi-

sualization. Furthermore their shouldn’t be any tech-

nological details like communicating with User Data-

gram Protocol (UDP) / Transmisson Control Protocol

(TCP), serialize data with Extensible Markup Lan-

guage (XML) / JavaScript Object Notation (JSON) or

persist data to MySQL databases.

2 CLASSICAL MMOG

DEVELOPMENT

Related research is focusing on architectural ques-

tions about how to construct games for massively dis-

tributed systems and huge amount of players (Chen

et al., 2013; Gregory, 2009; Bharambe et al., 2006).

Another part is going through abstracted communi-

cation, unfortunately independently from the perfor-

mance as well as from modelling and game archi-

tecture. Combining them into a development process

which is dominated by model-driven engineering me-

thodics by using generic approaches is missing.

Taking a look into middleware and tools for

MMOG development is dominated by three solutions:

(1) SmartFoxServer 2X (gotoAndPlay(), ), (2) ES5

Electroserver (Elektrotank, ) and (3) Photon Server

(Exit Games, a). These Java- and C#-based solutions

helps to implement a server-client based game by us-

ing TCP or UDP based sockets and a key-value-based

proprietary protocol for data (de-) serialization. All

products offer a room-based communication infras-

tructure to manage the distribution of data packets to

connected players (gotoAndPlay(), 2011). A room-

based infrastructure as shown in Figure 1 could be

compared with concepts in instant messengers like

Internet Relay Chat (IRC) and ICQ, as well as mes-

max view range

Event A

Event B

Event C

Figure 2: Visualization of a position based communication

structure. The centralized position (marked by X) has a

speciﬁc max view range, each event in this range would be

broadcasted to X (in this case event A and B).

sengers based on Extensible Messaging and Presence

Protocol (XMPP). Each connected individual can

specify a set of rooms to listen for. In case of com-

munication events, the runtime environment tries to

place them to the related room and broadcast the con-

tained data to listeners in this room. You can ﬁnd such

solutions in a wide range of games: every time there

is a visual separation in the game – for example zone

borders, beaming, instantiation or clustering – there is

usually a room concept behind the scenes.

The opposite approach of this room based com-

munication would be a location-based mapping of lis-

tening individuals as shown in Figure 2. Each individ-

ual could have one or more positions and each posi-

tion will have a speciﬁc range to listen to. In case

of any event, you will receive this event, if it is re-

leased within the range around one of your positions.

Only the Photon Server (Exit Games, b) offers such

a concept in addition to room-based listenings. Apart

from that, all middleware offer client implementations

in common technologies like HTML5 / JavaScript,

Flash / ActionScript, Unity, iOS and Android.

To add a game idea to these middleware, all solu-

tions offers so called extension points. This extension

point within this monolithic architecture offers capa-

bilities to interact with the communication infrastruc-

ture by using a speciﬁed Application Programming

Interface (API). In case of any game logic the de-

veloper has to implement their own controller layer

to handle messages between middleware and game

logic.

3 ABSTRACT META MODEL FOR

GAME LOGICS

The objective of this paper is to identifying methods

for game logic analyses. These methods will be com-

bined in our GameEngine to support model-driven

game development processes. First of all, we need

to know detailed information about the game logic it-

self. Deﬁning an abstract model can solve this. This

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

624

Timer

{abstract}

GameWorld

{abstract}

create()

start()

destroy()

registerObject(o : GameObject)

GameObject

{abstract}

id : long

execute(a : GameAction)

0..n

GameAction

{abstract}

run(o : GameObject)

Observable

{abstract}

dispatch(e : Event)

addObserver(o : Observer)

removeObserver(o : Observer)

Use

Observer

{abstract}

handle(e : Event)

0..n

0..n 0..n

Event

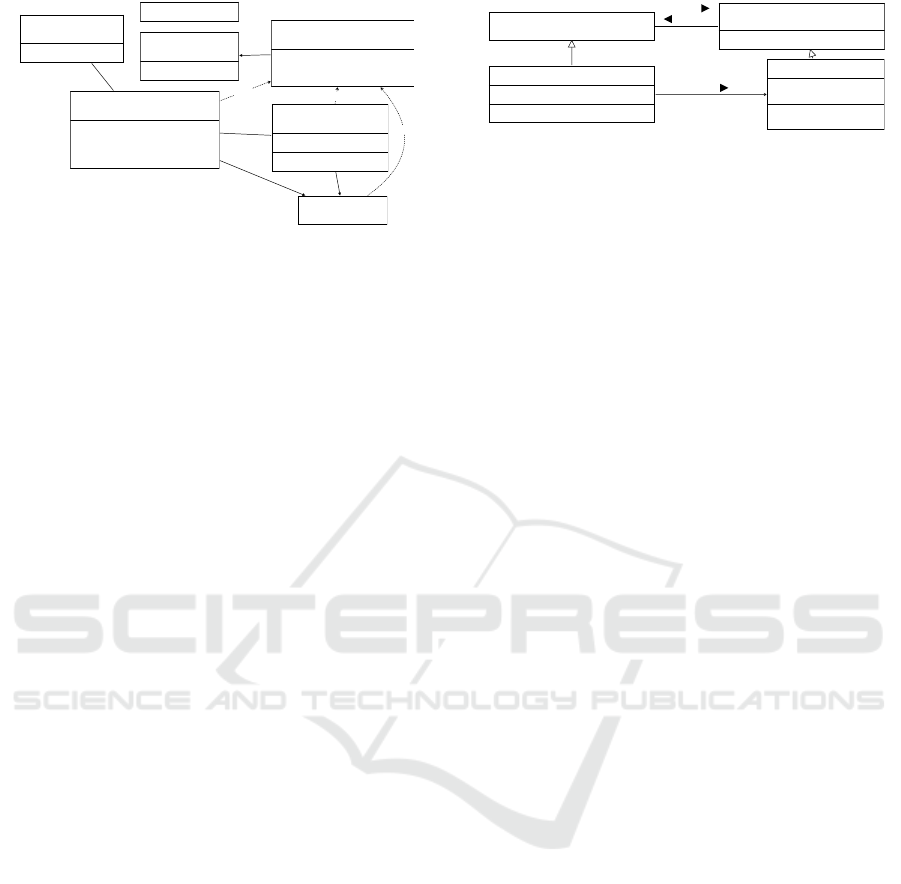

Figure 3: Class diagramm of a basic meta model to use in

game logic implementations.

model deﬁnes entry points which can be used by an

abstract component for further analyses. Furthermore

this model has to be the intersection, which could

be found in each game logic. To reengineer such a

meta model, a closer look on fundamental principles

of game modeling was necessary.

“A game is a type of play activity, conducted in

the context of a pretended reality, in which the partic-

ipant(s) try to achieve at least one arbitrary, nontrivial

goal by acting in accordance with rules.” (Adams,

2010) Pretend some kind of new reality, deﬁne a set

of rules and nontrivial goals (Adams, 2010; Rollings

and Morris, 2004). This non-existing, virtual “pre-

tended reality” is our base element within the abstract

meta model. The GameEngine will call this element

“game world”. The element “goal” is a special rule,

a rule with a positive termination condition. Finally

the “rule” should be added indirectly to handle differ-

ent types like: (1) semiotics of the game to describe

meanings and relationships for various symbols, (2)

gameplay to describe challenges and actions, (3) se-

quence of play for progression of activities, (4) the

already pointed out goal of the game, (5) some termi-

nation conditions and (6) meta rules about these rules

(Adams, 2010).

Rules, which describe “something” in this game

world, are semiotics of the game, especially their

symbols (Adams, 2010). The GameEngine will call

this symbols “game objects”. Whenever a rule de-

scribes something like an avatar for the player or an

item like a sword, which could be equipped by this

avatar, then this rule has to be implemented as a spe-

cialization of an abstract game object. In addition

to the semiotics of games, there is a need to real-

ize the other types of rules. One more element of

the meta model is our set of actions as a part of the

gameplay rules. Each game object can trigger a set

of possible actions, hereinafter called “game action”.

Combining game world, game object and game ac-

tion will create the ﬁrst version of the abstract game

meta model. Figure 3 shows this abstract game meta

model and extends this by using an observer pattern

World

newAvatar(name : String) : Avatar

Avatar

- x : int

- y : int

+ move(vector : Vector)

+ attack(target : int)

0..n

avatars

GameWorld

{abstract}

GameObject

{abstract}

- id : long

world

1 0..n

objects

Figure 4: Example model for a simple 2D game. The player

can control the avatar and attack other players.

and timer component. The observer pattern (Gamma

et al., 1994) helps to manage state changes as well

as special events. The timer is used to simulated the

model independently from user interactions.

4 DERIVATE INFRASTRUCTURE

FROM GAME LOGIC

In case of using a game logic which is based on the

previously deﬁned meta model, the second step would

be the identiﬁcation of signiﬁcant elements to derive

an infrastructure. The simpliﬁed game logic shown

in Figure 4 will be used to describe requirements and

how to get to communication components.

4.1 Identify Communication Protocol

Figure 4 shows a game, where a player can con-

trol his avatar by moving in two dimensions, for ex-

ample by pressing the arrow keys on his keyboard.

To join this game, the player needs to create a new

avatar. To achieve victory points, the player need to

attack other avatars. In case of manually creating an

infrastructure-workﬂow as shown in Figure 5 based

on common MMOG architectures, the following steps

have to be done by developers:

1. Creating request objects to name the special re-

quest and deﬁne their individual parameters

2. Creating a handling description which will check

parameters, map them to match game logic re-

strictions, call the proper methods and creates a

response object

3. Creating a request receiver process and a mech-

anism to identify the requests and assign them to

the correct handling description and returns the re-

sults of this handling description

4. Creating response objects with parameters which

contains information about the result of a request

These steps can be used as an abstract general-

ization and can be found in many implementations

of request-response-based interfaces. The example

Generic and Distributed Runtime Environment for Model-driven Game Development

625

Client

Server

send request

send response

Validator

Handler

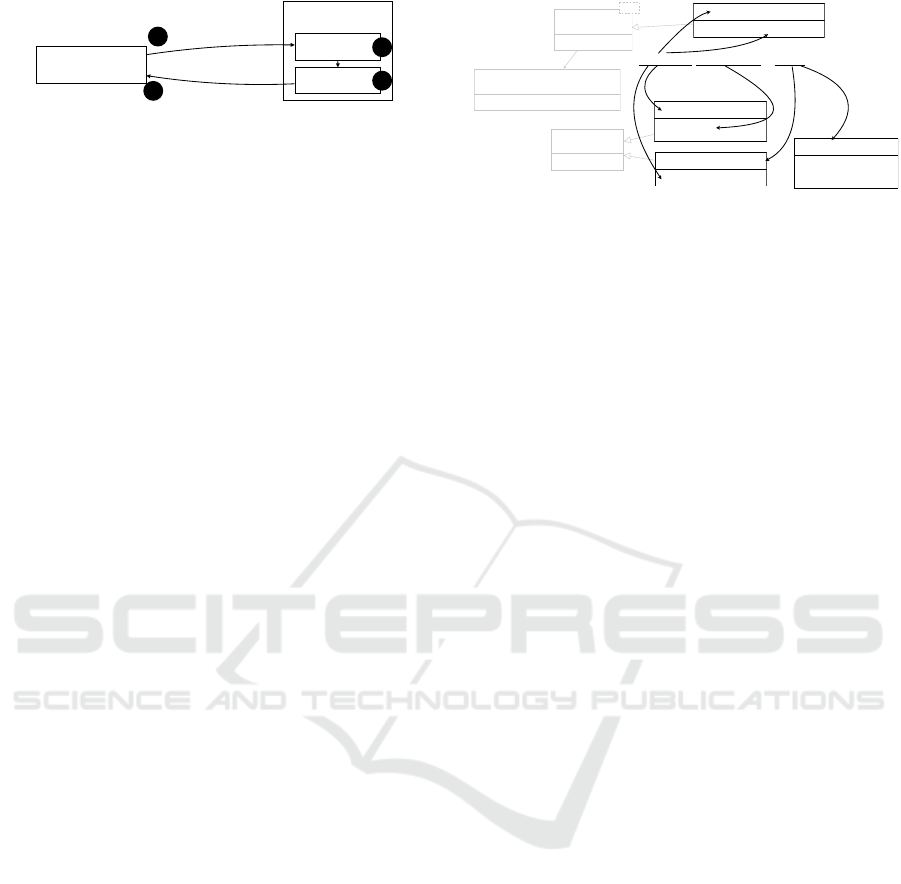

Figure 5: Abstract communication ﬂow for message han-

dling.

model in Figure 4 requires three requests, three han-

dling descriptions and three responses to handle new

avatar, move and attack. In detail, the request to han-

dle a new avatar should contain a parameter name, the

request to handle moving should contain the avatar id

as well as the corresponding vector whereas ﬁnally

the request to handle the attack should contain the

avatar id as well as the target id. By using this exam-

ple two types of requests can be found: (1) requests

with context (move, attack) and (2) requests without

context (new avatar).

To derive requests from our example in Figure

4, we search for method signatures within the game

world to create requests without speciﬁc object con-

text as well as searching for methods within game ob-

jects for requests with speciﬁc object context. While

requests without context only use the parameters of

the signature, requests with context have to extend

this parameter list by using an identiﬁer for this cor-

responding game object. Additionally, all related re-

sponses can be derived directly by using return values

of currently analysed method signatures.

Continuing this way it is possible to derivate han-

dling descriptions. Using parameters and return val-

ues to ensure the correctness of request parameters

and match them to the game logic by mapping data

type differences between request and method could

do this. Mapping of data types should be treatable,

because previously generated requests. Finally, the

call to the proper game logic method: in case of con-

textual calls, the handling description needs to use an

access point to ﬁnd the game object by using the id. In

case of a request without context it would be enough

to use the instance of the world we are currently con-

nected and call the matching method. The result of

this contextual and context free call can be used to

create the response and should be returned.

To create a request receiver process and a mecha-

nism to identify the requests, it is important to collect

the generated elements. Because generating a tuple of

a request, response and handling description for each

necessary method in the example game logic, the re-

ceiver process should know the correct handling de-

scription for each request and the possible responses.

Figure 6 shows how to derive request, response and

handler in case of the new avatar method.

Sequence

{abstract}

+ sequenceId : int

CallHandler

{abstract}

+ handle(call : i)

GameWorld

{abstract}

+ ﬁnd(id : long, c : Class) : GameObject

<<bind>>

<T->NewPlayerCall>

NewAvatarRequest

name : String

instanceId : long

newAvatar(name : String) : Avatar

NewAvatarResponse

+ player : AvatarData

AvatarData

id : int

x : int

y : int

NewAvatarHandler

+ handle(call : NewAvatarRequest)

Figure 6: Model based derivation of communication related

elements by using thew new avatar method from Figure 4.

4.2 Identify Data Representation

In addition to identify requests, responses and han-

dlers, it is possible to use the game logic to generate

a generic data representation. As shown above, we

can derive all necessary communication elements. To

get a data stream, ready for transmission, we need a

method to serialize those elements.

One solution would be to use so called serializers.

Most of them produce XML or JSON based on previ-

ously annotated entities. In case of implementations

based on Java, those tools make heavy usage of less

performant reﬂection API (Oracle, ) calls. Using this

API help to interact with entities on abstract levels in-

stead of native method calls. Testing the performance

loss, in case of using the reﬂection API, can be done

by calling a method multiple times natively compared

to calls done with the reﬂection API, measuring ex-

ecution time and divide this by the number of itera-

tions. This test will show something around two, up

to three, times more time per reﬂection based method

call. Those reﬂection API calls are used by serial-

ization tools for attribute identiﬁcation, reading meta

information, calling getters and setters and creating

new instances of data entities. Taking a plain Java se-

rialization, as reference, shows a signiﬁcant raise of

serialization time in case of popular XML and JSON

tools as shown in Figure 7. Figure 7 shows simple en-

tities which encapsulates basic variable types as well

as complex entities with combinations of them. Each

entity is serialized multiple times by using the same

previously allocated space to avoid measurement er-

rors based on allocation processes. To speed up this

serialization process it is necessary to avoid reﬂection

based calls as much as possible. Additionally reduc-

ing string based operations would help to boost up

performance.

The GameEngine acts as a fully generative exe-

cution environment for game logics. In case of ab-

stracting communication for model-driven develop-

ment and hiding infrastructure it would be possible

to use more proprietary protocols. This enables the

GameEngine to use meta information free data repre-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

626

time in ns

1250

2500

3750

5000

BooleanObject

IntObject

DoubleObject

ObjectObject

BooleanArrayObject

StringObject

IntArrayObject

DoubleArrayObject

ObjectArrayObject

StringArrayObject

ComplexObject

Java JAXB JSON GameEngine

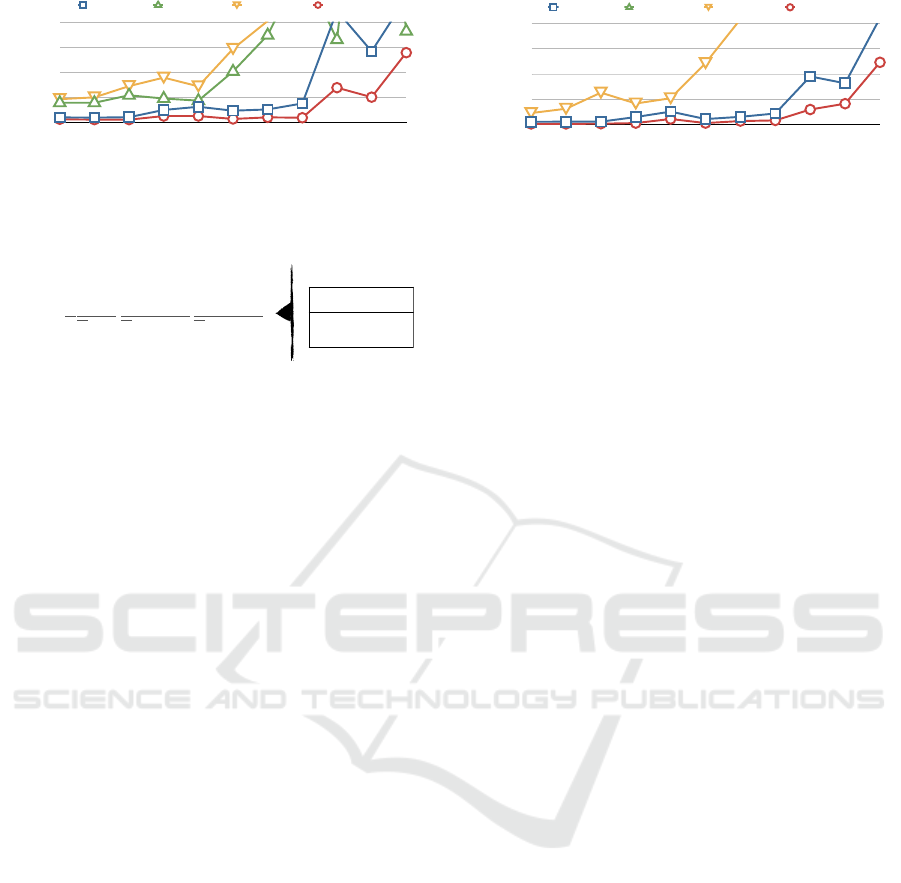

Figure 7: Serialization time of different types of entities

with Java, JAXB for XML, JSON and GameEngine.

01FF 00FF 0200 0000 02FF 0000 01FF

Namespace

SomeObject

x : int = 2

y : int = 511

Figure 8: Data transformation for entity with two integer

variables. Header contains a numeric namespace and a nu-

meric identiﬁer for SomeObject. Attribute values will be

added after header in alphabetic order.

sentation. Each data stream starts with a little header

to identify the represented communication element by

using an numeric identiﬁer, followed by a alphabeti-

cal order list of attribute values. Value will be en-

coded as they are, e.g. an attribute with 32 bit integer

type will be encoded as a big endian sorted 32 bit in-

teger. Figure 8 shows an example how to transform

a simple entity into data streams based on this idea.

To get a more save data handling a little checksum

is embedded in some data types. Figure 8 contains

an additional checksum integers and a checksum for

object ids.

To avoid reﬂection calls the GameEngine uses

code generators to create native serialization pro-

cesses for each previously identiﬁed communication

entity. Each process is a list of binary operations to

extract data from streams to entity instances or to ex-

tract data from entity instances to the data streams by

using native getter and setter calls as well as binary

operations for data transformation.

As shown in Figure 8 the runtime generative code

for mappings between stream and entity to avoid re-

ﬂection based calls is faster than JAXB, JSON or

Java itself. Compairing complex data entities with

ﬁxed and ﬂoating point numbers as well as booleans,

strings and sub entities result in 80 times faster trans-

formations. In general it is two times faster than na-

tive serialization in Java just by using code generators,

binary based data representation and communication

objects extracted from speciﬁc domain models with-

out losing abstraction level while programming. In

addition Figure 9 shows exactly the same entities used

in deserialization processes and again with faster run-

time than XML and JSON based solutions.

time in ns

1250

2500

3750

5000

BooleanObject

IntObject

DoubleObject

ObjectObject

BooleanArrayObject

StringObject

IntArrayObject

DoubleArrayObject

ObjectArrayObject

StringArrayObject

ComplexObject

Java JAXB JSON GameEngine

Figure 9: Deserialization time of different types of entities

with Java, JAXB for XML, JSON and GameEngine. The

runtime of of JAXB is 100 times slower than JSON and not

visible in this scale.

This method for entity transformation into data

streams could not be used in common development

processes easily. Required dependencies between

client and server implementation would result in a

high failure rate. However, approaches based on

model-driven development can be used to embed

much more performant ideas and could avoid those

failures by using generated elements in development

processes.

5 GAMEENGINE

ARCHITECTURE

To run a game logic based on this idea the

GameEngine uses an architecture as shown in Fig-

ure 10 based on a reference architecture for a MMOG

(Chen et al., 2013). Our architecture contains al-

ready named components like game logic, game state

and message handling, but separates a controller from

message handling. The message handler manages

connections and (de-) serialization features while the

controller will handle requests by using the handling

descriptions. This modiﬁcation is based on a Model-

View-Controller pattern to keep a cleaner separation

of components (Buschmann et al., 1996). The pre-

sented Figure shows the architecture for one single

game instance. The GameEngine itself comes as an

execution environment as shown in Figure 11 written

in Java by using well known speciﬁcations from the

Java Enterprise Edition (EE). The reason why Java

EE was chosen is because of its structured compo-

nents to implement services, business logic and ad-

ditional interfaces. Using this allows game develop-

ers to richly extend their games by using standardized

concepts to create additional services around their

game logic. Furthermore the game engine can offer

optional services to enable authentication, payment,

statistical and community services.

The main elements of our middleware are infras-

Generic and Distributed Runtime Environment for Model-driven Game Development

627

Server

Client

Network

Message Handler

Game State

Game Logic

Controller

Controller I

View

Controller II

Figure 10: Architecture for a single game instance. Ele-

ments marked black could be generated by using the game

logic (Chen et al., 2013).

tructure, generator, translator, meta model and persis-

tence to realize the described idea as shown in Fig-

ure 11. The infrastructure can be compared to com-

mon socket implementations, which can be used in

Flash, WebSocket or binary mode. The mode for run-

ning a connection is switched dynamically by detect-

ing client speciﬁc characteristics.

The game manager handles game logics and of-

fers translator, generator and persistence features. In

case of adding new game logics, the manager will

create the corresponding game instance, analyses the

new game logic, creates the new public communica-

tion port and initialize the logic itself. Analyses and

derivations will be done directly after the start pro-

cess. Finally, logic and generated elements are pre-

pared, available and ready for use.

The translator is an internal component, used as a

runtime service or as a deployment service. In case of

JavaScript the translator can be used to dynamically

include the current client code version. Alternatively,

this component can also be used as a service while

deploying a new client version to embed the translated

code fragments directly.

6 EVALUATING THIS STRATEGY

The described concepts will work in theory as shown

above when using a compact game concept. Next

step would be to go through real scenarios, e.g. game

projects. These projects starts with a computation-

independent model (CIM), followed by a platform-

independent model (PIM) and ﬁnally moved to a plat-

form speciﬁc model (PSM) for a speciﬁc game logic

(Pastor et al., 2008). While moving through a PSM

the created game logic should extended by using the

provided meta model for game development as pre-

sented above. After all, adding the implementation of

the game logic and some client logic for visualization

and the game should be done. Initially we evaluate, if

GameEngine

Game 1

Game 2

Game n

Clients

UDP / TCP Sockets

Game Manager

Services

Database

Game Logic 1

Game Logic 2

Game Logic n

Translation

Generator

Persistence

Flash

WebSocket

TCP

UDP

Payment

Authentiﬁcation

Statistics

Community

Figure 11: Global GameEngine view; our middleware can

handle multiple game logics at once, can offer services and

handles public client connections.

this concept is applicable and useable as well as whats

about the development savings.

6.1 Viechers

One of the ﬁrst games created using the mentioned

GameEngine is Viechers, which is an evolution based

open world strategy game. The player controls a

horde of entities to collect resources, to breed his

critters, to evolve them and building a civilization

by placing constructions. The game idea of Viech-

ers was created in an early state of our middleware.

The logical core of this game is an independent game

domain model, which describes all entities and their

relations, e.g. the “viechers”, rocks and trees. This

logic is based on a game world, game objects and

a set of game actions for each object, e.g. breed-

ing, harvesting, feeding and sleeping. Because of

the early development state of the GameEngine, re-

quest and response objects as well as the handling

descriptions were created manually. The main goal

of this project was a proof of concept to validate the

theoretical base in a real game project and evaluate

requirements to have an executable example. Fur-

thermore this game was released to public to test

the GameEngine performances in real-world condi-

tions. The client is written in ActionScript and the

client-side communication layer is translated from

server code by using our proprietary code generators

as described above. Because of this ﬁnallized, com-

plex MMOG and the manually written components

we could measure, which elements would have the

most effort. The analysed costs were separated into

game logic, request/responses, handling descriptions

and infrastructure. Figure 12 shows a high load for in-

frastructure, requests/responses and handling descrip-

tions. The goal would be to avoid this development

parts in future.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

628

18"%

10"%

26"%

46"%

Model

Requests / Responses

Handlers

Infrastructure

1

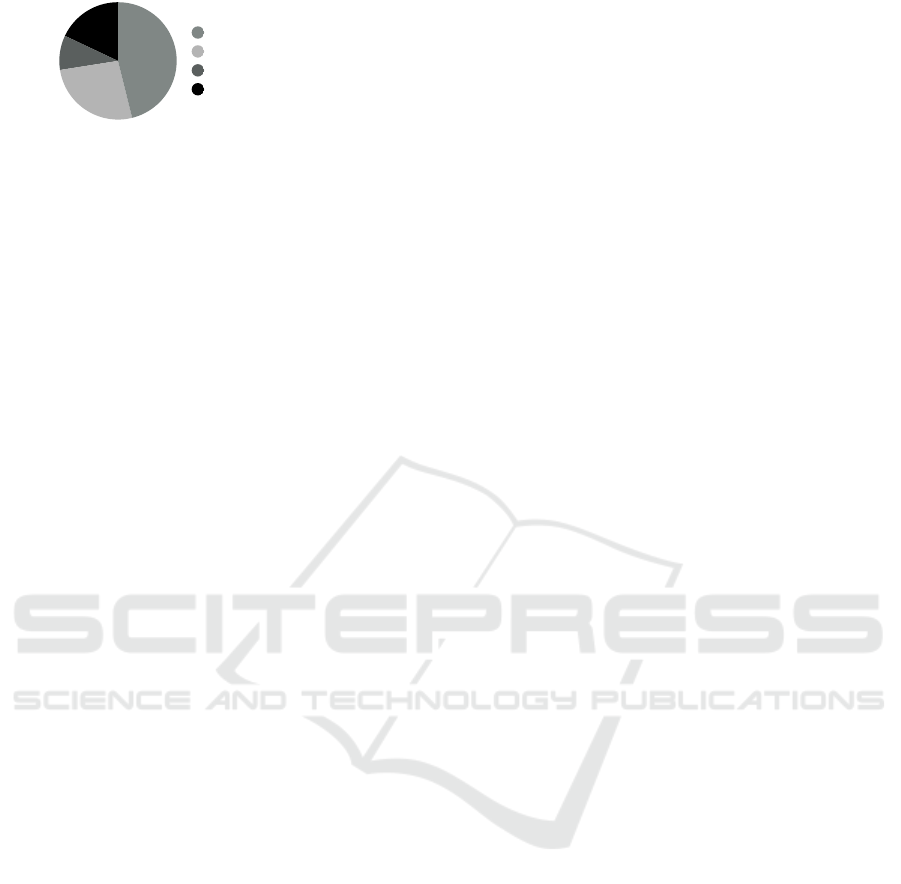

Figure 12: Measurements to show how many line of codes

each part of Viechers uses. There is a overall number of

about 100kloc (without implementations for visualization).

6.2 Stickman Project

Stickman, as another game, was the ﬁrst one using

the game engine as intended. This game is about a

simple stickman running in a 2D adventure to ﬁght

against other players. The goal of this project was

to show that the GameEngine can handle game logic

implementations based on the meta model without

additional development efforts for infrastructure and

communication. However, this is an ActionScript

based game, but in this case the client code is trans-

lated from previously derived communication objects.

In relation to Figure 12, the infrastructure is part of

our middleware. Handlers, request and responses are

derivated from the Stickman game logic. Analysing

client code shows savings of 75 % comparing vi-

sual and infrastructural implementations. The server

on the other hand handles 11 different types of re-

quests, one of them is implemented manually. Each

request has its own request data object and all requests

together utilizes just ﬁve different response objects.

One of those response object is generated from server

code, the other one are implemented as simple data

objects with approx. three attributes. Getting objec-

tive measurements requires an additional implemen-

tation of this project with fully manually written com-

munication and controller layer, which is currently

not done. However, the project itself shows the appli-

cableness and a working game idea without any kind

of communication handling – just object oriented han-

dling of entities within the Stickman game logic.

6.3 Independent Game Projects

Next step is to involve independent developers for

evaluating the middleware within their ideas. In this

case four student groups, approx. three experimentees

per group, create and implemente their own game by

using the GameEngine: Prevolution, Terra Life Evo-

lution, HackNSlay Adventure and Kokusnussbikini.

All projects had to follow a real development pro-

cess starting with preproduction phase, going through

production and alpha phase and end up with beta

phase (Claypool and Lindeman, 2008). Teams had

to start with their idea, without any knowledge about

our middleware, as well as creating their game re-

lated sketches. This included requirement analysis,

creating of use cases as well as ﬁrst drafts of their

game logic with UML tools for class diagrams. Fur-

thermore, these steps are handled without knowledge

about our middleware. After that, the implementation

phase started. Teams got an introduction to our mid-

dleware and get their training about how to use the

API in combination with their created game logics.

Prevolution is a prequel for Viechers by using the

current version of the GameEngine. The player con-

trols single-cell organisms and tries to evolve them by

swimming around in the tide pool. The client is writ-

ten in Java, so translation is unnecessary. This project

helps to test and evaluate a pure Java implementation

for server and client as well.

Terra Life Evolution is about a classical role-

playing concept with modiﬁcations to handle the skill

development. Central scene of this game project is a

world separated in islands, which again are separated

into several areas. The player starts in a constant area,

with matching enemies to manage their ﬁrst steps,

perform quests and improve experience to get skills.

The Hack’N’Slay Adventure is a round-based

concept where players have to manage defending a

centralized object and protect this one against on-

rushing enemy troops. The game starts with a lobby,

where players were put into teams. Each team starts

with an instantiated map to defend the centralized ob-

ject. After ten rounds of onrushing enemy troops the

game is over, depending on survivors the player teams

wins or loses the match.

The last one, Kokosnussbikini, is based on an

open-world-survival idea. This game describes a

generic world for players to move, defend, collect re-

sources and place objects. The client uses an isomet-

ric visualization to show player and landscape.

These four projects have shown that it is possi-

ble to develop browserbased MMOGs by following

classical development processes and avoiding devel-

opment overhead for infrastructure and communica-

tion by using our meta model for their game logic.

In relation to Figure 12, none of these projects have

any kind of socket implementation, neither any line of

code to deﬁne request or response objects or to handle

them. Also there is no additional effort to handle dif-

ferent client and server languages. Furthermore, these

projects gave a closer look at the following problems:

• Challenging differences between coding lan-

guages, for example the syntax for getter and set-

ter. Currently the GameEngine matches them as

good as possible by using the syntax from Java

copied to other languages. The opposite would be

to use the client side language syntax for them,

Generic and Distributed Runtime Environment for Model-driven Game Development

629

which could lead to problems in ﬁnding the cor-

rect spelling.

• Another problem is related to missing mecha-

nism for synchronous calls on the GameEngine

in ECMA based scripting languages (for exam-

ple JavaScript or ActionScript). To manage this

language speciﬁc behavior, the GameEngine gen-

erates additional parameters in method signatures

for success and failure callbacks.

• JavaScript does not distinguish between byte,

short, integer, long, ﬂoat or double. The

GameEngine middleware tries to address these re-

strictions, however, it may lead to inaccuracies. In

normal cases, this will not affect the development.

7 CONCLUSION AND FUTURE

WORK

This paper describes the idea of extracting infrastruc-

tural components from implemented game logics by

using model-driven engineering methods and to eval-

uate useablity and applicableness in realistic condi-

tions. Development can be focused on modeling the

game logic which means handling of symbols and re-

lationships between them. Furthermore, it is possible

to reduce infrastructural implementation efforts dra-

matically, which reduces testing and raises overall sta-

bility by using an adaptive and generic execution en-

vironment.

Using model-driven engineering in a highly ab-

stracted framework in addition to code generators, en-

ables usage of proprietary mechanisms hidden inside

a middleware. They could boost internal critical com-

ponents without any need to get a developer in touch

with it. They just use their own modeled and imple-

mented entities within server and client.

So far there is a working middleware to de-

velop games based on this idea as shown in indepen-

dent game projects, mostly location-based Browser-

MMOGs. In future work this project aims at compar-

ing game logic implementations. Using at least one

of them in combination with a manually constructed

communication layer would give a brief insight about

the percentage of savings.

ACKNOWLEDGEMENTS

We would like to thank all members at the Depart-

ment of Computer Science here at FSU Jena – espe-

cially Wilhelm Rossak. We would also like to extend

our gratitude to Bernd Weigel and all students here at

FSU Jena about their contributions in different kinds

of game projects as well as the GameEngine itself.

REFERENCES

Adams, E. (2010). Fundamentals of Game Design. New

Riders, Berkeley, 2nd edition.

Apel, S., Schau, V., and Rossak, W. (2014). Er-

probung von generischen Kommunikations- und

Verwaltungsinfrastrukturen in modelgetriebenen En-

twicklungsprozessen bei ortsbasierten MMOGs. In

11. GI/KuVS-Fachgespr

ach ”Ortsbezogene Anwen-

dungen und Dienste”, volume 11. in press.

Bharambe, A. R., Pang, J., and Seshan, S. (2006). Colyseus:

A distributed architecture for interactive multiplayer

games. In NSDI ’06: 3rd Symposium on Network De-

sign and Implementation, San Jose, California, USA.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P.,

and Stal, M. (1996). A System of Patterns, Pattern -

Oriented Software Architecture. Wiley, 1 edition.

Chen, Q., Galiullin, A., and Woo, J. (2013). A reference

architecture for multiplayer online games.

Claypool, M. and Lindeman, R. W. (2008).

Game development timeline. Internet,

http://web.cs.wpi.edu/ imgd1001/a08/slides/imgd100

1 04 GameDevTimeline.pdf, visited 2015-10-21.

Elektrotank. http://www.elektrotank.com, visited 2014-09-

12.

Exit Games. https://www.photonengine.com, visited 2015-

10-21.

Exit Games. Mmo concept. Internet, http://doc.photonen

gine.com/en/onpremise/current/reference/mmo/mmo-

concept, visited 2015-10-21.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley Profes-

sional, 1 edition.

gotoAndPlay(). http://www.smartfoxserver.com, visited

2015-10-21.

gotoAndPlay() (2011). SmartFoxServer 2X

Zones and Rooms Architecture. Internet,

http://docs2x.smartfoxserver.com/Overview/zones-

room-architecture, visited 2015-10-21.

Gregory, J. (2009). Game Engine Architecture. A K Pe-

ters/CRC Press, Boca Raton.

Oracle. Trail: The reﬂection api.

https://docs.oracle.com/javase/tutorial/reﬂect/, visited

2015-10-21.

Pastor, O., Espa

na, S., Panach, J. I., and Aquino, N.

(2008). Model-driven development. Informatik Spek-

trum, 31(5):394–407.

Rollings, A. and Morris, D. (2004). Game Architecture and

Design: A New Edition. New Riders, Indianapolis.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

630
