Extending Graphical Part of the Interaction Flow Modeling

Language to Generate Rich Internet Graphical User Interfaces

Sarra Roubi

, Mohammed Erramdani

and Samir Mbarki

High School of Technology, Mohamed First University, Oujda, Morocco

Department of Computer Science, Ibn Tofail University, Kenitra, Morocco

Keywords: Model Driven Engineering, Interaction Flow Modeling Language, Transformation, Model, Meta Model,

User Interface.

Abstract: Rich Internet Applications (RIAs) combine the simplicity of the hypertext paradigm with the flexibility of

desktop interfaces. However, RIAs are complex applications and their development requires designing and

implementation which are time-consuming and the available tools are specialized in manual design. In this

paper, we present an approach for the model driven generation of Rich Internet Application using the

Interaction Flow Modeling Language (IFML). The approach exploits the new language IFML recently

adopted by the Object Management Group by extending first the graphical part of the Meta Model to fit the

RIAs’ needs. We used frameworks and technologies known to model-driven engineering, such as Eclipse

Modeling Framework (EMF) for Meta Models, Query View Transformation (QVT) for model

transformations and Acceleo for code generation. The approach allows to quickly and efficiently generating

a RIA focusing on the graphical aspect of the application.

1 INTRODUCTION

HTML-based Web applications have shown their

limitations especially when it comes to integrate

complex activities to be performed via Graphical

User Interfaces (GUI). Rich Internet Applications

(RIAs), were proposed as a response to these

necessities and have combined the richness and

interactivity of desktop interfaces into the web

distribution model.

The Model Driven Engineering has been

introduced to master complexity and ensures

consistency of applications and has shown its

efficiency. Besides, it helps improving the quality of

applications as well as time savings and increasing

the productivity.

Indeed, several researches have applied model-

driven techniques to the specification of software

application and precisely interfaces and user

interaction. Among them, the ones focusing on Web

interfaces like OOH-Method (Gmez et al., 2001),

WebML (Ceri et al., 2002), HERA (Vdovjàk et al.,

2003) and RUX-Model (Linaje et al., 2007).

Furthermore, some approaches apply model driven

techniques for multi-device UI modeling, such as

TERESA (Berti et al., 2004), MARIA (Paterno et

al., 2009), IFML (Brambilla et al., 2014)…

However, none of them specifically addresses

the needs of RIAs in terms of Graphical aspects and

its connection with the application layers respecting

a given Design Pattern such as Model View

Controller, Model View Presenter...

In this paper, we propose a model-driven

approach and the idea is to focus on the graphical

aspect of the application on the one hand, and the

complete abstraction of the input model from any

technical knowledge of the targeted platform on the

other hand. This guarantees the translation of the

user’s expectation from a simple model to an

automatically generated RIA that respects a MVP

pattern and provides well designed graphical user

interfaces. To do this, we used the OMG standard

language called Interaction Flow Modeling

Language (IFML). We propose an extension of the

IFML suitable for graphical characteristics of RIAs,

respecting the MVP pattern, and we describe the

process and the proposed Meta Models, the

extensions added and the transformation process

with QVTo standard.

The paper is organized as follows section 2

reviews the related work; Section 3 summarizes the

Roubi, S., Erramdani, M. and Mbarki, S.

Extending Graphical Part of the Interaction Flow Modeling Language to Generate Rich Internet Graphical User Interfaces.

DOI: 10.5220/0005650601610167

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 161-167

ISBN: 978-989-758-168-7

161

Model Driven Engineering and introduces the IFML.

Section 4 and 5 present respectively the work

elaborated and the running example and Section 6

concludes.

2 RELATED WORK

This work is related to several works that dealing

with conceptual modeling of software applications.

Among these works, there are those focusing on the

Web: The Web Modeling Language (WebML)

(Ceri, 2002), defined as a conceptual model for data-

intensive Web. Also, we find the OO-HDM

(Schwabe and Rossi, 1995), a UML-based approach

for modeling and implementing Web application

interfaces. Moreover, WebDSL (Groenewegen et al.,

2008) is a domain-specific language consisting of a

core language with constructs to define entities,

pages and business logic. In addition, we find HERA

(Vdovjàk et al., 2003) which is a model-driven

design approach and specification framework

focusing on the development of context-dependent

or personalized Web information system.

Some researches apply model based approaches

for multi-device user interface development. Among

them we can cite: TERESA (Transformation

Environment for inteRactivE Systems

representations) (Berti et al., 2003) and MARIA

with (Paterno et al., 2009). Also, UsiXML (USer

Interface eXtended Markup Language)

(Vanderdonckt, 2005).

Another related work on applying MDA

approach for Rich Internet Applications is found in

(Martinez-Ruiz et al., 2006). The approach is based

on XML User Interface description languages using

XSLT as the transformation language between the

different levels of abstraction

Other recent proposals in the Web Engineering

field represent the RIA foundations (Urbieta et al.,

2007) by extending existing Web engineering

approaches. We also find combination of the UML

based Web Engineering (UWE) method for data and

business logic modeling with the RUX-Method for

the user interface modeling of RIAs was proposed as

model-driven approach to RIA development

(Preciado et al., 2008).

Also, an MDA approach for AJAX web

applications (Gharavi et al., 2008) was the subject of

a study that proposes a UML scheme by using the

profiling for modeling AJAX user interfaces, and

report on the intended approach of adopting

ANDROMDA for creating an AJAX cartridge to

generate the corresponding AJAX application code,

in ICEFACES, with back-end integration. A Meta

Model of AJAX has been defined using the

AndroMDA tool.

3 MODEL DRIVEN

ENGINEERING (MDE)

3.1 Transformation Process in MDE

In MDE, every artefact, including the source code, is

considered as a model element, and the whole

development process can be seen as a set of related

transformations from one model to the next one in

order to automate the system’s implementation from

its requirements. This brings up the three different

layers of abstraction that can be described as follow:

 Computing Independent Model (CIM): It

represents a high level specification of the

system’s functionality. It shows exactly what the

system is supposed to do, but hides all the

technology specifications.

 Platform Independent Model (PIM): It allows

the extraction of the common concept of the

application independently from the platform

target.

 Platform Specification Model (PSM): It

combines the specifications in the PIM with the

details required of the platform to stipulate how

the system uses a particular type of platform

which leads to include platform specific details.

Once the Meta Models developed, MDE provides

the transition between the CIM, PIM and PSM

models through the execution of models

transformation. A transformation converts models

with a particular perspective from one level of

abstraction to another, usually from a more abstract

to less abstract view, by adding more detail supplied

by the transformation rules. There are two types of

transformations in the MDA approach:

 Model To Model: it concerns the transition from

CIM to PIM or from PIM to PSM.

 Model To Text: it concerns the generation of the

code from the entry model (the PSM) to a

specific programming language as a target.

For the Model To Model transformation, using the

modeling approach is designed to have a sustainable

and productive models transformation,

independently of any execution platform. This is

why the OMG has developed a standard for this

transformation language which is the MOF 2.0 QVT

(OMG - Object Management Group (MOF, MDA,

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

162

XMI, QVT, UML, MOFM2T) -

http://www.omg.org/.) standing for Query View

Transformation. QVT is hybrid character

(declarative / imperative) consisting of three

languages: QVT-Relation, QVT-Operational and

QVT-Core.

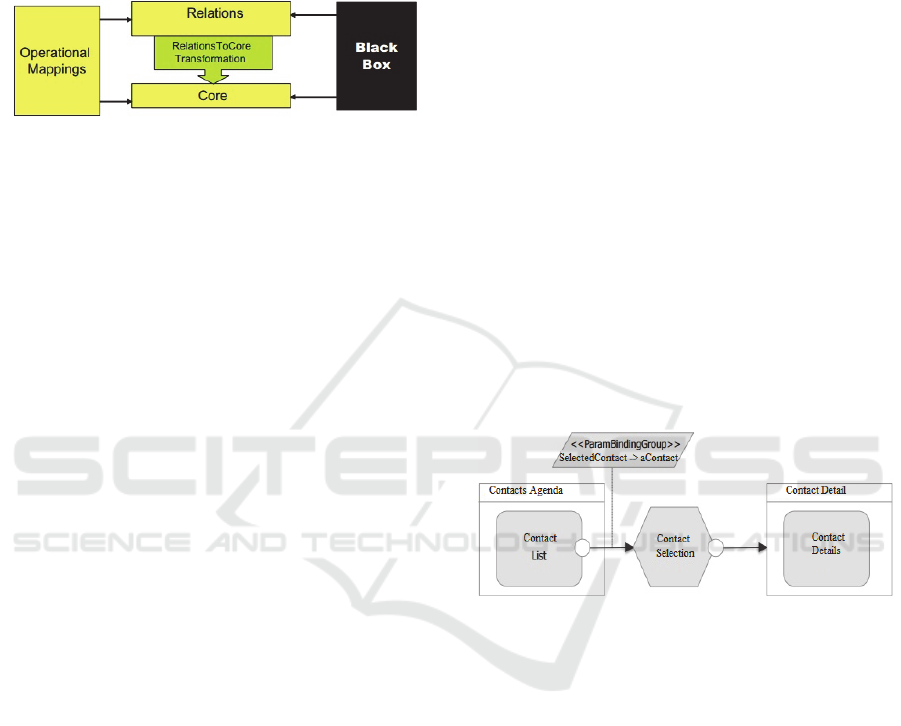

Figure 1: Query View Transformation Architecture.

The declarative part is defined by the Relation

and Core languages with different levels of

abstraction, while the Imperative part is defined by

the operational language. Finally, a black box is

defined in the MOF 2.0 QVT standard that enables

escaping the whole transformation/library or its parts

that are difficult or impossible to implement in pure

QVT. See Figure 1.

For this work, we used the QVT-Operational

mappings language implemented by Eclipse

modeling Framework (www.eclipse.org).

For the code generation phase under the MOF

Model To Text (MOFM2T) specification, there are

a number of tools aimed at the automation of

applications development. The principle being to

parse the representation of the model in XML file

format Metadata Interchange (XMI) (Schwabe and

Rossi, 1995) and apply a number of templates for

transforming models conforming to a MOF

metamodel into text; source code. Optionally, the

developer will have to add or edit source code

portions to complete its application code. Acceleo,

among others, is an implementation of the

“MOFM2T” standard, from the Object Management

Group (OMG). It is used in our work for final

transformation and code generation of the RIA with

explicit Graphical User Interface.

3.2 The Interaction Flow Modeling

Language

The Interaction Flow Modeling Language (IFML) is

designed for expressing the content, user interaction

and control behaviour of the front-end of software

applications. In other words, it supports the platform

independent description of graphical user interfaces

for software applications that can be accessed or

deployed on various systems as desktop computers,

laptop computers, PDAs, mobile phones, and tablets.

Besides, an IFML model should supports several

design perspectives, among them:

 The view structure specification, which consists

on the definition of view containers, their nesting

relationships, their visibility...

 The view content specification that treats the

content and data entry elements contained within

view containers.

 The events specification that can be produced by

the user’s interaction, by the application, or by an

external system and may affect the state of the

user interface.

 The parameter binding specification, which

consists on the definition of the input-output

dependencies between view components and

between view components and actions.

Figure 2 shows a simple example of IFML model

where the user can search for a product by entering

some criteria in the Product Search Form. The

matching items are shown in a list. The selection of

one item causes a delete action to be triggered on it.

When the deletion is completed, the updated list of

products is displayed again. IFML concepts can be

stereotyped to describe more precise behaviours

(Brambilla et al, 2014).

Figure 2: IFML excerpt of the running example: Contact

Agenda.

4 THE MODEL DRIVEN

PROPOSED PROCESS

Within the MDE context, several frameworks,

modeling technologies and transformation languages

can be used for different domains and purposes.

Among them, we find IFML, EMF, QVT and

Acceleo.

In this section, we describe first the extension of

the IFML to fit the RIA modeling. After that, we

defined an MVP Meta Model for RIA, then we

present the transformation rules to generate the final

application. Indeed, we propose a model-driven

development process to enable the automatic

generation of a fully working RIA starting from a

simple model.

Extending Graphical Part of the Interaction Flow Modeling Language to Generate Rich Internet Graphical User Interfaces

163

4.1 Extending IFML for RIA

Using IFM for modelling the graphical user interface

makes it possible to clarify the interaction between

the pages and navigation. However, we found that

the part defining the graphical part of the application

in terms of components and layouts did not provide

sufficient information. Also, the RIA propose rich

graphical interfaces that bring the richness of

desktop applications to the Web. We notice also that

the interactive dimension and speed of execution are

particularly taken into account in these Web

applications.

That's why we thought of extending the IFML

language to suit the needs of the development of

RIAs and respect the Design Pattern on

implementing platforms.

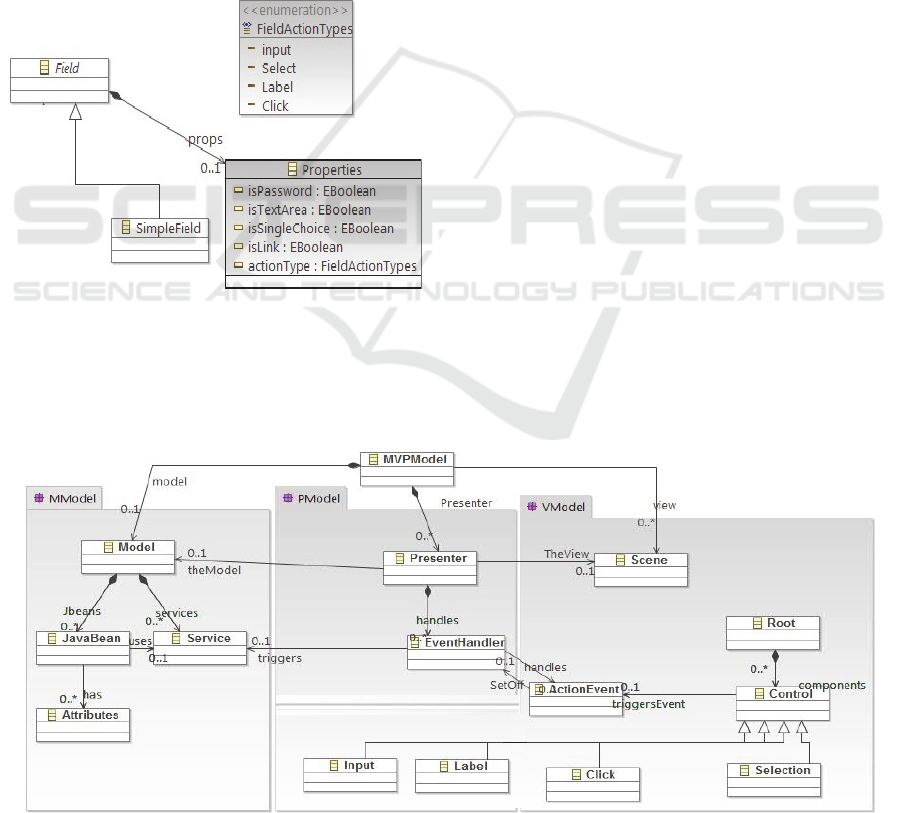

Figure 3: IFML Extension: Adding properties to Simple

fields to identify the suitable RIA component.

Indeed, these extensions reflect specifically the

graphic part of RIAs, that is to say, the components

and their properties. As shown in Figure 3, we added

to “SimpleField” properties to identify which

component type suits the best and describes

efficiently the user-defined action based on the

user’s “operating” with the interface. Our major

purpose is to keep the task as simple as possible and

abstract any technical specification so the approach

can be easily used by any stakeholders with or

without technical knowledge of the platform target.

So the FieldActionType gives the information about

the action to be performed on the component; Click,

Input, Selection... Then, properties help to pick the

right component, a button or a link, a text field or a

text area...

4.2 RIA Proposed Meta Model

We defined the PSM metamodel for the RIA

adopting the MVP as a core architectural pattern

(e.g., the JavaFX implementation platform in the

case of this article). As shown in the Figure 4, we

have the three packages:

 ViewPackage, containing meta-classes to

represent Views and the graphical components

taking into account the hierarchy in it.

 ModelPackage, representing the domain or the

business layer of the application and is made up

of Methods and Beans.

 PresenterPackage, containing the presenters to

ensure the connection between the tow layers of

the MVP pattern.

Note that the View/Presenter layers are responsible

for describing the structure and content of views in

terms of behavioral elements while the navigation

flow is ensure through the presenter’s handler that

are connected to the specified services from the

model layer.

Figure 4: MVP proposed Meta Model for RIA.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

164

In the view part, the scene is composed of

graphical components, named controls that could be

containers as Roots. From the IFML input and the

extension added, we can have more specific

information about the component to add and which

container it belongs to. We added a hierarchical

relationship between graphical components base on

their type. We also thought about the composite

relationship that can connect containers with simple

components.

4.3 Transformation Process

4.3.1 Model to Model Transformation

Once the Meta Modeling phase established, we

defined the transformation rules. Since we have

defined the extended IFML and PSM for MVP RIA

Meta Models, we need to define the Model To

Model transformation using the QVTo standard

respecting a defined algorithm.

The entry point of the transformation is the main

method. This method makes the correspondence

between all elements of the IFML model of the input

model and the elements of type JavaFXPackage

output model. For instance, for each

interactionFlowModel we create the equivalent

ViewPakage that will gather all the graphical aspect

of the RIA. To that, we connect the Preseter and the

Model also creates for the IFML model.The Figure 5

below shows an excerpt of the Transformation

program:

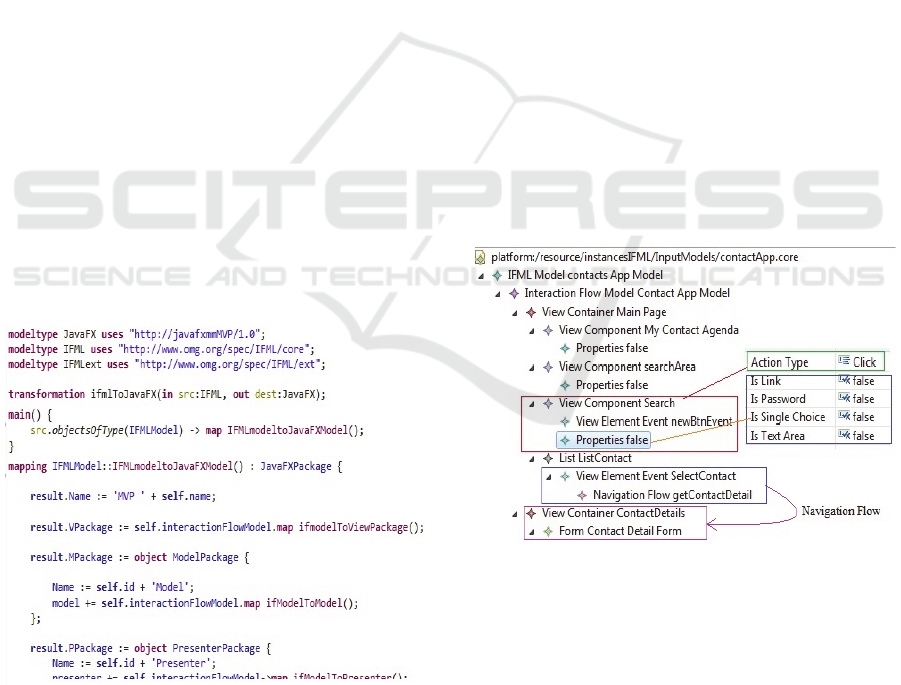

Figure 5: Query View Transformation Code excerpt.

4.3.2 Model to Text Transformation

When the model file for RIA is generated, the next

step is to be able to generate the whole code of the

application. To do this, we used the OMG standard

Acceleo, whose operating principal is to use

templates to generate code from a model. The

realization of a new generation module therefore

requires the creation of templates. So, we defined

templates with Acceleo to automatically transform

models obtained in the first transformation phase.

The execution of these templates we developed

gives the source code of the application with Java

files for the views, the presenters and the models.

With these generated files we are able to create an

MVP JavaFX project that give us the graphical

interface with all the components as desired and also

all the connections with the application’s three

layers.

5 RUNNING EXAMPLE

In order to validate our approach, we applied it to

generate a simple Contact application for searching

and editing contacts information. The application

enables its users to: View the contacts in a list, select

a contact and edit its information.

We provide the design model, instance of the

extended IFML, as described above, which is

basically the only input file to our generator. The

Figure 6 shows the input model.

Figure 6: Input model for the contact application.

Once the application has been sufficiently

modelled using the extended IFML, the generated

file, as shown in Figure 7, is a model respecting the

Meta Model for RIA implementing the MVP Design

Pattern. This file will be considered as the input for

the code generator and will provide all the source

code files needed for the application to be almost

running. The graphical aspect of the application and

the user interaction are the major focus on this

approach.

Extending Graphical Part of the Interaction Flow Modeling Language to Generate Rich Internet Graphical User Interfaces

165

Figure 7: The generated file for the MVP RIA of the

Contact Application.

The generated file represents the input file for the

code generator that was developed using Acceleo.

The idea is to generate the files for a MVP Rich

Internet Application focusing on the graphical

aspect. Here after in Figure 8, the main view of the

generated application based on the IFML extended

model only.

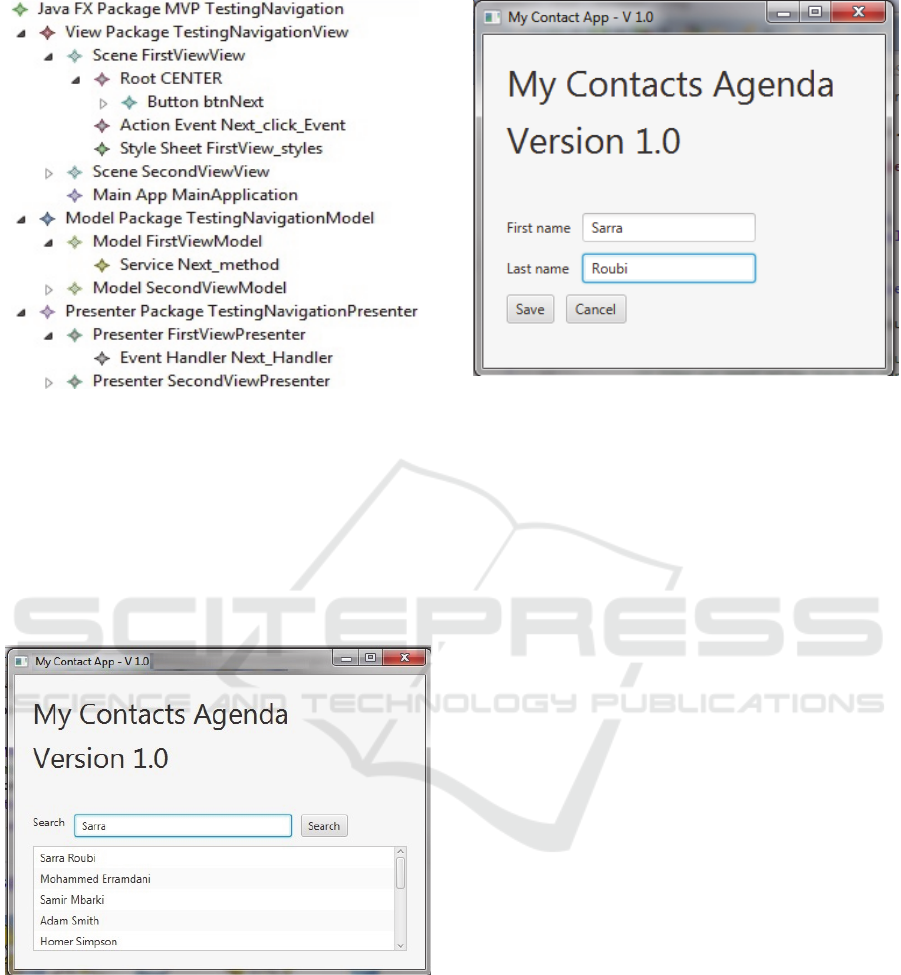

Figure 8: The main view of the generated MVP RIA

Contact Application.

The second view of the application consists on

editing the contacts detail as a result of the click

event on the list. Information sent are relative to the

contact selected. Figure 9 shows the view of the

edition of the contact details.

Figure 9: The edition view of the generated MVP RIA

Contact Application.

6 CONCLUSION AND

PERSPECTIVES

In this paper we presented an extension of OMG’s

standard IFML (Interaction Flow Modeling

Language) for Rich Internet Application

development based on a Model Driven Development

process. Furthermore, we defined a Meta Model for

RIA that respects the Model View Presenter pattern

and developed the transformation engine that allows

the automatic generation of the output model. This

generated modeled represents an input to a Model

To Text generator and give an almost complete RIA

ready to be deployed, focusing on the graphical

aspect of the application on one hand, and the user

event handling on the other.

The major contribution in the proposed approach

is the simplification of the IFML and the abstraction

of technical details, besides the addition of the

extension part that describes efficiently the graphical

components to be chosen to accomplish the user’s

expectation of the application. By using this Model

Driven method the RIA can be easily generated

without having to know all the technical

specification of the execution platform.

Future works will cover the implementation of

more refined code generator and the application of

the proposed method to estimate how this approach

scales in large projects. Also, we aim at enrich the

IFML and target several platform for mobile,

desktop and Web application starting from the same

input model.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

166

REFERENCES

Berti, S., Correani, F., Mori, G., Paterno, F., and Santoro,

C., 2004. Teresa: a transformation-based environment

for designing and developing multidevice interfaces.

In CHI Extended Abstracts, pages 793–794.

Brambilla, M. et al., 2014. Extending the Interaction Flow

Modeling Language (IFML) for Model Driven

Development of Mobile Applications Front End To

cite this version : Extending the Interaction Flow

Modeling Language ( IFML ) for Model Driven

Development of Mobile Applications Front End.

Brambilla, M., Fraternali, P., et al, 2014. The interaction

flow modeling language (ifml), version 1.0. Technical

report, Object Management Group (OMG),

http://www.ifml.org.

Ceri S., Fraternali, P., Bongio, A., Brambilla, M., Comai,

S., and Matera, M., 2002. Designing Data-Intensive

Web Applications. The Morgan Kaufmann Series in

Data Management Systems. Morgan Kaufmann

Publishers Inc.

Gharavi, V., Mesbah, A., Deursen, A. V., 2008. Modelling

and Generating AJAX Applications: A Model-Driven

Approach. Proceeding of the7th International

Workshop on Web- Oriented Software Technologies,

New York, USA (Page: 38, Year of publication, ISBN:

978-80-227-2899-7).

Gmez, J., Cachero, C., Pastor, O., 2001. Conceptual

modeling of device-independent web applications.

pages 26–39.

Groenewegen, D., Zef Hemel, Lennart C. L. Kats, and

Eelco Visser, 2008. Webdsl: a domain-specific

language for dynamic web applications. In Gail E.

Harris, editor, OOPSLA Companion, pages 779–780.

ACM.

Linaje, M., Preciado, J. C., and Sanchez-Figueroa, F.,

2007. A Method for Model Based Design of Rich

Internet Application Interactive User Interfaces. In

Proceedings of International Conference on Web

Engineering, July 16-20, 2007, Como, Italy, pages

226–241.

Martinez-Ruiz, F. J., Arteaga, J. M., Vanderdonckt, J., and

Gonzalez-Calleros, J. M., 2006. A first draft of a

model-driven method for designing graphical user

interfaces of Rich Internet Applications. In LA-Web

06: Proceedings of the 4th Latin American Web

Congress, pages 3238. IEEE Computer Societ.

Paterno, F., Santoro, C., and Spano, L. D., 2009. Maria: A

universal, declarative, multiple abstraction-level

language for service-oriented applications in

ubiquitous environments. ACM Trans. Comput.-Hum.

Interact., 16(4).

Schwabe, D. and Rossi, G., 1995. The object-oriented

hypermedia design model. Communications of the

ACM, 38(8), pp.45–46.

Schwabe, D., Rossi, G., 1995. The object-oriented

hypermedia design model. pages 45–46.

Urbieta, M., Rossi, G., Ginzburg, J., and Schwabe, D.,

2007. Designing the Interface of Rich Internet

Applications. In Proc. LA-WEB’07, pages 144–153.

Vanderdonckt, J., 2005. A MDA-compliant environment

for developing user interfaces of information systems.

In CAiSE, pages 16–31.

Vdovjak, R., Frasincar, F., Houben, G. J, and Barna, P.,

2003. Engineering Semantic Web Information Systems

in Hera. Journal of Web Engineering, 1(1-2):3–26.

Extending Graphical Part of the Interaction Flow Modeling Language to Generate Rich Internet Graphical User Interfaces

167
