Towards a Personalised Health System

Peter Weller

, Alberto Fernández Gil

and Eduardo Alsonso

Centre for Health Informatics, City University London, London, U.K.

CETINIA, University Rey Juan Carlos, Madrid, Spain

Department of Computer Science, City University London, London, U.K.

Keywords: Clinical Decision Support Systems, Personalised Healthcare, Software Agents.

Abstract: This paper presents a Personalized Healthcare System (PHS), a decision support tool that can adapt to

changing conditions, such as aging and illness, in individual patients. The system consists of three

components: a unique personalised profile, a collection of web based tools and a web based repository for

managing interactions between clinicians and tools. The proposed system makes extensive use of software

agents, both for collecting the initial information required to construct a personalized profile and for

transporting the information needed to use the on-line decision support tools. The paper discusses the

operation of a PHS and suggests possible implementation issues.

1 INTRODUCTION

This paper introduces the concept of a Personalised

Healthcare System (PHS). It discusses basic

components, describes a number of functions of a

PHS and offers some suggestions on

implementation.

A PHS is a software-based system that is unique

for every member of a population. Depending on the

patient, on their current health status and location, it

could either be running continuously (as a semi-

active or active Decision Support Sys-tem (DSS)) or

activated only when required (as a passive DSS). A

PHS changes and evolves over the life of the

associated person by adapting to events such as

aging, illness, accidents and life-style choices.

Furthermore, it can link with the PHS of family

members, friends and neighbours to gain knowledge

of hereditary or location-based diseases or illnesses.

The purpose of the PHS is to support the care

and treatment of individual patients in a variety of

situations, primary and secondary care, and

telehealth via tele-consulting. The system includes

access to both diagnosis tools for assessing current

health status and prediction tools to consider “what-

if” scenarios for the effect of treatments and life-

style changes.

Healthcare has been one of the target application

areas of expert decision support systems for many

years, including recent distributed technologies such

as multi-agent systems (Paranjape and Sadanand,

2009 & Shirabad et al., 2012), and SOA (Nadkarni

and Miller, 2007). However, to the best of our

knowledge, frameworks supporting the integration

of different DSS and generic profile knowledge for

health care has not been addressed by previous

works.

2 STRUCTURE OF PHS

The PHS is composed of three main components:

1) A client program, which constructs a Personal

Patient Profile (P3) and co-ordinates the

information flow process for each patient;

2) A central web-based repository that stores basic

pro-files and manages interactions between

clients and remote tools.

3) A collection of remote web-based tools for DSS

and modelling/prediction tasks;

2.1 Client Program

A core task of the client program is to construct the

P3, a key component of the PHS. The P3 is

constructed prior to any consultation from three

resources, namely, the patient’s Electronic Patient

Record (EPR) EPR, a generic patient profile, and the

latest information from external data sources such as

news links, journals and social media sites. The

256

Weller P., Fernández Gil A. and Alonso E..

Towards a Personalised Health System.

DOI: 10.5220/0004749702560261

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2014), pages 256-261

ISBN: 978-989-758-010-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

client program also contains the mechanisms for

sending requests via soft-ware agents and receiving

information back from other soft-ware agents.

2.2 Central Repository

The central repository contains four elements:

1) A library of generic profiles for a range of

patient scenarios;

2) A database of decision support tools;

3) A database of modelling tools;

4) A suite of management tools for organising and

up-dating the previous elements.

Generic Profiles

The library of generic profiles consists of sets of

data relevant to different patient scenarios, ages and

conditions, for example, a four-year-old girl with

diabetes or a fifty-year-old man with high blood

pressure.

The base profile used will change during the

patient’s life. When a baby is born it is given a

profile for a new-born baby. A range of these will be

available for different initial conditions such as

premature births, multiple births or birth

complications. Some facts in the initial profile could

be obtained from the parents’ and siblings’ EPR. As

the baby ages, the profile changes to include

expected conditions such as measles and

chickenpox, and developmental features, for

example, teething, walking and the beginnings of

speech. If a condition or feature is no longer relevant

to the baby it is not included, so milk teeth will not

appear in a profile for a fifteen-year-old male. Over

time, the requirements for making decisions related

to baby health are replaced by those associated with

young children. These, in turn, are superseded by

those for older children and then for adolescents,

young adults, etc. In addition, details for illnesses,

accidents and events not generally considered part of

the basic health scenario, for example the

development of diabetes, are added as required.

Eventually, the profile will contain information

associated with aging and geriatric conditions, such

as dementia, rheumatism or senility. Finally when a

person dies the PHS is retained as a source of

information for descendents, friends and neighbours.

New users joining the system could be given an

initial profile based on sex, age and basic health.

Database of Decision Support Tools

This database contains the details of all decision-

support tools registered on the system. The

information stored includes: a brief description of

the application domain; input data required for

operation; cost of service (if applicable); a measure

of accuracy and expected results from the developer

(in terms of sensitivity/specificity), and finally

feedback for users both as a rating and as text.

Database of Modelling Tools

Following the same approach as the one outlined

above, this database stores details of modelling and

prediction tools stored in the system.

Suite of Management Tools

The management tools perform two tasks: sending

and receiving information via intelligent agents, and

the maintenance of the database of third party

decision support and modelling tools.

2.3 Web based Tools

Decision Support Systems

This component of the system consists of a suite of

individual DSSs that are developed and maintained

by independent third parties (e.g., universities,

charities or disease specific research groups). They

are registered with the PHS central repository and

made available via the internet. Each module could

be developed for a specific function, for example the

diagnosis of an illness or condition. These modules

would be constructed using a variety of data

analysis, decision-making or prediction tools

selected by the developers.

Modelling Tools

Similarly, this component consists of a suite of

modelling tools (MTs) for predicting a range of

scenarios. They are also developed and maintained

by third parties and registered on the PHS central

repository.

3 OPERATION OF A PHS

The following scenario illustrates a typical exchange

between a GP and a patient, although the

methodology would be very similar for a clinician

caring for a patient in a hospital. Before each

consultation, once the patient confirms their

attendance, the client program constructs the

personalised patient profile (P

). To do this Agent A

is sent to the Central Repository with brief patient

details. Agent B is returned with the most

appropriate generic profile. This profile is then

integrated with the patient’s EPR and any relevant

news items or pertinent issues from social media

resources. Finally, intelligent agents are used to

conduct an on-line search for any relevant new

TowardsaPersonalisedHealthSystem

257

treatments and evidence-based guidelines. These

steps are shown in Figure 1.

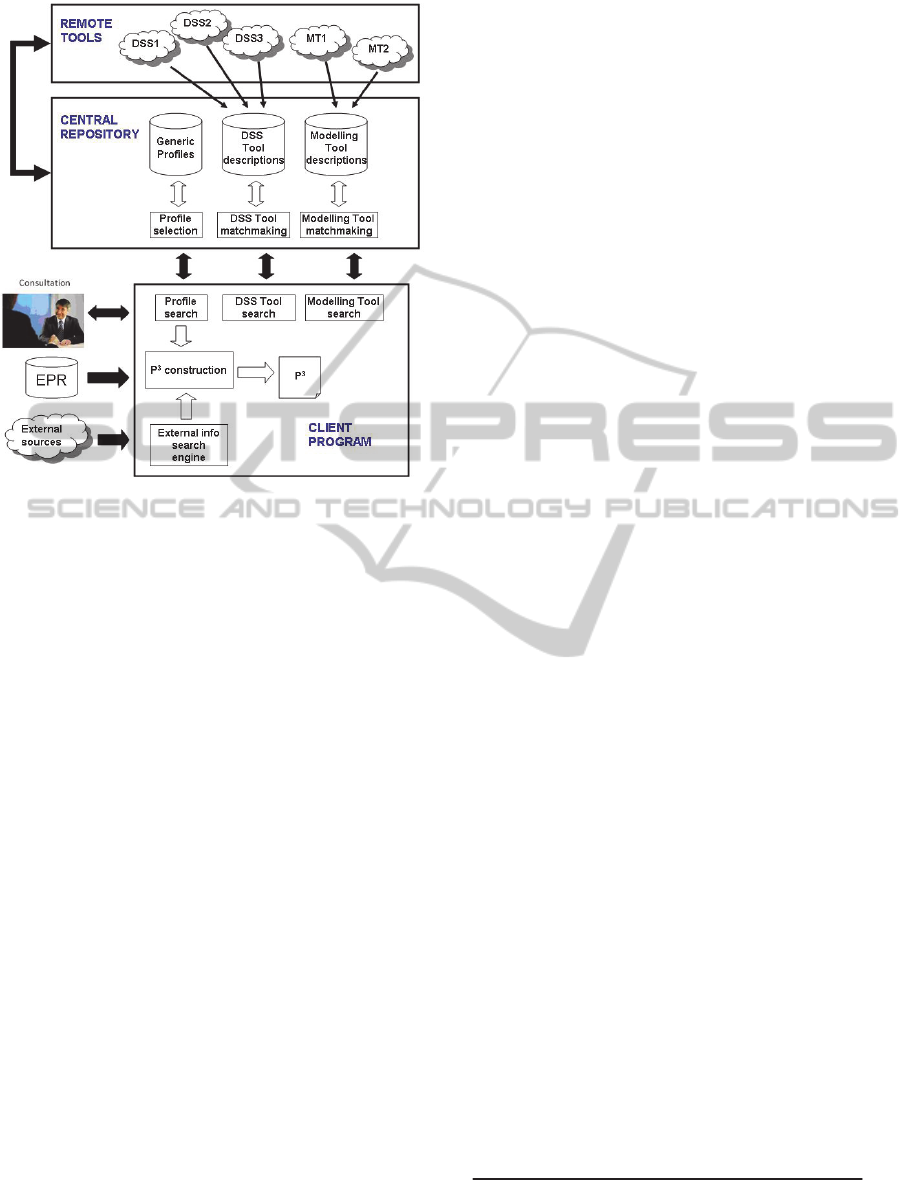

Figure 1: Selection of Profile and construction of P

Figure 2 depicts the initial situation, with a

patient meeting with their GP. The GP starts to

assess the patient’s condition with a set of questions.

During the consultation the patient’s symptoms and

responses are added to the P

(and into the EPR) via

speech recognition or typing. These inputs are used

to refine any search strategy to provide more

relevant and more recent guidance.

Figure 2: Meeting with GP and request for DSS support.

From the information and data collected during

an initial dialogue a preliminary diagnosis would be

made. In addition, central resources may need to be

consulted for advice or clarification. In order to do

so, the program despatches Agent C, loaded with

some basic individual information extracted from

the EPR and from the consultation (for example,

fifty-year-old male, chest pains, hypotension) to the

central repository. This stage is shown in Figure 2.

The central repository now matches the

information supplied to a list of available DSSs

using the descriptors provided by the DSS

developers. Not all DSSs will be relevant to the

current problem. Only those that match the problem

details (to a greater or lesser extent) are returned to

the co-ordinator with a list of the inputs and

information required for the DSS, such as a feedback

rating. This situation is illustrated in Figure 3, where

two DSSs (DSS 1 and DSS 2) are identified as

possibly being suitable for the requested task. This

does not mean that each identified DSS is

necessarily able to perform the required diagnosis,

just that there is some match between the problem

and the capabilities of the DSS. For example, DSS 1

may have been developed for diagnosing tumours in

a fifty-year-old male, whereas DSS 2 may have been

developed for diagnosing a heart attack. The

information collected by the coordinator is sent to

the clinician via Agent D.

Figure 3: Selection of possible DSS and dispatch of details

about suitable DSS.

The clinician now decides which DSS is most

capable of diagnosing the patient’s condition. This

could be based on a number of criteria, including

relevance of problem domain, data required as

inputs for the DSS and even a ranking based on

previous performance. There could be a cost

function associated with using a DSS, for example a

privately developed DSS could be made available

but with a charge levied each time it is selected. In

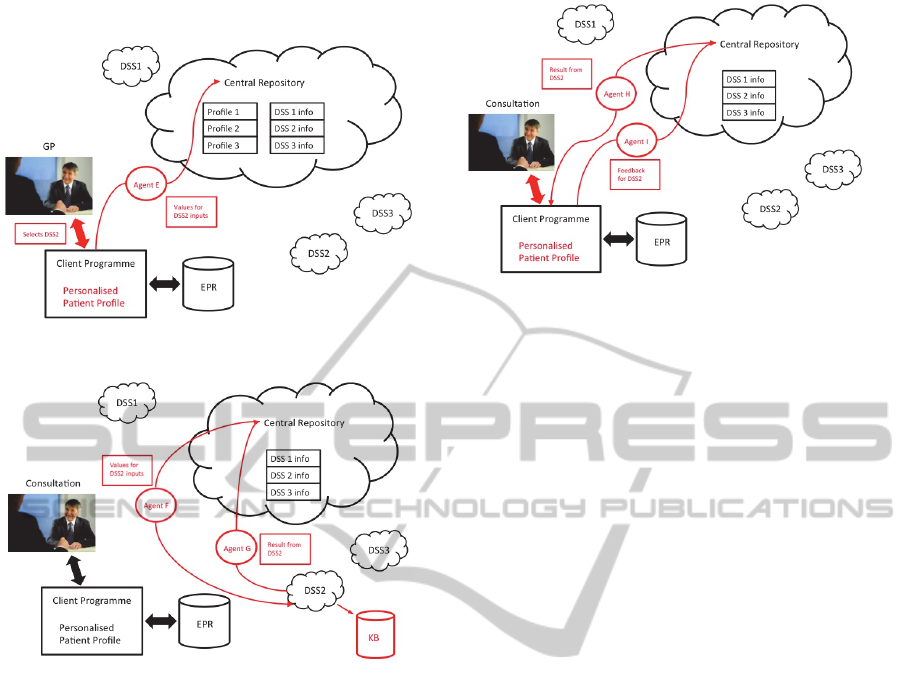

Figure 4, DSS 2 has been selected and Agent E is

sent, with the required data, to the central repository

in order for the diagnosis to be reached.

The central coordinator then sends Agent F with

the data to DSS 2. This approach maintains

confidentiality and ensures that no patient

identifiable information is sent to the DSS. This

stage is shown in Figure 5.

Once the diagnosis has been reached an agent is

sent back to the central coordinator with the output.

The data is also added to the DSS knowledge-base

for further development of the tools. In Figure 5,

Agent G has been dispatched by the Central

HEALTHINF2014-InternationalConferenceonHealthInformatics

258

Repository with the output from DSS 2.

Figure 4: Selection of DSS and data for diagnostic request.

Figure 5: Transmission of data to selected DSS and

transmission of DSS result.

The central coordinator then transmits the result

to the GP through Agent H, as illustrated in Figure 6.

This information can be added to the patient’s EPR

for future reference. Finally the Client Program

sends Agent I with the GP’s feedback on the

performance of DSS2. This is added to the central

The figures above only show the main tasks.

Additional support-functions such as receipt of

information, safe transmission and encryption are

not included but would be components of the

process nevertheless. A similar approach would be

adopted for modelling the effects of a treatment or

drug regime.

4 SYSTEM IMPLEMENTATION

In this section we present some ideas on the

implementation of the PHS. We consider service-

oriented architectures (SOA) and ontologies as the

enabling technologies towards the implementation of

Figure 6: Transmission of DSS output and feedback.

this kind of systems.

SOAs (Huhns and Singh, 2005) comprise at least

two components: service providers and service

clients. Services are software components that

encapsulate some functionality. Providers and

clients interact for some service to be carried out.

Basically, the client provides the inputs to the

service (e.g., patient symptoms), and the provider

returns the results/outputs of the execution of the

service (e.g., diagnostic). Typically, a third

component, a service registry (also known as a

directory) is also present. Providers advertise their

services by registering a description with the

directory. An example of information included in a

service description can be the type of inputs

expected and of outputs provided. Service

descriptions can be specified at different levels of

expressivity ranging from purely syntactic to

complex logic-based descriptions (Fernandez et al.,

2012). An ontology is a specification of a

conceptualization (Gruber, 1993). Ontologies are

used to share information/knowledge, or more

specifically to share the vocabulary used when

agents/services interact. For example, it is important

that the concept “blood pressure” is shared, and then

understood the same way (e.g. units), both by the GP

and the diagnosis tool.

Ontologies are used in PHS for knowledge

representation such as generic profiles, EPR, P

DSS/modelling tool descriptions and communication

message contents.

Figure 7 depicts the main building blocks of the

PHS architecture. As presented in previous sections,

the PHS is composed of three main elements, a

client program, a set of remote tools and a central

repository. We propose the use of a service-oriented

architecture (SOA) to coordinate the interaction

among the different actors in our PHS.

TowardsaPersonalisedHealthSystem

259

Figure 7: PHS architecture.

In the rest of this section some details about each

component are given.

4.1 Remote Tools

DSS and modelling tools in the PHS are represented

as (web) services in our SOA. Providers advertise

their services by registering a description of their

tools with the Central Repository. The set of existing

DSS and MTs is not fixed and can vary over time. In

fact, it is natural that new tools appear as time goes.

Tools are created and maintained by third parties.

Different tools may differ on their specialty,

generality/specificity, technique, cost, etc. Several

tools might target the same objective (e.g. disease)

but be provided by different institutions/companies.

In some cases, aspects such as cost, trust and

reputation might have to be considered so as to

select the appropriate provider. The proposed SOA

architecture gives flexibility to developers to add,

modify or remove tools. They only have to register

the description with the Central Repository.

4.2 The Central Repository

The main functionality of the Central Repository is

to store and manage basic patient profiles and

remote tools. Thus, it contains three databases,

namely generic profiles, DSS tool descriptions and

modelling tool descriptions.

Each generic profile comprises two elements, a

profile pattern description (e.g. four-year-old girl

with diabetes) and the profile detailed information.

Profile descriptions are used to identify the adequate

profile according to the characteristics of the patient

provided by the GP through the Client Program.

This task is carried out by the Profile selection

module. Concept similarity (Euzenat and Shvaiko,

2007 & Fernandez et al., 2007) techniques can be

applied for this task.

The Central Repository also provides

matchmaking functionalities to locate DSS and

modelling tools (DSS and Modelling Tool

matchmaking modules in Figure 13). Tool providers

(e.g., diagnosis of lung cancer in teenagers) with the

Central Repository. When the GP (or just a user)

decides to consult a DSS they specify a description

of the desired service. The Central Repository then

matches the request against the registered tools and

returns the information about the ones appropriate

for that task. Descriptions for these tools are more

complex than the ones for patient profiles so

advanced methods will be used here. In particular,

techniques from the semantic web service

matchmaking (Klusch, 2008) will be adapted and

applied for the specific particularities of DSS and

modelling tool discovery.

Note that, although conceptually centralized, a

distributed implementation could be adopted for

efficiency or fault tolerance. For example, three

different repositories each containing a database and

its corresponding matchmaking functionality would

be a straightforward distribution, but others would

be also possible.

4.3 The Client Program

The Client Program (CP) is in charge of mediating

between the GP and the rest of the system, which

includes the construction of the P

as well as the

interaction with the Central Repository to find

generic profiles, DSS or modelling tools. The

construction of the P

is the main and more complex

task carried out by the CP. As previously described,

it requires the EPR, a generic patient profile, and

information from external data sources. Ontologies

have been proposed as a technique for automatic

processing and interoperating healthcare

representation standards like SNOMED CT

, HL7

OpenEHR

or CEN 13606

(Gomez-Perez et al.,

www.snomed.org

http://www.hl7.org/

http://www.openehr.org/

http://www.cen.eu/

HEALTHINF2014-InternationalConferenceonHealthInformatics

260

2009; Sahay et al., 2012 & Schloeffel et al., 2006).

The External info search engine module is in

charge of accessing external information sources

(databases, journals, social media, etc.). Ad-hoc

wrappers might be needed for different sources. We

believe that the increasing adoption of Linked Data

as a standard way of exposing information will ease

the integration of the different information sources.

In fact, there are already several related linked data

sources such as DailyMed

or MediCare

, which

provide information about existing drugs.

5 CONCLUSIONS

In this paper we have proposed a Personalised

Healthcare System (PHS). Key characteristics of

such a system are its uniqueness for every member

of a population; its capacity to evolve over the life of

the person; and its flexibility to coordinate external

resources such as DSS/modelling tools and

information sources. We described the operation of a

PHS and gave some ideas towards its

implementation following a SOA approach.

It is part of our future work the implementation

of a PHS as well as extending the architecture

improving aspects such as mechanisms for tool

selection (e.g. trust and reputation, auctions, etc.).

ACKNOWLEDGEMENTS

Work supported by the Spanish Government, grants

TIN2009-13839-C03-02, CSD2007-0022 and

TIN2012-36586-C03-02).

REFERENCES

Euzenat, J., Shvaiko, P., 2007. Ontology matching.

Springer, Heidelberg (DE).

Fernandez, A., Cong, Z., Balta, A., 2012. Bridging the

Gap Between Service Description Models in Service

Matchmaking. Multiagent and Grid Systems, 8 (1): 83-

103.

Fernandez, A., Polleres, A., Ossowski, S., 2007. Towards

Fine-grained Service Matchmaking by Using Concept

Similarity. Workshop on Service Matchmaking and

Resource Retrieval in the Semantic Web (SMR2 at

ISWC), pp. 31-45.

Gomez-Perez, J. M., Kohler, S., Melero, R., Serrano-

http://linkeddata.org/

http://www4.wiwiss.fu-berlin.de/dailymed/

http://www4.wiwiss.fu-berlin.de/medicare/

Balazote, P., Lezcano, L., Sicilia, M.A., Iglesias, A.,

Castro, E., Rubio, M., Buenaga, M., 2009. Towards

Interoperability in e-Health Systems. International

Conference on Health Informatics: 205-210.

Gruber, T. R., 1993. A translation approach to portable

ontologies. Knowledge Acquisition, 5(2): 199-220.

Huhns, M. N., Singh, M. P., 2005. Service-Oriented

Computing: Key Concepts and Principles. IEEE

Internet Computing, 9(1):75–81.

Klusch, M., 2008. Semantic Service Coordination. In

CASCOM - Intelligent Service Coordination in the

Semantic Web. Birkhaeuser Verlag, Springer: 59-104.

Nadkarni, P. M., Miller, R. A., 2007. Service-oriented

Architecture in Medical Software: Promises and

Perils. Journal of the American Medical Informatics

Association, 14 (2), pp 244-246.

Paranjape, R., Sadanand, A., 2009. Multi-Agent Systems

for Healthcare Simulation and Modeling: Applications

for System Improvement. ISI Global.

Sahay, R., Zimmermann, A., Fox, R., Polleres, A.,

Hauswirth, M., 2013. A Formal Investigation of

Semantic Interoperability of HCLS Systems.

Interoperability in Healthcare Information Systems:

Standards, Management, and Technology. IGI Global.

Schloeffel, P., Beale, T., Hayworth, G., Heard, S., Leslie,

H., 2006. The relationship between CEN 13606, HL7,

and openEHR. In Health Informatics Conference,

Sidney, Australia.

Shirabad, J. S., Wilk, S., Michalowski, W., Farion, K.,

2012. Implementing an Integrative Multi-agent

Clinical Decision Support System with Open Source

Software. Journal of Medical Systems, 36 (1), pp 123-

137.

TowardsaPersonalisedHealthSystem

261
