Evolution of Cooperation in Packet Forwarding with the Random

Waypoint Model

Jeffrey Hudack

1,2

, Nathaniel Gemelli

1,2

and Jae Oh

Syracuse University, Syracuse, NY, U.S.A.

Air Force Research Laboratory, Rome, NY, U.S.A.

Keywords:

Game Theory, Evolutionary Games, Ad Hoc Networks, Mobility Models.

Abstract:

In multi-agent systems with self-interested individuals interacting locally, it can be difﬁcult to determine if

cooperative behavior will emerge. Evolutionary Game Theory provides some valuable tools to this end, but

is not suited to systems with dynamic models of interaction. Mobile ad hoc networks provide a compelling

application for evolutionary game theory, but there are still signiﬁcant gaps between the theoretical results and

the practical challenges. We discuss and provide some of the assumptions necessary to apply previous work

in evolutionary game theory to the ad hoc network packet routing domain. We then analyze the similarities

and differences between Brownian mobility and Random Waypoint mobility and show that convergence to

cooperation requires a signiﬁcant reduction in velocity for the Random Waypoint model. Our contribution is

to provide evidence that more realistic mobility models can make convergence to cooperation more difﬁcult

than previously shown using random methods.

1 INTRODUCTION

Evolutionary game theory has emerged as a useful

framework for understanding the emergence of coop-

eration in populations of inherently selﬁsh individu-

als. These abstract models and metaphors have been

combined with a consistent methodology to analyze

problems that are common across a wide range of ap-

plications including biology, sociology, physics, and

computer science. In general, evolutionary games

provide a means to model complex adaptive systems

with evolving individual and collective behavior.

One of the most well-known and studied games is

the Prisoners’ Dilemma, (PD) (Axelrod, 1992) a sym-

metric, two-player game in which individuals must

choose between cooperation (C) and defection (D).

In this game, cooperation is at a disadvantage and a

rational player will always defect in one-shot play. In

fact, defection has been shown to be the Nash equilib-

rium pure strategy (Axelrod, 1992). This game struc-

ture is a metaphor for many types of interactions, in-

cluding ad hoc network packet forwarding. (Nisan,

2007)

Mobile ad hoc networks (MANETs) are multi-

hop, wireless networks where each node is both a

client and a router, and direct communication is lim-

ited by geographic distance. MANETs are character-

ized by a population of agents with a series of pair-

wise interactions, making it an ideal application for

evolutionary game theory. The performance of these

networks is dependent on both the level of activity

and the components’ ability to adapt to changes in the

network. Simple and lightweight approaches to local

decision making can reduce the effects of mobility on

the routing overhead (Viennot et al., 2004). We show

the properties of the Random Waypoint Model with

respect to Brownian motion and then explore effects

of mobility on the evolution of cooperation.

For a population of individuals playing a PD

game, cooperative behavior has been shown to evolve

based on the graph structure, interaction models, and

strategy evolution mechanisms. Certain properties

of the graph promote cooperation, such as scale-

free networks (Boccaletti et al., 2006) and a high

clustering coefﬁcient (Assenza, 2008). Additionally,

other works such as (Poncela et al., 2008) and (Szol-

noki et al., 2008) have explored preferential attach-

ment models and (Helbing and Yu, 2009) uses graph

rewiring mechanisms to promote cooperation. Re-

cent work has shifted to more realistic models of

rewiring based on dynamic spatial models (Meloni

et al., 2009). In these models individuals interact

based on their locality and move through the environ-

ment and, as a result, the partners that an agent in-

Hudack J., Gemelli N. and Oh J..

Evolution of Cooperation in Packet Forwarding with the Random Waypoint Model.

DOI: 10.5220/0004234800580066

In Proceedings of the 5th International Conference on Agents and Artiﬁcial Intelligence (ICAART-2013), pages 58-66

ISBN: 978-989-8565-38-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

teracts with is often repeated for some length of time

before changing.

Prior work showing the effects of interaction mod-

els used random selection (Oliphant, 1994), random

initial selection with ﬁxed neighbors (Cohen et al.,

1999), or grid-based environments where agents are

limited to interaction in a ﬁnite set of locations in the

space, as found in (Poncela et al., 2008), (Szolnoki

et al., 2008) and (Helbing and Yu, 2009). While these

discrete representations are convenient for reducing

the complexity of the simulation they do not often

model practical scenarios. More recent work has ex-

plored simple mobility models for changing interac-

tions, such as Brownian motion, that do not emulate

the motion that would be expected from individuals

moving in the real world (Johnson and Maltz, 1996).

The main contribution of this work is the appli-

cation of random waypoint (RWP) mobility to evo-

lutionary game theory with a graph-based interaction

model. This extends prior work with a more realistic

representation of agent movement that better reﬂects

the expected behavior of a mobile ad hoc network.

We show that the RWP model has signiﬁcant effects

on the evolution of cooperation among a population

of mobile, self-interested agents.

In Section 2 we will discuss how the Prisoners’

Dilemma can be used as a packet forwarding interac-

tion model between pairs of agents. In Section 3.1 we

will discuss the process for choosing pairs of agents

to interact as a function of communication distance.

In Section 3.2 the method and justiﬁcation for evo-

lution of individual agent strategies will be provided.

Section 4 discusses the mobility model that motivates

the primary contribution of this work. Finally, we will

provide our simulation parameters and results in Sec-

tion 5 and discuss the implications of our ﬁndings in

Section 6.

2 PACKET FORWARDING GAME

A wireless ad hoc network is a decentralized network

without a ﬁxed infrastructure to facilitate routing of

packets. Every node is both a client and a router

and the functionality of the network relies on each

node to cooperate. In scenarios where the nodes are

self-interested, each node in the network participates

(or chooses not to participate) in forwarding pack-

ets across the network to allow for communication

between end points. In this environment, network

nodes must choose between forwarding (C) and not

forwarding (D) packets that are being routed through

them.

Due to a lack of a routing infrastructure, ﬂood-

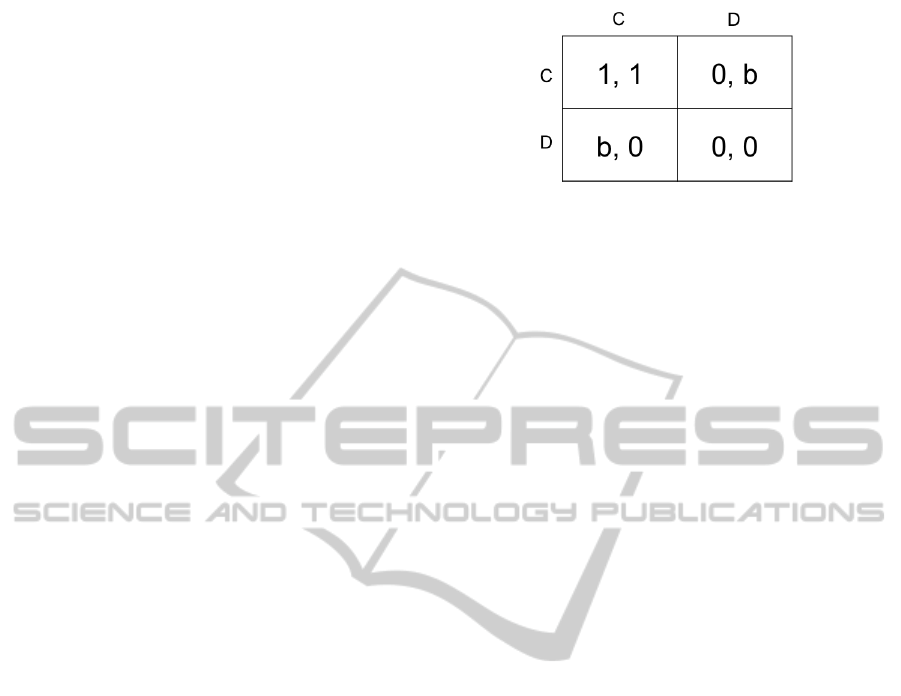

Figure 1: Normal form reduced Prisoners’ Dilemma game

with single parameter b as the beneﬁt of defection.

ing in mobile ad hoc networks (MANETs) has been

shown to be an effective method of communication

(Ho et al., 1999). Flooding is deﬁned as a mech-

anism where each node rebroadcasts a message m

once when it is received, then ignores m if it received

again. As a result, messages are diffused across the

network and result in many pairwaise interactions be-

tween neighboring nodes. We model this interaction

using a game theoretic framework.

The Prisoners’ Dilemma is a nonzero-sum, non-

cooperative, two-player game. In this game R is the

payoff for mutual cooperation, T is the temptation to

defect, S is the ”suckers” payoff, and P is the pay-

off for mutual defection. We use the reduced form

as deﬁned in (Nowak, 1992) with the payoff values

R = 1,T = b(b > 1), S = P = 0, shown in Figure 1.

This simple model allows us to analyze the effects of

the mobility model with respect to a single parameter

b representing the beneﬁt of defection. More complex

models of interaction for packet forwarding in ad hoc

networks exist (Kamhoua et al., 2010), but the addi-

tional parameters required would make it difﬁcult to

focus solely on the effects of mobility.

When both neighbors cooperate all packets are

forwarded. Defection can be attractive when neigh-

bors cooperate for a number of reasons. A self-

ish agent can conserve battery life, CPU cycles, or

available network bandwidth while relying on its own

packets to be forwarded. This type of selﬁsh behav-

ior by a small percentage of nodes in the network

has been shown to have signiﬁcant negative impact on

network communication (Tanachaiwiwat et al., 2004).

More importantly, when an agent is interacting with

many defectors there should be a mechanism to cease

cooperation so not to be taken advantage of.

Each node would beneﬁt to have its own packets

forwarded and relies on its neighbors to do so. How-

ever, there are complications that arise when the pack-

ets are not originating from the neighboring agent but

rather being forwarded from another agent. Assuming

agents are able to monitor the behavior of their neigh-

bors, an agent considering defection runs the risk of

having a neighbor witness this non-cooperation and

EvolutionofCooperationinPacketForwardingwiththeRandomWaypointModel

retaliate in the future. However, if a packet originates

from a non-neighbor source then the forwarding agent

has no motivation to retaliate against a neighboring

defector. In order to bound our analysis to pairwise

interactions between nodes we must address this dis-

parity.

One method for handling a mixture of direct and

indirect packets is a stochastic game in which the cost

of defection is different for each packet type. For-

tunately, we can use the probability distribution of

direct and indirect packets, along with their respec-

tive costs for defection, to form a single normal form

game that will yield the same behavior over a large

number of interactions. A simpler model for dealing

with indirect packets is to assume that there is a com-

munity enforcement mechanism that requires nodes

place as much value on forwarding others’ packets as

it does its own (Kamhoua et al., 2010). Using this

mechanism, a defecting agent can expect to be pun-

ished equally for failing to forward any packet, re-

gardless of where it originated. Both methods yield a

normal form game that is sufﬁcient for capturing the

nature of the packet forwarding interactions.

3 EVOLUTIONARY GAMES

Evolutionary game theory (EGT) is the application of

game theory to populations of individuals. These in-

dividuals can be biological life forms in an ecosys-

tem, particles interacting to form compounds, or au-

tomated systems that exhibit an emergent behavior.

While game theory focuses on the interactions be-

tween a speciﬁc pair of individuals, EGT provides

a set of mechanisms for repeated interactions among

members of a population. As a result, complex pat-

terns and behaviors can emerge from relatively simple

individual strategies.

Evolutionary games can be characterized by three

components: a game, an interaction model, and strat-

egy evolution mechanisms. We have already dis-

cussed the packet forwarding game in the previous

section, which will be our focus in this work. The in-

teraction model determines how agents are paired to

play an instance of the game at each time step, and is

discussed in the next section. Then, we will describe

the strategy evolution mechanism, which is used by

individuals to change their strategy based on the out-

comes of the interactions in a time step.

3.1 Interaction Model

We model interactions between agents as a graph with

vertices representing individuals and edges indicating

pairwise interaction at each time step. Unlike Erd

os-

Renyi graphs, where agents are paired randomly with

some probability, the agents are given a random loca-

tion in the space and an edge is formed based on their

locality.

Consider a graph where nodes are placed in a d-

dimensional space R

, with edges existing only be-

tween nodes that are close to each other. A geometric

graph G(V,r) is an undirected graph with V ⊂ R

the set of vertices.For this work we consider point in

2 dimensional space with V ⊂ R

. The set of edges is

deﬁned as E = {(u,v)|(u,v ∈ V )∧(0 <k u −v k≤ r)},

where k · k is the distance norm on two points (x

)

and (x

). We use the `

-norm, or Euclidean dis-

tance, deﬁned as

− x

)

+ (y

− y

)

To simplify analysis, we will assume that all ver-

tices are normalized to have the same radius r = 1 and

are in a toroidal space. A toroidal model is chosen to

remove the border effects on the degree of vertices.

The initial conﬁguration corresponds to a random ge-

ometric graph (Penrose, 2003) with the topology de-

pending on the number of agents N and the length of

the space L. The density of the agents ρ = N/L

has a

direct effect on the connectivity of the graph and the

component size. We represent the degree of node i at

time t as k

(t).

There is a very large body of work in evolutionary

Prisoners Dilemma that makes use of round-robin in-

teraction in a population (Kendall et al., 2007). While

the round-robin approach is ideal for generating ran-

domized, well-mixed interactions, it does not con-

sider the types of spatial interactions that are observed

in ad hoc networks. The spatial model has a signiﬁ-

cant effect on game play because of the dependence

of edges. For example, assume a population of 1000

nodes where a pair of nodes A and B are neighbors

and C is also a neighbor to B. Because A and B, and

B and C, are related based on distance there is a higher

likelhood that C will be a neighbor of A as opposed to

another arbitrary node being a neighbor of A. This de-

pendency on interactions can contribute to the forma-

tion of clusters of cooperation, as discussed in Section

At each simulation time step agents interact with

all of their neighbors and keep track of the payoffs

received. In the context of mobile ad hoc networks,

this behavior is analogous to multicast communica-

tion. While there exist routing protocols for ad hoc

networks that allow direct addressing of packets, it

has been shown that there is a threshold of mobility

at which maintaining the routing paths is difﬁcult and

multicast ﬂooding is the most reliable method of de-

livery (Ho et al., 1999). Knowledge of the forwarding

behavior of a neighbor is made possible by watchdog

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

mechanisms (Marti et al., 2000) and observation of

transmissions made by neighboring nodes.

3.2 Evolution of Strategies

As agents interact with their neighbors they may de-

termine that it is in their best interest to change their

behavior to increase their individual payoff in future

interactions. One methodology for adjusting behav-

ior is to adopt a method of replication by imitation

(Weibull, 1997). Using this method agents observe

the payouts received by other agents and decide if

they wish to adopt that strategy as their own in the

future. For mobile ad hoc networks it makes sense

to limit any observations to neighboring agents, al-

though in some environments it could be argued that

no information is available regarding the payouts re-

ceived by other agents.

In the interest of being consistent with prior work

in the evolution of cooperation on mobile networks

we adopt the payoff monotone replication function

described in (Poncela et al., 2009). At each time step

an agent i, with degree k

(t) at time t, chooses an

agent j, with degree k

(t) at time t, at random from

its neighbors. Let the total payoffs received by these

agents in the current time step t be f

(t) and f

(t), re-

spectively. If f

(t) ≥ f

(t) then agent i keeps its cur-

rent strategy. If f

(t) < f

(t) then agent i adopts agent

j’s strategy with probability

(t) − f

(t)

b · max{k

(t),k

(t)}

(1)

This update is done synchronously for all agents

at the end of each time step, after they have com-

pleted their interactions with their neighbors and re-

ceived the associated payoffs. After all of the agents

have completed their strategy update the total payoffs

are reset to zero.

4 MOBILITY MODEL

Much of the previous work analyzing the effects of

mobility models on the evolution of cooperation uses

lattice or grid-based models, such as (Perc and Szol-

noki, 2008) and (Helbing and Yu, 2009). While this

approach provides a useful simpliﬁcation of the space

of interaction, it constrains interaction to adjacent grid

locations and limits the opportunities for movement.

Some recent work explores a continuous 2D space

with a Brownian motion model (Meloni et al., 2009),

which is well-suited to modeling the random motion

of particles in physics. However, because we seek

to model mobile devices held by persons with inten-

tional movement our analysis requires a more appro-

priate mobility model.

Random Waypoint (RWP) (Johnson and Maltz,

1996) mobility is a widely used model for simulat-

ing mobility in ad hoc networks. It was designed to

emulate the movement patterns of mobile users and

devices and includes parameters for location, direc-

tion, velocity. At the initial time step each node is

assigned a random location in the space and a ran-

dom waypoint representing the destination. Given a

velocity v, at each time step the mobile nodes move a

distance v directly towards their destination waypoint.

Upon reaching the destination the node will pause for

p time steps, randomly generate a new waypoint, and

then continue movement towards the new destination.

In this work we set p = 0.

Unlike the Brownian motion model, the group-

ings of nodes are much more ‘volatile’, meaning that

nodes that are near each other are highly likely to

seperate as time passes. The implications of this

model on the evolution of cooperation are signiﬁ-

cant. Because individual cooperation relies on neigh-

bors also cooperating, the population will often form

regions of cooperation that can withstand defection

(Nowak, 1992), as shown in Figure 2. With a Brow-

nian motion model these pockets are relatively sta-

ble and nodes will remain within relatively close dis-

tance of each other. When using RWP nodes are often

moving along a vector and will move in and out of

cooperation regions, adapting to their current neigh-

bors as they pass. As a result, regions of coopera-

tion are often unstable because the cooperating neigh-

bors are unlikely to be nearby for very long. This

requires regions of cooperation that are large enough

to withstand the constant churn of individuals passing

through them.

Even though the RWP mobility paints a grim pic-

ture of the potential for cooperation there are still

conditions under which cooperation can ﬂourish and

the population will converge. In the next section we

present the details of our simulation and provide the

parameters that will encourage cooperation in a large

population of mobile devices.

5 SIMULATION AND RESULTS

Simulations were created using the MASON multi-

agent simulation developed at George Mason Uni-

versity (Luke et al., 2005) and using the included li-

braries for 2D continuous toroidal space. MASON

was chosen because it is a lightweight environment

that allowed for rapid development of simulations

EvolutionofCooperationinPacketForwardingwiththeRandomWaypointModel

Figure 2: A snapshot of a simulation run exhibiting clus-

ters of cooperation. Cooperators (green) rely on cooperat-

ing neighbors to receive sufﬁcient payouts that discourage

changing their strategy to defection (red).

with 10

agents over many runs.

We make some assumptions for simulation that

may or may not be an accurate depiction of real world

conditions. We model the mobile agents as point

objects in a 2 dimensional toroidal space and have

them interact whenever they are within radius r = 1

of each other. The toroidal space removes edge con-

ditions and is meant to represent a sampling of a larger

space. While the interactions wrap around the edge,

we feel the number of agents is sufﬁcient to avoid

agents experiencing feedback effects from their own

actions. Finally, the strategy evolution relies on an

agent having information about the payoffs received

by its neighbors. While it’s feasible that an agent may

have this information, it is not necessarily true in all

situations.

We ﬁrst compare the dynamic properties of RWP

and Brownian mobility using two standard metrics:

link change rate (LCR) and link density (LD) (Cho

and Hayes, 2005). LCR (Equation 2) is the average

rate of change of edges on the graph and is computed

as the sum of edges added and removed per time step.

LD (Equation 3) is measured as the average number

of time steps a link is maintained and measures the av-

erage time agents spend linked with the same neigh-

bors. For the set of agents A, velocity v, and time

of simulation t < T , let E

(t) and E

(t) be the edges

added and removed at time t, respectively, with E

(t)

and E

(t) returning only those edges for agent i. E

is the set of all edges in the simulation and D(e) is

the duration of one instance of a speciﬁc edge. We set

a density value of ρ = 1.3 to remain consistent with

0.002

0.004

0.006

0.008

0.01

0.012

0.014

0.016

0.018

0 0.0005 0.001 0.0015 0.002 0.0025 0.003 0.0035 0.004 0.0045 0.005

LCR

Brownian

Waypoint

Figure 3: Link change rate (LCR) for the Brownian and

RWP mobility models with respect to velocity for N = 10

ρ = 1.3. In general, the RWP mobility has a slightly larger

rate of change, but both models remain similar regardless of

velocity.

5000

10000

15000

20000

25000

30000

35000

40000

45000

0 0.0005 0.001 0.0015 0.002 0.0025 0.003 0.0035 0.004 0.0045 0.005

Brownian

Waypoint

Figure 4: Link duration (LD) for the Brownian and RWP

mobility models with respect to velocity for N = 10

, ρ =

1.3. At low velocities the Brownian model has a signiﬁ-

cantly larger duration, but both mobility models converge

as velocity increases.

previous work (Meloni et al., 2009), which requires

L = 27.735 for 10

nodes.

LCR =

∑

i∈A

∑

(t) + E

(t)

|A| × T

(2)

LD =

∑

i∈A

∑

e∈E

(t)

D(e)

(3)

In Figure 3 we compare the LCR for the Brownian

and RWP mobility models with respect to velocity.

RWP exhibits a slightly higher LCR than the Brow-

nian mobility in all cases, but they do not show any

indication of divergence up to v = 0.02. This indi-

cates that the RWP mobility model is not introducing

additional volatility with respect to the addition and

removal of edges.

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

0.0001

0.001

0.01

0.1

0 0.002 0.004 0.006 0.008 0.01 0.012 0.014 0.016 0.018 0.02

Brownian

Waypoint

Figure 5: Link repetition (LR) for the Brownian and RWP

mobility models with respect to velocity for N = 10

, ρ =

1.3. The Brownian model has relatively ﬁxed LR regardless

of velocity while RWP has a vastly different LR value that

changes with respect to velocity.

In Figure 4 we show the LD for Brownian and

RWP mobility with respect to velocity. At very low

velocities these models exhibit signiﬁcantly differ-

ent link durations, with Brownian motion maintain-

ing links orders of magnitude longer than RWP at

v = 0.005. However, as the velocity increases both

mobility models converge to similar link durations.

Because the Brownian mobility randomly chooses a

new direction at each time step there is an increased

likelihood of remaining in range of a neighbor until

the random walk leads the agent away. On the other

hand, because RWP uses time-dependent movement,

an agent within range that moves away in a given time

step is likely to continue on that path.

Intuitively, these mobility models should differ

signiﬁcantly with respect to the diversity of the edges

that are formed. Two arbitrary nodes in the Brown-

ian mobility model are more likely reform the same

edge within a short period of time than the same pair

of nodes in the RWP mobility model. To capture this

behavior we deﬁne the link repetition (LR) of a dy-

namic graph in Equation 4, with L(e) being the last

time step that edge e existed and E

being the set of

all edges added over all time steps.

LR =

∑

e∈E

(t)

(t − L(e))

−1

|A| × |E

(4)

This metric measures the likelihood of newly

formed edges being between vertices that were re-

cently connected. By accumulating the inverse of the

time between link disconnect and reconnection we

can identify conditions under which neighbors are in-

teracting with the same neighbors, regardless of link

change rate. A high LR value indicates that agents

are reforming edges with neighbors within a relatively

short period of time after the edge is removed. A low

value indicates that agents are interacting with a wide

range of other agents and not often reforming edges

with the same neighbors.

In Figure 5 we show the LR value for both mo-

bility models. Brownian motion maintains a ﬁxed

link repetition (LR ≈ .43) value regardless of veloc-

ity, while the RWP mobility has an LR value that is

consistently much smaller and increases with respect

to velocity. These values reﬂect the stepwise random

behavior of Brownian motion that leads to edge re-

connection at a ﬁxed rate, while the time-dependent

behavior of RWP mobility leads to a low reconnection

rate. As velocity increases, the RWP mobility moves

agents at a faster rate, leading to more opportunities

for reconnection as they cover more of the space in

less time.

While link retention is not the singular measure

to differentiate between Brownian and RWP mo-

bility, it does provide some insight into why these

models should behave differently with respect to the

emergence of cooperation. Clusters of cooperators

thrive on repeated interaction with other cooperators

(Oliphant, 1994), so repeated interaction (even with

a small number of time steps disconnected) can be a

powerful inﬂuencer of the convergence to cooperation

in the whole population . When repeated interaction is

limited, the pockets of cooperation are no longer char-

acterized primarily by the agents that are members of

the clusters, but rather the inherent structure of these

clusters. In the RWP mobility model the clusters of

cooperation must be stabilized by reduced movement

to allow cooperation to stabilize and convert the con-

stant stream of new agents to cooperation.

5.1 Node Density

In Figure 6 we show the effect of density on how

often the population converges to full cooperation.

These results are very similar to those found in (Mel-

oni et al., 2009), shown in Figure 7 but are at a ve-

locity of v = 0.001 rather than v = 0.01, an order of

magnitude reduction. Simulations run at v = 0.01 us-

ing RWP movement always converged to defection,

regardless of density. This signiﬁcant difference fur-

ther reinforces that RWP mobility has a strong effect

on the stability of cooperative ’communities’ that can

be remedied by decreasing the relative velocity of the

agents.

As show in Figure 6, at low values of density

(ρ . 1) the agents are sparsely distributed and co-

operators are unable to form regions of cooperation.

Conversely, at high densities (ρ & 7) agents are well-

mixed and interact with a large number of other

EvolutionofCooperationinPacketForwardingwiththeRandomWaypointModel

0.2

0.4

0.6

0.8

0 1 2 3 4 5 6 7 8

Figure 6: Fraction of simulations F

using Random Way-

point mobility that converge to full cooperation as a func-

tion of density ρ with ﬁxed value of N = 10

, b = 1.1, and

v = 0.001. Results are given as a fraction of 100 simulation

runs.

Figure 7: Fraction of simulations F

using Brownian mo-

bility that converge to full cooperation using Brownian mo-

bility as a function of density ρ with ﬁxed value of N = 10

b = 1.1, and v = 0.01, as reported in (Meloni et al., 2009).

Results are given as a fraction of 100 simulation runs.

agents. In this case there are many opportunities for

defectors to get a high payout and encourage coop-

erators to defect. Finally, there is a region of den-

sity (1.2 . ρ . 2.4) where the population will al-

most always converge to cooperation and we observe

a steady decrease in convergence to cooperation as ρ

approaches 7.

5.2 Velocity vs. Beneﬁt of Defection

We now seek to determine the parameter values that

encourage cooperation in mobile ad hoc network

packet forwarding. Due to the complexity and over-

lap of the models of interaction and mobility, a purely

analytical solution to this problem is difﬁcult to de-

rive. Therefore, we seek an empirical solution based

1.05

1.1

1.15

1.2

1.25

1.3

1.35

1.4

1.45

0.001

0.002

0.003

0.004

0.005

0.006

0.007

0.008

0.009

0.01

0.2

0.4

0.6

0.8

0.9

0.5

0.1

Figure 8: Fraction of simulations F

out of 100 that con-

verge to cooperation with respect to velocity (v) and the

temptation to defect (b) with ﬁxed values of N = 10

and

ρ = 1.3.

on modeling and simulation of a set of random in-

stances. Of particular interest are the effects of node

density on cooperation and the relationship between

velocity and the beneﬁt of defection. Because r is

ﬁxed at r = 1, to adjust the density we must change

the size of the L × L space. This will alter the set

of possible agents chosen as neighbors while keeping

the velocity relative to the ﬁxed communication ra-

dius. Agents play a pure strategy and are initialized

with a random strategy with 50% probability of being

a cooperator or defector.

In order to show a wide range of behavior we

have run simulations for different values of velocity

and temptation to defect. In Figure 8 the effects of

these parameters on the convergence to cooperation

is shown. For very small values of b cooperation is

more likely, even as the velocity is increased. This

can be attributed to the relatively low payoffs that

selﬁsh agents will receive, reducing the likelihood of

neighbor nodes choosing to adopt the same strategy.

Likewise, an increase in velocity also diminishes the

chances of the simulation converging to cooperation.

As clusters of cooperators form, the agents rely on

their neighborhood to boost their own payoffs as well

as help to inﬂuence other agents to also engage in

cooperation. Additionally, it’s important that agents

moving through the region of cooperation have am-

ple opportunity to observe the beneﬁts and adopt the

strategy before they move out of the cluster. As ve-

locity increase there is a corresponding increase in

the frequency and number of intruding defectors that

can exploit cooperators for higher payoffs and pro-

vide neighboring agents with incentive to also defect.

Additionally, an increased velocity reduces the time

that and agent passing through the cluster will have to

interact with cooperators and adopt their strategy for

itself. These challenges, while not unique to the RWP

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence

mobility model, are signiﬁcantly more pronounced in

their effects.

6 DISCUSSION

We show that more realistic mobility models, as op-

posed to fully random models, can make it more difﬁ-

cult for cooperation to evolve in a population of indi-

viduals. We also provide a set of assumptions that be-

gin to bridge the gap between theoretical agent inter-

action models and distributed packet forwarding us-

ing local decision processes. The main contribution

of this work is to show that the random waypoint mo-

bility model, a more realistic representation of agent

movement for mobile ad hoc networks, has a signiﬁ-

cant effect on the emergence of cooperation.

Full convergence to cooperation was realized in

the RWP model, but only by signiﬁcantly reducing

the velocity of the agents to counteract the resulting

volatility due to a lack a stability in cooperation clus-

ters. Unlike random walk models, where agents are

likely to remain near each other for many time steps,

the RWP model deﬁne vectors of movement that will

often result in agents following divergent paths. In the

Brownian mobility model, regions of cooperation are

composed of a community of agents that are likely

to remain together. The RWP model, on the other

hand, yields cooperation regions in which the mem-

ber agents are ﬂeeting and the stability is inﬂuenced

by the interaction structure and its ability to convert

defectors to cooperators as they enter the region.

These results can be used to design internal mech-

anisms for individual networked devices as well as

provide insight into the effect of mobility on collec-

tions of ad hoc networked devices. Signiﬁcant work

is still needed to show the applications of these results

to real networks, but they provide a foundation to sup-

port the applicability of evolutionary game theory to

the design and analysis of mobile ad hoc networks.

6.1 Future Work

There is a wealth of movement models, surveyed in

(Bai and Helmy, 2004), that are intended to model

speciﬁc real-world phenomenon. Temporal depen-

dency models generate motion that is dependent on

prior time steps and model gradual turning and ac-

celeration. Spatial dependency models provide mech-

anisms for squad-based movement that would more

accurately model devices being carried by groups of

people. Geographic restriction models consider envi-

ronments where movement and communication is re-

stricted by the existence of impassable objects, such

as buildings. Each of these models and their unions

have unique properties that will no doubt have an ef-

fect on the evolution of cooperation.

We plan to explore other types of games that cap-

ture ad hoc network behavior, such as those discussed

in (Kamhoua et al., 2010). The pure strategies used

in our simulations assumes that an agent does not

discern between the identities of neighboring nodes.

While this provides an efﬁcient, memoryless oper-

ating methodology, there is the potential to include

identiﬁcation of neighbors and recall of historical in-

teractions. This additional bookkeeping would allow

for iterated play and, as a result, more sophisticated

strategies such as Tit for Tat or Grim Trigger (Axel-

rod, 2000).

The replicator dynamics used for adopting the

strategy of a neighbor relies on the communication of

reward or the ability to observe the action and payoff

that neighboring agents receive. While this is a com-

mon mechanism for evolutionary games it not a real-

istic assumption in physical environments with selﬁsh

agents that see no beneﬁt in making this information

available. In these cases a new method for updating

an agent’s strategy will be necessary.

ACKNOWLEDGEMENTS

We would like thank Charles Kamhoua for offering

his expertise, invaluable guidance and thorough re-

view of our work.

REFERENCES

Assenza, S. (2008). Enhancement of cooperation in highly

clustered scale-free networks. In Physical Review E.

Axelrod, R. (1992). The evolution of cooperation. Science.

Axelrod, R. (2000). On six advances in cooperation theory.

Analyse & Kritik, 22(1):130–151.

Bai, F. and Helmy, A. (2004). A survey of mobility mod-

els. Wireless Adhoc Networks. University of Southern

California, USA, 206:1–30.

Boccaletti, S., Latora, V., Moreno, Y., Chavez, M., and

Hwang, D. (2006). Complex networks: Structure and

dynamics. Physics Reports, 424(4-5):175–308.

Cho, S. and Hayes, J. (2005). Impact of mobility on connec-

tion in ad hoc networks. In Wireless Communications

and Networking Conference, 2005 IEEE, volume 3,

pages 1650–1656. IEEE.

Cohen, M., Riolo, R., and Axelrod, R. (1999). The

emergence of social organization in the prisoner’s

dilemma: How context-preservation and other factors

promote cooperation. Working Papers.

Helbing, D. and Yu, W. (2009). The outbreak of cooper-

ation among success-driven individuals under noisy

EvolutionofCooperationinPacketForwardingwiththeRandomWaypointModel

conditions. In Proceedings of the National Academy

of Sciences, volume 106, page 3680. National Acad

Sciences.

Ho, C., Obraczka, K., Tsudik, G., and Viswanath, K.

(1999). Flooding for reliable multicast in multi-hop

ad hoc networks. In Proceedings of the 3rd interna-

tional workshop on Discrete algorithms and methods

for mobile computing and communications, pages 64–

71. ACM.

Johnson, D. and Maltz, D. (1996). Dynamic source routing

in ad hoc wireless networks. pages 153–181. Springer.

Kamhoua, C., Pissinou, N., Miller, J., and Makki, S. (2010).

Mitigating routing misbehavior in multi-hop networks

using evolutionary game theory. In IEEE Globecom

workshop on advances in communications and net-

works.

Kendall, G., Yao, X., and Chong, S. (2007). The iterated

prisoners’ dilemma: 20 years on, volume 4. World

Scientiﬁc Pub Co Inc.

Luke, S., Ciofﬁ-Revilla, C., Panait, L., Sullivan, K., and

Balan, G. (2005). Mason: A multi-agent simulation

environment. In Simulation: Transactions of the so-

ciety for Modeling and Simulation International, vol-

ume 82(7), pages 517–527.

Marti, S., Giuli, T., Lai, K., and Baker, M. (2000). Mitigat-

ing routing misbehavior in mobile ad hoc networks.

In Proceedings of the 6th annual international confer-

ence on Mobil computing and networking, pages 255–

265.

Meloni, S., Buscarino, A., Fortuna, L., and Frasca, M.

(2009). Effects of mobility in a population of pris-

oner’s dilemma players. Physical Review E, pages 1–

Nisan, N. (2007). Algorithmic Game Theory. Cambridge

University Press, Cambridge.

Nowak, M. (1992). Evolutionary games and spatial chaos.

Nature.

Oliphant, M. (1994). Evolving cooperation in the non-

iterated prisoner’s dilemma: The importance of spatial

organization. In Proceedings of the fourth artiﬁcial

life workshop, Cambridge, MA, pages 349—-352.

Penrose, M. (2003). Random geometric graphs, volume 5.

Oxford University Press, Oxford.

Perc, M. and Szolnoki, A. (2008). Social diversity and

promotion of cooperation in the spatial prisoners

dilemma game. Physical Review E, 77(1):011904.

Poncela, J., G

omez-Garde

nes, J., Flor

ıa, L., S

anchez, A.,

and Moreno, Y. (2008). Complex cooperative net-

works from evolutionary preferential attachment. vol-

ume 3, page e2449. Public Library of Science.

Poncela, J., G

omez-Garde

nes, J., Traulsen, A., and Moreno,

Y. (2009). Evolutionary game dynamics in a growing

structured population. New Journal of Physics, 11.

Szolnoki, A., Perc, M., and Danku, Z. (2008). Making

new connections towards cooperation in the prisoner’s

dilemma game. EPL (Europhysics Letters), 84:50007.

Tanachaiwiwat, S., Dave, P., Bhindwale, R., and Helmy,

A. (2004). Location-centric isolation of misbehav-

ior and trust routing in energy-constrained sensor net-

works. In 2004 IEEE international conference on per-

formance, computing, and communications.

Viennot, L., Jacquet, P., and Clausen, T. (2004). Analyzing

control trafﬁc overhead versus mobility and data traf-

ﬁc activity in mobile ad-hoc network protocols. Wire-

less Networks, 10(4):447–455.

Weibull, J. (1997). Evolutionary game theory. The MIT

press.

ICAART2013-InternationalConferenceonAgentsandArtificialIntelligence
