SKELETAL ALGORITHMS

Michal R. Przybylek

Faculty of Mathematics, Informatics and Mechanics, University of Warsaw, Warsaw, Poland

Keywords:

Evolutionary algorithms, Process mining, Language recognition, Minimum description length.

Abstract:

This paper introduces a new kind of evolutionary method, called “skeletal algorithm”, and shows its sam-

ple application to process mining. The basic idea behind the skeletal algorithm is to express a problem in

terms of congruences on a structure, build an initial set of congruences, and improve it by taking limited

unions/intersections, until a suitable condition is reached. Skeletal algorithms naturally arise in the context of

data/process minig, where the skeleton is the “free” structure on initial data and a congruence corresponds to

similarities in data. In such a context, skeletal algorithms come equipped with ﬁtness functions measuring the

complexity of a model. We examine two ﬁtness functions for our sample problem — one based on Minimum

Description Length Principle, and the other based on Bayesian Interpretation.

1 INTRODUCTION

The idea of evolutionary computing dates back to the

late 1950, when it was ﬁrst introduced by Bremer-

mann in (Bremermann, 1962), Friedberg, Dunham

and North (Friedberg, 1956; Friedberg et al., 1959),

and then developed by Rechenberg in (Rechenberg,

1971), and Holland in (Holland, 1975). Skeletal algo-

rithm derives its foundations from these methods and

creates a new branch of evolutionary metaheuristics

concerned on data and process mining. The crucial

observation that leads to skeletal algorithms bases on

Minimum Description Length Principle (Grunwald

and Rissanen, 2007), which among other things, says

that the task of ﬁnding “the best model” describing

given data is all about discovering similarities in the

data. Thus, when we start from a model that fully de-

scribes the data (i.e. the skeletal model of the data),

but does not see any similarities, we may obtain a

“better model” by unifying some parts of that model.

Unifying parts of a model means just taking a quotient

of that model, or equally — ﬁnding a congruence re-

lation.

1.1 Process Mining

Process mining (van der Aalst, 2011; Weijters and

van der Aalst, 2001; de Medeiros et al., 2004; van der

Aalst et al., 2000; van der Aalst and ter Hofstede,

2002; van der Aalst et al., 2006b; Wynn et al.,

2004; van der Aalst et al., 2006a; van der Aalst and

M. Pesic, 2009) is a new and prosperous technique

that allows for extracting a model of a business pro-

cess based on information gathered during real execu-

tions of the process. The methods of process mining

are used when there is no enough information about

processes (i.e. there is no a priori model), or there is a

need to check whether the current model reﬂects the

real situation (i.e. there is a priori model, but of a du-

bious quality). One of the crucial advantages of pro-

cess mining over other methods is its objectiveness —

models discovered from real executions of a process

are all about the real situation as it takes place, and

not about how people think of the process, and how

they wish the process would be like. In this case, the

extracted knowledge about a business process may be

used to reorganize the process to reduce its time and

cost for the enterprise.

Table 1 shows a typical event-log gathered during

executions of the process to determine and identify a

possible disease or disorder of a patient. In this paper,

we assume that with every such an event-log there are

associated:

• an identiﬁer referring to the execution (the case)

of the process that generated the event

• a unique timestamp indicating the particular mo-

ment when the event occurred

• an observable action of the event; we shall as-

sume, that we are given only some rough infor-

mation about the real actions.

and we shall forget about any additional information

80

R. Przybylek M..

SKELETAL ALGORITHMS.

DOI: 10.5220/0003674700800089

In Proceedings of the International Conference on Evolutionary Computation Theory and Applications (ECTA-2011), pages 80-89

ISBN: 978-989-8425-83-6

Copyright

c

2011 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: An event log.

Case Observable

Action

Actor Timestamp Data

127 START Dr. Moor 11:30:52

07.02.2011

127 Listen to patient’s

complaints

Dr. Moor 11:34:27

07.02.2011

headache

127 Listen to patient’s

complaints

Dr. Moor 11:35:59

07.02.2011

fever

107 START Dr. No 11:36:50

07.02.2011

127 Listen to patient’s

complaints

Dr. Moor 11:39:33

07.02.2011

catarrh

107 Listen to patient’s

complaints

Dr. No 11:39:37

07.02.2011

pain in the left foot

127 Select a candidate

disease

Dr. Moor 11:58:30

07.02.2011

angina

127 Query patient

about symptoms

Dr. Moor 12:01:11

07.02.2011

sore throat? — yes

127 Query patient

about symptoms

Dr. Moor 12:08:21

07.02.2011

white patches on

the tonsils? — yes

107 Select a candidate

disease

Dr. No 12:10:31

07.02.2011

broken leg

107 Query patient

about symptoms

Dr. No 12:11:01

07.02.2011

swollen leg? — No

107 Select a candidate

disease

Dr. No 12:11:33

07.02.2011

joint dislocation

107 Query patient

about symptoms

Dr. No 12:14:00

07.02.2011

blood inﬂamma-

tion? — Yes

107 Make a diagnosis Dr. No 12:16:02

07.02.2011

joint dislocation

107 END Dr. No 12:16:50

07.02.2011

127 Make a diagnosis Dr. Moor 12:34:01

07.02.2011

angina

127 END Dr. Moor 12:34:55

07.02.2011

... ... ... ... ...

and attributes associated with an execution of a pro-

cess. The ﬁrst property says that we may divide a

list of events on collections of events corresponding

to executions of the process, and the second property

let us linearly order each of the collections. If we

use only information about the relative occurrences

of two events (that is: which of the events was ﬁrst,

and which was second), then the log may be equally

described as a ﬁnite list of ﬁnite sequences over the

set ObservableAction of all possible observable ac-

tions. Therefore we may think of the log as a ﬁ-

nite sample of a probabilistic language over alpha-

bet ObservableAction — or more accurately — as

the image of a ﬁnite sample of a probabilistic lan-

guage over Action under a morphism h : Action →

ObservableAction. The morphism h describes our im-

perfect information about the real actions. In the ex-

ample from table 1 (here we use the ﬁrst letter of the

name of an action as abbreviate for the action)

ObservableAction = {l, s,q,m}

and the sample contains sequences

S = {hl,l,l,s,q,q,mi,hl,s,q,s,q,mi} (1)

Figure 1 shows a model recognized from this sample.

Here Action = ObservableAction and h is the identity

morphism (there are no duplicated events).

Figure 1: Model mined from Table 1.

1.2 A Survey of Most Successful Process

Mining Methods

1. Algorithms α, α

++

,β (van der Aalst and van Don-

gen, 2002)(Wen et al., 2006)(Ren et al., 2007).

They are able to mine models having single tasks

only. These algorithms base on ﬁnding causalities

of tasks.

2. Genetic algorithms (van der Aalst et al.,

2006a)(Medeiros et al., 2007). Models are tran-

sition matrices of Petri nets. A crossing operation

exchanges fragments of the involved matrices.

3. Algorithms based on preﬁx trees (Cook and

Woolf, 1998). The preﬁx tree is built for a given

set of executions of a process. Learning corre-

sponds to ﬁnding a congruence on the tree.

4. Algorithms based on regular expressions

(Brazma, 1994). Models are regular expressions.

Learning corresponds to a compression of the

regular expression.

5. Statistical methods based on recursive neural net-

works (Cook and Woolf, 1998). The model is rep-

resented by a three-layer neural network. The hid-

den layer corresponds to the states of discovered

automaton.

6. Statistical methods based on Markov chains

(Cook and Woolf, 1998), or Stochastic Activation

Graphs (Herbst, 2000). The set of executions of a

process is assumed to be a trajectory of a Markov

SKELETAL ALGORITHMS

81

chain; such a Markov chain is then constructed

and turned into ﬁnite state machine by pruning

transitions that have small probabilities or insuf-

ﬁcient support.

Skeletal algorithms reassembles and generalizes the

idea from algorithms based on preﬁx trees and regu-

lar expressions, and makes the task of ﬁnding a con-

gruence structured and less ad hoc. We will elaborate

more on skeletal algorithms in the next section.

1.3 Organization of the Paper

We assume that the reader is familiar with basic math-

ematical concepts. The paper is structured as fol-

lows. In section 2 we shall brieﬂy recall some crucial

for this paper mathematical concepts, and introduce

skeletal algorithms. Section 3 describes our approach

to process mining via skeletal algorithms. In section 4

we show some examples of process mining. We con-

clude the paper in section 5.

2 SKELETAL ALGORITHMS

Skeletal algorithms are a new branch of evolution-

ary metaheuristics focused on data and process min-

ing. The basic idea behind the skeletal algorithm is

to express a problem in terms of congruences on a

structure, build an initial set of congruences, and im-

prove it by taking limited unions/intersections, until

a suitable condition is reached. Skeletal algorithms

naturally arise in the context of data/process mining,

where the skeleton is the “free” structure on initial

data and a congruence corresponds to similarities in

the data. In such a context, skeletal algorithms come

equipped with ﬁtness functions measuring the com-

plexity of a model.

Skeletal algorithms, search for a solution of a

problem in the set of quotients of a given structure

called the skeleton of the problem. More formally, let

S be a set, and denote by Eq(S) the set of equivalence

relations on S. If i ∈ S is any element, and A ∈ Eq(S)

then by [i]

A

we shall denote the abstraction class of i

in A — i.e. the set {j ∈ S : jAi}. We shall consider

the following skeletal operations on Eq(S):

1. Splitting

The operation split : {0,1}

S

×S ×Eq(S) →Eq(S)

takes a predicate P: S →{0,1}, an element i ∈ S,

an equivalence relation A ∈ Eq(S) and gives the

largest equivalence relation R contained in A and

satisfying: ∀

j∈[i]

A

iR j ⇒ P(i) = P( j). That is —

it splits the equivalence class [i]

A

on two classes:

one for the elements that satisfy P and the other of

the elements that do not (Figure 2).

Figure 2: Equivalence class [i] is split according to the pred-

icate: blue elements satisﬁes the predicate, whereas green

— not.

2. Summing

The operation sum : S ×S ×Eq(S) → Eq(S) takes

two elements i, j ∈ S, an equivalence relation A ∈

Eq(S) and gives the smallest equivalence relation

R satisfying iR j and containing A. That is — it

merges the equivalence class [i]

A

with [ j]

A

(see

Figure 3).

Figure 3: Equivalence classes [i] and [ j] are merged.

3. Union

The operation union: S × Eq(S) × Eq(S) →

Eq(S)×Eq(S) takes one element i ∈S, two equiv-

alence relations A,B ∈ Eq(S) and gives a pair

hR,Qi, where R is the smallest equivalence re-

lation satisfying ∀

j∈[i]

B

iR j and containing A, and

dually Q is the smallest equivalence relation sat-

isfying ∀

j∈[i]

A

iQ j and containing B. That is — it

merges the equivalence class corresponding to an

element in one relation, with all elements taken

from the equivalence class corresponding to the

same element in the other relation (see Figure 4).

4. Intersection

The operation intersection : S ×Eq(S) ×Eq(S) →

Eq(S)×Eq(S) takes one element i ∈S, two equiv-

alence relations A,B ∈ Eq(S) and gives a pair

hR,Qi, where R is the largest equivalence relation

satisfying ∀

x,y∈[i]

A

xRy ⇒x, y ∈[i]

B

∨x, y /∈[i]

B

and

contained in A, and dually Q is the largest equiv-

alence relation satisfying ∀

x,y∈[i]

B

xQy ⇒ x,y ∈

[i]

A

∨x,y /∈[i]

A

and contained in B. That is — it in-

ECTA 2011 - International Conference on Evolutionary Computation Theory and Applications

82

Figure 4: Merging equivalence classes in one relation along

elements from the equivalence class [i] in another relation.

tersects the equivalence class corresponding to an

element in one relation, with the equivalence class

corresponding to the same element in the other re-

lation (see Figure 5).

Figure 5: Spliting the equivalence class of i in one relation

along equivalence class of i in another relation.

Furthermore, we shall assume that there is also a

ﬁtness function ∆: H(S) → R. The general template

of skeletal algorithm is shown on ﬁgure 6.

There are many things that can be implemented

differently in various problems.

2.1 Construction of the Skeleton

As pointed out earlier, the skeleton of a problem

should correspond to the “free model” build upon

sample data. Observe, that it is really easy to plug

in the skeleton some priori knowledge about the so-

lution — we have to construct a congruence relation

induced by the priori knowledge and divide by it the

“free unrestricted model”. Also, this suggests the fol-

lowing optimization strategy — if the skeleton of a

problem is too big to efﬁciently apply the skeletal al-

gorithm, we may divide the skeleton on a family of

Figure 6: Skeletal Algorithm.

smaller skeletons, apply to each of them the skeletal

algorithm to ﬁnd quotients of the model, glue back the

quotients and apply again the skeletal algorithm to the

glued skeleton.

2.2 Construction of the Initial

Population

Observe that any equivalence relation on a ﬁnite set S

may be constructed by successively applying sum op-

erations to the identity relation, and given any equiva-

lence relation on S, we may reach the identity relation

by successively applying split operations. Therefore,

every equivalence relation is constructible from any

equivalence relation with sum and split operations. If

no priori knowledge is available, we may build the ini-

tial population by successively applying to the iden-

tity relation both sum and split operations.

2.3 Selection of Operations

For all operations we have to choose one or more ele-

ments from the skeleton S, and additionally for a split

operation — a splitting predicate P : S → {0,1}. In

most cases these choices have to reﬂect the structure

SKELETAL ALGORITHMS

83

of the skeleton — i.e. if our models have an alge-

braic or coalgebraic structure, then to obtain a quo-

tient model, we have to divide the skeleton by an

equivalence relation preserving this structure, that is,

by a congruence. The easiest way to obtain a congru-

ence is to choose operations that map congruences to

congruences. Another approach is to allow operations

that move out congruences from they class, but then

“improve them” to congruences, or just punish them

in the intermediate step by the ﬁtness function.

2.4 Choosing Appropriate Fitness

Function

Data nad process mining problems frequently come

equipped with a natural ﬁtness function measuring

the total complexity of data given a particular model.

One of the crucial conditions that such a function has

to satisfy is the ability to easily adjust its value on a

model obtained by applying skeletal operations.

2.5 Creation of Next Population

There is a room for various approaches. We have ex-

perimented most successful with the following strat-

egy — append k-best congruences from the previous

population to the result of operations applied in the

former step of the algorithm.

3 SKELETAL ALGORITHMS IN

PROCESS MINING

If we forget about additional information and at-

tributes associated with an execution of a process,

then the task of identifying a process reduces to the

task of language recognition. The theory of language

recognition that gives most negative results is “identi-

ﬁcation of a language in the limit” developed by Mark

Gold (Gold, 1967). The fundamental theorem pub-

lished by Dan Angluin (Angluin, 1980) says that a

class of recursively indexed languages is (recursively)

identiﬁable in the limit iff for every language L from

the class there exists an effectively computable ﬁnite

“tell-tale” — that is: a subset T of L such that: if T is

a subset of any other language K from the class, then

K * L. An easy consequence of this theorem is that

the set of regular languages is not identiﬁable in the

limit. Another source of results in this context is the

theory of PAC-learning developed by Leslie Valiant

(Valiant, 1984).

Although these results are fairly interesting, in the

context of process mining, we are mostly given a very

small set of sample data, and our task is to ﬁnd the

most likely hypothesis — the question: “if we were

given sufﬁciently many data, would it have been pos-

sible to ﬁnd the best hypothesis?” is not really practi-

cal.

3.1 Probabilistic Languages

A probabilistic language L over an alphabet Σ is any

subset of Σ

∗

×[0,1] that satisﬁes the following condi-

tion:

∑

hw,pi∈L

p = 1. Note that probabilistic languages

over Σ are the same as probability distributions over

Σ

∗

.

A probabilistic ﬁnite state automaton is a quadru-

ple A = hΣ, S,l,δi, where:

• Σ is a ﬁnite set called the “alphabet of the automa-

ton”

• S is a ﬁnite set of states

• l is a labeling function S → Σ ∪{start, end} such

that l

−1

[start] = {s

start

}6= {s

end

}= l

−1

[end]; state

s

start

is called “the initial state of the automaton”,

and s

end

“the ﬁnal state of the automaton”

• δ is a transition function S ×S → [0, 1] such that:

– ∀

s∈S

∑

q∈S

δ(s,q) = 1

– ∀

s∈S

δ(s,s

start

) = 0

– δ(s

end

,s

end

) = 1

A trace of an automaton A starting in a state s

0

and

ending in a state s

k

is a sequence hs

1

,. .. ,s

k

i ∈ S

∗

. A

full trace of an automaton is a trace starting in s

start

and ending in s

end

.

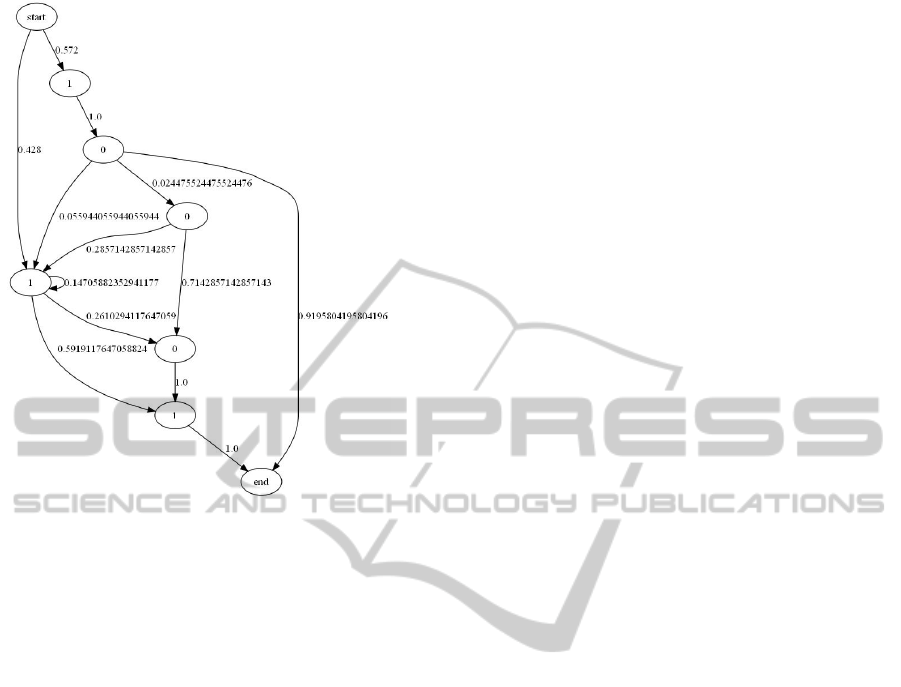

In our setting models correspond to probabilistic

ﬁnite automata, the distributions are induced by the

probabilities of full traces of the automata, and mor-

phisms map states to they actions (i.e. labels).

3.2 Skeleton

Given a list of sample data K : n = {0,···,n −1} →

Σ

∗

, by a skeleton of K we shall understand the au-

tomaton: skeleton(K) = hΣ,S,l,δi, where:

• S = {hi,ki: i ∈ n, k ∈{1,...,|K(i)|}}∪{−∞,∞}

• l(−∞) = start, l(∞) = end, l(hi,ki) = K(i)

k

,

where the subscript k indicates the k-th element

of the sequence

• δ(−∞,hi,1i) = 1, δ(∞,∞) = 1, δ(hi, |K(i)|i,∞) =

1, δ(hi,ki,hi,k + 1i) = 1

So the skeleton of a list of data is just an automaton

corresponding to this list enriched with two states —

initial and ﬁnal. This automaton describes the situ-

ation, where all actions are different. Our algorithm

will try to glue some actions that give the same output

ECTA 2011 - International Conference on Evolutionary Computation Theory and Applications

84

(shall search for the best ﬁtting automaton in the set of

quotients of the skeletal automaton). Figure 7 shows

the skeletal automaton of the sample 1 from section 1.

Figure 7: Skeletal model of the sample 1.

Given a list of sample data K : n → Σ

∗

, our search

space Eq(S) consists of all equivalence relations on S.

3.3 Skeletal Operations

1. Splitting

For a given congruence A, choose randomly a

state hi,ki ∈ skeleton(K) and make use of two

types of predicates

• split by output — P(hj,li) = 1 ⇔

∃

hi

0

,k

0

i∈[hi,ki]

A

δ(hj,li,hi

0

,k

0

i)

• split by input — P(hj,li) = 1 ⇔

∃

hi

0

,k

0

i∈[hi,ki]

A

δ(hi

0

,k

0

i,hj,li)

2. Summing

For a given congruence A, choose randomly two

states hi,ki,hj, li such that l(hi,ki) = l(hj,li).

3. Union/Intersection

Given two skeletons A,B choose randomly a state

hi,ki ∈ skeleton(K).

Let us note that by choosing states and predicates

according to the above description, all skeletal opera-

tions preserve congruences on skeleton(K).

3.4 Fitness

Let v

0

: v = hv

0

,v

1

,··· , v

k

i be a trace of a probabilis-

tic automaton. Assuming that we start in node v

0

,

the probability of moving successively through nodes

v

1

,··· , v

k

is

P(v|v

0

) =

k

∏

i=1

δ(v

i−1

,v

i

)

and it give us a probability distribution on S

k

:

P(v) =

∑

v

0

∈S

µ(v

0

)P(v|v

0

)

where µ is any probability distribution on the states

S of the automaton. If we choose for µ a probabil-

ity mass distribution concentrated in a single node v

0

,

then P(v) would depend multiplicatively on proba-

bilistic transitions P(v

i−1

,v

i

). In this case any local

changes in the structure of the automaton (like split-

ting or joining nodes) give multiplicative perturba-

tions on the probability P(v), so it is relatively easy

(proportional to the number of affected nodes) to up-

date the complexity of v.

Consider any full trace v = hv

0

=

start, v

1

,··· , v

k

= endi of an automaton. Ac-

cording to our observation, we may associate with it

the following probability:

P(v) =

k

∏

i=1

δ(v

i−1

,v

i

) =

∏

x∈S

∏

a∈S

δ(x,a)

|{i: x=v

i

∧a=v

i

+1}|

where for every x the term

∏

a∈S

δ(x,a)

|{i: x=v

i

∧a=v

i

+1}|

depends only on the

number of pass to the state a. Hence, we may restrict

our analysis to single states.

Let s be such a state with l output probabilis-

tic transitions a

1

,··· , a

l

, and let us assume that the

probability of passing the j-th arrow is p

j

. Then the

probability of consecutively moving through arrows

x = ha

i

1

,··· , a

i

k

i when visiting node s is:

p

s

(x) =

k

∏

j=1

p

i

j

=

l

∏

j=1

p

c

j

j

SKELETAL ALGORITHMS

85

where c

j

is the number of occurences of a

j

in x. Thus,

given a sample x and a probabilistic node s the optimal

length of a code describing x is about

log(

1

p

s

(x)

)

and the shortest code is achieved for s having proba-

bilities

p

1

=

c

1

k

,··· , p

k

=

c

l

k

Now, let us assume that we do not know probabil-

ities at s. Then any code describing x via s has to

contain some information about these probabilities.

A “uniform approach” would look like follows: for

a given sample x chose the optimal probability node

s

x

, then opt(x) = p

s

x

(x) is not a probability on l

k

as

it does not sum up to 1 (i.e. it does not contain in-

formation about choosing appropriate hypothesis s

x

);

however

mdl(x) =

opt(x)

∑

x∈l

k

opt(x)

= (

∑

r

1

+···+r

l

=k

k

r

1

,··· , r

l

l

∏

i=1

r

r

i

i

)

−1

l

∏

i=1

c

c

i

i

= m

l

∏

i=1

c

c

i

i

(2)

is, where

k

r

1

,···,r

l

is the multionomial k over

r

1

,··· , r

l

. One may take another approach based on

Bayesian interpretation. Let us ﬁx a meta-distribution

q on all probabilistic nodes s having the same out-

put arrows. This distribution chooses probabilities

p

1

,··· , p

l

, that is — non-negative real numbers such

that p

1

+ ···+ p

l

= 1 — then for a given sample x

chose a node s

p

1

,···,p

l

with probability q(s

p

1

,···,p

l

) and

describe x according to that node:

bayes(x) =

Z

p

1

+···+p

l

=1,p

i

≥0

p

s

p

1

,···,p

l

(x)q(s

p

1

,···,p

l

)

If q is a uniform distribution, then

bayes(x) =

R

p

1

+···+p

l

=1,p

i

≥0

∏

l

i=1

p

c

i

i

Vol(∆

l

)

=

Γ(l)

∏

l

i=1

Γ(c

i

+ 1)

Γ(

∑

l

i=1

(c

i

+ 1))

=

Γ(l)

Γ(k + l)

l

∏

i=1

c

c

i

i

= b

l

∏

i=1

c

c

i

i

(3)

So, mdl(x) = m

∏

l

i=1

c

c

i

i

and bayes(x) = b

∏

l

i=1

c

c

i

i

,

where m,b are constants making mdl and bayes prob-

ability distributions. In fact, these distributions are

really close — by using Striling’s formula

n

n

≈

√

2πn(

n

e

)

n

we have

bayes(x) ≈ b

0

l

∏

i=1

c

c

i

+

1

2

i

where b

0

= be

−n

(2π)

l/2

is just another constant. We

shall prefer the Bayesian distribution as it is much

easier to compute and update after local changes, but

we should be aware that it slightly more favors ran-

dom sequences than the optimal (in the sense of min-

imum regret) distribution.

The total distribution on traces is then given by:

bayes

trace

(v) =

∏

s∈S

bayes

s

(v ↓ s)

where bayes

s

is the Bayesian distribution correspond-

ing to the node s and v ↓s is the maximal subsequence

of v consisting of elements directly following s. And

the corresponding complexity of v is:

comp(v) = −

∑

s∈S

log(bayes

s

(v ↓ s))

Although this complexity assumes that we do not

know the exact probabilities of the automaton, it also

assumes that we know all its other properities. Our

research showed that the other aspects of the automa-

ton are best described with two-parts codes. Thus, the

ﬁtness function for a congruence A on the skeleton

of sample data K : n → Σ

∗

would be proportional to

the sum of the description (neglecting probabilities)

of the quotient model skeleton(K)/A and complexi-

ties of each K(i) according to that model:

∆(A) = −|skeleton(K)/A|−

n−1

∑

i=0

comp

skeleton(K)/A

(K(i))

where |skeleton(K)/A| may be tuned for particular

samples. Our experience showed that choosing

clog(|S|)|{hx,yi ∈ S ×S : δ(x,y) > 0}|

for a small constant c > 1 behaves best.

4 EXAMPLES

4.1 Non-deterministic Automata

Given a non-deterministic automata like on ﬁgure 8

we generate sample of n words by moving through

each arrow outgoing from a state with equal probabil-

ities. Figure 9 shows discovered model after seeing 4

samples, Figure 10 after seeing 16, and ﬁgure 11 after

seeing 160 samples. Note, that the automaton is redis-

covered with a great precision after seeing a relatively

small sample data.

ECTA 2011 - International Conference on Evolutionary Computation Theory and Applications

86

Figure 8: Non-deterministic automaton.

Figure 9: Model discovered after seeing 4 samples.

4.2 Testing Sample

In this example we use samples from (Cook and

Woolf, 1998):

L1 = A,B,C, A,B,C,B,A,C,B,A,C,A,

B,C,B, A,C,B,A,C, A,B,C, B,A,

C, A,B,C, A,B,C,B,A,C,B,A (4)

Figure 10: Model discovered after seeing 16 samples.

Figure 11: Model discovered after seeing 160 samples.

L2 = A,B,C, D,C,E,F,G,H,G,I,J,

G,I,K, L,M, N,O,P,R,F, G,I,

K,L,M,N,O,P,Q, S (5)

Figures 12 and 13 show models discovered from sam-

ple L1 and L2 respectively. Model 12 corresponds

to the model mined by KTAIL method, whereas

model 13 outperforms overﬁtted RNET, MARKOV

and KTAIL.

SKELETAL ALGORITHMS

87

Figure 12: Model discovered from sample L1.

4.3 Prime Numbers

In this example we show how skeletal algorithms can

learn from a probabilistic source p that does not corre-

spond to any model. We deﬁne p to be non-zero only

on prime numbers, and such that the probability for

a given prime number is proportional to its numbers

of bits in binary representation. Figure 14 shows dis-

covered automaton from 500 samples. Observe that it

quite accuratly predicts all 5-bits prime numbers.

5 CONCLUSIONS

In this paper we introduced a new kind of evolution-

ary method — “skeletal algorithm”, especially suit-

able in the context of data and process mining. In such

a context “skeletal algorithms” come often equipped

with a natural ﬁtness function measuring the com-

plexity of a model. We showed a sample application

of “skeletal algorithms” to process mining and ex-

amined two naturally ﬁtness functions — one based

on Minimum Description Length Principle, and an-

other based on Bayesian Interpretation. Although,

obtained results are really promising, there are issues

that should be addressed in future works. The main

concern is to extend the concept of models — our

models base on probabilistic automata, and so the al-

gorithm is not able to mine nodes corresponding to

parallel executions of a process (i.e. AND-nodes).

Also, we are interested in applying various optimiza-

tion techniques and investigate more industrial data.

Figure 13: Model discovered from sample L2.

ECTA 2011 - International Conference on Evolutionary Computation Theory and Applications

88

Figure 14: Prime numbers.

REFERENCES

Angluin, D. (1980). Inductive inference of formal lan-

guages from positive data. In Information and Con-

trol, volume 42.

Brazma, A. (1994). Efﬁcient algorithm for learning simple

regular expressions from noisy examples. In Work-

shop on Algorithmic Learning Theory ALT’94, Lec-

ture Notes in Computer Science, volume 872.

Bremermann, H. J. (1962). Optimization through evolution

and recombination. In Self-Organizing systems 1962,

edited M.C. Yovitts et al., page 93106, Washington.

Spartan Books.

Cook, J. and Woolf, A. (1998). Discovering models of

software processes from event-based data. In ACM

Transactions on Software Engineering and Methodol-

ogy, volume 7/3.

de Medeiros, A., van Dongen, B., van der Aalst, W., and

Weijters, A. (2004). Process mining: Extending the

alpha-algorithm to mine short loops. In BETA Work-

ing Paper Series, Eindhoven. Eindhoven University of

Technology.

Friedberg, R. M. (1956). A learning machines part i. In IBM

Journal of Research and Development, volume 2.

Friedberg, R. M., Dunham, B., and North, J. H. (1959). A

learning machines part ii. In IBM Journal of Research

and Development, volume 3.

Gold, E. (1967). Language identiﬁcation in the limit. In

Information and Control, volume 10.

Grunwald, P. D. and Rissanen, J. (2007). The minimum

description length principle. In Adaptive Computation

and Machine Learning series. The MIT Press.

Herbst, J. (2000). A machine learning approach to workﬂow

management. In 11th European Conference on Ma-

chine Learning, Lecture Notes in Computer Science,

volume 1810.

Holland, J. H. (1975). Adaption in natural and artiﬁcial sys-

tems. Ann Arbor. The University of Michigan Press.

Medeiros, A., Weijters, A., and van der Aalst, W. (2007).

Genetic process mining: an experimental evaluation.

In Data Mining and Knowledge Discovery, volume

14/2.

Rechenberg, I. (1971). Evolutions strategie – optimierung

technischer systeme nach prinzipien der biologischen

evolution. In PhD thesis. Reprinted by Fromman-

Holzboog (1973).

Ren, C., Wen, L., Dong, J., Ding, H., Wang, W., and Qiu,

M. (2007). A novel approach for process mining based

on event types. In IEEE SCC 2007, pages 721–722.

Valiant, L. (1984). A theory of the learnable. In Communi-

cations of The ACM, volume 27.

van der Aalst, W. (2011). Process mining: Discovery,

conformance and enhancement of business processes.

Springer Verlag.

van der Aalst, W., de Medeiros, A. A., and Weijters, A.

(2006a). Process equivalence in the context of genetic

mining. In BPM Center Report BPM-06-15, BPMcen-

ter.org.

van der Aalst, W. and M. Pesic, M. S. (2009). Beyond pro-

cess mining: From the past to present and future. In

BPM Center Report BPM-09-18, BPMcenter.org.

van der Aalst, W. and ter Hofstede, A. (2002). Workﬂow

patterns: On the expressive power of (petri-net-based)

workﬂow languages. In BPM Center Report BPM-02-

02, BPMcenter.org.

van der Aalst, W., ter Hofstede, A., Kiepuszewski, B., and

Barros, A. (2000). Workﬂow patterns. In BPM Center

Report BPM-00-02, BPMcenter.org.

van der Aalst, W. and van Dongen, B. (2002). Discover-

ing workﬂow performance models from timed logs.

In Engineering and Deployment of Cooperative Infor-

mation Systems, pages 107–110.

van der Aalst, W., Weijters, A., and Maruster, L. (2006b).

Workﬂow mining: Discovering process models from

event logs. In BPM Center Report BPM-04-06, BPM-

center.org.

Weijters, A. and van der Aalst, W. (2001). Process min-

ing: Discovering workﬂow models from event-based

data. In Proceedings of the 13th Belgium-Netherlands

Conference on Artiﬁcial Intelligence, pages 283–290,

Maastricht. Springer Verlag.

Wen, L., Wang, J., and Sun, J. (2006). Detecting implicit

dependencies between tasks from event logs. In Lec-

ture Notes in Computer Science, volume 3841, pages

591–603.

Wynn, M., Edmond, D., van der Aalst, W., and ter Hofstede,

A. (2004). Achieving a general, formal and decidable

approach to the or-join in workﬂow using reset nets.

In BPM Center Report BPM-04-05, BPMcenter.org.

SKELETAL ALGORITHMS

89
