LINGUISTIC ENGINEERING AND ITS APPLICABILITY

TO BUSINESS INTELLIGENCE

Towards an Integrated Framework

S. F. J. Otten and M. R. Spruit

Institute of Information an Computer Sciences, Utrecht University, Princetonplein 5, Utrecht, The Netherlands

Keywords: Business intelligence, Linguistic engineering, Social network, Knowledge discovery, Unstructured data,

Framework.

Abstract: This paper investigates how linguistic techniques on unstructured text data can contribute to business

intelligence processes. Through a literature study covering 99 relevant papers, we identified key business

intelligence techniques such as text mining, social mining and opinion mining. The Linguistic Engineering

for Business Intelligence (LEBI) framework incorporates these techniques and can be used as a guide or

reference for combining techniques on unstructured and structured data.

1 INTRODUCTION

The internet has been evolving from a static source

of information to a dynamic and versatile source of

information available to everyone. The concept of

WEB 2.0 emerged (i.e. Facebook, Twitter) and

contains valuable information (Anderson, 2007;

Kleinberg, 2008). A limited amount of organizations

leverage the knowledge hidden in these social

networks due to a lack of knowhow (Pang & Lee,

2008). Business Intelligence (BI) is used to satisfy a

manager’s request analyzing enterprise data to

improve decision making (Willen, 2002). The data is

mutated until it reaches the desired form to support

strategic decision making (Moody & Kortink, 2000).

However unstructured data is in most organizations

untapped. But it has to be structured, processed, and

analyzed with by using Linguistic Engineering (LE)

techniques (och Dag, Regnell, Gervasi, &

Brinkkemper, 2005).In this paper we propose a

framework that provides insight into how LE can

complement BI for achieving a competitive

advantage. Hence, the research question of this

paper is:

In which ways can linguistic techniques such as

text mining, social mining and opinion mining

contribute to business intelligence processes?

The remainder of this paper is structured as

follows. Section 2 provides a theoretical background

concerning business intelligence and linguistic

engineering. Section 3 provides the research

approach. Within section 4 the framework is

presented, and section 5 comprises a discussion and

section 6 conclusions.

2 RELATED LITERATURE

In this section we explore the main concepts of our

research: Business Intelligence (BI) and Linguistic

Engineering (LE).

2.1 Business Intelligence (BI)

BI enables organizations to understand their internal

and external environment through the systematic

acquisition, collation, analysis, interpretation and

exploitation of information (Chung, Chen, &

Numumaker Jr, 2003). BI uses the following

techniques: data warehouses, OLAP, and data

mining. A data warehouse comprises data acquired

from multiple structured data sources on an

operational (Inmon, 2002; Sen & Sinha, 2005;

Kotsiantis & Kanellopoulos, 2006). In order to

leverage these new insights, an organization needs to

have certain goals targets to compare the actual

organizational performance. An organization can

define Key Performance Indicators (KPIs)

(Parmenter, 2007) to do so.

460

Otten S. and Spruit M..

LINGUISTIC ENGINEERING AND ITS APPLICABILITY TO BUSINESS INTELLIGENCE - Towards an Integrated Framework.

DOI: 10.5220/0003661704520456

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval (KDIR-2011), pages 452-456

ISBN: 978-989-8425-79-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2.2 Linguistic Engineering (LE)

Linguistic engineering is concerned with the

computational processing of unstructured text and

speech in order to derive knowledge from it. A

technique used within the automated document

summarization process is text mining. Another

popular application of LE in recent years, with the

growing popularity of Social Network Sites (SNS)

(Heer & Boyd, 2005), is its ability to derive

knowledge from social media via social mining and

opinion mining (Hu & Liu, 2004; Yang, Dia, Cheng,

& Lin, 2006). Text Mining (TM) was first

mentioned by Feldman and Dagan (1995) and deals

with the machine supported analysis of text. Before

TM can commence a necessity exists to pre-process

each text document and store the data in a structured

manner. The pre-processing of text in the TM-

domain entails (1) tokenization; (2) filtering; (3)

lemmatization; (4) stemming. (Feldman & Sanger,

2007). Data mining is used with the purpose to

classify or cluster documents. A discipline in social

mining is called Social Network Analysis (SNA) and

comprises the analysis and visualization of an online

social network (Erétéo, Buffa, Gandon, Grohan,

Leitzelman, & Sander, 2008). The knowledge to be

leveraged, with the help of social mining has

numerous applications (Adomavicius & Tuzhilin,

2002; Yang, Dia, Cheng, & Lin, 2006; Yang & Dia,

2008). Opinion mining aims to extract attributes and

components of the object that has been commented

on in a set of text-based content, to determine

whether they are positive, negative or neutral and is

called semantic orientation (Hu & Liu, 2004; Liu,

2007; Ding, Liu, & Yu, 2008). Based on the

conducted literature, we understand that today’s use

of LE—in particular the disciplines of text mining,

social mining and opinion mining—is not yet as

established as one would hope. In most cases it is

not yet implemented in an organization’s BI-

environment, resulting in a loss of valuable

information and knowledge.

3 RESEARCH DESIGN

Our research entails the exploration of the possible

uses of Linguistic Engineering in combination with

already defined Business Intelligence processes in

organizations. Hence, our research question:

“In which ways can linguistic techniques such as

text mining, social mining and opinion mining

contribute to business intelligence processes?”

The literature referenced in this paper was found

through an online literature search, by using Google

Scholar and Omega. Table 1 provides an overview

of keywords used in search-queries. The keywords

were also combined to find literature in a specific

context.

Table 1: Keywords.

Keywords

Subject Keywords Publications Validated

Publications

Business

Intelligence

28 6

Business

Intelligence

Data

warehouse

Data mining

techniques

Decision

Support

Systems

Strategic

Decisions

Making

Linguistic

Engineering

71 26

Linguistic

Engineering

Text mining 25

Social

mining

Opinion

mining

Total 99 32

With each search-query we only analyzed the top

100 items, under the assumption that each search

engine lists the most relevant results first. In our

search queries we used the keywords with and

without quotations; no significant differences in the

top 100 items were discovered. Our analyses of the

search results were done by checking the title and

abstract of each source and quick-scanning the

publication for its relevance regarding our research.

In total we found 99 relevant scientific publications

which could be used in our research. A more

detailed analysis of the literature, by fully reading

the articles, reduced the total from 99 to 70 relevant

publications. From the 70 relevant publications 32

were either empirically or expert validated, 34 were

not validated, and 4 could not be determined as

“validated” or “not validated”. The validated papers

all proposed a new technique/algorithm for handling

unstructured or structured data. The 34 that were not

validated were literature studies, surveys or

framework descriptions. The remaining five relevant

publications all described the evolution of theory

development on several concepts.

LINGUISTIC ENGINEERING AND ITS APPLICABILITY TO BUSINESS INTELLIGENCE - Towards an Integrated

Framework

461

4 LEBI FRAMEWORK

From literature we derived six stages (stage I

through stage VI) and used them in the LEBI

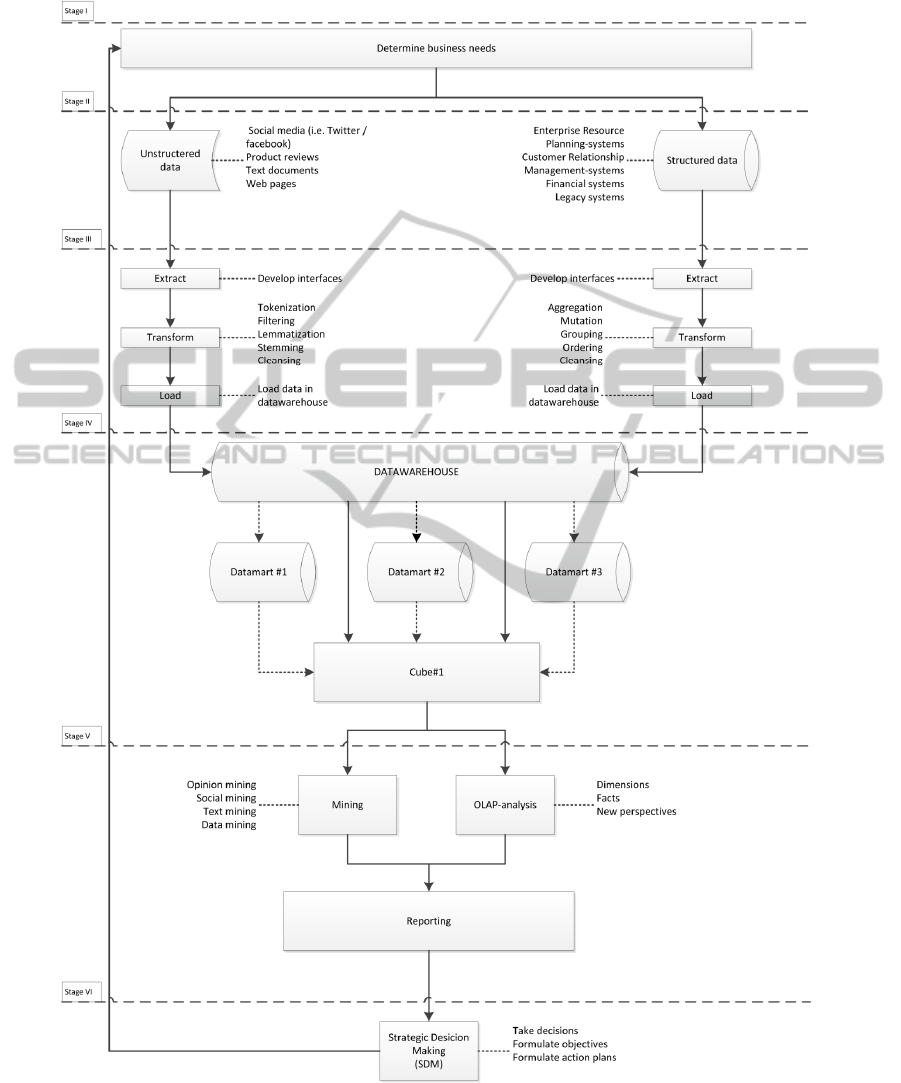

framework. Figure 1 depicts a comprehensive

overview of the framework. The difference with

existing frameworks and the LEBI-framework is the

addition of the processing and analyzing steps for

unstructured data.

Stage I – Business Needs: Determine business

needs required by management. In order to create

and determine the desire reports which server as

input for the SDM-process in stage VI.

Stage II – Data Sources: Based on business needs

defined in stage I, data sources are identified,

containing unstructured data and (possibly) data

sources containing structured data (i.e. ERP

systems).

Stage III – ETL Procedures: Extract: The data has

to be extracted from the data source. (APIs).

Transform: After data has been extracted, the data

has to be transformed and cleansed. Load:

After the

transformation activity is completed on both sides

one has to load the created data in the data

warehouse. Depending on the format in which the

new data is stored a choice has to be made on how

databases and tables are designed and stored (Inmon,

2002).

Stage IV – Data Warehouse Storage: Data

warehouse development:

The data warehouse has to

be developed in order to allow storage of both types

of data. Datamart development: if required, before

developing data cubes, datamarts can be designed

which combines data from various databases and or

tables for specific analysis purposes. Cube

development: The development of cubes comprises

selecting the right dimensions, measures and the

right data.

Stage V – Analysis: Mining: in case of unstructured

data after development of a particular cube, one

needs to analyze the data and turn it into useful

information by applying certain algorithms on the

data. Mining structured data is done to recognize

implicit patterns within explicit data making it

explicit. OLAP-analysis:

OLAP-analysis is mostly

used for structured data. With OLAP-analysis the

dimensions serve as perspectives and the data being

viewed originates from the fact table. Construct

report: A report is generated comprising a

combination of results from both OLAP and DM.

Stage VI – Decision Making: Management uses the

report as a tool for making strategic decisions.

5 DISCUSSION

This paper focused on the problem of organizations

not being able to utilize available data on the

internet. For most organizations it remains an

untapped source of valuable data which can be

turned into valuable information and knowledge

aiding the organization’s competitive advantage. In

most organizations, where Business Intelligence

systems are in place, the data sources being utilized

are all characterized as structured data sources and

internally available. These systems do not seem to

be capable of incorporating unstructured data

sources into their analyses. Departing from that

observation we propose a framework which can be

used as a guide or reference for combining

unstructured- and structured data and transforming it

into useful knowledge. However, the framework still

needs empirical and expert validation due to it being

only based on an extensive literature study. As

mentioned earlier in section 4, it is also possible to

use just one side (structured or unstructured) of the

framework as a guide or reference. However, the

stages are sequential and cannot be interchanged

with one another on both sides.

6 CONCLUSIONS

This paper was aimed at developing a framework

which combined disciplines of linguistic engineering

and already existing business intelligence

disciplines. This implied that the framework should

support the extraction, transformation, loading and

analyzing of unstructured data as well as structured

data. We found that before conducting any analysis

the unstructured data should undergo extreme

cleansing. We also found that the disciplines text

mining, social mining, and opinion mining were

most suited for analyzing unstructured data and most

complementary to existing business intelligence

processes.

Regarding structured data we found a plethora of

sub disciplines, methods and techniques for the

extraction, transformation, loading, and analysis, due

to it being a more grounded object of research. We

incorporated the most used processes of structured

data handling in our framework (KDD, CRISP-DM).

We found that one of the most useful and popular

data mining techniques is “association rule mining”.

Therefore we incorporated this mining technique in

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

462

our framework. For further analysis of structured

data we choose to incorporate OLAP analysis as it is

a widely accepted technique for viewing data

alongside different perspectives (dimensions).

We conclude that this framework can already be

useful as a structured guide or reference, but leaving

ample room for improvement and the

implementation of new or existing techniques.

REFERENCES

Adomavicius, G., & Tuzhilin, A. (2002). Using data

mining methods to build customer profiles. Computer,

34(2), 74-82.

Anderson, P. (2007). What is web 2.0. Ideas, technologies

and implications for education, 60, 1-10.

Chung, W., Chen, H., & Numumaker Jr, J. F. (2003).

Business Intelligence Explorer: A knowledge map

framework for discovering business intelligence on the

Web. Proceedings of the 36th Annual Hawaii

International Conference on System Sciences (pp. 1-

10). Honolulu, Hawaii, USA: IEEE.

Ding, X., Liu, B., & Yu, P. S. (2008). A holistic lexicon-

based approach to opinion mining. Proceedings of the

international conference on Web search and web data

mining (pp. 231-240). Stanford, California, United

States of America: ACM.

Erétéo, G., Buffa, M., Gandon, F., Grohan, P., Leitzelman,

M., & Sander, P. (2008). A state of the art on social

network analysis and its applications on a semantic

web. Proceedings of the 7th International Semantic

Web Conference (pp. 1-6). Karlsruhe, Germany:

Citeseer.

Feldman, R., & Dagan, I. (1995). Knowledge discovery in

textual databases (KDT). Proceedings of the First

International Conference on Knowledge Discovery

and Data Mining (pp. 112-117). Montreal, Quebec,

Canada: ACM.

Feldman, R., & Sanger, J. (2007). The text mining

handbook: advanced approaches in analyzing

unstructured data. New York: Cambridge University

Press.

Heer, J., & Boyd, D. (2005). Vizster: Visualizing online

social networks. Proceedings of the 2005 IEEE

Symposium on Information Visualization (pp. 1-5).

Minneapolis, Minnesota, USA: IEEE Computer

Society.

Hu, M., & Liu, B. (2004). Mining and summarizing

customer reviews. Proceedings of the tenth ACM

SIGKDD international conference on Knowledge

discovery and data mining (pp. 168-177). ACM.

Inmon, W. H. (2002). Building the Data Warehouse (3rd

ed.). New York: Wiley.

Kleinberg, J. (2008). The convergence of social and

technological network. Communications of the ACM,

51(11), 66-72.

Kotsiantis, S., & Kanellopoulos, D. (2006). Association

rules mining: A recent overview. GESTS International

Transactions on Computer Science and Engineering,

32(1), 71-82.

Liu, B. (2007). Opinion Mining. In B. Lui, & B. Liu (Ed.),

Web data mining: Exploring hyperlinks, contents, and

usage data (pp. 411-447). Springer.

Moody, D. L., & Kortink, M. A. (2000). From enterprise

models to dimensional models: a methodology for data

warehouse and data mart design. Proceedings of the

Second International Workshop on Design and

Management. 28, pp. 1-12. Stockholm, Sweden:

Citeseer.

och Dag, N., Regnell, B., Gervasi, V., & Brinkkemper, S.

(2005). A linguistic-engineering approach to large-

scale requirements management. Software, IEEE,

22(1), 32-39.

Pang, B., & Lee, L. (2008). Opinion mining and sentiment

analysis. Foundations and Trends in Information

Retrieval, 2(1), 1-135.

Parmenter, D. (2007). Key Performance Indicators.

Hoboken, New Jersey, USA: John Wiley & Sons.

Sen, A., & Sinha, A. P. (2005). A comparison of data

warehousing methodologies.

Communications of the

ACM, 48(3), 79-84.

Willen, C. (2002). Airborne opportunities. Intelligent

Enterprise, 5(2), 11-12.

Yang, W. S., & Dia, J. B. (2008). Discovering cohesive

subgroups from social networks for targeted

advertising. Expert Systems with Applications, 34(3),

2029-2038.

Yang, W. S., Dia, J. B., Cheng, H. C., & Lin, H. T. (2006).

Mining social networks for targeted advertising.

Proceedings of the 39th Annual Hawaii International

Conference on System Sciences (pp. 1-10). Honolulu,

Hawaii, United States of America: IEEE.

LINGUISTIC ENGINEERING AND ITS APPLICABILITY TO BUSINESS INTELLIGENCE - Towards an Integrated

Framework

463

APPENDIX

Figure 1: Linguistic Engineering for Business Intelligence framework: comprehensive overview.

KDIR 2011 - International Conference on Knowledge Discovery and Information Retrieval

464
