A MODEL-DRIVEN ARCHITECTURE APPROACH

FOR AGENT-BASED MODELING AND SIMULATION

Alfredo Garro, Francesco Parisi and Wilma Russo

Department of Electronics, Computer and Systems Science (DEIS)

University of Calabria, Via P. Bucci 41C, Rende (CS), 87036, Cosenza, Italy

Keywords: Agent-Based Modeling and Simulation, Model Driven Development, Model Driven Architecture.

Abstract: It is widely agreed that a widespread adoption of the Agent-Based Modeling and Simulation (ABMS)

approach by experts of typical ABMS domains demands for well-defined processes, modeling techniques

and tools able to fully support them in modeling and simulating complex systems. To this end, the paper

proposes a Model-Driven process which conforms to the OMG Model-Driven Architecture (MDA) and

enables the definition of Platform-Independent simulation Models from which Platform-Dependent

simulation Models and the related code can be automatically obtained with significantly reduced

programming and implementation efforts.

1 INTRODUCTION

Agent Based Modeling and Simulation (ABMS)

represents a new and powerful approach for

analyzing and modeling complex systems in a wide

range of application domains (e.g. financial,

economic, social, logistic, chemical, engineering)

(Garro, 2009). In fact, ABMS can fully represent a

system at different levels of complexity through the

use of autonomous, goal-driven and interacting

entities (agents) organized into societies which

exhibit emergent properties. The agent-based model

of a system can then be executed to simulate the

behavior of the complete system so that knowledge

of the behaviors of the entities (micro-level) produce

an understanding of the overall outcome at the

system-level (macro-level).

To date, exploiting the currently available

ABMS platforms (North, 2007), agent-based

simulation models can be obtained using two main

approaches: (i) direct implementation on a specific

ABMS platform: this approach inevitably suffers

from the limitations and particular features of the

chosen platform; (ii) manual adaption of a

conceptual system model, possibly obtained by

exploiting an AOSE (Agent-Oriented Software

Engineering) methodology (Henderson-Sellers,

2005), to a specific ABMS platform: this requires

additional adaptation efforts, the magnitude of which

increases depending on the gap between the

conceptual and implementation models of the

system. In fact, both these approaches require

significant implementation efforts and lead to agent-

based simulation models which are at a low-

abstraction level, strongly platform-dependent, and

therefore not easy to verify, modify and update

(Garro, 2010), (Iba, 2004), (Nebrijo Duarte, 2009).

On the other hand, although there is an increasing

interest in the definition of Platform-Independent

Simulation Models (AMP, 2011), (North, 2007)

which enable the exploitation of more high-level

simulation design abstractions and the automatic

code generation for different target simulation

environments, there is a lack of process able to guide

and support ABMS practitioners in the definition of

these simulation models starting from a conceptual,

and domain-expert-oriented modeling of the system

without taking into account simulation configuration

details.

To address these issues, this paper aims to

extend the benefits of an emerging software

engineering approach, the Model-Driven

Development (MDD) (Atkinson, 2003), to ABMS

practitioners by proposing a Model-Driven approach

for ABMS which conforms to the OMG Model-

Driven Architecture (MDA) (OMG, 2010) and then

allows to (automatically) produce Platform-

Dependent simulation Models starting from a

Garro A., Parisi F. and Russo W..

A MODEL-DRIVEN ARCHITECTURE APPROACH FOR AGENT-BASED MODELING AND SIMULATION.

DOI: 10.5220/0003648400740083

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

74-83

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Platform-Independent simulation Model obtained on

the basis of a preliminary Computation Independent

Model. Specifically, Platform-Independent

simulation Models are produced by exploiting the

AMF framework defined in the AMP (Agent-

Modeling Platform) Eclipse Project which currently

represents the only effort able to provide automatic

generation of Platform-Dependent simulation

Models and related code for several ABMS

platforms (AMP, 2011).

The remainder of this paper is organized as

follows: the proposed MDA-based approach for

ABMS is presented (Section 2) and then exemplified

(Section 3) with reference to a popular problem (the

Demographic Prisoner’s Dilemma) able to represent

several social and economic scenarios. Finally,

conclusions are drawn and future works delineated.

2 AN MDA-BASED APPROACH

FOR ABMS

The Model-Driven Development (MDD) approach

conceives system development in terms of a chain of

model transformations (Atkinson, 2003). The most

mature MDD proposal is the Model-Driven

Architecture (MDA) (OMG, 2010) launched by the

Object Management Group (OMG) which defines

three main abstraction levels of a system and the

resulting model transformations: (i) a Computation

Independent Model (CIM) which describes context,

requirements and organization of a system at a

conceptual level; (ii) a Platform-Independent Model

(PIM) which specifies architectural and behavioral

aspects of the system without referring to any

specific software platform; (iii) Platform-Specific

Models (PSMs) which describe the realization of the

system for specific software platforms and from

which code and other development artifacts can be

straightforwardly derived. Transformations between

models (M1 Layer) are enabled by both the

metamodels (M2 Layer) which they conform to and

the mappings among these metamodels which must

be defined as instances of the meta-metamodel (M3

Layer) represented by the Meta Object Facility

(MOF) (OMG, 2006) (see Figure 1). Thus, given a

source model and the mapping between its

metamodel and the target metamodel, the target

model can be generated.

The MDA proposal can be effectively exploited

in the ABMS domain to obtain platform-

independent agent-based models which are not only

easy to verify, modify and update but also require

significantly reduced programming and

implementation efforts. However, to map the basic

MDA concepts, which have been specifically

conceived for the Software Engineering domain, into

the ABMS counterparts, the following components

must be available: (i) a reference CIM metamodel

for the definition of CIMs which supports the agent-

based conceptual system modeling carried out

through both abstract and domain-expert oriented

concepts; (ii) a PIM metamodel for the definition of

Platform-Independent ABMS Models; (iii) a PSM

metamodel for each target ABMS simulation

platform; (iv) mappings among these metamodels so

to enable ABMS model transformations.

The main effort for the definition of Platform-

Independent ABMS Models, is currently represented

CI M

Me t a m o de l

PIM

Me t a m o de l

PSM'

Metam odel

PS M' '

Metam odel

CIM

Mo de l

PI M

Mo de l

PS M'

Mo de l

PSM''

Model

<<inst ance of>>

<<ins tance of>>

<<inst ance of>>

mapping tr ans format ion

<<based on>>

mapping

transformation

<<based on>>

Code

<<based on>>

Code

CONCEPT UAL

SYSTEM

MODELIN G

HIGH LEVEL

DESIG N

DETAILED

DESIG N

IMPLEMENTATIO N

MOF

Me ta m o de l

<<i

<<inst ance of>>

M3 La yer

M2 Layer

M1 Laye r

M0 Layer

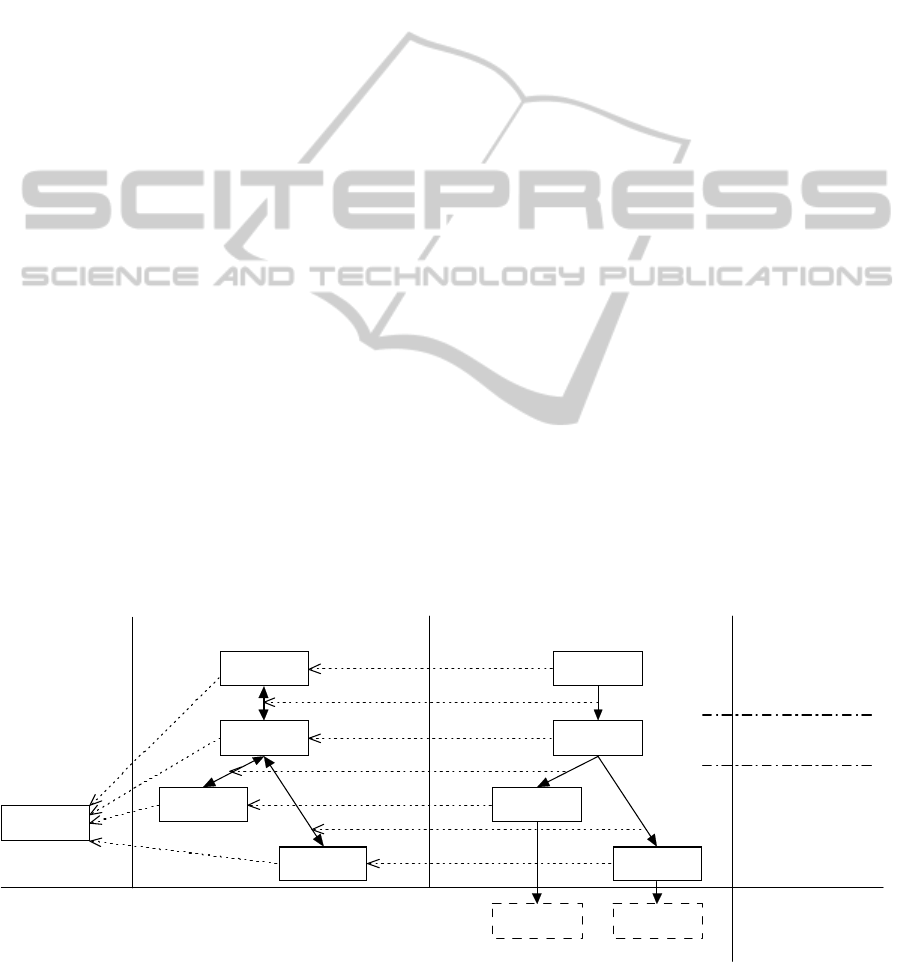

Figure 1: The MDA-based Process.

A MODEL-DRIVEN ARCHITECTURE APPROACH FOR AGENT-BASED MODELING AND SIMULATION

by AMF (AMP, 2011) which provides the automatic

generation of PSMs and the related code for three

popular ABMS platforms (AMP, 2011) (North,

2005) (Parker, 2001). Therefore, to enable the

definition of complete Model-Driven ABMS

processes which conform to the MDA-based process

depicted in Figure 1a, a CIM metamodel with the

above highlighted features (Section 2.1), an AMF-

based PIM metamodel (Section 2.2), and the

mapping between the two defined metamodels

(Section 2.3) are provided.

2.1 The CIM Metamodel

The CIM metamodel is defined by adopting a light,

task-based model of agents’ behaviors which

combines the strengths of several well-known task-

based agent models (Bernon, 2004). This metamodel

is quite general and plain, as required by the

abstraction level for which it has been conceived,

but powerful enough for representing, at a

conceptual level, a great variety of systems in typical

ABMS domains (e.g. financial, economic, social,

logistic, physical science, engineering).

In particular, the CIM metamodel reported in

Figure 2 is centered on the concept of Agent. An

Agent, which is situated in an Environment

constituted by Resources, is characterized by a

Behavior and a set of Properties. Agents can be

organized into Societies which in turn can be

organized in sub-societies. A Behavior is composed

by a set of Tasks organized according to

Composition Task Rules. Each Task, which can act

on a set of environment’s Resources, is structured as

an UML Activity Diagram which consists of a set of

linked Actions that can be either Control Flow

(pseudo) actions (i.e. start, end, split, join, decision,

merge, sequence) or Computation and Interaction

actions (i.e. outgoing or incoming signals) (OMG,

2009).

2.2 The PIM Metamodel

The PIM metamodel is derived from the AMF

framework (AMP, 2011) as AMF represents the

most significant effort towards the definition of

Platform-Independent simulation Models.

Specifically, these PIM models can be defined

through a hierarchical visual editor and represented

by XML documents (Schauerhuber, 2006) which are

exploited for the generation of PSMs and related

code which currently targets the Ascape (Parker,

2001), Escape (AMP, 2011) and Repast Simphony

simulation platforms (North, 2005).

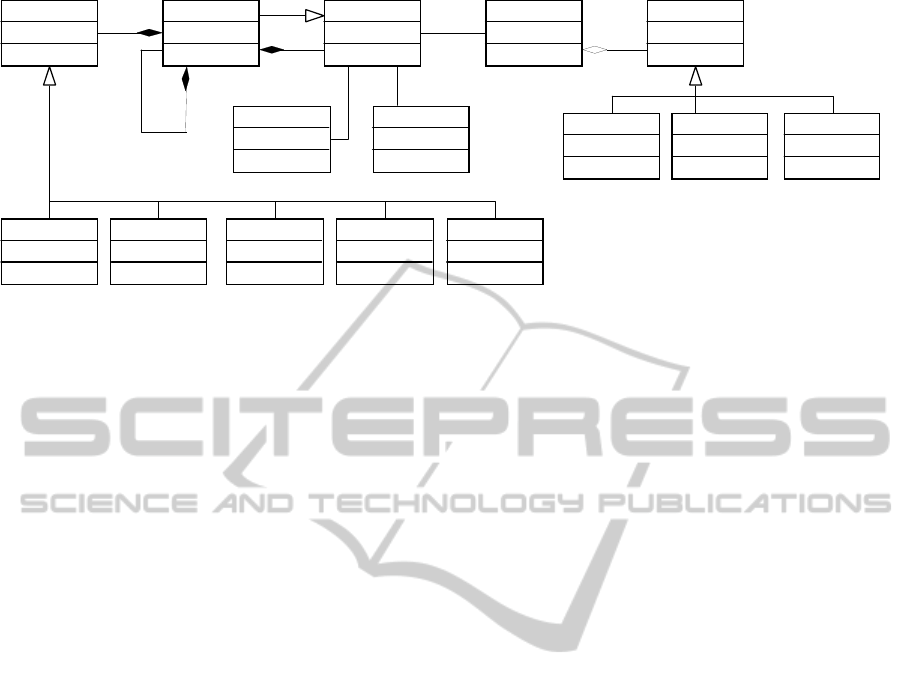

The derived AMF-based PIM metamodel (see

Figure 3) is centered on the concept of (Simulation)

Context (SContext) which represents an abstract

environment in which (Simulation) Agents (SAgents)

can act. An SAgent is provided with an internal state

consisting of a set of SAttributes, a visualization

style SStyle, and a group of AActs (AGroup) which

constitute its behavior. An AAct is characterized by

an Execution Setting which establishes when its

execution can start, its periodicity and its priority.

SContexts, which are themselves SAgents, can be

organized hierarchically and contain sub-SContexts.

SAgents in an SContext can be organized by using

SProjections which are structures designed to define

and enforce relationships among SAgents in the

SContext. In particular, a SNetwork projection

defines the relationships of both acquaintance and

influence between SAgents whereas SGrid, SSpace,

SGeography and SValue Layer projections define

either the physical space or logical structures in

which the agents can be situated.

Property

Agent

instances: int = 1

Behavior Task

0..*

1..*

Activity

Action

1..*

Control Flow

Computation

Interaction

is l inked to

0..*

Res ource

Society

0..*

Composition

Task Ru le

1..*

0..*

1..*

Environment

1..*

0..*

acts on

is s ituated

0..*

Figure 2: The CIM metamodel.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

Figure 3: The PIM metamodel.

2.3 From CIM to PIM

With reference to the proposed MDA-based process

(see Figure 1) a target model can be obtained by

transforming a source model on the basis of a

mapping between the respective metamodels which

is provided in terms of both mapping rules among

corresponding concepts and additional guidelines

which enable to obtain instances of concepts of the

target metamodel from instances of concepts of the

source metamodel (OMG, 2003). This section deals

with the mapping between the CIM and the AMF-

based PIM metamodels, proposed in Section 2.1 and

2.2 respectively, and, in particular, concerns with the

definition of a mapping (see Section 2.3.2) enabling

to transform the entities of a CIM model into PIM

entities by taking into account specific aspects of the

AMF-based PIM metamodel (Karow, 2006) (see

Section 2.3.1). The subsequent generation of several

PSMs (and code for the related ABMS platforms)

from the obtained PIM can be then easily carried out

by the visual and Eclipse-based modeling

environment provided by the AMF framework

(AMP, 2011).

2.3.1 Main Aspects of an AMF-based PIM

Some main aspects have to be considered in the

definition of an AMF-based PIM; in this section, the

focus is on those which are relevant since they affect

the simulation execution of the derived PSMs and

which, in particular, concern the proper definition of

the Execution Setting of an AAct, and the

exploitation of SAttributes to enable communication

among SAgents (see Figure 3).

An AMF-based PIM is defined according to a time-

stepped driven simulation approach (the simulation

time is incremented in fixed steps) (North, 2007), in

which, at each simulation step t, a set of AAct

instances which can be executed and their execution

order are defined. Specifically, in a step t: (i) for

each AAct, belonging to the AGroup of an SAgent

SA, the number of its instances depends on the

number of SA instances; (ii) the AAct Execution

Settings determine the AAct instances to be executed

and their execution order. In particular, the

Execution Setting of an AAct is characterized by the

tuple <startingTime, period, priority> where: (i)

startingTime is the first simulation step at which the

instances of the AAct are to be executed; (ii) for

each instance of the AAct, period is the number of

simulation steps which must elapse between two

subsequent executions; (iii) in a simulation step the

priority value affects the execution order of the

enabled AActs instances (an AAct is enabled at the

simulation step t if t is equal to the AAct

startingTime which is incremented by a multiple of

its period).

As in a simulation step t all enabled AAct

instances (regardless of whether they belong to a

specific SAgent instance) belong to the same set,

Enabled(t), from which the AActs are scheduled for

execution on the basis of their priority (see Figure

4), the AAct Execution Settings have to be properly

defined to guarantee right execution order between

AAct instances of not only the same SAgent

instance (intra-agent AAct interleaving) but also

different SAgent instances (inter-agent AAct

interleaving). Moreover, as for AActs of the

AInitialize and ARule types starting Time and period

are both fixed to 0 and 1 respectively whereas no

fixed settings are associated to ASchedule AActs, in

defining the AAct Execution Settings, the different

AAct types should be also considered (see Figure 3).

With respect to the communication among

SAgents, since the SAttributes of an SAgent can be

freely accessed by all the instances of the SAgent,

SContext SA ge nt AGroup AAct

Exe cu t ion Se t ti n g

AScheduleARuleAInizialize

SPro jection

0..*

1..*

SS t yle

0..*

SSpac eSNe tworkSGrid SGeography SValueLayer

0..*

SAttribute

A MODEL-DRIVEN ARCHITECTURE APPROACH FOR AGENT-BASED MODELING AND SIMULATION

and the SAttributes of an SContext by all the

instances of all the SAgents in the SContext,

communication among instances of the same SAgent

(intra-agent communication) can exploit SAgent

SAttributes whereas communication among

instances of different SAgents (inter-agent

communication) can be enabled by SContext

SAttributes.

Finally, the design of SAgent communications

should take into account how random choices among

the enabled AAct (see Figure 4) affect the values of

the SAttributes on which the communication is

based.

2.3.2 Mapping between the CIM and PIM

Metamodels

CIM to PIM model transformations require the

definition of mapping rules among concepts of the

source and target metamodels along with additional

guidelines for managing transformations which, due

to the different abstraction level between the

concepts of the reference metamodels, cannot be

completely automated (Karow, 2006).

The transformation of a CIM into a PIM starts by

transforming each Society into a Simulation Context

(SContext) and any enclosed Society into a

(sub)SContext of the corresponding enclosing

Society. SAttributes of each SContext are, then,

originated by the Properties of the corresponding

Society. The next step consists in transforming each

Agent belonging to a Society into an SAgent of the

corresponding SContext, generating the SAgent

SAttributes on the basis of the Agent Properties, and

introducing the SAgent AGroup which groups the

AActs constituting its behavior.

On the basis of the set of Resources, which

compose the Environment in which Agents are

situated, a set of SProjections, whose types

(SNetwork, SGrid, SSpace, SGeography,

SValueLayer) depend on the characteristics of the

mapped Resources, are then introduced in the

corresponding SContext.

At this point, AActs associated to each SAgent

are to be defined on the basis of the behavior of the

corresponding Agent which is composed by a set of

Tasks organized according to Composition Task

Rules. This transformation is not direct as requires to

take into account the specific aspects of both an

AMF-based PIM (see Section 2.3.1) and the

simulation scenarios to be represented. In particular,

due to different communication mechanisms

provided by CIM and PIM metamodels, the former

based on incoming and outgoing signals (see Section

2.1) and the latter on shared SAttributes (see Section

2.3.1), Tasks which involve Actions of the

interaction type can be grouped into a single AAct

whose Execution Setting is defined on the basis of

the Composition Task Rules associate to the grouped

Tasks (see Section 3.2 for an example). Moreover,

both AAct Execution Settings and related AAct

types (AInizialize, ARule, ASchedule) must be set not

only to ensure compliance with the Composition

Rules of the corresponding Tasks but also to

guarantee intra and inter-agent AAct interleavings

(see Section 2.3.1) which adhere to the simulation

scenarios under consideration (see Section 3.2).

Finally, Actions which constituted the Tasks mapped

into an AAct have to be properly realized by

exploiting the wide set of predefined functions

provide by AMF (AMP, 2011).

Although the transformation of a CIM to PIM

cannot be completely carried out automatically as it

requires to deal with the above discussed issues, a

QVT/R-based representation (OMG, 2010)

(Taentzer, 2005) of the discussed mapping has been

also obtained to enable an automatic generation of a

basic PIM structure to be manually refined. As an

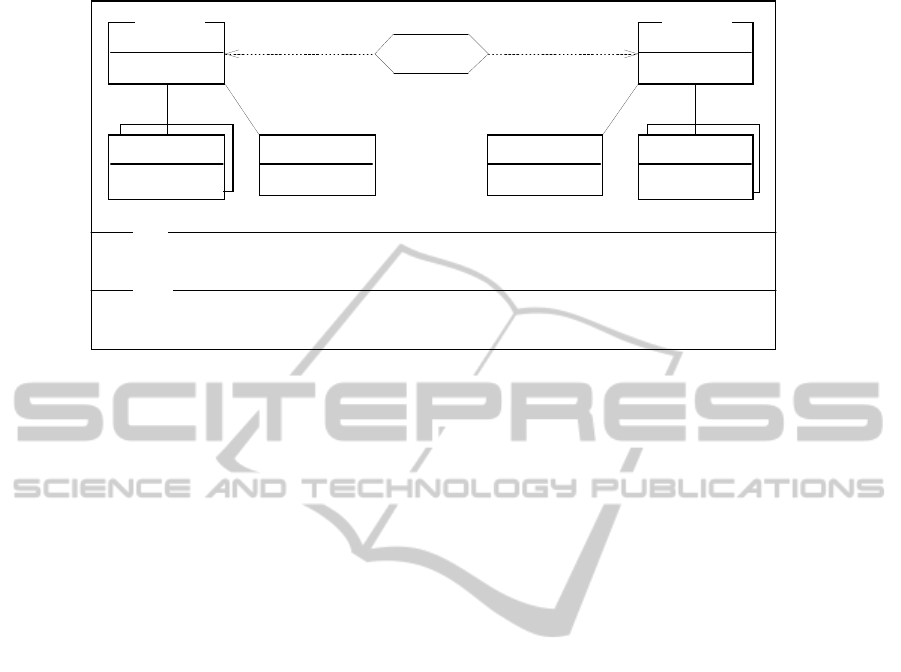

example, in Figure 5 the rule for transforming an

Agent into an SAgent is reported by using the

QVT/R graphical notation (OMG, 2008).

ActScheduling (t) {

AAI = Enabled(t); /* Enabled(t) returns the set of enabled AAct instances at t */

while (not empty AAI) {

MPE = maxPriorityEnabled(AAI) ; /* maxPriorityEnabled(AAI) returns a set

consisting of the AAct instances with maximum priority in AAI */

AAI = AAI - MPE;

while (not empty MPE) {

aa = randomGet(MPE); /* randomGet(MPE) returns an AAct instance randomly

chosen in (and removed from) MPE */

execute (aa);

}

Figure 4: Execution of an AMF-based simulation step.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

a: A gent

instances = x

<<domain>>

sa: SAgent

sat: SAttribute

at na me = pn

atvalue = av

<<domain>>

cim :CIMM pim :PIMM

when

where

CIMtoPIM(cim, pim)

PropertyToSAttribute(p, sat)

BehaviorToAGroup(b, ag)

AgentToSAgent

b: Behavior ag: AGroupp: Property

pname =pn

pvalue = pv

Figure 5: A Mapping Rule expressed by using the QVT/R graphical notation.

3 EXPLOITING THE PROPOSED

MDA-BASED PROCESS

In this section, the MDA-based process for ABMS

proposed in the previous sections is exemplified

with reference to the well-known Demographic

Prisoner’s Dilemma which was introduced by

Epstein in 1998 (Dorofeenko, 2002) and is able to

represent several social and economic complex

scenarios in which interesting issues regard the

identification of starting configurations and

conditions that allow initial populations to reach

stable configurations (in terms of both density and

geographic distribution). Specifically, in these

scenarios k players are spatially distributed over an

n-dimensional toroidal grid. Each player is able to

move to empty cells in its von Neumann

neighborhood of range 1 (feasible cells), is

characterized by a fixed pure strategy (c for

cooperate or d for defect) and is endowed with a

level of wealth w which will be decremented or

incremented depending of the payoff earned by the

player in each round of the Prisoner’s Dilemma

game played during its life against its neighbors

(Dorofeenko, 2002). The player dies when its wealth

level w becomes negative, whereas, when w exceeds

a threshold level w

, an offspring can be produced

with wealth level w

deducted from the parent and

plays using the same strategy as the parent unless a

mutation (with a given rate m) occurs. A player also

dies if its age exceeds a value age

max

which was

randomly fixed when the player was created.

3.1 The CIM Model

For the Demographic Prisoner’s Dilemma, the CIM

model envisages a DPDGame Society of k Player

Agents which are situated in an Environment which

includes a Grid Resource constituted by an n-

dimensional toroidal grid. Main Properties of the

DPDGame Society are Prisoner’s Dilemma payoffs,

initial and threshold wealth levels (w

, w

), and

mutation rate (m), and those of the Player Agent are

its wealth level w, age, and strategy. The Behavior

of the Player Agent is obtained by composing the set

of Tasks reported in Table 1 according to the

Composition Task Rules shown in Table 2;

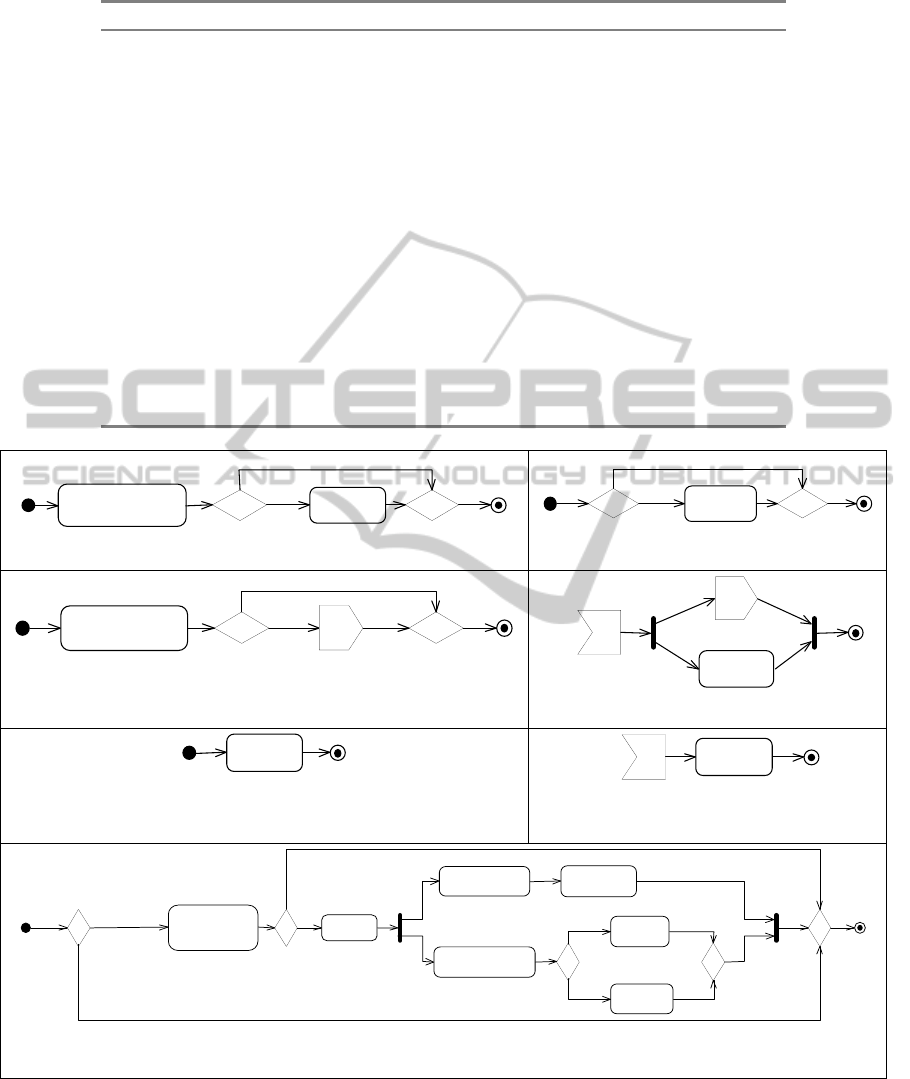

corresponding UML Activity diagrams are reported

in Figure 6.

3.2 The PIM Model

In this section, the transformation from the defined

CIM to a PIM is detailed with reference to a

simulation scenario where all players are required to

play exactly one round in a simulation step.

The transformation from the CIM to a PIM is

enabled by the mapping between the CIM and PIM

metamodels defined in Section 2.3.2 which

originate: the DPDGame SContex from the

DPDGame Society, the Player SAgent from the

Player Agent, the GameSpace SProjection from the

Grid Resource, the Acts (with their related Execution

Settings) associated to the Player SAgent from the

Tasks and associated Composition Task Rules

composing the Behavior of the Player.

In Table 3 the Acts derived for the Player

SAgent along with the associated Tasks (see Table 1

and 2) and Execution Settings are reported. As the

A MODEL-DRIVEN ARCHITECTURE APPROACH FOR AGENT-BASED MODELING AND SIMULATION

Table 1: Identified Tasks.

Task Id Task Name Description

T1 Walk The player can move to a feasible cell of the Grid.

T2 Challenge

f the von Neumann neighborhood (of range 1) of the player is

not empty the player communicates its strategy to its randomly

selected opponent player.

T3 Update Age The player age is incremented by 1.

T4 Fission

f the player’s wealth level w is greater than the threshold w

new child player can be created in a feasible cell of its parent an

endowed with w

and the same strategy of the parent (unless a

mutation with rate m occurs). The wealth level of the parent

player is decremented by w

T5 Die

f the wealth level of the player is negative or its age is greate

than age

max

the player is removed from the Grid.

T6 Accept Dare When the strategy of an opponent player is provided the player

strategy is communicated to the opponent and the earned payoff is

added to the player’s wealth level.

T7 Update Wealth

Level

f the strategy of an opponent player is provided the earned payof

is added to the player’s wealth level

Selec t an a vaila ble c ell in the

von Neumann neig hborhood

of ran ge 1

Move to the

select ed cell

[else ]

[available

cell found]

Die

[else]

[ we a lt h <0 | |

age > max age]

(T1) Walk (T5) Die

Select an opponent p layer

in th von Neumann

neighborhood of range 1

[else]

[opponent

player found]

Se nd my Stra tegy

to the opponent player

Receive the Strategy

of an opponent player

Update

Wealth Level

Sen d my Strat egy

to the op ponent player

(T2) Challenge (T6) Accept Dare

Incre ment a ge

by one

Rece ive th e Strat egy

of an opponent player

Update

Wealth Level

(T3) Update Age (T7) Update Wealth Level

Se lect a n ava ilable ce ll in

the von Neumann

neighborhood of range 1

Create a new

Player Agent

Set the wealth level of the

new agen t to t h e initia l

wealth level w0

Decrements my wealth

leve l of w0

Compute a random value v

belonging to the interval [0,1]

Set the strategy

of the crea t ed

ag en t to mine

Mutate strategy of

the crea ted agent

[else ]

[ wealth level greater than

repruduction threshold]

[avail able

cell found]

[e ls e ]

[v<=mutation rate]

[else]

(T4) Fission

Figure 6: The UML activity diagrams of the Player Agent tasks.

AMF communication mechanism among instances

of an SAgent is based on access to the SAttributes of

the SAgent (see Section 2.3.1), a single AAct (Play

Neighbor) is derived from tasks T2, T6 and T7

which carried out this kind of communication.

Execution Settings of the AActs in Table 3 are

characterized by both startingTime and period equal

to one to guarantee that all the Player SAgents

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

Table 2: Composition Task Rules.

Task Id Set of Enabling Tasks

T1 -

T2 {T1}

T3 {T1}

T4 {T7}

T5 {T3, T4}

T6 {T2}

T7 {T6}

Table 3: Group of Acts (AGroup) for the Player Agent.

AAct AAct Execution Setting Tasks

Random Walk <1,1, a> T1

Play Neighbor <1,1, b>, with b<a T2, T6, T7

Update Age <1,1, c>, with c<a T3

Fission <1,1, d>, with d<c & d<b T4

Die <1,1, e>, with e<d T5

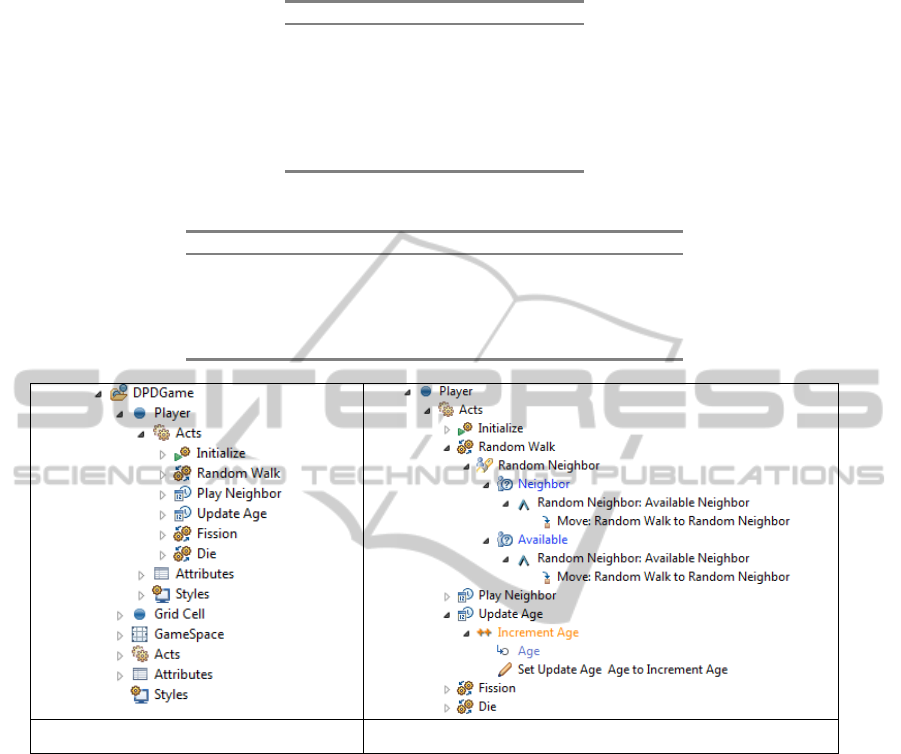

(a) DPDGame model in AMF (b) Random Walk and Update Age AActs

Figure 7: The AMF-based PIM model of the DPDGame.

perform all their AActs in each simulation step, and

priorities are set on the basis of the Compositions

Task Rules (see Table 2).

On the basis of the type of AActs in Table 3, which

can be either ARule or ASchedule (see Section

2.3.1), several PIM definitions can be obtained. In

Figure 7.a an example of a PIM model

representation, obtained by exploiting the visual and

Eclipse-based modelling environment provided by

AMF, is reported in which Random Walk, Fission

and Die AActs are set to the ARule type, whereas

Play Neighbor and Update Age AActs are set to the

ASchedule type. Moreover, an AAct of the

AInizialize type (Inizialize) has been introduced for

setting up the SAttributes of the DPDGame

SContext and the Player SAgent. In Figure 7.b the

definition of the Random Walk and Update Age

AActs is reported where the actions associated to

each AAct are defined by exploiting the wide set of

functions provided by AMF.

Starting from this definition of the PIM model,

AMF is able to automatically generate the PSM

models and the related code for the ABMS platforms

which are currently supported: Repast Simphon

(North, 2005), Ascape (Parker, 2001) and Escape

(AMP, 2011). The simulation of the system can then

be executed in a target simulation environment

andsimulation results can be thoroughly analyzed by

exploiting several analysis tools (as Matlab, R,

VisAd, iReport, Jung) which can be directly invoked

from the environment.

4 CONCLUSIONS

It is widely agreed that significant benefits can be

A MODEL-DRIVEN ARCHITECTURE APPROACH FOR AGENT-BASED MODELING AND SIMULATION

obtained by exploiting the Agent-Based Modeling

and Simulation (ABMS) approach in several

application domains (e.g. financial, economic,

social, logistic, physical science, chemical,

engineering). However, to promote widespread

adoption of the ABMS, well-defined processes,

modeling techniques, and tools which are able to

fully support domain-experts (with often limited

programming expertise) are currently lacking.

In this context, the paper has aimed to extend the

benefits of the emerging software engineering

Model-Driven approach in the ABMS context by

proposing an OMG MDA-based process which

enables ABMS practitioners to obtain platform-

independent agent-based models which are easy to

verify (as they conform to meta-models), modify

and update (as they are mainly constituted by visual

diagrams based on the UML notation) with

significantly reduced programming and

implementation efforts (as the simulation code is

automatically generated from the defined models).

Although there are interesting proposals which

exploit Model-Driven approaches for developing

agent-based conceptual and simulation models, the

proposal differs from all others as it fully complies

with MDA so providing an effective platform

independent approach for ABMS.

Starting from the visual modeling environment

offered by the AMP Eclipse Project, which has

provided the reference framework (AMF) for the

definition of Platform-Independent and Platform-

Specific simulation Models as well as code

generation, an integrated ABMS environment can be

obtained for supporting both the conceptual

modeling of the system (in terms of Computation

Independent Models) and model transformations

enabled by the defined meta-models and related

mapping. Ongoing research efforts are underway

devoted to the definition and extensive

experimentation of a full-fledged ABMS

methodology which, by exploiting the MDA-based

approach, is able to seamlessly guide domain experts

from the analysis of a complex system to its agent-

based modeling and simulation.

REFERENCES

The AMP project, http://www.eclipse.org/amp/.

Atkinson, C., Kühne, T., 2003. Model-driven

development: A metamodeling foundation. IEEE

Software, 20(5):36-41.

Bernon, C., Cossentino, M., Gleizes, M. P., Turci, and P.,

Zambonelli, F., 2004. A Study of some Multi-agent

Meta-Models. Agent Oriented Software Engineering

V, revised selected papers. LNCS, Volume 3382,

Springer.

Dorofeenko, V., Shorish, J., 2002. Dynamical Modeling of

the Demographic Prisoner's Di-lemma. Computing in

Economics and Finance, Society for Computational

Economics.

Garro, A., Russo, W., 2009. Exploiting the easyABMS

methodology in the logistics domain. Proceedings of

the Int’l Workshop on Multi-Agent Systems and

Simulation (MAS&S’09) as part of the Multi-Agent

Logics, Languages, and Organisations Federated

Workshops (MALLOW 2009), Turin, Italy, September

7-11, 2009.

A. Garro, W. Russo. easyABMS: a domain-expert

oriented methodology for Agent Based Modeling and

Simulation. Simulation Modelling Practice and

Theory, Vol. 18, pp. 1453-1467, 2010, Elsevier B.V.,

Amsterdam, The Netherlands.

Hahn, C., Madrigal-Mora, C., and Fischer, K., 2007.

Interoperability through a Platform-Independent

Model for Agents. Enterprise Interoperability II, New

Challenges and Approaches. Springer London.

Henderson-Sellers B., Giorgini P. (editors), 2005. Agent-

oriented methodologies. Idea Group Publishing,

Hershey, PA.

Iba, T., Matsuzawa, Y. and Aoyama, N., 2004. From

Conceptual Models to Simulation Models: Model

Driven Development of Agent-Based Simulations. In

Proc. of the 9th Workshop on Economics and

Heterogeneous Interacting Agents. Kyoto, Japan.

Karow, M., Gehlert, A., 2006. On the Transition from

Computation Independent to Platform Independent

Models. In Proc. of the 12th Americas Conference on

Information Systems, Acapulco, Mexico, August 2006.

Nebrijo Duarte, J.,de Lara, J., 2009. ODiM: A Model-

Driven Approach To Agent-Based Simulation. In

proc. of the 23

European Conference on Modelling

and Simulation, Madrid, Spain, June 9th - 12th, 2009.

North, M. J., Howe, T.R., Collier, N.T. and Vos, J.R.,

2005. Repast Simphony Runtime System. In Proc. of

the Agent 2005 Conference on Generative Social

Processes, Models, and Mechanisms, Chicago, IL.

North, M. J., Macal, C. M., 2007. Managing Business

Complexity: Discovering Strategic Solutions with

Agent-Based Modeling and Simulation. Oxford

University Press.

Object Management Group (OMG). Model Driven

Architecture (MDA) Guide Version 1.0.1, 2003.

Available at http://www.omg.org/cgi-bin/doc?omg/03-

06-01.

Object Management Group (OMG). Meta Object Facility

(MOF) Specifications (version 2.0, 2006). Available at

http://www.omg.org/spec/MOF/2.0/.

Object Management Group (OMG). MOF

Query/Views/Transformations (QVT) Specifications

(version 1.0, 2008). Available at

http://www.omg.org/spec/QVT/1.0/.

Object Management Group (OMG). Unified Modeling

Language (UML) Specifications (version 2.2, 2009).

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

Available at http://www.omg.org/spec/UML/2.2/.

Object Management Group (OMG). Model Driven

Architecture (MDA) Specifications, 2010. Available at

http://www.omg.org/mda/specs.htm.

Parker, M. T., 2001. What is Ascape and Why Should You

Care?. J. Artificial Societies and Social Simulation

4(1).

Schauerhuber, A., Wimmer, M., and Kapsammer, E.,

2006. Bridging existing Web modeling languages to

model-driven engineering: a metamodel for WebML.

In proc. of the sixth international conference on Web

engineering (ICWE’06). Palo Alto, CA, ACM press.

Taentzer, G., Ehrig, K., Guerra, E., Lara (de), J., Lengyel,

L., Levendovszky, T., Prange, U., Varró, D., and

Varró-Gyapay, S., 2005. Model Transformation by

Graph Transformation: A Comparative Study. In Proc.

of the ACM/IEEE 8th International Conference on

Model Driven Engineering Languages and Systems,

Montego Bay, Jamaica, 2005.

A MODEL-DRIVEN ARCHITECTURE APPROACH FOR AGENT-BASED MODELING AND SIMULATION
