AN EVENT-DRIVEN CARTOGRAPHIC APPROACH

TO MODELLING SOFTWARE ENGINEERING KNOWLEDGE

Ernest Cachia and Mark Micallef

Department of Computer Science, Faculty of ICT, University of Malta, Msida, Malta

Keywords:

Knowledge maps, Knowledge mobility risk, Knowledge transfer risk, Software engineering, Knowledge

metrics.

Abstract:

This paper proposes an event-based cartographic approach to managing software engineering knowledge that

goes beyond the typical yellow-pages paradigm. After proposing a way of modelling knowledge assets, per-

sons in an organisation and various relationships between these elements as a graph, the authors go on to

demonstrate how this approach can be useful. Since the model is represented by a mathematical structure,

established techniques from graph theory can be used for interesting analysis such as detecting knowledge

risks, modelling staff turnover scenarios and identifying people who have similar knowledge to each other.

The proposed approach uses an event-driven paradigm which infers the strength of knowledge relationships

based on individuals’ participation in each knowledge asset’s life cycle.

1 INTRODUCTION

Software engineering is a knowledge-intensive activ-

ity. For software organisations, the main assets are not

manufacturing plants, buildings, and machines, but

the knowledge held by the employees (Bjørnson and

Dingsøyr, 2008). Software engineers are not merely

vessels of technical knowledge but are fully ﬂedged

knowledge workers. They are expected to form a deep

enough understanding of whatever domain they hap-

pen to be working in such that they are able to ap-

ply their technical knowledge to build solutions which

solve problems in that domain. In an industry with

high staff turnover rates, this can be worrying. Or-

ganisations need to ensure that as employees ﬂow in

and out of the their employ, the intellectual capital

they create and work with is somehow retained and

leveraged to increase their competitive edge. Stud-

ies (Linberg, 1999)(Pressman, 1998) have shown that

projects do not tend to fail because of developers’ lack

of technical knowledge, but rather for reasons such as

requirements failures, communication failures and es-

timation failures. These failures can be traced back

to inadequate knowledge management practices as a

root cause.

Earl’s classiﬁcation of knowledge management

schools (Earl, 2001) is widely cited in the literature

and classiﬁes knowledge management schools into

three broad categories: technocratic, behavioural and

economic. The work presented here involves a school

of thought within the technocratic category: the car-

tographic school. The driving principle here is that

of connectivity. That is to say, maximising the use

of knowledge within the organisation by focusing on

leading knowledge seekers directly to the knowledge

providers who can satisfy their needs. This is usu-

ally accomplished using a yellow-pages style direc-

tory and has been shown to be useful for allocat-

ing resources, searching for competence, identifying

project opportunities and upgrading skills (Dingsøyr

et al., 2005) (Bjørnson and Dingsøyr, 2008).

In this paper, it is argued that the cartographic

school lends itself to the dynamic nature of soft-

ware engineering organisations. A more elaborate

cartographic approach is proposed which will not

only lead knowledge seekers directly to knowledge

providers but also provide organisations with the abil-

ity to model ‘how much’ each person knows a particu-

lar knowledge asset therefore enabling them to detect

knowledge mobility risks, knowledge transfer risks,

model staff turnover scenarios and also analyse var-

ious structural characteristics of their organisational

knowledge (see section 4).

In the following sections an overview of the mod-

elling approach is given, followed by an exploration

of the analysis capabilities that the approach provides.

Cachia E. and Micallef M..

AN EVENT-DRIVEN CARTOGRAPHIC APPROACH TO MODELLING SOFTWARE ENGINEERING KNOWLEDGE.

DOI: 10.5220/0003630400180027

In Proceedings of the International Conference on Knowledge Management and Information Sharing (KMIS-2011), pages 18-27

ISBN: 978-989-8425-81-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

1.1 A Note on Scope

It is worth noting that the work presented here has

been formalised into a formal language with appro-

priate syntax and semantics (Micallef, 2011). How-

ever, it is beyond the scope of this paper to give a de-

tailed mathematical analysis of the technique. Rather,

the aim is to give a practical overview of the tech-

nique and its uses for critique by the knowledge man-

agement community. Also, although the work here

is framed within the context of software engineering,

most of the concepts presented can be applied to any

knowledge-intensive industry. The main reason for

this work being linked to software engineering is to

provide a cohesive link with other research that the

authors are carrying out.

2 PROPOSED APPROACH

The proposed approach seeks to allow organisations

to build a model of their organisational knowledge

and represent it as a graph. In this graph, each vertex

represents either a knowledge asset or a person. It is

important to note that a vertex representing a knowl-

edge asset does not necessarily imply that the knowl-

edge asset is known by the organisation, but rather

that it is recognised as being of value to it. Knowl-

edge assets are discussed in more detail in section 2.1

whilst persons and teams are the subject of section

2.2. Edges in the graph represent relationships be-

tween two knowledge assets or relationships between

a person and a knowledge asset. These are discussed

in section 2.3.

This work also proposes the modelling of events.

Events represent various actions by persons with re-

spect to knowledge assets and are used to infer who

knows what within the organisation. The main idea

here is that the more a person participates in the life

cycle of a particular asset, the more familiar they are

likely to be with it. A mechanism for modelling the

deterioration of knowledge is also presented. Events

are discussed in detail in section 3.

2.1 Knowledge Assets

Knowledge assets represent knowledge which may or

may not be known by persons in the organisation but

has been deemed to be of value to it. Vertices which

represent knowledge assets have a number of proper-

ties associated with them. These are as follows:

Name - a unique identiﬁer for the knowledge asset.

Category - categorises the knowledge asset as being

technical, business or general. These categories

are an adaptation of the ones proposed by (Ramal

et al., 2002) who proposed that software engineers

know three categories of knowledge: computer

science, business and general. The authors felt

that the renaming of the “Computer Science” cate-

gory to “Technical” was required because the term

“Technical” knowledge provides an umbrella term

for knowledge which may have otherwise been

confusing given that computer science refers to a

speciﬁc subset of topics in the academic world.

Visibility - refers to the classiﬁcation of the knowl-

edge asset as tacit or explicit. This classiﬁcation

of knowledge is widely cited (Alavi and Leidner,

2001)(Duffy, 1999)(Tiwana, 2000) and divides

knowledge based on whether it resides purely

within its ‘knower’ (tacit knowledge) or whether

it has been explicitly articulated, codiﬁed or oth-

erwise communicated (explicit knowledge). The

motivation for including this classiﬁcation in the

model is that a knowledge asset’s visibility has an

impact on the retainability and transferability of

particular knowledge assets. Szulanski points out

that tacit, context-speciﬁc and ambiguous knowl-

edge is likely the most difﬁcult to transfer within

the ﬁrm (Szulanski, 1996). If an organisation is

able to identify tacit knowledge in its knowledge

map, it would be able to identify potential prob-

lem areas that would occur if for example key

people who know critical tacit knowledge were to

leave the organisation.

Social Classiﬁcation - classiﬁes a knowledge asset

as being individual or social and was proposed by

(Nonaka, 1994). Individual knowledge is knowl-

edge that is created and homed within an indi-

vidual. On the other hand, group knowledge is

created and inherent in the collective actions of

a group, with no individual member possessing

all the knowledge. This property is included in

the model for two reasons. Firstly it provides

a means for statistical analysis of organisational

knowledge from the social point of view and sec-

ondly, the balance between individual and social

knowledge has an implication on the ease with

which that knowledge is shared amongst speciﬁc

individuals.

Operational Classiﬁcation - classiﬁes a knowledge

asset as declarative (know-about), procedural

(know-how), causal (know-why), conditional

(know-if) or relational (know-with) (Nolan Nor-

ton Institute, 1998)(Zack, 1998). This property is

included because if provides an interesting opera-

tional perspective on the different types of knowl-

edge that an organisation deals with. Making this

property visible may lead to a situation whereby

AN EVENT-DRIVEN CARTOGRAPHIC APPROACH TO MODELLING SOFTWARE ENGINEERING KNOWLEDGE

management realise that there is a potentially

harmful imbalance in the types of knowledge that

its employees know (e.g. too much know-how as

opposed to know-about).

It is worth noting that all properties discussed here

except for the name property can be set to unkown if

the organisation does not feel it is beneﬁcial to model

a particular property about its knowledge assets.

2.2 Persons and Teams

Person vertices represent individuals within the or-

ganisation and exist mainly for the reason of mod-

elling knowledge relationships between individuals

and knowledge assets (see section 2.3). Consequently,

a person has only two properties. The ﬁrst is a name

which acts as a unique identiﬁer for the person. The

second is a list of teams which the person is a mem-

ber of. Teams are sets of persons clustered together

for some scope determined by the organisation. From

the knowledge map point of view, teams are impor-

tant because they enable reasoning about groups of

people.

2.3 Relationships

Relationships constitute the main feature of the pro-

posed approach that provides an advantage over tra-

ditional yellow-pages style cartographic approaches.

They serve two main purposes. Firstly, they pro-

vide visibility into the relationship between individ-

ual knowledge assets. This allows organisations to

reason about structural properties of their knowledge

landscape and also carry out more efﬁcient knowledge

transfer exercises, skills analysis, interview design,

and so on. Secondly, when used to link a person to

a knowledge asset, they provide an indication of who

knows what and ‘how much’ they know it. Four types

relationships are deﬁned:

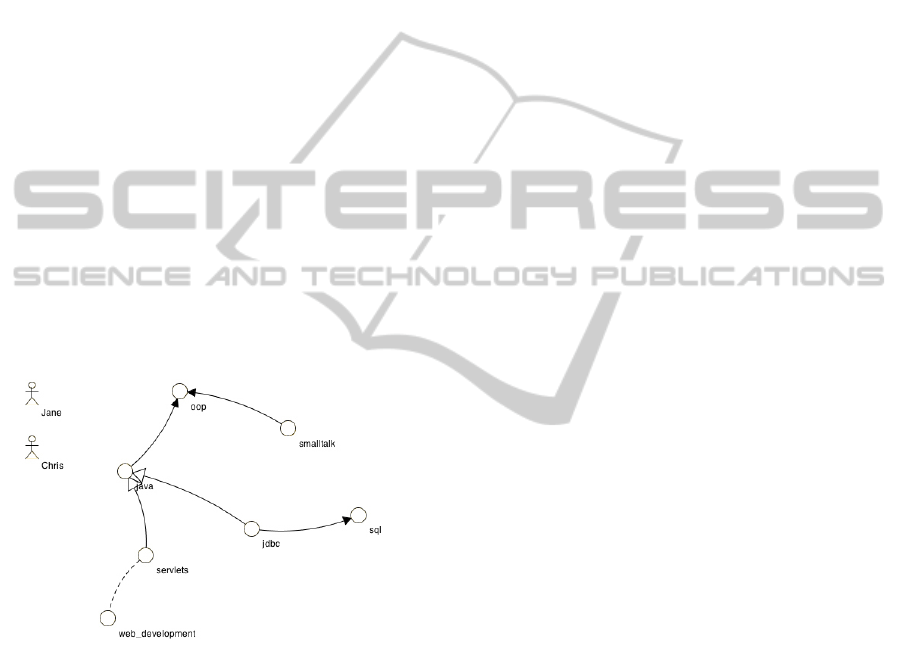

Related Relationships - A related relationship is a

non-directed edge between two knowledge assets

and signiﬁes that the two knowledge assets are re-

lated in some way. This relationship is the weak-

est form of relationship between two knowledge

assets in the proposed language.

Dependency Relationships - A dependency is a di-

rected edge between two knowledge assets and

signiﬁes that one knowledge asset depends on an-

other. That is to say, in a scenario where a knowl-

edge asset k

depends on another knowledge as-

set k

, if a person p is to utilise or learn k

, she

must ﬁrst know k

. A typical example of a de-

pendency relationship would be “Java depends on

OOP” since it is unlikely that someone can be an

effective Java programmer unless they have a ﬁrm

grasp of the object oriented paradigm.

Composition Relationships - A composition is a di-

rected edge between two knowledge assets and

signiﬁes that one knowledge asset forms part of

another. That is to say that the latter is partially

composed of the former. A typical example would

be “JDBC is part of Java”. Modelling this type of

relationship allows organisations to structure their

model in a more readable way but also allows for

reasoning such as “if a knowledge asset k

is com-

posed of two knowledge assets k

and k

, if a per-

son p knows k

then she also knows k

albeit to a

lesser degree.

Knowledge Relationships - A knowledge edge is a

directed edge that connects a person vertex to

a knowledge asset vertex so as to signify that

the person ‘knows’ the knowledge asset to some

extent. This is type of relationship is typically

not directly speciﬁed but is automatically inferred

through the use of events (see section 3). Knowl-

edge relationships also exhibit a magnitude prop-

erty which is an indication of ‘how much’ the per-

son knows the knowledge asset.

At this point, it is worth illustrating the work pre-

sented so far in the context of an example.

Example 1 . Consider a particular scenario whereby

an organisation employs a single team consisting of

two people (Chris and Jane). The organisation has

identiﬁed seven knowledge assets of value: [1] oop,

[2] java (depends on oop), [3] sql, [4] web develop-

ment, [5] smalltalk (depends on oop), [6] jdbc (part

of java) (depends on sql), and ﬁnally [7] servlets (part

of java) (related to web development).

As mentioned in section 1.1, the authors have devel-

oped a formal language for building such models and

have also created an english-like domain speciﬁc lan-

guage which provides syntactic sugaring for the for-

mal language (Micallef, 2011). It is beyond the scope

of this paper to present the language but the scenario

presented in example 1 would be represented as fol-

lows:

team developers;

person Chris member of developers;

person Jane member of developers;

knowledge asset oop

category technical;

knowledge asset java

category technical

sociality social

depends on oop;

KMIS 2011 - International Conference on Knowledge Management and Information Sharing

knowledge asset sql

sociality individual

operationality procedural;

knowledge asset web_development ;

knowledge asset smalltalk

depends on oop;

knowledge asset jdbc

depends on sql

part of java;

knowledge asset servlets

part of java

related to web_development;

For the sake of brevity, example 1 does not completely

specify all the knowledge assets’ properties but gives

examples of each property being used in at least one

knowledge asset. Figure 1 provides a graphical repre-

sentation of the model. One can notice that related re-

lationships are represented by a dashed edge, depen-

dency relationships are represented by a continuous

edge with a solid arrow head, and composition rela-

tionships are represented by a continuous edge with a

hollow arrow head.

Figure 1: Graphical depiction of the model created by ex-

ample. 1

Figure 1 also indicates that thus far, neither Jane

nor Chris actually know any of the knowledge assets

which the organisation considers valuable. Informa-

tion about knowledge relationships will be inferred

from events as discussed in section 3.

3 EVENTS

Events provide the ability to model and reason about

knowledge relationships between persons and knowl-

edge assets. A mechanism is proposed whereby var-

ious interactions between persons and knowledge as-

sets are logged and analysed to infer the existence and

magnitude of knowledge relationships. Three cate-

gories of events are deﬁned: knowledge events, re-

source events and time events. The following sections

will look at each event category in turn.

3.1 Knowledge Events

Knowledge events model a knowledge asset’s jour-

ney through various stages of its life cycle as well as

the persons involved in each transition. The following

knowledge events are deﬁned:

Knowledge Identiﬁed. Refers to an event whereby a

knowledge asset is identiﬁed as being of value to

the organisation and thus starts being tracked.

Knowledge Created. This event occurs when new

knowledge has been created within the organisa-

tion. This could involve someone reading a book,

attending a training course, or even codifying her

own tacit knowledge into an explicit form.

Knowledge Stored. Models a situation where ex-

plicit knowledge is stored in some way, shape or

form.

Knowledge Retrieved. Refers to the act of someone

retrieving explicit knowledge from storage.

Knowledge Transferred. This is one of the most im-

portant events in a knowledge organisation and

refers to the transfer of knowledge from one or

more knowers to one or more learners.

Knowledge Modiﬁed. Indicates that a particular

knowledge asset has been modiﬁed in some way.

This event is useful for the purposes of notifying

anyone connected with the knowledge asset that it

has changed.

Knowledge Applied. This event models a period of

time during which one or more persons are mak-

ing use of a particular knowledge asset so as to

achieve some value for the organisation.

Knowledge Discarded. Indicates that a particular

knowledge asset is no longer of any value to the

organisation.

All knowledge events have a date associated with

them and most have a set of persons involved in the

event. However, Knowledge Identiﬁed events do not

have any associate persons whilst Knowledge Trans-

ferred events split the set of persons into two: the

knowers who are transferring the knowledge and the

learners who are on the receiving end of the transfer.

AN EVENT-DRIVEN CARTOGRAPHIC APPROACH TO MODELLING SOFTWARE ENGINEERING KNOWLEDGE

3.2 Resource Events

Resource events model the ﬂow of people through

the organisation. This is useful for a number of rea-

sons. Firstly, a person leaving the organisation al-

ways results in the organisational knowledge land-

scape changing. Therefore it is desirable to keep our

model up to date in this regard. Secondly, it is some-

times useful to reason about knowledge at the team

level of abstraction. For example, one might ask the

question “how would a team be affected if a particular

member leaves the team to work with another team?”

or “what knowledge transfer opportunities can occur

if we move certain people around?”. Finally, if hypo-

thetical events are logged, an organisation can model

possible future knowledge scenarios and take action if

any risks are detected. For example, one could model

an event where person p is leaving the organisation

even thought he is not. In so doing, the organisation

can get a view of what changes in the knowledge land-

scape could occur as a result of such an event and take

risk-mitigating action if necessary.

The following resource events are deﬁned:

Person Left Organisation. Refers to an event

whereby a particular person leaves the organisa-

tion. This has repercussions on the organisations

global knowledge landscape.

Person Left Team. Models a situation whereby a

person remains employed within an organisation

but is no longer part of a particular team. In

this case, the organisation’s knowledge landscape

changes in the context of the team’s knowledge.

Person Joined Team. This event models a situation

whereby a person has joined a team within the

organisation. Team membership is not exclusive

so persons can potentially form part of multiple

teams.

One might notice the ominous exclusion of a Person

Joined Organisation event. Such an event would in-

deed be useful but its semantics would be such that it

can be modelled as a sequence of knowledge events.

That is to say, a person joining the company can be

modelled by modelling the person’s knowledge activ-

ities prior to joining up. Simply creating a Person

Joined Organisation event will not achieve the de-

sired effect on the model.

3.3 Time Events

Time events indicate the passage of time and thus

allow us to construct a mechanism whereby we can

model the deterioration of personal and organisational

knowledge. The driving principle here is that if a per-

son p does not participate in a knowledge asset k’s

life cycle for a certain amount of time t, then as t in-

creases, p knows k less to some increasing degree. A

single time event is deﬁned:

Time Passed - Indicates the passage of a single time

unit. It is recommended that a time unit be con-

sidered to represent a day but any time unit could

be utilised according to the organisation’s needs.

3.4 Effects of events on models

Events can also be categorised according to how they

affect knowledge relationships in a model:

Strengthening Events result in the creation of new

knowledge relationships or the strengthening of

existing ones. For example, if a person p knows

nothing about Java, then the model will not con-

tain a knowledge relationship between the p and

Java. However, if p attends a relevant training

course, this can be logged as a Knowledge Cre-

ated event which results in a knowledge relation-

ship with some initial magnitude being created be-

tween p and Java. Furthermore, if p applies Java

to her work on an ongoing basis, then the magni-

tude of the knowledge relationship increases over

time as a result of Knowledge Applied events.

This category of events includes all knowledge

events except for Knowledge Identiﬁed, Knowl-

edge Modiﬁed and Knowledge Discarded events.

Weakening Events result in the weakening or re-

moval of existing knowledge relationships. Time

events for example result in the weakening of all

knowledge relationships which have not been sub-

jected to any strengthening events in the most re-

cent time unit. This category of events includes

Knowledge Discarded, Person Left Organisation,

and Time Passed events.

Agnostic Events have no result of any knowledge re-

lationships because they exist for other reasons.

For example, Person Left Team events do not af-

fect a person’s knowledge relationships in any

way, even if at the team level of abstraction one

can say that the team’s knowledge has been weak-

ened. However, vertices on the graph only repre-

sent persons with teams being only a conceptual

entity. This category is composed of Knowledge

Identiﬁed, Person Left Team and Person Joined

Team events.

Hybrid Events have the potential of strengthening

certain events whilst weakening others. For

example, a Knowledge Modiﬁed event would

strengthen the knowledge relationship between

KMIS 2011 - International Conference on Knowledge Management and Information Sharing

the person involved in the event and the knowl-

edge asset but would weaken the relationship of

others who are not involved in the event. The

main reason behind this is that if a knowledge as-

set has changed then other people’s knowledge of

it may have become obsolete to some degree. The

Knowledge Modiﬁed event is the sole member of

this category.

Example 2 . Following on from example 1, consider

a situation whereby the following events occur in se-

quence:

1. Both Jane and Chris take a course. Chris learns

about Java whilst Jane learns about Smalltalk

2. Chris uses Java for one month whilst Jane uses

Smalltalk for two weeks

3. Chris teaches Jane about Java

The ﬁrst event is represented as follows:

knowledge created java

by Chris on "2011-03-01";

knowledge created smalltalk

by Jane on "2011-03-01";

This leads to a knowledge model as depicted in ﬁgure

2. One can notice that there is now a knowledge rela-

tionship between Chris and Java of magnitude 1 (as

indicated by the labelled edge) as well as a knowl-

edge relationship linking Jane to Smalltalk, also of

magnitude 1. The calculation of knowledge relation-

ship magnitudes is explained in section 3.5. However,

it sufﬁces to say that the higher a the magnitude of

a knowledge relationship, the more conﬁdent an or-

ganisation can be that the person in the relationship

knows the knowledge asset.

Figure 2: Graphical depiction of the model after the knowl-

edge created events. The image has been magniﬁed and

cropped for clarity.

The next event in this example involves both Jane and

Chris applying their knowledge of Smalltalk and Java

for a period of two weeks and one month respectively:

knowledge applied java by Chris

from "2011-03-01" to "2011-03-31";

knowledge applied smalltalk by Jane

from "2011-03-01" to "2011-03-15";

Figure 3 indicates that the same knowledge relation-

ships from ﬁgure 2 remain but their magnitudes have

increased. Also, the magnitude of the knowledge rela-

tionship linking Chris to Java has increased by twice

as much as the knowledge relationship linking Jane to

Smalltalk. This is because the fact that Chris applied

Java knowledge longer than Jane applied Smalltalk

knowledge leads us to reason that we are more con-

ﬁdent in Chris knowing Java than in Jane knowing

Smalltalk.

Finally, we model the scenario where Chris trans-

fers his knowledge of Java to Jane:

Figure 3: Graphical depiction of the model after the knowl-

edge applied events. The image has been magniﬁed and

cropped for clarity.

knowledge transferred java

by Chris to Jane

on "2011-04-01";

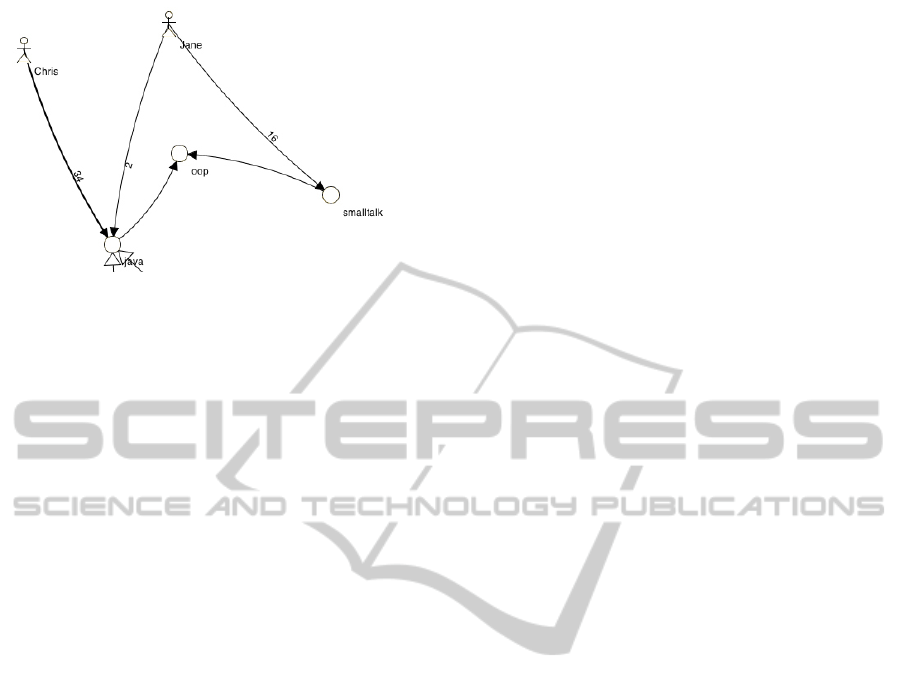

As shown in ﬁgure 4, two things have happened.

Firstly, a new knowledge connection has been created

that links Jane to Java. This indicates that Jane now

knows Java but knows it to a much lesser degree than

Chris, who has been using the language for a month.

Secondly, the magnitude of the knowledge connection

linking Chris to Java has increased because the act

of one person transferring knowledge to another ac-

tually strengthens the former’s knowledge.

3.5 Knowledge Event Magnitudes

The amount by which a particular knowledge event

strengthens or weakens the magnitude of a knowl-

edge relationship will affect the extent to which the

AN EVENT-DRIVEN CARTOGRAPHIC APPROACH TO MODELLING SOFTWARE ENGINEERING KNOWLEDGE

Figure 4: Graphical depiction of the model after the knowl-

edge transferred events. The image has been magniﬁed and

cropped for clarity.

resulting model represents the true knowledge land-

scape of the organisation. Since realistic modelling

will require substantial research, for the time being

the authors propose to refer to an oracle when ad-

justing knowledge relationship magnitudes. It is very

likely that a completely realistic mechanism will be

very difﬁcult to construct but the level of absolute

accuracy is not the be-all and end-all of the work

presented here. Rather than focus on the accuracy

of ‘how much’ a person knows a knowledge asset,

we are more interested in the relativity of the knowl-

edge relationship magnitude when compared to other

knowledge relationships. Given that all knowledge re-

lationship magnitudes are calculated in the same way,

this should minimise distortion and make the models

ﬁt-for-purpose when it comes to their analytical capa-

bilities.

4 MODEL ANALYSIS

In this section the analytical properties of the pro-

posed approach are discussed.

4.1 Inherent Model Properties

The model itself has a number of inherent properties

which enable reasoning about the knowledge land-

scape in an organisation. The following is a list of

the more salient properties:

4.1.1 Structural Properties of Knowledge Assets

Knowledge asset structural properties refer to prop-

erties that enable reasoning about the structure of

knowledge assets in the model.

Symmetry of Related Relationships. Given two

knowledge assets k

and k

, if k

is related to k

then k

is related to k

Transitivity of Dependencies. Given three knowl-

edge assets k

, k

and k

, if k

depends on k

and

depends on k

, then k

depends on k

Transitivity of Composition. Given three knowl-

edge assets k

, k

and k

, if k

is part of k

and

if part of k

, then k

is part of k

Composition as Dependency. Given two knowl-

edge assets k

and k

, if k

is part of k

then k

also depends on k

Non-symmetry of Dependency. Given two knowl-

edge assets k

and k

, if k

depends on k

then

cannot depend on k

Non-symmetry of Composition. Given two knowl-

edge assets k

and k

, if k

is part of k

then k

cannot be part of k

4.1.2 Properties of Knowledge Relationships

The following properties hold for knowledge relation-

ships in any model constructed using the technique

proposed in this paper.

Team Knowledge. If a person p knows a knowledge

asset k and is a member of team t, then it holds

that t knows k.

Transitivity of Knowledge through Composition.

Given two knowledge assets k

and k

such that

is part of k

, if a person p knows k

then p also

knows k

to some degree.

4.2 Detecting Knowledge Mobility Risks

The term knowledge mobility risk refers to a chance

of the company loosing a valued knowledge asset as

a result of a particular person leaving. In general,

the greater the number of people that people know

a knowledge asset, the less mobility risk that knowl-

edge asset exhibits. However, one must consider ‘how

much’ each person knows the knowledge asset. If (for

example) four people in a team are vaguely familiar

with a critical part of a system but a ﬁfth person is

an expert about it, then with respect to that particular

knowledge asset, loosing that one expert will proba-

bly hurt more than loosing any number of the other

four members.

Since the proposed model is actually a graph, the

authors looked to graph metrics for a way to calcu-

late knowledge mobility risk. Of particular interest

was work done by Botafogo which proposed Rela-

tive Out Centrality (ROC) and Relative In Centrality

(ROC) as measures of the social importance of a ver-

tex in a graph. Of particular relevance to knowledge

KMIS 2011 - International Conference on Knowledge Management and Information Sharing

mobility risk is the RIC metric, which is based on

calculations involving inbound paths from other ver-

tices into the vertex being analysed. However, since in

the proposed model the maximum length of a knowl-

edge path is one, Botafogo’s approach was modiﬁed

to take into account the magnitude of knowledge rela-

tionships (Micallef, 2011). This adapted RIC metric

can be interpreted as a measure of knowledge mobil-

ity risk. The higher the RIC measure for a knowledge

asset, the more knowledge mobility risk it exhibits.

Example 3 . The model depicted in ﬁgure 5 is the re-

sult of a three month evaluation exercise with a four

person team. In order to analyse this particular model

for knowledge mobility risks, the knowledge asset ver-

tices are coloured according to the following criteria:

1. Let σ be the standard deviation of the RIC values

for all knowledge asset vertices in the graph

2. Let µ be the average of the RIC values for all

knowledge asset vertices in the graph

3. Colour all nodes with RIC ≤ µ as green (repre-

sented as white in this paper)

4. Colour all nodes with µ > RIC ≤ (µ + σ) as or-

ange (represented as light-grey in this paper)

5. Colour all nodes with RIC > (µ + σ) as red (rep-

resented as dark-grey in this paper)

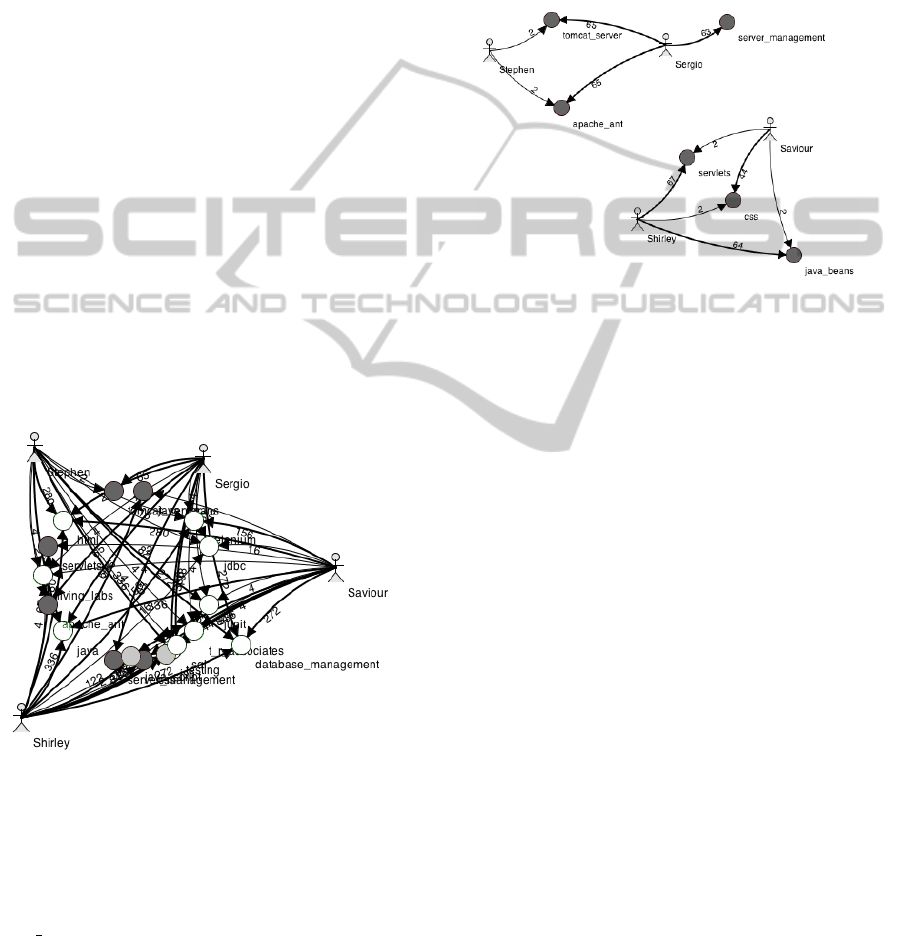

Figure 5: A knowledge model coloured according to knowl-

edge mobility risk.

Figure 6 shows the same model ﬁltered to show only

red vertices. This enables one to analyse potential

reasons behind the high knowledge risks and possibly

take corrective action. In this particular example, the

server management knowledge asset is only known by

one person (Sergio). Furthermore, the fact that he

seems to know it relatively well when compared to

other scores in the model indicates that he does a lot

of server management for the team. This is a knowl-

edge mobility risk because if Sergio leaves there is no

one in the organisation who can seamlessly take over

his job. The other high-risk vertices are known by two

people but in each case, one person knows the asset

much more than the other, thus leading to a knowl-

edge mobility risk. Having this visibility, the team

may decide to mitigate the risk by (for example) hav-

ing people pair together on high-risk assets until such

a time when the risk is sufﬁciently reduced.

Figure 6: A ﬁltered version of the model showing only high

knowledge mobility risk assets.

4.2.1 Knowledge Mobility Risk from a Person

Standpoint

Botafogo’s work (Botafogo et al., 1992) also deﬁnes

Relative Out Centrality (ROC) as a measure of a ver-

tex’s inﬂuence on other vertices in the graph. Af-

ter again modifying this metric to take into account

the magnitude of knowledge relationships (Micallef,

2011) applied ROC to inferring how knowledge mo-

bility risk from a person point of view. That is to say,

based on some subset of knowledge assets of interest,

we can calculate if there are any persons who’s knowl-

edge of these assets is so strong that it causes an im-

balance and subsequent knowledge mobility risk for

the organisation.

Example 4 . Figure 7 considers a scenario whereby

an organisation is analysing whether there are any

knowledge risks related to dynamic web technologies

(jsp and servlets). Using the ROC metric, Saviour and

Shirley have been identiﬁed as potential risks in this

regard. This is because both have strong knowledge

of the two knowledge assets whilst Stephen and Sergio

do not have any knowledge about them at all. One can

also note that the fact that Stephen and Sergio do not

know anything about the knowledge assets in question

results in them not being marked as risks at all. Rea-

son being that in this limited context, if either Sergio

or Stephen leave, the organisation will not loose and

valuable knowledge.

AN EVENT-DRIVEN CARTOGRAPHIC APPROACH TO MODELLING SOFTWARE ENGINEERING KNOWLEDGE

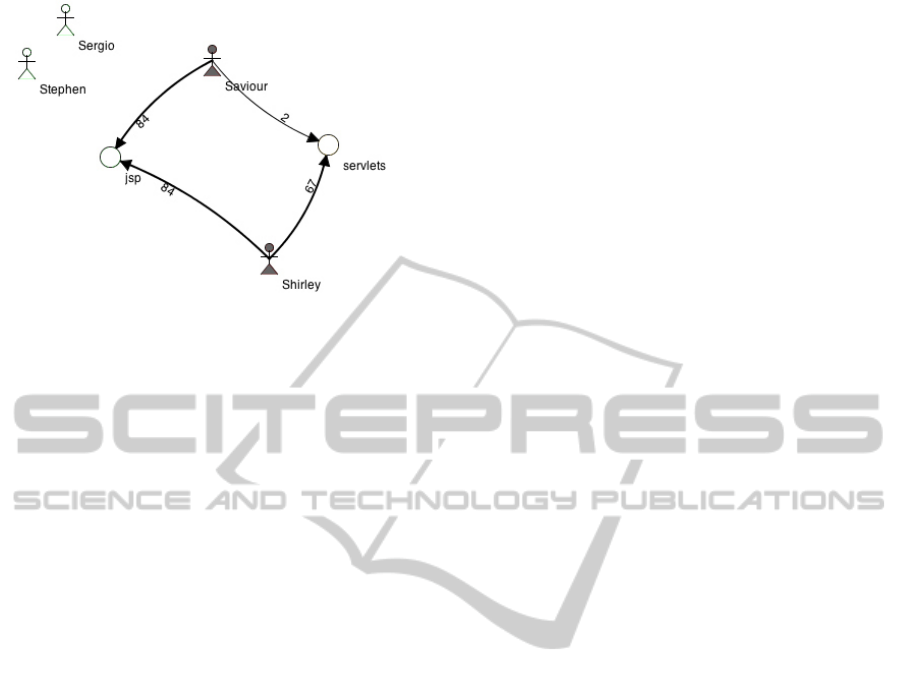

Figure 7: Analysis of mobility risk from a person perspec-

tive with regards to the knowledge assets jsp and servlets.

4.3 Knowledge Transfer Risk

The technique presented is also useful for identifying

knowledge transfer risks. That is to say, situations

which might compromise the likelihood of a knowl-

edge transfer activity to be successful. Knowledge

transfer activities are amongst the most important ac-

tivities which enable organisations to hold on to or-

ganisational knowledge despite staff turnover. Al-

though research carried out seems to indicate that

most knowledge transfer success factors can only be

detected and inﬂuenced by company culture and man-

agement practices, Cummings and Teng (Cummings,

2003) developed a research model consisting of nine

key factors which affect knowledge transfer, two of

which can be detected using the event-based carto-

graphic approach proposed in this paper. These are

knowledge embeddedness and knowledge distance.

The former refers to the extent to which a partic-

ular knowledge asset is linked other knowledge as-

sets within the organisational knowledge landscape.

Cummings and Teng found that the more embedded a

knowledge asset is, the more difﬁcult it is to transfer.

Knowledge Distance refers to the difference between

two people’s knowledge in relation to the knowledge

asset being transferred. If two people share a rele-

vant common basis of knowledge, their knowledge

distance is said to be small. This makes a knowledge

transfer exercise between such persons more likely to

succeed than if they had a large knowledge distance

separating them.

Both knowledge embeddedness and knowledge

distance can be inferred from knowledge models con-

structed using the techniques presented in this paper.

4.3.1 Embeddedness

The following measure of embeddedness is

propopsed:

embeddedness(k) = |dep(k)|

Where dep(k) is a function that given a knowledge

asset k, returns the set of all knowledge assets which

k depends on. Please note that since dependency is

transitive (see section 4.1), this set will also include

knowledge assets which are depended on by direct de-

pendencies of k. Also, since composition is a form of

dependency (see section 4.1), dep(k) will also return

elements which k forms part of.

For any knowledge asset k, the higher the value of

embeddedness(k), the more knowledge transfer risk k

exhibits.

4.3.2 Knowledge Distance

Consider a knowledge transfer exercise whereby a

person who is a knowledge source p

src

is transfer-

ring a knowledge asset k to a second person who is

a knowledge receiver p

rec

. The knowledge distance

measure takes into account p

rec

’s lack of knowledge

of all assets in dep(k) (see section 4.3.1):

distance(p

src

, p

rec

, k) =

∑

∀k

∈dep(k)

dist

abs

src

, p

rec

, k

)

Where dist

abs

src

, p

rec

, k) returns the difference be-

tween the magnitudes of the knowledge relationships

src

knows

−−−−→ k and p

rec

knows

−−−−→ k. If the result is a

negative number, 0 is returned. This is because we

are only interested inﬂuencing knowledge distance in

cases where the source person knows more than the

receiver.

5 CONCLUSIONS AND FUTURE

WORK

The work presented here has been trialled in an eval-

uation exercise whereby two development teams with

four members each tracked their knowledge over a

three month period. At regular intervals during this

period, team members met with a researcher to anal-

yse their knowledge model with respect to its per-

ceived realism and also with respect to any apparent

knowledge risks. In the case where risks were identi-

ﬁed, mitigating actions were taken and the results are

promising. Unfortunately, due to paper length restric-

tions, a detailed analysis of the results is not possible

here.

KMIS 2011 - International Conference on Knowledge Management and Information Sharing

With regards to future work, the authors are cur-

rently involved in a research project which aims to

build and evaluate a software development process

that makes knowledge management activities busi-

ness as usual. This contrasts with the current state

of affairs in software engineering whereby develop-

ment processes’ management of knowledge basically

involves codiﬁcation strategies in the form of project

documentation. Other ongoing work includes long-

term industrial evaluation of the proposed technique

as well as exploration of extensions such as incorpo-

rating knowledge asset priority into risk calculations,

automated team building and the development of a

toolset enabling further experiments in the ﬁeld.

REFERENCES

Alavi, M. and Leidner, D. E. (2001). Review: Knowl-

edge management and knowledge management sys-

tems: Conceptual foundations and research issues.

MIS Quarterly, 25(1):107–136.

Bjørnson, F. and Dingsøyr, T. (2008). Knowledge manage-

ment in software engineering: A systematic review of

studied concepts, ﬁndings and research methods used.

Information and Software Technology, 50(11):1055–

1068.

Botafogo, R. A., Rivlin, E., and Shneiderman, B. (1992).

Structural analysis of hypertexts: identifying hier-

archies and useful metrics. ACM Trans. Inf. Syst.,

10:142–180.

Cummings, J. (2003). Transferring r&d knowledge: the key

factors affecting knowledge transfer success. Journal

of Engineering and Technology Management, 20(1-

2):39–68.

Dingsøyr, T., Djarraya, H. K., and Røyrvik, E. (2005). Prac-

tical knowledge management tool use in a software

consulting company. Commun. ACM, 48:96–100.

Duffy, N. (1999). Benchmarking knowledge strategy.

Leveraging Knowledge for Business Performance

1999: Knowledge In Action.

Earl, M. (2001). Knowledge management strategies: To-

ward a taxonomy. Journal of Management Informa-

tion Systems, 18(1):215–233.

Linberg, K. (1999). Software developer perceptions about

software project failure: a case study. Journal of Sys-

tems and Software, 49(2-3):177–192.

Micallef, M. (2011). A language for modelling software

engineering knowledge. Technical Report CS2011-

02, Department of Computer Science, University of

Malta. Available from http://www.um.edu.mt/

ict/cs/research/technical_reports.

Nolan Norton Institute, T. (1998). “Putting the knowing

organization to value” white paper. Nolan Norton In-

stitute.

Nonaka, I. (1994). A dynamic theory of organizational

knowledge creation. Organization Science, 5(1):14–

37.

Pressman, R. (1998). Fear of trying: The plight of rookie

project managers. IEEE Softw., 15(1):50–51,54.

Ramal, M. F., Meneses, R. d. M., and Anquetil, N. (2002).

A disturbing result on the knowledge used during soft-

ware maintenance. In Proceedings of the Ninth Work-

ing Conference on Reverse Engineering (WCRE’02),

pages 277–, Washington, DC, USA. IEEE Computer

Society.

Szulanski, G. (1996). Exploring internal stickiness: Imped-

iments to the transfer of best practice within the ﬁrm.

Strategic Management Journal, 17:27–43.

Tiwana, A. (2000). The Knowledge Management Toolkit:

Practical Techniques For Building A Knowledge Man-

agement System. Prentice Hall.

Zack, M. (1998). What knowledge-problems can informa-

tion technology help to solve. In Proceedings of the

Fourth Americas Conference on Information Systems,

pages 644–646.

AN EVENT-DRIVEN CARTOGRAPHIC APPROACH TO MODELLING SOFTWARE ENGINEERING KNOWLEDGE
