REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT
COLOR PROBABILITY FOR VIRTUAL REALITY
APPLICATIONS
Chutisant Kerdvibulvech
Department of Information and Communication Technology, Rangsit University
52/347 Muang-Ake, Paholyothin Rd. Lak-Hok, 12000, Pathum Thani, Thailand
Keywords: Real-time System, Adaptive Learning, Visualizing System, Color Probability, Virtual Reality.
Abstract: Segmentation is not a trivial task, especially in challenging situations such as outdoor area. In this paper, we
develop an adaptive learning system to segment an object robustly. By using the on-line adaptation of color
probabilities, the proposed method presents several specific features: it is able to cope with illumination
changes even in the outdoor area, and also it can be done in real-time. Bayes’ rule and Bayesian classifier is
employed to calculate the probability of an object color. Representative experimental results are also
presented and discussed. The system presented can be further used to develop the real-time game of
augmented reality in virtual spaces.
1 BACKGROUND
Computer vision is the technology of machines that
see and analyze scientifically. Research about color
segmentation and a model of color is a very popular
topic, due to the popularity of virtual reality and
augmented reality recently. Basically, a model of
color relates to the selection of the color space is
usually mentioned and used previously. Many color
spaces have been proposed including RGB (Jebara
and Pentland, 1997), normalized RGB (Kim et al,
1998), YCrCb (Chai and Ngan, 1998), etc. Color
spaces efficiently separating the chrominance from
the luminance components of color are typically
considered preferable. Previous method is to find the
proper threshold values of each color model, e.g.
HSV (Gonzalez and Woods, 2002). Another recent
method used (Cabrol et al, 2005) color region
segmentation followed by a color classication and
region. After they segmented, they use it for
RoboCup application, i.e. four-legged league or an
industrial conveyor wheeled robot. However, by
using these previous methods, it is not able to cope
with considerable luminance changes effectively.
This paper proposes a real-time system using a
Bayesian classifier that is bootstrapped with a small
set of training data and refined through an off-line
iterative training procedure (Argyros and Lourakis,
2004). We calculate the color probabilities being
object color. The learning process is composed of
two phases.
In the first phase, the color probability is
obtained from a small number of training images
during an off-line pre-process. The color
representation used in this process is YUV 4:2:2
(Jack, 2004). This color space contains a luminance
component (Y) and two color components (UV).
The main advantage for using the YUV space is that
the luminance and the color information are
independent. Thus, it is easy to separate the
chrominance from the luminance components of
color. As object tones differ mostly in chrominance
and less in intensity, by employing only
chrominance-dependent components of color, one
can achieve some degree of robustness to changes in
luminance.
In the second phase, we gradually update the
probability automatically and adaptively from the
additional training data images. However, the Y-
component of this representation is not employed for
two reasons. Firstly, the Y-component corresponds
to the luminance of an image pixel. By omitting this
component, the developed classifier becomes less
sensitive to luminance changes. Secondly, compared
to a 3D color representation (YUV), a 2D color
representation (UV) is lower in dimensions and,
200
Kerdvibulvech C..
REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT COLOR PROBABILITY FOR VIRTUAL REALITY APPLICATIONS.
DOI: 10.5220/0003622802000204
In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages
200-204
ISBN: 978-989-8425-78-2
Copyright
c
2011 SCITEPRESS (Science and Technology Publications, Lda.)
therefore, less demanding in terms of memory
storage and processing costs. This disregard of the
luminance value has also been shown to be useful in
detection and tracking of faces (Hua at al, 2002) and
color night vision (Shi at al, 2007).
In our proposed method, we set that the adapting
process can be disabled as soon as the achieved
training is deemed sufficient. Therefore, when we
start to learn the on-line object color adaptation, we
assume that there is enough object area in the image.
As soon as the on-line adapting process is enough as
we prefer (i.e. the object color probability converges
to a proper value), we manually stop the adapting
process. In this way, after finishing the on-line
learning process, although the object area disappears
from the scene, it does not affect the object color
probability.
Therefore, this method allows us to get accurate
color probability of the object from only a small set
of manually prepared training images. This is
because the additional object region does not need to
be segmented manually. Also, because of the
adaptive learning, it can be used robustly with
changing luminance during the on-line operation.
2 METHOD
This section will explain the method we used for
segmenting the object region. We calculate the color
probabilities being object color adaptively. The
learning process is composed of two phases.
2.1 Off-line Learning
During an off-line phase, a small set of training
input images is selected, on which a human operator
manually delineates object-colored regions, as
shown in Figure 1.

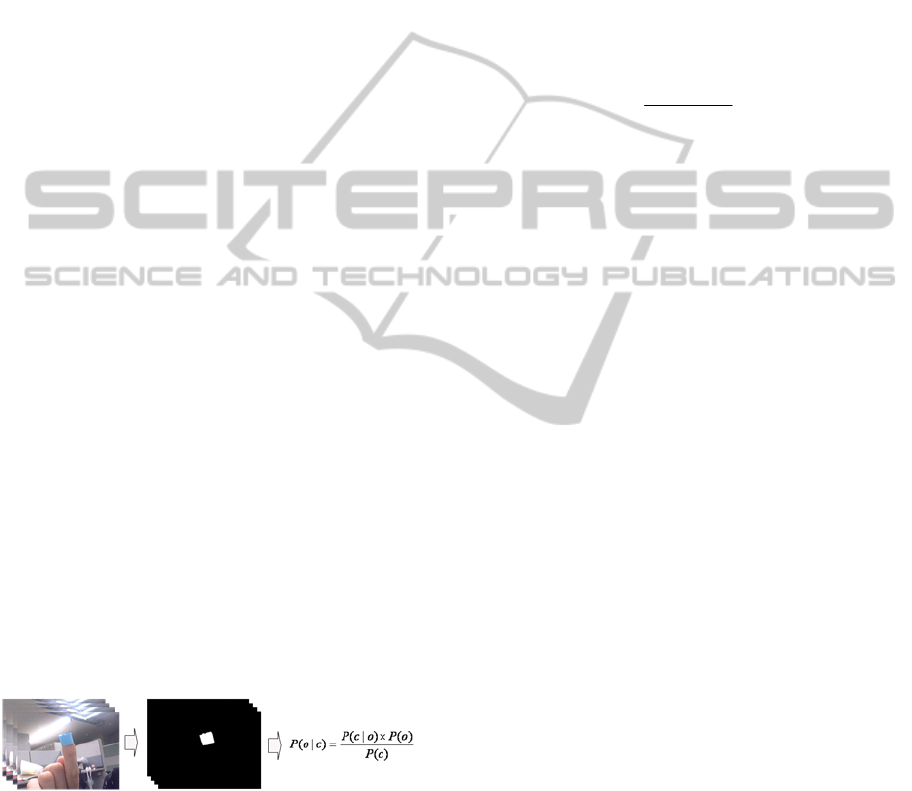

Figure 1: Off-line learning process.
Following this, assuming that image pixels with
coordinates (x,y) have color values c = c(x,y),
training data are used to calculate:
(i) The prior probability P(o) of having object color
o in an image. This is the ratio of the object-colored
pixels in the training set to the total number of pixels
of whole training images.
(ii) The prior probability P(c) of the occurrence of
each color in an image. This is computed as the ratio
of the number of occurrences of each color c to the
total number of image points in the training set.
(iii) The conditional probability P(c|o) of an object
being color c. This is defined as the ratio of the
number of occurrences of a color c within the object-
colored areas to the number of object-colored image
points in the training set.
By employing Bayes’ rule, the probability P(o|c) of
a color c being an object color can be computed by
using
(|)()
(|)
()
Pc oPo
Po c
Pc
=
(1)
This equation determines the probability of a certain
image pixel being object-colored using a lookup
table indexed with the pixel’s color. The resultant
probability map thresholds are then set to be
threshold
max
T
and threshold
min
T
, where all pixels
with probability P(o|c) >
max
T
are considered as
being object-colored—these pixels constitute seeds
of potential object-colored blobs—and image pixels
with probabilities P(o|c) >
min
T
where
min
T
<
max
T
are the neighbors of object-colored image pixels
being recursively added to each color blob. The
rationale behind this region growing operation is that
an image pixel with relatively low probability of
being object-colored should be considered as a
neighbor of an image pixel with high probability of
being object-colored. Smaller and larger threshold
values cause the false object detection. For example,
if we choose the threshold value
max
T
that is too
big, we cannot detect any pixels that constitute the
seeds of potential object blobs. Therefore, the values
for
max
T
and
min
T
should be determined by test
experiments (we use 0.5 and 0.15, respectively, in
this experiment). A standard connected component
labelling algorithm (i.e. depth-first search) is then
responsible for assigning different labels to the
image pixels of different blobs.
Size filtering on the derived connected components
is also performed to eliminate small isolated blobs
that are attributed to noise and do not correspond to
interesting object-colored regions. Hence, connected
components that consist of less than the threshold
size are assumed to be noise and then rejected from
further consideration. Each of the remaining
connected components corresponds to an object-
REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT COLOR PROBABILITY FOR VIRTUAL REALITY
APPLICATIONS
201
colored blob. In this step, we choose the biggest
region as an object-colored blob.
2.2 Adaptive Learning System
Training is an off-line procedure that does not affect
the on-line performance of the tracker. Nevertheless,
the compilation of a sufficiently representative
training set is a time-consuming and labor-intensive
process. To cope with this problem, an adaptive
training procedure has been developed. Training is
performed on a small set of seed images for which a
human provides ground truth by defining object-
colored regions. Following this, detection together
with hysteresis thresholding is used to continuously
update the prior probabilities P(o), P(c) and P(c|o)
based on a larger image data set. The updated prior
probabilities are used to classify pixels of these
images into object-colored and non-object-colored
ones. The final training of the classifier is then
performed based on the training set resulting from
user editing. This process for adapting the prior
probabilities P(o), P(c) and P(c|o) can either be
disabled as soon as the achieved training is deemed
sufficient for the purposes of the tracker, or continue
as more input images are fed to the system.
The success of the color detection depends
crucially on whether or not the luminance conditions
during the on-line operation of the detector are
similar to those during the acquisition of the training
data set. Despite the fact that using the UV color
representation model has certain luminance
independent characteristics, the object color detector
may produce poor results if the luminance
conditions during on-line operation are considerably
different to those used in the training set. Thus, a
means of adapting the representation of object-
colored image pixels according to the recent history
of detected colored pixels is required. To solve this
problem, object color detection maintains two sets of
prior probabilities (Zabulis et al, 2009). The first set
consists of P(o), P(c), P(c|o) that have been
computed off-line from the training set. The second
is made up of
)(oP
W
,
)(cP
W
,
)|( ocP
W
,
corresponding to the P(o), P(c), P(c|o) that the
system gathers during the W most recent frames
respectively. Obviously, the second set better
reflects the “recent” appearance of object-colored
objects and is therefore better adapted to the current
luminance conditions. Object color detection is then
performed based on the following moving average
formula:
(|) (|) ((1 ) (|))
AW
P
oc Poc P oc
γ
γ
=+
,
(2)
where
)|( coP
A
represents the adapted probability
of a color c being an object color. P(o|c) and
)|( coP
W
are both given by Equation (1) but
involve prior probabilities that have been computed
from the whole training set [for P(o|c)] and from the
detection results in the last W frames [for
)|( coP
W
].
γ
is a sensitivity parameter that controls the
influence of the training set in the detection process
)10(
γ
. If
1
=
γ
, then the object color detection
takes into account only the training set (35 images in
the off-line training set), and no adaptation takes
place; if
γ
is close to zero, then the object color
detection becomes very reactive, relying strongly on
the recent past for deriving a model of the immediate
future. W is the number of history frames. If W value
is too high, the length of history frames will be too
long; if W value is set too low, the history for
adaptation will be too short. In our implementation,
we set
= 0.8 and W = 5 which gave good results
in the tests that have been carried out.
Thus, the object color probability can be determined
adaptively. By using on-line adaptation of object
color probabilities, the classifier is easily able to
cope with considerable luminance changes, and also
it is able to segment the object even in the case of a
dynamic background.
3 RESULTS
In this section, representative results from our
experiment are shown. Figure 2 provides a few
representative snapshots of the experiment. The
reported experiment is based on a sequence that has
been acquired with USB camera at a resolution of
320x240 pixels. This process is done in real time
and on-line. The experimental room is outdoor area
(balcony). Note that the training set (35 images in
the off-line training set) was collected from the
indoor area. So the luminance change makes it much
more challenging.
The left window depicts the input images. The
middle window shows the output images. The right
window represents the object probability map in the
U and V axis in color model, as depicted in Figure 3.
In the initial stage (frame 15), when the
experiment starts, the object color probability does
not converge to a proper value. In other words, the
color probability is scattering. So the segmented
output cannot be achieved well because it uses only
from the off-line data set which the lighting is
SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and
Applications
202
Frame 15
Frame 35
Frame 55
Frame 75
Frame 95
Frame 115

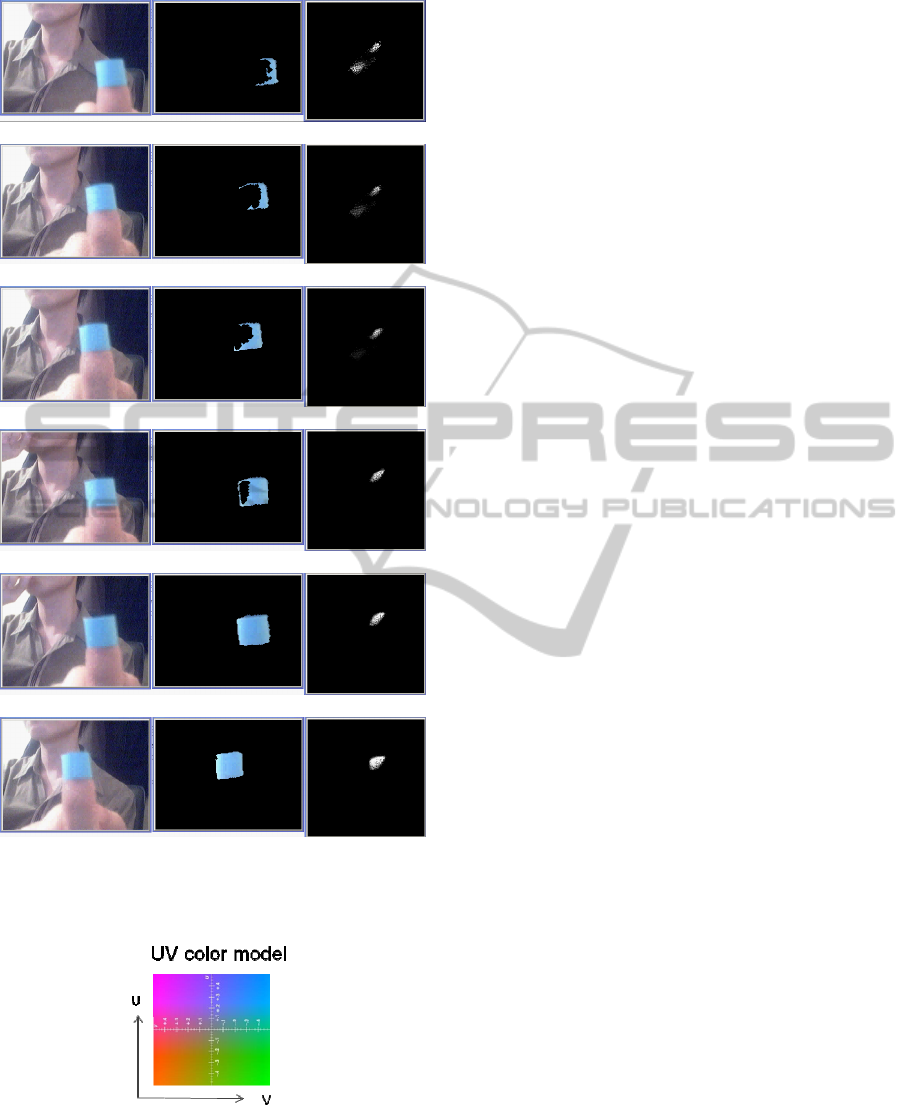

Figure 2: Object segmentation based on the color
probability: from off-line learning to adaptive learning.
Figure 3: U and V axis in color model.
extremely different. At frame 35, frame 55 and
frame 75, after performing the adaptive learning
process, the object color probability gradually
converges to a proper value. Thus, the result
becomes better. Later on at frame 95 and frame 115,
the result can be achieved robustly. The lighting
used to test between off-line (at indoor area) and on-
line (at outdoor area) is obviously different.
However, it can be observed that the 2D segmented
result of object can be still determined without
effects of different light sources in each
representative frame. This is because a Bayesian
classifier and an on-line adaptation of color
probabilities are utilized to deal with this.
4 CONCLUSIONS
In this paper, we have developed an adaptive
learning system which is performed by using a
Bayesian classifier and the online adaptation of
object color probabilities. This method is to
effectively deal with any illumination changes both
indoor and outdoor areas. Furthermore, the
computation time of the method is real-time. The
result of the proposed method is the segmenting of
objects to be able a human-computer interaction
system for virtual reality and augmented reality
environments. Our future work is to apply this
process to a real-life augmented reality application.
In the future, we intend to further refine this
problem.
ACKNOWLEDGEMENTS
The work presented in this paper is supported in part
by a Grant-in-Aid from the Research Institute of
Rangsit university.
REFERENCES
Argyros, A. A., Lourakis, M. I. A., 2004. Real time
Tracking of Multiple Skin-Colored Objects with a
Possibly Moving Camera. European Conference on
Computer Vision.
Cabrol, A. D., Bonnin, P., Costis, T., Hugel, V., Blazevic,
P. (2005). A New Video Rate Region Color
Segmentation and Classication for Sony Legged
RoboCup Application. Lecture Notes in Computer
Science. RoboCup.
Chai, D., Ngan, K. N., 1998. Locating facial region of a
head-and-shoulders color image. 3rd IEEE
International Conference on Automatic Face and
Gesture Recognition (FG’98).
Gonzalez, R., Woods, R. E., 2002. Digital Image
REAL-TIME ADAPTIVE LEARNING SYSTEM USING OBJECT COLOR PROBABILITY FOR VIRTUAL REALITY
APPLICATIONS
203
Processing. 2 ed, Prentice Hall Press., ISBN 0-201-
18075-8.
Hua, R. C. K., Silva, L. C. D., Vadakkepat, P., 2002.
Detection and Tracking of Faces in Real-Time
Environments. International Conference on Imaging
Science, Systems, and Technology.
Jack, K., 2004. Video demystified, Elsevier science, 4th
edition.
Jebara, T. S., Pentland, A., 1997. Parameterized structure
from motion for 3D adaptive feedback tracking of
faces,” IEEE Conference on Computer Vision and
Pattern Recognition.
Kim, S. H., Kim, N. K., Ahn, S. C. and Kim, H. G., 1998.
Object oriented face detection using range and color
information. 3rd IEEE International Conference on
Automatic Face and Gesture Recognition.
Shi, S., Wang, L., Jin, W., Zhao, Y., 2007. Color night
vision based on color transfer in YUV color space.
International Symposium on Photoelectronic
Detection and Imaging.
Zabulis, X., Baltzakis, H., Argyros, A. A., 2009. Vision-
based Hand Gesture Recognition for Human-
Computer Interaction, In "The Universal Access
Handbook", Lawrence Erlbaum Associates, Inc.
(LEA), Series on "Human Factors and Ergonomics",
ISBN: 978-0-8058-6280-5.
SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and
Applications
204
