Zhixiong Chen and Donovan Evan
Math and CIS, Mercy College, Dobbs Ferry, New York, NY 10522, U.S.A.
Keywords: Cloud computing, Supervisory control.
Abstract. Supervisory Control and Data Acquisition (SCADA) systems have existed for over 50 years. Yet, they are
still widely used in national critical infrastructures like New York Metro transportation system, NY water-
way control systems and power grid. This paper examines the evolution of SCADA systems from closed
SCADA systems to open networked SCADA systems and discusses issues adapting SCADA systems into
cloud computing paradigm. We propose a framework that secures SCADA systems under cloud environ-
ment. It provides reasonable assurance of such adaptation and migration. Finally, we apply it to NY Metro
North Subway and Rail Transportation system.
Supervisory Control and Data Acquisition or
SCADA refers to any systems and networks that
monitor, manage, and control automation, produc-
tion and distribution (SCADA and CS).
SCADA systems are widely used in nations’ crit-
ical infrastructure such as transportation, telecom-
munications, energy, waste and water treatment, and
manufacturing (SCADA).
Securing SCADA systems is a national priority
because disruption of them can have significant
consequences for public health and safety (PDD 63).
When SCADA systems are set to be isolated
standalone control systems, security concerns are
more on the physical access control and operators.
When SCADA systems are networked and/or
hooked into internet, the security concerns are
shifted to more or less the same as we do to network
security and information systems. A whole range of
security issues such as access control, business con-
tinuity and disaster recovery planning, security go-
vernance and risk management, law regulations and
compliance, operations security; environmental
security, security architecture and design, and tele-
communications and network security need to be
addressed (Krutz, 2006; Chen and Yoon, 2010 ).
For the last several years, cloud computing is
moving from industry to academia (instead of the
other direction like many classical cases) and is
making leap in IT evolution. It is a model for enabl-
ing convenient, on-demand network access to a
shared pool of configurable computing resources
(e.g., networks, servers, storage, applications, and
services) that can be rapidly provisioned and re-
leased with minimal management effort or service
provider interaction (NIST). With on-demand self-
service, broad network access, resource pooling,
rapid elasticity and measured services, cloud compu-
ting increases greatly productivity and efficiency
(NIST). At the same time, security is a great concern
(Cloud Security Alliance, 2009). Many research
papers and frameworks are devoted to this area (for
example, see (Krutz, 2006; NIST; Cloud Security
Alliance, 2009; Chen and Yoon, 2010; http://; Forrest, 2009; NIST, 2010;
OSAG). Cloud Security Alliance identifies thirteen
(13) domains that need to be covered in securing
cloud computing environment (Krutz, 2006) while
Chen et al discusses compliances for services dep-
loyment models thoroughly (Chen and Yoon, 2010).
Migrating networked SCADA systems to a cloud
environment, either a private cloud or a public
cloud, is sure a path for better data sharing, data
managing and quick decision making. But, security
and compliance, especially for public cloud are
certainly big concerns. As we see recently that a
window computer worm, stuxnet and its variants are
found to target industrial systems and their payload
to PLC in SCADA systems (http:// It is a very sophisticated attack to
SCADA systems. We can only expect that a big
Chen Z. and Evan D..
DOI: 10.5220/0003614705590563
In Proceedings of the 13th International Conference on Enterprise Information Systems (IAST-2011), pages 559-563
ISBN: 978-989-8425-55-3
2011 SCITEPRESS (Science and Technology Publications, Lda.)
organization or even government agency can have
such capabilities.
In this paper, we will address these issues from
classical SCADA systems to cloud environment. In
section 2, we examine the evolution of SCADA
systems while in section 3, after summarizing cloud
computing services deployment models, we discuss
the feasibility of moving networked SCADA sys-
tems to cloud environment, from private cloud,
community cloud to public cloud. In section 4, we
list specific security and compliance issues facing
migrating SCADA systems into cloud and propose a
framework of securing SCADA systems. We use
NY Metro North Subway and Rail systems as an
example to demonstrate our work. The final section
is devoted to discussion and further research and
field work.
Traditionally, Electrical Engineers consider SCADA
systems as control systems (CS). A typical SCADA
system architecture can be demonstrated by Figure 1
in which a SCADA host uses Human Machine Inter-
face (HMI) to connect to several Remote Terminal
Units (RTUs) or Programmable Logic Controllers
(PLCs) and to acquire data and to make controls.
RTUs and PLCs are in closed loop control to field
elements such as sensors, valves, pumps, switched
and motors via EIA232 and EIA485.
Human operators control supervisory functions
and monitor them. The monitoring devices conti-
nually update data, which enable operators to man-
age daily operations locally and remotely as well.
HMI systems have evolved from light indication
panels and analog gauges to computerize graphical
display with real time indication and response fea-
Communication medium is more on copper line
due to the unreliability of earlier radio systems and
the high cost of ISDN lines. Communication proto-
cols are mostly in the application layer and most of
them are still proprietary like MODBUS from Mod-
icon. The trend is that these proprietary protocols are
moving toward open and standardized protocols, for
example, Profibus from Siemens, Device Net from
Allen Bradley, DNP3 and subsequently IEC61850
from EPRI, and IEEE 60870.
Computer scientists consider SCADA systems as
connected IT systems. A typical networked SCADA
system can be depicted by Figure 2 in which several
SCADA hosts uses HMI to connect Master Terminal
Units (MTU) that serves as a basic central control
station (BCCS). The BCCS hooks with controllers
like RTUs and PLCs securely via wireless network,
Switched Public Telephone Network or Internet.
These controllers link to field elements.
The efforts of moving standalone SCADA sys-
tems to networked SCADA systems represent an
evolution path of SCADA systems when they were
first appeared about fifty years ago.

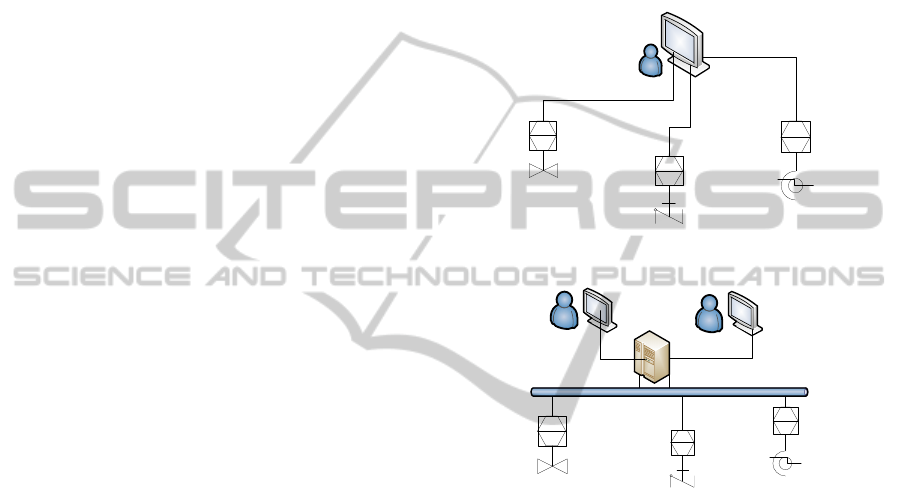

Figure 1: A typical Standalone SCADA System.
Figure 2: A typical
Networked SCADA System.
The notion of moving SCADA systems into cloud
computing is quite controversial and eye catching.
Some researchers believe it will benefit greatly for
the next generation SCADA systems such as smart
grid, renewable energy (Vyatkin, 2010; Gustavsson
and Ståhl, 2010; Geberslassie and Bitzerl, 2010) and
the virtualization concept in cloud is actually en-
hancing security (Communication in ACM) while
others believe the virtualization is overkill, especial-
ly when defending malware such as rootkit (Bratus,
In our survey of NY Metro North Subway and
Rail SCADA system (Figure 3 and 4), while it is
wary about the idea of opening its SCADA system
to a cloud, especially about to a public cloud, it
believes it will benefit if it adopts some of the typi-
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
cal cloud features or characteristics like self-
configuration, broad network access and resource

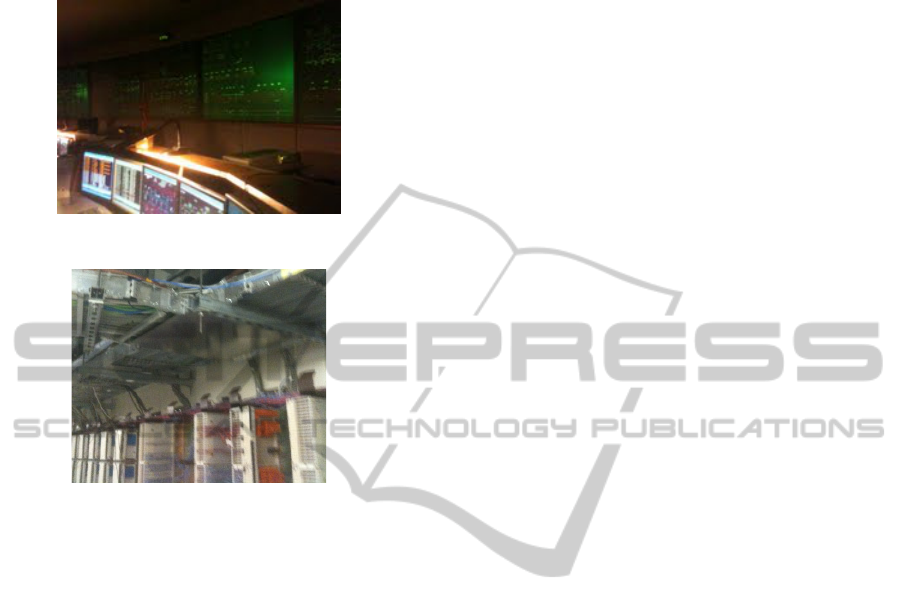

Figure 3: Control Room.
Figure 4: Communication Room.
For example, virtualization can help mass confi-
guration if it updates its out-dated controllers to
more standard network enabled ones with more
processing power and memory. Another example is
using IP cameras to monitor remote controllers and
field elements can be done in a private cloud envi-
ronment. The surveillance system can be indepen-
dent from the existing SCADA system or be a part
of SCADA system that can trigger a sequence of
control actions when undesired events like intruders,
fire alarm, and power shortage are detected.
Processing, protecting and preserving these high
volume video streaming data is an ideal candidate
for cloud computing.
Because of security concerns in most times is tri-
umph over cost saving due to the nature of SCADA
systems, we do not see the possibility of moving
SCADA to a public cloud in the near future unless
some special arrangements or dramatic security
technology advancement. Like many big trading
companies that do not use a public cloud but shift to
a private cloud internally, SCADA systems can
adapt to a private cloud or even a community cloud
that shares the same concerns. As we know, cloud
computing is basically a collection of net centric
technologies. A private cloud can shield the notion
of open SCADA systems to public although it is not
absolutely true. At the same time, SCADA systems
in the cloud can share the computing resources
needed, sharing data acquired from field controllers
so that decision makers can have accurate and near
real time data.
We need to emphasize that a private cloud is not
sharing controls while sharing data. Technically,
sharing data can be done using various mechanisms.
One non-intrusive mechanism is to capture image
displayed in an operator screen inside a SCADA
host. This will make the alteration of data during
transmission much harder. It addresses more data
integrity than confidentiality. So the adaptation
should move in a careful staging process.
Another area is to provide redundancy resources.
SCADA systems controllers can stretch over a large
geography area. They are vulnerable to terrorism,
vandalism or lost of system controls. System relia-
bility is of the utmost importance; therefore redun-
dancy is prevalent throughout the system. The Con-
trol center and each RTU have a dedicated UPS
system, redundant communication lines, and servers.
Cloud network would solve many of these issues.
In a keynote address to the National Science Foun-
dation workshop on Critical Infrastructure Protection
for SCADA & IT, Dr. Arden Bement listed several
incidents to illustrate the vulnerability of SCADA
systems (NSF Workshop, 2003). He dismissed the
notion of “Obscurity” if we think SCADA systems
are highly customized, highly technical, and there-
fore the guys in the black hats won't be able to figure
them out in addition to the fact that 60 to 70 percent
of all industrial security breaches are carried out by
someone on the inside.
NSA lists a checklist on securing SCADA and
CS (Control Systems): Develop a Security Policy;
Establish Physical Security; Lockdown Perimeter
Security; Enable Existing Security Features; Secure
Operational Traffic; Secure Management Traffic;
Manage the CS Configuration; Eliminate Security
Shortfalls; Continuous Security Training; and Per-
form Security Audits Systems (SCADA and CS).
Developing a proper security policy set a founda-
tion for securing SCADA systems and its CS assets.
It defines and places controls in various stages. With
security policy in place, proper enforcement plays
crucial roles in securing SCADA systems. For ex-
ample, strict access control to SCADA should be
periodically reviewed. Cut off unnecessary connec-
tion to outside is essential.
One of the major issues with SCADA systems
are legacy devices and proprietary protocols that are
still in use. Although many of existing SCADA
equipments is quiet reliable, their support is more
and more difficulty due to the change in manufactur-
ing and the advance in technology. In addition,
many manufacturers have stopped supporting these
equipments that use proprietary protocols. Therefore
many system managers are anxious to upgrade their
SCADA systems. On one hand, it provides an op-
portunity for better data translation, data propagation
and data protection when companies start to upgrade
its devices in SCADA system to more standardized
ones. On the other hand, it also poses great potential
problems when legacy devices are used with these
newer devices. Not only are data translation and data
propagation not supported, performance and reliabil-
ity will suffer as well. System administrators often
fail to conduct proper risk analysis of their current
system and the implementation of any new technol-
ogy. Development of platforms that interact with
legacy systems and the modern SCADA network
help to create the synergy necessary to achieve an
efficient and reliable platform that has the ability to
give the security, reliability and adaptability.
When moving networked SCADA systems into
Cloud, we also need to develop checklists for audit-
ing that will provide a level of confidence of doing
things right and doing right things, just like we did
when we moved standalone SCADA systems to
networked SCADA systems.
Progress in the area of standardization is best
achieved by external organizations such as Interna-
tional Standards Organization (ISO), International
Federations of Information Processing Societies
(IFIPS), the Institute for Electric and Electronic
Engineers (IEEE), the International Communications
Associations (ICA), and other well respected and
recognized groups (Selig, 2003).
In the utilization of cloud services, the assump-
tion should be a predication that such cloud services
should show a level of reliable and security. The
goal of the designer should be to create a level of
security that will enable the system to remain secure
if any part of the system is compromised.
Some of the feature needed to create a more se-
cure SCADA cloud system can be summarized in
the table 1.
Moving networked SCADA systems to a public
cloud has many unanswered questions and poses
many security challenging. It is often controversial.
It is evident when we approached NY Metro North
Rail system. But, private cloud and even community
cloud is more acceptable. The project also assesses
existing SCADA equipments that are amazingly
Table 1: Securing Cloud SCADA Systems.
Auditing Internal auditing
External auditing
Data encryption VPN
PKI Systems
Physical Security Facilities
Software Security Trustworthy
Business Continuity and Disaster Recovery Continuity Planning
Identify Critical Business Function
Establish Recovery Time Objective
Network Security Establishing a Network Security Manage-
ment Team
Transmission Control
Connection Control
Quality of service Measurable metrics
Framework COSO
ICEIS 2011 - 13th International Conference on Enterprise Information Systems
reliable although outdated. It is in the process of
updating these equipments.
Recently, we see renewed interests in SCADA
systems. Not only are SCADA systems still used in
our national critical infrastructures such as power
grid, railway systems, gas pipelines and nuclear
power plants, but also the movement from isolated
systems to more open systems and lack of skilled
professionals. Research and training are both impor-
tant. Both NSA (National Security Agency) and
DHS (Department of Homeland Security) have
looked into our national SCADA systems, its vulne-
rability and weakness as well as protection mechan-
isms ((SCADA and CS; Testimony of Deputy Under
Secretary Philip Reitinger; Securing Industrial Con-
trol Systems in the Chemical Sector, 2011), for ex-
In summary, we should pay more attentions to
SCADA systems and the trend of upgrading. Proper
risk assessment should be done. Cloud computing
has huge potential in IT services. Incorporating both
should be able to deliver more efficient control sys-
Securing Supervisory Control and Data Acquisition
(SCADA) and Control Systems (CS), http://
Protecting America's Critical Infrastructures: PDD 63
Krutz R., Securing SCADA Systems, Wiely Publishing
Inc, 2006
NIST Definition of Cloud Computing v15, http://
Security Guidance for Critical Areas of Focus in Cloud
Computing V2.1, by Cloud Security Alliance, Decem-
ber 2009.
Chen, Z. and Yoon, J.: IT Auditing to Assure a Secure
Cloud Computing. The proceedings of the 6th IEEE
World Congress on Services, July 5-10, 2010, Miami,
Florida, USA, 253-259 for general descrip-
Will Forrest, Clearing the Air on Cloud Computing, Dis-
cussion Document from McKinsey and Company,
March 2009
NIST Presentation on Effectively and Securely Using the
Cloud Computing Paradigm v26, accessed on
Open Security Architecture Group http://
Vyatkin, V., et al, Toward Digital Ecologies: Intelligent
Agent Networks Controlling Interdependent Infra-
structures, 1st IEEE Conference on Smart Grid Com-
munications, Gaithersburg, October, 2010
Gustavsson, R.; Ståhl, B.; The empowered user - The
critical interface to critical infrastructures, the 5th In-
ternational Conference on Critical Infrastructure
(CRIS), 2010
Geberslassie, M.; Bitzer, B.; Future SCADA systems for
decentralized distribution systems, the 45th Interna-
tional Universities Power Engineering Conference
(UPEC), 2010
Communication in ACM, Virtualization is good for securi-
Bratus, S., Locasto M., Ramaswamy, A. and Smith
S.;VM-based security overkill: a lament for applied
systems security research, Proceedings of the 2010
workshop on New security paradigms, 51-60, 2010
The NSF Workshop on Critical Infrastructure Protection
for SCADA & IT in Dr., Director - National Institute
of Standards & Technology, October 20, 2003,
Selig, Gad J. “Strategic Planning for Information Resource
Management A Multinational Perspective” UMI Re-
search Press Ann Arbor, Michigan 2003
Testimony of Deputy Under Secretary Philip Reitinger,
National Protection and Programs Directorate, Before
the United States House Committee on Homeland Se-
curity Subcommittee on Cybersecurity, Infrastructure
Protection, and Security Technologies, "Examining the
Cyber Threat to Critical Infrastructure and the Ameri-
can Economy" (
Securing Industrial Control Systems in the Chemical
Sector, Roadmap Awareness Campaign – A Case For
Action, Developed by the Chemical Sector Coordinat-
ing Council in partnership with the U.S. Department
of Homeland Security, April, 2011 (http://
action-042011.pdf). Note, DHS has many relevant
documents related to the SCADA systems.
