A SITUATION-DEPENDENT SCENARIO GENERATION

FRAMEWORK FOR PROJECT MANAGEMENT

SKILL-UP SIMULATOR

Koichi Iwai

, Masanori Akiyoshi

, Masaki Samejima

and Hiroshi Morihisa

Graduate School of Information Science and Terchnology, Osaka University, Yamadaoka 2-1, Suita, Osaka, Japan

NS Solutions Corporation, 20-15 Shinagawa 2 Chome, Chuo-ku, Tokyo, Japan

Keywords:

Project management simulation, Scenario generation, Trouble event control.

Abstract:

This paper addresses a new framework aiming situation-dependent scenario generation for project manage-

ment skill-up simulator. Project management is inherently human-centric activities, and research work for

education has been done by using simulation. Project management covers several aspects on software de-

velopment such as planning, scheduling, progress management and negotiation. We especially focus on the

progress management phase to provide high ﬁdelity of project status and well-conﬁgured learning situation

towards pedagogical achievement. First three design principles are argued for such viewpoints. Second sim-

ple but fully functional project modeling is proposed for simulating essential aspects of Q(uality), C(ost) and

D(elivery) criteria. Third situation-dependent scenario generation is described with “Events” and “Trigger

control of trouble events”. The proposed framework is implemented and shows effective scenario generation

when having a trainee’s interactive operations.

1 INTRODUCTION

Management of software development is often argued

from Q(uality), C(ost), and D(elivery) viewpoints. Of

course such “QCD” is signiﬁcant criteria from both

developer and outsourcer enterprise activities. There-

fore several tools or a reference guide book (PMI,

2009) are provided for the software project manage-

ment. However, even if such tools and books are well-

prepared, one of the signiﬁcant factors that lead to

success of the project is still under project managers’

knowledge and skill so far. Therefore education on

project managers are crucial aspects and educational

framework is discussed, for instance, OJT(On the Job

Training), PBL(Project Based Learning), RP(Role

Playing) and so forth. The difﬁculty of project man-

ager education is due to the lack of deﬁnitive way of

tutoring methodology, because guidance along with

pre-deﬁned scenarios are not effective to learn deep

insight on project management. From such charac-

teristics on project manager education, expert tutors

are indispensable to provide good pedagogical envi-

ronment to trainees, which costs much and limits the

number of trainees.

Based on these aspects on project manager ed-

ucation, there exists strong need to establish the

method on hands-on computational learning environ-

ment with situation-dependent scenarios and peda-

gogical guidance. One of the most expected approach

is to apply simulation technology with reactive func-

tionality to a learner’s operations. Since the optimized

or complete operational sequence as to the project

depends on the situation and is inherently difﬁcult

to solve, the requirement on pedagogical guidance is

sufﬁciently explanatory itself even if it provides semi-

optimal operations. On the other hand, the require-

ment on situation-dependent scenarios have strict cri-

teria such as no contradiction to our real project man-

agement world. Scenarios need to provide ﬁdelity

in a sense. This paper addresses such a situation-

dependent scenario generation method with project

simulation. Project simulation model is also dis-

cussed to achieve our ﬁnal goal. In the following sec-

tions, design principle, scenario generation method,

experimental results, and related work are described.

408

Iwai K., Akiyoshi M., Samejima M. and Morihisa H..

A SITUATION-DEPENDENT SCENARIO GENERATION FRAMEWORK FOR PROJECT MANAGEMENT SKILL-UP SIMULATOR.

DOI: 10.5220/0003609504080412

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 408-412

ISBN: 978-989-8425-77-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 DESIGN PRINCIPLE OF THE

PROJECT MANAGER

SKILL-UP SIMULATOR

As mentioned before, detail investigation on design

principle is necessary to construct the project man-

ager skill-up simulator with scenario generation. First

of all, we set the target scope on project management

education, because it includes planning, schedul-

ing, progress management and negotiation in general.

Since “QCD” is directly related to progress manage-

ment, this paper focuses on progress management as-

pect, which might ﬁt to use simulation.

2.1 Principle from Management

Metrics

As for the progress management, “Gantt chart” is usu-

ally used as interfaces for grasping overall project sta-

tus in practical software development project. In fact,

from the gantt chart, expert project managers pre-

dict several factors which cause some obstacles in the

project. For instance, trouble symptoms on progress

delay are implicitly appeared in the chart bar length

change of actual results. Recent EVM(Earned Value

Management) methodology is also useful to predict

performance of the project. High ﬁdelity is signiﬁcant

factors to educate trainees, the ﬁrst design principle of

our proposed simulation model is to fully generate the

project dynamics from such “EVM” metrics.

2.2 Principle from Educational

Contradiction-free

Under the condition that such project dynamics is pro-

vided by the simulation model, if any operation by

trainees resorts to project management failure, it is

not effective as educational functionality. This is con-

tradiction as educational methodology. So it is neces-

sary to guarantee that some operations lead to project

management success and others lead to project man-

agement failure in accordance with situations. Since

the situation is generated based on initial project sta-

tus and operations by trainees, such contradiction is

not deﬁned in advance. Therefore the second design

principle of our proposed scenario generation is to

guarantee the project dynamics from such educational

contradiction-free.

2.3 Principle from Learning Difﬁculty

Adjustment

A trainee’s operation drives the project status by using

the simulation model. If a trainee of novice project

manager level faces to complex situation, he/she fails

to make appropriate operations even if he/she has suf-

ﬁcient knowledge. Of course having some failures is

effective to awaken his/her consciousness and knowl-

edge, but it is also necessary to avoid confused situa-

tion when he/she cannot judge the situation. This in-

dicates adjusting scenarios along with acceptable dis-

order on the project status. The educational aim is

not to provide failure experience but to make trainees

awaken their knowledge and skill when facing some

symptoms on project obstacles. During the session

of “project manager skill-up simulator”, it provides a

sense of tightrope walking and ﬁnally crossing over

the gap. The third design principle is to control the

scenario with learning difﬁculty adjustment.

3 SCENARIO GENERATION

WITH SIMULATOR

Our three design principles provide high ﬁdelity of

real project management and situation-dependent sce-

nario of pedagogical viewpoints. Figure 1 shows out-

line of the learning environment. The most distinctive

feature of the environment is project model with gen-

erating dynamics from “EVM” metrics and scenario

generation event triggering mechanism with a sense

of tightrope walking.

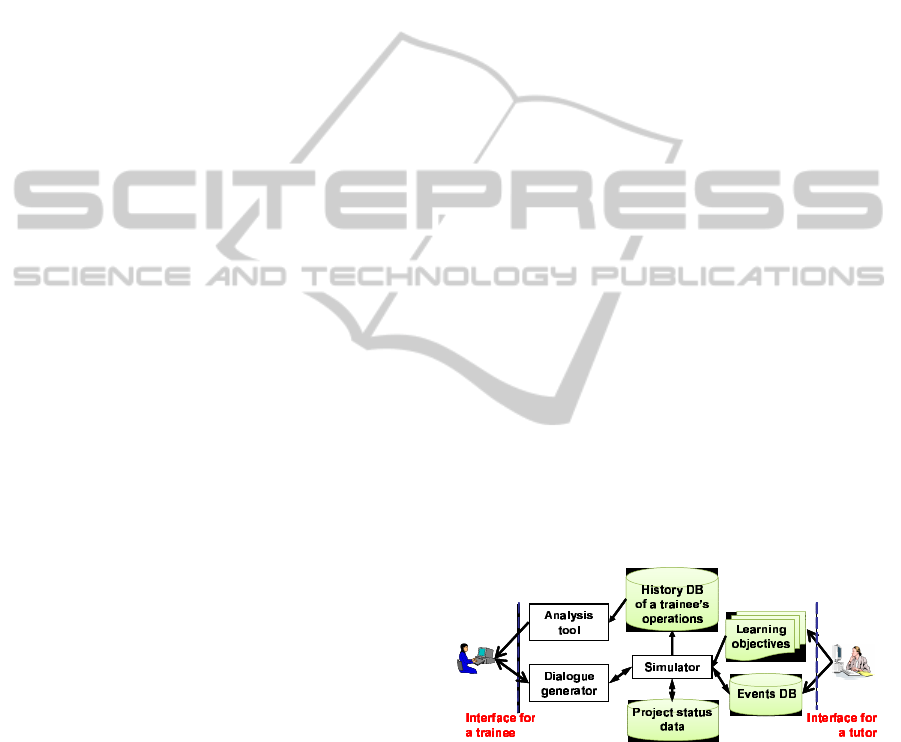

Figure 1: Outline of the learning environment.

3.1 Project Model

The project model mainly consists of “Project”,

“Module”, and “Person” as they exist in the real

project. “Project” deﬁnes a set of modules to

be developed and members to be assigned to the

project. The dependency of modules is depicted as

a whole. “Module” deﬁnes each estimated man-

hour and technical domain such as database, and

its difﬁculty ranked with “A(difﬁcult)”, “B(normal)”

A SITUATION-DEPENDENT SCENARIO GENERATION FRAMEWORK FOR PROJECT MANAGEMENT

SKILL-UP SIMULATOR

409

and “C(easy)”. “Person” deﬁnes each member’s

skill on technical domains ranked with “A(expert)”,

“B(normal)” and “C(novice)”. These three level de-

scription on module difﬁculty and person skill gen-

erates project dynamics from “EVM” viewpoints. In

fact, mismatching between module difﬁculty and per-

son skill is main cause of schedule delay and qual-

ity loss of a project. And the most crucial task as a

project manager is to detect/predict such schedule de-

lay and quality loss from project crisis management

and to make proper operation, for instance, “over-

time directive”, “member assignment change” and

“increase personnel number”. In a certain situation,

“overtime directive” is accompanied with supervis-

ing action which means well-skilled members teach

members under trouble, especially debugging of de-

tected bugs. In fact, the process of debugging gener-

ates new bugs and some members cannot solve such

iterative chain of generating bugs without supervis-

ing. In addition to the detected bugs, latent bugs are

also modeled.

Thus our project model really mimics the real

world project essential dynamics with schedule de-

lay from member assignment and quality loss from

bug generation. The schedule delay inﬂuences to

D(elivery) metric and the quality loss including latent

bugs does to Q(uality) metric. C(ost) metric is calcu-

lated from overtime, supervising and increase person-

nel number for recovery operation against schedule

delay and quality loss.

EVM(Earned Value Management) traces the three

project management indices; planned value, earned

value, and actual cost along with time-line. The dif-

ference of planned value and earned value indicates

either delay or ahead of schedule. The difference of

planned value and actual cost indicates either addi-

tion or reduction of man-hour. In our project model,

the planned value corresponds to planned man-hour

cost depicted in the “Module” attribute. The earned

value corresponds to converted man-hour cost which

is derived from the dynamical progress model using

the difﬁculty attribute of “Module” and the skill dif-

ﬁculty of “Person”. The actual cost corresponds to

man-hour cost which basically adds surplus cost to

initially planned man-hour cost for recovery opera-

tion. Estimation error on initially planned man-hour

is not modeled so far, therefore surplus cost comes

from debugging in our simulation.

Table 1 shows attributes of the model, related

project dynamical aspects and related EVM metrics.

Table 1: Model, project aspects and related EVM metrics.

Model

attributes

Project

aspects

EVM

metrics

project

bug ratio

standard

no. of bugs actual cost

module

dependency

member

assignment —

module

difﬁculty

no. of bugs,

member

assignment

earned value

actual cost

module

man-hour

overtime

directive actual cost

person

skill

no. of bugs,

member

assignment

earned value

actual cost

person

overtime

earned value

actual cost actual cost

3.2 Scenario Generation

3.2.1 Events

The trainee basically receives daily report as to each

module and grasp the project status. Daily reports

include daily progress and problem if exists, that is,

symptoms on schedule delay and troublesome debug-

ging related to quality loss. Hence such reports some-

times do not reﬂect true status in spite of quite critical

ones for the project manager. Therefore individual

review, we call progress check, is necessary in ad-

dition to formal review meetings. Such prophylac-

tic action skill is regarded as the most indispensable

one as well-skilled project managers. The progress

check discloses hidden progress delay and accumu-

lated bugs, and arouse a trainee to make operations or

leave as it is.

Scenario is generated based on the above-

mentioned intertwined interaction between model-

driven dynamics and a trainee’s operations. Figure

2 shows a screenshot on the prototype simulator with

“Gantt chart” and “interaction panel” interface. The

module status is displayed with two bars that rep-

resent initial planned duration and changed duration

of starting date and completing date, and progress

bars indicating each module progress in a green and

red color. The “green” portion means the completed

progress, and the “red” portion means the remaining

man-work. This progress bar provides quite signif-

icant information to a trainee from practical view-

points. If the green colored portion remains un-

changed, the module is probably under debugging

process. If the change rate of the green colored por-

tion is lower than the day progress indicator that is

gray-ﬁlled in the chart area, the module has possibil-

ity of progress delay. In real projects, such investiga-

tion is necessary to grasp the project status deeply.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

410

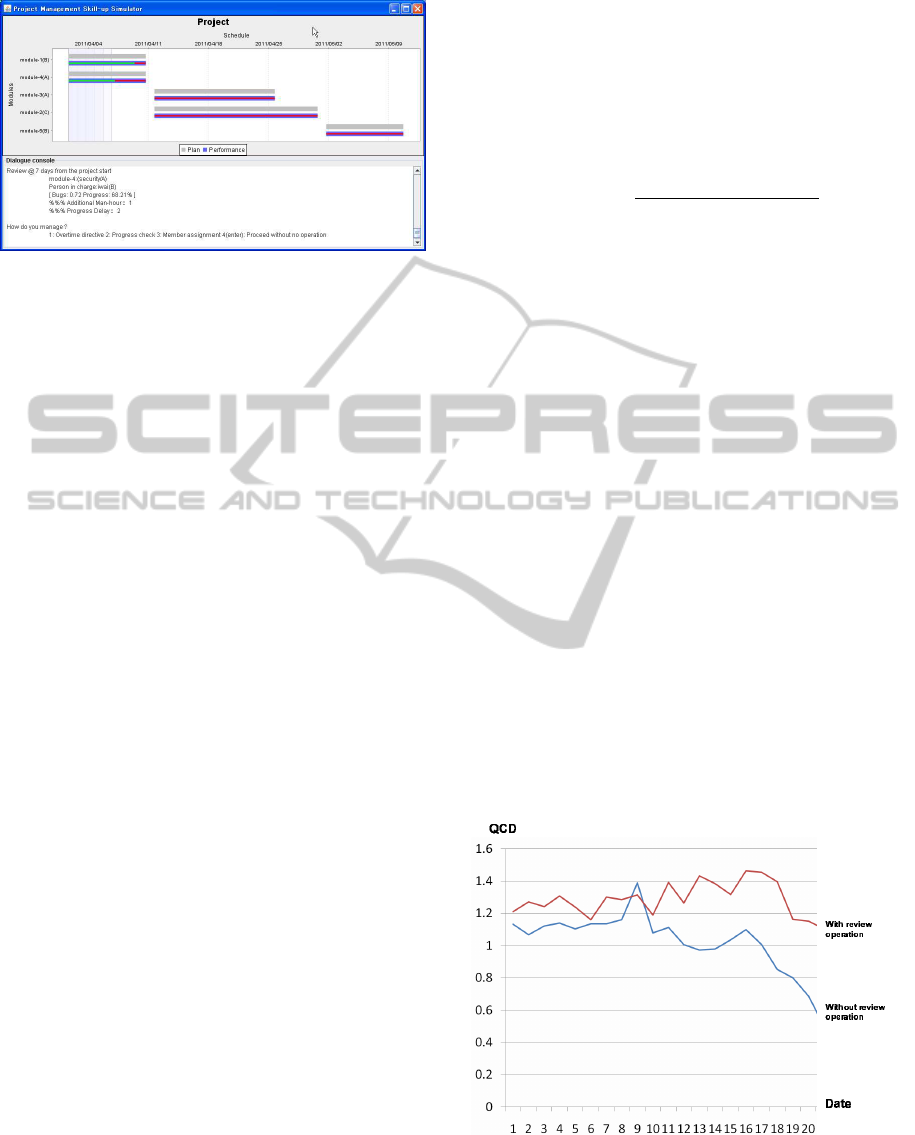

Figure 2: A sample screenshot of simulator interface.

What we explained so far is normal events in a

sense, since the project model generates daily dynam-

ics on itself and operations by a trainee are mostly

normal reactions if he/she detects the symptoms on

project crisis. Therefore a trainee who has knowledge

on project management such as PMBOK contents and

experience on ordinal projects such as small delay and

standard volume of bugs, he/she could accomplish the

project management under allowable “QCD” criteria.

From educational viewpoints as indicated before, a

sense of tightrope walking is necessary to enhance a

trainee’s skill, which is really our intended goal as a

skill-up simulator. To achieve it, we introduces trou-

ble events such as sudden increase of detected bugs

at the progress check and much progress delay occur-

rence under well-ongoing module development so far.

The former case may be implicitly induced by plan-

ning error based on design speciﬁcation in the real

world project, but we do not care about the cause to

manage the progress in this simulator. The latter case

may be caused by a member’s health condition or mo-

tivation in the real world project. However we also do

not care about the cause. Trouble events currently de-

signed are shown in Table 2.

3.2.2 Trigger Control of Trouble Events

Both normal and trouble events are injected into the

simulator whenever they are triggered. Therefore it is

necessary to control them from the principles of “ed-

ucational contradiction-free” and “learning difﬁculty

adjustment”. Heuristic rules seems not to be prac-

tical, because the project status is inherently inﬁnite

in a sense. However a trainee is expected to notice

and manage from “QCD” criteria with “EVM” met-

rics. Therefore our approach is simply mapping the

project status to “QCD” criteria score. As discussed

in the section 3.1, Q(uality) is measured by the latent

bugs that cannot be perceived before the project end

date. Therefore intermediate Q(uality) is measured by

the detected bugs not to be removed so far. From this

point, the “QCD” criteria score needs reference score

to control as a whole. The formula 1 uses possible

man-hour as numerator and minimum necessary man-

hour as denominator, which means the project status

is fair if this score equals 1. If the score is less than 1,

the project status is difﬁcult to achieve the initial plan

and vise versa.

QCD(t) =

∗ R

∗W

overtime

+ B

(1)

denotes ”no. of project members”, R

does

“remaining project days”, W

does “standard working

hours”, C

ovetime

does “possible overtime hours”, C

does “remaining coding man-hour”, and B

does

“detected bug removal man-hour”.

The trigger control of trouble events are based on

separation from 1, presumably depending on discrep-

ancy. Assume that tutors also uses this simulator to

set attributes of project models, such discrepancy is

set in advanceby them. During the project simulation,

such discrepancy may frequently occur by a trainee’s

operation. Therefore it is necessary to suppress trou-

ble events. Moreover alleviation on schedule delay or

troublesome bugs are injected as change of internal

parameters so that numerical difference of mismatch

under equal level of the difﬁculty attribute of “Mod-

ule” and the skill attribute of “Person” is canceled or

daily outbreak of bugs is changed to every few days.

As a whole, the proposed simulator introduces

“QCD” criteria score and controls ﬁring and suppres-

sion of trouble events by it, and makes alleviation by

changing attributes of the project model.

Figure 3 shows our experiment on this trigger con-

trol results, which presents “QCD” is almost con-

troled around “1”.

Figure 3: Example of trainee’s operation and QCD value.

A SITUATION-DEPENDENT SCENARIO GENERATION FRAMEWORK FOR PROJECT MANAGEMENT

SKILL-UP SIMULATOR

411

Table 2: Trouble events.

Event

name Description Required skill

Bug

explosion Sudden increase of bugs are ﬁred.

A trainee should estimate how much time

is necessary to remove and what effect is

propagated towards the project.

Bug latent

Detected bugs are almost

stable along with the project progress.

A trainee should make frequent reviews

and decision on supervised mode.

Progress

drop

Progress gradually drops even if

mismatch on module difﬁculty level

and person skill level does not exist.

A trainee should make proper decision on

member re-assignment or supervised

mode.

4 RELATED WORK

Simulation is often used in educational environment

and has been discussed several approach in soft-

ware engineering domain. Research work (Drappa

and Ludwig, 2000) concentrates question and answer

sessions through showing several status reports on

the project. Their system is model-driven approach.

However scenario generation is not enough to make a

trainee face to unexpected situation, since their model

does not include trouble generation, mostly focusing

on member assignment task. Member assignment is

one of project management tasks and it should be re-

lated to schedule delay or bug trouble shooting. When

using the learning environment, feedback is signiﬁ-

cant factor to enhance a trainee’s knowledge and skill.

Such feedback functionality is discussed in (Mandll-

Striegnitz, 2001), which provides several sessions

from “introduction”, “simulation”, “feedback”, and

second-time sessions to notice lessons learned from

the ﬁrst-time sessions. Same as the work (Drappa

and Ludwig, 2000), simulation does not generate var-

ious situation, which our approach intends to provide

high ﬁdelity situation. Recent serious game approach

with high ﬁdelity GUI(Graphical User Interface) is

opening the door to new methodology in software en-

gineering education. Research work (Carlos et al.,

2007)(Hainey et al., 2011) discuss how to teach re-

quirement collection and analysis in software project

management. These works focuses on upper stream

in software management life cycle, of course their ap-

proach could be applicable to the lower stream in the

software management life cycle to some extent. How-

ever, our fully functional project model is more ﬁt to

attain the progress management phase.

5 CONCLUSIONS

This paper proposed a new framework for project

management skill-up simulator, especially focusing

on a situation-dependent scenario generation. Our

project model is simple but fully functional from

project management skill-up. Implementation is still

ongoing and will be evaluated by practical project

management members in near future. Our future re-

search topic also includes how to guide a trainee by

using logs of a trainee’s operations.

REFERENCES

Carlos, M., Zapata, J., and Gabriel, A. (2007). Require-

ments game: Teaching software project management.

CLEI Electrical Journal, 10.

Drappa, A. and Ludwig, J. (2000). Simulation in software

engineering training. In ICSE 2000, pages 199–208.

ACM.

Hainey, T., Connolly, T. M., Stansﬁeld, M., and Boyle, E. A.

(2011). Evaluation of a game to teach requrements

collection and analysis in software engineering at ter-

tiary education level. Journal of Computers & Educa-

tion, pages 21–35.

Mandll-Striegnitz, P. (2001). How to successfully use soft-

ware project simulation for educating software project

managers. In the 31st ASEE/IEEE Fronties in Educa-

tion Conference, pages 19–24. ASME/IEEE.

PMI (2009). The PMBOK Guide. Project Management In-

stitute, fourth edition.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

412
