MODELING REAL-TIME APPLICATIONS FOR WIRELESS

SENSOR NETWORKS USING STANDARDIZED TECHNIQUES

Andreas Blunk, Mihal Brumbulli, Ingmar Eveslage and Joachim Fischer

Department of Computer Science, Humboldt-Universit

at zu Berlin, Unter den Linden 6, 10099 Berlin, Germany

Keywords:

Wireless sensor networks, Standardized languages, UML, SDL-RT, Code generation, Simulation, Performance

evaluation.

Abstract:

The development of applications for Wireless Sensor Networks is a challenging task. Any approach for devel-

oping such applications needs to provide means for describing their functionality, obtain an executable, and

be able to evaluate their potential real-time behavior. This paper shows how standardized techniques can be

used to address these challenges by giving a real application example. We evaluate our approach based on

experiment results and provide some considerations on the used standardized languages.

1 INTRODUCTION

Wireless Sensor Networks (WSNs) have become pop-

ular for monitoring physical phenomena. Still, the

development of applications for such complex sys-

tems remains a challenging task. For this the devel-

oper needs to describe the application’s functionality,

obtain an executable from it, and be able to evaluate

its potential real-time behavior. These are general re-

quirements that any approach for developing applica-

tions for WSNs needs to consider.

We focus on using standardized techniques as

a possible solution, because they offer description

means on a much higher level than general purpose

languages and can be understood by large groups of

people from different domains.

In our days the most recent and well-known stan-

dardized language is the Uniﬁed Modeling Language

(UML) by the OMG (OMG, 2010). Although UML

has proven successful for some applications, its se-

mantics are sometimes unclear or incomplete (by so-

called semantic variation points). They leave room

for interpretation, making model execution a difﬁcult

task.

But standardization efforts did not start with

UML. The Speciﬁcation and Description Language

(SDL) (ITU, 2007a) has a long history in model-

ing the functionality of telecommunication protocols.

The strong side of SDL is a combination of the wide-

used concept of communicating state automatons.

These are represented by a graphical notation with a

mathematical foundation of the static and dynamic se-

mantics of the language. Because of these strengths,

the standardized version SDL-2000 had an important

inﬂuence on the UML 2.0 standard. Also efforts were

made in deﬁning SDL as a precised subset of UML

(ITU, 2007b). A more pragmatic approach is SDL-

RT (SDLRT, 2011), which is an extension of standard

SDL by UML.

Our goal is to evaluate the standardized techniques

using SDL-RT for developing applications for WSNs.

We focus on (1) modeling their functional aspects, (2)

generating executable code, and (3) evaluating perfor-

mance based on their real-time behavior. For this we

provide a real example of an earthquake early warning

application.

In Section 2 we present some related work. Next,

we start by introducing SDL-RT (Section 3) as stan-

dardized technique for describing communicating

systems. In Section 4 we outline the functional as-

pects of our application example and our approach

for code generation and performance evaluation. In

Section 5 we provide our evaluation based on exper-

iment results and some considerations regarding the

used standardized languages. We present the conclu-

sions of our work in Section 6.

2 RELATED WORK

Network simulators are considered a good tool for

evaluating the potential real-time behavior of applica-

161

Blunk A., Brumbulli M., Eveslage I. and Fischer J..

MODELING REAL-TIME APPLICATIONS FOR WIRELESS SENSOR NETWORKS USING STANDARDIZED TECHNIQUES.

DOI: 10.5220/0003599601610167

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

161-167

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

tions running on a distributed and networked environ-

ment. Simulators like ns-2 (NS2, 2011), ns-3 (NS3,

2011), OMNET++ (OMNET, 2011), and JistSwans

(JIST, 2011) provide such an environment for both

wired and wireless networks. Nevertheless, the de-

scription of the functional behavior of the applica-

tion remains a challenging and tedious task. In many

cases this is done by using a general purpose language

(e.g. C++ in ns-3 or Java in JistSwans). It is quite

difﬁcult to use these non-standardized techniques for

performance evaluation because of their framework-

dependency, which produces different models for the

same application. Also, there is no way of using these

models for generating code for a target platform (e.g.

the operating system of a WSN-node).

In this context, some integrated tool environments,

that combine standardized techniques with different

kinds of simulators and code generators for different

platforms, have been proposed.

The SPACE (Kraemer et al., 2009) method can

be used for the rapid engineering of reactive systems.

The method is based on reusable building blocks that

express their behavior in terms of UML activities and

collaborations.

The WISENES (Kuorilehto et al., 2008) frame-

work can be used for the design, simulation, and eval-

uation of WSNs. The WSN protocols and applica-

tions are modeled in SDL. These models are compiled

to executables used for both simulation and ﬁnal im-

plementation.

ns+SDL (Kuhn et al., 2005) enables developers to

use SDL speciﬁcations as a common base for the gen-

eration of simulation and target code. The approach

uses the ns-2 simulation framework for performance

evaluation of SDL models.

We use the GAF4WSN framework (Ahrens et al.,

2009) for the design, simulation, evaluation, and de-

ployment of applications for WSNs. The same SDL-

RT model is used for generating code for several sim-

ulators and the target platform.

3 MODELING WITH SDL-RT

SDL-RT is a pragmatic combination of the standard-

ized languages SDL, UML, and C++ for modeling

different aspects of real-time systems. These aspects

include the modeling of a system’s structure, its be-

havior, its initial conﬁguration, an object-oriented de-

scription of data structures, and a description of ac-

tions in C++. The notation of SDL-RT is graphical on

the SDL/UML-part and textual on the C++-part.

The following paragraphs provide a short descrip-

tion of the languages involved in SDL-RT with re-

spect to the supported subsets of concepts.

3.1 SDL Subset

SDL-RT includes a subset of SDL-2000 with some

additions and modiﬁcations, but these do not fun-

damentally change SDL’s semantics. It adds a

semaphore concept that can be used to protect access

to global variables and changes the names of certain

SDL constructs (e.g. a signal in SDL is renamed to a

message in SDL-RT).

3.1.1 Basic Constructs

In SDL a system is modeled by a composition of

agents and communication constructs. While agents

model the structure and the behavior of the system,

the communication constructs are used for modeling

possible information exchange between them. The

agents come in two ﬂavors: block agents and process

agents. A special block agent is the system agent,

which is the outermost agent of the model. A brief

overview of these concepts is depicted in Figure 1.

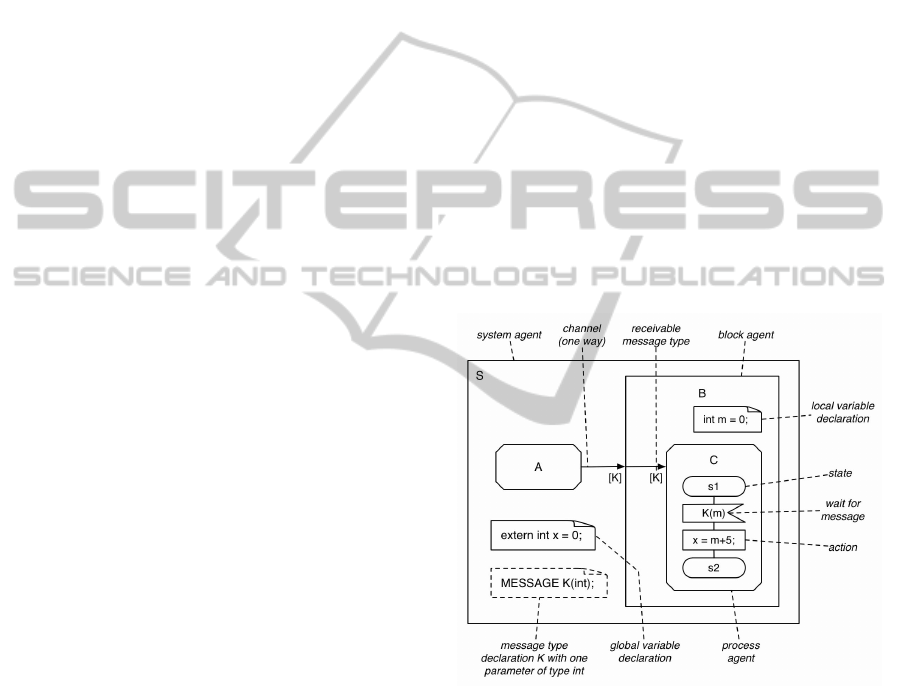

Figure 1: Excerpt of a sample system model using basic

SDL concepts.

Block agents are composed of other agents and

communication constructs. They are solely used for

structuring the model in a hierarchical way and do not

specify a behavior on their own.

Process agents model active elements of a system

and are executed concurrently. Their behavior is spec-

iﬁed by a communicating state machine, which may

also include local variables and procedures. Process

agents can react to a message reception or to an ex-

piration of a timer. They act by invoking procedures,

sending messages, starting timers, dynamically cre-

ating process agents or directly executing C++ code

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

162

(e.g. changing variable values). The messages are

consumed according to their priority ﬁrst and then in

FIFO order.

Communication constructs specify how informa-

tion can be exchanged between agents. These con-

structs specify that communication takes place either

by (1) exchanging messages through communication

channels or (2) accessing global variables. If channel-

based communication is used, channels have to be

speciﬁed between agents including the types of mes-

sages to be exchanged in them. If on the other hand

variable-based communication is used, agents have

to protect concurrent access to global variables by

semaphores.

3.1.2 Instance-oriented and Type-oriented

Modeling

At the language level presented so far, each agent

models a set of agent instances (1 instance by default).

This style of modeling could be named instance-

oriented modeling because agent deﬁnitions may only

be used in the context where they are deﬁned.

Reusing agent deﬁnitions is only possible by us-

ing type-oriented modeling. Here the modeler spec-

iﬁes agents as agent types and places them in pack-

ages from where they may be used in different agent

contexts. The usage of an agent type represents an

instantiation of the type in the context. Communica-

tion can be described in a context-independent way

by using gates. They serve as communication end

points where channels can be connected to at instan-

tiation time. Agent instances may be given a name

and an initial number of instances to be created. Ad-

ditional instances may be created dynamically by pro-

cess agents.

3.1.3 Object-oriented Modeling

Object-oriented modeling is only supported for pro-

cess agents with single inheritance relations between

them. Variables, procedures, and state machines can

be inherited from a base process agent through spe-

cialization. In specialized agents, transitions may be

added or they may overload existing ones. Also base

agents may specify abstract transitions that have to be

made concrete in specializations.

3.2 UML and C++

SDL-RT contains a subset of UML that is used for

object-oriented modeling of data structures and sys-

tem deployment. A subset of UML class diagrams

can be used for modeling data structures. The subset

includes classes (with attributes and operations), asso-

ciations (as aggregation or composition and with uni

or bidirectional relation), and class generalizations.

C++ is used for declaring data types and for spec-

ifying transition actions in state machines. Data types

have to be declared for variables, procedure param-

eters, and message parameters. Here any valid C++

type declaration may be used. Actions are also speci-

ﬁed with C++. This allows an efﬁcient execution and

opens the possibility to easily interface with existing

C or C++ libraries.

4 APPLICATION EXAMPLE

Earthquakes produce different types of seismic

waves: (1) P-waves and S-waves (called body waves);

(2) Rayleigh waves and Love waves (called surface

waves). P-waves (primary waves) travel faster than S-

waves (secondary waves)

. They are less destructive

than the S-waves and surface waves that follow them.

Earthquake early warning is based on the detection

of the harmless P-waves that precede the slower and

destructive S-waves and surface waves.

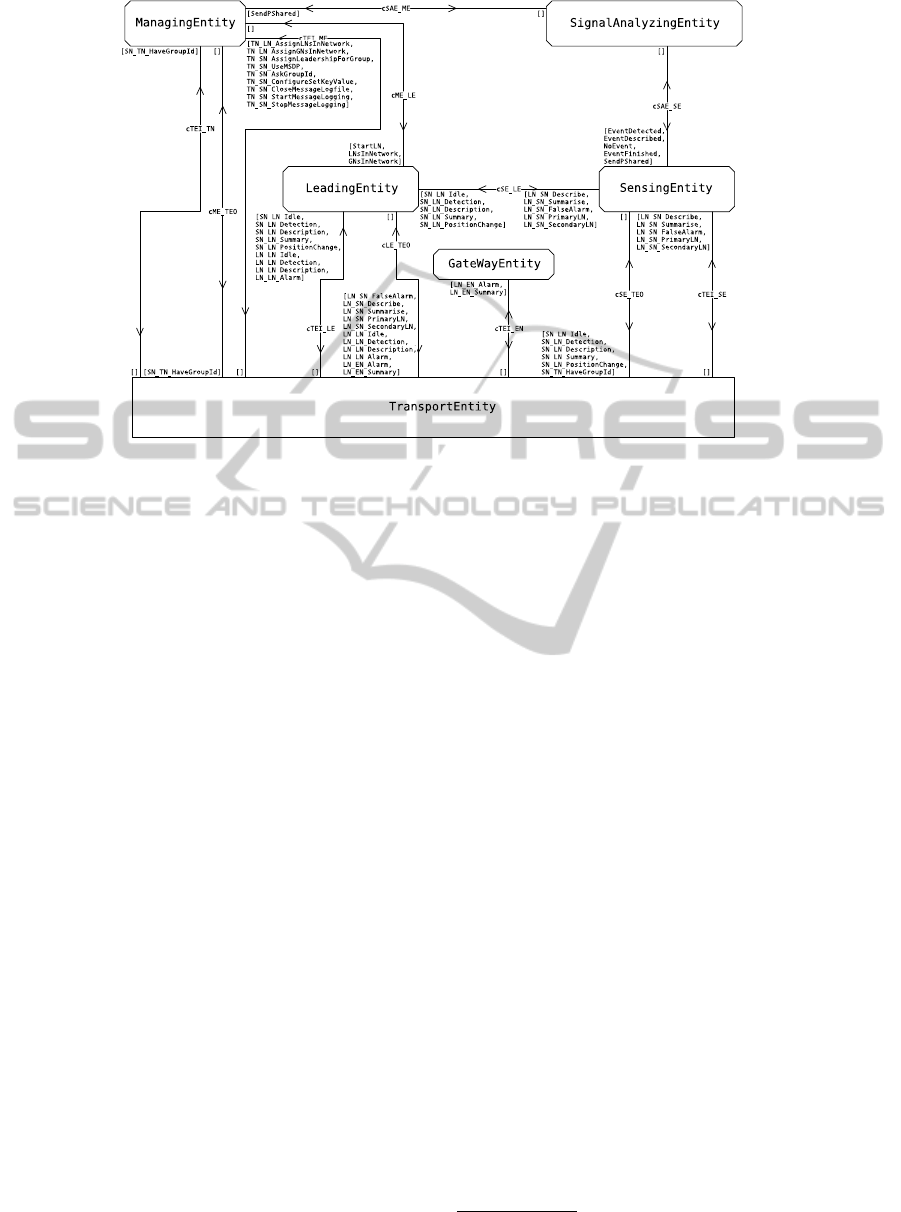

Our application example consists in the devel-

opment of an earthquake early warning application

(Alarming Protocol) (Fischer et al., 2009). The

Alarming Protocol (AP) runs on top of SOSEWIN

(Fleming et al., 2009), which is a decentralized WSN-

based earthquake early warning system. The AP is

a hierarchical alarming system, where the network is

composed of node clusters. The organization of the

network into clusters and the designation of corre-

sponding cluster heads is done at installation time, but

can change dynamically following the changes in the

topology.

The functional aspects of the Alarming Protocol

are described in SDL-RT (Figure 2).

4.1 The Alarming Protocol

As Figure 2 shows, the Alarming Protocol (AP) is

modeled as a set of asynchronous communicating

protocol entities:

• Signal Analyzing Entity (SAE).

The SAE analyzes the incoming streams of data

and informs the SE in case of a detected event.

• Sensing Entity (SE).

The SE reacts on the results received from the

SAE by informing its associated Leading Entity

P-waves travel at 5-8 km/s, and S-waves at 3-7 km/s.

Self-Organizing Seismic Early Warning Information

Network.

MODELING REAL-TIME APPLICATIONS FOR WIRELESS SENSOR NETWORKS USING STANDARDIZED

TECHNIQUES

163

Figure 2: SDL-RT description of the Alarming Protocol.

(LE). The LE is either located on the same node

as the SE if the node is a cluster head or on another

node if it is not.

• Leading Entity (LE).

The LE monitors all associated SEs. It is able to

issue group alerts and system alerts. This entity is

active when the node is a cluster head.

• Gateway Entity (GE).

The GE is responsible for forwarding system

alerts to end-users outside the network.

• Transport Entity (TE).

The TE provides a bridge between AP entities and

the underlying communication layer. In Figure 2

this is represented by a SDL-RT block, which is

composed of two processes (not shown in the ﬁg-

ure) for sending and receiving messages over the

network.

• Managing Entity (ME).

The ME is responsible for interpreting and pro-

cessing network management messages (i.e. es-

tablishment of cluster structures).

The AP’s functionality is deﬁned in two layers, an

intra and a inter-cluster protocol. The former handles

(1) the communication between the SAE and SE and

(2) the communication between LEs and their asso-

ciated SEs. The inter-cluster protocol handles com-

munication between all LEs. When a critical number

of P-wave triggers have reached the LE, it informs its

neighboring LEs. In the case that a LE has received

enough cluster alarms, a system alarm will be sent

as fast as possible to the GEs and other LEs, which

will distributed it to all their cluster members (SEs).

According to this hierarchical principle, three alarm

levels are recognized by the nodes:

• Pre-alarm recognized by the LE, when a P-wave

is detected by at least one SE in its cluster;

• Group Alarm recognized by the LE, when a cer-

tain number of SEs in its cluster have detected a

P-wave;

• System Alarm recognized by the LE, when a cer-

tain number of LEs have triggered a group alarm.

4.2 Target Platforms

The SDL-RT model of the AP is used for generat-

ing code for different target platforms. These include

several simulator frameworks, which are used for per-

formance evaluation of the application, and also the

operating system installed on the WSN-nodes.

The code generation is based on an extension of

PragmaDev’s RTDS

(PRAGMADEV, 2006) with a

new transcompiler (Ahrens et al., 2009; Brumbulli

and Fischer, 2010), which is able to generate C++

code artifacts from SDL-RT models. After compila-

tion the artifacts are linked to different libraries (Fig-

ure 3), producing the corresponding binaries: RTDS

built-in simulator, ODEMx (ODEMX, 2011), ns-3,

and OpenWrt (OPENWRT, 2011).

The RTDS built-in simulator can just be used for

evaluating the functional behavior of SDL-RT speciﬁ-

A SDL-RT tool including an editor, code generator, and

debugger.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

164

Compiler/

Linker

Transcompiler

SDL-RT

SDL

UML

C++

C code

RTDS Transcompiler

RTDS

Simulator

Compiler/

Linker

Boost

C++ code

ODEMx

C++ code

ns-3

C++ code

Boost

Library

Binary

OpenWrt

Compiler/

Linker

ODEMx

Library

Simulation

Script

Binary

ODEMx

Compiler/

Linker

Binary

ns-3

ns-3 Library

Simulation

Script

RTDS

Patterns

Boost

Patterns

ODEMx

Patterns

ns-3

Patterns

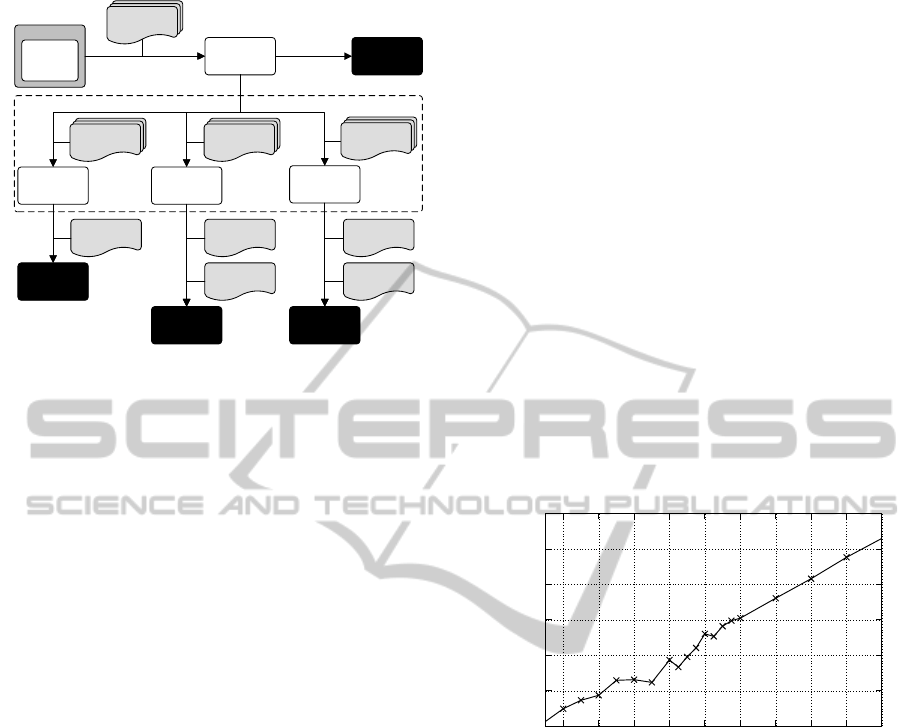

Figure 3: The transcompiler’s architecture.

cations. It cannot be used for performance evaluation.

For performance evaluation of large network topolo-

gies we use two simulation frameworks: ODEMx and

ns-3.

We use ODEMx for simulations without a pre-

cise model of the underlying communication layers.

ODEMx is a general purpose simulation library writ-

ten in C++. It supports process- and event-oriented

modeling of discrete and continuous event systems

and also a combination of both.

We use ns-3 for simulations with a detailed model

of the underlying communication layers. It is a

discrete-event network simulator for internet systems

written entirely written in C++; simulations are also

C++ executables.

Our target platform for the nodes is OpenWrt.

It is a Linux distribution for embedded devices that

provides a fully writable ﬁle system with package

management. This allows us to customize the device

through the use of packages to suit any application.

5 EVALUATION

We evaluate the standardized techniques using UML

and SDL-RT for developing applications for WSNs

based on three criteria:

1. modeling of their functional aspects,

2. generating executable code, and

3. evaluating performance based on their real-time

behavior.

First we present some experiment results for the

Alarming Protocol to show that our pragmatic ap-

proach of using SDL-RT in combination with code

generation and performance evaluation provides a so-

lution for the deﬁned criteria.

Another approach could be to include some new

concepts in the modeling language itself. We think

that this could also provide a solution for the deﬁned

criteria. These proposed concepts are listed in the sec-

ond part of this evaluation.

5.1 Experiment Results

We deﬁne two types of experiments: real-world and

simulation based.

Real-world experiments consist in running the

Alarming Protocol with synthesized earthquake data

on the Humboldt Wireless Lab (HWL, 2011) testbed.

As a result of these experiments, we provide the times

available for early warning in Figure 4. These times

are given as difference between S-wave detection and

System Alarm for different earthquake distances. The

ﬁgure shows that it is possible to use our AP for early

warning.

5000

10000

15000

20000

25000

30000

20 40 60 80 100 120 140 160 180 200

Time for early warning (ms)

Distance of the network from earthquake’s epicentre (km)

Figure 4: Time available for early warning in real-world

experiments.

Simulation based experiments use the ns-3 li-

brary for evaluating potential real-time behavior of

the Alarming Protocol. For a comparison to be possi-

ble, we use the same conﬁguration (network model +

earthquake data) as in our real-world experiments. A

comparison between real-world and simulation based

experiments is shown in Figure 5. Because of the

small differences (less than 150 ms), we can assume

that simulation experiments with larger topologies

can be used to predict the behavior of the AP.

5.2 Modeling Methodology

SDL-RT was created for developing real-time and

embedded systems. We showed in our example that

its pragmatic nature (the combination of UML, SDL,

and C++) can be used successfully for the develop-

ment of applications for WSNs. Nevertheless, we

MODELING REAL-TIME APPLICATIONS FOR WIRELESS SENSOR NETWORKS USING STANDARDIZED

TECHNIQUES

165

100

150

200

20 40 60 80 100 120 140 160 180 200

Time difference (ms)

Distance of the network from earthquake’s epicentre (km)

group alarm

system alarm

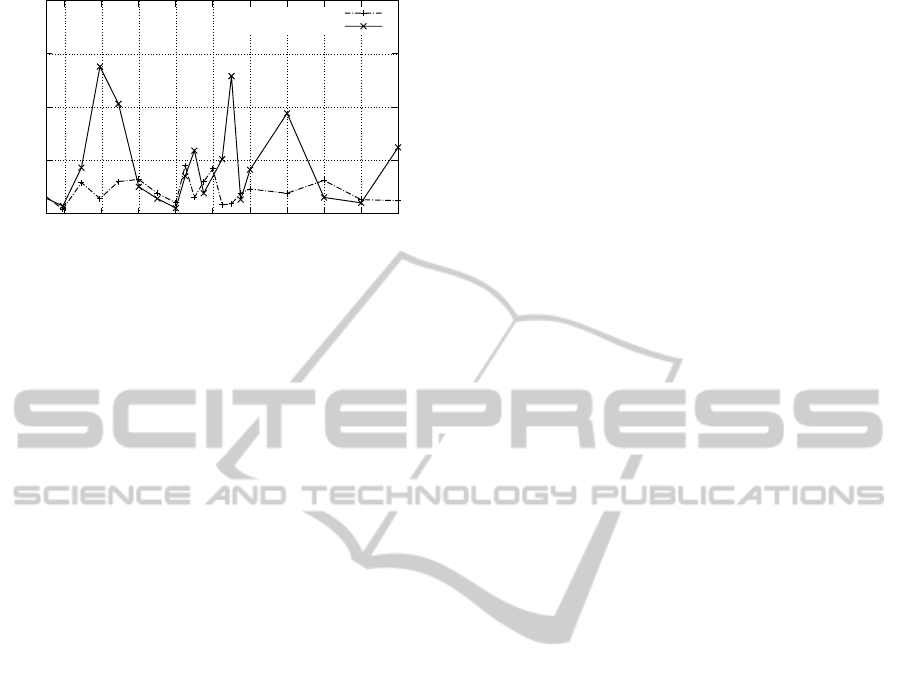

Figure 5: Difference in alarm times between real-world and

ns-3 simulation.

identiﬁed a number of concepts that we believe can

provide better means for describing functional aspects

and evaluating potential real-time behavior of these

applications.

5.2.1 Time Consumption

Modeling the time consumption of actions is an im-

portant aspect when a system’s timed behavior needs

to be evaluated. In SDL-RT, timers can be used for

modeling time-dependent action execution. But when

using SDL-RT timers, functional and timing aspects

are not separated in the model. From such a speci-

ﬁcation, code for either target platform execution or

simulation cannot be generated automatically.

5.2.2 Inter-node Communication

SDL-RT supports communication between agents in

a local one-to-one fashion: one sender to one receiver

in a local context (i.e. sender and receiver are running

on the same node). Although this type of commu-

nication is suitable for embedded systems, the same

cannot be stated for distributed ones (e.g. WSNs).

In these systems inter-communication between nodes

plays an important role, but there are no language con-

structs in SDL-RT that allow an agent to address or

send a message to a remote one (agent running on an-

other node).

5.2.3 Broadcast Communication

When modeling protocols for wireless networks, it is

a common case that information should be send re-

motely to multiple identiﬁable receivers or even be

broad-casted to every receiver in range. But SDL-RT

only supports the sending of information to exactly

one identiﬁable receiver, that must also be reachable

by a complete communication path. We believe that

modeling wireless network protocols could be done

in a more concise way if multi-send or broadcast-send

would be supported by the description language.

5.2.4 Addressing Gates in Message Receives

When entities are able to receive the same type of

message via multiple gates, then it may be necessary

to identify the gate if different gate-dependent actions

are to be taken. This can be done by addressing the

gate where a message is received. Such a feature is

currently not available in SDL-RT.

5.2.5 Dynamic Block Instantiation

Evaluating timed behavior of an application in a dis-

tributed environment may require the creation of sev-

eral application instances depending on the size of the

network. Although this can be achieved in SDL-RT

by static block instantiation, it becomes almost im-

possible for large networks. In this context, we be-

lieve that creating block instances and channels dy-

namically can be helpful.

In SDL-2000 we already have the concept of dy-

namic block instantiation. Nevertheless, this can only

be done in an existing agent context and there are no

means of dynamically creating channels.

6 CONCLUSIONS

The development of applications for WSNs is a chal-

lenging task. This task is handled in different ways,

varying from general purpose languages to domain

speciﬁc ones. Although these techniques do provide

a solution, they can only be used within their speciﬁc

frameworks. This makes it almost impossible to eval-

uate the potential behavior of applications because

different framework-dependent models are used.

In this paper we showed that standardized tech-

niques can be used to describe the functional aspects

of applications for WSNs. Also it was possible to de-

rive from the same model executables for different

platforms so that potential real-time behavior could

be evaluated.

Based on a real application example and our ex-

perience, we identiﬁed a number of concepts that can

provide better means for describing such applications.

We propose to extend the existing modeling language

in order to include these concepts. If such a solution

is really feasible, has to be checked in future work.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

166

REFERENCES

Ahrens, K., Eveslage, I., Fischer, J., K

uhnlenz, F., and We-

ber, D. (2009). The Challenges of Using SDL for

the Development of Wireless Sensor Networks. In

Reed, R., Bilgic, A., and Gotzhein, R., editors, SDL

2009: Design for Motes and Mobiles, volume 5719 of

Lecture Notes in Computer Science, pages 200–221.

Springer Berlin / Heidelberg.

Brumbulli, M. and Fischer, J. (2010). SDL Code Genera-

tion for Network Simulators. In System Analysis and

Modeling - SAM 2010.

Fischer, J., K

uhnlenz, F., Ahrens, K., and Eveslage, I.

(2009). Model-based Development of Self-organizing

Earthquake Early Warning Systems. In Proceedings

MATHMOD 09 Vienna.

Fleming, K., Picozzi, M., Milkereit, C., Kuhnlenz, F., Licht-

blau, B., Fischer, J., Zulﬁkar, C., Ozel, O., et al.

(2009). The Self-organizing Seismic Early Warning

Information Network (SOSEWIN). Seismological Re-

search Letters, 80(5):755.

HWL (2011). http://hwl.hu-berlin.de/.

ITU (2007a). ITU-T Recommendation Z.100: Speciﬁcation

and Description Language (SDL).

ITU (2007b). ITU-T Recommendation Z.109: SDL-2000

combined with UML.

JIST (2011). http://jist.ece.cornell.edu/.

Kraemer, F., Sl

atten, V., and Herrmann, P. (2009).

Model-Driven Construction of Embedded Applica-

tions Based on Reusable Building Blocks - An Exam-

ple. In Reed, R., Bilgic, A., and Gotzhein, R., editors,

SDL 2009: Design for Motes and Mobiles, volume

5719 of Lecture Notes in Computer Science, pages 1–

18. Springer Berlin / Heidelberg.

Kuhn, T., Geraldy, A., Gotzhein, R., and Rothl

ander, F.

(2005). ns+SDL - The Network Simulator for SDL

Systems. In Prinz, A., Reed, R., and Reed, J., editors,

SDL 2005: Model Driven Systems Design, volume

3530 of Lecture Notes in Computer Science, pages

103–116. Springer Berlin / Heidelberg.

Kuorilehto, M., H

annik

ainen, M., and H

ainen, T. D.

(2008). Rapid Design and Evaluation Framework for

Wireless Sensor Networks. Ad Hoc Netw., 6:909–935.

NS2 (2011). http://www.isi.edu/nsnam/ns/.

NS3 (2011). http://www.nsnam.org/.

ODEMX (2011). http://odemx.sourceforge.net/.

OMG (2010). OMG Uniﬁed Modeling Language, Infras-

tructure.

OMNET (2011). http://www.omnetpp.org/.

OPENWRT (2011). http://www.openwrt.org/.

PRAGMADEV (2006). http://www.pragmadev.com.

SDLRT (2011). http://www.sdl-rt.org/.

MODELING REAL-TIME APPLICATIONS FOR WIRELESS SENSOR NETWORKS USING STANDARDIZED

TECHNIQUES

167
