A CLOUD COMPUTING MODEL BASED ON HADOOP WITH

AN OPTIMIZATION OF ITS TASK SCHEDULING

ALGORITHMS

Yulu Hao, Meina Song, Jing Han and Junde Song

School of Computer Science, Beijing University of Posts and Telecommunications, Beijing, China

Keywords: Cloud computing, The computing model, Hadoop, Task scheduling algorithms.

Abstract: Cloud Computing is a great revolution in the IT field, which means that, computing can be used as a

commodity, like coal, gas or electricity. As an efficient computing model of Cloud Computing, within

HDFS and the Map/Reduce system, Hadoop is an-open source code architecture for very large data process

application. In this paper, we will do specific research on the Cloud Computing based on Hadoop and

through the implement of it, optimize the task scheduling algorithms of this architecture. Through this paper,

a better algorithm and more practical ways based on Hadoop to build up a Cloud Computing model are

achieved.

1 INTRODUCTION

As a new method of sharing infrastructures, Cloud

Computing is not only the development and

extension of Distributed Computing, Parallel

Computing and Grid computing, but also the

commercial implementation of these concepts in

computer science. The basic principle is to make

users access to computers and the storage system

according to their needs by switching resources to

required applications, using a non-local or remote

server clusters to provide services for them

(including computing, storage, software and

hardware and other services). Truly on-demand

computing, Cloud Computing is significantly

improving the efficiency in the use of hardware and

software resources.

Among the key technologies of Cloud

Computing, the computing model is to examine how

to make the programming of certain types of

applications more efficient. Nowadays, there are lots

of such models and Hadoop is a good one of them. It

is open source distributed system architecture,

increasingly becoming a very practical and efficient

platform for programming and developing.

In spite of being convenient and efficient,

Hadoop is a relatively young project, which can be

and should be improved. We will have a detailed

study and research of it and try to find a better

algorithm for its job scheduling after an

implementation of Cloud Computing system based

on Hadoop personally.

2 THE HADOOP

ARCHITECTURE FOR CLOUD

COMPUTING

Hadoop is an open source project of the Apache

Software Foundation and it provides many kinds of

reliable, scalable software in the distributed

computing environment, with the ability to help us

easily set up our own large-scale cluster systems on

general hardware. In spite of within many

subprojects, Hadoop mainly consists of the HDFS

(Hadoop Distributed File System) and Map/Reduce

Engine, which are the two most important

subprojects of the Hadoop architecture. (Hadoop)

2.1 HDFS

Designed for general hardware, HDFS is a

distributed file system which has a lot in common

with existing common distributed file systems.

Consists of a primary node called Name Node and a

child node called Data Node, HDFS is a typical

Master/Slave architecture, which can shield the

complex underlying structure through the primary

node and provide convenient file directory mapping

524

Hao Y., Song M., Han J. and Song J..

A CLOUD COMPUTING MODEL BASED ON HADOOP WITH AN OPTIMIZATION OF ITS TASK SCHEDULING ALGORITHMS.

DOI: 10.5220/0003586805240528

In Proceedings of the 13th International Conference on Enterprise Information Systems (SSE-2011), pages 524-528

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

to customers. The HDFS architecture is shown in

Figure 1.

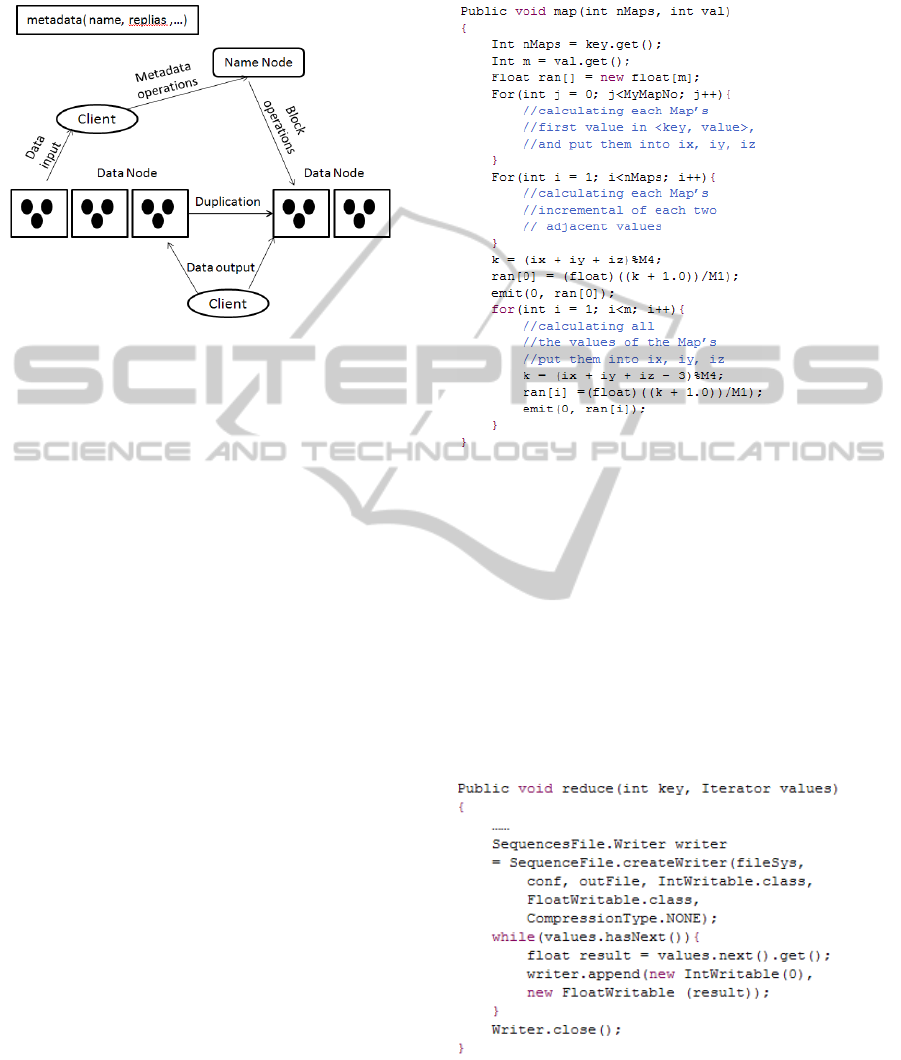

Figure 1: The HDFS architecture.

Figure 1 clearly shows us the interaction

between the Name Node, the Data Node and the

client. For example, while writing a file, at the very

beginning, the client sends the request of writing a

file to the Name Node, and then according to the

size of the file and the configuration of the file

blocks, the Name Node returns the information of

the Data Nodes it controls to the client, at last, using

the information of address in the Data Nodes it got

just now, the client depart the file into blocks and

put them into each Data Node one by one in order.

2.2 The Computing System

Map/Reduce

The Hadoop architecture uses the Cloud Computing

model of Map/Reduce proposed by Google, which is

not only a technology of distributed computing, but

also a simplified distributed programming model

(Dean and Ghemawat, 2008). A typical process of

Hadoop Map/Reduce generally includes the

following steps.

2.2.1 Input

User applications often need to provide functions of

Map and Reduce, and specify the input and output of

the location (path), and other operating parameters.

2.2.2 Map

Regarding input operations of the client as key/value

pairs (<key, value>), Map/Reduce is to call the user-

defined Map function to deal with each <key, value>,

then, a number of new intermediate <key, value>’s

will be generated, which may have a different type

from the previous ones. The main code of this

process is as figure 2.

Figure 2: The main code of Map.

2.2.3 Shuffle & Sort

This stage is to ensure that the input of Reduce is just

the sorted output of Map.

2.2.4 Reduce

The architecture is to traverse the intermediate data

and for each unique key value, user-defined Reduce

function will be operated and a new <key, value> is

to be output. The main code of this process is as

figure 3.

Figure 3: The main code of Reduce.

2.2.5 Output

Now the result of the Reduce output is written to the

output directory of the file.

A CLOUD COMPUTING MODEL BASED ON HADOOP WITH AN OPTIMIZATION OF ITS TASK SCHEDULING

ALGORITHMS

525

Since Map/Reduce and HDFS are ordinarily

running on the same set of nodes, the bandwidth of

the whole cluster network can be used efficiently.

2.3 Summery and the Advantages of

Hadoop

As the research of Hadoop shows above, we can see

clearly the advantages of it.

Scalable: Not only the scalability of storage but

also that of computing is one of the fundamental

designs. As a result, the scalability of Hadoop is so

simple that any of modification of the existing

architecture is not needed.

Economic: it can run on any ordinary PC, with

no special hardware requirements.

Reliable: The reliability of distributed processing

is ensured by the backup and recovery mechanism of

distributed file system and the task monitoring of

Map/Reduce.

Efficient: That the implementation of efficient

data exchange of distributed file system and the

processing model of Map/Reduce within Local Data,

are the basis of preparation for the efficient

processing of vast amounts of information.

3 THE STEPS TO IMPLEMENT

CLOUD COMPUTING BASED

ON HADOOP

Just for outside customers, Private clouds only

provide an interface to be called. Internal

implementation relies on dynamic start and

distribution of computer nodes. Designed to be

scalable to the size of cloud dynamic clusters, can be

effectively utilized computing resources and the

advantages of virtual machine technology. In the

private cloud, for each node requires a sound

management control mechanisms, in particular cloud

stretching and node startup, shutdown, data dump

and resource allocation.

3.1 Hardware Configuration

According to the research of Hadoop above, the

cluster of Hadoop has two most significant parts, the

Master and the Slave. The main job of Master is

configuring Name Node and Job Tracker, and that of

Slave is configuring Data Node and Task Tracker.

Now, take my experiment for example. There are

three personal computers to build up the cluster,

among which, one is deployed with Name Node and

Job Tracker, and the other two are deployed with

Data Node and Task Tracker. The operating system

is Red Hat Linux with jdk-1.6.0-14 and Hadoop 0.20,

and IP’s with their hosts’ names are added to the file

of the path ‘/etc/hosts’ of each node.

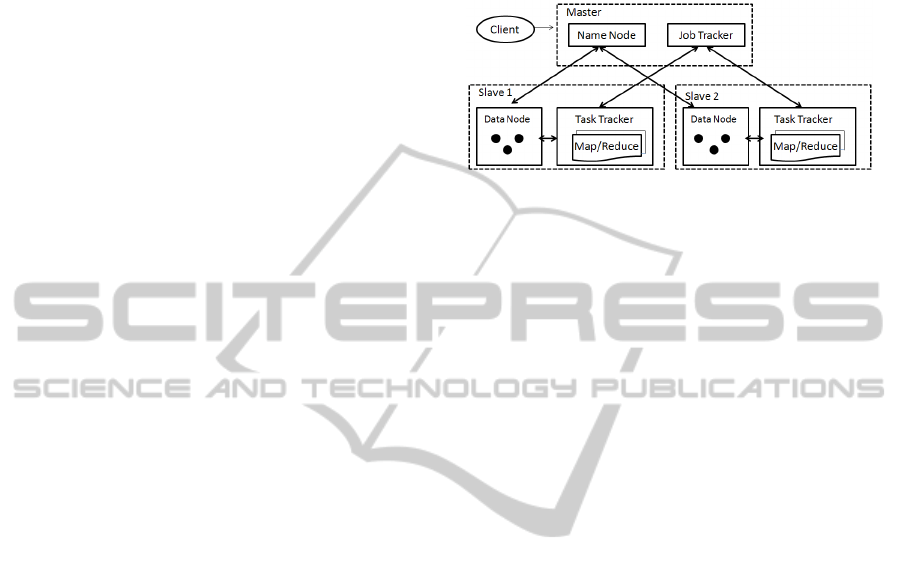

Figure 4: Hadoop-based Cloud Computing model.

If the computer is used as a Name Node, all IP’s

and their hosts’ names in the whole cluster should be

added into the file ‘hosts’. Now in my experiment:

192．168．1．103 lin-1

192．168．1．104 lin-2

192．168．1．105 lin-3

Otherwise, the computer is used as a Data Node.

Then only needed are its own IP and the IP of the

Name Node.

192．168．1．103 lin-1

192．168．1．104 lin-2

3.2 The Establishment of SSH Trusted

Certificate

Since the master starts up Hadoop of all Slaves

through SSH, we need to establish a one-way or

bidirectional certificate to ensure that the password

is unnecessary when instructions are executed. A

pair of keys of Name Node is generated by using

ssh-keygen and then its public key are copied to the

file ‘authorized’ located at ‘home/ssh’ of each

computer, as the result of which, the access between

nodes without a password is implement.

Here is the specific process in my experiment:

Start up ‘cygwin’ and execute the instruction ‘$

ssh-host-config’. When the system pops up the

question ‘Should privilege separation be used?’, ‘no’

should be entered, while ‘yes’ should be entered to

the question ‘Do you want to install sshd as a

service?’. Finally, when faced with the tips ‘Enterthe

value of CYGWIN for the daemon: [ntsec]’, choose

‘ntsec’. After being told that the sshd service is

installed successfully at local, enter the instruction

‘$net start sshd’ to start up SSH. Then make the

instruction ‘$ net start sshd’ to generate key/value

pairs and in this way they can automatically saved

into the directory of ‘.ssh’. After that these two

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

526

instructions to add public key RSA into the public

key authority file ‘authorized_keys’.

$ cd.ssh

$ cat id_rsa.pub >> authorized_keys

At last, execute ‘$ ssh localhost’ and then the

connection based on SSH can be complemented

without passwords.

3.3 Setting Up the Hadoop Platform

In the installation directory of Hadoop, there stores

various configuration files in the folder ‘conf’ and

command files in the folder ‘bin’.

(1). Get the configuration file ‘adoop-eiIv’

modified as you want. In this file, environment

variables should be set up, among which, ‘JAVA-

HOME’ is necessary to be set but HADOOP-HOME

is not, with a default value of the parent directory of

the file ‘bin’. In my experiment, I got my variables

set as follows.

export

ADOOP_HOME=/home/lin/Hadooplnstall/hadoop

export JAVA_HOME=/usr/java/jdk 1.6.0

(2). Get core-site.xml modified, which

configures IP and the port of Name Node.

(3). Get hdfs—site.xml modified, which

configures the number of copies.

(4). Get mapret-site.xml modified, which

configures IP and the port of Job Tracker.

(5) Get Name Node formatted by execute

Hadoop name node – format, the format instruction

in the folder ‘bin’.

(6) Get conf/hadoop-site.xml edit as follows. It is

a main configuration file of the Hadoop architecture.

(Baun and Kunze, 2009)

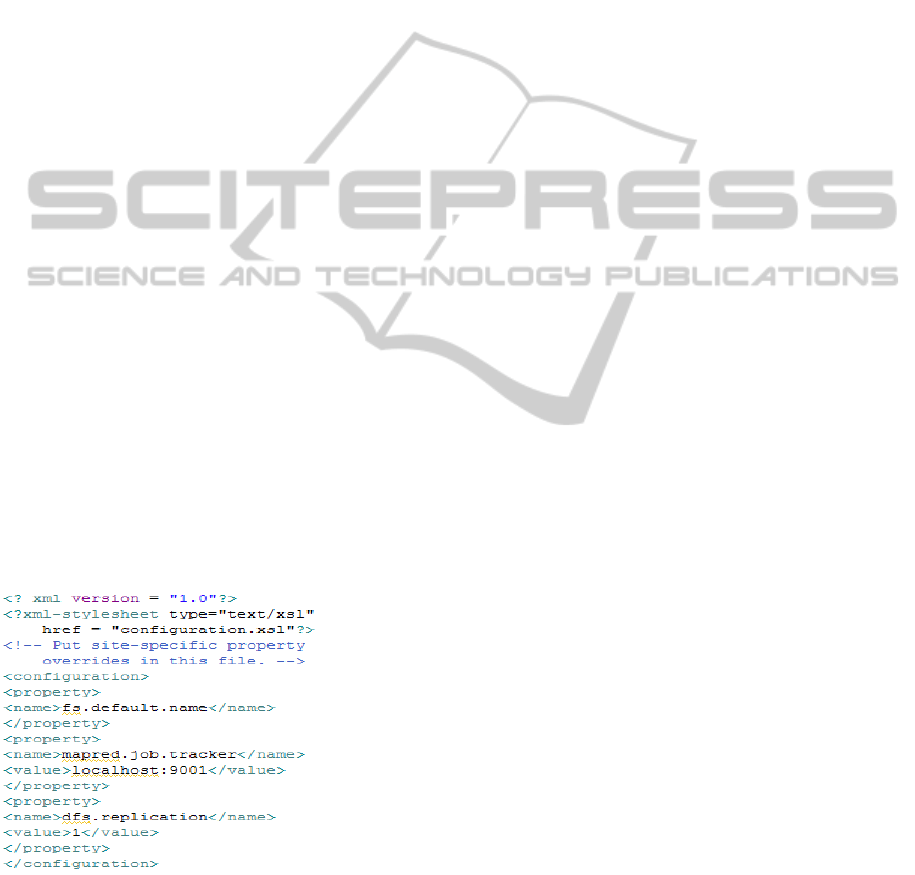

Figure 5: The conf/hadoop-site.xml.

3.4 Design and implement Applications

based on Hadoop

(1). Get the codes of Map ready and output

intermediate results by handling the input of the

Key-value.

(2). Get the codes of Reduce ready and output

the final result by statute the intermediate results.

(3). Get Input Format and Out Format defined.

The main job of Input Format is to test and verify

whether the input type is in accordance with the

configuration, while the main job of Out Format is

to test and verify whether the output directory

already exists and whether the output type is in

accordance with the configuration. If both of them

are satisfied, the results summarized by Reduce will

be output.

4 THE IMPROVEMENT OF

HADOOP SCHEDULING

ALGORITHM

The Map/Reduce scheduling is asked directly from

Job Tracker by Task Tracker actively, whose

principle is similar to ordinary, non-preemptive

scheduling operating system, that task once

assigned, it cannot in off. According to research,

there are several typical scheduling algorithms as

follows:

FIFO: The default one, First In First Out.

RR: Round-Robin.

HPF: Height Priority First.

WRR: Weighted Round Robin.

However, according to experiments before this

paper, none of the algorithms above is perfect.

Considering the model of Task Tracker actively

requesting for tasks and the feature of non-

preemptive in Hadoop task scheduling system, to

make tasks avoid the long wait before scheduled,

while scheduling priority of each task and can be

adjusted according to actual situation, we will

propose PBWRR (Priority Based Weighted Round

Robin) proper for Hadoop according to the actual

situation of the network needs of Hadoop scheduling

(Zhang et al., 2008; Hofmann and Woods).

The basic idea of this algorithm PBWRR is like

this: Put all jobs to run into a queue, then in the

unweighted case, the tasks are turned to Task

Tracker in turn to get performed, and in the

weighted case, the weight of the larger job can be

performed multiple tasks in a rotating.

The specific steps of this algorithm are:

1. In the situation of the resource of Task Tracker

available, task tracker takes the initiative to submit

assignments job tracker request.

A CLOUD COMPUTING MODEL BASED ON HADOOP WITH AN OPTIMIZATION OF ITS TASK SCHEDULING

ALGORITHMS

527

2. When receives the request of task assignment

from Task Tracker, Job Tracker takes one of the

tasks of the current job to the Task Tracker which

sent a request just now to get it execute. At the same

time, the value of ‘thisRoundTask’ should be minus

1. After that, if the result is less than 1, then pointer

will be moved to the next job, or the pointer will

keep unmoved and waiting until the next request

from Task Tracker arrives.

3. When the pointer is at the end of the queue, all

information of the whole queue will be updated. If

there is some job finished or just arriving at the

moment, all the values of ‘thisRoundTask’ of each

job will be reset and recalculated and the pointer will

be moved to the beginning of the queue again.

Using PBWRR to run the Cloud Computing

system based on Hadoop again, with the compare

with those older algorithms, it is proved that

PBWRR is more suitable for Cloud Computing,

since in Cloud Computing environment, it is the

users’ fee rather than the sequence of them sending a

request that the system provide users with different

levels of service through. PBWRR extends from the

characteristics of transparent of Hadoop to

developers and customers, and has a high capacity of

clearly distinguishing the level of customer service,

while ensuring a degree of fairness to ensure that the

situation that most of the resource is kept by a

minority of high-priority customers can not happen.

Hence, it is a good complement and improvement of

the existing scheduling algorithms of Hadoop.

5 CONCLUSIONS

This paper studies the key technologies of cloud

Computing and the principle of Hadoop with the

method to implement Cloud Computing based on it.

The main problem is how to optimize and improve

the scheduling algorithm of this architecture. Of

course, after all of these, we are more familiar with

Cloud Computing and have the ability to skillfully

build up such a computing platform in practice. The

file configuration and algorithm optimization are

originally achieved and brought up by hard working

during writing this paper. However, in spite of

finding out an improved version of algorithm

‘PBWRR’, there may be lots of risks and

deficiencies since it has not been though extensive,

rigorous testing. In the future, how to build up

private cloud for commercial systems should be on

focus (Pearson, 2009), with improved ‘PBWRR’ and

to make customers more and more safe with their

private information. It is believed that with the rapid

development of Cloud Computing, there will be

more and more efficient and practical algorithms for

scheduling, computing and so on. In addition, there

will even be more and more architectures sufficient

and safe enough for Cloud Computing. I am looking

forward to it.

ACKNOWLEDGEMENTS

This work is supported by the National Key

project of Scientific and Technical Supporting

Programs of China （Grant Nos.2008BAH24B04,

2008BAH21B03; the National Natural Science

Foundation of China (Grant No.61072060) ; the

program of the Co-Construction with Beijing

Municipal Commission of Education of China.

REFERENCES

Hadoop; http://hadoop.apache.org/

Dean J; Ghemawat S; “MapReduce: Simplified Data

Processing on Large Clusters”, 2008

Michael Armbrust, Armando Fox, Rean Griffith, Anthony

D. Joseph Katz, Gunho Lee. Above the Clouds: A

View of Cloud Computing [EB/OL]. http://

www.eecs.berkely.edu/Pubs/TechRpts/2009/EECS-

2009-28.HTML, 2009(2)J. Clerk Maxwell, A Treatise

on Electricity and Magnetism, 3rd ed., vol. 2. Oxford:

Clarendon, 1892.

Jiyi Wu; Lingdi Ping; Xiaoping Ge; Ya Wang; Jianqing

Fu; “Cloud Storage as the Infrastructure of Cloud

Computing” Intelligent Computing and Cognitive

Informatics (ICICCI), 2010

Shufen Zhang; Shuai Zhang; Xuebin Chen; Shangzhuo

Wu; “Analysis and Research of Cloud Computing

System Instance” Future Networks, 2010. ICFN '10.

Baun, C.; Kunze, M.; “Building a private cloud with

Eucalyptus” E-Science Workshops, 2009 5th IEEE

International Conference on

Hofmann, Paul; Woods, Dan; “Cloud Computing: The

Limits of Public Clouds for Business Applications”

Internet Computin

Mikkilineni, R.; Sarathy, V.; “Cloud Computing and the

Lessons from the Past”Enabling Technologies:

Infrastructures for Collaborative Enterprises, 2009.

WETICE '09. 18th IEEE International Workshops on

Kang Chen; Weimin zheng; “Three Carriages of Cloud

Computing: Google, Amazon and IBM” http://

soft.cow.corn.cn/it/htm2008/20080512-423960.shtml

Stephen Baker; “Google and the Wisdom of Clouds” 2007

S. Pearson; “Taking Account of Privacy when Designing

CloudComputing Servcices[C]” The 2009ICSE

Workshop on Softuare Engineering Challenges of

Cloud Computing, UK, 2009.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

528
