Knowledge Integration for Domain Modeling

Armands Slihte, Janis Osis and Uldis Donins

Faculty of Computer Science and Information Technology

Institute of Applied Computer Systems, Riga Technical University, Riga, Latvia

Abstract. This research integrates artificial intelligence (AI) and system analy-

sis by exploiting ontology, natural language processing (NLP), business use

cases and model-driven architecture (MDA) for knowledge engineering and

domain modeling. We describe an approach for compounding declarative and

procedural knowledge in a way that corresponds to AI and system analysis

standards, and is compliant for acquiring a domain model corresponding to

MDA standards. We are recognizing the possibility of automatically transform-

ing this knowledge to a Computation Independent Model (CIM) for MDA.

1 Introduction

Computer science has come a far way in understanding knowledge and developing

means to manage knowledge. Knowledge engineering is mostly associated with ar-

tificial intelligence (AI), but many aspects of system analysis also deal with it. There

have been significant results and applications in both artificial intelligence (AI) and

system analysis. On the other hand, the integration between these two domains and

the benefits it can offer has not yet been fully recognized. There are few approaches

that have been going in this direction; we analyze these in the related work section.

Nevertheless, none of these approaches suggest a solution for acquiring the domain

model automatically from the corresponding domain knowledge, which should be the

case. There is no reason why we could not automatically generate a model for a do-

main, for which we have all the corresponding knowledge explicitly defined.

The approach proposed in this paper provides a formal way to facilitate ontology

for software engineering, more specifically for acquiring a Computation Independent

Model (CIM) within Model Driven Architecture (MDA). It does not suggest a novel

methodology for ontology development, but instead is based on the existing metho-

dologies. This approach suggests ontology to be directly used as an input for domain

modeling by exploiting business use cases and natural language processing (NLP).

We are using Web Ontology Language (OWL) and Protégé 4.1 tool for ontology

development, and Attempto Controlled English (ACE) for natural language

processing. We are using Topological Functioning Model (TFM) as the CIM within

MDA; acquiring a mathematically formal and thus transformable CIM. This is dis-

This work has been supported by the European Social Fund within the project. Support for the implemen-

tation of doctoral studies at Riga Technical University”.

Slihte A., Osis J. and Donins U..

Knowledge Integration for Domain Modeling .

DOI: 10.5220/0003581200460056

In Proceedings of the 3rd International Workshop on Model-Driven Architecture and Modeling-Driven Software Development (MDA & MDSD-2011),

pages 46-56

ISBN: 978-989-8425-59-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

cussed in more detail in section 5 – Integration with MDA. In this paper we also de-

scribe the approach using an example of a library business system, to show how this

approach can be applied. Moreover, a long-term goal of this research is to provide a

corresponding toolset to support this approach, so that the automation of domain

modeling could be complete.

This paper is organized as follows. Section 2 considers related work for cooperat-

ing knowledge engineering and system analysis. Section 3 distinguishes between

declarative and procedural knowledge and suggesting. Section 4 analyzes the know-

ledge representation possibilities and focuses on controlled natural language, ontolo-

gy and business use cases. Section 5 explains the approach for integrating knowledge

for domain modeling and provides an example of a library business system. Section 6

refers to a methodology for integrating the suggested approach with MDA.

2 Related Work

This work continues research on computation-independent modeling and specifically

on TFM for MDA started in [1], [2], [3] and [4]. As stated in [4] an informal descrip-

tion of the system in textual form can be produced as a result of system analysis. This

approach proposes to transform a system’s informal description into a TFM of the

system. In this paper we show how to go even further and use formally defined know-

ledge as input for generating TFM.

Other authors have been investigating how to combine AI and system analysis for

the benefit of domain modeling, incorporating ontologies with MDA. Ontologies, as

formal representations of domain knowledge, enable knowledge sharing between

different knowledge-based applications. Diverse techniques originating from the field

of artificial intelligence are aimed at facilitating ontology development. However,

these techniques, although well known to AI experts, are typically unknown to a large

population of software engineers [5].

In order to overcome the gap between the knowledge of software engineering

practitioners and AI techniques, a few proposals have been made suggesting the use

of well-known software engineering techniques, such as UML, for ontology devel-

opment. An approach proposed in [6] is dealing with generating Resource Descrip-

tion Framework (RDF) from a UML model. RDF is a W3C XML-based standard for

sharing ontologies on the Semantic Web. Another approach [7] proposes a transfor-

mation to semantic extraction of ontologies from UML models. Their initial presump-

tion is that UML and ontologies complement each other. That is to say, UML is de-

signed for building models by human experts, while OWL is designed to be used at

run time by intelligent processing methods.

The 2 approaches mentioned earlier are useful if you already have the design

model (UML) and want to acquire the ontology. From the perspective of MDA the

order of the acquired artifacts is incorrect, because the design model or PIM/PSM

should be derived from CIM, which includes the declarative knowledge provided by

an ontology. This means that the ontology has to come first, in order to construct an

accurate PIM/PSM. In this paper we insist on starting with knowledge and not the

design.

An independent ontology metamodel using the MOF has been developed in [8]; it

is named the Unified Ontology Language (UOL). This is important from the perspec-

tive of MDA. OWL is a well-known standard for ontology development, but the

transformation between OWL and a model defined according to MOF would not

correspond to MDA standards. On the other hand, this newly introduced UOL still

needs an ad-hoc transformation mechanism from OWL. Nevertheless, UOL could be

considered in further stages of this research as a format for ontology.

3 Declarative and Procedural Knowledge

The traditional Artificial Intelligence (AI) techniques most frequently used to

represent knowledge in practical intelligent systems include object-attribute-value

triplets, uncertain facts, fuzzy facts, rules, semantic networks, and frames. Ontologies

have acquired major importance in knowledge representation as well [5]. On the other

hand, system analysis researchers have developed means to manage knowledge about

business systems and processes, e.g. Business Process Modeling Notation (BPMN)

and Model Driven Architecture (MDA).

Knowledge means understanding of a subject area. It includes concepts and facts

about that subject area, as well as relations among them and mechanisms for how to

combine them to solve problems in that area [5]. The term knowledge can be used to

refer to a state of knowing facts, methods, principles, techniques and so on. This

common usage corresponds to what is often referred to as “know about”. Second,

usage of the term knowledge is when it refers to understanding facts, methods, prin-

ciples and techniques sufficient to apply them in the course of making things happen.

This corresponds to “know how”. Cognitive psychologists sort knowledge into two

categories: declarative and procedural [9]. From the perspective of a student who is

learning knowledge: 1) Declarative knowledge is that the student knows or under-

stands (e.g. Riga is the capital of Latvia, book catalogue has entries of books); 2)

Procedural knowledge is that the student is able to do something (e.g. buy an airplane

ticket to Riga, get a book at the library).

This distinction between declarative and procedural knowledge may seem ob-

vious, but has not been recognized too often. To properly describe a business system

in its environment, it is necessary to know both – declarative and procedural know-

ledge. Approaches like BPMN and MDA are very strong describing the procedural

knowledge, but lack the AI strength in dealing with declarative knowledge. In this

paper we propose an approach, which integrates declarative and procedural know-

ledge providing a common approach for system analysis with the perspective of inte-

grating with MDA.

4 Knowledge Representation

Before any system analysis process can start, it is necessary to acquire knowledge

about the business system and its environment. Most of this knowledge usually is

defined in different documents in a form of natural language. It is necessary to store

this knowledge in a way, so that it could be understandable by a computer.

Attempto Controlled English (ACE) is a controlled natural language, in other

words it is a subset of English with a restricted syntax and a restricted semantics de-

scribed by a small set of construction and interpretation rules. It is a formal language

and can automatically and unambiguously be translated into first-order logic. Al-

though ACE may appear perfectly natural it can be read and understood by human

and machine. One could say that ACE is a first-order logic language with the syntax

of a subset of English. ACE can be used as knowledge representation, specification

and query language [10]. ACE was originally intended to specify software, but has

since been used as a general knowledge representation language in several application

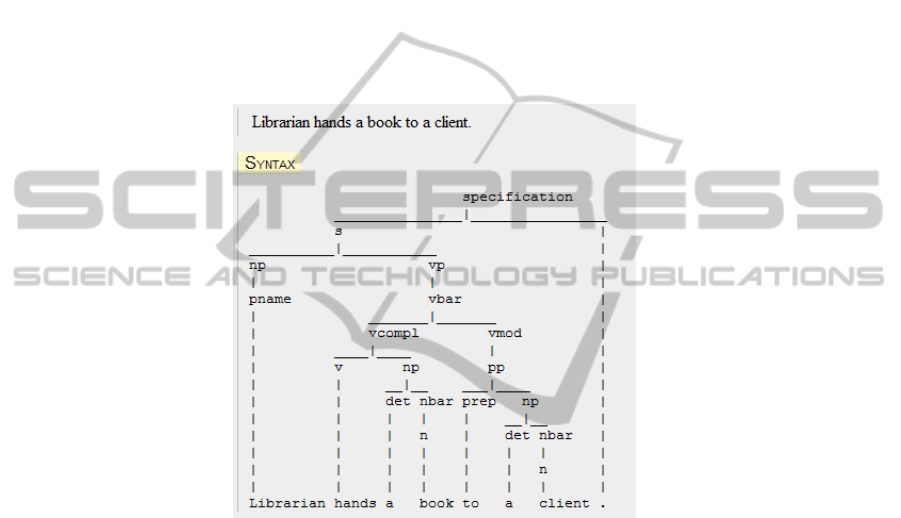

domains. With Attempto Parsing Engine (APE) it is possible to derive a syntax tree

from ACE texts which is crucial for Topological Functioning Model (TFM) ap-

proach.

To someone who wants to discuss topics in a domain D using a language L, on-

tology provides a catalogue of the types of things assumed to exist in D; the types in

the ontology are represented in terms of the concepts, relations, and predicates of L

[11]. Some reasons for developing an ontology are: 1) To share common understand-

ing of the structure of information among people or software agents; 2) To enable

reuse of domain knowledge; 3) To make domain assumptions explicit; 4) To separate

domain knowledge from operational knowledge; 5) To analyze domain knowledge

[12]. Ontologies are used for different purposes, but this research focuses on ontolo-

gies developed for a business domain, describing business terms and their relation-

ships.

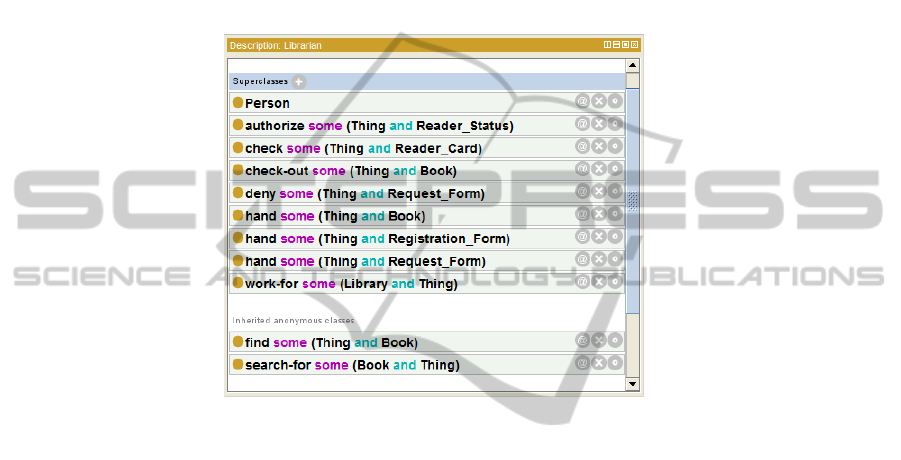

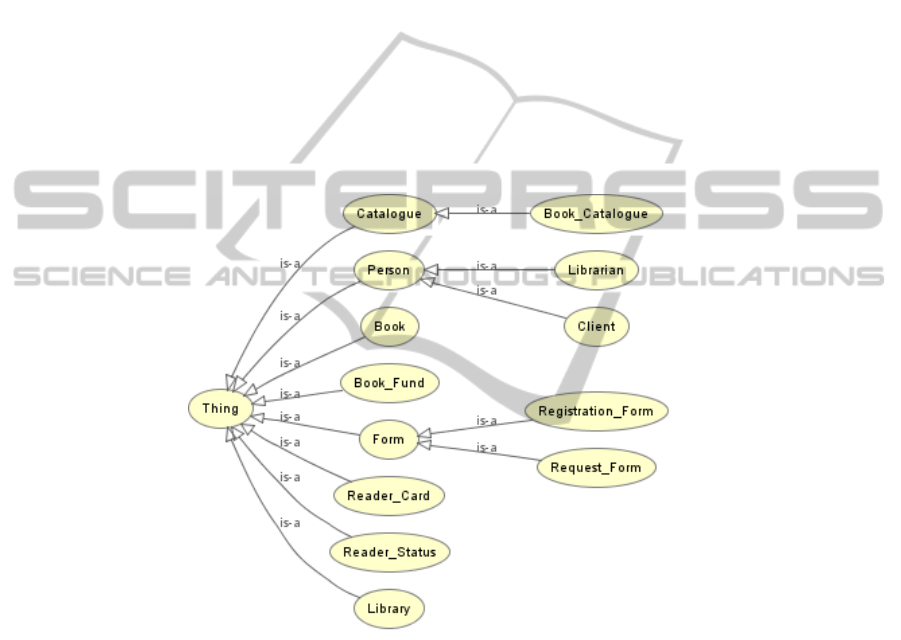

Ontology is a perfect candidate for representing declarative knowledge about a

business system and its environment. Ontology defines the terms used to describe and

represent an area of knowledge. Ontologies include computer-usable definitions of

basic concepts in the domain and the relationships among them. OWL [13] is a com-

mon standard for defining ontologies and will be considered for further knowledge

integration for domain modeling.

Business use cases are not normalized or standardized by any consortium, unlike

UML use case diagram, which is defined by Object Management Group. Business use

cases should not be mistaken with UML use case diagram. Moreover, there are many

different use case templates and the structure of a use case can be adjusted depending

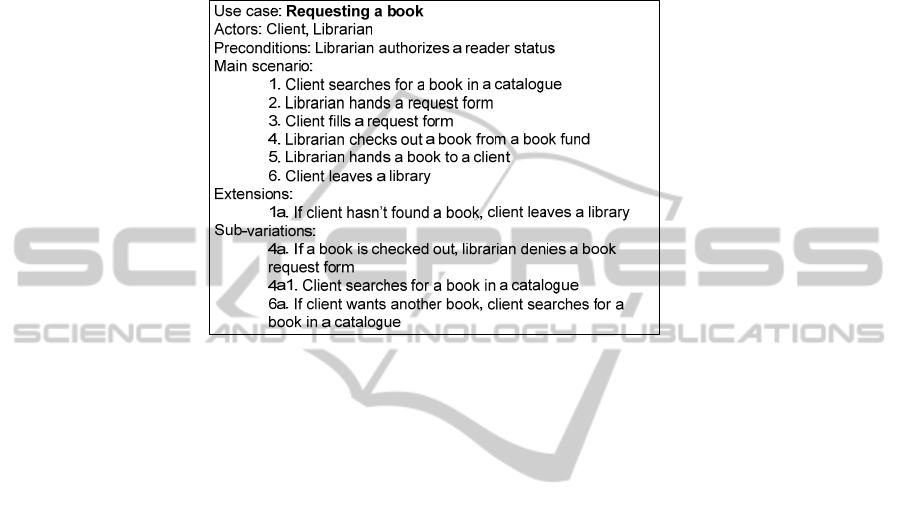

on the situation and the development team [14]. These textual business use cases are

considered for representing the procedural knowledge. The following structure of a

use case is considered: 1) use case title, 2) actors, 3) pre-conditions, 4) main scenario,

5) extensions, and 6) sub-variations. Using ACE is considered for defining the step of

the business use cases [10]. Business use cases provide a formal data structure that

can be used to represent the procedural knowledge about a business system. By using

ACE we enable this knowledge to be processed by a computer.

5 Integrating Knowledge for Domain Modeling

The steps of the Business Use Cases are defined using the ACE. This solves some of

the natural language problems, but not all. Still ACE texts do not solve possible am-

biguity. ACE doesn’t restrict the usage of nouns and it is possible to express the same

meaning using different words. Another possible problem is the inconsistency of

business use cases. There might be steps defined that do not make sense in the given

business system or its environment. If there would be a predefined lexicon for the

specific domain, it would be possible to deal with these problems. Ontology can be

used as this lexicon. In this section we are proposing an approach for integrating

declarative and procedural knowledge. By exploiting ontology we prevent the ambi-

guity and inconsistency of business use cases.

5.1 Exploiting Ontology

The ontology is an extremely important part of the knowledge about any domain.

Moreover, the ontology is the fundamental part of the knowledge, and all other know-

ledge should rely on it and refer to it.

Fig. 1. This is the class hierarchy of an ontology for a library. It includes the main classes that

a library business system needs to function. The main actors are the Client and the Librarian,

which both are sub-classes of Person. Class hierarchy includes also important concepts for a

Library business system like Library, Book, Book Catalogue, Reader Card and Request Form.

This work does not propose a methodology for developing ontologies, but a me-

thodology to use an already developed ontology for further knowledge engineering

and system analysis. If there is no ontology defined for the business system before, it

is necessary to build by analyzing the business system and its environment. Available

documents and expert knowledge is the main input for this development. Particularly

in the case of information extraction almost every text introduces new terms, so we

cannot assume that all terms encountered in the text we process will already be in-

cluded in the ontology. The ability to add new terms to an existing ontology is crucial

even when using an ontology whose structure has been formally defined [15]. This

means that even if we initially have a defined ontology, it might lack some classes

and properties for the business system or its environments under consideration.

To show how our approach will be using ontology for integrating declarative and

procedural knowledge and after that using this knowledge for domain modeling,

authors of this paper consider a library business system as example. In the following

figures you can see the ontology considered.

Fig. 2. This is the description of the librarian class. You can see some of the properties and

relationships between properties and classes. For example, one of the properties is checking out

a book from a book fund, which is done by the librarian.

Developing an ontology includes: 1) defining classes in the ontology; 2) arranging

the classes in a taxonomic hierarchy; 3) defining properties and describing the rela-

tionships with classes; 4) defining the individuals. Creating the class hierarchy is the

first and second step (Fig. 1 shows an example). This ontology for an abstract library

business system was developed by the authors of this paper to show an example. The

third step is defining the properties and relationships between classes and properties

(Fig. 2 shows an example). It is important that all the business system’s concepts and

actions that can be associated with these concepts are defined. Recognizing a satisfac-

tory scope for the domain is not easy. It will not always be possible to capture every-

thing on the first try, but as mentioned before this has to be an iterative process. The

ability to modify the ontology is crucial, because the scope of the domain can also

change.

5.2 Developing Business Use Cases

Ontologies provide logical statements that describe what terms are, how they are

related to each other, and how they can or cannot be related to each other. Business

use cases on the other hand provide a formal way to define the procedural knowledge,

showing step by step how a process is executed, what the variations are and which

actors are involved. The problem with business use cases is that their steps are sen-

tences in natural language. We are restricting them by applying ACE, which guaran-

tees we can analyze this sentence by syntax and get a parse tree.

Fig. 3. This is a business use case for requesting a book in a library business system. First a

client searches for a book in the catalogue and then fills a request form to get the book. Libra-

rians responsibility is to hand the request form, check out the book from the book fund and

hand the book to the client. There are also variations.

Nevertheless, it does not guarantee that the terms used in sentences will be unam-

biguous. For example, there could be steps “Client fills a request form” and “Libra-

rian denies a form”. These steps are correct from a syntax perspective, but they are

inconsistent, because in the first sentence a form that is meant for requesting a book is

defined as “Request form”, but in the second sentence it is defined as “Form”. This

would not be a problem if there was a predefined vocabulary, which determines that

these terms mean the same thing in this domain.

Controlled natural language also does not guarantee that the step will make sense

for the given domain. For example, there could be a step “Librarian shows a reader

card”. This step is perfectly correct from a perspective of syntax and may seem to

make sense, because librarian can also be a reader in a library, but for the given do-

main “Librarian” is a definition of the person who works for the library and at this

moment in time is fulfilling this role. So actually this sentence does not make sense

from the perspective of the domain.

We cannot put this much responsibility on a system analyst who will be develop-

ing these business use cases. This kind of ambiguity and inconsistency should be

automatically discovered and eliminated. The approach suggested in this paper will

use ontology to solve both problems – the possible ambiguity and inconsistency of

the sentences. Please consider the business use case shown in Fig. 3.

For the first problem of ambiguity, let us look at the first step “Client searches for

a book in a catalogue”. We could rephrase this also like this “Client searches for a

book in a book catalogue”. Notice that in the second sentence we specify that it is a

book catalogue and not just any catalogue. In this specific domain both sentences

refer to the same object and it is important, that when the steps get analyzed the cor-

rect objects are considered. If we look at the library ontology’s class hierarchy (Fig.

1), it is clearly defined that “Catalogue” is a super-class of “Book catalogue”. This

solves the problem of ambiguity in this case, because we know it refers to the same

object. Another problem appears if we rephrase the step like this “Client searches for

literature in a catalogue”. The concept “Literature” is not defined in our ontology, so

this sentence should be marked as invalid until someone defines the concept in the

ontology. The same applies to the properties. If the sentence is “Client looks for a

book in a catalogue” and property “look” is not defined, this step should be marked as

invalid.

Fig. 4. This is a parse tree generated by ACE parser from a business use case step sentence. In

the syntax s – sentence; np – noun phrase; cp – verb phrase; pname – proper name; vcompl –

verb with complement; vmod – verb phrase modifiers; v – verb; pp – prepositional phrase; det

– determiner; n –noun.

For the second problem of inconsistency let us consider the example mentioned

earlier “Librarian shows a reader card”. From our ontology’s property and class rela-

tionships (Fig. 2) we see that the relationship between “Librarian” and “Reader card”

is defined by property “check” and not “show”. This implies that the sentence is

invalid and should be corrected or the ontology has to be modified. By checking the

correspondence between properties and classes it is possible to deal with this prob-

lem.

To implement the solution for these problems technically we will be analyzing the

parse trees of the sentences. Fig. 4 shows a parse tree the business use case step “Li-

brarian hands a book to a client”. This sentence can be broke down into verb phrase,

noun phrase and prepositional phrase, and then also into verbs and nouns. Approach

for knowledge integration suggests that the nouns need to correspond to the classes

and the verbs need to correspond to the properties. If they do not, then an error should

be raised and either the ontology or the business use case needs to be modified. For

this example we see that “Librarian”, ”Book”, “Client” and “hand” is defined by the

library ontology, so we have a valid sentence from perspective of ambiguity – all

terms are defined and understandable. From perspective of consistency “Librarian”

and “Book” are associated with “hand”. This association can be confirmed by the

ontology, because a librarian hands a book.

6 Integration with Model Driven Architecture

In previous work [1], [2], [3] and [4] authors introduce an algorithm to automatically

derive the TFM from textual use cases of a business system. Same business use cases

structure is used to define the procedural knowledge. This algorithm utilizes the sta-

tistical parser to analyze the syntax of use case sentences and identify functional fea-

tures for the TFM. The problem there is the potential ambiguity and inconsistency of

the business use case steps, which authors are solving by applying ontology in this

paper.

TFM offers a formal way to define a system by describing both the system’s func-

tional and topological features. TFM is represented in the form of a topological space

(X, Θ), where X is finite set of functional features of the system under consideration,

and Θ is the topology that satisfies axioms of topological structures and is represented

in the form of a directed graph [4]. TFM represents the system in its business envi-

ronment and shows how the system is functioning, without details about how the

system is constructed. This research considers TFM to be CIM within MDA; acquir-

ing a mathematically formal and thus transformable CIM.

The integration with MDA is already defined with the algorithm for deriving TFM

from business use cases [3]. Other branch of this research is suggesting a TopUML

profile, which incorporates the topological nature of TFM with UML. This provides

unique benefits for MDA, because it is possible to acquire cause-effect relationships

between methods for PIM/PSM from CIM [16].

7 Conclusions

This paper describes a novel approach for integrating AI and system analysis by faci-

litating ontology, natural language processing, business use cases and MDA. This

approach provides a way for acquiring the domain model automatically from the

corresponding domain knowledge. It provides a formal way to use ontology for sys-

tem analysis and suggests ontology to be directly used as an input for domain model-

ing by exploiting business use cases and natural language processing. This knowledge

can be used for generating CIM according to previous research on TFM.

Future research includes: 1) developing guidelines for identifying the scope of the

domain; 2) developing an algorithm for business use case step ambiguity and incon-

sistency checking according to given ontology; 3) developing guidelines for ontology

development or defining the supported ontology development methodologies; 4)

implementing a tool for business use cases development, which would take OWL as

input; 5) Integrating this business use case development tool with TFM generation

and TopUML tools.

This approach provides a new perspective for domain modeling, allowing the do-

main model to be generated from formally defined knowledge; thus exploiting the

power of knowledge engineering, leaving less space for interpretation and enhancing

MDA with a formal CIM.

References

1. Šlihte A.: The Specific Text Analysis Tasks at the Beginning of MDA Life Cycle. In:

Databases and Information Systems Doctoral Consortium, Latvia, Riga, 5.-7. July (2010)

11–22.

2. Šlihte A.: Implementing a Topological Functioning Model Tool. In: Scientific Journal of

Riga Technical University, 5. series., Computer Science, Vol. 43, Riga (2010) 68–75

3. Šlihte A.: Transforming Textual Use Cases to a Computation Independent Model. MDA &

MTDD 2010, Greece, Athens, 22.-24. July (2010) 33–42.

4. Osis, J., Asnina, E., Grave, A.: Computation Independent Representation of the Problem

Domain in MDA. J. Software Eng. Vol. 2, Iss. 1, (2008) 19—46 Available: http://www.e-

informatyka.pl/e-Informatica/Wiki.jsp?page=Volume2Issue1 [Accessed: Feb 28, 2010].

5. Gasevic, D., Djuric, D., Devedzic, V.: Model Driven Architecture and Ontology Develop-

ment. Springer, Heidelberg (2006).

6. Cranefield, S.: Networked knowledge representation and exchange using UML and RDF.

Journal of Digital Information, Vol. 1, No. 8 (2001) Available:

https://journals.tdl.org/jodi/article/viewArticle/30/31 [Accessed: Feb 28, 2011].

7. Falkovych, K., Sabou, M., Stuckenschmidt, H.: UML for the Semantic Web: Transforma-

tion-Based Approaches. In B. Omelayenko and M. Klein, editors, Knowledge Transforma-

tion for the Semantic Web. IOS Press (2003) 92–106 http://www.cwi.nl/˜media/

publications/UML_for_SW.pdf [Accessed: Feb 28, 2011].

8. Baclawski, K., Kokar, M. K., Kogut, P., Hart, L., Smith J. E., Letkowski, J., Emery, P.:

Extending the Unified Modeling Language for Ontology Development. Int. Journal Soft-

ware and Systems Modeling (SoSyM) Vol. 1, No. 2 (2002) 142-156.

9. Poesio, M.: Domain modelling and NLP: Formal ontologies? Lexica? Or a bit of both?

Applied Ontology, Vol. 1, No. 1. IOS Press (2005) 27–33.

10. Noy, N. F., McGuinness, D. L.: Ontology development 101: A guide to creating your first

ontology. Technical Report SMI-2001-0880, Stanford Medical Informatics (2001).

11. Nickols, F.: The knowledge in knowledge management (KM). in J.W. Cortada and J.A.

Woods, The Knowledge Management Yearbook 2001–2002, Butterworth-Heinemann,

Boston (2000).

12. Fuchs, N. E., Kaljurand, K., Kuhn, T.: Attempto Controlled English for Knowledge Repre-

sentation. In Cristina Baroglio, Piero A. Bonatti, Jan Maluszynski, Massimo Marchiori,

Axel Polleres, and Sebastian Schaffert, editors, Reasoning Web, Fourth International

Summer School 2008, Lecture Notes in Computer Science 5224. Springer (2008) 104–124.

13. W3C, OWL Web Ontology Language Overview, W3C Recommendation February 10

2004. Available: http://www.w3.org/TR/owl-features/ [Accessed: Feb 28, 2011].

14. Malan, R., Bredemeyer, D.: Functional Requirements and Use Cases, March 2001. Availa-

ble: http://www.bredemeyer.com/pdf_files/functreq.pdf [Accessed: Feb 28, 2011].

15. Guarino, N.: Formal Ontology and Information Systems. Proceedings of Formal Ontology

and Information Systems, Trento, Italy, IOS Press, Amsterdam (1998) 3–15.

16. Donins, U.: Software Development with the Emphasis on Topology. In: Proceeding of 13th

East-European Conference on Advances in Databases and Information Systems (ADBIS

2009). Volume 5968 of LNCS. Springer (2010) 220-228.
