Expert Assessment on the Probability of Successful

Remote Code Execution Attacks

Hannes Holm, Teodor Sommestad, Ulrik Franke

and Mathias Ekstedt

Department of Industrial Information and Control Systems, The Royal Institute of Technology

100 44 Stockholm, Sweden

Abstract. This paper describes a study on how cyber security experts assess the

importance of three variables related to the probability of successful remote

code execution attacks – presence of: (i) non-executable memory, (ii) access

and (iii) exploits for High or Medium vulnerabilities as defined by the Common

Vulnerability Scoring System. The rest of the relevant variables were fixed by

the environment of a cyber defense exercise where the respondents participated.

The questionnaire was fully completed by fifteen experts. These experts

perceived access as the most important variable and availability of exploits for

High vulnerabilities as more important than Medium vulnerabilities. Non-

executable memory was not seen as significant, however, presumably due to

lack of address space layout randomization and canaries in the network

architecture of the cyber defense exercise scenario.

1 Introduction

Exploits (i.e. cyber attacks) which can provide administrator privileges of systems are

attractive to attackers, particularly if they can be executed remotely. Many types of

exploits can be used to achieve this. One example is to take advantage of

vulnerabilities in the memory management of a system in order to execute the

attacker’s own programming instructions.

Many conditions influence whether an attacker can manage to successfully execute

such attacks. A few examples include vulnerabilities present in the targeted machine,

the competence of the attacker and any protective measures which are in place.

Clearly, it is valuable to know under which circumstances such attacks are likely to

succeed and under which circumstances they are not. Data regarding this would be

useful when prioritizing protective measures, e.g. remediation options, or as input to

complex security analysis frameworks, e.g. [1] and [2].

However, such data are costly to collect experimentally, as it would require the

involvement of many security experts in a substantial number of scenarios. As a

consequence, there are currently very little empirical data available regarding this

topic. A less costly method to collect this data is to ask security experts to make

judgments based on their experience. This paper presents judgments made by 15

security experts in conjunction with an international cyber defense exercise. The

experts estimated the probability of successful remote exploitation of software

vulnerabilities given different scenarios.

Holm H., Sommestad T., Franke U. and Ekstedt M..

Expert Assessment on the Probability of Successful Remote Code Execution Attacks.

DOI: 10.5220/0003578700490058

In Proceedings of the 8th International Workshop on Security in Information Systems (WOSIS-2011), pages 49-58

ISBN: 978-989-8425-61-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

The rest of the paper unfolds as follows: Sect. 2 describes related work. Sect. 3

explains the variables studied in this paper. Sect. 4 describes the method. Sect. 5

presents the result and our analysis. Sect. 6 discusses this result and Sect. 7 concludes

the paper.

2 Related Work

This paper focuses on vulnerabilities that enable attackers to execute arbitrary code on

a targeted machine from a remote location. A common class of vulnerabilities that

accomplish this are buffer overflows [3][4].

As buffer overflow vulnerabilities are severe security problems, a number of

techniques and tools have been developed to eliminate them or make exploitation of

them more difficult. Common countermeasures include authorization, authentication

control, vulnerability management (removing vulnerabilities due to software flaws),

and measures focusing explicitly on hardening computers or source code against

arbitrary code attacks. Younan [5] divides such measures into ten different types.

Seven of these focus on the software product itself and to lower its vulnerability.

These seven are: safe languages (e.g. Cyclone [6]), bound checkers (e.g. Cash [7]),

hardened libraries (e.g. FormatGuard [12]), separation and replication of information

countermeasures (e.g. Libverify [10]), runtime taint trackers (e.g. TaintCheck [13]),

dynamic analysis and testing (e.g. Purify [14]), and static analysis like (e.g. [15]).

These measures will help removing vulnerabilities in the code or decrease their

severity. However, they are not designed to influence the difficulty of exploiting the

high-severity vulnerabilities that may remain in the code. As this study focuses on the

latter, the following three types of measures are of particular relevance: probabilistic

countermeasures (e.g. PaX ASLR [8], instruction set randomization [9] and

StackGuard [3]), paging-based countermeasures (e.g. PaX [8]), and execution

monitors (e.g. [11]).

Excellent overviews of the different measures possible to implement can be found

in [5,16-18]. These overviews contain discussions on the effectiveness of different

measures. Also, the descriptions of the techniques and tools come with a qualitative or

theoretic evaluation of their effectiveness.

The number of empirical evaluations, however, remains small. The study

performed by [19] is an exception. This study focuses on measures that remove or

degrade the software product’s vulnerabilities and tests seven different techniques for

thwarting buffer overflow attacks. It accurately describes the exploits these measures

work against. However, it does not capture the competence of attackers or show the

exploits they apply in practice. Therefore, it cannot be used to infer probabilities of

success in general. This also applies to studies focusing on the effectiveness of

specific techniques, for example [20]. In [20] the effectiveness of address space

layout randomization is tested under different conditions and weaknesses that are

exploitable under specific condition, but how often these conditions apply in practice

is not discussed (or known to the community at large).

3 Studied Variables

As can be seen in Sect. 2, there are many variables which influence the possibility of

successfully perform arbitrary code execution attacks. However, most defense

mechanisms are not widely used in practice. This paper aims to assess the

significance of one of the most commonly used defense mechanisms, namely non-

executable memory. Non-executable memory is an easily implemented

countermeasure which is available for most operating systems (e.g. all Windows

operating systems since XP). Furthermore, the study assessed the importance of non-

executable memory under the presence of two very common conditions: i)

accessibility and ii) the severity of the exploited vulnerability. These variables were

chosen through a literature study and are detailed below.

Non-executable memory (NX). This is a paging-based countermeasure [5] that

marks the data segment of a computer memory as non-executable. This is done to

make it more difficult for an attacker to execute code that has been injected into the

data segment. NX is a feature that is available as an option for most operating systems

and has implementations without costs in computational power or memory usage [5].

Access. In all scenarios considered in this study it is assumed that the attacker can

connect to the vulnerable service. The access variable involves whether the attacker

can access the service and its resources as a user of it. For example, if the service is

the SMB service on a machine and access has state true, it would mean that the

attacker is a part of the Windows domain. If it has the state false the attacker is not in

the domain but can still send requests to the service as an external entity.

Severity of the exploited vulnerability. In all scenarios considered there is an

exploit available to the attacker corresponding to a vulnerability on the targeted

machine. In this investigation, exploits for High and Medium severity vulnerabilities

as defined by the Common Vulnerability Scoring System (CVSS) [21] are

distinguished. The CVSS is a set of metrics used to quantitatively compare and

describe different vulnerabilities regarding various attributes such as ease of

exploitation and the consequences of successful exploitation. The characteristics of a

High vulnerability were informally translated to “There is full impact on

confidentiality, integrity and availability and no authentication required”. The

characteristics of a Medium vulnerability were informally translated to “There is

partial impact on confidentiality, integrity and availability and authentication

required”.

NX, access and the severity of the vulnerability exploited are all believed to affect

the probability that successful arbitrary code execution is in the state yes, i.e. how

probable it is to succeed with executing code remotely on a machine with the chosen

defense mechanisms.

An overview of the chosen variables and their possible states is shown in Fig. 1.

Naturally, there are numerous other variables that influence the probability of

succeeding with remote code execution attacks. Some examples of other protective

measures were provided in Sect. 2. In this study, only the security measures depicted

in Fig. 1 were evaluated. However, the states of all other relevant measures were fixed

by the environment of a cyber defense exercise. Sect. 4 describes this in more detail.

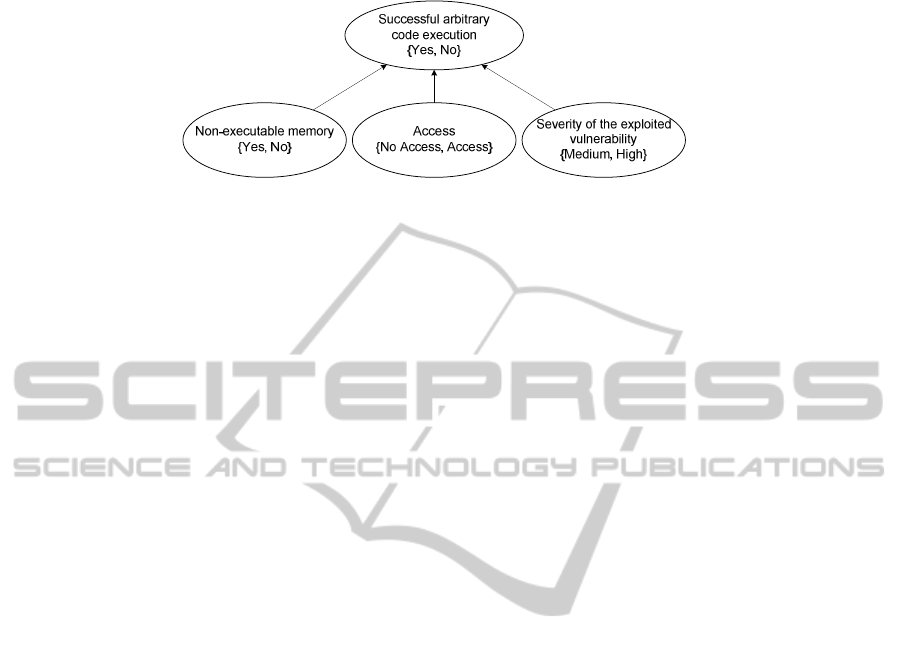

Fig. 1. Studied variables and their possible states.

4 Method

4.1 The Respondents and the Cyber Defense Exercise

The preferred population for assessing this type of data is IT security practitioners

(such as pen-testers) or security researchers. Respondents of this type should be able

to give assessments regarding how important the studied variables are as they have

practical experience from performing the cyber attack in question under different

conditions.

This study describes a survey which was handed out before the start of a cyber

defense exercise named Baltic Cyber Shield (BCS). The exercise was managed at the

Cooperative Cyber Defense Centre of Excellence in Tallinn, Estonia. Its virtual

battlefield was designed and hosted by the Swedish Defence Research Agency with

the support of the Swedish National Defence College. The environment was set to

mimic a typical critical information infrastructure with elements of supervisory

control and data acquisition (SCADA), for instance programmable logic controllers.

The exercise included a sixteen person strong red team (i.e. attackers), six blue teams

(i.e. defenders) of 6-10 people per team, a white team (i.e. game management), a

green team (i.e. technical infrastructure management) and one white observer per

team. The majority of the exercise’s participants were computer security specialists

and some were computer security researchers. They were affiliated with various

northern European governments, military, private sector and academic institutions.

The interested reader is referred to [22,23] for more thorough descriptions of the

exercise.

The survey was distributed to all blue team and red team members. A sample of

fifteen respondents from the BCS fully completed the survey and thus provides the

empirical data for this study. Members from all teams except one blue team and the

red team answered the survey. Respondent ages ranged from 26 to 53 years, with a

mean of 33 years. The respondents were asked to grade their general expertise in the

IT-security domain from 1 = no expertise to 5 = very high expertise. The respondents’

self-assessed expertise ranged from no expertise (1 respondent) to very high expertise

(3 respondents), with a mean of 3.33.

4.2 The Survey

The respondents were asked to specify the probability of carrying out successful

arbitrary code execution attacks given different combinations of the three examined

variables. The probability that successful arbitrary code execution is in the state yes

was assessed through a discrete scale of 0-100 percent. Hence, the answer 0 percent

means that there is no possibility of a successful attack and the answer 100 percent

means that the attack is certain to succeed. Due to the complexity of the question

format each question was, as recommended by [24], accompanied by a figure

describing the scenario. Respondents were also required to state the confidence of

their answers on a scale from 1 (very low confidence) to 5 (very high confidence).

The survey was composed of five main parts: (i) introductory letter, (ii) respondent

background, (iii) respondent training, (iv) probability assessments, and (v) importance

of other variables. In the final part of the survey, (v), the respondents were asked

whether there were any additional important factors, not in the study. Survey training

is something of particular importance when trying to assess information for complex

questions, to ensure that respondents have correctly interpreted the topic of interest

[24]. This survey trained the respondents on several concepts: the question format and

the scales used, the overall scenario and the CVSS.

4.3 Implicitly Defined Variables in the Scenario

As stated in Sect. 3, there are numerous variables that are of importance to the

probability of successful remote code execution attacks. The survey only explicitly

defined the state of three variables. However, the questions were formulated in a way

that made all variables of relevance implicitly defined. The exact formulation was

“For the coming questions, assume that you are to carry out an arbitrary code

execution attack against a service running on a machine in one of the blue team’s

networks. Also assume that you can connect the machine and the service in question,

i.e. you have access to the service’s LAN.”

As all respondents had been given previous access to the network architecture, had

equal knowledge of the scenario and therefore should have pictured the same general

network and defense mechanisms, this overall description effectively fixed the states

of all variables of importance.

5 Results and Analysis

An overview of the survey responses regarding the probability of successful remote

code execution is given in Table 1. As can be seen, access seems to be the most

influential variable, while presence of non-executable memory (NX) seems to be of

minor importance. The normal distribution of the eight studied scenarios was

determined using QQ-plots. QQ-plots are used to assess the distribution of data sets,

e.g. to make sure that statistical methods used are applicable to the distributions at

hand [25].

Table 1. Studied scenarios and their results. LCI: 95% Lower Confidence Interval. UCI: 95%

Upper Confidence Interval.

Scenario Access NX Exploit Mean Stdev LCI UCI Samples

1 Yes Yes High 85.6 8.3 81.4 89.8 15

2 Yes Yes Medium 74.6 11.5 68.6 80.7 15

3 Yes No High 81.2 14.5 73.9 88.6 15

4 Yes No Medium 65.7 14.3 58.5 72.3 15

5 No Yes High 54.7 25.4 41.8 67.5 15

6 No Yes Medium 42.9 21.7 31.9 53.9 15

7 No No High 52.3 30.2 37.0 67.6 15

8 No No Medium 43.7 28.5 29.2 58.1 15

As all possible combinations (2

) between the studied variables (non-executable

memory (NX), access and available exploits) were evaluated it was possible to

analyze the results using traditional experimental design techniques [26].

Experimental design is about extraction of a maximum amount of unbiased

information regarding the factors affecting a process from as few observations as

possible. This is done though a set of statistical tools such as analysis of variance

(ANOVA), regression analysis and QQ-plots.

Analysis of variance, ANOVA, is a collection of tools used for statistical tests to

assess the significance of relations between variables. The null hypothesis of an

ANOVA, H0, is true if the differences between observed groups of data can be

described by chance and false if there are systematic differences large enough to

justify rejection of H0. The boundary associated with rejecting a null hypothesis is

generally described using a probability, p. Datasets containing groups of observed

data with differences large enough to reject the null hypothesis are statistically

significant. A commonly used probabilistic boundary is p < 0.05, which implies that

there is less than 5% probability for H0 to be true [25].

A regression analysis provides an equation that models the expected outcome on a

quantitative variable Y from data on one or more variables X

, X

… X

[25]. A key

concept in regression analysis is to determine how well the identified equation

actually models the variation in a dataset. The measure of the spread of points around

the regression line can be presented using the coefficient of determination, R

, where

0 < R

≤ 1 [25]. In other words, R

measures how well the regression model explains

the variation in the dataset. An R

of 1 (100%) means the model explains all variation.

The adjusted R

is a version of R

which also compensates for the number of degrees

of freedom [26], and is therefore generally to be preferred over the traditional R

A complete 2

designed experiment was carried out with the survey (all possible

combinations of the three examined variables; 8 scenarios), treating the respondents’

answers as the experiment’s outcome. The experimental design was analyzed through

QQ-plots, ANOVA, regression analysis and evaluation of model assumptions through

an analysis of residuals. No problems regarding residual lack of fit were found, and

the model assumptions should thus not be rejected.

Analysis of the experiment’s outcome (cf. Table 2) shows that both access (p <

0.0001) and the severity of the exploited vulnerability (p = 0.055) are of importance

for successful remote code executions value. However, non-executable memory is not

seen as important by the respondents (p = 0.32). Furthermore, there are no seemingly

important relations between any of the studied variables (NX, access and exploit),

suggesting that the influence of these variables on successful remote code execution

are in fact independent from one another. Equation 1 describes how the most

important variables, Access (A) and the Severity of the exploited vulnerability (E),

relate to the probability of successful remote code execution (P).

P = 62.59 + 14.21

A + 3.69

(1)

The value of A is {No access, Access} = {-1, 1} and the value of E is {Medium,

High} = {-1, 1}. The chosen regression model (cf. Equation 1) has an adjusted R

0.32 which can be considered decent but not great. The regression model suggests that

it will be quite likely to succeed with a remote code execution, even if there only is an

exploit for a Medium vulnerability available and the attacker does not have access

(44.7% probability), and highly probable if there is an exploit for a High vulnerability

available and the attacker has access (80.5% probability).

Table 2. Results from the designed experiment.

Source p-value

NX 0.32

Access < 0.0001

Exploit 0.055

NX-Access 0.44

NX-Exploit 0.32

Access-Exploit 0.13

NX-Access-Exploit 0.11

Table 3 describes how certain the experts were for the different scenarios. The

experts are overall fairly certain: no confidence interval goes below 2.5 (out of 5).

Table 3. How certain the experts were for the different scenarios. LCI: 95% Lower Confidence

Interval. UCI: 95% Upper Confidence Interval.

Scenario NX Access Exploit Mean Stdev LCI UCI Samples

1 Yes Yes High 3.5 1.5 2.8 4.3 15

2 Yes Yes Medium 3.4 1.3 2.7 4.1 15

3 No Yes High 3.6 1.2 3.0 4.2 15

4 No Yes Medium 3.2 1.1 2.7 3.8 15

5 Yes No High 3.1 1.2 2.5 3.7 15

6 Yes No Medium 3.1 1.1 2.5 3.6 15

7 No No High 3.3 1.0 2.8 3.9 15

8 No No Medium 3.3 1.3 2.6 4.0 15

Furthermore, all confidence intervals in Table 3 largely overlap and there is thus no

reason to believe that the importance of any scenario or variable is more difficult to

assess than another.

6 Discussion

6.1 Variables and their Importance

Both access and the severity of the exploited vulnerability are seen as important by

the experts. However, non-executable memory is not seen as relevant. This can be due

to respondents being able to tune the exploits to counter this defense mechanism. That

is, a stack-smashing exploit can quite easily be tuned into an arc-injection (i.e.

return-into-libc) [27] exploit, and if this is the case any non-executable memory

defense is rendered next to useless. However, it is frequently pointed out that non-

executable memory is a potent defense if combined with other countermeasures, such

as address space layout randomization [8,20] or canaries such as Stackguard [3].

Thus, the reason why non-executable memory did not turn out as significant during

this study could be that the states of the numerous other important variables in place

during the cyber defense exercise were fixed in such a way that enabling non-

executable memory would not make any difference.

The respondents were also asked to detail any missing variables they perceived as

important to the probability of successful remote code execution, both in the survey

(cf. Table 4), and through informal discussions after the cyber defense exercise. It is

notable that no respondents listed the same missing variables, suggesting a high

validity. However, the discussions made it clear that several variables of great

practical importance should be evaluated further, for example address spaced layout

randomization.

Table 4. Missing variables.

Variable Frequency

System monitoring 1

System updates 1

Application sandboxing 1

Unknown vulnerability 1

Service misconfiguration 1

6.2 Validity and Reliability

While there were no formal quantitative ways of capturing the reliability of the

survey, no respondent had any major issue answering any survey question. However,

one thing that came up during the informal discussions was that respondents

requested the possibility to answer through probability distributions instead of point

estimates. Also, the survey was based on a network which the respondents had

practical experience from. Numerous variable states were therefore not specified in

the survey but were instead known through the respondents’ familiarity with the

scenario. While this might increase the reliability of the study (by giving all

respondents a common understanding of the scenario) it has negative impact on the

external validity. Several important variables were static and it is therefore difficult to

generalize the results to a more general case, e.g. another enterprise environment.

Thus, while the results might be valid and reliable for a cyber defense exercise of this

type and the computer network used in it they are not likely to maintain validity for a

more general case. We believe, however, that these results should give a clear hint

about the relative importance of the studied variables, even for a more general case.

7 Conclusions and Future Work

Among the variables addressed in this study, experts perceive user access to the

service that is to be exploited as the most important studied factor for successful

remote code execution. A readily available exploit for a High severity vulnerability as

defined by the CVSS gives a greater success rate than a readily available exploit for a

Medium severity vulnerability. The presence of non-executable memory is not

perceived as important by the experts, presumably due to lack of other related

countermeasures such as address space layout randomization.

This study shows that it is possible to obtain approximate estimates from security

experts on issues that are difficult to evaluate through experiments. The experts tend

to agree with each other, indicating that they are experts in the domain [28].

It would be interesting to study other variables suggested in the literature and by

the experts. It would also be interesting to evaluate how close to the “truth” that the

expert predictions really are. This is something which we aim to do in the future.

Finally, we believe that there is a great need for more quantitative studies assessing

the importance of different countermeasures, not only for arbitrary code execution

attacks, but for any cyber attack.

References

1. J. Homer, K. Manhattan, X. Ou, and D. Schmidt, A Sound and Practical Approach to

Quantifying Security Risk in Enterprise Networks, Kansas: 2010.

2. T. Sommestad, M. Ekstedt, and P. Johnson, “A Probabilistic Relational Model for Security

Risk Analysis,” Computers & Security, 2010.

3. C. Cowan, P. Wagle, C. Pu, S. Beattie, and J. Walpole, “Buffer Overflows : Attacks and

Defenses for the Vulnerability of the Decade,” Foundations of Intrusion Tolerant Systems,

2003 [Organically Assured and Survivable Information Systems], 2003, pp. 227-237.

4. A. One, “Smashing the stack for fun and profit,” Phrack magazine, vol. 7, 1996, p. 1996–

11.

5. Y. Younan, “Efficient countermeasures for software vulnerabilities due to memory

management errors,” 2008.

6. T. Jim, G. Morrisett, D. Grossman, M. Hicks, J. Cheney, and Y. Wang, “Cyclone: A safe

dialect of C,” USENIX, Monterrey, CA, USA: 2002, pp. 275-288.

7. L.-chung L. T.-cker Chiueh, “Checking Array Bound Violation Using Segmentation

Hardware,” 2005 International Conference on Dependable Systems and Networks

(DSNʼ05), 2005, pp. 388-397.

8. PaX Team, PaX address space layout randomization (ASLR).

9. G. Kc, A. Keromytis, and V. Prevelakis, “Countering code-injection attacks with

instruction-set randomization,” Proceedings of the 10th ACM conference on Computer and

communications security, 2003, p. 280.

10. A. Baratloo and N. Singh, “Transparent run-time defense against stack smashing attacks,”

Proceedings of the annual conference on USENIX, 2000.

11. S. H. Yong and S. Horwitz, “Protecting C programs from attacks via invalid pointer

dereferences,” ACM SIGSOFT Software Engineering Notes, vol. 28, Sep. 2003, p. 307.

12. C. Cowan, M. Barringer, S. Beattie, G. Kroah-Hartman, M. Frantzen, and J. Lokier,

“FormatGuard: Automatic protection from printf format string vulnerabilities,”

Proceedings of the 10th conference on USENIX Security Symposium-Volume 10, USENIX

Association, 2001, p. 15–15.

13. J. Newsome, “Dynamic taint analysis for automatic detection, analysis, and signature

generation of exploits on commodity software,” Network and Distributed System Security,

2005.

14. R. H. and B. Joyce., “Purify: Fast detection of memory leaks and access errors,” Winter

USENIX Conferenc, San Francisco, California, USA, January: 1992, p. 125--136.

15. N. Dor, “Cleanness checking of string manipulations in C programs via integer analysis,”

Static Analysis, 2001.

16. N. Frykholm, “Countermeasures against buffer overflow attacks,” RSA Tech Note, 2000,

pp. 1-9.

17. S. D. Xenitellis, “Identifying security vulnerabilities through input flow tracing and

analysis,” Information Management & Computer Security, vol. 11, 2003, pp. 195-199.

18. U. Erlingsson, Low-level Software Security : Attacks and Defenses Low-level Software

Security : Attacks and Defenses, Redmond, WA, USA: 2007.

19. J. Wilander and M. Kamkar, “A comparison of publicly available tools for dynamic buffer

overflow prevention,” Proceedings of the 10th Network and Distributed System Security

Symposium, Citeseer, 2003, p. 149–162.

20. H. Shacham, M. Page, B. Pfaff, and E. Goh, “On the effectiveness of address-space

randomization,” ACM conference on, 2004, p. 298.

21. P. Mell, K. Scarfone, and S. Romanosky, “A Complete Guide to the Common Vulnerability

Scoring System Version 2.0,” System, 2007, pp. 1-23.

22. K. Geers, “Live Fire Exercise: Preparing for Cyber War,” 2010.

23. H. Holm, T. Sommestad, J. Almroth, and M. Persson, “A quantitative evaluation of

vulnerability scanning,” Information Management & Computer Security.

24. P. H. Garthwaite, J.B. Kadane, and A. OʼHagan, “Statistical methods for eliciting

probability distributions,” Journal of the American Statistical Association, vol. 100, 2005,

pp. 680-701.

25. R. M. Warner, Applied statistics: From Bivariate through Multivariate Techniques, Sage

Publications, Inc, 2008.

26. D. C. Montgomery, Design and analysis of experiments, John Wiley & Sons Inc, 2008.

27. J. Pincus and B. Baker, “Beyond stack smashing: Recent advances in exploiting buffer

overruns,” Security & Privacy, IEEE, vol. 2, 2004, p. 20–27.

28. H. Einhorn, “Expert judgment: Some necessary conditions and an example,” Journal of

Applied Psychology, 1974.
