SEMANTIC-BASED COMPOSITION OF MODULAR

ONTOLOGIES APPLIED TO WEB QUERY REFORMULATION

Manel Elloumi-Chaabene

, Nesrine Ben Mustapha

, Hajer Baazaoui-Zghal

Antonio Moreno

and David Sánchez

Riadi-GDL Laboratory, ENSI Campus Universitaire de la Manouba, 2010, Tunis, Tunisie

ITAKA Research Group, Departament d’Enginyeria Informàtica i Matemàtiques, Universitat Rovira i Virgili

Av. Països Catalans, 26, 43007, Tarragona, Spain

Keywords: Ontology composition, Modular ontology, Module clustering, Semantic measures.

Abstract: When a Web query is submitted and relevant documents are not found, users are faced with the difficult task

of reformulating the query. It may be argued that ontologies can be useful to automate the query

reformulation process, taking advantage of the domain knowledge. This paper proposes a novel way of

building a modular ontology that may be suitable for this task, composed of interrelated modules focused on

specific topics. We propose to use well-known Web-based semantic relatedness measures to improve the

content and structure of the modular ontology. Some experiments on query reformulation based on the

obtained ontology modules show satisfactory results.

1 INTRODUCTION

With the growing amount of available Web

resources, users are faced with the task of finding

the precise information suited for their purpose.

Users frequently modify a previous search query to

have better results. These modifications are called

query reformulations or query refinements.

Ontologies have proven to be useful to interpret

queries and documents if they are adapted to the

particular needs of the search process. Big

ontologies usually do not cover a specific field of

search. With smaller and more compact ontologies,

it can be easier for the user to find the appropriate

terms to make or refine a search, restricted to a

specific field in which terms are semantically linked.

Therefore, ontology modularization processes can

have a significant contribution in this field. Existing

methods on this field are based only on taxonomic

relationships between terms and do not consider the

semantics of concepts. Thus, their results have a

poor taxonomic structure and lack non-taxonomic

relationships. This work proposes the composition of

modular ontologies based on semantic relatedness

measures, and shows how these modules can be used

to improve the reformulation of Web queries. The

main contributions of this work are the definition of

a Web-based semantic modular ontology building

algorithm and the use of modular ontologies for

query reformulation.

The next section presents a brief state of the art

on compositional approaches.

2 COMPOSITION OF

ONTOLOGY MODULES

In this paper we take the expression ontology

module to refer to a fragment of a domain ontology

that may be reused in different tasks. It represents a

set of concepts which are strongly interrelated. A

modular ontology includes a set of independent

modules, which are linked through inter-module

connectors (Stuckenschmidt et al., 2009). An inter-

module connector is defined by a relationship

between two concepts belonging to two modules

within the ontology.

Ontology composition approaches can be

classified into three categories. The first one

includes techniques based on an algebra (Jarrar,

2005) (Mitra et al., 2004), in which a composition

operator has been defined to put modules together.

305

Elloumi-Chaabene M., Ben Mustapha N., Baazaoui-Zghal H., Moreno A. and Sánchez D..

SEMANTIC-BASED COMPOSITION OF MODULAR ONTOLOGIES APPLIED TO WEB QUERY REFORMULATION.

DOI: 10.5220/0003536403050308

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 305-308

ISBN: 978-989-8425-76-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

The second one is based on the object-oriented

paradigm (Henriksson et al., 2007). Thus, role

modelling for ontologies helps to remedy the

deficiencies of class-based ontologies without losing

their advantages. The last category is based on

description logics (Stuckenschmidt et al., 2009).

This state of art has identified the following

limitations. First, it shows a lack of appropriate

approaches for obtaining modular ontologies usable

for Web semantic search. Second, the composed

modular ontologies are not well structured. Finally,

ontology modules have a big size which make it

hard to the user to choose the appropriate search

terms. To remedy these problems, we propose a

novel method to compose ontology modules using

well known techniques like clustering and Web-

based co-occurrence statistics. The final aim is to

unravel the implicit taxonomic and non-taxonomic

relationships between the concepts in the ontology

modules. Besides, the method intends to improve the

modular ontology structure and to reduce the size of

the modules, in order to improve the process of

query reformulation.

3 A NEW METHOD FOR THE

COMPOSITION OF MODULAR

ONTOLOGIES

The final objective of the work is to improve the

query reformulation process using a modular

ontology. Our hypothesis is that it may be more

beneficial to the user to specify some strongly

related concepts and relations. Thus, we propose to

analyze, improve and re-structure these modules to

obtain a coherent modular ontology. This section

aims to describe the proposed compositional

approach based on clustering and co-occurrence

similarity measures. We start in the following

subsection with a general description of the

approach, and then we turn to a detailed explanation

of each step.

3.1 General Description of the

Proposed Approach

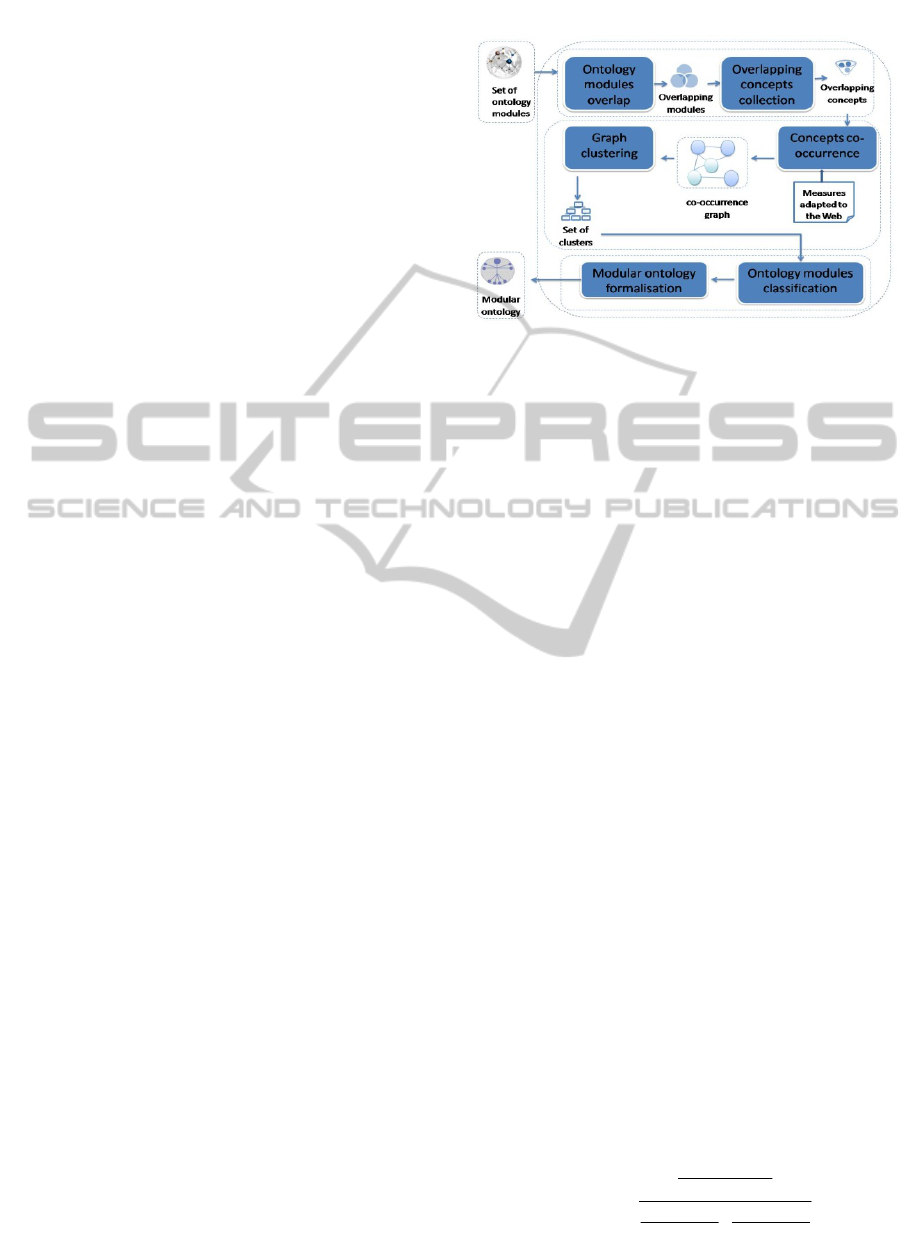

Figure 1 depicts the main phases of the new method

to compose ontology modules. The first step deals

with the reorganization of the ontology modules.

The second step concerns the classification of these

concepts into modules based on their semantic

similarity, computed from Web-scale co-occurrence

statistics. The third and last step ensures a proper

structure of the ontological modules.

Figure 1: Global presentation of the approach.

3.2 Ontology Modules Reorganization

The reorganization of the ontology modules is

performed in two sub-steps. The first one aims at

determining the overlap between the different

modules. The second one consists in reducing the

size of the modules by collecting the overlapping

concepts for each pair of modules. We propose to

store a set of overlapping concepts for each pair of

modules, and not just a single set of overlapping

concepts.

3.3 Concept Classification using

Web-based Semantic Measures

The classification of concepts allows a meaningful

redistribution of the concepts within the modules. In

fact, we propose in this section to form new modules

with new semantic relations based on the co-

occurrence between concepts.

3.3.1 Web-based Semantic Similarity

between Concepts

This sub-section aims to uncover semantic relations

between concepts using the Web.

The co-occurrence between concepts may be

determined from the hits returned by Web search

engines. To calculate the semantic similarity

between terms based on co-occurrence, the well-

known PMI (Pointwise Mutual Information)

measure was applied. This measure is computed

with the following formula (1):

⎟

⎠

⎞

⎜

⎝

⎛

webstotal

bhits

webstotal

ahits

webstotal

bANDahits

baIRPMI

)(

log),(_

(1)

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

306

This measure is then represented in a co-

occurrence graph. Let G = (V, E) be a co-occurrence

graph (Newman, 2005), where  = {

,…, 



} is a

set of vertices and E⊆V×V is a set of edges. Each

concept is represented by a node. The edge between

nodes 

and 

is included in the graph if the degree

of relatedness between those two concepts, as

measure by the PMI estimation, is above a certain

threshold, which basically determines the intended

density of the graph. The co-occurrence graph

constitutes the input of the clustering algorithm

which will be detailed in the next sub-section.

3.3.2 Clustering based on the

Co-occurrence Graph

Due to the number of clusters is unknown, it is

necessary to employ an unsupervised clustering

algorithm. In this case, the Newman clustering

algorithm was chosen. Newman and Girvan

(Newman, 2005) impose weights on the edges based

on structural properties of the graph G. The weight

used by Newman and Girvan is the between’s of an

edge {

, 

}, which is the number of shortest paths

connecting any pair of vertices that pass through the

edge. The cost of a path is calculated as the sum of

the PMI values of the edges of the path. As a

computational detail, it may be noted that there may

exist multiple paths of the same length between a

given pair of vertices.

This step has ensured the organization of

semantically related concepts within the same

module, but lacks a proper structuring of the whole

set of modules. In the next section, we describe the

modules classification process using Web-based

semantic relationships.

3.4 Ontology Modules Structuring

This section describes the last phase, in which the

final modular ontology is properly structured and

formally represented. This phase basically aims to

find relationships between concepts in different

modules. Besides, it has the objective to obtain a

hierarchy of modules that may be formalized using

P-DL.

3.4.1 Ontology Modules Classification

The clusters (modules) obtained with the Newman

algorithm in the previous section, are classified with

the vector model to create the structure of the final

modular ontology. This process consists of two

phases: term weighting and similarity computation.

Thus, the space is of dimension K, being K the

number of common concepts between the

overlapping modules. In addition, we define a vector

concept VC

= (w

),…, w

)) that represents the

common concepts between the modules. w

) is

the weight of concept c

in the Web. This weight is

determined by the inverse occurrence of the concept

in the Web.

)(

chits

cw =

(2)

Each module is represented by a vector module

=(w

),…,w

)), where w

) is the

average of the PMIs of the concept c

with the

concepts of the module M

. w

)is described by the

formula (5), where N is the number of concepts in

the module M

ccPMI

kij

∑

),(

)(

(3)

Then, it is calculated the cosine between the

vector modules and the vector concept to classify the

modules.

∑∑

∑

•

lilij

lij

cwcw

VCMSim

)()(

),(

(4)

Next, we propose to formalize these modules

into a modular ontology, as detailed in the following

section.

3.4.2 Modular Ontology Formalisation

We detail in this subsection the last step of module

composition, which consists on the formalisation of

the modular ontology with P-DL (Bao et al., 2007).

P-DL, a description logic based on packages, uses

the importation of relations in order to compose a

local model.

4 EVALUATION

In order to evaluate the approach presented in this

paper, the impact of the use of ontology modules

during query reformulation is tested. We have

computed the precision of results retrieved by means

of query reformulation.

SEMANTIC-BASED COMPOSITION OF MODULAR ONTOLOGIES APPLIED TO WEB QUERY

REFORMULATION

307

Figure 2: Modularization effects on query reformulation.

In the first scenario, documents are retrieved via

queries proposed from the INEX (INEX, 2010)

topics without performing any query reformulation.

The second scenario consists on reformulating the

queries by means of the input ontologies provided

by INEX. The third scenario consists on

reformulating queries using concepts of the same

module than the queried concept. The fourth

scenario consists on reformulating queries using

concepts related to the queried concept in other

modules (these relationships are obtained in the third

step of the proposed approach). In each scenario, the

amount of implicit and explicit knowledge

considered during the query reformulation increases.

5 CONCLUSIONS

The challenge addressed in this paper is to propose

an approach to improve query reformulation based

on ontology modularization. Indeed, the use of

ontological modules created by means of case-based

reasoning has improved the relevance of results

(Elloumi et al., 2010). Given that the approaches of

modularization of ontologies are based mainly on

the structure of the ontology, the resulting modules

only rely on explicitly modelled relationships. In

order to consider as much explicit and implicit

knowledge between modules, we propose to

estimate concept relatedness from term co-

occurrence in the Web. As a result, better precision

is achieved by query reformulation tasks relying on

these better structured modules.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish-

Tunisian AECID project A/030058/10, “A

framework for the integration of Ontology Learning

and Semantic Search”.

REFERENCES

Bao J., Slutzki G., and Honavar V., «A Semantic

Importing Approach to Knowledge Reuse from

Multiple Ontologies». In Proceedings of the Twenty-

Second AAAI Conference on Artiﬁcial Intelligence,

July 22-26, 2007, Vancouver, British Columbia,

Canada, AAAI Press, 2007, p. 1304–1309, 2007.

Elloumi-Chaabene M., Ben Mustapha N., Baazaoui-Zghal

H., Moreno A. and Sánchez D. «Evolutive content-

based search system- Semantic Search System based

on Case-based-Reasoning and Ontology Enrichment».

In Proceedings of the International Conference on

Knowledge Discovery and Information Retrieval,

2010, p. 24-34.

Henriksson J., Assmann U., Johannes J., and Zschaler S.,

«Reuseware - Adding modularity to your language of

choice». In Proceedings of Technology of Object-

Oriented Languages and Systems Europe 2007,

Zurich, Switzerland (24th–27th June 2007), 2007.

Jarrar M., Towards Methodological Principles for

Ontology Engineering. PhD thesis, Vrije Universiteit

Brussel, 2005.

Mitra P. and Wiederhold G., «An Ontology-Composition

Algebra. International Handbooks on Information

Systems. Springer-Verlag, handbook on ontologies

edition», pages 93-117, 2004.

Newman, M. E. J. A measure of Betweenness Centrality

based on Random Walks. In Social Networks, 27,

pp. 39–54, 2005.

Stuckenschmidt H. et al. (Eds.): Modular Ontologies,

LNCS 5445, pp. 321–347, 2009.

INEX, Overview of the INEX 2010 Ad Hoc Track, http://

staff.science.uva.nl/~kamps/publications/2010/arvo:ov

er10.pdf, 2010.

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

5 10 15 20 30 100 200

Precision rate

Number of documents

Modularization effects on query reformulation

Scenario1 Scenario2 Scenario3 Scenario4

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

308
