MODELING AND SIMULATION OF IEC 61850 REQUIREMENTS

APPLIED TO AN AUTOMATED PEOPLE MOVER’S

CONTROLLER

Guilherme Kunz

Western Paraná State University, Centro de Engenharias e Ciências Exatas, Foz do Iguaçu, Brazil

José Machado

University of Minho, Mechanical Engineering Department, CT2M Research Centre, Guimarães, Portugal

Eduardo Perondi

Federal University of Rio Grande do Sul, Mechanical Engineering Department, Porto Alegre, Brazil

Keywords: IEC 61850, Modelling, Simulation, Automated People Movers.

Abstract: Automated People Movers (APM) are systems for passenger transport with fully automated operation and

high frequency service. For this study, we proposed the adaptation of the standard IEC 61850 (design to be

used in electric power systems based in intelligent electronic devices) to allow its application to an APM

system named Aeromovel installed in Porto Alegre, Brazil. Aeromovel is a nonconventional Automatic

People Mover whose operation principle is based on pneumatics. This paper proposes the use of two

analysis techniques, Simulation and Formal Verification, in order to guarantee the desired behaviour for an

APM propulsion system composed by a centrifugal fan and ten (on-off and proportional) pneumatic valves

driven by pneumatic pistons. This approach is based on the use of timed automata and UPPAAL software.

1 INTRODUCTION

An Automated People Mover (APM) is a fully

automated, grade-separated mass transit system. The

term is generally used only to describe systems

serving relatively small areas, such as airports,

downtown districts or theme parks, but is sometimes

applied to considerably more complex automated

systems. Usually they circulate in headways that do

not interfere with other traffic ways in order to

guarantee safety for passengers and security for the

system (IEEE, 2004).

An APM performs automatically the control of

movement, the execution of the safety instructions

and the direction of the trains. The automatic

accomplishment of these functions is assured by the

Automated Train Controller (ATC) system that is

composed by the following sub-systems: ATP -

Automatic Train Protection, ATO - Automatic Train

Operation and ATS - Automatic Train Supervision.

In order to guarantee the communication among

these systems, the standard IEEE Standard for

Communications-Based Train Control (CBTC)

Performance and Functional Requirements (IEEE,

2004) must be followed. This standard describes the

functional requirements and also the

communications performance concerning the

described controller systems of the APM

(Communications Based Train Control - CBTC).

For example, to activate the train braking system,

it is needed that the central control has information,

constantly updated, about the speed and current

location of each vehicle on the highway and the time

required for activation of the brake system, in order

to perform the stopping under the deceleration curve

thereby avoiding the collision between vehicles.

For integration of the ATC, it is used the

standard IEEE Standard for Communications

Protocol Aboard Trains (IEEE, 1999) that defines

the communication protocol between vehicles and

291

Kunz G., Machado J. and Perondi E..

MODELING AND SIMULATION OF IEC 61850 REQUIREMENTS APPLIED TO AN AUTOMATED PEOPLE MOVER’S CONTROLLER.

DOI: 10.5220/0003530502910295

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 291-295

ISBN: 978-989-8425-75-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

inner vehicles. This standard defines two solutions

according to the application: the protocol 1473-L

(LonWorks) and 1473-T (TCN).

In Sullivan (2001) there was observed, in the

types 1473-L and 1473-T, the lack of support for

new demands for video transmission, the missing of

IP interfaces preventing communication via

Ethernet, for example, and the lack of protocols used

for systems integration Advanced Train Control

System (ATCS).

According to Hewings (2008) protection system

and train control is traditionally based on wired and

centralized circuits. Although they generally have a

simple design, there are serious difficulties in the

installation and maintenance. As there is increased

demand on the system, there are advantages in

choosing an open architecture, with a simple

communication system. These concepts are largely

addressed in the development of IEC 61850,

designed to be a communication standard for

electrical substations based on the use of IEDs

(Intelligent Electronic Devices), which occupy the

place of older protective relays, combining functions

of protection, control and communication in the

same equipment. In general, its application results in

the following benefits (Hewings, 2008):

• Reduced cabling.

• Reducing the cost and installation time.

• Increased capacity for monitoring and control

systems protection.

• Separate infrastructure from functionality.

• Interoperability.

The IEC 61850 standard has requirements such

as real-time control and distributed object

orientation and provides a standard for integration of

substations from specification of reporting

requirements, functional characteristics, data

structure and the nomenclature for devices and data.

It also provides standards for operational

characteristics, such as how to interact with the

applications of control devices and how they should

be tested for compliance of the system.

Currently, there are applications in the areas of

hydropower, wind energy and distributed generation.

It is proposed, in the present study, the expansion of

the IEC 61850 standard to APM systems,

performing a control CBTC.

The application of all IEC 61850 requirements to

an Automated People Mover’s Controller is a large

and very complex task. The approach that seems to

accomplish the goals of this large project is to use,

first, skills in modelling, creating a large global

model that must consider the communication

protocols proposed by the standard and guaranteeing

the accomplishment of all time delays; second, to

simulate the very large model using appropriated

tools and software; and, third, to use Formal

Verification techniques in order to guarantee a set of

behaviours defined by the standard.

As it is an ongoing work, this paper presents

some aspects related with the communication

protocols – proposed by the IEC 61850 standard –

and aspects related with Simulation and Formal

Verification of the communications requirements

specified by those protocols.

Considering the IEC 61850 standard protocols,

the GOOSE (Generic Object Oriented Substation

Event) is the first one being analyzed. The

Automated People Mover that is treated in this study

uses pneumatic power for displacement, in which

the combination of a pneumatic propulsion system

control and the control of a set of on-off and

proportional valves is crucial to guarantee the

system dependability.

In order to handle with this complex problem,

the main idea is to use, in a complementary way,

Simulation and Formal Verification analysis

techniques (Machado et al. 2011)

Several formalisms can be used to model timed

systems. Timed automata were adopted as the

modelling formalism for system modelling due to

two main reasons: first, the study of the proposed

system needs to take time into account; and, second,

it is the input formalism of the UPPAAL model-

checker (Behrmann et al., 2004). Even if UPPAAL

is a Model-Checker, in this step of this very large

project, and specifically in this paper, it is used,

only, as a Simulator. As the next step of our

approach is to use Formal Verification Technique,

we believe that it is a good solution for this task.

In order to achieve the main goals of this paper

the Section 2 presents the case study; Section 3

presents the GOOSE protocol model; Section 4 is

devoted to presentation of the simulation results and

finally, Section 5, presents some conclusions about

the study presented herein.

2 CASE STUDY: AEROMOVEL

The main features of the technology are the

exclusive Aeromovel traffic on the route, the high

ratio of useful load/weight carried and external

traction. These characteristics are due, respectively,

of the fact that car travel above ground in a unique

way and have external power system. This makes it

relatively lighter than other similar transportation

systems, allowing less robustness for the beams

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

292

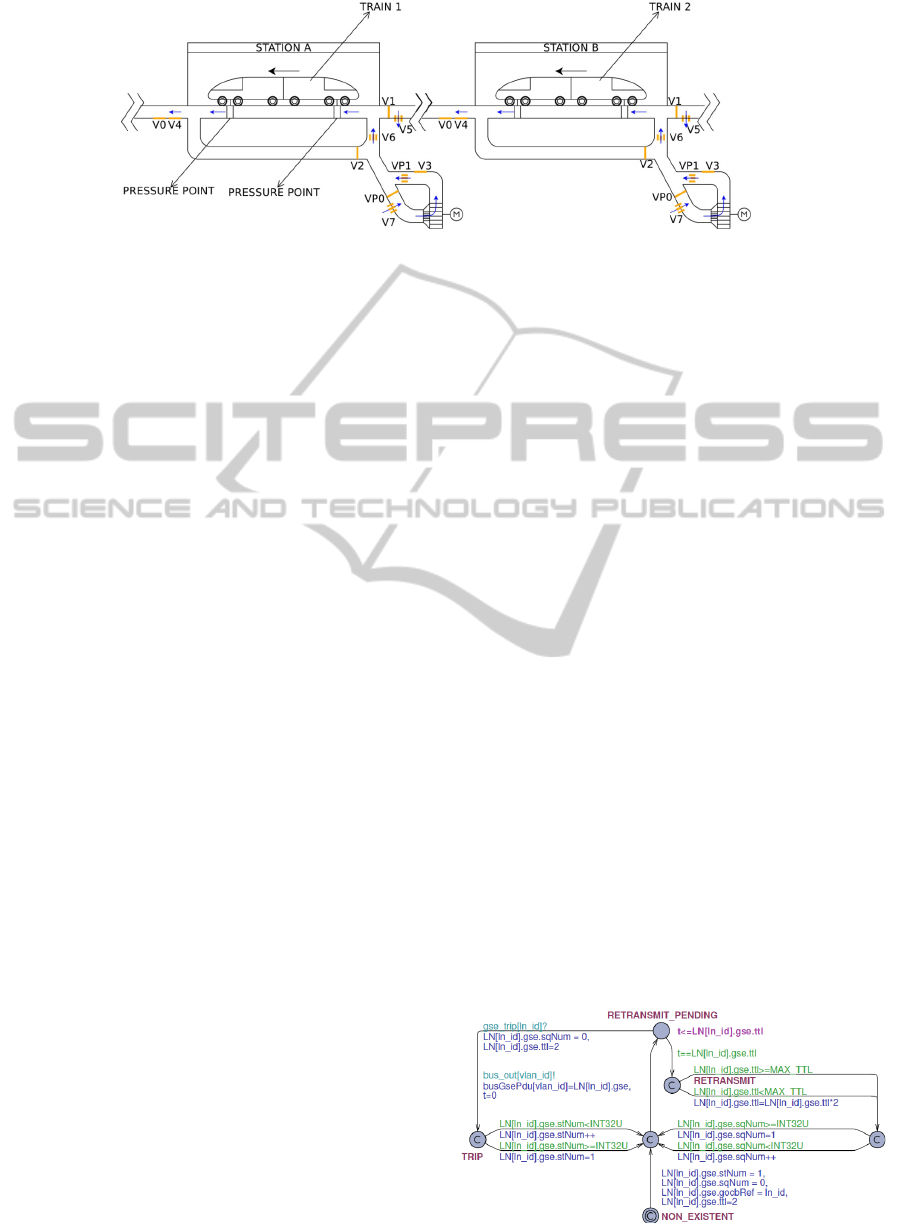

Figure 1: Layout of power train group - Push to Left.

where it operates, reducing the costs of construction,

installation and maintenance of the system.

The power unit, known as power train group or

propulsion system, is responsible for generating

pressure differential and is basically composed of an

asynchronous electric motor that drives the

industrial centrifugal fan. Each power train group is

connected to the main duct through a pipeline with

of cross-sectional area.

The proposed fluidic power system (Fig. 1)

consists of an industrial centrifugal fan (with air

flow of up to 10

/h) and a set of two proportional

valves (VP0 and VP1) that allow control of pressure

and consequently the force imposed on the vehicle

and eight on-off valves (V0, V1,…,V7) They allow

the effect of the fan switch on the main duct through

which the vehicle moves, and can perform inflation

or exhaust air as seen in Fig. 1. The valves used in

the Aeromovel system are characterized by causing

obstruction of flow from angular movement.

Pneumatic pistons are used to rotate the flaps of the

valve due to high flow rates involved.

3 GOOSE PROTOCOL MODEL

In order to detail the explanation of the study

realized, this paper presents, only, the study of one

to one GOOSE messages. It must be highlighted that

all the system (controller and plant, in closed-loop

behaviour) was modelled and the entire model is

composed by sixty-two (62) timed finite automaton

modules.

The train control system is usually centralized,

but, aiming a solution based on the IEC 61850

standard (Hewings, 2008), the models were

developed based on distributed controllers so, in the

models, it is considered real-time dedicated to each

individual device. The units are connected to a

communication bus that provides information

exchange with other processing unit responsible for

interfacing with the user, thus reducing the

processing request individually. In general, the

decision to use a distributed control system is

motivated by cost reduction and increased system

flexibility and control, in this particular case, the

distance between the elements of the system.

Models of plant system devices and controllers

were developed using timed automata formalism and

analyzed using UPPAAL software for simulation.

The model was divided into the following templates:

Goose Server, Goose Client, Bus and Logical Node.

With respect to the implemented GOOSE

protocol model, were taken in account the following

characteristics (see Fig. 2):

• The messages are asynchronous and

unsolicited;

• The GOOSE protocol is encapsulated directly

in Ethernet layer. The messages are

connectionless so the model does not verify the

connection stability (without confirmation from

receivers).

• The messages are multicast. To the multicast

only clients or servers in the same VLAN

(virtual LAN) can send or listen packages.

Must be a Bus Model to each VLAN (the

template model has facilities to do this

configuration).

• How there isn’t confirmation from receivers,

the retransmission is used to increase the

probability of successful reception.

Figure 2: Goose Server Model.

MODELING AND SIMULATION OF IEC 61850 REQUIREMENTS APPLIED TO AN AUTOMATED PEOPLE

MOVER'S CONTROLLER

293

The Bus Model has a FIFO (First In, First Out)

queue with 4 ms (milliseconds) delay and the total

delays of frames flow introduced by network and

communication processors are allocated only in the

Bus Model (typical GOOSE total transfer time is

4ms) (see Fig. 3).

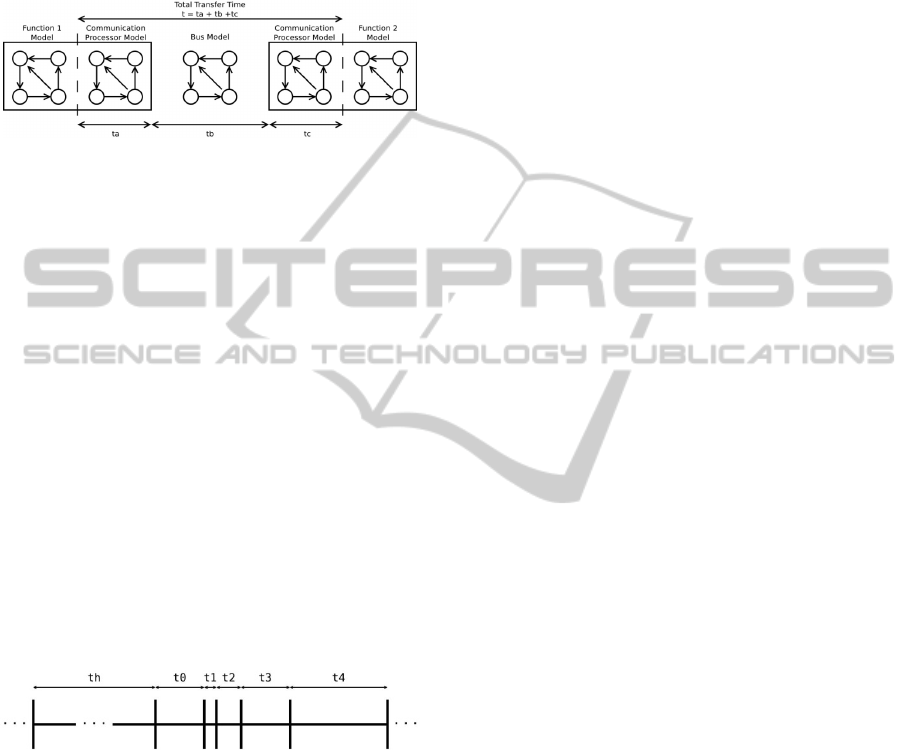

Figure 3: Communications Delay.

The Gosse Server has three basic states: NON-

EXISTENT, RETRANSMIT-PENDING and

RETRANSMIT. In the case of Logical Node has

been configured to send Goose Messages

(GoEna==true) the server transmit the first package

setting SqNum to 0 (this variable will be

incremented for each transmission, but will rollover

to 1 and set to zero when StNum is updated), StNum

to 1 (this variable is used to define how many times

the equipment has changed state) and

timeAllowedtoLive to 2 (this variables are in the

structure called SendGooseMessage). The time to

wait for the next transmission (timeAllowedtoLive) is

set to 2

(n=1) and is incremented by n+1 until

1024ms.

The Fig. 4 shows the waiting time for the next

re-transmission when th is the heartbeat time

(1024ms), t0 is an indeterminate time by an

asynchronous changing status, t1 is 2

ms, t2 is 2

ms, t3 is 2

ms, t4 is 2

ms and so forward.

Figure 4: Time to wait for the next re-transmission.

Goose Server send messages to Bus Model by

copying the struct SendGooseMessage to struct

busGsePdu (according VLAN) and send a signal by

channel to Bus Model. The Bus Model receives the

signal and copies the busGsePdu structure to a

queue and does a time registry. After the delay (4

ms) the Bus Model remove the data from the queue

and copy again to busGsePdu structure, sending a

broadcast channel to all Goose Clients which are

listening the VLAN. The Bus Model is the same to

Sample Value and Goose Messages, but has

difference in the queue because those messages have

different structures.

The Goose Clients receive by broadcast channel

signal and copy the busGsePdu structure to local

memory, verifying interest (initially configured). If

has not interest the data is discarded and the Goose

Client comeback to the listen state. If it is important

information arriving, then the Goose Client model

call the Logical Node Controller do the necessary

actions and comeback to the listen state.

4 SIMULATION RESULTS

For all the models, the range of all variables has

been limited in order to decrease the necessary

computational capacity to obtain results, when

executing formal verification tasks. For all the

locations of the entire automata model - with

exception of the "committed" locations - it is

necessary a time interval to allow evolutions, in all

automaton models, from a location to another

location.

Concerning simulation results, the data of the file

XTR (simulation registry) have been used to obtain

the diagram of Fig. 5. In this figure, it is possible to

see the retransmission messages by the increment of

the SqNum and stNum variables in the time. The

simulated behavior is the expected one for this

system. However, the step considered - after this one

– will be to consider also formal verification in order

to be sure about the behavior of the Goose

communications.

At this moment, formal verification has been

used only for deadlock violation (formal description:

“

A[] not deadlock”), with DBM - Difference

Bounded Matrices (Dill, 1989) state space

representation, but not yet considered, concerning all

the system with GOOSE protocol, because the

model of the system is now a very large and

complex model - composed by sixty-two (62)

modules - and the computational capacity that we

have available is not enough to obtain results. To

solve this problem, it will be necessary to use partial

formal verification (Holzmann, 1991 and Holzmann,

1998) and/or abstraction modeling techniques

(Balarin, 1996) to handle with this very large model,

in order to obtain Formal Verification results.

5 CONCLUSIONS AND FUTURE

WORK

The use of simulation and formal verification

techniques for analysis of the studied APM

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

294

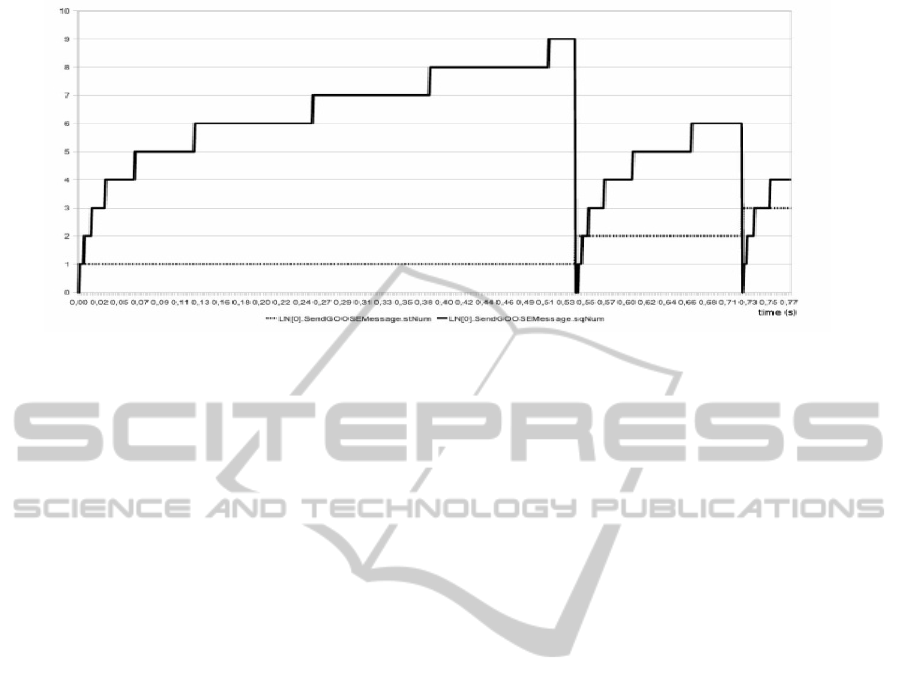

Figure 5: Simulation Results.

controller was very helpful and allowed us obtaining

good results for studying the IEC 61850 GOOSE

protocol.

With this study, it is shown, in this paper that a

distributed controller - corresponding at a part of a

complex system - has been verified and it is

concluded, also, that the controller accomplishes the

main behavior desired for the system and the delays

proposed by IEC 61850 standard.

All range of variables, in the models, are used in

conformance with IEC 61850. However, in order to

accomplish the next step of our work - formal

verification of the entire model - reducing variable

size will be possible to improve formal verification

performance, because it decreases the time and

memory consuming used to do the formal

verifications. For example, stNum has 2

bytes but

we intend to use it with 2

bytes because the

functionality is the same.

As future work, other partial controllers will be

verified - concerning the same system - and, finally,

an abstraction of each part of the controller will be

verified in order to guarantee the desired behavior

for the system, considering all the distributed

controller system.

ACKNOWLEDGEMENTS

Guilherme Kunz is supported by the PTI C&T

program (Fundação Parque Tecnológico Itaipu -

FPTI-BR). The authors would like to thank to PTI

C&T/FPTI-BR for financial support and to CESUP-

UFRGS for access to the clusters.

REFERENCES

Balarin, Felice. Approximate reachability analysis of

timed automata. In 17th IEEE, Real-Time Systems

Symposium. IEEE Computer Society Press, 1996.

Behrmann, G., David, A., and Larsen, K. G. (2004). A

tutorial on UPPAAL. 4th International School on

Formal Methods for the Design of Computer,

Communication, and Software Systems (SFM-RT’04).

LNCS 3185.

Dill, David L., Timing Assumptions and Verification of

Finite-State Concurrent Systems. LNCS 407. Springer

Berlin 1989, pp 197-212.

Holzmann , Gerard J.. Design and Validation of Computer

Protocols. Prentice-Hall, 1991.

Holzmann , Gerard J.. An analysis of bitstate hashing.

Formal Methods in System, Design, 13:289–307,

1998.

Hewings, D. Introduction of integrated protection and

control to railway electrification systems. In Proc. IET

9th International Conference on Developments in

Power System Protection DPSP 2008, pages 68–73.

IEEE (1999). Standard for Communications Protocol

Aboard Trains.

IEEE (2004). IEEE standard for communications-based

train control (CBTC) performance and functional

requirements.

Machado, J., Seabra, E., Campos, J., Soares, F. and Leão

C. (2011). Safe controllers design for industrial

automation systems. Computers & Industrial

Engineering 60 (2011) 635–653.

Sullivan, T., IEEE rail transit vehicle interface standards

update, 4

International Conference on

Communications Based Train Control, 2001.

MODELING AND SIMULATION OF IEC 61850 REQUIREMENTS APPLIED TO AN AUTOMATED PEOPLE

MOVER'S CONTROLLER

295
