MULTI-CUE BASED CROWD SEGMENTATION

Ya-Li Hou and Grantham K. H. Pang

Department of Electrical and Electronic Engineering, The University of Hong Kong

Pokfulam Road, Pokfulam, Hong Kong

Keywords: Crowd segmentation, Human detection, Occlusions, Coherent motion.

Abstract: With a rough foreground region, crowd segmentation is an efficient way for human detection in dense

scenarios. However, most previous work on crowd segmentation considers shape and motion cues

independently. In this paper, a method to use both shape and motion cues simultaneously for crowd

segmentation in dense scenarios is introduced. Some results have been shown to illustrate the improvements

when multi-cue is considered. The contribution of the paper is two-fold. First, coherent motion in each

individual is combined with shape cues to help segment the foreground area into individuals. Secondly, the

rigid body motion in human upper-parts is observed and also used for more accurate human detection.

1 INTRODUCTION

Human shape is an important feature for human

detection. However, shape cues may get less reliable

when the background is cluttered or the crowd

density is high. Motion features are usually

examined in two categories. Some methods analyze

the motion difference between two consecutive

frames. Others find some motion characteristics

based on multiple consecutive frames, like periodic

motion, coherent moving trajectories. Our target in

this paper is to develop an efficient method for

crowd segmentation using cues from both shape and

motion simultaneously.

2 RELATED WORK

People counting and human detection has become a

hot topic in these years. All the methods based on

shape cues can be classified into two categories.

Their extension with motion features will also be

discussed.

The first category exhaustively searches an

image with a sliding window. Each window is

classified as human or non-human with an advanced

classifier based on shape, color or texture features

(Dalal and Triggs, 2005, Zhu et al., 2006, Tuzel et

al., 2007, Wang et al., 2009). These methods are

usually extended by considering motion between

two consecutive frames, as (Viola et al., 2003, Dalal

et al., 2006 ). However, the methods in this category

are computationally expensive. Lin et al. (Lin et al.,

2007) use a template matching method to detect

individuals in the crowd. A hierarchy of templates is

established to include as many postures as possible

since accurate template model are necessary in

template matching-based methods. This method has

faster computation speed. However, it is not

straightforward to extend the method with motion

features.

The other category assumes that a foreground

area for the crowd has been obtained. People

counting and detection are achieved by segmenting

the foreground into individuals, like (Zhao and

Nevatia, 2004, Zhao et al., 2008, Rittscher et al.,

2005, Hou and Pang, 2009). Zhao and Nevatia (Zhao

and Nevatia, 2004) locate the individuals in the

foreground area by head detection. Head candidates

are detected by checking local peaks on the

foreground contour. A detected individual is

removed from the foreground and the next

individuals are detected in the remaining foreground

region. Rittscher et al. (Rittscher et al., 2005) tried to

reduce the requirements for an accurate foreground

contour by only sampling some informative feature

points on the contour. A variant of EM (Expectation-

Maximization) algorithm is used to find the best

grouping of the points with rectangles. Except for

the background subtraction, the methods do not

consider the motion features explicitly.

Recently, Hou and Pang (Hou and Pang, 2010)

proposed a method for crowd segmentation in a

173

Hou Y. and K. H. Pang G..

MULTI-CUE BASED CROWD SEGMENTATION.

DOI: 10.5220/0003528901730178

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 173-178

ISBN: 978-989-8425-75-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

dense crowd. They used the B-ISM (Block-based

Implicit Shape Model) to explore the shape cues in

the crowd, which can handle the ambiguity inside

the dense area and reduce the requirements for

accurate foreground contour. In this method, crowd

segmentation is formulated as a feature point

clustering process, which provides a nice framework

to combine the shape cues with multi-frame motion

features as mentioned in (Brostow and Cipolla,

2006, Rabaud and Belongie, 2006). In Brostow and

Cipolla (Brostow and Cipolla, 2006), Rabaud and

Belongie (Rabaud and Belongie, 2006), the motion

characteristics of a person in multiple consecutive

frames are observed. It is shown that interest points

from an individual would display consistent

trajectories while points from different persons

usually have different trajectories. Their results in

very crowded scenarios have shown the potential use

of this idea for crowd segmentation. However, false

alarms are quite likely to occur in the method when

pedestrian exhibit sustained articulations. Also, very

little shape information has been explored in these

methods. As far as we know, there has been little

work on combining multi-frame motion features

with a shape-based method.

3 THE DEVELOPED METHOD

The method includes two stages: training stage and

testing stage. Our focus is on the combination of the

motion and shape cues for crowd segmentation in

this paper. The details of the method will be

described in this section.

3.1 Training Stage

In the training images, selected persons are

annotated with a rectangle and the foreground region

for training images is available.

First, interest points are detected on the training

images and most points from the background are

removed with the foreground mask. Since our target

is to consider both shape and motion feature

simultaneously, KLT interest point detector is

applied due to its good performance for tracking

(Shi and Tomasi, 1994).

After that, small image patches are extracted

around the points. An agglomerative clustering

algorithm is used to cluster all the patches into

several clusters based on a shape descriptor. HOG

has been used as the shape descriptor since it is an

effective shape descriptor (Dalal and Triggs, 2005).

In our evaluations, a cell of 8*8 pixels, a block of

2*2 cells and 9 orientation bins are used for HOG.

Hence, the patch size is 16*16 pixels and the final

HOG will be a 36 dimensional vector. Euclidean

distance is used as the distance measure between

two patches.

The spatial occurrence information for each

cluster are collected based on a 3*3 blocks as shown

in Fig. 1. Each image patch casts a weighted vote for

all the clusters based on its location in the training

persons. The weights are related to the distance

between the patch and the cluster centre. The

clusters with small distance will get a higher vote

from the image patch.

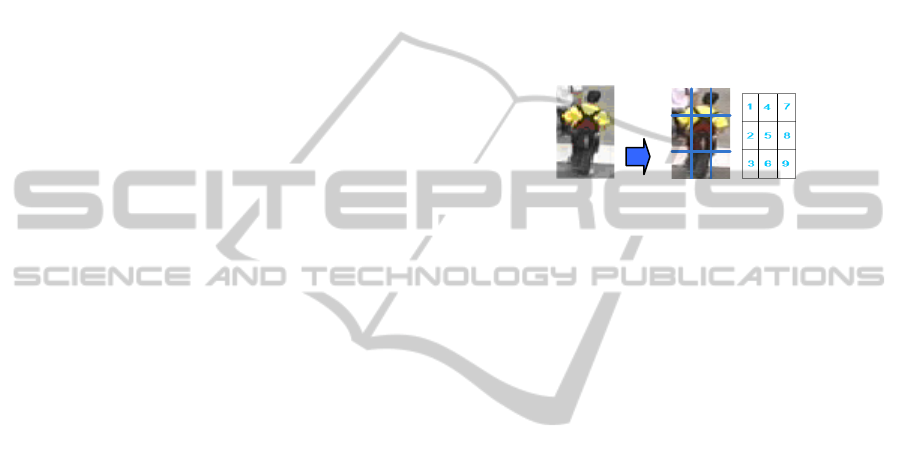

Figure 1: The rectangle is divided into 3*3 blocks, which

is used to indicate the patch locations.

Finally, a 3*3 B-ISM (Block-based Implicit

Shape Model) is established for a human being. A

codebook is formed to save the cluster centres and

the spatial occurrence of each cluster. This step is

similar as (Hou and Pang, 2010), which gives more

details.

3.2 Testing Stage

The details of the method will be introduced in the

following three parts: Patch extraction, Shape

evidence collection and crowd segmentation.

3.2.1 Patch Extraction

Similar to the training stage, a KLT detector is

performed on the testing images. Test patches are

extracted around the KLT points in the foreground

region. Parameters for HOG descriptor are the same

as the training stage.

3.2.2 Evidence Collection

This step would collect spatial information for all

the patches in the test image based on the B-ISM

established in the training stage.

For each patch, all the codebook entries are

searched. The matched entries (the Euclidean

distance between the codebook entry and the patch

is below a threshold, th) will cast a weighted vote

based on their similarity. We use

(, ) exp( (, ))

nlln ln

wqc distqc

− as the voting

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

174

weights, where

(, )

dist q c is the Euclidean distance

between codebook entry

c and image patch

q .

Finally, the probability of patch

q in each block

will be obtained with (1).

p is the probability of the

code entry,

c , in the ith block, which has been

saved in the B-ISM. L is the number of patches

extracted from the test image. In this way, a 3*3

location table can be obtained for each test patch.

(,)

(, )*

(, )

nl l n ni

dist q c th

nl l n

dist q c th

wqc p

wqc

∑

, 1,...,lL=

(1)

3.2.3 Crowd Segmentation

In our evaluations, a simple rectangle is used as the

human model. A set of initial human candidates are

nominated based on the points with a sufficiently

high occurrence probability in block 1, 4 or 7. A

rectangle candidate is proposed with those points as

the centre of the top border. Denote the set of

nominated rectangles as

{ , 1,..., }

Rrk K

= , K is the

number of rectangles. The parameters for

r are the

locations and size of the rectangle. Initially, the

average human size is used based on its location in

the scene. Each initial candidate should have a

sufficiently large overlap with the foreground area.

Given a specific configuration, a 2D

matrix,

{}

m= , is used to indicate the

assignments of the KLT points to the candidate

rectangles, where

1,...,lL=

1,...,kK=

. If the

interest point l is within the un-occluded region of

rectangle k, then

m = , otherwise, 0

m = .

Based on its location in the associated rectangles,

each KLT point gets a score with (2).

p is the

probability of point l in block i, which has been

obtained in step-1.

(, , )ikl

=1 when point l falls

inside block i of rectangle k. Otherwise,

(, , )ikl

=0.

The evaluation for the entire crowd configuration,

{ , 1,..., }

Rrk K== , is based on the summation of

all the point scores where

∑

1: 1:9

(((,,)))

llkli

kK i

mpikl

∑∑

(2)

Starting from the initial set of candidate

rectangles, the best configuration is obtained by

repeatedly adjusting the candidate size and removing

the redundant candidates based on both shape and

motion cues. The details are as follows.

Size Adjustment. For each initial candidate,

different scales are tested and the one which can get

the highest score for the crowd is used. For

simplicity, only the height, h, is adjusted in our

evaluations. The best size is picked among 0.8*h,

0.9*h and h.

Removal based on Shape Cues. Two conditions are

used for the redundant candidate removal. First, if

the entire score can be increased after the candidate

removal, then the candidate is removed. Higher

score indicates that KLT feature points have been

assigned to better locations of the rectangles.

Second, candidates with insufficient number of

supporting points are removed due to the lack of

evidences from the image. Supporting points are

defined as those with a decreased score after the

candidate removal. In the first loop, any candidate

with less than two supporting points is removed. In

later stages, a stricter constraint is imposed. A

minimal number of supporting points is set for the

fully-visible person and candidates have to get

enough supporting points to stay on.

Removal based on Coherent Motion. As shown in

(Brostow and Cipolla, 2006, Rabaud and Belongie,

2006), for the general case, points that appear to

move together are more likely to be from the same

individual. The standard deviation in distance

between two KLT points along several consecutive

frames can be a measure of the points moving

together. Ideally, the distance between two points

moving on a rigid object remain the same and the

deviation is almost zero.

However, not all the points from the same

individual have a low distance deviation. Points on

head, torso parts usually show more coherent motion

while points on feet or arms often show different

trajectories from others. To help the crowd

segmentation, a low average standard deviation is

expected within each individual and a high average

deviation if multiple individuals are considered.

Hence, it would be better to use the points with rigid

motion only within an individual.

Figure 2: Left: sample points from head, most of which

show rigid motion. Right: sample points from feet/arms,

most of which show non-rigid motion.

MULTI-CUE BASED CROWD SEGMENTATION

175

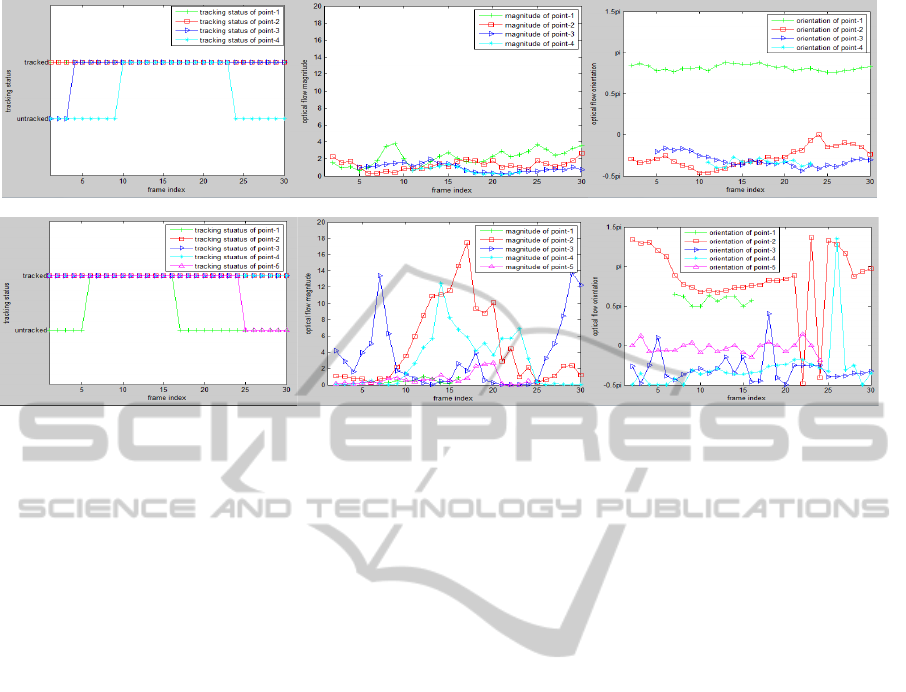

(a) Left: Tracking status, 1: tracked, 0: lost; Middle: optical flow magnitude; Right: optical flow orientation of head points.

(b) Left: Tracking status, 1: tracked, 0: lost; Middle: optical flow magnitude; Right: optical flow orientation of feet/arm points.

Figure 3: Examples of points with rigid motion and non-rigid motion.

Fig. 2 has shown some example points from head

and feet/arms. Their tracking status, optical flow

magnitude and orientation within +/-15 frames are

shown in Fig. 3a and Fig. 3b respectively. Based on

the observations, four features are proposed to help

distinguish the points with rigid motion: the number

of tracked frames within +/-15 frames, the maximal

optical flow magnitude, the variation of the optical

flow magnitude and the average change of optical

flow orientation. Usually, points with rigid motion

on a human being can be tracked for a long period.

Their optical flow magnitude has small fluctuation

and optical flow orientation is almost continuous.

For each feature, a threshold is given to define the

points with rigid motion. The thresholds are set

based on the examination of some sample points.

Conservative thresholds are preferred to exclude

most points with non-rigid motion, which will lead

to a higher credibility of the motion cues. In our

evaluations, a point with rigid motion needs to be

tracked in more than 24 frames. The maximal optical

flow magnitude should be below 5, the variation is

below 2.5 and the average optical flow orientation

difference is below 0.2.

When only the points with rigid motion are

considered, the average deviation should be low for

a valid candidate. As we know, the points within a

candidate would be assigned to the others after its

removal. If the average deviation gets much higher

in newly-assigned rectangles, then the candidate

must be kept; otherwise, it can be removed in the

final results. A margin is set to allow the small

fluctuation of the average distance deviation within

an individual.

Removal based on Upper-body Rigid Motion. On

the human body, most points in the upper body tend

to move together, which result in a low average

trajectory variation. Hence, a valid candidate should

have a low average distance variation in the upper

part. A candidate with a large variation is less likely

to be a reasonable human person.

With the 3*3 blocks used in Section 3.2, step-1,

the average distance deviation of all the points in the

top two rows will be examined. The candidate with a

very large variation in the upper body will be

removed. The threshold is set as a conservative one

such that no miss-detection will be caused.

4 EVALUATIONS

‘USC-Campus Plaza’ and CAVIAR dataset

(http://homepages.inf.ed.ac.uk/rbf/CAVIAR/) have

been used for the evaluation of the method.

The USC-Campus Plaza sequence was captured

from a camera with a 40 degree tilt angle. The frame

size is 360*240 pixels and the frame rate is 30fps. It

contains 900 frames in total. The training images

were extracted from the first 300 frames. 20 training

images with 79 persons were used for collecting the

training patches. The test images are randomly

picked from different periods in the remaining 600

frames and they have different occlusion situations.

Most people are different from those in the training

set.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

176

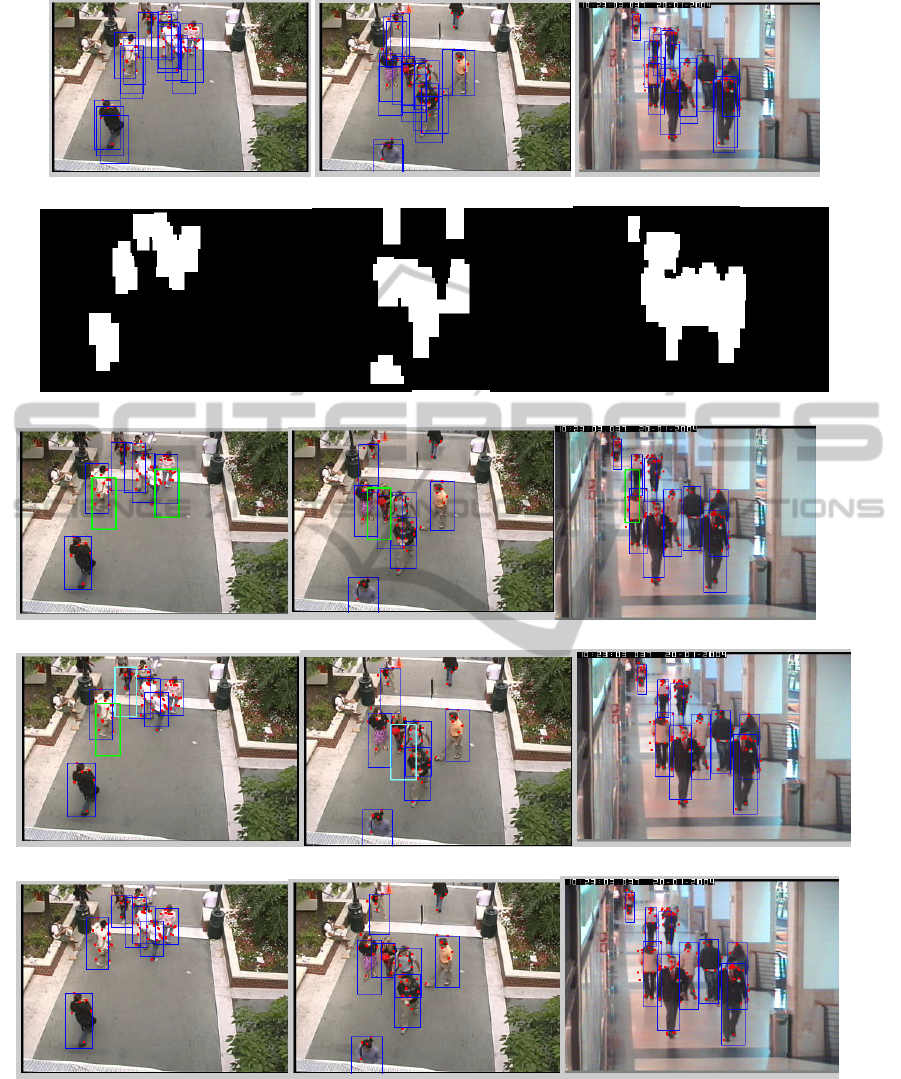

(a) Initial set of candidates. Human is modelled with a rectangle. Red points are the detected KLT points in the foreground.

(b) Rough foreground regions used in the evaluations

(d) Results based on shape and coherent motion. The size of rectangles in cyan colour can be adjusted using upper-body rigid motion.

(e) Results based on shape, coherent motion and upper-body rigid motion.

Figure 4: Selected frames of detection results. Each frame is shown in one column.

Most frames get good enough results based on

shape cues only. Three selected sample frames from

USC-Campus Plaza and CAVIAR dataset are shown

in Fig. 4 to illustrate the improvements after using

multi-cues.

Fig. 4a shows the proposed initial candidates.

Most persons have got more than one initial

rectangle candidates. To show the low requirements

MULTI-CUE BASED CROWD SEGMENTATION

177

for an accurate foreground contour, a manually

obtained rough foreground region is used for each

frame in the evaluations, as shown in Fig. 4b.

Obviously, it is difficult to get accurate individual

detections based on the foreground area only.

The third row is the results based on shape cues

only. Most individuals can be located well based on

shape cues. However, cues based on shape may be

less reliable when the crowd is dense, the

background is complicated or other human shape-

like region appears. Hence, some false detections

may stay in the shape-based results, which are

indicated in green colour in Fig. 4c. The fourth row

is the results when motion consistency is also

considered. It can be seen that the false detections

indicated with the green colour in the third row have

been removed based on the coherent motion rule in

Fig. 4d. In the left column, three close persons have

got better detection results based on their different

trajectories. Similarly, in the middle column, a false

candidate covering two close persons has been

removed. Finally, the bottom row shows the results

when the upper-body rigid motion is also

considered. In the left column of Fig. 4e, a false

candidate with high trajectory variations in the upper

part has been removed. In addition, better human

size has been obtained for the persons indicated in

cyan colour in Fig. 4d.

5 CONCLUSIONS

In this paper, a method based on both shape and

motion features for crowd segmentation is presented.

The shape-based method has formulated the problem

into a feature point clustering process. Multi-frame

coherent motion of the feature points on a person is

used to enhance the segmentation performance.

Most feature points on the human upper-body are

moving together, which are used to get more

reasonable detections.

REFERENCES

Brostow, G. J. & Cipolla, R. 2006. Unsupervised Bayesian

Detection of Independent Motion in Crowds. IEEE

Conference on Computer Vision and Pattern

Recognition.

Dalal, N. & Triggs, B. 2005. Histograms of oriented

gradients for human detection. IEEE Conference on

Computer Vision and Pattern Recognition.

Dalal, N., Triggs, B. & Schmid, C. 2006 Human detection

using oriented histograms of flow and appearance.

European Conference on Computer Vision.

Hou, Y.-L. & Pang, G. K. H. 2009. Human Detection in a

Challenging Situation. IEEE International Conference

on Image Processing.

Hou, Y.-L. & Pang, G. K. H. 2010. Human Detection in

Crowded Scenes. IEEE International Conference on

Image Processing.

http://homepages.inf.ed.ac.uk/rbf/caviar/.

Lin, Z., Davis, L. S., Doermann, D. & Dementhon, D.

2007. Hierarchical Part-Template Matching for

Human Detection and Segmentation. IEEE

International Conference on Computer Vision.

Rabaud, V. & Belongie, S. 2006. Counting Crowded

Moving Objects. IEEE Conference on Computer

Vision and Pattern Recognition.

Rittscher, J., TU, P. H. & Krahnstoever, N. 2005.

Simultaneous estimation of segmentation and shape.

IEEE Conference on Computer Vision and Pattern

Recognition.

Shi, J. & Tomasi, C. 1994. Good features to track. IEEE

Conference on Computer Vision and Pattern

Recognition.

Tuzel, O., Porikli, F. & Meer, P. 2007. Human Detection

via Classification on Riemannian Manifolds. IEEE

Conference on Computer Vision and Pattern

Recognition.

Viola, P., Jones, M. J. & Snow, D. 2003. Detecting

pedestrians using patterns of motion and appearance.

IEEE International Conference on Computer Vision.

Wang, X., Han, T. X. & Yan, S. 2009. An HOG-LBP

Human Detector with Partial Occlusion Handling.

IEEE International Conference on Computer Vision.

Zhao, T. & Nevatia, R. 2004. Tracking multiple humans in

complex situations. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 26, 1208-1221.

Zhao, T., Nevatia, R. & Wu, B. 2008. Segmentation and

Tracking of Multiple Humans in Crowded

Environments. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 30, 1198-1211.

Zhu, Q., Yeh, M.-C., Cheng, K.-T. & Avidan, S. 2006.

Fast Human Detection Using a Cascade of Histograms

of Oriented Gradients. IEEE Conference on Computer

Vision and Pattern Recognition.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

178
