A COMPARATIVE OF GOAL-ORIENTED APPROACHES TO

MODELLING REQUIREMENTS FOR COLLABORATIVE

SYSTEMS

Miguel A. Teruel, Elena Navarro, Víctor López-Jaquero, Francisco Montero and Pascual González

LoUISE Research Group, Computing Systems Department, University of Castilla - La Mancha, Albacete, Spain

Keywords: Goal-Oriented, KAOS, NFR, i*, Collaborative Systems, CSCW, Awareness, Requirements Engineering,

Non-Functional Requirements, Quality.

Abstract: A collaborative system is a software allowing several users to work together and carry out collaboration,

communication and coordination tasks. To perform these tasks, the users have to be aware of other user’s

actions, usually by means of a set of awareness techniques. However, when these systems have to be

specified for development severe difficulties emerge to describe the requirements associated to these special

functionalities, usually considered non-functional requirements. Therefore, the selection and use of proper

requirements engineering techniques becomes a challenging and important decision. In this paper three

Goal-Oriented approaches, namely NFR framework, i* and KAOS, are evaluated in order to determine

which one is the most suitable to deal with this problem of requirements specification in collaborative

systems.

1 INTRODUCTION

A collaborative system (a.k.a. Computer Supported

Cooperative Work system, CSCW system) is a

software whose users can perform collaboration,

communication and coordination tasks. Unlike a

conventional single-user system, a CSCW system

has to be specified by using a special set of

requirements of non-functional nature. These

requirements usually result from the users' need of

being aware of the presence and activity of other

remote users with whom they perform the above

mentioned collaborative tasks, that is, the

Workspace Awareness (WA).

Workspace Awareness is the up-to-the-moment

understanding of another person’s interaction within

a shared workspace. Workspace awareness involves

knowledge about where others are working, what

they are doing now, and what they are going to do

next (Gutwin and Greenberg, 2002). Gutwin et al.

presented a conceptual framework to establish what

information makes up workspace awareness. This

information is obtained by answering the questions

“who, what and, where” (see Table 1). That is, when

we work with others users in a physical shared

space, we know who we are working with, what they

are doing, where they are working, when various

events happen, and how those events happen.

Table 1: Elements of Workspace Awareness.

Category Element Specific questions

Who Presence

Identity

Authorship

Is anyone in the workspace?

Who is participating? Who

is that?

Who is doing that?

What Action

Intention

Artefact

What are they doing?

What goal is that action part

of?

What object are they

working on?

Where Location

Gaze

View

Reach

Where are they working?

Where are they looking?

Where can they see?

Where can they reach?

In this context, a proper specification of the

system, identifying clearly the requirements of the

system-to-be, specially the awareness requirements,

is one of the first steps to overcome this problem.

The awareness requirements can be considered non-

functional requirements (NFR) or extra-functional

131

Teruel M., Navarro E., López-Jaquero V., Montero F. and González P..

A COMPARATIVE OF GOAL-ORIENTED APPROACHES TO MODELLING REQUIREMENTS FOR COLLABORATIVE SYSTEMS.

DOI: 10.5220/0003466301310142

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 131-142

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

requirements (EFR), because they are usually

constraints regarding quality (e.g. functionality,

usability) (Hochmuller, 1999). However, the

specification of this kind of requirements is not a

trivial issue, because of the high number and

diversity of requirements they are related to, and

their high impact in terms of the final architecture of

the system. Therefore, the proper selection of the

requirement specification technique becomes a

challenging and important decision.

In a previous work (Teruel et al., 2011) it was

analyzed which technique, Goal-Oriented (GO), Use

Cases or Viewpoints is more appropriate to specify

the requirements of collaborative systems and it was

determined that GO provides more facilities for this

kind of systems. In this paper, we study the

applicability of three Goal Oriented (GO)

approaches (NFR Framework (Cysneiros and Yu,

2003), i* Framework (Castro, Kolp and Mylopoulos,

2001) and KAOS Methodology (van Lamsweerde,

2001)) for the specification of collaborative systems,

paying special attention to the awareness

requirements. In order to carry out this study, the

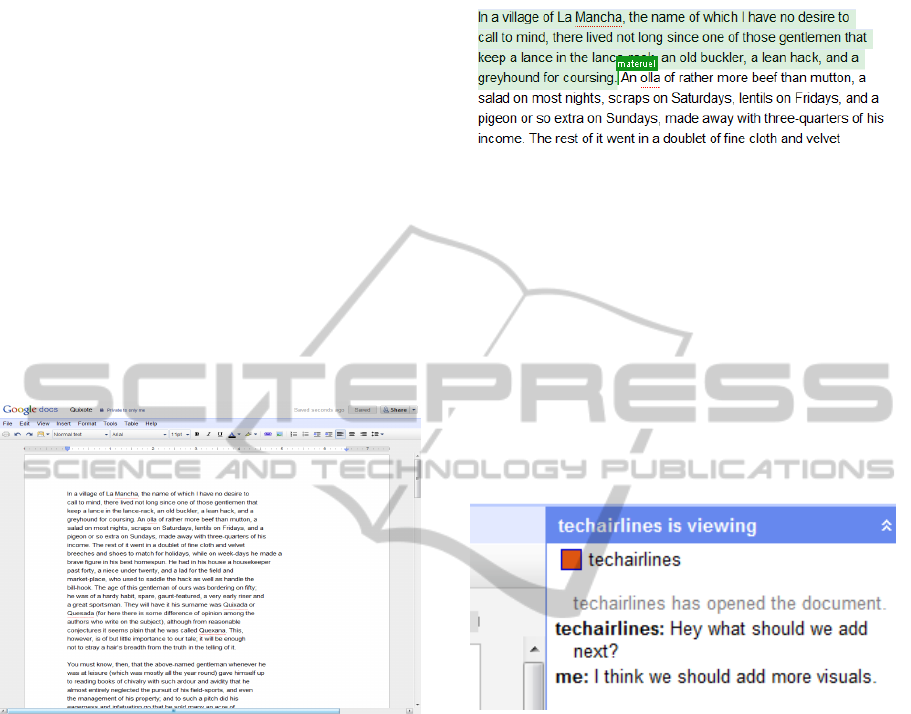

awareness requirements of a real system (Google

Docs (Google, 2011)) were specified. After

modelling the system, an empirical analysis was

conducted in order to compare these different

techniques goal-oriented techniques.

This paper is structured as follows. After this

introduction, in section 2, the selection of GO

techniques for modelling this kind of systems is

justified. In section 3, three GO approaches

applicable to awareness requirements for

collaborative systems are analysed. In section 4, an

example of a widely known collaborative system is

presented: Google Docs. In section 5, an empirical

evaluation of the previous techniques for modelling

awareness requirements in Google Docs is

presented. Finally, some conclusions and future

works round up this work.

2 RELATED WORKS

This paper is a follow-up of the work presented in

(Teruel et al., 2011), where we analysed different

Requirement Engineering techniques applied to

collaborative systems. The main result of this

evaluation was that the most appropriate technique

for this kind of systems is Goal Oriented (GO).

Nevertheless, in (Teruel et al., 2011) the evaluation

did not focus on a specific GO proposal.

In the context of Requirements Engineering, the

GO approach (van Lamsweerde, 2001) has proven

its usefulness for eliciting and defining

requirements. More traditional techniques, such as

Use Cases (Cockburn, 2000), only focus on

establishing the features (i.e. activities and entities)

that the system-to-be should support. Nevertheless,

GO proposals focus on why systems are being

constructed by providing the motivation and

rationale to justify the software requirements

specification. They are not only useful for analyzing

goals, but also for elaborating and refining them.

A GO model can be specified in a variety of

formats, by using a more or less formally defined

notation. These notations can be informal, semi-

informal or formal approaches. Informal approaches

generally use natural language to specify goals;

semi-formal use mostly box and arrow diagrams;

finally, in formal approaches goals are expressed as

logical assertions in some formal specification

language (Kavakli and Loucopoulos, 2004). No

matter its formality, a goal model is built as a

directed graph by means of a refinement of the

systems goals. This refinement lasts until goals have

enough granularity and detail so as to be assigned to

an agent (software or environment) so that they are

verifiable within the system-to-be. This refinement

process is performed by using AND/OR/XOR

refinement relationships.

There are a wide number of proposals ranging

from elicitation to validation activities in the RE

process (see (Kavakli and Loucopoulos, 2004) for an

exhaustive survey). However, some concepts are

common to all of them:

 Goal describes why a system is being

developed, or has been developed, from the

point of view of the business, organization or

the system itself. In order to specify it, both

functional goals, i.e., expected services of the

system, and softgoals related to the quality of

service, constraints on the design, etc should

be determined.

 Agent is any active component, either from the

system itself or from the environment, whose

cooperation is needed to define the

operationalization of a goal, that is, how the

goal is going to be provided by the system-to-

be. This operationalization of the goals is

exploited to maintain the traceability

throughout the process of software

development.

 Refinement Relationships: AND/OR/XOR

relationships allow the construction of the goal

model as a directed graph. These relationships

are applied by means of a refinement process

(from generic goals towards sub-goals) until

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

132

they have enough granularity to be assigned to

a specific operationalization.

It must be pointed out that one of the main

advantages exhibited by this approach is that it

introduces mechanisms for reasoning about the

specification. It facilitates the process of evaluating

designs or alternative specifications of the system-

to-be (Teruel et al., 2011)(Chung et al., 2000). In

this work, three different GO proposals are used to

model the requirements of a collaborative system:

Google Docs. This system will allow us to evaluate

which proposal is the most useful to describe the

requirements of the so called workspace awareness.

3 GOAL ORIENTED

PROPOSALS: AN ANALITICAL

BACKGROUND

This section presents briefly the GO proposals, NFR,

i* and KAOS, analyzed to determine which one is

the most appropriate for specifying collaborative

systems. They are used in section 5 to describe the

running example in order to perform the evaluation.

3.1 NFR Framework

This GO proposal was proposed by (Cysneiros and

Yu, 2003) and aims at dealing with Non-Functional

Requirements (NFRs), also known as Quality

Requirements. Unlike Functional Requirements,

NFRs specify constraints for the system, as well as

particular notions of quality factors a system should

meet, such as, accuracy, usability, safety,

performance, reliability or security. Hence, it can be

stated that while functional requirements describe

“what” the system will do, NFRs constraint “how”

the system will accomplish the “what”. As a

consequence, NFRs are always linked to a

Functional Requirement.

To elicit NFRs, the authors propose the use of a

strategy anchored in Language Extended Lexicon

(LEL) (Sampaio and Franco, 1993). LEL is based on

a controlled vocabulary system made up of symbols

being each one of them an entry expressed in terms

of notions and behavioural responses. A notion

records the meaning of a symbol and its fundamental

relationships to other entries. A behavioural

response specifies the connotation of a symbol in the

universe of discourse. Each symbol may also be

represented by one or more aliases and will be

classified as a subject, a verb or an object. Once the

Lexicon is finished, it is enriched with NFRs by

using a knowledge base, presented as catalogues, to

guide the analyst to select the likely needed NFRs

and their related operationalizations.

According to the NFR Framework, NFRs goals

can conflict among them and must be represented as

softgoals to be satisfied. Each softgoal is

decomposed into sub-goals represented by a graph

structure inspired by the And/Or trees used in

problem solving. This decomposition is done by

using contribution links. Contribution links can be

categorized as either or contributions or and

contributions. Contribution links allow one to

decompose NFRs to the point that one can state that

the operationalizations of the related NFR have been

met. Operationalizations are decisions about the

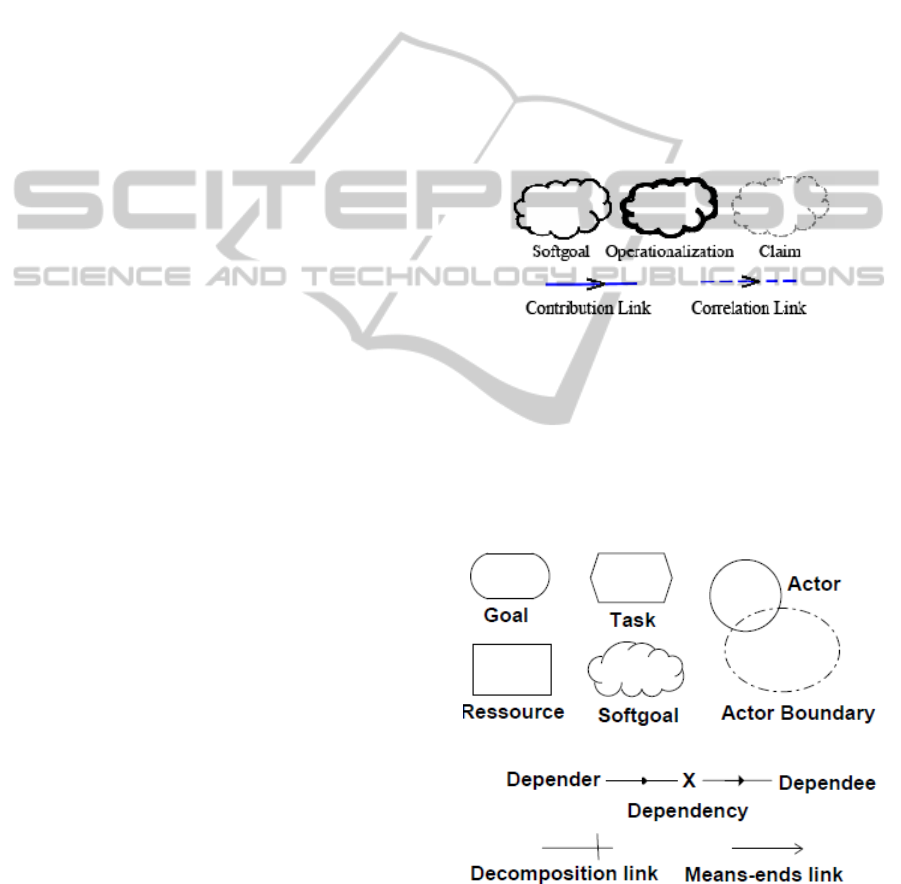

system to meet NFRs. The elements of the NFR GO

model can be seen in Figure 1.

Figure 1: Elements of the NFR Framework model.

3.2 The i* Framework

The i* Framework (Castro, Kolp and Mylopoulos,

2001) consists in an approach for dealing with

requirements in various phases of the software

development process (Early and Late Requirements

Analysis, Architectural and Detailed Design).

Figure 2: Elements of the i* Framework model.

During early requirements analysis, the

requirements engineer gathers and analyzes the

intentions of stakeholders. These are modelled as

A COMPARATIVE OF GOAL-ORIENTED APPROACHES TO MODELLING REQUIREMENTS FOR

COLLABORATIVE SYSTEMS

133

goals which, through some form of a goal-oriented

analysis, eventually lead to the functional and non-

functional requirements of the system-to-be. In i*,

early requirements are assumed to involve social

actors who depend on each other for goals to be

achieved, tasks to be performed, and resources to be

furnished. The i* framework includes the strategic

dependency model for describing the network of

relationships among actors, as well as the strategic

rationale model for describing and supporting the

reasoning that each actor goes through concerning

its relationships with other actors. The model

elements can be seen in Figure 2.

Late Requirements Analysis results in a

requirements specification which describes all

functional and non-functional requirements for the

system-to-be. In Tropos (Mylopoulos, Castro and

Kolp, 2000), a framework for requirements-driven

software development, the information system is

represented as one or more actors who participate in

a strategic dependency model, along with other

actors from the system’s operational environment. In

other words, the system comes into the picture as

one or more actors who contribute to the fulfilment

of stakeholder’s goals.

During architectural design we have to select

among alternative architectural styles by using as

criteria the desired qualities identified earlier in the

process. The analysis involves refining these

qualities, represented as softgoals, to sub-goals that

are more specific and more precise and then

evaluating alternative architectural styles against

them.

The detailed design phase is intended to

introduce additional details for each architectural

component of a system. To support this phase, the

authors propose to adopt existing agent

communication languages and message

transportation mechanisms among other concepts

and tools.

3.3 KAOS Methodology

The KAOS modelling language is part of the KAOS

framework (van Lamsweerde, 2001) for eliciting,

specifying, and analysing goals, requirements,

scenarios, and responsibility assignments. A KAOS

model entails six complementary views or sub-

models (goal, obstacle, object, agent, operation and

behaviour model) all of them related via traceability

links (Pohl, 2010).

Figure 3 depicts the basic constructors for

documenting agents responsibilities for goals

provided by the KAOS framework. KAOS has the

following elements:

 Goal: A goal describes a set of admissible

system behaviors. Goals should be defined in a

clear-cut manner so that one can verify

whether the system satisfies a goal or not.

 Softgoal: In KAOS, softgoals are used to

document preferences among alternative

system behaviors. In a similar way to i*, there

is no clear-cut criterion for verifying the

satisfaction of a softgoal. Softgoals are hence

expected to be satisfied within acceptable

limits.

 Agent: While i* focuses primarily on agents

within organizational structures, the agents

defined in KAOS primarily relate to users and

components of software-intensive systems.

Therefore, an agent is defined as an active

system component which has a specific role

for satisfying a goal. An agent can be a human

agent, a device or a software component.

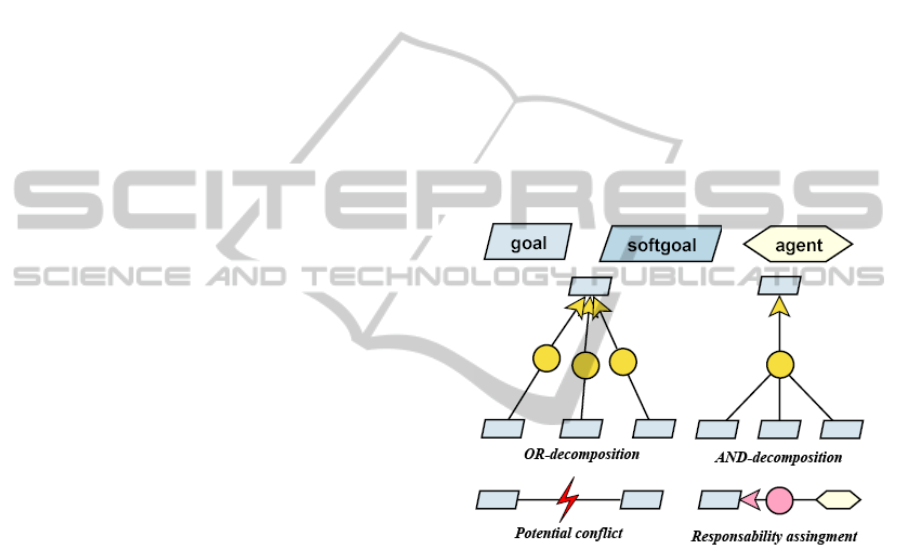

Figure 3: Basic constructs of the KAOS framework for

modelling goals and assigning agents responsibilities for

goals to.

Dependencies between goals are represented in

the KAOS goal model by using AND/OR-

decompositions and conflict links. In KAOS, goals

can be assigned to agents by means of responsibility

assignment links. We briefly explain these goal

dependencies:

 AND/OR-decomposition: An AND-OR

decomposition link relates a goal to a set of

sub-goals, documenting that the goal is

satisfied if all, or at least one sub-goal, is

satisfied.

 Potential conflict: This link documents that

satisfying one goal may prevent the

satisfaction of other goal under certain

conditions.

 Responsibility assignment: This link between a

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

134

goal and an agent means that this agent is

responsible for satisfying the goal.

4 RUNNING EXAMPLE

As running example to assess how these GO

approaches perform for collaborative system,

Google Docs (Google, 2011) (see Figure 4) has been

used from now on in this paper. Google Docs is a

free, Web-based word processor, spreadsheet,

presentation and form editor whose data storage

service is provided by Google. Google Docs serves

as a collaborative tool for editing documents so that

they can be shared, opened, and edited by multiple

users at the same time. This system was selected for

our analysis because it is widely-known and it

features a clear collaborative focus as its main goal.

Figure 4: Google Docs interface

As a starting point for our evaluation of the

requirements techniques, we identified those design

solutions for awareness requirements in Google

Docs from the set of techniques proposed by Gutwin

(Gutwin, Greenberg and Roseman, 1996). These

techniques, which are commented in the following

subsections, can be found also as patterns for user

collaboration in (Schümmer and Lukosch, 2007).

4.1 Remote Cursors

This technique, based in Gutwin’s telepointers

(Gutwin, Greenberg and Roseman, 1996), allows us

to be aware of the other user’s cursor position and

whether they have selected a text fragment or not

(see Figure 5). Thus, when a remote user is writing

other users can notice it in real-time. Close to the

cursor the user’s nickname appears overlapped with

the text. In addition, if the user selects some text, it

is highlighted by marking it with the user's colour.

Figure 5: Remote cursor and remotely selected text

fragment.

4.2 Participant List & Chat

Google Docs does not implement Gutwin’s avatar

(Gutwin, Greenberg and Roseman, 1996) technique

itself. Instead it shows a list of participants that are

editing simultaneously the same document (see

Figure 6). By using this list, users can communicate

with each other by using a chat, which can be shown

or hidden at any time. In addition, by using this chat

view, users can notice the colour assigned to each

one of their collaborators.

Figure 6: Two users chatting through the participant list.

4.3 Revision History

The techniques identified by Gutwin expressing

information about authorship / about the past

(Gutwin, Greenberg and Roseman, 1996) are used to

make available to the users the history of changes

carried out. They have been implemented by Google

Docs by using a revision history. It allows the

system to keep track of all the changes made by the

users to the different types of documents being

edited (see Figure 7). This revision history provides

a mean for users to review the changes made to the

documents. In this revision history the changes made

by each user are denoted by using different colours.

In addition, if the change made is a deletion, then the

text will be also in strikethrough style. This

functionality can be activated or deactivated at

anytime. This revision history has two levels of

detail, depending on the amount of shown

A COMPARATIVE OF GOAL-ORIENTED APPROACHES TO MODELLING REQUIREMENTS FOR

COLLABORATIVE SYSTEMS

135

information. The user may switch between these two

levels of detail at anytime.

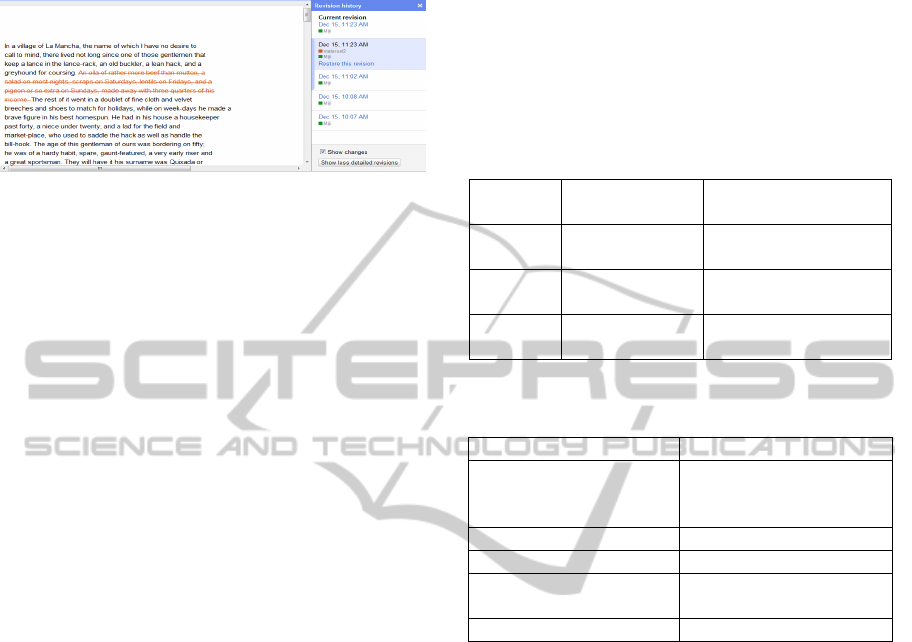

Figure 7: Revision story showing text elimination.

5 EMPIRICAL EVALUATION

To evaluate the different GO approaches mentioned

in section 3, each one of the above mentioned

awareness features is modelled in the following by

using the different techniques. First, we have to

distinguish what Google Docs characteristics can be

modelled by using functional or non-functional

requirements. The telepointer and avatar techniques

result in NFRs because they contribute to increase

some operability, such as ease of use and

helpfulness. Nevertheless, the third characteristic

(Expressing information about authorship / about

the past), despite contributing positively to the

above mentioned quality features, it should be

considered functional, due to the historical

information storage and the rollback function. In

addition, we have also associated the awareness

functionalities both with the three characteristics of

the collaborative systems (collaboration,

communication and coordination) and, with the

characteristics of the ISO/IEC 25010 (Software

engineering - Software product Quality

Requirements and Evaluation (SQuaRE) Quality

model, 2008). This standard has been used to

organize properly the specification of the system

following the recommendations of Moreira et al.

(Moreira, Araújo and Rashid, 2005). Next, the

evaluation is presented following the chronological

order it was carried out. First, in section 5.1 it is

described how the case study was modelled by

applying the three approaches. Second, in section

5.2, the results of the evaluation are presented.

5.1 Modelling the Running Example

After analyzing the characteristics of Google docs

described in section 4, and according to Gutwin's

framework for collaborative systems, we have

specified the systems’ FRs (Table 2 illustrates a

partial description of the system). Next, as can be

observed in Table 3, each awareness functionality

feature detected in the system has been related to

some quality factors in the SQuaRE standard, in

order to identify the NFRs of Google Docs. For the

sake of clarity, and understanding of the evaluation,

only some requirements of Google Docs are

described.

Table 2: Relation between awareness elements and FRs.

Category Element Functional

Requirement

Who Presence Know who is

participating

What

Where

Action

Location

See other user’s

actions

Who

When

Authorship

Event history

Keep the changes’

authorship

Table 3: Relation between quality factors and awareness

functionalities.

Quality Factor Awareness Functionality

Functional Suitability Revision History

Telepointers

Participant List

Reliability Revision History

Performance Efficiency Telepointers

Operability Telepointers

Participant List

Security Revision History

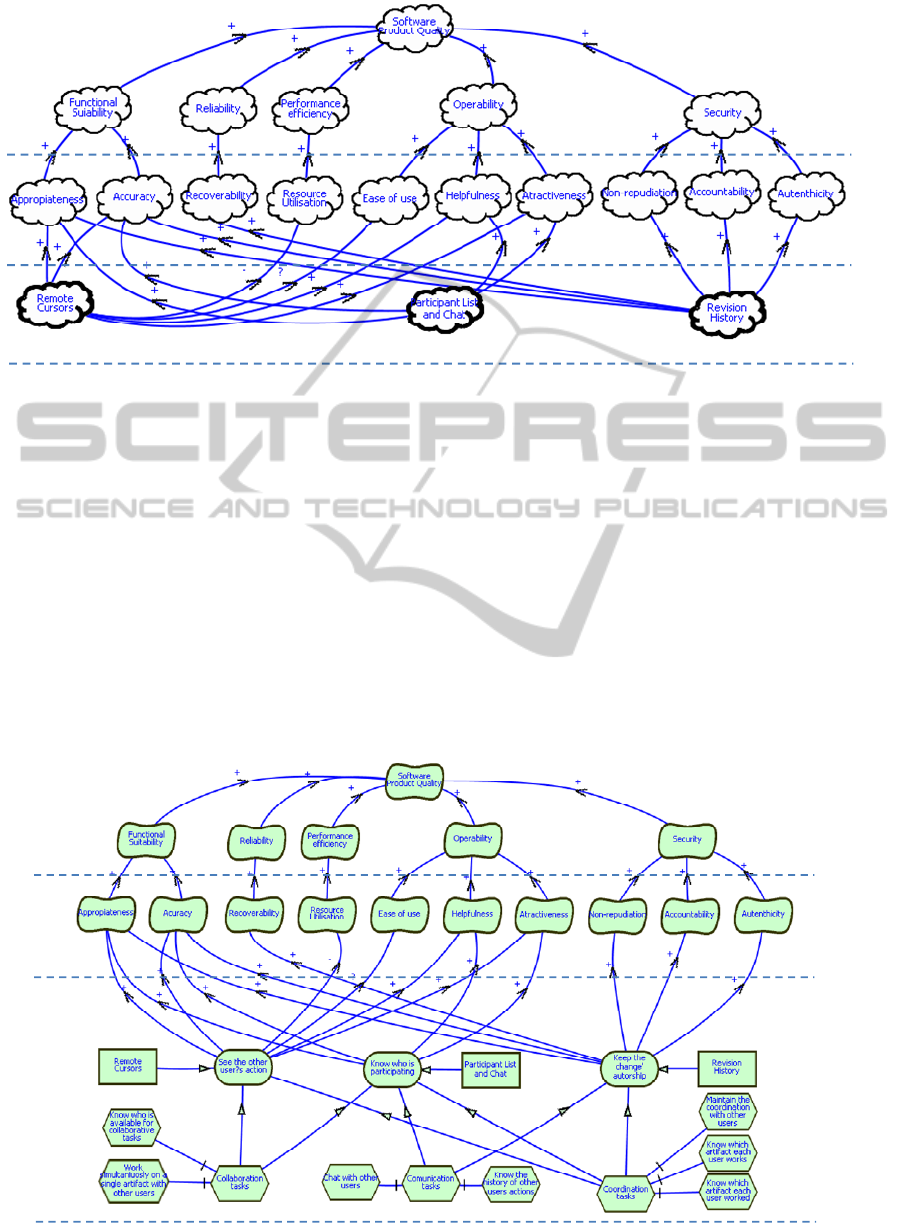

5.1.1 The NFR Framework

In this approach, the SQuaRE quality factors have

been modelled by using softgoals. Nevertheless, the

SQuaRE standard was used instead of the NFR

collections proposed by (Cysneiros and Yu, 2003)

definition to create the NFR hierarchy. Thus, it can

be observed the impact that the quality sub-

characteristic has on main characteristic by means of

contribution links. In the same way, each

characteristic contributes to achieve the software

product quality (see Figure 8).

The problem here is that we are not able to

represent the Functional Requirements (because this

model aims only at non-functional ones), therefore

the three general tasks of collaborative systems

(collaboration, communication and coordination)

cannot be defined. This lack of expressiveness led us

to have an incomplete representation of system's

requirements, so that we have to use additional

models or extend this framework.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

136

Figure 8: NFR Goal-Oriented model.

5.1.2 The i* Framework

In order to carry out the specification of Google

Docs, the i* notation was used. Using this notation,

we specified each one of the SQuaRE quality factors

previously identified in Table 3, as root softgoals of

the system as shown in Figure 9. These softgoals

were refined into other softgoals by selecting those

SQuaRE quality factors more appropriate for the

system. Each one of the awareness functionalities

were specified as resources provided by the system

that contribute positively to satisfy some of the

softgoals, that is, some quality factors. However, it

can be noticed that also some of them contribute

negatively because the constraints they impose. This

is the case of remote cursors, because they increase

the resource utilization. Moreover, the ease of use

depends, among other factors, on the user’s

experience with this kind of systems. In addition, the

three FR identified in Table 3 have been specified as

goals of the system that have dependency

relationships with the resources. It has been also

specified how the awareness techniques contribute

positively to the functional aspects of collaborative

systems specified as tasks in the goal model.

Figure 9: i* Strategic Rationale Model.

Quality

Criteria

Quality

Factor

Operationalization

Quality

Criteria

Quality

Factor

Goals,Tasks

andresources

A COMPARATIVE OF GOAL-ORIENTED APPROACHES TO MODELLING REQUIREMENTS FOR

COLLABORATIVE SYSTEMS

137

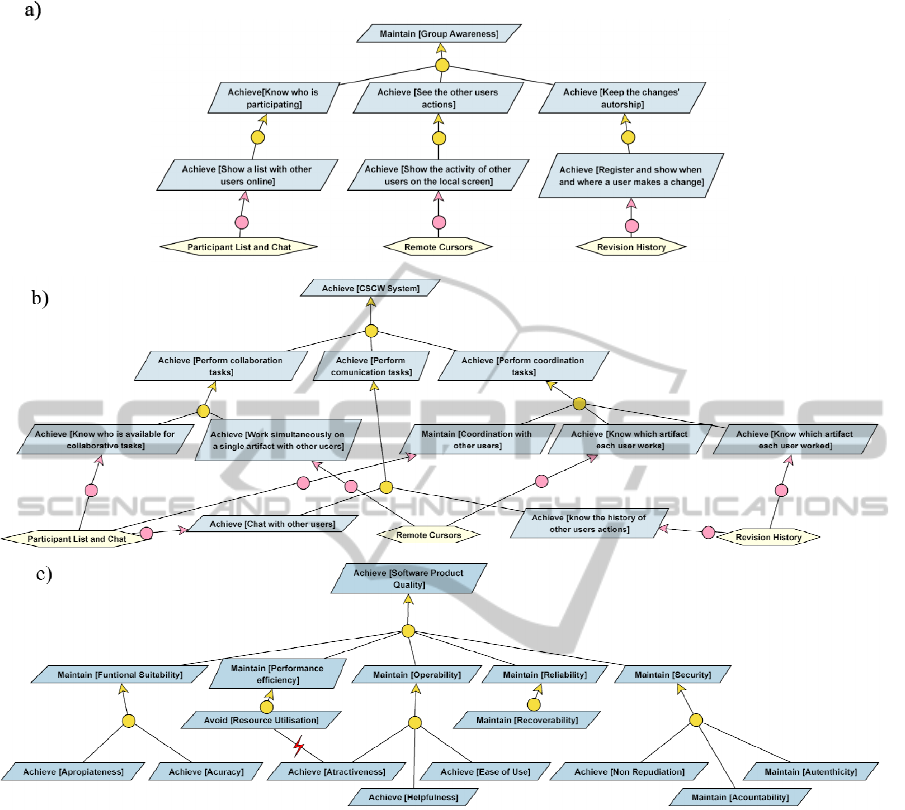

Figure 10: KAOS Goal and Responsibility Model.

5.1.3 KAOS Methodology

To model the system using this methodology, and

unlike i*, the model was decomposed in three sub-

models as can be seen in Figure 10. Hence, the

individual models represent (a) awareness goals, (b)

collaborative systems goals and (c) software quality

goals.

These diagrams (Figure 10) show three main

goals and its decomposition in its sub-goals. The

implemented awareness techniques have been

represented here by using agents, because this

element is used to represent responsibility

assignment when using KAOS.

In addition, Figure 10c illustrates a potential

conflict between two softgoals related to two quality

sub-factors: avoid resource utilisation and achieve

attractiveness. Usually, a very attractive user

interface will cause a higher resource utilisation.

This conflict is denoted in the graph by using a red

ray.

5.2 Evaluating GO Approaches

Using as input the different specifications of the

system, the evaluation of the different RE techniques

was carried out by using DESMET (Kitchenham,

1993). It is a set of techniques applicable to evaluate

both Software Engineering methods and tools. We

have used the method based on a qualitative case

study that describes a feature-based evaluation.

Following the guidelines of this technique, an initial

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

138

Table 4: List of Features for approaches evaluation.

Feature Description

FR and NFR

Representation

The model should be able to

represent graphically FR and NFRs

and differentiate them

Collaborative

Systems

Characteristics

The model has to represent the

collaboration, communication and

coordination characteristics

Awareness

Representation

The model should allow one to

represent the awareness

characteristics of the system

Quality

Factors

Representation

The model must represent the

SQuaRE characteristics and sub-

characteristics

Importance of

Requirements

The model should represent the

importance and preference between

requirements

Hierarchical

Representation

The relation between the model

elements should be hierarchical

Model

Complexity

The model complexity should not be

too high

Quantitative

Model

The model must allow one to

quantify the relations between

represented elements

Traceability The represented requirements should

be traceable throughout the software

development process

list of features was prepared that a GO approach for

collaborative systems should provide (see Table 4).

As can be observed, some of those features are

directly related to the specification of NFRs.

Once Table 4 is filled in, DESMET establishes

that an importance degree should be assigned to

each identified feature. Specifically, the degrees to

apply are:

 M: Mandatory

 HD: Highly Desirable

 D: Desirable

 N: Nice to have

By using these degrees, Table 5 was filled in. As

can be noticed, the most important features to be

supported are both the NFR representation and the

traceability required by collaborative systems.

Table 5: Importance of the features.

Feature Importance

FR and NFR Representation M

Collaborative Systems Characteristics M

Awareness Representation M

Quality Factors Representation HD

Importance of Requirements HD

Traceability HD

Quantitative Model D

Hierarchical Representation D

Model Complexity N

Next, according to DESMET, a scale to evaluate

each one of the described features should be

provided. The scale proposed by DESMET (see

Table 6) was applied to evaluate each feature

according to the following factors:

 CAT: Conformance Acceptability Threshold.

 CSO: Conformance score obtained for

candidate method.

Once each feature was evaluated, the difference

between CAT and CSO factors was computed as

shown in the column Difference (Dif) in Tables 7, 8

and 9.

Table 6: Judgement scale to assess support for a feature.

Generic scale

point

Definition of Scale point Scale

Point

Mapping

Makes things

worse

Cause Confusion. The way the feature is represented makes difficult its modelling

and/or encourage its incorrect use

-1

No support Fails to recognise it. The approach are not able to model a certain feature 0

Little support The feature is supported indirectly, for example by the use of other model/approach in a

non-standard combination

Some

support

The feature is explicitly in the feature list of the model. However, some aspects of

feature use are not catered for.

Strong

support

The feature is explicitly in the feature list of the model. All aspects of the feature are

covered but its use depends on the expertise of the user

Very strong

support

The feature is explicitly in the feature list of the model. All aspects of the feature are

covered and the approach provides a guide to assist the user

Full support The feature appears explicitly in the feature list of the model. All its aspects are covered

and the approach provides a methodology to assist the user

A COMPARATIVE OF GOAL-ORIENTED APPROACHES TO MODELLING REQUIREMENTS FOR

COLLABORATIVE SYSTEMS

139

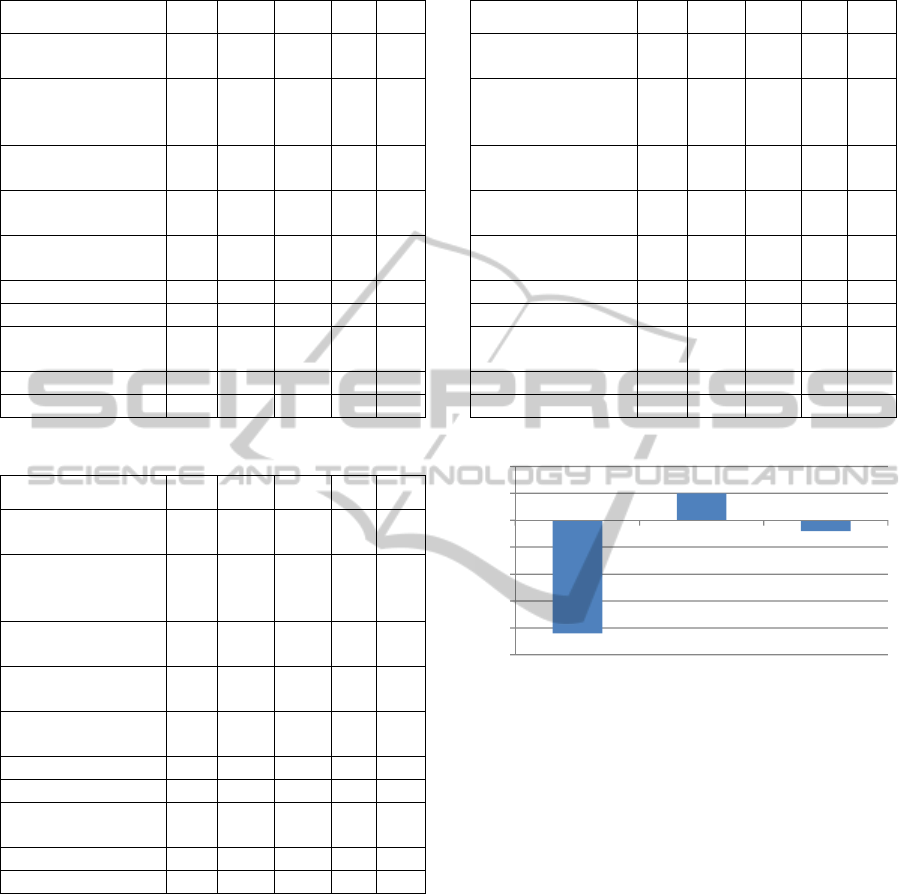

Table 7: Evaluation for the NFR Framework.

Feature Imp CAT CSO Dif Sco

FR and NFR

Representation

4 5 3 -2 -8

Collaborative

Systems

Characteristics

4 4 1 -3 -12

Awareness

Representation

4 4 4 0 0

Quality Factors

Representation

3 3 5 2 6

Importance of

Requirements

3 3 0 -3 -9

Traceability 3 3 3 0 0

Quantitative Model 2 2 1 -1 -2

Hierarchical

Representation

2 2 3 1 2

Model Complexity 1 1 3 2 2

Total -21

Table 8: Evaluation for the i* Framework.

Feature Imp CAT CSO Dif Sco

FR and NFR

Representation

4 5 5 0 0

Collaborative

Systems

Characteristics

4 4 5 1 4

Awareness

Representation

4 4 5 1 4

Quality Factors

Representation

3 3 5 2 6

Importance of

Requirements

3 3 0 -3 -9

Traceability 3 3 3 0 0

Quantitative Model 2 2 1 -1 -2

Hierarchical

Representation

2 2 3 1 2

Model Complexity 1 1 1 0 0

Total 5

Next, we should highlight that a variation of the

DESMET method was used. The importance (Imp)

of each feature has been weighted in a scale from 1

to 4 (Nice to have – 1, Desirable – 2, Highly

Desirable – 3, Mandatory – 4). The importance was

used to compute the final score of each feature by

multiplying the Importance by the Difference. This

computation is shown in the column Score (Sco) in

Tables 7, 8 and 9. Lastly, the final score of each

technique (Total) was obtained by adding the scores

of all the features. This framework has been used to

evaluate all the different GO approaches studied.

Figure 11 shows graphically the scores obtained

Table 9: Evaluation for KAOS Methodology.

Feature Imp CAT CSO Dif Sco

FR and NFR

Representation

4 5 5 0 0

Collaborative

Systems

Characteristics

4 4 4 0 0

Awareness

Representation

4 4 4 0 0

Quality Factors

Representation

3 3 4 1 3

Importance of

Requirements

3 3 0 -3 -9

Traceability 3 3 4 1 3

Quantitative Model 2 2 0 -2 -4

Hierarchical

Representation

2 2 4 2 4

Model Complexity 1 1 2 1 1

Total -2

Figure 11: Empirical analysis results.

by each one of the GO approaches. As can be

observed, the i* approach is the only one that has a

positive score. Despite this positive score, it has

been negatively evaluated for the Quantitative

Model feature, since i* only provides a partial

support for quantifying the relations among

requirements when using contribution links. The i*

approach also fails in representing the requirements

importance, giving no support to determine which

requirements are more important than others.

Nevertheless, the other two GO approaches also

share this lack of representation of the importance of

each requirement. KAOS also fails in the same

features than i* but, unlike this approach, KAOS

obtains a lower (or the same) score in almost all

features except for the Hierarchical Representation

feature, thanks to its tree-based representation.

Finally, the NFR framework is the less suitable

approach, obtaining a very low score, because of

both the lack of expressiveness to specify FRs and

its lack of adaptability to represent Collaborative

Systems Characteristics.

‐

‐20

‐15

‐10

‐5

NFR i* KAOS

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

140

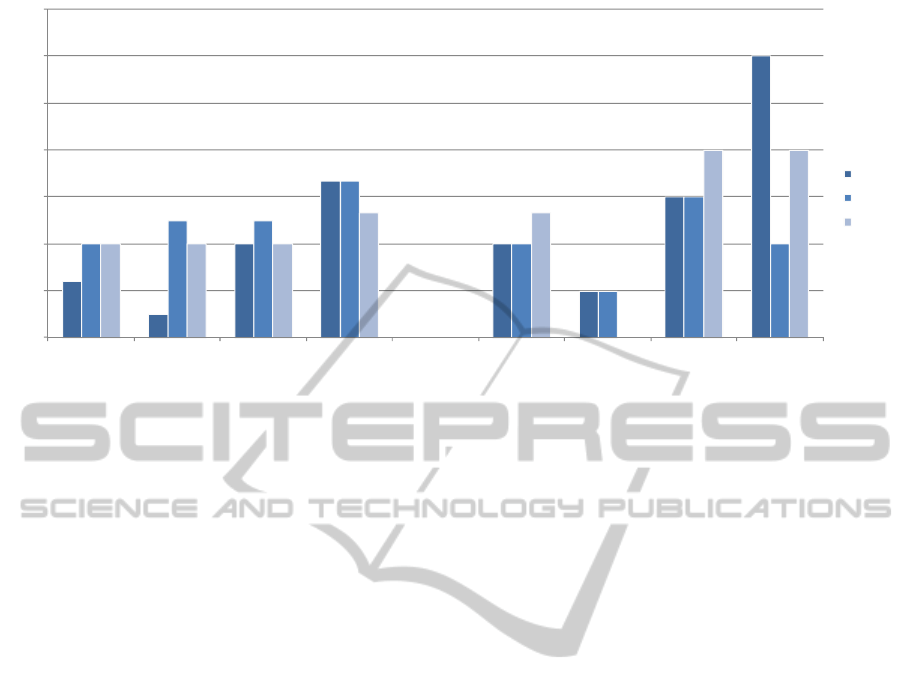

Figure 12: Results relative to distinct features.

In addition, as DESMET suggests, we have

performed a comparative of the percentage of each

feature satisfied by each analyzed GO approach.

Figure 12 illustrates that the NFR approach only

exceeds its competitors in the Model Complexity

feature, due to the simplicity their models have.

Similarly, KAOS supersedes i* in this feature

because i* has more modelling elements for the sake

of expressiveness. In addition, the evaluation of

Hierarchical Representation and Traceability

features for KAOS is better than for i* because i*

models are usually defined following a network

structure and do not provide a sophisticated support

for traceability. Other meaningful fact is that no

approach is able to represent the importance of the

requirements, something that should be considered

in future works. Another significant result is that,

despite i* and KAOS have the same score for the

feature FR and NFR Representation, i* supersedes

KAOS in the most important features (mandatory

and high desirable ones) except for the Traceability

feature. Nevertheless, KAOS obtains a better score

in the less valuated features, like Hierarchical

Representation and Model Complexity.

6 CONCLUSIONS AND FURTHER

WORK

Collaborative systems are highly demanding in

terms of NFRs. Therefore, the selection of a RE

technique with proper support for their successful

specification is a must. In this sense, the exploitation

of the GO approach emerges as the most appropriate

proposal(Teruel et al., 2011). However, up-to-date

several RE techniques have been proposed that

follow this approach. In order to select the most

suitable one, in this paper the results of an empirical

experiment of several GO techniques considering

the special needs of CSCW systems have been

conducted.

After this empirical experiment, we can conclude

that the analyzed GO approaches are not fully

appropriate to model collaborative system

characteristics and its relationships with awareness

and quality requirements. Among the analyzed GO

techniques, the i* approach is the only one that has a

positive score for the analyzed features related to

CSCW systems. In addition, i* is the only one that

provides (partial) support for quantifying the

relations among requirements when using

contribution links. However, this technique also

exhibits some shortcomings, such as the lack of a

hierarchical representation or support for specifying

the importance of the requirements. But perhaps, the

most significant shortcoming is that the

comprehensibility of the awareness requirements is

not appropriate. For instance, i* does not provide

support to specify when a task is carried out by

several roles, what is very common in a CSCW

system.

These conclusions, along with the results shown

in (Teruel et al., 2011), support our initial

hypothesis: current Requirement Engineering

techniques should be enriched to address the issues

identified during this study regarding CSCW

systems. As was shown in this study, i* is the most

promising technique to be used as the foundation for

this improvement. This constitutes one of our future

and challenging works: to adapt/extend i*for this

50%

100%

150%

200%

250%

300%

350%

FR and NFR

Representation

Collaborative

Systems

Characteristics

Awareness

Representation

Quality Factors

Representation

Importance of

Requirements

Traceability Quantitative

Model

Hierarchical

Representation

Model

Complexity

NFR

KAOS

A COMPARATIVE OF GOAL-ORIENTED APPROACHES TO MODELLING REQUIREMENTS FOR

COLLABORATIVE SYSTEMS

141

kind of systems. In addition to this definition, its

validation by means of more complex case studies is

planned in the near future.

In addition, another future work is the definition

of techniques that support that the defined models

can be used for validation purposes. That is, its

conformance with the SQuaRE Quality in Use

factors (usability, flexibility and safety) should be

evaluable in an easy and intuitive way, once the

system is fully developed.

ACKNOWLEDGEMENTS

This work has been partially supported by a grant

(DESACO, PEII09-0054-9581) from the Junta de

Comunidades de Castilla-La Mancha and also by a

grant (TIN2008-06596-C02-01) from the Spanish

Government.

REFERENCES

Castro, J., Kolp, M. and Mylopoulos, J. (2001) 'A

requirements-driven development methodology', 108-

123.

Chung, L., Nixon, B., Yu, E. and Mylopoulos, J. (2000)

Non-Functional Requirements in Software

Engineering, Kluwer Academic Publishing.

Cockburn, A. (2000) Writting Effective Use Cases,

Addison-Wesley.

Cysneiros, L. M. and Yu, E. (2003) 'Non-Functional

Requirements Elicitation', in Sampaio do Prado Leite,

J. C. and Doorn, J.H. (ed.) Perspectives on Software

Requirements, Springer.

Cysneiros, L. M. and Yu, E. (2003) Non-Functional

Requirements Elicitation (Perspectives on Software

Requirements), Springer.

Google (2011) Google Docs.

Gutwin, C. and Greenberg, S. (2002) 'A Descriptive

Framework of Workspace Awareness for Real-Time

Groupware', Computer Supported Cooperative Work,

vol. 11, pp. 411-446.

Gutwin, C., Greenberg, S. and Roseman, M. (1996)

'Workspace Awareness in Real-Time Distributed

Groupware: Framework, Widgets, and Evaluation',

281-298.

Hochmuller, H. (1999) 'Towards the Proper Integration of

Extra-Functional Requirements', Australasian Journal

of Information Systems, vol. 6, no. 2.

Kavakli, E. and Loucopoulos, P. (2004) 'Goal Modeling in

Requirements Engineering: Analysis and Critique of

Current Methods', 102-124.

Kitchenham, B. (1993) 'DESMET: A methodology for

evaluating software engineering methods and tools', in

Rombach, H., Basili, V. and Selby, R. (ed.)

Experimental Software Engineering Issues: Critical

Assessment and Future Directions, Springer Berlin /

Heidelberg.

Moreira, A. M. D., Araújo, J. and Rashid, A. (2005) 'A

Concern-Oriented Requirements Engineering Model',

293-308.

Mylopoulos, J., Castro, J. and Kolp, M. (2000) 'Tropos: A

Framework for Requirements-Driven Software

Development', 261-273.

Pohl, K. (2010) Requirements Engeneering:

Fundamentals, Principles, and Techniques, Springer.

Sampaio, J.C. and Franco, A.P.M. (1993) 'A Strategy for

Conceptual Model Acquisition', 243-246.

Schümmer, T. and Lukosch, S. (2007) Patterns for

Computer-Mediated Interaction, John Wiley \& Sons

Ltd.

Software engineering - Software product Quality

Requirements and Evaluation (SQuaRE) Quality

model (2008).

Teruel, M. A., Navarro, E., López-Jaquero, V., Montero,

F. and González, P. (2011) 'An Empirical Evaluation

of Requirement Engineering Techniques for

Collaborative Systems', 15th Empirical Assesment of

Software Engineering, Durham, UK.

van Lamsweerde, A. (2001) 'Goal-Oriented Requirements

Engineering: A Guided Tour', Proceedings 5th IEEE

International Symposium on RE, Toronto, 249-263.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

142
