THE WINDSURF LIBRARY FOR THE EFFICIENT RETRIEVAL

OF MULTIMEDIA HIERARCHICAL DATA

∗

Ilaria Bartolini, Marco Patella and Guido Stromei

DEIS, Universit`a di Bologna, Bologna, Italy

Keywords:

Multimedia databases, Indexing, Efﬁcient retrieval.

Abstract:

Several modern multimedia applications require the management of complex data, that can be deﬁned as hier-

archical objects consisting of several component elements. In such scenarios, the concept of similarity between

complex objects clearly recursively depends on the similarity between component data, making difﬁcult the

resolution of several common tasks, like processing of queries and understanding the impact of different alter-

natives available for the deﬁnition of similarity between objects. To overcome such limitations, in this paper

we present the WINDSURF library for management of multimedia hierarchical data. The goal of the library is

to provide a general framework for assessing the performance of alternative query processing techniques for

efﬁcient retrieval of complex data that arise in several multimedia applications, such as image/video retrieval

and the comparison of collection of documents. We designed the library so as to include characteristics of

generality, ﬂexibility, and extensibility: these are provided by way of a number of different templates that can

be appropriately instantiated in order to realize the particular retrieval model needed by the user.

1 INTRODUCTION

Multimedia (MM) information, despite their ubiqui-

tous and prominent role in nowadays life, still present

a variety of challenges for their effective and efﬁ-

cient retrieval: among these, the content extraction

and subsequent indexing represent two of the most

analyzed areas of research. However, the inherently

complex nature of some multimedia data (like videos,

images, web pages, and so on) makes it hard to ex-

ploit out-of-the-box solutions that were devised for

simpler scenarios (e.g., textual documents). Indeed,

in many MM cases the classical information retrieval

(IR) models cannot be applied without either oversim-

plifying the type of queries that can be issued by an

user or completely giving up efﬁciency or effective-

ness. An example, that arises in several MM scenar-

ios, is that of MM documents that are composed of

several component elements. Requesting documents

that are relevant to a given query document Q entails

retrieving elements that are relevant to Q elements,

and then somewhat combining the results at the docu-

ment level. This hierarchical structure of documents

is general enough to be able to model different MM

IR applications, but poses some peculiar challenges

∗

This work was partially supported by the CoOPER-

ARE MIUR Project.

due to its very nature: for example, how are docu-

ment elements compared to query elements? how the

relevance of elements is aggregated in order to as-

sess the relevance of whole documents? is indexing

of whole documents a possible choice? in case, is it

a better choice than indexing elements? Above ques-

tions recur whenever the hierarchical model is applied

for the retrieval of MM documents; however, answers

cannot be given independently from the application at

hand, since each particular scenario presents its pecu-

liarities. When enhancing differences among applica-

tions, we should however note that several afﬁnities

are still present and that solutions proposed for a par-

ticular scenario could be applied to other similar sce-

narios as well, provided that the underlying model is

the same.

In this paper, we present the WINDSURF library

for management of MM hierarchical data, with the

goal of providing a general, ﬂexible, and extensible

software framework for analyzing the impact on per-

formance of the different aspects included in its re-

trieval model. In particular, the library presents an

emphasis on query processing techniques, offering

different index-based algorithms for the efﬁcient res-

olution of similarity retrieval queries, where docu-

ments are requested whose content is (in some sense)

similar to that of the query. Indeed, it turns out that

139

Bartolini I., Patella M. and Stromei G..

THE WINDSURF LIBRARY FOR THE EFFICIENT RETRIEVAL OF MULTIMEDIA HIERARCHICAL DATA.

DOI: 10.5220/0003451701390148

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 139-148

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

algorithms included in the WINDSURF library have

a wide range of applicability and can therefore be

helpful for a variety of scenarios. We expect the li-

brary to be particularly useful to those researchers that

haveto analyze how different alternativesin the repre-

sentation/comparison of elements/documents interact

in providing different effectiveness/efﬁciency perfor-

mances, without the burden of deﬁning ex-novo al-

gorithms for retrieving query results. We also note

that processing of similarity queries may not be the

main goal of the application at hand, rather it could

be just a component of a more complex system: as

an example, TRECVID 2011 (http://trecvid.nist.gov/)

includes several tasks calling for efﬁcient retrieval of

similar video shots. For instance, the semantic index-

ing (SIN) task involvesthe automatic tagging of video

segments in order to perform ﬁltering, categorization,

browsing, and search (this is commonly performed

by associating the same tags to shots sharing similar

visual/audio content (Bartolini, Patella, and Romani

2010)); the content-based copy detection (CCD) task,

on the other hand, aims to automatically detect copies

of video segments, which clearly can be based on the

retrieval of similar video content.

We ﬁrst precisely deﬁne the hierarchical retrieval

model of WINDSURF (Sect. 2), by also presenting

real-world examples of its use, and provide a general

view of the library (Sect. 3), including its query pro-

cessing algorithms (Sect. 4). Then (Sect. 5), we show

how the library can be customized so as to behave

according to the requirements of the particular appli-

cation at hand and we provide examples of use of the

library in the Region-Based Image Retrieval (RBIR)

scenario (Sect. 6): this was the original application

scenario of the library and also justiﬁes its name

(WINDSURF standing for Wavelet-based INDexing

of imageS Using Region Fragmentation (Ardizzoni,

Bartolini, and Patella, 1999)). Finally, we draw our

conclusions, by also highlighting future directions of

research (Sect. 7).

2 THE WINDSURF RETRIEVAL

MODEL

The retrieval model of WINDSURF is as follows:

we have a database D of N documents, D =

, . . . , D

}, where each document D is composed

of n

elements, D = {R

, . . . , R

}. Each element R is

described by way of features that represent, in an ap-

propriate way, the content of R. Given a query docu-

ment Q = {Q

, . . . , Q

} composed of n elements, and

an element distance function δ, that measures the dis-

similarity of a given pair of elements (using their fea-

tures), we want to determine the set of best documents

in D with respect to Q.

The above formulation of the problem is suf-

ﬁciently general to encompass different retrieval

paradigms, each having a different way of specify-

ing which documents are to be considered “best” for

the query at hand: this can be demonstrated by apply-

ing the WINDSURF retrieval model to some real world

examples.

Example 1. Our ﬁrst example deals with the com-

parisons of web sites. In this case, each element R is

a web page contained in a web site D and we want to

discover whether a new web site Q is similar to some

existing web sites in our database D . Comparison be-

tween web pages is performed by taking into account

contained keywords, e.g., by using the vector space

model (Salton, 1989), so that features extracted from

each page include keywords using t f × id f values af-

ter stopping & stemming (see Fig. 1).

query web site query page DB page DB web site

pagedistanceδ

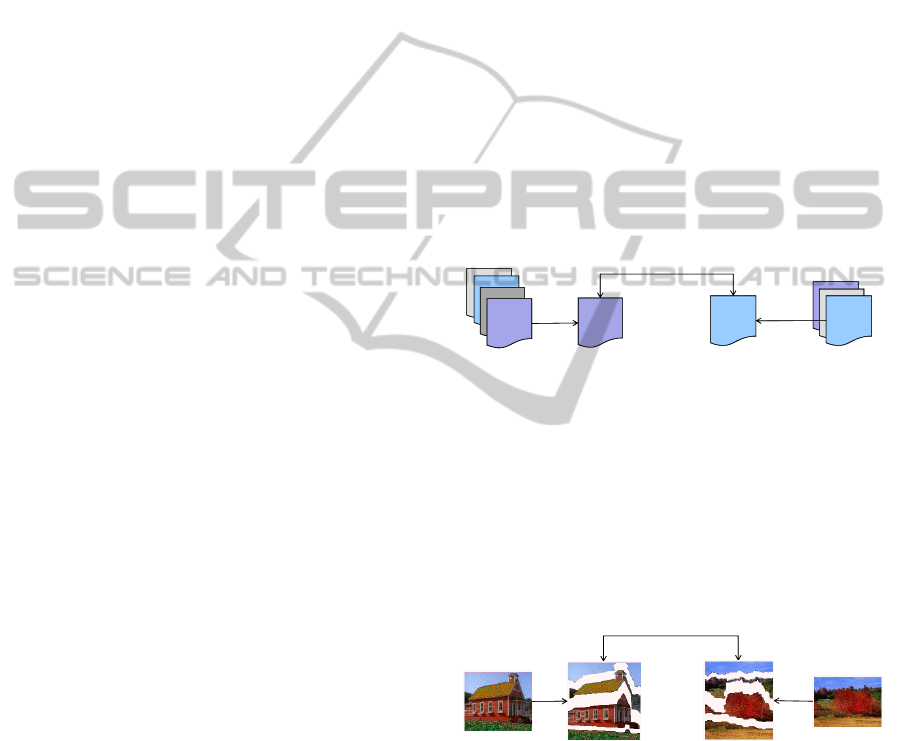

Figure 1: Comparing web sites.

Example 2. In RBIR, the D database consists in still

images that are segmented into regions, where pix-

els included in a single region R share the same vi-

sual content (e.g., color & texture). Image regions are

compared according to their visual features and we

want to retrieve images that are similar in content to

a user-speciﬁed query image Q (see Fig. 2).

DB image regions

region distanceδ

query regions

query image DB image

Figure 2: Comparing segmented images in Region-Based

Image Retrieval.

Example 3. As a third example, we consider the

comparison of videos based on similarity, where each

video D is ﬁrst segmented into shots, i.e., sequences

of video frames that are coherent in their visual con-

tent. Then, each shot R is represented by a single key

frame (this can be either the ﬁrst frame of the shot, or

the middle one, or the medoid of shot frames), so that

shots can be compared by means of a simple image

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

140

similarity function. Finally, we can compare whole

videos by aggregating the similarities between shots

(see Fig. 3). Note that different applications (like du-

plicate video detection) might impose different con-

straints on the “matching” of video shots, e.g., re-

questing that only shots of similar length can be cou-

pled or that shots that are shown in very different mo-

ments cannot be matched; clearly, this has an impact

on the computation of similarity between videos, thus

a researcher might be interested in investigating the

effect of such constraints on the result of a query re-

questing for, say, the 5 videos most similar to a given

query video Q.

cut

shot B1

cut

shot B2

cut

shot B3

cut

shot A1

cut

shot A2

shot A3

shot B4

video B

video A

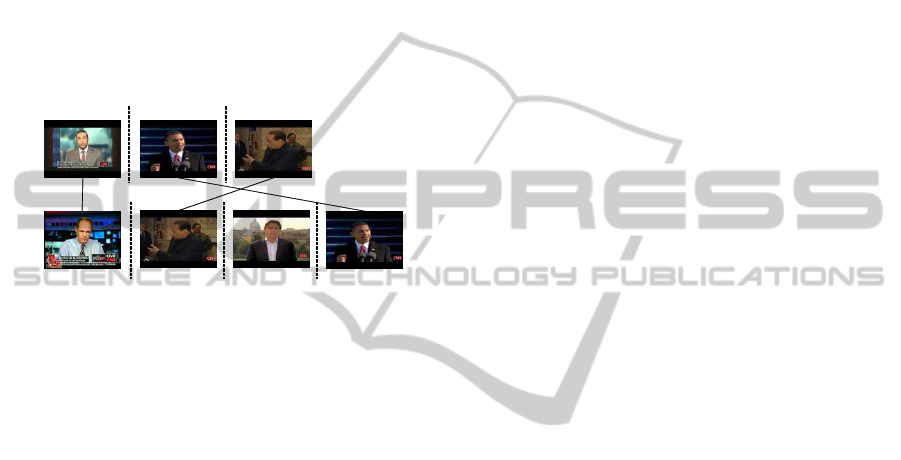

Figure 3: Comparison of videos based on video shots.

For the rest of the paper, we will assume as given

the way documents are divided into elements (e.g.,

the image segmentation algorithm in Example 2, or

the shot segmentation of videos in Example 3), the

features used to represent such elements, and the (ele-

ment) distance function δ, being understood that sim-

ilar elements will have a low δ value: our focus here

is to demonstrate how different retrieval models can

be enclosed by the WINDSURF model, thus proving

its generality.

Another important factor to be considered is the

deﬁnition of the query result, i.e., how the best doc-

uments wrt Q are speciﬁed. Indeed, different appli-

cations typically have different ways of assessing the

similarity between documents, given the similarities

between component elements. In WINDSURF, two

different retrieval modalities are supported: quantita-

tive (k-NN) and qualitative (Skyline).

• In the k Nearest Neighbor (k-NN) quantitative

model (Ilyas, Beskales, and Soliman, 2008), simi-

larity between documents is numerically assessed

by way of a document distance function d that

combines together the single element distances

into an overall value. Consequently, document

is considered better than D

for the query Q

iff d(Q, D

) < d



Q, D



holds and the query re-

sult consists of the k DB documents closest to the

query.

• As an alternative to the quantitative model, the

qualitative (Skyline) model does not rely on the

speciﬁcation of a numerical value, according to

which DB documents can be sorted for decreasing

values of similarity wrt to the query, rather docu-

ment D

is considered better than D

for the query

Q iff D

does no worse than D

on all query ele-

ments and there exists at least one query element

on which D

is strictly better than D

. This neces-

sarily includes those documents that would be the

best alternative according to some speciﬁc docu-

ment distance function (Fishburn, 1999).

Regarding k-NN queries, it has to be noted that, usu-

ally, the computation of the document distance d is

obtained by combining three basic ingredients: (1)

the element distance δ, (2) the set of constraints that

specify how the component elements of the query Q

have to be matched to the component elements of an-

other (database) document D, and (3) the aggrega-

tion function that combines distance values between

matched elements into an overall document distance

value (e.g., a simple average of distance values be-

tween matched elements). Often, the overall docu-

ment distance is computed by aggregating scores of

the best possible matching, i.e., the one that mini-

mizes the overall document distance; in this case, the

computation of d also includes the resolution of an

optimization problem in the space of possible match-

ings between elements of Q and elements of D. We

ﬁnally note that the result of any query depends on the

combination of all three ingredients, so that chang-

ing one of them might lead to completely different

results. As we will show later, the characteristics of

the overall document distance also determine which

algorithms can be used to efﬁciently solve the k-NN

query.

As to the Skyline retrieval model, our deﬁnition

of domination among documents follows the one de-

scribed in (Bartolini, Ciaccia, and Patella, 2010) for

the case of segmented images. Intuitively, the con-

cept of domination is deﬁned for tuples, while here we

are considering sets of elements; thus, the dominance

criterion needs to be properly extended to deal with

this additional complexity in the structure of objects

to be compared. For this purpose, each document can

be deﬁned as the set of possible matchings of its el-

ements with query elements, each matching being a

tuple of distance values between a query element Q

and its matched element of D, R

. The domination

between matchings can be then straightforwardly de-

ﬁned. Finally, domination between documents is built

on top of the concept of domination between match-

ings, stating that a document D

dominates another

document D

wrt the query Q iff for each matching of

THE WINDSURF LIBRARY FOR THE EFFICIENT RETRIEVAL OF MULTIMEDIA HIERARCHICAL DATA

141

there exists a matching of D

that dominates it.

2.1 Alternative Retrieval Models

Albeit the WINDSURF retrieval model is sufﬁciently

general to encompass the characteristics of several

multimedia scenarios, see (Grauman, 2010) for a re-

cent example, it is interesting to note its analogies

with other different models. For example, the Bag

of Words (BoW) model for computer vision (Fei-Fei,

Fergus, and Torralba, 2007) represents images as sets

of patches (these are similar to elements in WIND-

SURF). Then, all patches included in any DB image

are converted into codewords, where each codeword

is representative of several patches. This produces a

codebook and each image can be described as the set

of codewords representing its patches. In this way, the

retrieval models used for textual documents (Salton,

1989) can be directly applied for images, since the

codebook is equivalent to a dictionary. The difﬁcult

part here is the generation of the codebook(how many

codewords? how to compare patches?).

We also note that our k-NN retrieval model also

include those cases where the image distance d also

considers global characteristics; for example, this is

the case when the particular d to be used for a given

query is learned by exploiting side information (Wu

et al., 2009; Grauman, 2010).

3 OVERVIEW OF THE

WINDSURF LIBRARY

The WINDSURF library is written in Java and is re-

leased under the “QPL” license, being freely available

at URI http://www-db.deis.unibo.it/Windsurf/ for ed-

ucation and research purposes only. It consists of ﬁve

main packages, each focusing on a section of the main

architecture.

Document. The

Document

package includes the def-

inition of classes modelling documents, elements,

and features. It also contains the speciﬁcation of

the element distance δ and (possibly) of the docu-

ment distance d.

FeatureExtractor. The

FeatureExtractor

is the

component in charge of extracting the features

from a given document. This is performed in two

steps: ﬁrst the document is decomposed into ele-

ments (segmentation), then features are computed

for each element (extraction).

QueryProcessor. The

QueryProcessor

(QP) is the

component that solves queries over document fea-

tures. It contains algorithms for the efﬁcient res-

olution of both k-NN and Skyline queries, by ex-

ploiting the presence of indices built on document

features. In case indices are not available, the

package also incorporates sequential algorithms

for solving queries.

FeatureManager. The

FeatureManager

(FM) is the

component in charge of storing/retrievingthe doc-

ument features from the DB, providing an abstrac-

tion from the underlying used DBMS. In order to

achievean efﬁcient management of features, these

can be saved into a relational DBMS (in particu-

lar, the WINDSURF library includes code for using

the MySQL

RDBMS).

IndexManager. The

IndexManager

(IM) package

contains classes managing the feature indices.

These can be exploited by the QP for the efﬁ-

cient resolution of queries over the features (see

Sect. 4). WINDSURF supports indices built on top

of both elements and documents: as we will see

in the following, this allows the deﬁnition of alter-

native query processing algorithms. In particular,

an implementation of the M-tree index (Ciaccia,

Patella, and Zezula, 1997) is included.

Fig. 4 provides an abstract view of how pack-

ages of the library cooperate during the insertion and

the retrieval phase. When a new document is to be

added to the document database (Fig. 4 (a)), it is ﬁrst

processed by the

FeatureExtractor

package which

breaks it into component elements and extracts ele-

ments’ features. These are then forwarded to the FM

and IM components that store the features in the fea-

tures DB and the features index, respectively. On

the other hand, at query time (Fig. 4 (b)) features ex-

tracted by the

FeatureExtractor

are fed into the QP

component, whose algorithms exploit the Feature and

Index managers in order to pick query results out.

4 QUERY PROCESSING

ALGORITHMS

Our main goal in designing the WINDSURF library

was the performance comparison of different algo-

rithms for the retrieval of complex documents, in

terms of both efﬁciency and effectiveness. In this

view, the core of the library consists of the QP compo-

nent, that presents alternative algorithms for the res-

olution of queries. Regarding efﬁciency, QP algo-

rithms might exploit indices built on features in order

http://www.mysql.com/.

For efﬁciency reasons, the implementation of M-tree is

written in C++.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

142

Document Elements

FeatureExtractor

FeatureManager IndexManager

Features

Feature index

(a)

Query

document

Query

elements

FeatureExtractor

FeatureManager IndexManager

Features

Feature index

QueryProcessor

Query results

(b)

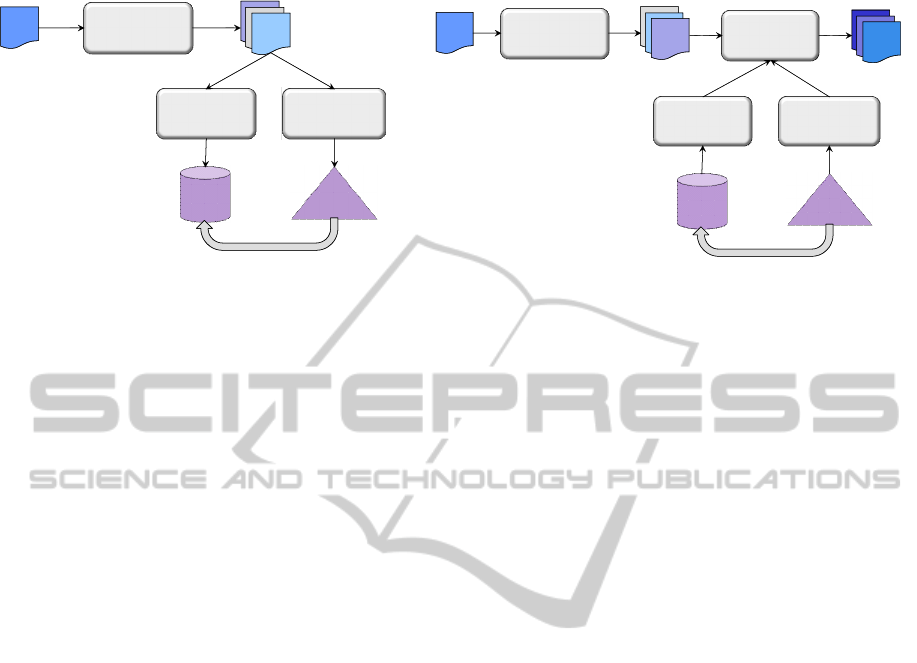

Figure 4: Data ﬂow in the WINDSURF library: (a) insertion phase, (b) retrieval phase.

to avoid a full sequential evaluation, a non viable so-

lution for large document DBs. Our arguments will be

developed independently of the speciﬁc index; rather,

we will refer to a generic distance-based index, i.e.,

any index that relies on the computation of distances

to return back objects. Distance-based indices include

both multi-dimensional (Gaede and G¨unther, 1998)

and metric (Ch´avez et al., 2001) indices, relevant ex-

amples of which are the R-tree (Guttman, 1984) and

the M-tree (Ciaccia, Patella, and Zezula, 1997), re-

spectively. To be useful for our purposes, distance-

based indices should also provide a sorted access in-

terface, i.e., to output data in increasing order of dis-

tance with respect to the object with which the in-

dex is queried: this is quite common, thanks also

to the existence of algorithms of general applicabil-

ity (Hjaltason and Samet, 1999; Hjaltason and Samet,

2003). Depending on the used algorithm, indices in

the WINDSURF library might be built on either ele-

ments (for which the element distance δ is used for

indexing purposes) or whole documents (where in-

dexing is based on the document distance d).

In order to evaluate the efﬁciency of each query

processing algorithm, all classes provide statistics

about relevant operations, including:

Document Distances. The number of distance eval-

uations among documents (only relevant for k-

NN queries); this is considered a costly operation,

since it typically involves comparing several com-

ponent elements and combining them in order to

produce the overall score (as said, the latter might

also require solving an optimization problem).

Element Distances. The number of distance evalua-

tions among elements; depending on the number

of features and on the element distance function

δ, this too might be a costly operation.

Sorted Accesses. The number of accesses to the un-

derlying element index; as we will show, some al-

gorithms exploit an index built on document ele-

ments, that is used to sort DB elements in order of

increasing distance values with respect to query

elements. A sorted access returns a single DB

element and requires the index to perform some

computations.

Document Dominations. The number of compar-

isons among documents in order to see whether a

document dominates another one (Skyline queries

only); again, this is a costly operation since it

might require comparing several matchings.

Time. The overall time needed to solve a single

query; this can be also detailed by considering

the time needed for retrieving features from the

DB, accessing the underlying indices, computing

document distances, or comparing documents for

domination.

The QP includes efﬁcient algorithms for the efﬁcient

resolution of both k-NN and Skyline queries (Bar-

tolini, Ciaccia, and Patella, 2010). Each algorithm

will be described here in general terms, by specifying

under which hypotheses it is able to correctly solve a

query.

SEQ. This sequential k-NN algorithm

(

QueryProcessor.SF.QuerySFSequential

class)

retrieves all documents in D and compares them with

Q, by using the document distance d. Only the k best

documents, i.e., the ones having the lowest d values,

are kept and returned as the query result. No speciﬁc

requirement on d or δ is needed, since the algorithm

simply follows the deﬁnition of k-NN query.

k-NN-set. This index-based k-NN algorithm

(

QueryProcessor.SF.kNNset.kNNset

class) ex-

ploits an element index T

to reduce the number

of document and element distances to be com-

puted (Bartolini, Ciaccia, and Patella, 2010). The

THE WINDSURF LIBRARY FOR THE EFFICIENT RETRIEVAL OF MULTIMEDIA HIERARCHICAL DATA

143

k-NN-set algorithm iteratively alternates sorted

accesses to the index T

to retrieve DB elements with

random accesses that compute a document distance

d (Q, D) between the query and the document whose

element has been retrieved by the last sorted access.

In this case, document distances are computed only

during the random access phase, while element

distances can be computed within the index and

during each random access (since distances between

all elements of both Q and of D might be required to

compute d (Q, D)).

The algorithm applies to any document distance

function d that can be bounded from below, i.e., for

those d such that if, for document D = { R

, . . . , R

}

and query Q = {Q

, . . . , Q

}, it is δ(Qi, Rj) ≥ θ

, ∀i, j,

then a function T exists such that d (Q, D) ≥ T(θ

This is required to guarantee correctness of the pro-

vided result: it means that, for a document D

whose

all elements are “closer” to query elements than all

those of another document D

, it is also d (Q, D

) ≤



Q, D



. Indeed, since the underlying index T

pro-

vides DB elements in order of increasing distance to

query elements (sorted access), the algorithm cannot

terminate until it is guaranteed that no document yet

to be seen in a sorted access is closer to Q than the

best k documents seen so far.

k-NN-imgIdx. This k-NN algorithm

(

QueryProcessor.SF.ImgIdx.QuerySFIndex

class) exploits a document index T

. Since, for

hypothesis, T

supports sorted accesses, the k-

NN-imgIdx algorithm simply performs k of such

accesses to return the query result. We note here that

multi-dimensional access methods cannot be used to

index whole documents, because a document is a set

(and not a vector) of elements, thus metric indices

are needed for this purpose. It then follows that the

distance d used to compare documents should be a

metric.

Sky-set. This is the only index-based Skyline

algorithm included in the WINDSURF library

(

QueryProcessor.Skyline.Skyset.Skyset

class)

and uses an element index T

(Bartolini, Ciaccia,

and Patella, 2010) (the Skyline retrieval model

cannot be supported by document indices, because

a document distance function is not deﬁned in this

case). Similar to the k-NN-set algorithm, Sky-set

resorts to sorted and random accesses; the main

difference with k-NN-set is that, after each sorted

access, no document distance is computed, rather

the newly accessed document D is compared for

domination with documents in the current solution,

possibly leading to drop some current results or D

itself. The correctness of Sky-set follows from the

very deﬁnition of domination among documents

and the use of a threshold tuple θ. In fact, unseen

documents will only contain elements whose distance

values are higher than those included in θ: it follows

that any document D which is not dominated by θ

cannot be dominated by any unseen document, thus

it can be output as a Skyline result. We ﬁnally note

that, although our deﬁnition of the result of a Skyline

query only include undominated documents, Sky-set

is able to iteratively return results in layers (Bartolini

et al., 2007): according to this deﬁnition, documents

in a layer are not dominated by any document, except

by documents in previous layers (for each document

D in layer i and for all j < i, it exists at least a

document D

′

in layer j that dominates D).

5 CUSTOMIZING THE LIBRARY

The WINDSURF library includes abstract and general

classes able to represent any application following the

retrieval model described in Sect. 2. As stated in the

introduction, one of the basic features of the library is

its generality and ability of being customized to cover

a broad range of application scenarios. In this section

we ﬁrst detail how a user of the WINDSURF library

can instantiate classes so as to implement her speciﬁc

needs, then describe some possible customizations.

In order to correctly exploit the library, a user has

to follow ﬁve basic steps:

1. Extending the

Document

and

Element

classes

within the

Document

package. For this, the user

has to specify the format of features that repre-

sents documents and document elements. In par-

ticular, the element distance δ is modelled by the

distance

method in the

Element

class, while the

document distance d is (possibly) implemented by

the

distance

method in the

Document

class.

2. Implementing classes in the

FeatureExtractor

package for analyzing documents, in order to

break them into their component elements and ex-

tract their features.

3. Writing classes in the

FeatureManager

and

IndexManager

packages for storing/retrieving

document/element features to/from the underly-

ing DBMS and indices.

4. Building the DB and the indices containing docu-

ments and elements. This is performed by way of

the

insert

method within the

FeatureManager

and

IndexManager

classes, that save features of a

single

Document

within the DB/index, according

to the insertion logic depicted in Fig. 4 (a).

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

144

5. Querying the DB (possibly exploiting indices) by

creating an instance of the

Query

class within the

QueryProcessor

package. Such object (which is

built using a single

Document

) could be used in

conjunction with any of the algorithms listed in

Sect. 4, see Fig. 4 (b).

Although the previously listed steps are the only ones

required for the basic use of the library, advanced

users may require additional, more sophisticated, cus-

tomizations. Most commonly, these will affect classes

in the following packages.

FeatureManager and IndexManager Pack-

ages. The library already includes generic code for

using the MySQL DBMS and the M-tree (Ciaccia,

Patella, and Zezula, 1997) index (a template-based

C++ library itself), but other implementations of the

generic abstract classes for features management are

possible. It is worth noting that, as stated in Sect. 4,

separate index structures should be provided for the

management of documents and elements, and that

such indices should support the sorted access inter-

face: this is required by the k-NN-set and the Sky-

set algorithms, but also allows the retrieval of docu-

ments/elements using k-NN or range queries (Zezula

et al., 2006).

QueryProcessor Package. This package con-

tains the implementations of algorithms described in

Sect. 4, but also allows the speciﬁcation of other

aspects of document retrieval using either the k-

NN or the Skyline model. Particularly important

is the

QueryProcessor.SF

sub-package, containing

the implementation of several alternatives for the

computation of the document distance d via the use

of scoring functions. The library already implements

four of such functions, that will be detailed in the fol-

lowing.

Earth’s Mover Distance (EMD). Using the EMD

scoring function (Rubner and Tomasi, 2000), el-

ements of the documents to be compared are

matched in a many-to-many modality. The

“amount” of matching of any element is limited

to the “size” of such element (for example, in the

case of image regions, this equals the fraction of

image pixels included in the region at hand); the

average of best-matched elements is used as the

aggregation function, thus deﬁning an optimiza-

tion problem that corresponds to the well-known

transportation problem, which can be solved in

O(n

logn) time. It is easily proved that a doc-

ument distance d deﬁned in this way is a metric

and can be bounded from below, thus it could be

exploited by algorithms described in Sect. 4.

IRM. The IRM scoring function used by the SIM-

PLIcity RBIR system (Wang, Li, and Wieder-

hold, 2001) is based on a greedy algorithm (with

complexity O(n

logn)) that obeys the same con-

straints and uses the same aggregation function

(i.e., the average) as EMD. Consequently, the doc-

ument distance computed by IRM is never lower

than the one of EMD: this also implies that IRM

can be also bounded from below (although with a

looser bound wrt the one for EMD) but it does not

satisfy the metric postulates.

1− 1 Assignment. In this case, which is the one

originally exploited by the WINDSURF RBIR sys-

tem (Ardizzoni, Bartolini, and Patella, 1999),

each element of a document can be only matched

to at most one element of the other document,

and vice versa. Then a “biased” average is used

to aggregate distance values of matched elements,

so as to appropriately penalize documents that do

not match all the query elements. This deﬁnes an

assignment problem, which can be solved using

the Hungarian Algorithm in O(n

) time (Kuhn,

1955). Again, it is easy to see that this document

distance can be bounded from below but is not a

metric.

Greedy 1− 1. This last scoring function is computed

by way of a greedy algorithm (whose complexity

is O(n

)) for the assignment problem. The cor-

responding document distance is thus never lower

than the one computed using the previous func-

tion, is also bounded from below, but is not a met-

ric.

In case the number of document elements, n, is high,

above algorithms would be limited by their super-

linear complexity. In such cases, it is likely that

the user would specify alternative (approximate) al-

gorithms, e.g., the pyramid match algorithm detailed

in (Grauman, 2010).

6 USE CASES

In this section, we demonstrate how the use of the

WINDSURF library classes can be helpful in perform-

ing complex tasks over documents that comply with

the WINDSURF model. The case study we consider

here is that of a researcher investigating the impact of

the different alternatives offered by the WINDSURF

RBIR system (see Example 2). In particular, she is

interested in the efﬁciency and the effectiveness of

the query models available in the library as applied

to the WINDSURF image features, which are detailed

in (Ardizzoni, Bartolini, and Patella, 1999). Follow-

THE WINDSURF LIBRARY FOR THE EFFICIENT RETRIEVAL OF MULTIMEDIA HIERARCHICAL DATA

145

ing the ﬁve steps enumerated in Sect. 5, the user has

to ﬁrst implement classes in the following packages

(note that the library already includes such code):

Document Package. features for each image re-

gion (element) include color/texture character-

istics that are represented by way of a 36-

dimensional vector; the region distance δ imple-

ments the Bhattacharyya metric distance (Kailath,

1967), while the image distance d implements all

the alternatives included in Sect. 5, see (Bartolini,

Ciaccia, and Patella, 2010).

FeatureExtractorPackage. A Haar-Wavelet

ﬁlter is applied to each image (document) and

pixels of the ﬁltered image are then clustered

together using a K-means algorithm; so-obtained

clusters correspond to image region, whose

features are extracted from visual characteristics

of included pixels.

FeatureManagerand IndexManagerPackag-

es. Classes are included for storing/retrieving im-

age/region features to/from the MySQL DBMS

and the M-tree index.

We include here the results of some experiments

performed on a real image dataset consisting of

about 15,000 color images (corresponding to about

63,000 regions) extracted from the IMSI collection

(http://www.imsisoft.com).

As a ﬁrst demonstration of use of the library, we

compare the effectiveness of the Bhattacharyya re-

gion distance with respect to a simpler Euclidean (L

)

distance for establishing the similarity between re-

gion features: this is easily done by simply redeﬁning

the δ distance within the

Document

package. Fig. 5

shows that the use of the Bhattacharyya distance is

justiﬁed by its far superior accuracy with respect to

the Euclidean distance, in spite of its higher cost (al-

most doublingthe time needed to compute the L

met-

ric). Although we only present here results for k-NN

queries, experiments for Skyline queries (not included

here for the sake of brevity) conﬁrm the trend exhib-

ited by Fig. 5. Again, we note that this result can be

obtained by simply redeﬁning the

distance

method

of the

Element

class within the

Document

package.

As another proof of usability of the library, we

compared the effectiveness of the document distances

described in Sect. 5. To this end, the k-NN-set al-

gorithm was repeatedly executed with the different d

distances. We obtained the results shown in Fig. 6. It

can be seen that all image distances behave almost the

same, with the remarkable exception of the Greedy

1− 1 alternative, whose accuracy is very low for the

ﬁrst retrieved results. This result, which has been ob-

tained with no cost, since all alternatives are already

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 10 20 30

Bhattacharyya

Euclidean

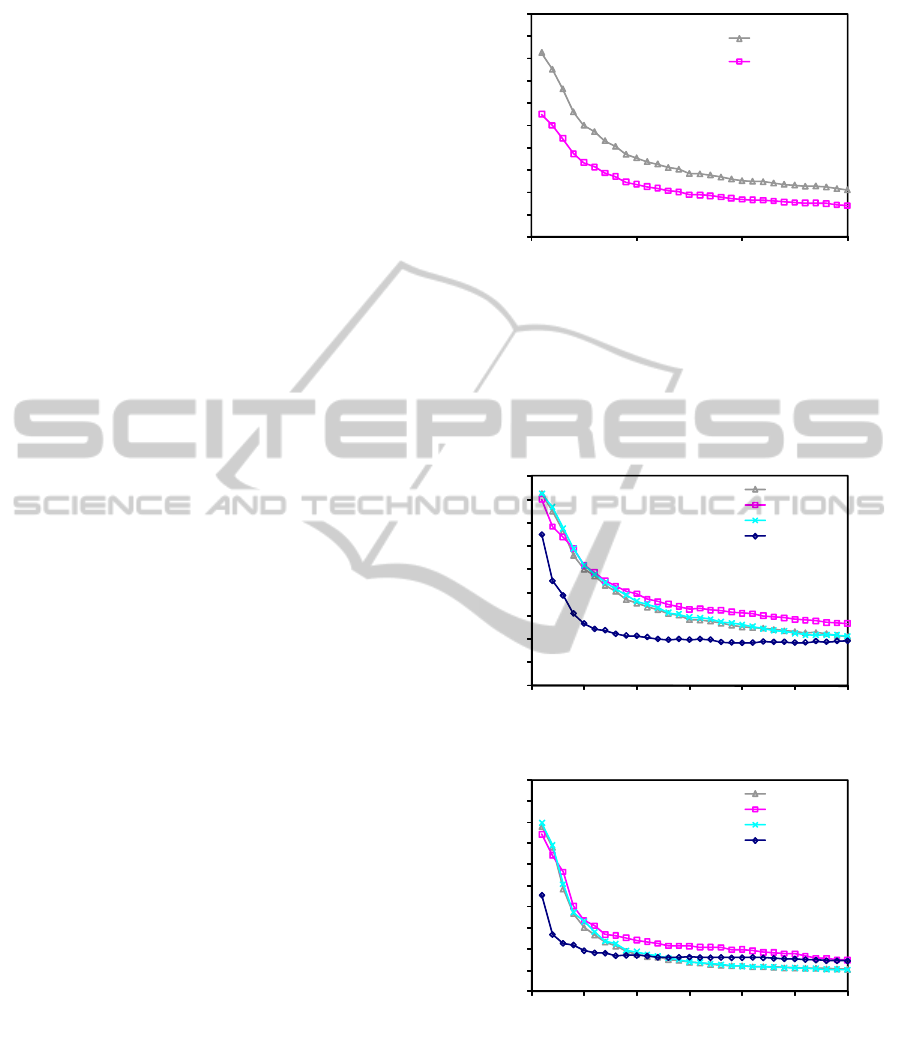

Figure 5: Effectiveness of different element distance func-

tions for the RBIR case: Precision (P) as a function of the

number of retrieved documents (k).

available within the library, may suggest that a choice

between the ﬁrst three alternatives should be based on

efﬁciency considerations only.

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 5 10 15 20 25 30

EMD

IRM

1-1

Greedy 1-1

(a)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 5 10 15 20 25 30

rel

EMD

IRM

1-1

Greedy 1-1

(b)

Figure 6: Effectiveness of different document distance

functions for the RBIR case: Precision (P) as a function of

the number of (a) retrieved documents (k) and (b) relevant

retrieved documents (k

rel

Finally, we show a result of the performance

comparison for the three index-based algorithms de-

scribed in Sect. 4: Fig. 7 compares the efﬁciency of

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

146

k-NN-set (using both the EMD and the 1 − 1 docu-

ment distance), k-NN-imgIdx (using EMD), and Sky-

set according to 4 different performance metrics, as

described in Sect. 4. It is worth noting that k-NN-

imgIdx performs the worst among considered algo-

rithms: this might sound strange at ﬁrst, since only

k sorted accesses to the document index are needed

and no computation is done outside of the index it-

self, but this is not enough to compensate for the very

high number of document distances that are computed

within the index.

Again, the library classes already

contain the code for obtaining this important result,

demonstrating that, when dealing with complex doc-

uments, a simplistic approach is not always the best

one, and several alternatives should be taken into ac-

count to ﬁnd out the best combination of efﬁciency

and effectiveness.

20%

40%

60%

80%

100%

120%

doc. distances elem. distances sorted

accesses

time

k-NN-set (1-1) k-NN-set (EMD) k-NN-imgIdx Sky-set

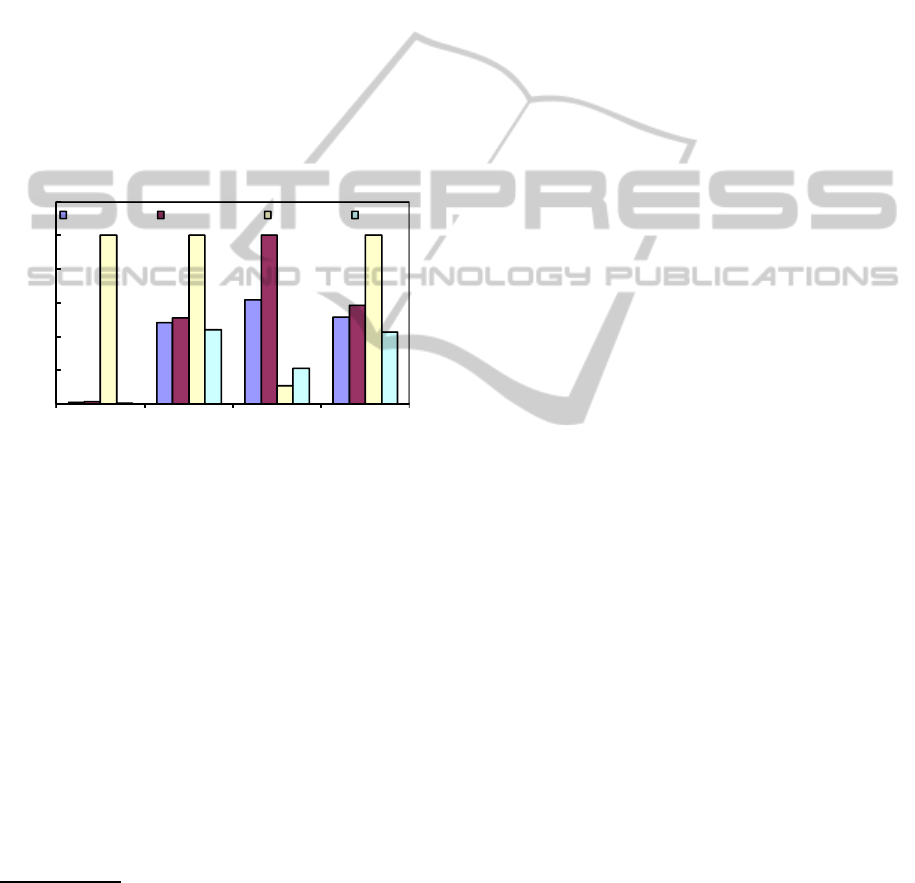

Figure 7: Efﬁciency of the query processing index-based al-

gorithms: k-NN-set using the EMD and the 1− 1 document

distances, k-NN-imgIdx using EMD and Sky-set (graphs are

normalized to the maximum values so as to emphasize rel-

ative performance).

7 CONCLUSIONS

We have presented the WINDSURF library for the

management of complex (hierarchical) multimedia

data, with the goal of providing tools for their efﬁ-

cient retrieval. The library was designed with the aim

of generality and extensibility, so as to be applicable

to a wide range of multimedia scenarios that ﬁt its

similarity-based retrieval model. Due to the inher-

ent complexity of multimedia data, we designed the

WINDSURF retrieval model to include all the differ-

We note here that k-NN-set computes document dis-

tances outside of the index, only for those documents that

are retrieved under sorted access. On the other hand,

Sky-set does not compute any document distance, but has

nonetheless to compare documents fordomination: in Fig. 7

each of such comparisons is computed as a document dis-

tance, in order to compare algorithms on a fair basis.

ent facets introduced by the hierarchical nature of the

data (for example, how documents are characterized,

how they are split into component elements, how ele-

ments are to be compared, how similarities at the el-

ement level are to be aggregated, and so on). Such

facets can be instantiated in several alternative ways

(each choice possibly giving different results) and an

user may want to compare the performance of such

alternatives in the scenario at her hand: we believe

that the use of the WINDSURF library could help in

abstracting away the details of generic query process-

ing algorithms, since the above-mentioned facets can

be realized by simply implementing abstract classes

of the library. We are currently working in extending

the library with new query processing algorithms and

to incorporate other scenarios (e.g., videos (Bartolini,

Patella, and Romani 2010)) as instances of the library

available for downloading. Moreover, a current lim-

itation of the WINDSURF retrieval model is that ele-

ments of a document are all of a same type: we plan

to extend the model to consider elements of different

types, so that only elements of the same type can be

compared. For example, if we consider a multimedia

document composed of textual sections and images,

it makes sense to only compare text with text and im-

ages with images. Another important application of

this concept is the use of cross-domain information to

improve the retrieval of a given type of content, for

example, exploiting surrounding text and/or links ex-

isting to other documents (`a la PageRank) to boost

image/video retrieval.

REFERENCES

Ardizzoni, S., Bartolini, I., Patella, M. Windsurf: Region-

based image retrieval using wavelets. In: IWOSS’99.

pp. 167–173. Florence, Italy (Sep 1999).

Bartolini, I., Ciaccia, P., Oria, V.,

Ozsu, T. Flexible integra-

tion of multimedia sub-queries with qualitative pref-

erences. Multimedia Tools and Applications, 33(3),

275–300 (June 2007).

Bartolini, I., Ciaccia, P., Patella, M. Query processing is-

sues in region-based image databases. Knowledge and

Information Systems, 25(2), 389–420 (Nov 2010).

Bartolini, I., Patella, M., and Romani, C. SHIATSU:

Semantic-Based Hierarchical Automatic Tagging of

Videos by Segmentation using Cuts. In AIEMPro

2010. Florence, Italy, (Sep 2010).

Ch´avez, E., Navarro, G., Baeza-Yates, R., Marroqu´ın, J. L.

Proximity searching in metric spaces. ACM Comput-

ing Surveys, 33(3), 273–321 (Sep 2001).

Ciaccia, P., Patella, M., Zezula, P. M-tree: An efﬁcient ac-

cess method for similarity search in metric spaces. In:

VLDB’97. pp. 426–435. Athens, Greece (Aug 1997).

Fei-Fei, L., Fergus, R., and Torralba, A. Recognizing and

THE WINDSURF LIBRARY FOR THE EFFICIENT RETRIEVAL OF MULTIMEDIA HIERARCHICAL DATA

147

learning object categories. CVPR 2007 short course.

Minneapolis, MN (June 2007).

Fishburn, P. Preference structures and their numerical rep-

resentations. Theoretical Computer Science, 217(2),

359–383 (Apr 1999).

Gaede, V., G¨unther, O. Multidimensional access meth-

ods. ACM Computing Surveys, 30(2), 170–231 (June

1998).

Grauman, K. Efﬁciently searching for similar images. Com-

munications of the ACM, 53(6), 84–94 (June 2010).

Guttman, A. R-trees: A dynamic index structure for spatial

searching. In: SIGMOD’84. pp. 47–57. Boston, MA

(June 1984).

Hjaltason, G. R., Samet, H. Distance browsing in spatial

databases. ACM TODS, 24(2), 265–318 (June 1999).

Hjaltason, G. R., Samet, H. Index-driven similarity search

in metric spaces. ACM TODS, 28(4), 517–580 (Dec

2003).

Ilyas, I. F., Beskales, G., Soliman, M. A. A survey of top-

k query processing techniques in relational database

systems. ACM Computing Surveys, 40(4) (Oct 2008).

Kailath, T. The divergence and Bhattacharyya distance mea-

sures in signal selection. IEEE Transactions on Com-

munication Technology, 15(1), 52–60 (Feb 1967).

Kuhn, H. W. The hungarian method for the assignment

problem. Naval Research Logistic Quarterly, 2, 83–

97 (1955).

Rubner, Y., Tomasi, C. Perceptual Metrics for Image

Database Navigation. Kluwer, Boston, MA (Dec

2000).

Salton, G. Automatic Text Processing: The Transformation,

Analysis, and Retrieval of Information by Computer.

Addison-Wesley, Reading, MA (1989).

Wu, L., Hoi, S. C. H., Jin, R., Zhu, J., Yu., N. Distance

metric learning from uncertain side information with

application to automated photo tagging. In: ACM

MM’09. pp. 135–144. Vancouver, Canada (Oct 2009).

Wang, J. Z., Li, J., Wiederhold, G. SIMPLIcity: Semantics-

sensitive Integrated Matching for Picture LIbraries.

IEEE TPAMI, 23(9), 947–963 (Sep 2001).

Zezula, P., Amato, G., Dohnal, V., Batko, M. Similarity

Search - The Metric Space Approach, Advances in

Database Systems, vol. 32. Springer (2006).

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

148
