ENCRYPTED DOMAIN PROCESSING FOR CLOUD PRIVACY

Concept and Practical Experience

D. A. Rodr

ıguez-Silva, F. J. Gonz

alez-Casta

no, L. Adkinson-Orellana, A. Fern

andez-Cordeiro

Gradiant, ETSI Telecomunicaci

on, Campus, 36310 Vigo, Spain

J. R. Troncoso-Pastoriza, D. Gonz

alez-Mart

ınez

Universidade de Vigo, ETSI Telecomunicaci

on, Campus, 36310 Vigo, Spain

Keywords:

Cloud privacy, Encrypted domain processing, Homomorphic encryption, Trusted computing.

Abstract:

Cloud security comprises access control and end-to-end security based on ﬂow or message-level privacy. In

some applications, in which all processing takes place at the client side and the Cloud simply handles data

storage (e.g. Google Docs), on-line data encryption/decryption guarantees privacy. However, when a service

requires server processing (e.g. spreadsheets), privacy must necessarily rely on a dependable entity according

to local regulations. Summing up, full Cloud privacy has not been achieved so far. In this paper we take a

step towards that goal. We propose executing server side operations in the encrypted domain, so that both the

operands and the results are opaque to the server, yet clear to the user. We evaluate this concept with a real

Google Apps implementation of basic arithmetic operations.

1 INTRODUCTION

As in other service architectures, Cloud security com-

prises access control and end-to-end security based

on ﬂow or message-level privacy. Access control is

extremely important in the Cloud, to protect its re-

sources against non-authorized access. This is not

a challenge, because many traditional solutions for

service-oriented architectures can be easily applied

to Cloud environments. Regarding privacy, current

schemas mainly focus on sending user information in

a secure way to Cloud servers. This approach is com-

pletely valid when the Cloud provider is reliable. Oth-

erwise, sensitive data must be completely protected

from the moment it leaves the client. In some ap-

plications, in which all processing takes place at the

client side and the Cloud simply handles data storage

(e.g. Google Docs), on-line data encryption guaran-

tees privacy. However, when a service requires server

processing (e.g. spreadsheets), privacy must neces-

sarily rely on a dependable entity according to local

regulations. Summing up, full Cloud privacy has not

been achieved so far.

In most countries there are institutions that regu-

late personal data processing. For example, the Euro-

pean Commission implemented the Data Protection

Directive in 1995. However, an international agree-

ment is extremely difﬁcult to reach due to the deep

political differences. This is a complex context for

Cloud Computing security due to the need to dis-

tribute resources among different locations to max-

imize performance. There have been privacy prob-

lems with Google services in some countries in re-

cent years. For example, in Spain, the Data Protec-

tion Agency declared the business model of GMail

(inserting advertisements sensitive to e-mail content)

(Europasur, 2008) to be illegal, and in Italy, the Mi-

lano court accused three Google executives of ille-

gally accessing video postings (G. Sartor, 2010). We

conclude that a mechanism to keep user information

privacy at the server side without losing any of the ad-

vantages of the Cloud paradigm is of great interest.

In this paper we take a step towards that goal. We

propose executing server side operations in the en-

crypted domain, so that both the operands and the re-

sults are opaque to the server, yet clear to the user. We

evaluate this concept with a real Google Apps imple-

mentation of basic arithmetic operations.

The rest of this paper is organized as follows: in

section 2 we discuss the background to Cloud security

and other technologies related to our research. In sec-

tion 3 we present the design decisions to implement

591

A. Rodríguez-Silva D., J. González-Castaño F., Adkinson-Orellana L., Fernández-Cordeiro A., R. Troncoso-Pastoriza J. and González-Martínez D..

ENCRYPTED DOMAIN PROCESSING FOR CLOUD PRIVACY - Concept and Practical Experience.

DOI: 10.5220/0003380905910596

In Proceedings of the 1st International Conference on Cloud Computing and Services Science (CLOSER-2011), pages 591-596

ISBN: 978-989-8425-52-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

our concept and the architecture of a Cloud applica-

tion to test it. In section 4 we describe some numerical

results and, ﬁnally, section 5 concludes the paper.

2 BACKGROUND

2.1 Cloud Privacy

Despite the many advantages of Cloud Computing

such as scalability, ﬂexibility and cost savings, there

are no guarantees that stored data will not be accessed

by unauthorized entities, such as the Cloud provider

itself or malicious attackers. Although the user can

deliberately assume the risks of placing information

on the Cloud, there exist activities in which law reg-

ulates data protection (F. Doelitzscher, 2010). This

is the case of government, banking, medical care or

accounting.

In addition to conﬁdentiality, there are other bar-

riers that may dissuade users from migrating their

systems to the Cloud, such as the possibility of data

integrity threats or leaks (M. Jensen, 2009; CSA,

2010). There are proposals of additional security

layers to protect the user from data mishandling by

Cloud providers. Most solutions are based on a ci-

phering schema using private or public-key encryp-

tion algorithms, which are applied to the client side

or to the Cloud server. Client side solutions en-

crypt any data that leaves the client: encrypted stor-

age on the Cloud (S. Kamara, 2010); encrypted DaaS

(Databases as a Service) (T. Xiuxia, 2009); and en-

crypted SaaS (Software as a Service) (L. Adkinson-

Orellana, 2010). These solutions provide full privacy,

but are only valid when all data processing takes place

at the client side and the Cloud simply handles data

storage. To provide encryption, there are proposals

based on introducing new elements to the Cloud ar-

chitecture. An example is the PasS (Privacy as a Ser-

vice) model (W. Itani, 2009), in which cryptographic

processors perform ciphered operations (R. Ander-

son, 2006). PasS thus depends on the hypothetical

deployment of those processors by Cloud providers.

In this paper we propose a model that relies on en-

crypted domain processing in which the only depend-

able entity is the user. According to this paradigm,

both the operands and the results of the operations

are hidden to the servers that execute them. In or-

der to implement this model, Cloud providers must

collaborate by installing encrypted domain process-

ing libraries in their servers, but, unlike in PasS, it is

not relevant if they are reliable or not.

2.2 Commercial PaaS Environments

The Platform as a Service paradigm provides develop-

ers with a high-level managed software environment

for building particular classes of applications and ser-

vices. That environment includes mechanisms to ac-

cess underlying computing and network resources,

and offers additional services such as monitoring and

billing. Thus, the infrastructure is abstracted away

from the developer, who can create and manage Cloud

applications efﬁciently.

Google App Engine (Google, 2010) is one of

the most popular commercial PaaS environments. It

provides a single, pre-built solution for construct-

ing very-large-scale web-based applications hosted

by Google’s infrastructure, using standard Java tech-

nologies (and, by extension, other JVM languages),

or a dedicated Python runtime environment.

Microsoft Azure (microsoft.com/windowsazure)

is a group of Cloud development services that forms

a complete PaaS and provides a Windows-based envi-

ronment for running applications and storing data on

Microsoft servers. Software developers may use C#

or other .NET languages, along with traditional tools

such as Visual Studio 2008. Azure also provides a

portal to create, conﬁgure and monitor applications.

Another relevant platform is Force.com

(www.salesforce.com). It allows the develop-

ment of custom user interfaces using standard Web

technologies, which can be generated and customized

automatically with a layout editor. Force.com had the

disadvantage of a substantial learning curve, but the

VMForce Java development environment has solved

this problem.

We do not intend to provide an exhaustive descrip-

tion, since there are many more competitors in this

area: GigaSpaces XAP, Heroku, Bungee Connect...

In PaaS, security usually refers to controlling ac-

cess to resources with enforcement policies, and en-

crypting generated data once the processing is com-

plete. Therefore, it is assumed that the Cloud provider

is reliable. For this reason, we have focused our work

on the development of a security schema for PaaS that

allows encrypted data processing on Cloud servers us-

ing homomorphic encryption techniques.

2.3 Arithmetic Processing in the

Encrypted Domain

Informally, data privacy consists of the possibility

of hiding certain data from certain parties. Tradi-

tional cryptosystems provide only all-or-nothing se-

curity, in the sense that they do not allow any ac-

cess to encrypted data unless the deciphering key is

CLOSER 2011 - International Conference on Cloud Computing and Services Science

592

available. Data Processing in the Encrypted Domain

(DPED) (Ahituv et al., 1987) was born to satisfy the

privacy needs for data that must be handled by third

parties. It allows the processing of certain operations

without the need to encrypt the data and consequently

without the need to access their clear-text version.

This concept has been a hot topic in processing theory

in the recent years.

The ﬁrst proposals introduced the concept of Se-

cure Multiparty Computation (Yao, 1982), symbol-

ized by the so-called Millionaires Problem, in which

two millionaires wish to know who is the richest with-

out disclosing their respective wealths. That solution

employed the concept of garbled circuits, which al-

low the execution of a function, expressed as a com-

bination of binary gates, on certain data (also in a bi-

nary representation) that belong to two parties. After

the execution of the garbled circuit, both parties can

obtain the result of the computation, but neither has

access at any time to the data belonging to the other

party. In spite of the generality of that solution, its in-

efﬁcient implementation was the biggest obstacle for

the development of arithmetic processing in the en-

crypted domain. Finding efﬁcient solutions for the

secure execution of a generic function is still an open

problem. Recently, there have been numerous con-

tributions (Troncoso-Pastoriza et al., 2007; Troncoso-

Pastoriza et al., 2009). In particular, arithmetic oper-

ations can be performed efﬁciently in the encrypted

domain thanks to the concept of additive and multi-

plicative privacy homomorphisms (Brickell and Ya-

cobi, 1987), as later explained in Section 3.2.

2.4 Related Work

The idea of homomorphic encryption in Cloud envi-

ronments is quite novel. There has been some work

on this topic, but a complete solution for the Cloud is

still missing. In (Chow et al., 2009) some common

Cloud security problems are characterized, and the

proposed solutions include empowering data with in-

telligence to protect themselves using trusted comput-

ing or privacy-enhanced business intelligence based

on homomorphic encryption. In (Pearson et al., 2009)

a privacy manager for Cloud Computing, an appliance

for secure Cloud access, was presented. To achieve

this goal an obfuscation mechanism based on ho-

momorphic encryption is used. The paper describes

some application scenarios such as SQL queries or

photo tagging. The solution only encrypts part of the

information that is sent to the Cloud in order to keep

efﬁciency at reasonable levels. We conclude that pre-

vious related work focuses on particular applications

or assumes that the service provider is honest, since

server side appliances are necessary.

Our contribution consists of applying efﬁcient

homomorphic encryption to basic operations in or-

der to provide a development platform for secure

Cloud applications, generalizing the concept of Cryp-

toDSPs, presented in (Troncoso-Pastoriza and P

erez-

Gonz

alez, 2010) for signal processing operations, and

providing a reference implementation as a proof of

concept.

3 ENCRYPTED PROCESSING ON

PAAS ENVIRONMENTS

3.1 Choosing a PaaS Platform

We have selected Google App Engine as the PaaS for

our research. It is free up to a certain resource us-

age level, so it is convenient for developing a realis-

tic proof-of-concept. Application development is well

documented. An active and experienced community

provides support in many fora. Availability of open

source IDEs as Eclipse or Netbeans saves costs since

commercial development tools are not necessary.

Google App Engine is more mature than Azure

and more open than Force.com. Platform perfor-

mance depends on development language, infrastruc-

ture load (which is related to server location) and

implemented functionality (caches, load balancing).

A deeper study (beyond the scope of our research)

would be required to compare existing providers. In

any case, in our tests, Google App Engine performed

satisfactorily. It is worth mentioning that Google of-

fers libraries to integrate the ubiquitous Google Apps

(Accounts, Docs, Gmail, IM etc) at zero cost.

The DPED solution we propose allows for a com-

pletely secure Cloud. Data privacy is automatically

provided, and Cloud services are not hindered by pri-

vacy restrictions. In order to show the potential of this

approach, we present a proof-of-concept of arithmetic

calculations in the encrypted domain, in the form of

encrypted processing libraries for a PaaS to be used in

the development of secure Cloud applications. To test

their performance we have built a simple application

consisting of a web calculator, which executes remote

calculations with encrypted operands, as described in

the following section.

3.2 Arithmetic in the Encrypted

Domain

At a conceptual level, arithmetic operations can be

performed in the encrypted domain using a privacy

ENCRYPTED DOMAIN PROCESSING FOR CLOUD PRIVACY - Concept and Practical Experience

593

homomorphism (Brickell and Yacobi, 1987). This

consists of a group homomorphism between clear-text

data and encrypted data. A formal description is given

in (Rivest et al., 1978).

The practical and provably semantically secure

cryptosystems that present a privacy homomorphism

typically allow for the execution of one arithmetic op-

eration (either addition or multiplication) directly on

ciphertexts, without the need for decryption or inter-

action with a trusted decryption party. This presents

several decisive advantages over other privacy solu-

tions, such as the drastic reduction of overheads in

the communication required between parties and the

automatic provision of privacy while data are being

processed, as they never leave their encrypted state.

For our proof-of-concept, we have implemented

a client-server software library in Java that provides

transparent encryption and homomorphic operation

on data, conforming to the new secure paradigm of

secure remote data processing. This library is divided

into two modules with the following functionality:

• Client Module. It provides transparent encryp-

tion of the data prior to their transmission to the

server, and decryption of the data received from

the server prior to their presentation.

• Server Module. It provides access to the arith-

metic operations on the encrypted data received

from the client or stored on the server, applying

suitable privacy homomorphisms.

We have chosen Java to implement these libraries

due to its portability, compatibility with Google App

Engine APIs and easy integration in an applet. This

choice also has some drawbacks, mainly low compu-

tational efﬁciency, which we have overcome through

concurrent precomputation of key values at the client

side, and efﬁcient modular arithmetic algorithms.

3.3 Proof-of-concept

In order to demonstrate our concept, we developed

an application that employs Web services hosted by

Google Cloud which rely on the encrypted domain

processing libraries described in the previous section.

The application has two parts: the server side, imple-

mented with Java servlets, and the client side, a Java

applet embedded in a JSP page. As a toy example,

the applet has a GUI that resembles a calculator writ-

ten with the Swing Java library and the NetBeans IDE

development environment by Oracle. The servlet was

created with the Google App Engine SDK for Java,

installed as an Eclipse SDK plugin. That SDK also

allows the integration of the Google Accounts service

into our application to manage user sessions. This

is important to store information from simultaneous

users and keep it separate. The application is cur-

rently deployed in Google App Engine and available

at http://calcgrad.appspot.com. The client encrypts

the data sent to the server and decrypts the results.

These procedures work as follows (Figure 1):

Once the operands are available, when the opera-

tion takes place for the ﬁrst time, the client initializes

the object module EncryptedProcessClient for the ex-

ecution of that operation and subsequent ones (with

the initialize method). The returned code must be

passed to the server to initialize its module. Then,

the operands are ciphered (with the performOperation

method, which returns a wrapper) and the client uses

HTTP tunneling with POST requests to exchange ci-

phered data with the server. An operation may need

several client-server communication cycles to obtain

the ﬁnal result. The client calls the isContinueOperat-

ing method to determine if it must communicate with

the server again. In the response, the client receives

a ciphered result. This result is needed to call the

continueOperation method, which modiﬁes the wrap-

per returned by performOperation. Using this wrap-

per, the client checks if it must perform additional

communication cycles with the isContinueOperating

method. If not, the ﬁnal result is available and the

client deciphers it (using the ﬁnalDecode method), to

display the solution locally.

The server operates with the ciphered data re-

ceived from the client. For the server, we have writ-

ten a Java servlet that processes client requests and

returns the results. When a petition arrives, the server

checks the requested action from the corresponding

object ﬁeld and obtains the ciphered data. If the

client requests a server object module initialization

(EncryptedProcessServer), the server must call the

initialize method with the received data as an argu-

ment. On the contrary, if an operation is requested,

the server takes the ciphered operands and, with the

initialized module, calls the operate method to exe-

cute the operation. The resulting object is kept on the

server for further usage. Once operate is applied, the

result is sent to the client for it to check if the oper-

ation has ﬁnished or if additional communication cy-

cles are necessary. In any of these cases, the behavior

of the servlet is the same: it gets the received ciphered

data, calls the appropriate method according to the op-

eration the client requests, stores the resulting object

and returns the ciphered result to the client.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

594

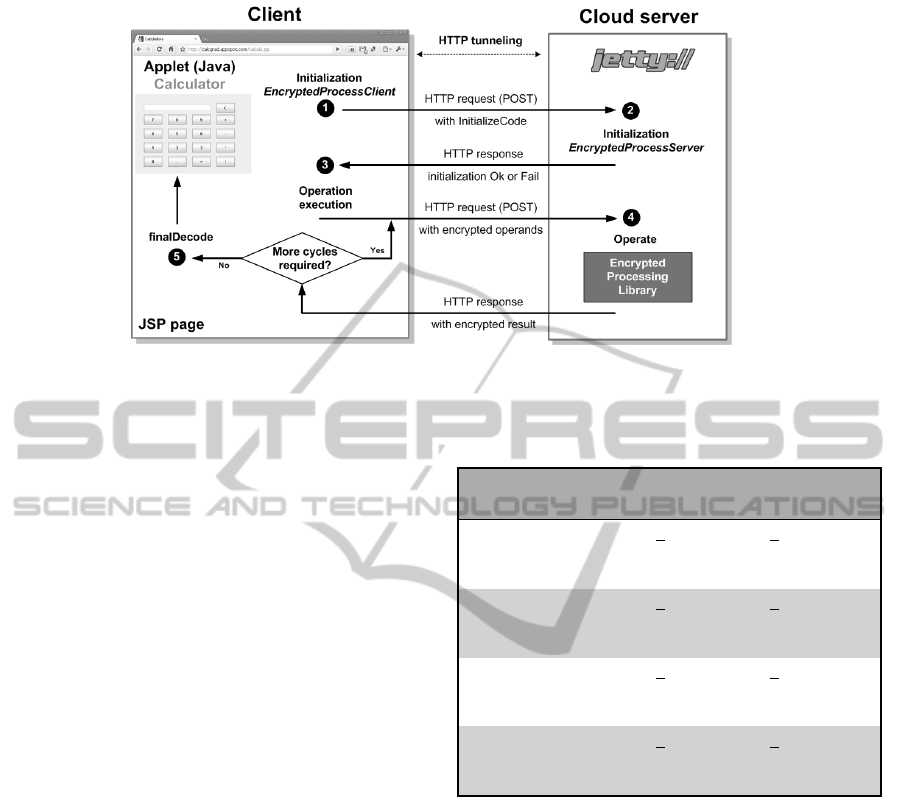

Figure 1: Application workﬂow.

4 NUMERICAL RESULTS

We evaluated the performance of the encrypted do-

main libraries by measuring the elapsed times of

arithmetic operations that employ them in our Cloud

application. The test layout comprised a client com-

puter (Intel Pentium 4 @ 2.80GHz, 1 GB RAM with

Ubuntu 9.10), where the Cloud application applet

was executed through an Internet browser (Firefox

3.6); and a local server (Intel Core 2 Quad Q8400

@ 2.66GHz, 4GB RAM with Ubuntu 9.10), to per-

form the encrypted operations under Jetty remotely.

Jetty is the light Web server Google has chosen, which

supports Java servlets. However, we do not have de-

tailed information about the Google Cloud servers of

Google App Engine. All machines used the Java 6

runtime environment.

There were two test scenarios: local, in which we

executed the encrypted operations directly on the lo-

cal server, and remote, relying on Google App En-

gine. In both cases the client machine was the same.

Therefore we had a client-server architecture where

the client (the Java applet) issued several requests for

arithmetic operations (addition and multiplication).

In the tests we measured the time from the moment

at which an operation was requested by the user (by

clicking on the equal symbol) to the moment at which

the application displayed the result (i.e. communica-

tion time was taken into account).

We made 2000 runs for each operation in each

scenario, using the encrypted domain libraries or not.

The time to calculate ciphered operations does not

depend on the length of the original operands, since

their lengths coincide once encrypted. Table 1 shows

our results. Each pair of values represents the average

value of the elapsed execution time of a given oper-

Table 1: Tests results: mean and standard deviation (ms).

Test Addition Multiplic.

Local

(clear)

x = 8.02

σ = 4.19

x = 7.73

σ = 4.32

Local

(encrypted domain)

x = 80.66

σ = 16.31

x = 207.88

σ = 15.24

Google App Engine

(clear)

x = 225.40

σ = 135.12

x = 225.99

σ = 133.67

Google App Engine

(encrypted domain)

x = 381.24

σ = 19.57

x = 795.14

σ = 28.97

ation and its standard deviation in milliseconds. The

elapsed times of ciphered operations include encryp-

tion/decryption at the client side and encrypted pro-

cessing at the server side.

If the encrypted domain libraries are not used, the

standard deviation of the elapsed times is quite high,

because the inﬂuence of operating system background

processes and network communication times is rather

variable. The elapsed times with Google App Engine

are much higher than in the local case, mainly due to

Internet delays. Ciphered operations are slower than

clear ones, as expected. Indeed, although the aver-

age times for additions and multiplications are quite

similar for clear operations, they differ signiﬁcantly if

ciphered (the multiplications are up to twice as long).

This is due to the complexity of encrypted multipli-

cations, which may require several cycles for a result

to be obtained, as described in the previous section.

However, although the elapsed times for ciphered op-

ENCRYPTED DOMAIN PROCESSING FOR CLOUD PRIVACY - Concept and Practical Experience

595

erations are quite long, they are still satisfactory for

user applications with light processing load, such as

spreadsheets, and encrypted domain processing tech-

nology is expected to evolve rapidly. Let us recall that

the encrypted domain libraries were developed with

Java, as requested by Google App Engine, so they are

executed on a Java virtual machine.

5 CONCLUSIONS

In this paper we have presented a new model for se-

cure Cloud Computing, without any reliable entity

but the client itself, based on encrypted domain pro-

cessing. We have also presented a real implementa-

tion as a proof-of-concept, relying on Google App

Engine. Our results with basic arithmetic operations

indicate that the model is valid for user applications

in the Cloud with light server processing. As future

work we will develop a more complete user appli-

cation such as a spreadsheet to perform more com-

plex encrypted operations including vectorial ones.

To improve performance, we will consider the use of

threads, and remote ciphered operations will be exe-

cuted with a C version of the libraries through a JNI

interface.

ACKNOWLEDGEMENTS

This research was supported by the ACETIC con-

sortium and the SAFECLOUD grant (09TIC014CT),

funded by Xunta de Galicia, Spain. The work

was also partially supported by projects “Consoli-

dation of Research Units” (2010/85), SCALLOPS

(10PXIB322231PR) and VISAGE (10TIC008CT),

funded by Xunta de Galicia; by project COMON-

SENS (CSD2008-00010) of the CONSOLIDER-

INGENIO 2010 Program; and by the Spanish Min-

istry of Science and Innovation FPU grant AP2006-

02580.

REFERENCES

Adkinson-Orellana, L., Rodr

ıguez-Silva, Gil-Casti

neira, F.

and Burguillo-Rial J. C. (2010). Privacy for Google

Docs: Implementing a transparent encryption layer.

In Proc. CloudViews 2010, p. 21–22, Porto, Portugal.

Ahituv, N., Lapid, Y., and Neumann, S. (1987). Process-

ing encrypted data. Communications of the ACM,

30(9):777–780.

Anderson, R., Bond, M., Clulow, J. and Skorobogatov, S.

(2006). Cryptographic processors - a survey. Pro-

ceedings of the IEEE 94 (2): p. 357–369.

Brickell, E. F. and Yacobi, Y. (1987). On privacy homomor-

phisms (extended abstract). In Proc. EUROCRYPT 87,

LNCS 304, p. 117–125.

Chow, R., Golle, P., Jakobsson, M., Shi, E., Staddon, J.,

Masuoka, R., and Molina, J. (2009). Controlling data

in the Cloud: outsourcing computation without out-

sourcing control. In Proc. CCSW ’09, p. 85–90, NY,

USA.

CSA (2010). Top Threats to Cloud Comput-

ing V1.0. Retrieved August 16, 2010 from

http://www.cloudsecurityalliance.org/topthreats/

csathreats.v1.0.pdf.

Doelitzscher, F., Reich, C. and Sulistio, A. (2010). Design-

ing Cloud services adhering to government privacy

laws. In Proc. TSP’10, Bradford, UK.

Europasur (2008). Gmail, el correo esp

ıa de Google,

ilegal en Europa. Retrieved August 16, 2010 from

http://www.europasur.es/article/sociedad/38601/gmail

/correo/espia/google/ilegal/europa.html.

Google (2010). Google App engine. Retrieved July 7, 2010

from http://code.google.com/appengine.

Itani, W., Kayssi, A. and Chehab, A. (2009). Privacy as a

service: Privacy-aware data storage and processing in

Cloud Computing architectures. In Proc. Int. Work-

shop on SCC’09, p. 12–14, Chengdu, China.

Jensen, M., Schwenk, J., Gruschka, N. and Lo Iacono, L.

(2009). On technical security issues in Cloud Com-

puting. In Proc. CLOUD ’09, p. 109–116, Bangalore,

India.

Kamara, S. and Lauter, K. (2010). Cryptographic Cloud

storage. In Workshop on Real-Life Cryptographic Pro-

tocols and Standardization 2010.

Pearson, S., Shen, Y., and Mowbray, M. (2009). A privacy

manager for Cloud Computing. In Cloud Computing,

LNCS 5931, p. 90–106..

Rivest, R., Adleman, L. and Dertouzos, M. (1978). On data

banks and privacy homomorphisms. In Foundations

of Secure Computation, p. 169–177. Academic Press.

Sartor, G. and Viola de Azevedo Cunha, M. (2010). The

Italian Google-Case: Privacy, Freedom of Speech and

Responsibility of Providers for User-Generated Con-

tents. Oxford University Press.

Tian, X., Wang, X. and Zhou, A. (2009). DSP re-

encryption: A ﬂexible mechanism for access control

enforcement management in DaaS. In Proc. CLOUD

’09, p. 25–32, Bangalore, India.

Troncoso-Pastoriza, J. R., Comesa

na, P., and P

erez-

Gonz

alez, F. (2009). Secure direct and iterative pro-

tocols for solving systems of linear equations. In

Proc. SPEED Workshop 2009, p. 122–141, Lausanne,

Switzerland.

Troncoso-Pastoriza, J. R., Katzenbeisser, S., and Celik, M.

(2007). Privacy preserving error resilient DNA search-

ing through oblivious automata. In Proc. 14th ACM

Conference on Computer and Communications Secu-

rity, p. 519–528, Alexandria, Virginia, USA.

Troncoso-Pastoriza, J. R., P

erez-Gonz

alez, F. (2010). Cryp-

toDSPs for Cloud Privacy. In Proc. Int. Workshop on

CISE 2010, LNCS, Hong Kong, China.

Yao, A. C. (1982). Protocols for secure computations. In

Proc. IEEE Symposium on Foundations of Computer

Science, p. 160–164.

CLOSER 2011 - International Conference on Cloud Computing and Services Science

596
