We present a multi-modal affective virtual environment (VE) for job interview training. The proposed platform

aims to support real-time emotion-based simulations between an ECA and a human. The ﬁrst goal is to train

candidates (students, job hunters, etc.) to better master their emotional states and behavioral skills. The users’

emotional and behavior states will be assessed using different human-machine interfaces and biofeedback

sensors. Collected data will be processed in real-time by a behavioral engine. A preliminary experiment was

carried out to analyze the correspondence between the users’ perceived emotional states and the collected data.

Participants were instructed to look at a series of sixty IAPS pictures and rate each picture on the following

dimensions : joy, anger, surprise, disgust, fear and sadness.

1 INTRODUCTION

There is an increasing interest in developing intel-

ligent human-computer interaction systems that can

recognize user affective states. Affective Comput-

ing (AC) aspires to narrow the communicative gap

between humans and computers by developing com-

putational systems that recognize and respond to the

user’s affective states. Emotions constitute a priv-

ileged support to model Embodied Conversational

Agents (ECAs) that are able to communicate ver-

bally but also through gestures, facial expressions,

postures, and speech. Different systems have been

developed in the last decade using ECAs (Woolf

et al., 2009) (Helmut et al., 2005). However, none of

these systems allow realistic immersive multi-modal

emotion-based dialogue between an ECA and a hu-

man.

In this paper, we describe a multi-modal affective

virtual environment (VE) for job interview training.

The proposed platform aims to train candidates (stu-

dents, job hunters, etc.) to better master their emo-

tional states and behavioral skills using an Embodied

Conversational Agent (ECA).

In the next section, we survey the related work

concerning the classiﬁcation and the recognition of

human emotions. In section three, we present the plat-

form architecture and the human-machine interfaces.

In section four, we describe a preliminary experiment

based on IAPS protocol.

2 RELATED WORK

Emotions are recognized as involving components

such as cognitive and physiological changes, trends in

the action and motor expressions. Darwin postulated

the existence of a ﬁnite number of emotions present in

all cultures and having a function of adaptation (Dar-

win, 1872). This postulate was subsequently con-

ﬁrmed by Ekman which divided the emotions into two

classes: the primary emotions (joy, sadness, anger,

fear, disgust, surprise) which are natural responses to

a given stimuli, and secondary emotions that evoke

a mental image which correlates with the memory of

a primary emotion (Ekman, 1999). Emotions can be

represented by discrete categories (e.g. ”anger”) or

deﬁned by continuous dimensions such as ”Valence”,

”Activation”, or ”Dominance”. These three dimen-

sions were combined in a space called PAD (Pleasure,

Arousal, Dominance) originally deﬁned by Mehra-

bian (Mehrabian, 1996).

2.1 Emotion Recognition

Several approaches based on facial expression

recognition have been proposed to classify human

357

Hamza H., Richard P., Suteau A. and Saleh M..

VIRTUAL REALITY AND AFFECTIVE COMPUTING TECHNIQUES FOR FACE-TO-FACE COMMUNICATION.

DOI: 10.5220/0003377203570360

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2011), pages 357-360

ISBN: 978-989-8425-45-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

emotional states (Pantic and Rothkrantz, 2003).

Tian (Tian et al., 2000) has attempted to recognize

Action Units (AU), developed by Ekman and Friesen

in 1978 (Ekman and Friesen, 1978) using permanent

and transient features of the face and lips, the na-

solabial fold and wrinkles. Hammal proposed an ap-

proach based on the combination of two models for

segmentation of emotions and dynamic recognition of

facial expressions (Hammal and Massot, 2010).

Several approaches aimed to recognize emotions

from speech (Pantic and Rothkrantz, 2003) (Scherer,

2003). For example, Roy and Pentland classiﬁed the

emotions by using a Fisher linear classiﬁer (Roy and

Pentland, 1996). Using short sentences, they have

recognized two kinds of emotions: approval and dis-

approval. They conducted several experiments with

characteristics extracted from measurements of height

and power, obtaining a precision going from 65% to

88%.

The analysis of physiological signals is another

possible approach for emotion recognition (Healey

and Picard, 2000) (Picard et al., 2001). Several types

of physiological signals can be used to recognize

emotions. For example, heart rate, skin conductance,

muscle activity (EMG), temperature variations of the

skin, variation of blood pressure are signals regularly

used in this context (Lisetti and Nasoz, 2004) (Villon,

2007).

2.2 Multi-modal Approaches

Multi-modal emotion recognition requires the fu-

sion of the collected data. Physiological signals

are then mixed with other signals collected through

human-machine interfaces such as video or in-

frared cameras (gestures, etc.), microphones (speech),

brain computer interfaces (BCIs) (Lisetti and Nasoz,

2004) (Sebe et al., 2005) (Busso et al., 2004). Multi-

modal information fusion may be performed at dif-

ferent levels. Usually the three following levels are

considered : Signal level, Feature level, and Decision

or Conceptual level.

Fusing information at the signal level actually

means to mix two or more signals before extracting

features required by the decision maker (Paleari and

Lisetti, 2006). Fusing information at the feature level

means to mix together the features issued from differ-

ent signal processors. Features extracted from each

modality are fused before being transmitted to the de-

cision maker module (Pantic and Rothkrantz, 2003).

Combining information at the conceptual level does

not mean mixing together features or signals but di-

rectly the extracted semantic information. Decision

level fusion of multi-modal information is preferred

by most researchers. Busso (Busso et al., 2004) com-

pared the feature level and the decision level fusion

techniques, observing that the overall performance of

the two approaches is the same.

Our goal is to propose a model allowing to ana-

lyze the behavior of the various signals and to build a

system of emotion detection in real-time using multi-

modal fusion. We aim to identify the six universal

emotions listed by Ekman and Friesen (Ekman and

Friesen, 1978) (anger, disgust, fear, happiness, sad-

ness and joy), to which we add despise, stress, con-

centration and excitation (Calvo and D’Mello, 2010).

2.3 International Affective Picture

System (IAPS)

Different methods have been used to investigate hu-

man emotions, ranging from imagery inductions to

ﬁlm clips and static pictures. The International Affec-

tive Picture System (IAPS) is one of the most widely

used stimulus sets (Lang et al., 1999). This set of

static images is based on a dimensional model of emo-

tion. It contains various pictures depicting mutila-

tions, insects, attack scenes, snakes, accidents, etc.

IAPS based experiments have also shown that discrete

emotions (disgust, sadness, fear, etc.) have different

valence and arousal ratings, and can be distinguished

by facial electromyography, heart rate, and electro-

dermal measures (Bradley et al., 2001).

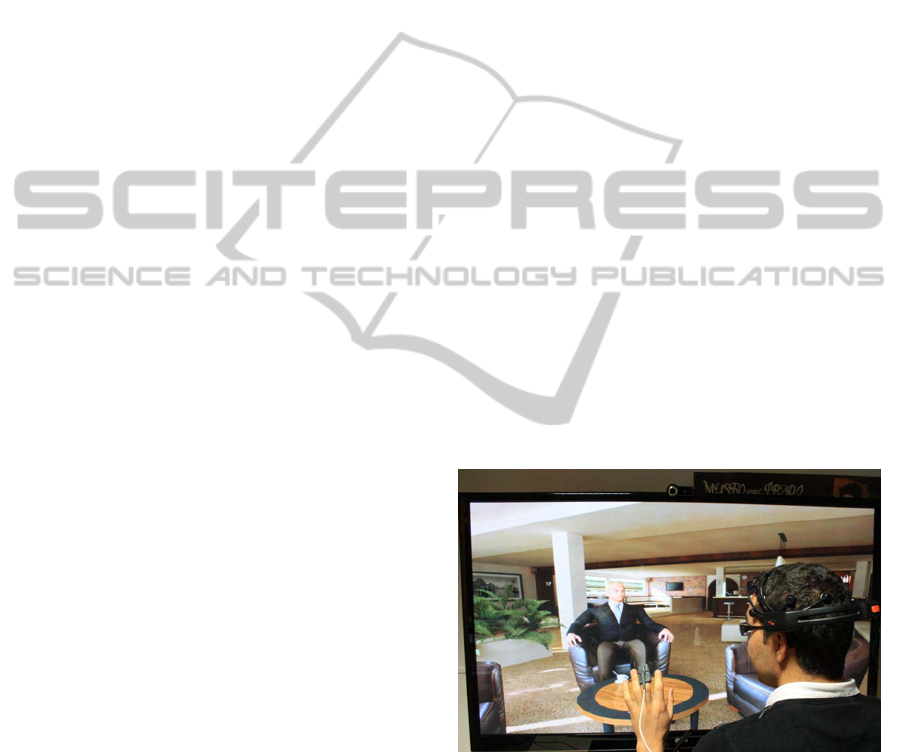

Figure 1: Snapshot of interview simulation.

3 SYSTEM OVERVIEW

3.1 System Architecture

The proposed platform aims to support real-time sim-

ulations (Fig. 1) that allow emotion-based face-to-

face dialogue between an ECA and a human. The

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

358

ECA can have speciﬁc personality and behavior (gen-

tle, aggressive, passive, etc.).

3.2 Human Computer Interfaces

The main challenge is to identify and classify be-

havioral and emotional states of the participant using

non-intrusive human-computer interfaces :

• Brain computer interface: Emotiv EPOC (Fig. 2

(a));

• Biofeedback sensor: Nonin (Fig. 2 (b));

• Speech and facial recognition devices: micro-

phone, webcam.

(a)

(b)

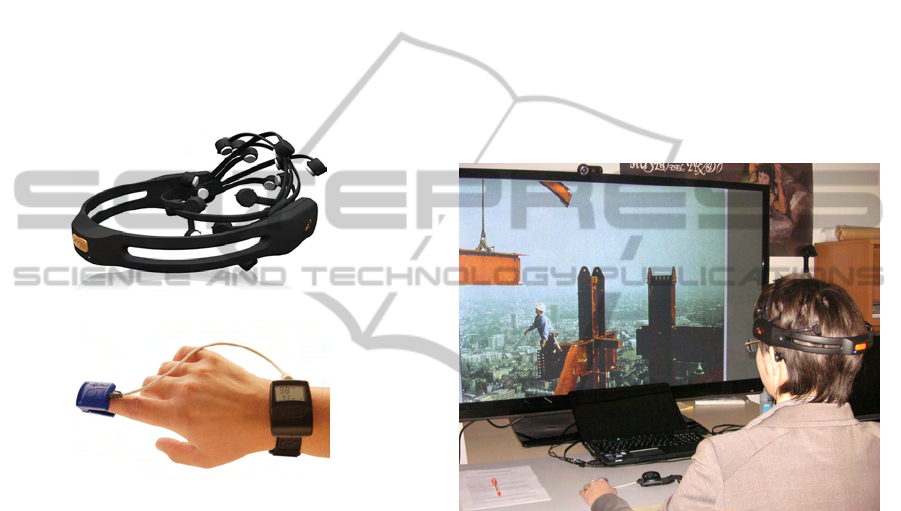

Figure 2: Human-machine interfaces: (a) Emotiv EPOC,

(b) Nonin.

Different signals and input modalities are been con-

sidered:

1. Physiological signals:

• Facial Electromyography (EMG) ;

• Electrocardiogram (ECG) ;

• Electroencephalography (EEG) ;

• The galvanic skin response (GSR) ;

2. Speech:

• The user’s emotional state is estimated through

speech analysis (pitch, tone, speed).

3. Text:

• The user’s emotional state is estimated through

textual content.

4. Gestures:

• The user’s emotional state is estimated through

static and dynamic gestures.

4 PRELIMINARY EXPERIMENT

In order to allow the development and the integration

of behavioral and emotional models in the platform,

we carried out a preliminary experiment. We seek

to analyze the correspondence between the users

perceived emotional states and the data collected

from the biofeedback sensor (Nonin Oxymeter)

and the brain-computer interface (Emotiv EPOC).

Participants were instructed to look at a series of

sixty IAPS pictures and rate each picture on the

following dimensions: joy, anger, surprise, disgust,

fear, sadness. They were all equipped with Nonin

Oxymeter and Emotiv EPOC as illustrated in Fig-

ure 3. Furthermore, a camera was used during the

experiment to take some snapshots of the participants.

Figure 3: Subject during the preliminary experiment.

5 CONCLUSIONS

A multi-modal affective virtual environment (VE) has

been presented, aiming to support real-time emotion-

based simulations between an ECA and a human.

The ﬁrst goal is to train candidates to better master

their emotional states and behavioral skills. Human-

machine interfaces and biofeedback sensors are used

to assess users’ emotional and behavior states. A pre-

liminary experiment was carried out. The goal was to

analyze the correspondence between the users’ per-

ceived emotional states and the collected data. Partic-

ipants were instructed to look at a series of sixty IAPS

pictures and rate each picture on the following dimen-

sion : joy, anger, surprise, disgust, fear, sadness.This

work opens the way to new possibilities in different

areas such as professional or medical applications and

contributes to the democratization of emotion-based

VIRTUAL REALITY AND AFFECTIVE COMPUTING TECHNIQUES FOR FACE-TO-FACE COMMUNICATION

359

human-machine interfaces for face-to-face communi-

cation and interaction.

REFERENCES

Bradley, M. M., Codispoti, M., Cuthbert, B. N., and Lang,

P. J. (2001). Emotion and motivation i: Defensive and

appetitive reactions in picture processing. Emotion,

1(3):276–298.

Busso, C., Deng, Z., Yildirim, S., Bulut, M., Lee,

C., Kazemzadeh, A., Lee, S., Neumann, U., and

Narayanan, S. (2004). Analysis of emotion recogni-

tion using facial expressions, speech and multimodal

information. In ICMI ’04: Proceedings of the 6th

international conference on Multimodal interfaces,

pages 205–211, New York, NY, USA. ACM.

Calvo, R. A. and D’Mello, S. (2010). Affect detection: An

interdisciplinary review of models, methods, and their

applications. IEEE Transaction on Affective Comput-

ing, 1:18–37.

Darwin, C. (1872). The expression of emotion in man and

animal. University of Chicago Press (reprinted in

1965), Chicago.

Ekman, P. (1999). Basic emotions, pages 301–320. Sussex

U.K.: John Wiley and Sons, Ltd, New York.

Ekman, P. and Friesen, W. V. (1978). Facial Action Cod-

ing System: A Technique for Measurement of Facial

Movement. Consulting Psychologists Press Palo Alto,

California.

Hammal, Z. and Massot, C. (2010). Holistic and feature-

based information towards dynamic multi-expressions

recognition. In VISAPP 2010. International Confer-

ence on Computer Vision Theory and Applications,

volume 2, pages 300–309.

Healey, J. and Picard, R. W. (2000). Smartcar: Detecting

driver stress. In In Proceedings of ICPR’00, pages

218–221, Barcelona, Spain.

Helmut, P., Junichiro, M., and Mitsuru, I. (2005). Recog-

nizing, modeling, and responding to users’ affective

states. In User Modeling, pages 60–69.

Lang, P. J., Bradley, M. M., and Cuthbert, B. N. (1999).

International affective picture system (iaps). Technical

manual and affective ratings.

Lisetti, C. and Nasoz, F. (2004). Using noninvasive wear-

able computers to recognize human emotions from

physiological signals. EURASIP J. Appl. Signal Pro-

cess, 2004:1672–1687.

Mehrabian, A. (1996). Pleasure-arousal-dominance: A gen-

eral framework for describing and measuring individ-

ual differences in temperament. Current Psychology,

14(4):261–292.

Paleari, M. and Lisetti, C. L. (2006). Toward multimodal fu-

sion of affective cues. In Proceedings of the 1

ACM

international workshop on Human-Centered Multime-

dia, pages 99–108, New York, NY, USA. ACM.

Pantic, M. and Rothkrantz, L. (2003). Toward an

affect-sensitive multimodal human-computer interac-

tion. volume 91, pages 1370–1390. Proceedings of the

IEEE.

Picard, R., Vyzas, E., and Healey, J. (2001). Toward

machine emotional intelligence: Analysis of affec-

tive physiological state. IEEE Transactions on Pat-

tern Analysis and Machine Intelligence, 23(10):1175–

1191.

Roy, D. and Pentland, A. (1996). Automatic spoken affect

classiﬁcation and analysis. automatic face and gesture

recognition. In Proceedings of the 2nd International

Conference on Automatic Face and Gesture Recogni-

tion (FG ’96), pages 363–367, Washington, DC, USA.

IEEE Computer Society.

Scherer, K. R. (2003). Vocal communication of emotion:

A review of research paradigms. Speech Communica-

tion, 40(7-8):227–256.

Sebe, N., Cohen, I., and Huang, T. (2005). Multimodal

Emotion Recognition. World Scientiﬁc.

Tian, Y., Kanade, T., and Cohn, J. (2000). Recognizing

lower face action units for facial expression analysis.

pages 484–490. Proceedings of the 4th IEEE Inter-

national Conference on Automatic Face and Gesture

Recognition (FG’00).

Villon, O. (2007). Modeling affective evaluation of multi-

media contents: user models to associate subjective

experience, physiological expression and contents de-

scription. PhD thesis, Thesis.

Woolf, B., Burleson, W., Arroyo, I., Dragon, T., Cooper,

D., and Picard, R. (2009). Affect-aware tutors: recog-

nising and responding to student affect. Int. J. Learn.

Technol., 4(3/4):129–164.

GRAPP 2011 - International Conference on Computer Graphics Theory and Applications

360
