THE EXTENDED BOYER-MOORE-HORSPOOL ALGORITHM

FOR LOCALITY-SENSITIVE PSEUDO-CODE

Kengo Terasawa, Toshio Kawashima

Department of Media Architecture, Future University Hakodate, Hakodate, Japan

Yuzuru Tanaka

Meme Media Laboratory, Hokkaido University, Sapporo, Japan

Keywords:

Information retrieval, String matching, Document image indexing.

Abstract:

Boyer-Moore-Horspool (BMH) algorithm is known as a very efﬁcient algorithm that ﬁnds a place where a

certain string speciﬁed by the user appears within a longer text string. In this study, we propose the Extended

Boyer-Moore-Horspool algorithm that can retrieve a pattern in the sequence of real vectors, rather than in the

sequence of the characters. We reproduced the BMH algorithm to the sequence of real vectors by transforming

the vectors into pseudo-code expression that consists of multiple integers and by introducing a novel binary

relation called ‘semiequivalent.’ We conﬁrmed the practical utility of our algorithm by applying it to the string

matching problem of the images from “Minutes of the Imperial Diet,” to which optical character recognition

does not work well.

1 INTRODUCTION

Large and increasing amounts of information are ac-

cumulating on the internet. In tandem with this,

the importance of information retrieval technology,

which enables users to extract necessary information

efﬁciently from the available information, is also in-

creasing. String matching problem is one such ba-

sic technology that is intensively studied. In partic-

ular, the Boyer-Moore (BM) algorithm (Boyer and

Moore, 1977) and Boyer-Moore-Horspool(BMH) al-

gorithm (Horspool, 1980) are extremely efﬁcient al-

gorithms that run in sublinear time, i.e. it is possible

to retrieve the keyword string without accessing the

whole text string.

The purpose of this study is to broaden the re-

trieval target from a sequence of characters to a se-

quence of real vectors. This technology can pro-

vide a platform where it is feasible to conduct high-

speed similarity searches on a variety of time-series

or pseudo- time-series data.

The main element of the technology in this exten-

sion addresses two points. One is LSPC (Locality-

Sensitive Pseudo-Code) (Terasawa and Tanaka,

2007a), which is a kind of discretization of real vec-

tors. The LSPC discretize vectors into a set of in-

tegers with less loss of information compared with

usual vector quantization. However, because a bi-

nary relation ‘semiequivalent’ used in LSPC is not an

equivalence relation and does not satisfy the transi-

tive law, existing string matching algorithms are not

always applicable to LSPC. Therefore, this study also

introduces a second element, i.e. we arranges BMH

algorithms to be applicable to LSPC. As stated in the

title of the paper, this is termed an Extended Boyer-

Moore-Horspool Algorithm.

2 OUTLINE OF LSPC

Locality-Sensitive Pseudo-Code (LSPC) is a technol-

ogy where real vectors can be converted into pseudo-

code expressions without signiﬁcant loss of their in-

formation. In this section we introduce the outline

of LSPC. A more detailed description can be found

in (Terasawa and Tanaka, 2007a).

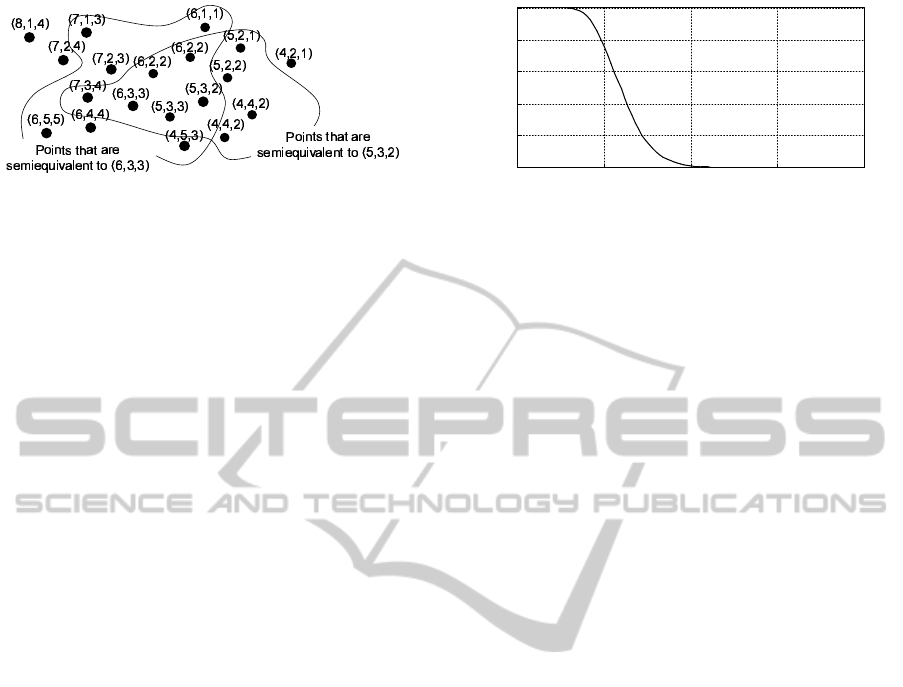

Figure 1 illustrates an example of LSPC. The

black circles represent vectors distributed in the R

space, and the three-tuples of integers in brackets,

like (8,1,4), represent the pseudo-codes that are the

result of the discretization of the vectors. In this man-

ner, allocating multiple integers to one vector is the

main characteristic of LSPC. Another characteristic

437

Terasawa K., Kawashima T. and Tanaka Y..

THE EXTENDED BOYER-MOORE-HORSPOOL ALGORITHM FOR LOCALITY-SENSITIVE PSEUDO-CODE.

DOI: 10.5220/0003369004370441

In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2011), pages 437-441

ISBN: 978-989-8425-47-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: An example of LSPC.

of LSPC is a binary relation termed ‘semiequivalent.’

Two pseudo-codes are regarded to be semiequivalent

if at least one of their elements takes the same value.

The above allows the following summary of the

deﬁnitions of LSPC.

Deﬁnition 1. For a d-dimensional vector p, LSPC

C(p) is given as d

′

-tuples of integers:

p ∈ R

7→ C(p) = (c

(p) c

(p) ··· c

′

(p))

∈ N

′

Deﬁnition 2. Two LSPC C(p) = {c

(p)} and C(q) =

(q)} are regarded to be semiequivalent iff ∃i s.t.

(p) = c

(q).

In composing the LSPC, we used the hash

value obtained from the Locality-Sensitive Hashing

(LSH) (Gionis et al., 1999; Datar et al., 2004; Andoni

and Indyk, 2006; Terasawa and Tanaka, 2007b) as an

element of LSPC.

LSPC has richer descriptive power compared with

usual vector quantization. In usual vector quanti-

zation, there may be cases where different codes

are allocated to similar vectors in the vicinity of

boundaries. However, with LSPC, a range which is

semiequivalent to a speciﬁc pseudo-code may over-

lap with a range which is semiequivalent to another

pseudo-code (as shown in Fig. 1). As a result, the

probability of two pseudo-codes to be semiequivalent

is highly sensitive to the distance between two vectors

(an example is shown in Fig. 2). Therefore, it is possi-

ble to estimate whether the distance between the two

vectors is large or small by examining only whether

the two pseudo-codes are semiequivalent.

Here it must be noted that the computational costs

to examine whether pseudo-codes C(p) and C(q) sat-

isfy semiequivalent relations is smaller than the cost

to compute the distance between the two vectors p

and q. This difference is signiﬁcant especially when

the vector space is of higher dimensions. Vectors used

in pattern recognition often have a very high number

of dimensions, making it very likely that using LSPC

will reduce the computational costs.

0.00

0.20

0.40

0.60

0.80

1.00

0.00 0.50 1.00 1.50 2.00

Distance

Probability of being semiequivalent

Figure 2: An example of the probability of two pseudo-

codes to be semiequivalent with respect to the distance be-

tween two vectors.

3 THE

BOYER-MOORE-HORSPOOL

(BMH) ALGORITHM

This section will overview the BMH algorithm which

is the basis for the Extended BMH algorithm.

First, let us accurately formulate the problem. The

string matching problem is formulated as follows.

Deﬁnition 3 (The String Matching Problem). Given

string P of length n (referred to as the pattern or key-

word) and string T of length m(> n) (referred to as

text). The string matching problem is to search for

all starting position i of a keyword in a text such that

P(ξ) = T(i+ ξ− 1) for all ξ = 1, 2, ..., n

Here P(ξ) represents the ξ-th character of P. For

example, with P = abab and T = abxabababxababx,

the solution to the string marching problem is

{4, 6, 11}. In the following, S[i : j] ( j ≥ i) represents

the substring of S that starts from i-th character and

ends at j-th character of S.

The naive method of string matching is a method

in which matching is conducted on every substring of

T with length n to pattern P. The computational cost

with this method (frequency of character comparison)

is O(mn) at maximum.

Now, let us look at the BMH algorithm. The naive

method conducts matching of strings by shifting the

starting point of the substring T by one place for ev-

ery trial. Compared with this, the BMH algorithm

reduces computational cost by attempting to shift the

starting point by more than one place.

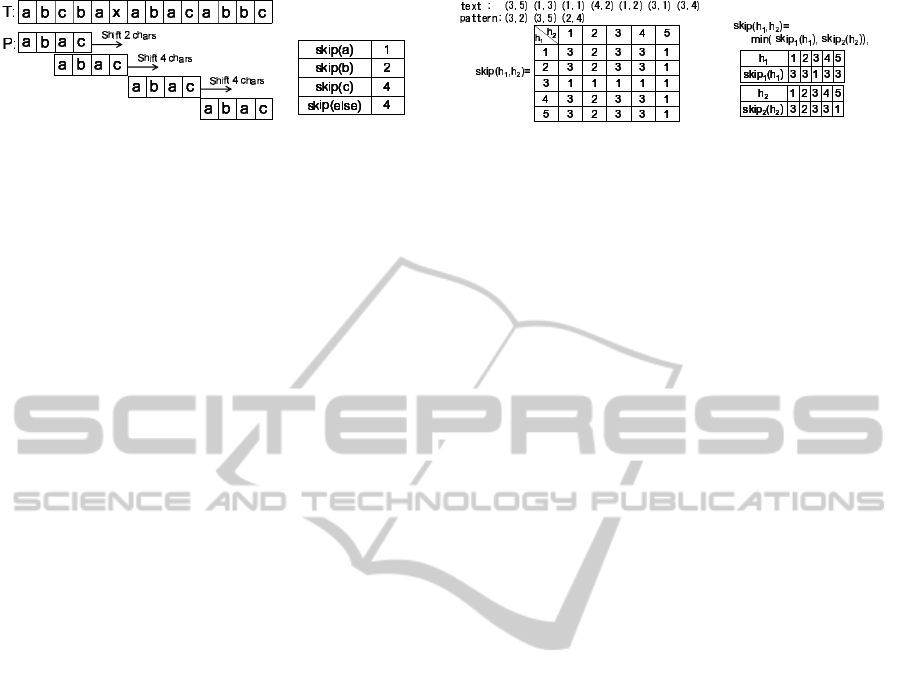

Figure 3 illustrates an example of an execution of

the BMH algorithm. Suppose T = abcbaxabacabbc

and P = abac. First, the BMH algorithm matches P

and T[1 : 4]. The matching proceeds from right to left.

In this example, the 4th character of T[1 : 4] and the

4th character of P is compared, and the result is “not

match.” Then the next substring to be examined is

T[3 : 6], i.e., the starting point of the substring to be

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

438

Figure 3: An example of BMH algorithm.

examined shifts two place because the last character

of T[1 : 4] is already known as b, it leads the fact that

we do not need to examine T[2 : 5].

The important point here is how many places we

should shift the starting point of the substring of T. It

only depends on 4th character of T[i : i+3]. Here, the

value of “how many places to shift” will be expressed

as “skip function.” The function skip(x) is then de-

ﬁned as the number of places to shift when the last

character of substring T[i : i+ 3] is x, where the min-

imum value is 1 and the maximum value is n (= 4, in

this example).

The skip function is formed as follows. The skip

function includes all the possible characters (referred

to as alphabet Σ) as the domain and integer [1, n]

as its range. First, skip(x) is initialized to n for all

x ∈ Σ. Next, if the (n − i)-th character of P is x,

then skip(x) is updated to i. The skip function is

obtained by iterating this procedure in the order of

i = n− 1, n− 2, ·· · , 1.

4 THE EXTENDED

BOYER-MOORE-HORSPOOL

(BMH) ALGORITHM

The objective of this study is to extend the BMH algo-

rithm to LSPC, and in the following the deﬁnition of

the problem identiﬁed in Deﬁnition 3 above is reorga-

nized as a problem that has been extended to LSPC.

Deﬁnition 4 (The String Matching Problem Extended

to LSPC). Given LSPC string P of length n and LSPC

string T of length m(> n). The extended string match-

ing problem is to search for all starting position i of a

keyword in a text such that P(ξ) ∼ T(i+ ξ− 1) for all

ξ = 1, 2, ..., n,

Here S(i) ∼ T( j) implies that S(i) and T( j) are

semiequivalent.

The Extended BMH algorithm, generally, is the

same as the BMH algorithm. Namely:

[Extended BMH Algorithm]

First, i is set to one and examine whether

P(ξ) ∼ T(i + ξ − 1) for all ξ = 1, 2, ..., n can

be satisﬁed. Similar to the original BMH al-

gorithm, the matching proceeds from right to

(a) (b)

Figure 4: skip function in LSPC, (a): Array size M

′

, (b):

Array size M d

′

left. Next, to conduct matching for a new

substring, the starting position i is moved by

skip(T(i + n − 1)). The algorithm will ﬁnish

at i+ n− 1> m.

The difference between the Extended BMH algo-

rithm and the BMH algorithm is the composition of

the skip function. In theory, the skip function for the

Extended BMH algorithm is formed by the following

process. The domain of the skip function includes all

the values that could be obtained by the pseudo-code

(following the example of the text string, we refer to

this as alphabet Σ). First, skip(x) is initialized to n for

all x ∈ Σ. Next, skip(x) is updated to i concerning all

pseudo-code x ∈ Σ s.t. x ∼ P(n−i). The skip function

is obtained by iterating this procedure in the order of

i = n−1, n−2, ..., 1 (Fig. 4(a)).

This process is theoretically possible but practi-

cally not. To utilize this method it requires array size

that is proportional to the size of Σ to store the skip

function; however, LSPC has d

′

integers as its ele-

ment. If we assume the value of each element to be

from 1 to M , the array size will be M

′

; therefore,

when we utilize values of d

′

larger than tens or hun-

dreds, huge memory requirement poses a problem.

Thus, the following theorem becomes signiﬁcant.

Theorem 1. The skip function of the pseudo-code

C(p) = (c

(p)c

(p)...c

′

(p)) can be expressed as fol-

lows:

skip(C(p))

= min(skip

(p)),skip

(p)),. . . , skip

′

(p)))

where skip

(p)) is the skip function that is formed

by the same method as the traditional BMH algo-

rithm.

iProofj. When λ < min

i=1,...,d

′

(skip

(p))), then

P(n− λ) and C(p) will never be semiequivalent. This

is because, when P(n − λ) ∼ C(p), there exists δ ∈

{1, ..., d

′

} s.t. the δ-th element of P(n − λ) and the

δ-th element of C(p) are equal; however, this con-

tradicts λ < skip

(p)). On the other hand, when

λ = min

i=1,...,d

′

(skip

(p)), then there exists δ s.t.

λ = skip

(p)), which means that the δ-th ele-

ment of P(n − λ) and the δ-th element of C(p) are

THE EXTENDED BOYER-MOORE-HORSPOOL ALGORITHM FOR LOCALITY-SENSITIVE PSEUDO-CODE

439

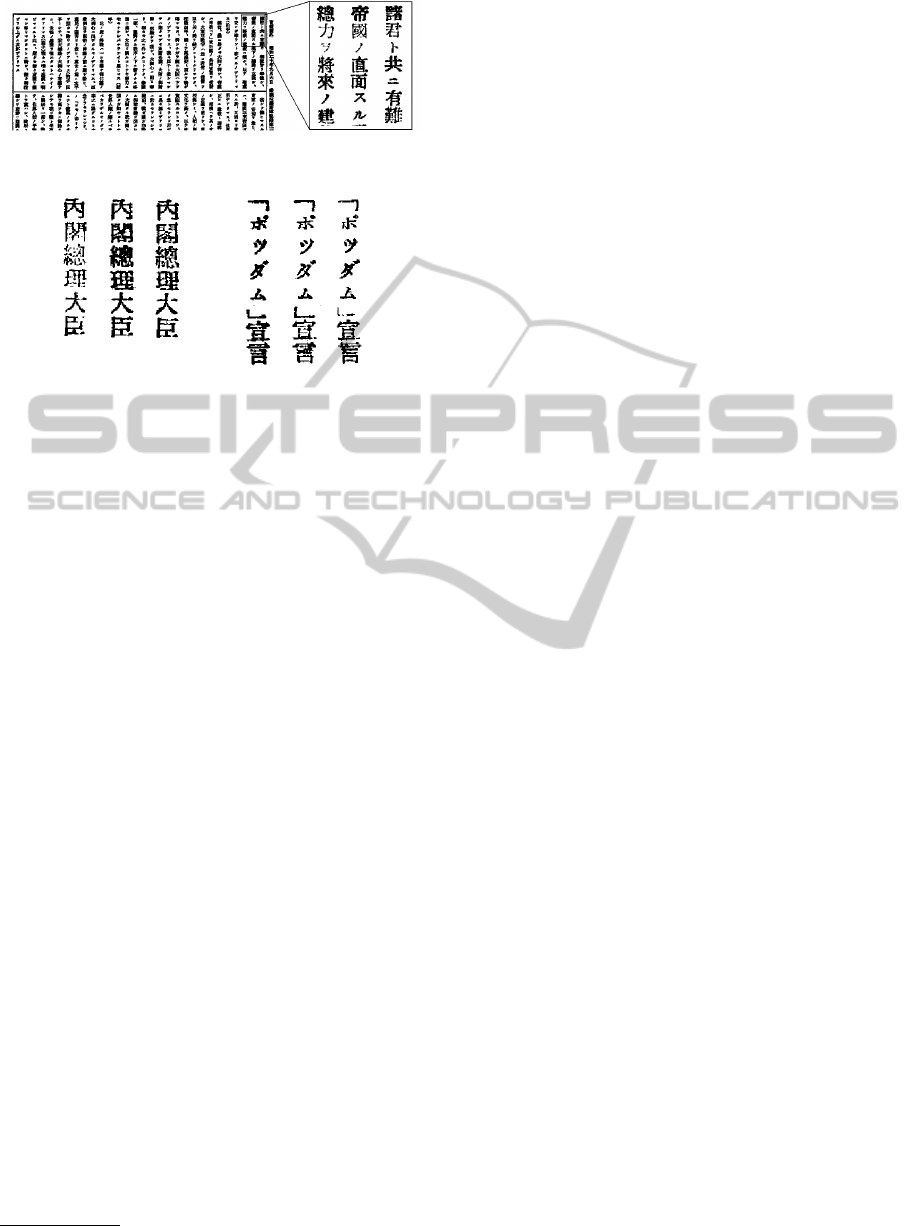

Figure 5: Images from the “Minutes of the Imperial Diet.”

(a) (b)

Figure 6: Keywords used in the experiment. (a): Prime

Minister (length=6, frequency=15), (b): Potsdam Declara-

tion (length=8, frequency=11).

equal, i.e., P(n − λ) ∼ C(p). Thus, skip(C(p)) =

min

i=1,...,d

′

(skip

(p))). 

By this theorem, the memory requirement is re-

duced from M

′

to M d

′

, and the implementation be-

comes practically possible (Fig. 4(b)).

5 EXPERIMENT USING

LOW-QUALITY DOCUMENT

IMAGES

As an application of the Extended BMH algorithm,

an experiment in string matching was executed using

low-quality document images which are difﬁcult to

convert to text by OCR. We compared the computa-

tional costs with the extended BMH algorithm and the

naive method. Note that the naive method is currently

the only method that is applicable to LSPC, except for

the proposed method.

5.1 Materials and Experimental Setup

The material used in our experiment was the “Min-

utes of the Imperial Diet” from National Diet Library,

Japan

. This database contains the image data of the

28th (1911) – 92nd (1947) Imperial Diet sessions. For

88th (1945) – 92nd (1947), text data is also available.

We used 32 images from 88th session. Sample page

is displayed in Fig. 5. The resolution per character is

http://teikokugikai-i.ndl.go.jp/

approximately 50 pixels.

First, the document images are segmented to char-

acters. Character segmentation was conducted by

proprietary OCR software “MDTOCR v.6.0.” Note

that character segmentation is easier problem than

character recognition problem. The accuracy of char-

acter segmentation was over 99% for the material im-

ages, while accuracy of character recognition is less

than 85%.

Each segmented character image is converted to

feature vector. As a feature vector, we utilized the

gradient distribution feature (GDF) (Terasawa et al.,

2006). The segmented image was divided into smaller

4× 4 domains, which were used to form feature vec-

tors of 128 dimensions, just similar to the method uti-

lized in SIFT (Lowe, 2004).

Next, each feature vector was converted into

LSPC. The LSH family used was the SLSH-

orthoplex (Terasawa and Tanaka, 2007b) because the

feature vectors of GDF is always normalized to a unit

length. The parameters used in LSPC conversion was

determined by preliminary experiment.

Thus, the document images were converted to the

sequence of LSPC and were ready to be conductedthe

string matching based on Extended BMH algorithm.

5.2 Experiment

The total number of characters of the document im-

ages used in this experiment was 64900. For this

experiment, we had selected two keywords from the

whole document, as shown in Fig. 6. Keyword (a)

means “Prime Minister” in Japanese, having six char-

acter length and appearing 15 times in the docu-

ment. Keyword (b) means “Potsdam Declaration” in

Japanese, having eight character length and appearing

11 times in the document. For both keyword, each

occurrences was used as a query, using both the naive

method and the Extended BMH algorithm.

5.3 Experimental Results

The result is summarized in Table 1. In the table,

(#comp) represents how many times the character to

character comparison were executed and (#skip) rep-

resents how many times the skip function were eval-

uated. Displayed digits are mean values over each

occurrences was used as a query. Note that non-

perfect recall and precision ratio comes from two rea-

sons. One reason is that there exists deformation of

the characters in the image, and another reason is the

nature of randomized algorithm. Since the transfor-

mation of feature vectors into LSPC is a randomized

algorithm, the accuracy of the LSPC-based retrieval

VISAPP 2011 - International Conference on Computer Vision Theory and Applications

440

Table 1: Experimental Results.

Keyword Naive Extended BMH Recall Precision

(#comp) (#comp) (#skip) (%) (%)

Prime Minister 79127.8 21973.2 17649.6 88.57 80.87

Potsdam Declaration 78833.6 16850.2 13488.0 61.82 100.00

(number of characters = 64900)

is not assured to be perfect. Although it is possible

to improve the accuracy by increasing the trial fre-

quency or adjusting other parameters, this will involve

a trade-off with the computational complexity. Those

are the nature of randomized algorithms.

As illustrated by the tables, the number of times

of character to character comparison of the Extended

BMH algorithm is lower than the naive method for

both keywords. Moreover, it is lower than the total

number of characters (64900), which means that re-

trieval in sublinear time was accomplished.

However, the number of times of evaluation of

the skip function must be considered as an additional

cost for the naive method with the Extended BMH al-

gorithm. Even though one ‘comp’ process and one

‘skip’ process is not exactly equal — the former is a

process that evaluates the match/non-match of d

′

in-

tegers, while the latter is a process that obtains the

minimum among d

′

integers — we can roughly es-

timate the cost of the Extended BMH algorithm just

adding (#skip) and (#comp). In this case, also, we can

conclude that the computational costs of the Extended

BMH is reduced to below that of the naive method.

6 CONCLUSIONS

In this paper we have proposed an Extended BMH

algorithm, which was developed from the BM and

BMH algorithm, to allow searching for speciﬁc

strings based on a sequence of real vectors. As an

example of its application, an experiment with string

matching using low-quality document images where

optical character recognition does not work well was

performed. The results showed that the algorithm can

contribute to reducing the computational cost com-

pared with the naive method.

Our future work will focus on developing an ef-

ﬁcient algorithm to realize Inexact Matching rather

than Exact Matching. With such an advanced algo-

rithm, it would be possible to develop a fast algo-

rithm using LSPC, which is applicable to more difﬁ-

cult problems such as string matching of handwritten

documents.

REFERENCES

Andoni, A. and Indyk, P. (2006). Near-optimal hashing

algorithms for approximate nearest neighbor in high

dimensions. In Proc. Symposium on Foundations of

Computer Science, FOCS’06, pp. 459–468.

Boyer, R. S. and Moore, J. S. (1977). A fast string searching

algorithm. In Communications of the ACM, vol. 20,

pp. 762–772.

Datar, M., Indyk, P., Immorlica, N., and Mirrokni, V.

(2004). Locality-sensitive hashing scheme based on p-

stable distributions. In Proc. 20th ACM Symposium on

Computational Geometry, SoCG2004, pp. 253–262.

Gionis, A., Indyk, P., and Motwani, R. (1999). Similar-

ity search in high dimensions via hashing. In Proc.

25th Int. Conf. on Very Large Data Base, VLDB1999,

pp. 518–529.

Horspool, R. N. (1980). Practical fast searching in strings.

In Software – Practice & Experience, vol. 10, issue 6,

pp. 501–506.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. In International Journal of Com-

puter Vision, vol. 60, no. 2, pp. 91–110.

Terasawa, K., Nagasaki, T., and Kawashima, T. (2006). Im-

proved handwritten text retrieval using gradient dis-

tribution features (written in japanese). In Proc.

Meeting on Image Recognition and Understanding,

MIRU2006, pp.1325–1330.

Terasawa, K. and Tanaka, Y. (2007a). Locality sensitive

pseudo-code for document images. In Proc. 9th Int.

Conf. on Document Analysis and Recognition, IC-

DAR2007, vol. 1, pp. 73–77.

Terasawa, K. and Tanaka, Y. (2007b). Spherical lsh for

approximate nearest neighbor search on unit hyper-

sphere. In Proc. 10th Workshop on Algorithms and

Data Structures, WADS2007, LNCS4619, pp. 27–38.

THE EXTENDED BOYER-MOORE-HORSPOOL ALGORITHM FOR LOCALITY-SENSITIVE PSEUDO-CODE

441
