IMPROVING THE PERFORMANCE OF RTOS
USING MULTIPLE REGISTER FILES ARCHITECTURE
Jong-Woong Kim, Soo-Hyun Kwon, Kab-Su Han and Jeong-Hoon Cho
EEC, Kyung-pook National University, Daegu, Republic of Korea
Keywords: Task Context Switch, Real-Time OS, Embedded System, Register file (RF).
Abstract: In recent years, real-time operating systems (RTOS) have been becoming more and more important in
embedded systems because of increasing the number of task with complex functions and the need of faster
response time. Faster response time is strongly related to the task context switch time and especially task
context switch time is the most important factor to determine the performance of RTOS. Most embedded
systems are suffering from processing it. In this paper, we present the technique to improve the performance
of RTOS by reducing the task context switch overhead. To achieve this goal, we suggest multiple register
files architecture and a task to register file mapping algorithm based on rate monotonic (RM) scheduling
algorithm for efficiently using our new architecture. Also we show the experimental results to improving
our technique using ATmega103 implementation in FPGA. As a result we can decrease the task context
switch overhead up to 23% depend on the number of register files even though there are some area
overheads by increasing the number of register files.
1 INTRODUCTION
Recently, as embedded systems have extended their
application from traditional manufactures, logistics,
service business to high-tech aviation, space,
military, multimedia communication, and next
generation energy business, they have to support
multiple, real-time and multimedia processing
capabilities and the wire/wireless network service.
These trends result in increasing the complexity of
embedded system and embedded applications as
well and also the usage of real-time operating
system (RTOS). RTOS is the an operating system
intended for real-time applications and serves
application requests nearly real-time based on the
prioiry. It is desighed to minimize critical sections of
system code so that it can process application
requests within a certain amount of time. Thesedays
RTOS is widely used in the cellular phone
communication equipment, industry facilities and
vehicle and so on, and there are some popular RTOS
used in each relevant field repectively like IOS,
REX, L4 and OSEK. RTOS provides task
scheduling, resource management, synchronization,
communication and precise timing so it can cover
various applications (John and Rajkumar, 2004).
However there exists some overheads such as task
scheduling, time management, and event
management which cause the performance
degradation of RTOS like difficult prediction or late
response time. Therefore it is important to reduce
these overheads to guarantee the performance of
RTOS.
Task context switching refers to the computing
process of storing the present state and restoring the
previous state of CPU so that CPU can resume from
the same point at a later time. It can make multiple
processes possible to share a single CPU. Though
task context switching is an essential feature of a
multitasking embedded system, it causes
unavoidable system overhead at the same time
(Philip, 1996) (Hassan, 2000). In general, the
overhead of context switching is about 10~20% in
total running time (Dan, 2007).
In this paper we suggest the technique for
reducing the overhead of task context switching that
is the most critical part of RTOS. Our technique
organizes the multiple register files (MRF)
architecture and a mapping algorithm between tasks
and register files (RF) based on the rate monotonic
(RM) scheduling algorithm(Stewart and Barr, 2002).
Our technique makes it possible to reduce the task
451
Kim J., Kwon S., Han K. and Cho J. (2011).
IMPROVING THE PERFORMANCE OF RTOS USING MULTIPLE REGISTER FILES ARCHITECTURE.
In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems, pages 451-455
DOI: 10.5220/0003365304510455
Copyright
c
SciTePress
context switching overhead so that it can gurantee
faster reponser time.
This paper is organized as follows. In section 2,
we present the previous and related works and
describe our MRF architecture and scheduling for
fast context switching in section 3. In section 4 we
show the experimental results about the context
switching improvement using our approach. Finally
we make a summary of our work and conclusions
and talk about our future work in section 5.
2 RELATE WORKS
In the past many researches on RTOS have focused
on the scheduling mechanisms but most of them did
not pay attention to the task context switching. But
as the importance of task context switching is
getting bigger, there are more researches aiming at
reducing task context switching overhead. We can
divide them into two parts; one is for minimizing the
register movements in each context switching and
the other is minimizing the frequency of context
switching. First of all, (Snyder, Whalley and Baker,
1995) and (Zhou and Petrov, 2006) suggested an
architecture and compiler techniques to reduce the
register movements in each context switching. Their
ideas were based on the difference of the number of
used registers of each task during the execution time.
So they prepared the table containing the context
switching points influences the table size,
performance and response time, which needs a
precise task scheduling in real-time system. On the
other hand for reducing the number of context
switching more registers are usually required.
(Alverson, Callahan, Cummings, koblenz,
Porterfield and Smith, 1990), (Adiletta, Rosenbluth,
Bernstein, Wolrich and Wilkinson, 2002) and
(Kongetira, Aingaran and Olukotun, 2005)
suggested an architecture where the hardware
threads have their own RFs and (Nuth and Dally,
1995) proposed a hardware which has a large fully-
associative shared RF set. Although both strategies
are suitable for high-end multithreaded processors, a
large number of register for each thread causes
considerable drawbacks of embedded processors
such as the higher manufacturing cost and more
power consumption.
In this paper, our approach reduces register
movements when the task context switching occurs
so we can achieve faster response time.
3 OUR APPROACH
3.1 Architecture
During task context switching the task context of
general-purpose registers, program counter (PC) and
stack pointer of the present task are stored and the
context of the next running task are restored. As we
analyze the task context switch process of general
RTOS, it spend much time storing data of general
purpose register and restoring. Its overhead time is
given by:
(

×

)×(

+

)
(1)
Where N
Greg
refers to the number of general-
purpose registers, N
Sreg
means the number of status
registers, N
str
is the number of store operations. We
assume that there is only one instruction for store
operation, T
str
means required time to perform single
store operation (Hassan, 2000), (Dan, 2007). We can
calculate store time of context switch using equation
1 and also can calculate restore time

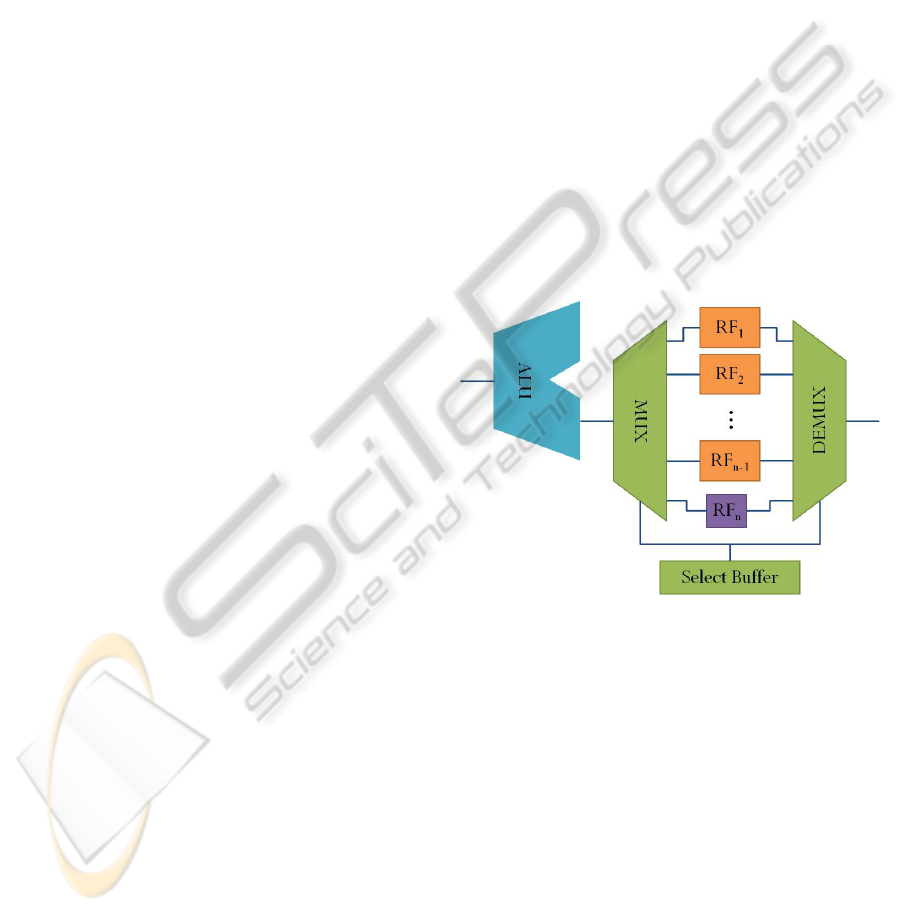

Figure 1: Multiple register files architecture
We propose the MRF architecture by adding
more RFs to minimize the context switch overhead,
especially focus on reducing time of store and
restore. Figure 1 shows our MRF architecture. The
number of RFs is flexible so that we can change it
based on the number of tasks in embedded

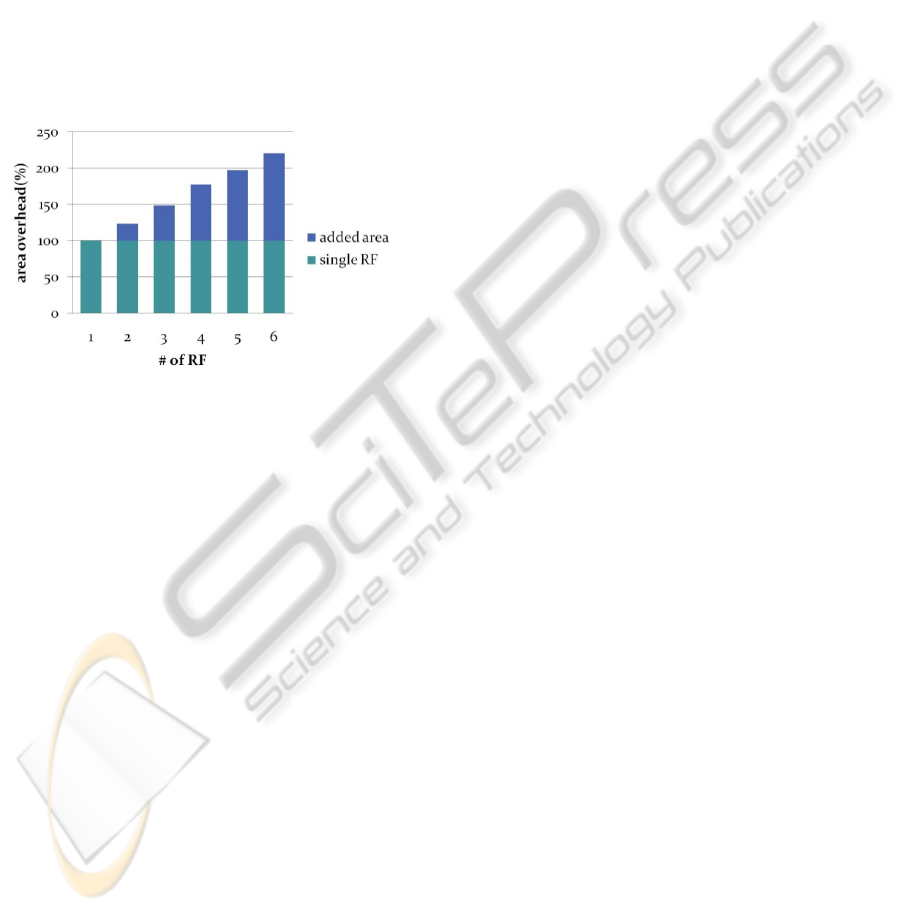

applications. But there are constraints of area we
will explain about this in section 4.4. To select a RF
we add MUX, DEMUX and the select buffer which
can make selecting a RF easy by just writing the
identifier of RFs in the buffer. And we add a special
RF for interrupt service routines (ISR). For example
when ISR is occurred regularly by timer in uC/OS-
II(Jean, 1998), it calls various functions like
OSTimeTick(), OSIntExit(), etc. Because some data
can be lost during ISR, we need this special RF to
PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems
452
store and restore current state. The result of some
experiments we found that the size of this special RF
is much smaller than other RFs and you can see it in
figure 1. We reserve nth RF, RF
n
for ISR.
3.2 Task to RF Mapping Algorithm
There are two kinds of context switching in our
MRF architecture; one is in which the number of
tasks is less than or equal to the number of RFs and
the other is in which the number of tasks is more
than the number of register files.
If the number of tasks of applications is less than
or equal to the number of register files, each task can
have its own RF. It means whenever task context
switch is occurred there is no store and restore
process of register. Therefore we can change
equation 1 for calculating new task context switch
overhead time of this ideal case:
(

×

)×

+

(2)
Where N
ch
is the number of the select instruction
of select buffer. Instead of store and restore of the
whole registers except status registers, only writing
the identifier of RFs to the select buffer, the task
context switch is done. For example think about a
processor with 32 general-purpose registers. When
task context switch occurred, there are 32 PUSH and
32 POP instructions to store and restore context of
registers. But our MRF architecture just needs 4
instructions for task context switch. Whenever the
task context switch is occurred, we can reduce 60
instructions.
And the number of tasks in applications is more
than the number of RFs, it’s not possible to one-to-
one matching between tasks and RFs anymore.
Some tasks can have their own RFs but some have
to share RFs. To minimize the number of task
context switch we use priorities of the RM
scheduling algorithm to select 1:1 mapping tasks.
RM scheduling algorithm is one of the static-priority
scheduling algorithm, the static priorities are
assigned on the basis of the period of the job. A task
with shorter period will have a higher job priority.
Based on this feature of RM scheduling algorithm
we assign the priority of each task depending on
their period, and then we assign a RF to a task with
high priority. It can guarantee less number of task
context switching.
Task to RF mapping algorithm shows the
mapping sequence. The inputs to this algorithm are a
task set containing m tasks and a RF set with n-1
RFs except the special RF(RF
n
). Based on RM
scheduling algorithm we assign a priority to each
task in line 1. Here we assume the smaller number
means the higher priority. And then we order m
tasks in task set by their priorities in increasing order
in line 2. Until the number of RF in RF set is equal
to or less than 1, we assign a RF to a task one on one
(line 3-7). After that if there are tasks which do not
have their own RF., they are mapped to the last RF
n-1
and they share it.

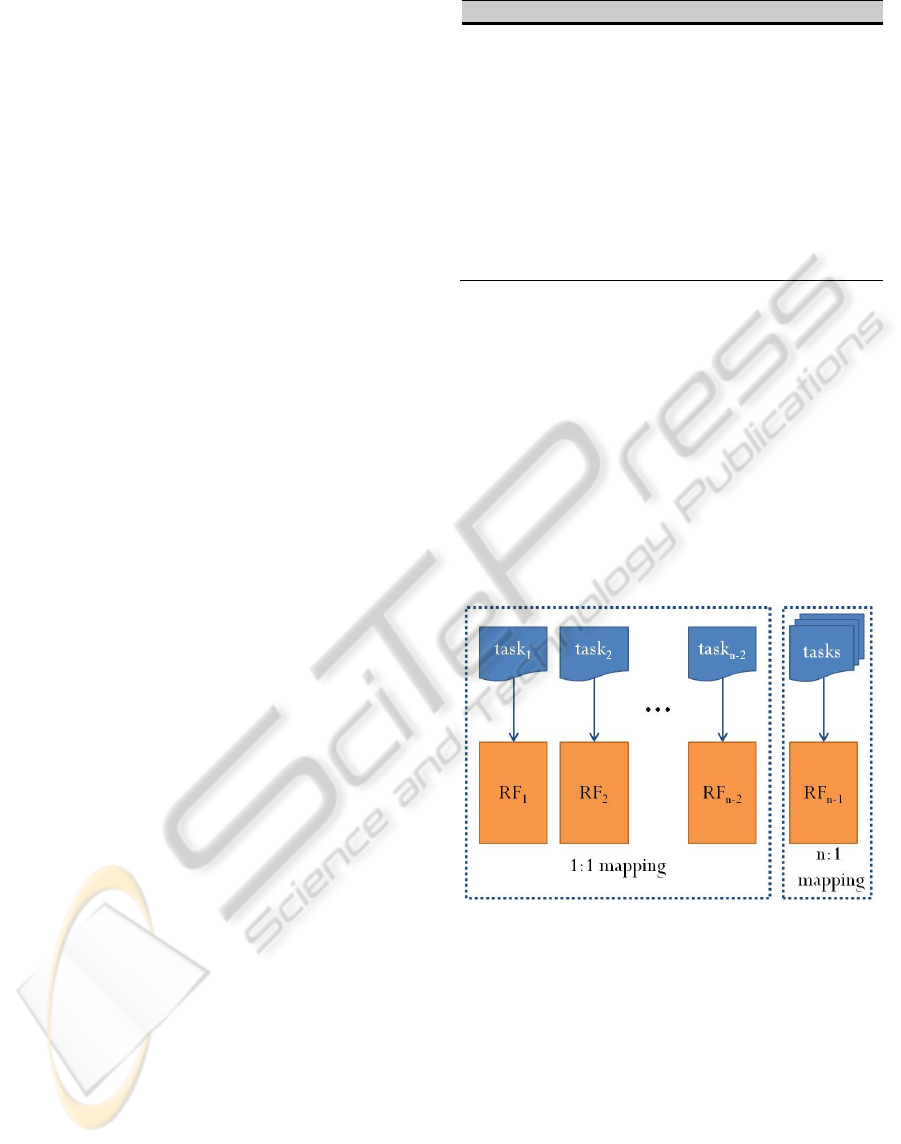

Figure 2: the example of mapping.
Figure 2 shows the result of the m tasks to n RFs
mapping when m is bigger than n. The last RF
n
is the
special RF for ISR so we don’t use it for tasks. After
mapping is done n-2 tasks use their RFs and the m-
(n-2) tasks share one RF for task context switch. In
other words, n-2 RFs are assigned to n-2 tasks with
high priorities and the remainder use the single RF.
(

×

)×

+

+

(3)
(

×

)×(

+

)+

+

(4)
where T
chk
is the time to check whether the next
processing task has its own RF or shares a RF.
Equation 3 calculates task context switch time for
Task to RF mapping algorithm
input: task set with m tasks, RFset with n-1 RFs
output : mapping result between tasks and RFs
1: assign priorities to all tasks using RM scheduling
2: sort task set by their priorities in increasing order
3: while ( |RF| > 1 ) do
4: remove task from the first of task set
5: remove RF from RF set
6: assign task to RF
7: end while
8: if ( task set
≠{})
9: assign all left tasks in task set to RF
n-1
10: end if
IMPROVING THE PERFORMANCE OF RTOS USING MULTIPLE REGISTER FILES ARCHITECTURE
453
the 1:1 mapping task and equation 4 is for tasks
sharing one RF. Equation 3 has a checking time, T
chk
by comparing with equation 2 but it is small enough
to ignore because it can be executed by simple
conditional instruction. To maximize the effect of
equation 3 we use RM scheduling in task to RF
mapping and can reduce the amount of time to store
and restore general registers data than previous
architecture.
4 RESULTS
4.1 Experimental Setup
We implemented ATmega103 architecture in Virtex-
4 FPGA board using VHDL. We added RFs in our
implementation of the ATmega103 - we change the
number of RFs from 2 to 6. For convenience we call
ATmega103 in FPGA with single RF “Original”,
our multiple register files architecture “MRF”. We
run uC/OS-II with 5 tasks and 1 idle task on both
architectures. uC/OS-II executes each task
periodically with its unique period. When there are
no tasks to execute, uC/OS-II executes an idle task
automatically which counts the number of the
execution of this task. We set one time tick as 10ms
and evaluate performance in each case by changing
the number of tasks and RFs.
=

2
−1
(5)
Where U is the usage factor of CPU, C is the
execution time of each task, T is the period of task
and n is the total number of task. We assigned
execution times and periods to them by equation
5(Stewart and Barr, 2002). In RM scheduling, to
guarantee no starvation we have to satisfy the
equation 5. According to period of a task, each task
has its own priority. So T
1
with the shortest period
has the highest priority and it activates every 1
tick(10ms) and executes a loop 7000 times.
Table
shows the features of tasks we use. We run this
application for 4000 tick.
Table 1: Task scheduling.
task
Period
(tick)
Execution
time
(# of loop)
Priority
T1 1 7000 0
T2 3 7800 1
T3 5 15000 2
T4 14 18900 3
T5 57 21650 4
4.2 Without Starvation
uC/OS-II executes 6 tasks including one idle task by
changing the number of RFs from 1 to 6. To show
how fast our approach is we measure the total
execution time of idle task and the longer execution
count of idle task means reduction of execution time
of tasks. Figure 3 shows that idle task has been
running about 23% more than original method and it
means that an overall execution time of tasks is
reduced about 23%. But there is no change except
MRF on uC/OS-II so it relate to reduction of context
switch.

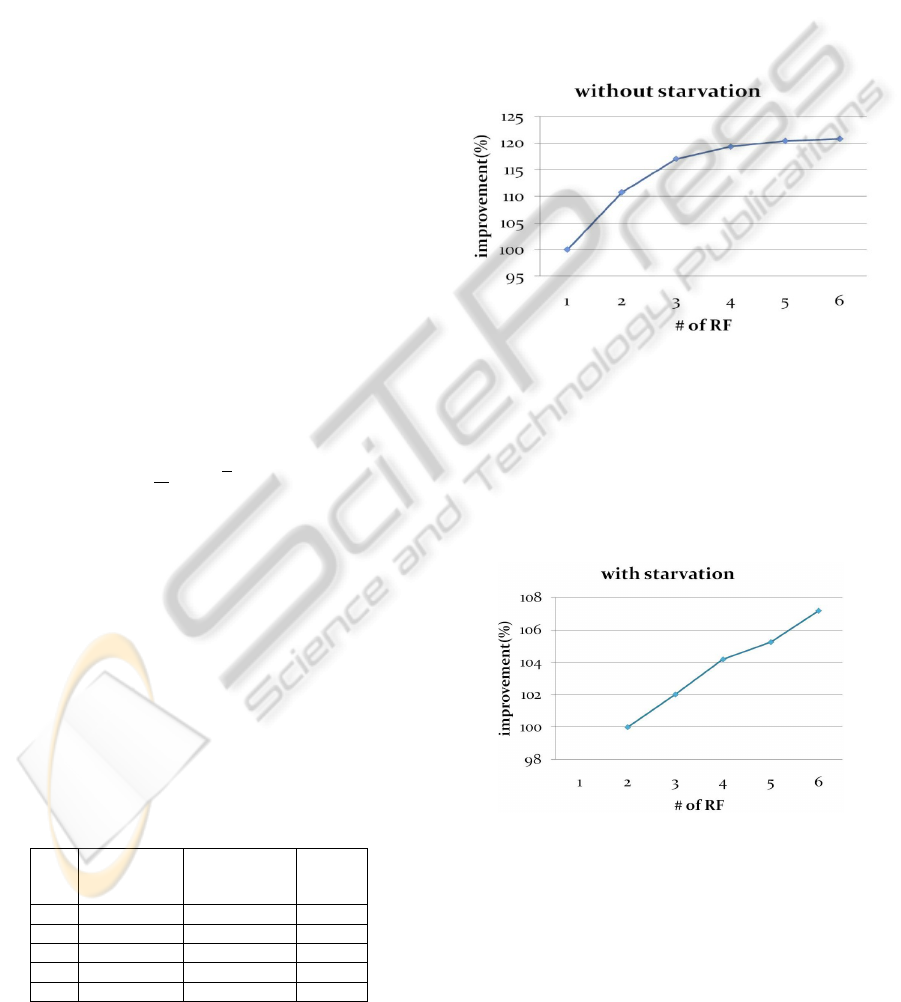

Figure 3: The execution time of idle task without
starvation.
4.3 With Starvation
We change the execution time of T4 from 18900 to
19100 so that the application can’t satisfy the
equation (5) anymore and it results in the starvation
during program execution.
Figure 4: The execution time of idle task with starvation.
As shown Figure 5, when there is one RF,
uC/OS-II can’t execute the tasks properly because of
the starvation. But we change the number of RFs,
uC/OS-II can execute them well. Because reduction
of execute time make them runnable. More we add
RFs, we get more count of idle task. It means that
PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems
454
the context switch overhead is reduced when the
number of RFs is approaching the number of task.
This experiment shows that our MRF makes
possible to properly execute6 applications with
starvations.
4.4 Area Overhead
We compare the additional area of RFs. The
proportion of single RF in VHDL-original excluding
the program and data memory is about 21%. We
compared the area proportions which come from
HDL synthesis tools, while changed the number of
RFs from 2 to 6 in Virtex-4 FPGA. Figure 5 shows
the result.
Figure 5: Comparison about area.
Figure 5 shows that the total area including
MUX, DEMUX and a select buffer, a special RF
increases proportionally to the number of RF in
FPGA. When the number of RF is 5 the total area is
almost double than original architecture in FPGA.
But in this experiment we didn’t implement the
memories in ATmega103 and the CPU area
including RF occupies very small amount in the
whole chip set so that the increasing area by adding
RFs is to be negligible.
5 CONCLUSIONS
In this paper, we presented MRF architecture and a
task to RF mapping algorithm based on RM
scheduling for fast task context switch. Our MRF
architecture makes faster response time possible by
reducing store and restore task context. We also
propose the mapping algorithm between tasks and
RFs which guarantees that the most frequently
executing tasks can have their own RFs. We
implemented ATmega103 by using VHDL and
FPGA for experiment and modified uC/OS-II to run
tasks on MRF architecture. As we expected the total
area increased linearly by adding more RFs but we
can reduce task context switching overheads by 23%,
shown as figure 3. And we can run the tasks
properly when starvation is occurred in our MRF
architecture.
We just assume static-priority scheduling
algorithm on MRF architecture, in the future, we
have to research other scheduling algorithms on the
MRF like EDF. Also, we need to research another
evaluation method, e.g. count instructions, count
time ticks. Finally we have to compare the result
among other solutions to ensure.
REFERENCES
John A. Stankovic. R. Rajkumar, 2004. The book, Kluwer
Academic Publishers. "Real-Time Operating System,"
Real-Time Systems.
Philip A. Laplante, 1996. The book, Real-Time systems
Design and Analysis: An Engineer
s Handbook,
Second Edition.
Hassan Gomaa, 2000. Designing Concurrent,
Distributed, and Real-Time Applications with
UML.
Dan Tsafrir, 2007. "The context-switch overhead inflicted
by hardware interrupts (and the enigma of do-nothing
loops)," Experimental computer science on
Experimental computer science.
David B. Stewart and Michael Barr, 2002. Paper.
Introduction to Rate Monotonic Scheduling,
Embedded Systems Programming.
J. S. Snyder, D. B. Whalley, and T. P. Baker, 1995. Paper.
Fast context swtiches: Compiler and architectural
support for preemptive scheduling. Microprocessors
and Microsystems.
X. Zhou and P. Petrov, 2006. Paper. Rapid and low-cost
context-switch through embedded processor
customization for real-time and control applications.
Proceedings of the 43rd annual Conference on Design
Automation.
R. Alverson, D. Callahan, D. Cummings, B. koblenz, A.
Porterfield, and B. Smith, 1990. Paper. The Tera
computer system. Proceedings of the 1990
International Conference on Supercomputing,
M. Adiletta, M. Rosenbluth, D. Bernstein, G. Wolrich, and
H. Wilkinson. 2002. Paper. The next generation of
intel ixp network processors. Intel Technology Journal.
P. Kongetira, K. Aingaran, and K. Olukotun, 2005. Paper.
Niagara: A 32-way multithreaded sparc processor.
Micro, IEEE.
P. R. Nuth and W. J. Dally, 1995. Paper. The named-state
register file: Implementation and performance. IN
Proc. 1st Intl Symp. on High-Performance Computer
Architecture HPCA.
Jean J Labrosse, 1998. The book., R&D Books [M].
uC/OS-II: The Real-Time Kernel.
IMPROVING THE PERFORMANCE OF RTOS USING MULTIPLE REGISTER FILES ARCHITECTURE
455
