WEB SERVICE WRAPPING, DISCOVERY AND CONSUMPTION

More Power to the End-user

Ismael Rivera, Knud Hinnerk M

oller, Siegfried Handschuh

DERI, National University of Ireland, Galway, Ireland

Albert Z

undorf

University of Kassel, Kassel, Germany

Keywords:

Web services, End-users, Discovery, Consumption, Linked data.

Abstract:

In B2B systems integration and web services, many companies see the advantage of increased operational

efﬁciencies and a reduction of costs. In this scenario, highly qualiﬁed software developers are responsible

for the integration of services with other systems. However, this model fails when targeting the long tail of

enterprise software demand, the end-users. Discovery and consumption of web services are difﬁcult tasks for

end-users. This means that potential long tail of end-users creating task-speciﬁc applications from existing

services is as of yet completely untapped. This paper presents an approach to facilitate the discovery and

consumption of business web services by end-users, closing the gap between the two. The approach includes:

(a) a catalogue which users can browse to search for web services ﬁtting their needs, and (b) a method to

generate ready-to-use web service wrappers to use in the catalogue.

1 INTRODUCTION

Business-to-business (B2B) integration is still a sig-

niﬁcant challenge, often requiring extensive efforts in

terms of different aspects and technologies for pro-

tocols, architectures or security. While the adoption

of open standards such as RosettaNet, ebXML, the

Web Service Description Language (WSDL), Univer-

sal Description, Discovery and Integration (UDDI)

or the Simple Object Access Protocol (SOAP) have

reduced the complexity of integrating business ap-

plications between different companies and partners,

and offered some advantages in business-to-consumer

(B2C) integration as well, the interaction and con-

sumption of web services still requires programming

skills and a deep understanding of the technology,

which poses an obstacle for an end-user with lim-

ited knowledge of the matter. Regarding the selec-

tion of the right service for the right task — a cru-

cial requirement for the dynamic use of web services

— most publishing platforms are syntax-based, mak-

ing it difﬁcult to navigate through a large number of

web services (Pilioura and Tsalgatidou, 2009), pre-

venting end-users from performing these tasks. Solu-

tions such as Semantic Web Services (SWS) promised

many advantages in this respect. However, as of yet

they have not been widely adopted, possibly because

the perceived potential beneﬁts did not justify the ad-

ditional investments (Shi, 2007).

The motivation of our work has been strongly

inﬂuenced by the end-users’ needs. We are tar-

geting users which are non-skilled in programming

and software development, empowering them with

a platform to select and consume web services in

a straight-forward manner. Rather than publishing

services directly in our platform, we leave existing

third-party services untouched and instead integrate

them through service wrappers. The products result-

ing from the wrapping process are two artifacts: a spe-

ciﬁc deﬁnition of the web service to be used by this

tool, and a ready-to-use piece of code with the proper

functions to invoke the web service.

2 RELATED WORK

Web services have been around for a long time. One

of the most important claims about their beneﬁts has

been (syntactic) interoperability between third-party

systems and applications based on different platforms

/ programming languages. System integration, within

334

Rivera I., Hinnerk Möller K., Handschuh S. and Zündorf A..

WEB SERVICE WRAPPING, DISCOVERY AND CONSUMPTION - More Power to the End-user.

DOI: 10.5220/0003348003340339

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 334-339

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

a company or between systems from different enter-

prises, became easier with the adoption of web service

standard technologies such as WSDL. While many in-

tegrated development environments (IDEs) can deal

with WSDL to facilitate the integration task, trained

developers are still required for this. As a step for-

ward, there are several tools which facilitate the in-

teraction with data sources and services on the Web.

Yahoo! Pipes, Apatar, JackBe Presto and NetVibes,

among others provide a set of modules to access dif-

ferent kind of data sources, such as RSS feeds, a given

web page (HTML code), Flickr images, databases,

and even powerful enterprise systems such as Sales-

force CRM or Goldmine CRM. However, none of

these solutions facilitate end-users to build their own

applications allowing the interaction with web ser-

vices created by third-party providers. The solutions

found are mainly data-oriented (RSS feeds, databases,

raw text). Several tools permits some sort of (web)

service integration, but are meant to be used within

an enterprise level by savvy business users or devel-

opers. The solution presented in this paper leverages

the possibility of integrating RESTful or SOAP-based

web services inside browser-based applications (i.e.,

widgets or gadgets) by providing a platform to create,

publish and select web services wrappers.

In the context of publishing and discovering Web

services, service providers have well-known and

widely used technologies to accomplish the task of

publication, such as the Universal Description, Dis-

covery and Integration (UDDI) (Clement et al., 2004).

UDDI serves as a centralised repository of WSDL

documents. A similar concept is iServe (Pedrinaci

et al., 2010). This platform aims to publish web ser-

vices as what they called Linked Services — linked

data describing services —, storing web service deﬁ-

nitions as semantic annotations, so that other seman-

tically aware applications may take advantage of it.

However, the platform does not handle the step from

deﬁnition to consumption of the services.

3 CONTEXT: THE FAST

PLATFORM

The intention of this paper is to demonstrate the ad-

vances made regarding web service discovery and

consumption through two artifacts developed as part

of our research: the publishing and discovery plat-

form and the service wrapper tool. While these arti-

facts may be deployed and used separately by third-

party applications, they were originally developed

to form the backbone of the FAST platform (Hoyer

et al., 2009). FAST constitutes a novel approach to

application composition from a user-centric perspec-

tive. It is aimed at allowing users without previ-

ous programming experience to create their own sit-

uational applications by visually combining different

building blocks, such as graphical forms and back-end

services, based on their inputs and outputs (or pre-

and post-conditions). The work covered in this paper

are the components highlighted in Fig. 1 by a dashed

line. Communication within the platform is mostly

done via a RESTful API, using JSON as an exchange

syntax.

Publishing/Discovery

Platform (Catalogue)

Service

Wrapper

Inference

Engine

RDF Store

Widget Designer

Service

Wrapper Tool

Other

applications

FAST GVS (Gadget Visual Storyboard)

FAST Server

Persistent

Manager

User

Proﬁles

SPARQL

endpoint

code

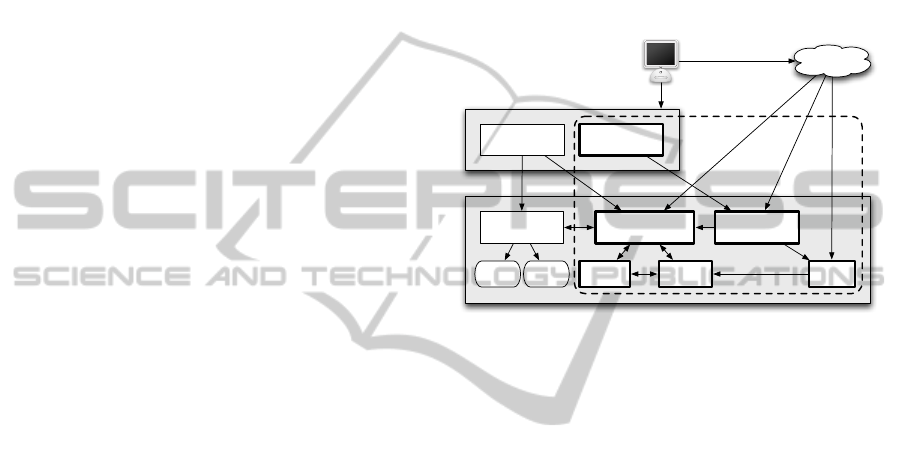

Figure 1: Overview of the FAST architecture.

In order to provide a better understanding of these

components, we describe a number of concepts re-

lated to FAST in this section. A gadget is the end

product of the platform, ready to be run in any or-

dinary web browser, usually through a mashup plat-

form. An undeployed gadget is also called screenﬂow,

which comprises a set of screens connected through

their pre- and post-conditions. A screen is the most

complex building block fully functional by itself, vi-

sually similar to a tab in a tabbed application. It is

composed by a form conveying the graphical inter-

face, and a set of operators and back-end services,

wrapped into so-called service resources.

The publishing platform, also called catalogue,

covers several important purposes, such as storage,

indexing, publication and search of gadgets, gadget

building blocks and user proﬁles. The service wrap-

per tool is used to create wrappers for third-party web

services, transforming them into building blocks to be

stored and reused within the FAST platform.

4 PUBLISHING AND DISCOVERY

PLATFORM

As explained in previous sections, current solutions

and strategies for web service publication and dis-

covery suffer from limited syntax-based descriptions

WEB SERVICE WRAPPING, DISCOVERY AND CONSUMPTION - More Power to the End-user

335

and simple keyword-based search, while other more

complex approach failed because the added complex-

ity did not offer sufﬁcient beneﬁts. This paper there-

fore presents a novel publishing platform (the cata-

logue), permitting any enterprise or individual to pub-

lish their public web services, providing enhanced se-

mantic search service wrappers for easy consumption

in web applications.

4.1 Overview

One of the main difference of this platform with re-

gards to the state of the art is that it is targeting a dif-

ferent kind of user. As a brief overview, the platform

being presented:

• allows functional discovery through web service

pre- and post-conditions;

• serves web services wrappers ready to consume in

web applications;

• provides advanced search capabilities, based on

the formal service deﬁnition and inferences ex-

tracted from it;

• supports managing its resources via its RESTful

API;

• offers a SPARQL endpoint, giving direct access to

the data through complex queries;

• offers web service descriptions as linked data;

• follows well-known best practices for publishing

data on the web;

• supports content negotiation so that different

clients may retrieve information in their preferred

format, choosing from JSON, RDF/XML, RD-

F/N3 or a human-readable HTML version.

The enriched search capabilities are supported by

the deﬁnition of pre- and post-conditions. They al-

low to deﬁne the inputs and outputs of the services

and other building blocks using concepts from any on-

tology, and in this way to ﬁnd web services or other

building blocks which can be integrated. The con-

cepts of pre-/post-conditions were strongly inﬂuenced

by WSMO (Roman et al., 2005), simpliﬁed and im-

plemented in RDFS for better live performance.

The catalogue architecture comprises an RDF

store used for persistence, a business layer dealing

with the model and reasoning, and a public facade

providing the core functionality as a RESTful API, as

well as a SPARQL endpoint accessing the RDF store

directly. This presentation layer is aimed to interact

with the FAST Gadget Visual Storyboard (see Fig. 1),

or any other third-party application.

4.2 Conceptual Model

The conceptual model used to deﬁne the web ser-

vice wrappers within this application has been inﬂu-

enced by both WSDL and semantic approaches such

as WSMO and OWL-S. It is part of a more com-

plex conceptual model for FAST (M

oller et al., 2010),

which can be grouped into three levels: the gadget

and screenﬂow level at the top, the level of individual

screens in the middle, and the level of web services at

the bottom. All these building blocks and their sub-

parts share the same structure: a set of actions (like

operations in WSDL), each of which needs a set of

pre-conditions (inputs) to be fulﬁlled in order to be

executed, and provides a set of post-conditions (out-

puts) to other building blocks. These pre- and post-

conditions are deﬁned as RDF graph patterns. E.g.,

the post-condition of a login service such as “there

exists a user” will be expressed as a simple pattern

such as “?user a sioc:User”

. Using this mech-

anism, extended by RDFS entailment rules, services

and other building blocks can be matched automati-

cally. The publishing and discovery platform can em-

ploy this functionality to support the internal discov-

ery of web services based on the current user needs

(expressed in the same way as pre-conditions).

4.3 Discovery Mechanisms

The main goal of the discovery process is to aid the

user in ﬁnding suitable building blocks to comple-

ment the ones they are already using. E.g., on the

screen-ﬂow level, this would mean to suggest ad-

ditional screens to make existing screens within a

screen-ﬂow reachable, and the screen-ﬂow therefore

executable. The platform offers two mechanisms

to ﬁnd and recommend screens (or other building

blocks) stored in the catalogue: a simple discovery

based on pre- and postconditions, and a multi-step

discovery or planning algorithm. Before being pre-

sented to the user, the results are being ranked, as dis-

cussed in Sect. 4.3.3.

4.3.1 Simple Discovery based on Pre- and

Post-conditions

In this simple approach, the platform will assist the

process by recommending all building blocks which

will satisfy currently unfulﬁlled pre-conditions. The

pre-conditions of all the unreachable building blocks

are collected as a graph pattern, which is then

We use Trig (http://www4.wiwiss.fu-berlin.de/bizer/

TriG/) and SPARQL (http://www.w3.org/TR/rdf-sparql-

query/) notation for RDF graphs throughout this paper.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

336

matched against the post-conditions of all available

building blocks. In the following scenario, there

are two screens: s1 and s2. s1 has as a pre-

condition: “there exists a search criteria”, and as a

post-condition: “there exists a item”. s2 has just a

pre-condition stating: “there exists a search criteria”.

: G1 { : s1 a f go : S cr een .

: s1 f g o : h a s P re co nd it i o n c1 .

: s1 f g o : h a s P os tc on d i t io n c2 .

: c1 f g o : h as Pa tt er n GC1 .

: c2 f g o : h as Pa tt er n GC2 .

: s2 a fgo : S cre en .

: s2 f g o : h a s P re co nd it i o n c3 .

: c3 f g o : h as Pa tt er n GC3 }

: GC1 { _ : x a am az on : Se ar ch C r i te ri a }

: GC2 { _ : x a am az on : Item }

: GC3 { _ : x a am az on : Se ar ch C r i te ri a }

The algorithm will construct a SPARQL query to

retrieve building blocks satisfying the pre-conditions

c1 and c3. The query, although simpliﬁed for the sake

of clarity, would look something like:

SELECT DISTINCT ? bb

WHERE {

? bb a fgo : S cre en .

{ { ?bb fgo : ha s P os tC on d i t io n ? c .

?c fgo : h as Pa tt er n ? p .

GRAPH ? p { ? x a a ma zon : S ea rc hC ri t e r ia }

} UNION {

? bb f g o : h a s P os tC on d i t io n ? c .

?c fgo : h as Pa tt er n ? p .

GRAPH ? p { ? x a a ma zon : Ite m } } }

FILTER (? b b != < htt p : // f ast . org / s cr ee ns / S1 >)

FILTER (? b b != < htt p : // f ast . org / s cr ee ns / S2 >) }

4.3.2 Enhanced Discovery: Search Tree

Planning

In artiﬁcial intelligence, the term planning originally

meant to search for a sequence of logical operators

or actions that transform an initial state into a desired

goal state.

In contrast to the simple approach, the planning

approach ﬁnds sets of building blocks to fulﬁl the pre-

conditions of a given building block (e.g., a screen).

For a certain state, i.e., the initial state which con-

tains the pre-condition to fulﬁl, a large search tree of

possible continuations is considered. Those building

blocks cannot satisfy the unsatisﬁed pre-conditions

are discarded, reducing the branches of the tree. A

branch stops growing when a building block is reach-

able (i.e., it has no unfulﬁlled pre-conditions). Once

there are no screens added in a certain step, the algo-

rithm stops and discards all incomplete branches.

It should be pointed out that some of the tree struc-

ture is pre-computed to speed up the querying pro-

cess at runtime. Any time a building block is inserted

into the catalogue, the algorithm is executed follow-

ing two approaches: forward search and backward

search. The forward search approach ﬁnds the build-

ing blocks whose pre-conditions will be satisﬁed by

the post-conditions of the new building block while

the backward search ﬁnds the building blocks whose

post-conditions will satisfy the pre-conditions of the

recently created building block.

4.3.3 Results Ranking

This section explains the ranking techniques applied

for the different discovery mechanisms.

The ranking algorithm for the simple approach ap-

plies the following rules: (1) it gives a higher posi-

tion to those building blocks which satisfy the high-

est number of pre-conditions; (2) it prioritises build-

ing blocks created by the same user who is querying;

(3) it adjusts the rank by using the ratings given to the

building blocks, and their popularity in terms of usage

statistics; (4) it weights the results according to non-

functional features such as availability. This is only

applied for what we call “web service wrapper”, and

it is calculated periodically by invoking the wrapped

web services.

For the planning case, the objective is not only to

produce a plan but also to satisfy user-speciﬁed pref-

erences, or what is known as preference-based plan-

ning. The ranking algorithm: (1) minimises the size

of the plans, after removing the elements of the plan

which are already in the canvas, so it gives priority to

the elements the user has already inserted, (2) adjust

the rank by using the rules 2, 3 and 4 used from the

ranking algorithm of simple discovery based on pre-

and post-conditions.

4.4 Serving Linked Data

The idea of a Web of data has recently seen a re-

markable uptake, e.g. highlighted by large players

such as the New York Times, the BBC or an increas-

ing number of national governments (most notably

the US and UK governments). We apply this con-

cept in order to provide metadata about the web ser-

vices as linked data, following the principles as de-

ﬁned in (Bizer et al., 2009), in order to make them

available to arbitrary third-party applications. Each

web service is identiﬁed by an HTTP URI and hosted

in the publishing platform so that it can be derefer-

enced through the same URI. For each building block,

data is available in representations in different stan-

dard formats such as JSON (for communication with

the applications such as the widget designer shown

in Fig. 1), RDF/XML, Turtle, or even HTML+RDFa

as a human-readable version. To do this, we employ

WEB SERVICE WRAPPING, DISCOVERY AND CONSUMPTION - More Power to the End-user

337

content-negotiation, such as proposed as a best prac-

tice in (Sauermann et al., 2008).

5 WRAPPING WEB SERVICES

Before third-party services can be used by our plat-

form, they need to be provided with a service wrap-

per. In our approach, this is done in two steps:

(i) constructing an exemplary service request, and

(ii) analysing the response received from the execu-

tion of the service, allowing the mapping of the re-

sponse data to domain-speciﬁc concepts to be used

as pre- and post-conditions. From this input, the tool

then generates the actual wrapper — JavaScript code

to be embedded into web gadgets.

5.1 Constructing Service Requests

We now illustrate the interaction with RESTful ser-

vices on simple GET requests

. In this case, a ser-

vice request is assembled using its URL and a set

of parameters. As an example, we will look at the

eBay Shopping web service. To deﬁne the desired

pre-condition and the type of post-condition of a new

service wrapper, the service wrapper tool provides

a form (not shown here). For the current example,

we assume that the user has deﬁned a pre-condition

search key. We are invoking the service to retrieve

a list of items corresponding to the search keyword

“USB”:

htt p : / / o pen . api . s an db o x . ebay . com / sho pp in g ?

app id = Kass elUn - efea - xx x & ve rs io n = 517 &

ca ll n am e = Fi nd I t e ms & I te m So rt = E n dT im e &

Qu er yK ey w o r d s = USB & Re sp on se E n c od in g = X ML

The various parameters in the example are deﬁned

by the service provider. However, the most relevant

one for our example is QueryKeywords, which com-

municates to the services what we are looking for. An

example of service request construction is shown in

the Fig. 2. In the “Request” input ﬁeld the user en-

ters an example HTTP request, e.g. the one above.

The tool analyses the request and provides a form for

editing the request parameters. In our example, the

user has connected the service’s QueryKeywords pa-

rameter with the wrapper’s search key pre-condition.

Requests constructed in this way can then be sent off

to the service, whose response is shown in the bottom

text area.

Other methods such as POST or SOAP-based services

are also supported.

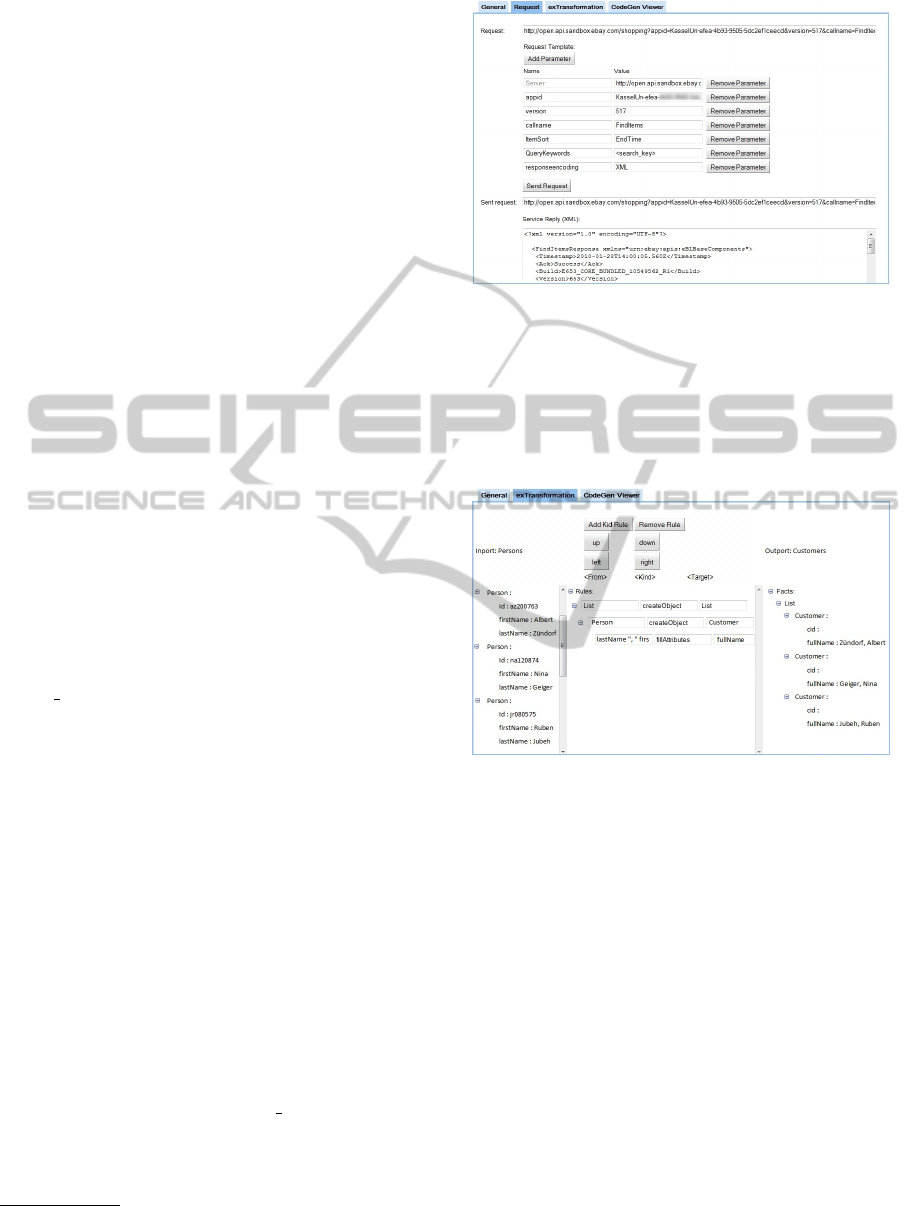

Figure 2: Constructing the service request.

5.2 Interpreting Service Responses

Once the service response has been retrieved, the

transformation tab of the wrapper tool shows it as an

interactive object tree, as seen in Fig. 3.

Figure 3: Rule-based transformation of service response.

A transformation rule is used to analyse the

response data and generate the wrapper’s post-

conditions. Such a rule is composed of three ele-

ments, as seen in the middle part of Fig. 3. The from

ﬁeld indicates the source elements to be translated by

the rule. The second part deﬁnes the type of rule (see

below). Thirdly, the target of the rule speciﬁes a cer-

tain concept or attribute, to be created or ﬁlled. Rules

can be chained together in a rule tree. A detailed ex-

planation of the different rule types is as follows:

createObject speciﬁes the creation of a new post-

condition of the type speciﬁed in the third part of the

rule. In the example in Fig. 2, the root rule could

search for source elements with name FindItemsRe-

sponse and create a post-condition of type List for

each such element. The resulting objects are shown

in a facts tree in the right of the ﬁgure.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

338

ﬁllAttributes only ever appear as sub-rules in the

rule tree. They match source elements deﬁned in the

ﬁrst part of the rule. The third part deﬁnes the attribute

of the super-rule that will be ﬁlled (e.g., fullName in

Fig. 3).

dummy does not create or modify any objects but

instead narrows the search space for their sub-rules,

by selecting certain elements in the source tree and

ignoring others.

Our tool follows an interactive paradigm. Any

time a change to a transformation rule is done, the

transformation process is triggered and the resulting

facts tree is shown. This aids the user to deal with the

complexity of the transformation rules, preventing er-

rors or mistakes. In addition, the tool is ontology-

driven, meaning that possible post-condition types

and their attributes are selected from domain ontolo-

gies loaded in the system.

5.3 Generating the Service Wrapper

Once the wrapping of a service has been deﬁned

and tested in the tool, we generate an implementa-

tion of the desired speciﬁcation in XML, HTML, and

JavaScript, ready to be deployed and executed inside

a web gadget.

6 CONCLUSIONS AND FUTURE

WORK

It has been argued that adopting web services stan-

dards helps enterprises to increase operational efﬁ-

ciency, reduce costs and strengthen the relations with

partners. A range of WS standards help in this re-

gard. However, when dealing with end-users, the

process for publication and consumption is not well

supported. In a move towards improving this situa-

tion, the work presented in this paper empowers the

end-user with a platform (the catalogue) to easily se-

lect services based on functional behaviour (pre-/post-

conditions) and other metadata, being able to down-

load a so-called resource adapter allowing the con-

sumption of web services using standard languages

to execute within a web browser, and a tool to trans-

form, in an interactive manner, formal deﬁnitions of

web services into these resource adapters, ready for

being published into the catalogue.

As potential future work, we consider to in-

clude semantically enriched WSDL documents us-

ing SAWSDL, and to support other SWS approaches

such as WSMO-lite services, making the web service

wrapping a semi-automatic (or automatic) process.

As regards to the discovery, once the catalogue begins

to be populated, applying techniques such as frequent

itemset mining or collaborative ﬁltering could be an

interesting way to offer better recommendations to the

users.

ACKNOWLEDGEMENTS

This work is supported in part by the European Com-

mission under the ﬁrst call of its Seventh Framework

Program (FAST, ICT-216048, and digital.me, ICT-

257787) and in part by Science Foundation Ireland

under Grant No. SFI/08/CE/I1380 (L

ıon-2).

REFERENCES

Bizer, C., Heath, T., and Berners-Lee, T. (2009). Linked

data - the story so far. International Journal on Se-

mantic Web and Information Systems (IJSWIS).

Clement, L., Hately, A., von Riegen, C., and Rogers,

T. (2004). UDDI version 3.0.2 speciﬁcation.

http://uddi.org/pubs/uddi v3.htm.

Hoyer, V., Janner, T., Delchev, I., L

opez, J., Ortega, S.,

Fern

andez, R., M

oller, K. H., Rivera, I., Reyes, M.,

and Fradinho, M. (2009). The FAST platform: An

open and semantically-enriched platform for design-

ing multi-channel and enterprise-class gadgets. In The

7th International Joint Conference on Service Ori-

ented Computing (ICSOC2009), Stockholm, Sweden.

oller, K., Rivera, I., Ure

na, M. R., and Palaghita, C. A.

(2010). Ontology and conceptual model for the se-

mantic characterisation of complex gadgets. Deliver-

able 2.2.2, FAST Project (FP7-ICT-2007-1-216048).

Pedrinaci, C., Liu, D., Maleshkova, M., Lambert, D.,

Kopeck

y, J., and Domingue, J. (2010). iServe: a

linked services publishing platform. In Workshop:

Ontology Repositories and Editors for the Semantic

Web at 7th Extended Semantic Web Conference.

Pilioura, T. and Tsalgatidou, A. (2009). Uniﬁed publication

and discovery of semantic web services. ACM Trans.

Web, 3(3):1–44.

Roman, D., Keller, U., Lausen, H., de Bruijn, J., Lara, R.,

Stollberg, M., Polleres, A., Feier, C., Bussler, C., and

Fensel, D. (2005). Web service modeling ontology.

Applied Ontology, 1(1):77–106.

Sauermann, L., Cyganiak, R., Ayers, D., and V

olkel, M.

(2008). Cool URIs for the Semantic Web. Inter-

est group note, W3C. http://www.w3.org/TR/cooluris/

05/05/2009.

Shi, X. (2007). Semantic web services: An unfulﬁlled

promise. IT Professional, 9:42–45.

WEB SERVICE WRAPPING, DISCOVERY AND CONSUMPTION - More Power to the End-user

339
