AGMI - AN AGENT-MINING TOOL AND ITS APPLICATION TO

BRAZILIAN GOVERNMENT AUDITING

Carlos Vin

ıcius Sarmento Silva

Controladoria-Geral da Uni

ao, SAS, Qd 01, Bl A, Edif

ıcio Darcy Ribeiro, Bras

ılia, DF, CEP 70.070-905, Brazil

elia Ghedini Ralha

Computer Science Department, University of Bras

ılia, POBox 4466, Bras

ılia, DF, CEP 70.904-970, Brazil

Keywords:

Agent-mining tool, Brazilian government auditing, AGMI, e-Government.

Abstract:

This paper presents research combining two originally separated areas increasingly interrelated: distributed

multi-agent systems and data mining. In our approach, we prove the interaction features in a bilateral and

complementary way, since we have deﬁned an integrated architecture and developed a prototype, which has

been used in a government auditing study case. In Brazil, government auditing is performed by the Ofﬁce

of the Comptroller General (CGU), where several approaches are being used to prevent and ﬁght corruption.

However, some activities such as government purchasing fraud detection are limited by the difﬁculty in ﬁnding

effective ways to implement. Considering data mining perspective, we have used different model functions,

such as clusterization and link analysis with association rules. Our approach integrating multi-agent and data

mining techniques resulted in expressive discovered knowledge, which would help detection of cartels acting

in public bidding processes at CGU.

1 INTRODUCTION

The CGU is the agency of the Federal Govern-

ment in charge of assisting the president of Brazil

in matters which, within the executive branch,

are related to defending public assets and en-

hancing management transparency through inter-

nal control activities, public audits, corrective and

disciplinary measures, corruption prevention and

combat, and coordinating ombudsman’s activities

(http://www.cgu.gov.br/english/).

Nowadays, a large volume of information has

been produced and stored by the Brazilian govern-

ment information systems. Considering only 2009,

the Federal Accountability System (SIAFI) registered

one billion of ﬁnancial transactions. All this data are

normally used to support the preparation and execu-

tion of government auditing. In this way, CGU has

driven efforts to apply technologies in order to pro-

mote transparency and prevent corruption. However,

the analysis of the available data to produce useful

knowledge to auditing activities is a hard task. Data

mining (DM) and knowledge-discovery in databases

(KDD) are playing an important role, especially when

integrated to other computational techniques to ana-

lyze and explore information.

In the past decade, intelligent agents/multi-agent

systems (MAS) and DM/KDD have emerged as

two increasingly interrelated research areas, opening

space to the agent-mining interaction and integration

(AMII) research ﬁeld. This new ﬁeld has driven ef-

forts from both sides to ﬁnd beneﬁts and comple-

mentarities to both communities (Cao, 2009; Ralha,

2009).

In the context of CGU and AMII research ﬁeld,

this paper presents an agent-mining tool – AGMI.

AGMI has been tested using the Brazilian Gov-

ernment Auditing data, in order to help to pre-

vent corruption through KDD. The Brazilian Fed-

eral Bidding database used is entitled ComprasNet

(http://www.comprasnet.gov.br/).

The rest of this paper is presented as follows:

in Section 2, we discuss the problem at the Brazil-

ian Government Auditing domain; in Section 3, we

present AGMI architecture and prototype; in Sec-

tion 4, we present the experimental results and the

discovered knowledge; and ﬁnally, in Section 5, we

conclude and suggest future work.

535

Vinícius Sarmento Silva C. and Ghedini Ralha C..

AGMI - AN AGENT-MINING TOOL AND ITS APPLICATION TO BRAZILIAN GOVERNMENT AUDITING.

DOI: 10.5220/0003333905350538

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WEBIST-2011), pages 535-538

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 THE PROBLEM

In general, the identiﬁcation of cartels is a difﬁcult

task since it requires analysis of several public bid-

ding processes, which usually exceeds the scope of

only one government department. Cartels can op-

erate in various government departments, cities and

even states of the Federation. Furthermore, the anal-

ysis of data from databases using Structured Query

Language (SQL) queries is also impractical because

of the exponential solution space. Thus, the problem

consists in creating an efﬁcient way to identify groups

of companies which might be suspected of practicing

cartels in public bidding processes.

In (Silva and Ralha, 2010), a solution using As-

sociation Rules to help solving the problem of car-

tels detection in public bidding processes is proposed.

The proposal is due to the fact that this technique is

useful to ﬁnd strong relationships among attributes.

Thus, it is possible to apply this technique creating

a dataset, so each attribute is a boolean value, which

indicates the participation or not of the company in

each bidding process of the database. The dataset for

association rule technique must be constructed as the

matrix A consisting of m rows and n columns, where

m is the total of bidding processes from database and

n is the total of companies from database.

i, j

(

true if j has participated of i

f alse if j has not participated of i

1 ≤ i ≤ m; 1 ≤ j ≤ n;

where i is a bidding and j is a company

Thus, we expect to obtain rules with transi-

tive properties, like the following: company

true, company

= true → company

= true.

However, tasks like dataset preparation, the exe-

cution of different DM algorithms and rule evaluation

are adequate to be integrated to the MAS approach,

considering either the distribution aspects of the au-

tomated tasks or the parallel execution of algorithms.

Thus, we have to propose a way to improve the time

execution of the tasks, since it took us weeks to per-

form manually the tasks of DM using Weka.

3 AGMI ARCHITECTURE AND

PROTOTYPE

DM has many characteristics, which make interac-

tion and integration to MAS possible by combining

KDD through the different DM techniques. In this

section, we present our architecture of cooperative

DM, which uses two frameworks: Java Agent De-

velopment Framework (JADE), a Java framework to

support the development of MAS (Bellifemine et al.,

2007); and Data Mining for Agents (DMA), a Weka-

based framework, developed to enable integration of

DM in a multi-agent environment.

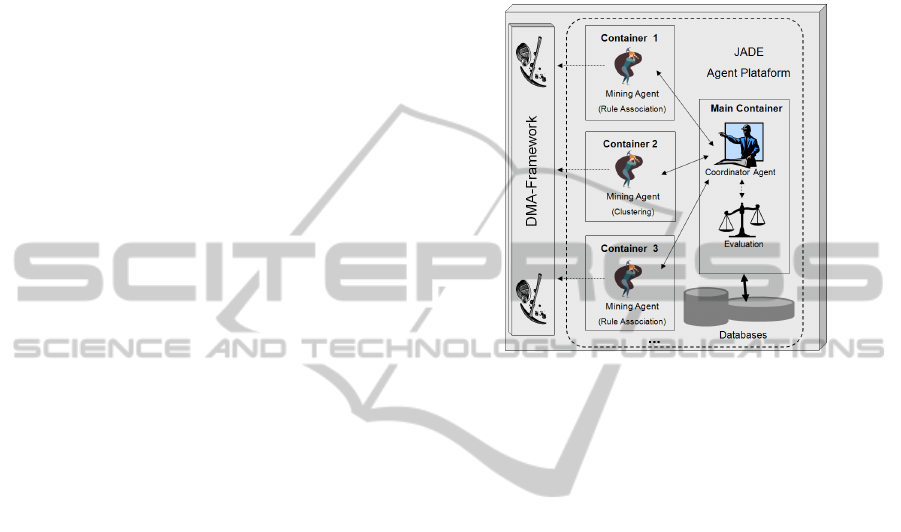

Figure 1: AGMI Architecture Schema.

Figure 1 presents the structural schema of AGMI.

The agents run on JADE platform, and may be dis-

tributed among different physical hosts. The model

uses three different types of agents: Mining Agent,

Coordinator Agent and Evaluator Agent.

Mining Agent – responsible for running speciﬁc

DM algorithms. Thus, we have multiple agents

performing the same or different services of DM,

whereby the DM services are classiﬁed by DM tech-

niques (e.g. Association Rule Service, Clustering Ser-

vice).

Coordinator Agent – responsible for overall coor-

dination of the DM activities executed by the mining

agents. It prepares datasets for the agents and coordi-

nates the interactions allowing the cooperation among

different agents. It also has the ability to hire a mining

agent to perform a service required. When the service

required is provided by more than one agent, the co-

ordinator chooses the agent that has the best proﬁle

to perform the task, based on memory and process-

ing capacities. Agent services can be found in JADEs

Yellow Pages – a service provided by JADE to pub-

lish the services of registered agents (Directory Facil-

itator).

Evaluator Agent – responsible for evaluating the

found knowledge before being presented to the user.

In general, DM algorithms work with evaluating crite-

ria (e.g. support and conﬁdence in association rules).

However, it is possible to adopt other criteria to dis-

covered knowledge. Thus, we can adapt this agent

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

536

to perform a speciﬁc function or just deﬁne the mini-

mal values of covering and accuracy of rules resulting

from mining algorithms.

4 EXPERIMENTAL RESULTS

In order to test AGMI, we used real data from Com-

prasNet – the Brazilian Federal Bidding online sys-

tem. The used data is relative to all bidding processes

of a speciﬁc type of service contracted by Federal

Executive agencies, between years 2005 and 2008,

including all states of Brazil (26 states + the Fed-

eral District). The database includes 26,615 records,

2,701 bidding processes and 3,051 companies. Each

record in the dataset represents one bid of a company

in a speciﬁc bidding process.

4.1 First Experiment

We started our experiments with AGMI using three

agents: the coordinator, the evaluator and the rule as-

sociation agent. The Rule Association Agent used the

Apriori algorithm, available in Weka framework. The

algorithm has been adapted to DMA in order to be

used in a multi-agent environment. In previous tests,

before AGMI prototype was implemented (Silva and

Ralha, 2010), we found that a rule with high lower

bound of support might just imply the presence of big

companies in bidding processes (frequent itemsets).

Thus, setting a high lower bound of support in this al-

gorithm can suppress the appearance of several good

rules, with real features of cartels. On the other hand,

high lower bound of conﬁdence ensures the selection

of good rules.

With the help of experts, in our ﬁrst experiment

with AGMI, we set the lower bound of support to

get rules with 9 occurrences on the database, and the

lower bound of conﬁdence was set in 90%. We have

also deﬁned Equation 1 for evaluating the rules ob-

tained through the DM process. This function was im-

plemented in the Evaluator Agent for measuring the

quality of the rules, and means the probability of one

company of the suspicious group winning a bidding

process. The higher the Rule Quality (RQ) value, the

more suspicious the group is of cartel practicing.

RQ = 100.

V (C)

Sup. × Inst.

(1)

In Equation 1, Sup. is the rule support value; Inst.

is the total number of instances; C is the company

set from rule; B is the bidding processes where the

company group C has participated; and V (C) is the

number of victories in B of any company in C.

We ran our tests using two computers: Host A (In-

tel Core 2, 2.40 GHz, 2.00 GB RAM) and Host B

(Intel Pentium Dual, 1.86 GHz, 2.00 GB RAM). The

coordinator and evaluator agent were set in Host A,

and the association rule agent was set in Host B. In

this experiment, we found 128 rules, and the execu-

tion time was 29 minutes. The top 100 rules scored

an average of 16.56 in RQ evaluation. The average of

support, on the other hand, was 30.98.

The top 10 rules scored an average of 33.00 in RQ

evaluation, and the average of support was 26.90. The

best rule, according to Equation 1 had 46 points of RQ

and 26 of support. As noticed, the top ten rules have

a smaller average support than the top 100 rules. Val-

idating the results with auditing experts, we conclude

that higher limits of support do not guarantee better

rules.

4.2 Second Experiment

In the First Experiment, with only one mining agent

in the system (Rule Association), we couldn’t set the

lower bound support to less than 24. This happened

due to the lack of memory resources available in our

machines. As lower the bound of support is set, as

more memory is consumed by the rule association al-

gorithm. Furthermore, it’s quite possible to have rules

with support less than 24 with real characteristics of

a cartel. Thus, we needed to introduce a strategy to

divide our space to seek the groups more accurately.

For this, clustering is an appropriate DM technique to

do such activity.

In addition to the Rule Association Agent we

have used Clustering Agent, which implemented the

Expectation-Maximization (EM) algorithm to dis-

cover clusters considering the companies and the

Brazilian states. According to (Han and Kamber,

2005), in EM algorithm, each object is assigned to

each cluster according to a weight representing its

probability of membership. For the experiments with

the Clustering Agent we have included it in Host A.

With the addition of the Clustering Agent, we

found the regions of public biddings, and the com-

panies that participated of those biddings in each re-

gion. Seven clusters of states were found, and, for

each cluster region, the rule association agent ran his

technique searching associated companies. The found

clusters were: 1 - {AM, PA, AC, RO, AP, RR, MT,

MS, RJ, ES and MG}; 2 - {RS, SC, PR}; 3 - {BA,

SE}; 4 - {PE, PB, RN, CE, PI, MA} 5 - {TO, DF,

GO}; 6 - {SP}; 7 - {AL}.

We found in this experiment 6,150 rules. In the

top 100 rules, we found an average of 69.71 in RQ,

and 9.78 of support. In the top 10 rules, the RQ

AGMI - AN AGENT-MINING TOOL AND ITS APPLICATION TO BRAZILIAN GOVERNMENT AUDITING

537

average was 89.70, and the average of support was

9.40. The time spent in the execution was 75 minutes.

Based on this result, we can notice that the addition

of the Clustering Agent improved the results dramat-

ically. Considering the top 10 rules of both experi-

ments, the values for quality of rules has grown up

more than 150%.

If we compare the average of the Top 100 rules,

the Second Experiment presents an average more than

4 times greater than the First Experiment’s average.

With the addition of the Clustering Agent in our tests,

the search space was divided, and so it was possible

to reduce the lower bound of support generating more

and better rules. Thus, we improved a lot the quality

of rules produced by the system. This proves the po-

tential to integrate different DM techniques to SMA.

We also expected that all clusters were made

up by states with common borders. In general,

the companies do not act in states far from each

other. However, the results have shown one cluster

with large proportions and with some very discon-

nected states (Cluster 1). For more information about

the geographic position of the Brazilian states, visit

http://www.ibge.gov.br/estadosat/.

4.3 Discovered Knowledge

The experiments present lots of rules, specially the

second one (Section 4.2), due to the value of lower

bound of support. And several rules presented by the

Evaluator Agent after the execution showed lots of

company groups with evidence of cartel acting. The

Clustering Agent result also revealed the trends of

companies’ participation in public bidding in Brazil.

Following, we present some of the best rules as exam-

ple of discovered knowledge:

• In 9 different public biddings in the same state,

and in just one government agency, one rule has

pointed the participation of two speciﬁc compa-

nies. In spite of the fact that both companies have

participated in all biddings, just one of the com-

panies has won all of the biddings. When we an-

alyzed the history of the loser company, we found

that it had only participated in those 9 exactly bid-

ding processes, evidencing a possible simulation

of competition to hide the cartel characteristics.

Probably the company was created just to sim-

ulate competition in the public biddings, where

competition is mandatory.

• A group with cartel characteristics, made up by

4 companies, has acted in Region 2 in 10 differ-

ent public biddings, and has won 9 of these. Two

companies of that group have appeared in other

7 different groups, in the same region, discovered

by other rule association.

5 CONCLUSIONS AND FUTURE

WORK

Apart from being in charge of inspecting and detect-

ing frauds in the use of federal public funds, the CGU

is also responsible for developing mechanisms to pre-

vent corruption. Thus, in this article we presented the

Agent-Mining Tool – AGMI, a MAS based tool to

support distributed DM activities which was used at

the Brazilian Government Audition domain.

In addition to enable the combination of distinct

DM techniques, in order to improve the KDD process,

AGMI also includes the DMA (Weka-based frame-

work) made up by a set of DM algorithms adapted to

multi-agent environment.

We tested AGMI as a proposed solution to the

problem of detecting cartels in public biddings. Two

experiments were conducted and the results proved

that AGMI is a potential solution for the problem.

Several association rules indicating evidences of car-

tel acting in public biddings were found. Besides, the

combination of DM techniques enabled an increase of

150% in the quality of the top ten association rules.

For future work, we will study the inclusion of

other DM techniques and the reduction of the over-

all processing time, through different data preparation

methods and its automation. We are also studying

other mechanisms and heuristics to use, in order to

improve our agents interaction protocol, and to give

more autonomy to coordinator and evaluator agents

during the KDD process.

REFERENCES

Bellifemine, F. L., Caire, G., and Greenwood, D. (2007).

Developing Multi-Agent Systems with JADE. Wiley.

Cao, L. (2009). Introduction to agent mining interaction

and integration. In Cao, L., editor, Data Mining and

Multi-agent Integration. Springer US.

Han, J. and Kamber, M. (2005). Data Mining: Concepts

and Techniques. Morgan Kaufmann Publishers Inc.,

San Francisco, CA, USA.

Ralha, C. G. (2009). Towards the integration of multiagent

applications and data mining. In Cao, L., editor, Data

Mining and Multi-agent Integration. Springer US.

Silva, C. V. S. and Ralha, C. G. (2010). Utilizac¸

de t

ecnicas de minerac¸

ao de dados como aux

ılio

na detecc¸

ao de cart

eis em licitac¸

oes. In XXX

Congresso da Sociedade Brasileira de Computac¸

(SBC/WCGE), Porto Alegre, RS, Brazil.

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

538
