Framework for Smart Space Application Development

Andr

e Kaustell, M. Mohsin Saleemi, Thomas Rosqvist, Juuso Jokiniemi, Johan Lilius

and Ivan Porres

Department of Information Technologies, Turku Centre for Computer Science (TUCS)

Abo Akademi University, Turku, Finland

Abstract. The smart space concept envisions interoperability for creating multi-

domain inter-device service mashups, and innovative applications. This paper

presents an appraoch to create an abstraction layer and appropriate tools for rapid

application development for the low-end devices that run agents to access a smart

space. We present our proposed framework, describe the overall process for ap-

plication development and explore the features of a real-world implementation.

We describe a case study implementation to illustrate the functionality of the pro-

posed framework. This case study shows that interoperability can be realized by

the agents that describe information about themselves using some common on-

tology.

1 Introduction

Recent advances in information and communication technologies have made available

the device, service and information rich environment for the users. It helps simplify and

manage complex lives e.g the ubiquitous smartphone that manages your calender, con-

tacts and task-list and helps you keep your life organized, or the PVR whose time-shift

functionality allows us to watch TV programming when we want, not at the time pre-

scribed by the broadcaster. However each of these devices is basically an island, with

no proper connectivity between the applications. In order to take full advantages of in-

formation rich environment, devices need to interact with each other. Although some

devices are able to interoperate, this is usually possible between devices by the same

manufacturers e.g the connectivity in a home cinema system. These proprietary solu-

tions have limitations in terms of scalability and interoperability. By exposing the inter-

nal data and functionality of the devices and ensuring interoperability of data, a whole

new universe of applications will be possible. For example, your phone could notice

that your favorite TV program will start in 5 minutes, based on your proﬁle information

or on a fan page on facebook and on the TV guide available on the broadcaster’s web

page. Then it could use GPS to realize that you are not at home, and deduce that it needs

to start the PVR at home.

To enable this kind of cross-domain scenarios, there are many technical and con-

ceptual problems to be solved. One way to address these issues is through the notion

of smart space. Smart space is an abstraction of space that encapsulates both the in-

formation in a physical space as well as access to this information, such that it allows

Kaustell A., Mohsin Saleemi M., Rosqvist T., Jokiniemi J., Lilius J. and Porres I..

Framework for Smart Space Application Development.

DOI: 10.5220/0003332500030012

In Proceedings of the International Workshop on Semantic Interoperability (IWSI-2011), pages 3-12

ISBN: 978-989-8425-43-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

devices to join and leave the space. In this way, smart space becomes a dynamic envi-

ronment whose membership changes over time when the set of entities interact with it

to share information between them. For example, communication between the mobile

phone and the PVR in the above scenario does not happen point-to-point but happens

through the smart space whose members are the mobile phone and the PVR.

Our research is focused on rapid and easy developement of smart space applications.

We have developed user level tools that enable application developers to create innova-

tive smart space applications using traditional object-oriented programming concepts.

The main contributions of this paper include the framework for the application devel-

opement approach and the results from a practical case study implementation using our

framework.

The rest of the paper is organized as follows. In Section 2 we provide related work

in this area. Section 3 gives an overview of the Smart-M3 concept. Section 4 presents

our approach towards the development of the framework. The same section also de-

scribes the proposed framework, its implementation and validation in detail. Section 5

presents the implementation detail and results of a practical application scenario using

our framework to give the proof of concepts. In Section 6, we present our conclusions

and depict directions for future work.

2 Related Work

Research in the area of middleware and application development for ubiquitous comput-

ing has provided many research concepts and prototype development of these concepts.

The work presented in [7] is an example of an ubiquitous computing approach consist-

ing of networked devices and services and enables the end-users to combine, conﬁgure,

and control the services using their smart devices. The described work provides proto-

type implementation and an example of composing tasks perceived by the end-users by

mapping the concepts to the available devices through semantic matching.

Smart space research still lacks the availability of commonly adopted middleware

platforms and tools for rapid development of interoperable smart space systems and ap-

plications. The semantic web introduced many standards such as XML, RDF, Jena [1],

OWL and OWL-S, which provide interoperability and enable the development of web

services and applications. There are quite a few approaches that try to integrate pro-

gramming languages and the semantic web standards. In [3], an approach to integrate

OWL into object oriented (OO) language is presented using Python metaclasses. Using

this approach, the problems can be deﬁned by description logic (DL) and manipulated

by dynamic scripting languages. Another approach to map OWL ontology into Java is

presented in [5]. The work provides a solution for OWL-Full which is the most expres-

sive sub-language of OWL. The authors identify the semantic differences between DL

and the OO systems.

None of these approaches provide a complete solution for the development of smart

space based applications. Our approach gives a complete solution for rapid applications

development. It incorporates OWL ontology for application description, a developed

tool for mapping OWL to OO languages (Python and C) to give complete control over

ontologies for application developement, and a middleware for encapsulating commu-

nication with the smart space.

3 Smart-M3 Concept

The main concept in smart space based systems is a publish-subscribe method and it

can be implemented using different approaches and technologies. Our approach for

rapid development of interoperable smart space applications is based on Nokia’s open

source Smart-M3 architecture [6]. The Smart-M3 architecture provides a particular im-

plementation of smart space where a central repository of information is the Semantic

Information Broker (SIB). The smart-M3 space is composed of one or more SIBs where

information may be distributed over several SIBs for the later case. The information in

the M3 space is the union of information stored in the SIBs associated with that space.

The set of SIBs in a M3 space are completely routable and the devices see the same

information, hence it does not matter to which particular SIB in a M3 space a device is

connected. The information is accessed and processed by the entities called Knowledge

Processors (KPs). KPs interact with the M3 space by inserting, retrieving or querying

the information in any of the participating SIBs using access methods deﬁned by the

Smart Space Access Protocol (SSAP). Smart-M3 provides information level interoper-

ability to the objects and devices in the physical space by deﬁning common information

representation models such as Resource Description Framework (RDF). Fig. 1 shows

the overall Smart-M3 architecture. It comprises the following components and concepts

that work together to provide a functional framework.

The SIB is the core component in Smart-M3 as it is responsible for information

storage, sharing and management. The information is stored in the SIB as RDF graphs.

The SIB acts as information broker between the devices for storing, receiving or query-

ing information in the RDF triplestore contained in the SIB. For information sharing,

devices do not communicate directly with each other, instead information is passed via

the SIB through the SSAP protocol.

The Knowledge Processor (KP) is the component that performs only a single task.

A KP must ﬁrst join the M3 space in order to access the information. It can then manip-

ulate the information in the SIB by accessing it through the operations such as insert,

remove, update, query and subscribe deﬁned by the SSAP communication protocol. A

single device can run any number of KPs.

The Application is constructed by the composition of several KPs where each KP

performs a single task. The application design in this approach differs from the tradi-

tional single device control-oriented application.

4 Framework Proposal

The primary design goal of our research is to develop user level tools for rapid and easy

application development for smartspace environments, while being able to provide ben-

eﬁts from the dynamic nature of OWL. We have developed a framework consisting of

a generator and a middleware, for rapid application development for smart-M3. The

generator generates an API from a given ontology at design-time using a set of deﬁned

Fig. 1. Smart-M3 Architecture.

mappings. At run-time, this API, in combination with a middleware layer, enables appli-

cation developers to create applications for smart spaces using traditional well-deﬁned

object oriented programming approaches. The middleware conceals the communica-

tion details and provides a smart space independent interface to the generated library.

From the Smart-M3 point of view, the proposed framework simpliﬁes the development

of KPs by making the smart space interface more abstract and hiding the underlying

complexity involved in ontology-driven approaches.

4.1 Architecture and Design Decisions

In addition to the Smart-M3 concept, some constraints have been added. Where the

Smart-M3 builds around RDF, we assume that OWL-DL will be needed for solving the

data interoperability issue during runtime as RDF is not restrictive enough to be decid-

able. OWL-DL is the most expressive subset of OWL, and is derived from Description

Logics which makes it computationally complete and decidable [4]. Therefore, our de-

sign choices attempt to retain OWL-DL expressiveness. The emphasis of this work is

to make the features provided by the Smart-M3 concept available to the application

and KP developer and to explore possible models for developing applications to the

smart space environment. In addition, we assume that during runtime, the OWL-DL

consistency and reasoning will be done by the back-end.

When designing an API for accessing OWL ontologies many problems arise, and

there are a number of design choices to be made. OWL individuals do not strictly belong

to a class which means that an individual whose properties change, can dynamically

change class memberships. One solution is to build a model which can contain all the

OWL assertions. The drawback with this approach is that accessing this model is not

straightforward, and requires the programmer to understand the OWL concept in great

detail. An alternative approach is to provide access to the ontologies by mapping OWL

into OOP. This enables direct access to the data using objects or data structures, and

can produce signiﬁcantly more readable and maintainable code. This is the approach

of SETH [2], which uses the meta-class capabilities of Python to model the ontologies

and instances. This approach is more suitable for a programmer with no, or little, prior

knowledge of OWL.

Our approach consists of two parts; 1) A generator which creates a static API from

an OWL-DL ontology, which is illustrated in Fig. 2. 2) A middleware layer which ab-

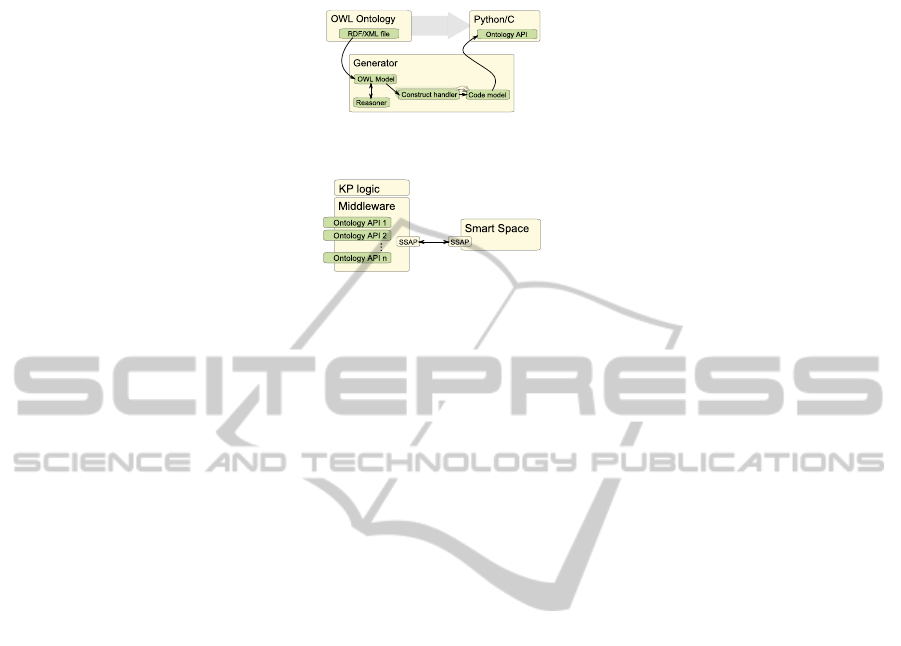

Fig. 2. Smart space development framework overview.

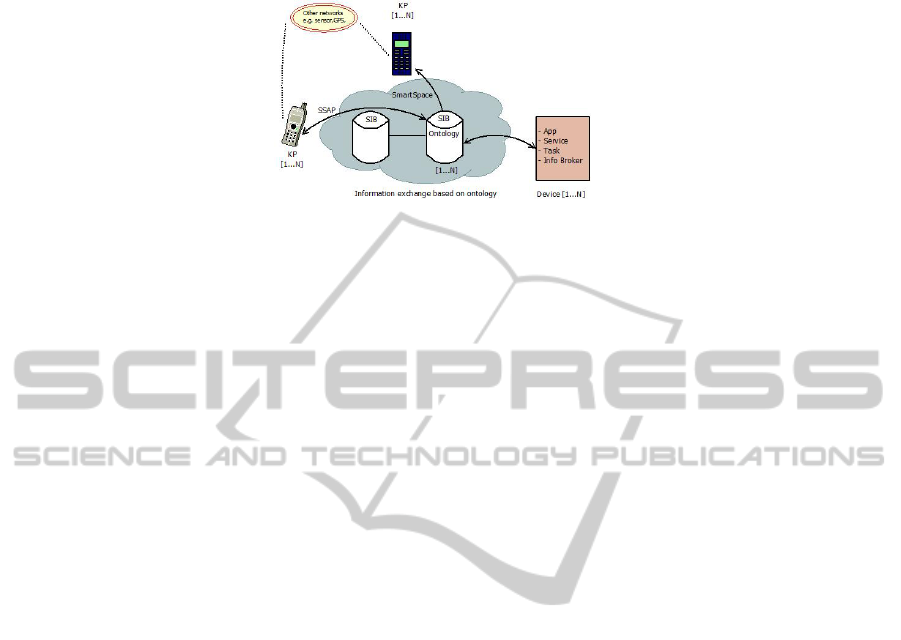

Fig. 3. Runtime architecture overview.

stracts the communication with the persistence layer, as illustrated in Fig. 3. The gener-

ated API contains parts of the structure deﬁnition from the ontology such as the OWL

classes and properties. The generated classes have get and set methods for properties

according to the ontology.

4.2 Generator

The generator creates the API from OWL construct mappings. The generated code con-

tains OWL classes, properties and restrictions. These can then be used by the KP devel-

oper to access the data, as structured and speciﬁed in the OWL ontologies. The code is

also accessed by the middleware layer during run-time to commit changes to the smart

space.

API Generation Mappings. The ﬁrst mappings create data structures for containing

the named OWL classes, and their subclass structure. Then the data structures for OWL

data and object properties are created. There are also several mappings for transferring

comments from the ontologies to the API. Class documentation as well as property

documentation is injected into the generated API. A well documented ontology also

translates into a well documented ontology API. The comments are implemented for

getters and setters of both data and object properties, and for all named classes. This is

especially important for aiding fast development, and also assists in understanding how

the ontology was designed to be used. In addition to the class and property documenta-

tion, comments on the ontology are also copied to the generated API.

Reasoning Considerations. The beneﬁts of using the OWL-DL, subset of OWL, is

that it is restricted in a such way that it can always be checked for consistency, thus pre-

serving logical correctness. This however, requires a reasoning engine which realizes

logical conclusions from the ontology and asserted facts. During runtime, the reasoner

will usually work on the asserted individuals and their properties, rather than the on-

tology speciﬁcation like the compile time reasoning. After the reasoner has stepped

through the model successfully it is guaranteed that the ontology is valid. That is, the

classes, properties and restrictions are constructed properly, all properties have their

correct counterparts and the properties data type restrictions are feasible. Reasoning ex-

ecuted in this fashion creates one drawback on the code model of the OWL ontology.

The problem is that reasoning is only performed before the actual framework is used.

In theory, it is possible for the coder to create an application that would need runtime

reasoning to ensure that a complicated ontology stays consistent. Not having runtime

reasoning is, however, acceptable at this stage as the goal is not to convert a full model

of OWL into Python, but to create a platform for application development.

4.3 Runtime Layer

This section explains the runtime middleware layer. Its main concept is to give the on-

tology API a smart space independent interface that encapsulates the communication

and provides modularization. In addition, it provides the KP developer with the func-

tionality that is not based on the ontology from which the ontology API is generated

from.

Runtime Middleware Layer. The main functionalities that the middleware provides to

the generated ontology API are triple handling, synchronous and asynchronous query-

ing. The middleware layer has been implemented for the generated C and Python ontol-

ogy API’s. They both share the same common concept but have some minor differences

in functionality.

The Python middleware communicates directly with the SIB while the C middle-

ware uses the Whiteboard library. The Whiteboard library is part of the Smart-M3

solution and it provides access to the smart space infrastructure. If the communication

interface with the smart space changes, only the middleware layer needs to be changed,

not the generated ontology API.

The C middleware contains a local cache where all the triples that have not been

inserted are stored. This gives the KP developer the possibility to choose when to insert

triples into the smart space. The usage of the local cache can be enabled or disabled

at runtime. When disabled, triples are sent directly to the SIB and storage to the local

cache is skipped. The local cache in the Python middleware contains pointers to every

locally declared or retrieved instance; when the KP developer wants to send the data to

the smart space the middleware generates triples from the local cache and sends them

to the SIB.

Validation. The code generator generates an architecture for local ontology validation.

There are two contexts to the validation architecture; the validation support created

by the code generator, and the actual validation process. We have used two methods

for validation of the ontology. In the ﬁrst method, the ontology is validated when the

KP attempts to submit local changes in the ontology to the SIB. All classes in the

OWL ontology extend the top most class Thing, and implement the public abstract

validate(self) interface in Thing. The code generator generates private validation

methods for each and every class or property restriction deﬁned in the ontology. These

private validation methods are called from within the public validate method when lo-

cal changes are submitted to the SIB. If a restriction has been violated, the transaction

will halt and one or more exceptions are raised. In the second method the ontology

is validated at runtime when modiﬁcations are locally done to the ontology. Runtime

validation of the ontology has been implemented for the following restrictions: maxcar-

dinality, range, functionalproperty and inversfunctionalproperty. If the restriction has

been violated the change is discarded and the KP developer is notiﬁed. The runtime

validation can be enabled or disabled at runtime.

4.4 Implementations

Code Generator. The generator loads an OWL ontology into a Java ontology model,

which provides interfaces for accessing the RDF graph. A reasoner is connected to

the model to complete the inferred part of the ontology. The generator then lists all

named classes in the ontology, and calls the class handler for each OWL class. The

handler creates an OWL class counterpart in form of a Python class and adds it to

the code model. The class handler will then list all properties and call their respec-

tive handlers, namely the ObjectProperty handler and the DatatypeProperty handler.

These Property handlers will in turn call appropriate handlers for every restriction that

the property may have, e.g. Cardinality and Range restrictions. Some constructs

need to have full ontology generated before it can itself be generated. This includes

owl:inverseFunctionalProperty, which is handled last in the code generation

process.

1 class ControllerKP(KnowledgeProcessor):

2 def initialize(self):

3 self.registerOntology(CtrlOntology())

4 SensorValue.onNew(self.writeSetValue)

5 def writeSetValue(self, sensorValue):

6 e = SetValue()

7 e.addValue(sensorValue.getValue())

8 self.commit()

Listing 1: Minimal implementation of an event-driven writing KP in Python.

The generator is completely dependent on the reasoner, for most ontologies. The

reasoner adds classes, properties and restrictions to the inferred model based on the

asserted statements in the ontology, and thus relieves the code generator from manually

connecting a property to the correct class or classes.

Knowledge Processor Development. A minimal KP implementation written within

this approach both in Python and C is illustrated in Listing 1 and Listing 2 respectively.

1 class ControllerKP(KnowledgeProcessor):

2 def initialize(self):

3 self.registerOntology(CtrlOntology())

4 SensorValue.onNew(self.writeSetValue)

5 def writeSetValue(self, sensorValue):

6 e = SetValue()

7 e.addValue(sensorValue.getValue())

8 self.commit()

Listing 2: Minimal implementation of an event-driven writing KP in C.

5 Application Example

Our demonstration scenario uses a home state switch, reﬂecting the global state (i.e.

”Home”, ”Away” and ”Vacation”), and a heating system. Moreover, there are two ad-

ditional parts for enabling interoperability; a controller and a conﬁguration tool. In ad-

dition to these interoperating components, there is also a temperature display, and a

temperature slider which can be conﬁgured to correspond to or set the different tem-

peratures available from the heater appliance. The demonstration application consists

of several KPs representing the functionality of the devices and a user interface. A con-

ceptual model is shown in Fig. 4. All these components contain a proprietary solution,

and provide only a limited set of services through their KPs. Additional services could

be added to the model, and published to the SIB in order for the conﬁguration tool

to make new rules of interaction. The demonstration implementation contains a tem-

perature service concept in addition to the house state concept shown in Fig. 4. The

temperature data service is contained in the Heater, Temperature Slider and the display.

An example conﬁguration is to set the display to show the active temperature setting in

the heater, but if there was an independent temperature sensor it could be conﬁgured to

display its value as well.

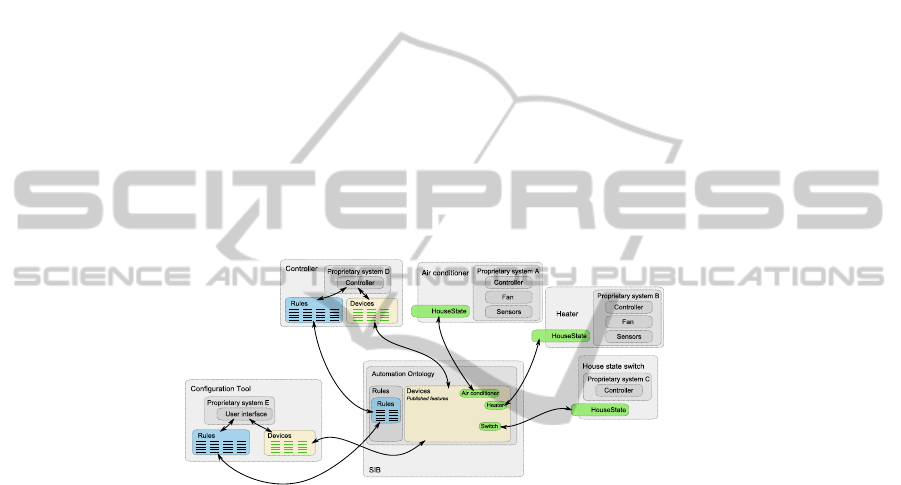

Fig. 4. Case study overview showing an interoperability solution.

The conﬁguration tool can add and remove dependencies, rules and connections by

querying the SIB. In our scenario the heater and air-conditioning agents can be conﬁg-

ured to request changes in the State switch value, or remove their dependency. The state

is indicated by an integer value. When conﬁguration has been set up, the conﬁguration

tool KP can leave the Smart Space, as all the necessary data is contained within the

ontology in the SIB.

1 def createConnection(self,srcDevice,dstDevice,srcFeature,dstFeature,name):

2 c = Connection()

3 c.addSourceDevice(srcDevice)

4 c.addDestinationDevice(dstDevice)

5 c.addSourceFeature(srcFeature)

6 c.addDestinationFeature(dstFeature)

7 c.addName(XSDString(name))

8 self.commit()

Listing 3: Excerpt of Conﬁguration Tool KP.

Example scenario: All devices in the home connect to the SIB, through their respec-

tive SIB interfaces, and insert information about themselves. This information consists

of a user friendly name, a list of services it provides and the data which describes its

state. No automatic conﬁguration about how they interact exist at this time. When the

conﬁguration tool is run, the user is presented with devices registered in the SIB, and

can then conﬁgure rules. Rules are interpreted by a controller KP. The controller sub-

scribes to changes in the data of the devices.

1 def handleNewEvent(self, obj):

2 print "onNewEvent: "+str(obj)+" uuid: "+obj.getSourceFeatureList()[0].

getTargetInstance().uuid

3 for connection in self.connections:

4 if connection.getSourceFeatureList()[0].getTargetInstance().uuid == obj.

getSourceFeatureList()[0].getTargetInstance().uuid:

5 fl = connection.getSourceFeatureList()

6 for feature in fl:

7 print " feature: "+str(feature.getTargetInstance().getNameList()

[0].getTargetInstance().getData())

8 invoke = Invoke()

9 invoke.addDestinationFeature(connection.getDestinationFeatureList

()[0].getTargetInstance())

10 invoke.addValue(XSDInt(obj.getValueList()[0].getTargetInstance().

getData()))

Listing 4: Excerpt of Controller KP.

In order to catch changes in state of the switch, the controller listens to new instances

of the Event class. This instance contains information about what has occurred. When

the controller receives a new instance of an Event, it parses through the list of rules

and if there is a matching rule, it will execute the rule. In this simple implementation,

a matching rule will create a new instance of the class Invoke and adds properties to

it according to the conﬁgured rules. The new Invoke instance is subscribed to by the

KP representing the service invoked, and can then be used to alter the internal state

accordingly.

Ontology: In this use-case we created an ontology containing rules for automation,

concepts for expressing the house state, and the temperature. The house state is mapped

to an integer value. An overview of the ontology is shown in Figure 5. In this way

the conﬁguration tool could suggest potentially interesting counterparts for creating

connections or rules. The ontology is expressed in OWL-DL and contains classes, data

properties and object properties.

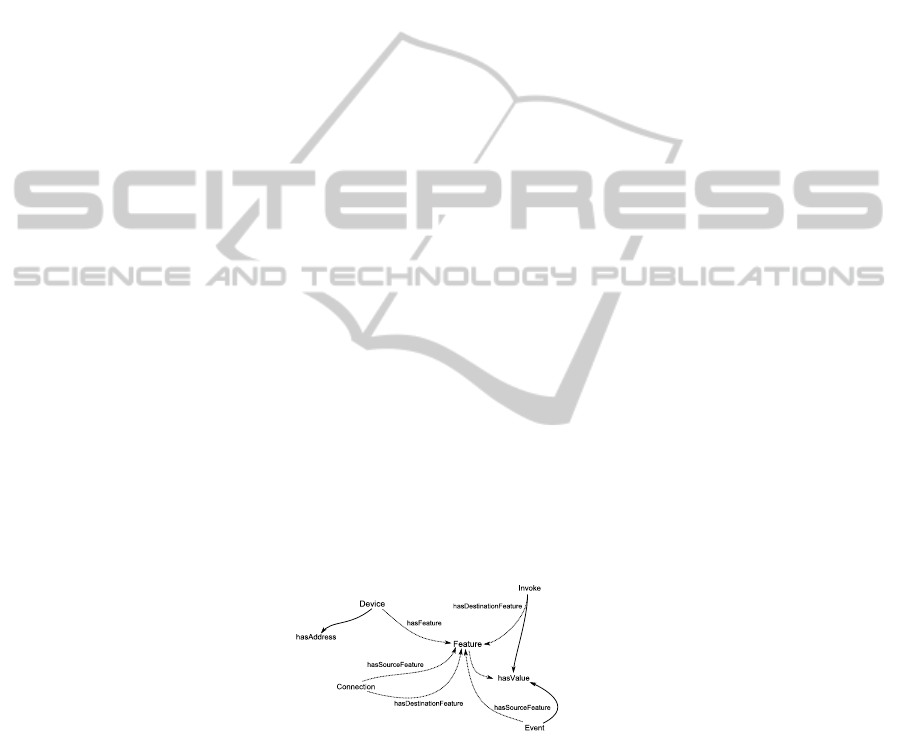

Fig. 5. Overview of the ontology used in the implementation of the case study.

Code Generation: The Python Code Generator was used to generate the agent on-

tology API. The generated API populates all instance properties depending on which

class it is loaded from. All properties are queried separately.

The case study illustrates application developement approach for Smart-m3 space

using our proposed framework. The KPs are developed from the generated ontology

API and are able to communicate through the Smart-m3 space providing the interoper-

ability between different devices in the example application.

6 Conclusions

In this paper, we presented our approach of rapid developement of interoperable appli-

cations for smart spaces. We described our proposed framework, the appliation develop-

ment tool and the overall process for application development using our tool. The case

study implementation shows that agents communicating implicitly through M3 spaces

can achieve the interoperability and our appraoch works well for the development of

interoperable applications for smart spaces.

References

1. Jena framework: http://jena.sourceforge.net/.

2. SETH: http://seth-scripting.sourceforge.net/.

3. M. Babik and L. Hluchy. Deep integration of python with web ontology language. In Proc. of

2nd Workshop on Scripting for the Semantic Web, 2006.

4. J. de Bruijn, A. Polleres, R. Lara, and D. Fensel. Owl dl vs. owl ﬂight: Conceptual modeling

and reasoning for the semantic web. In proc. of International World Wide Web Conference,

2005.

5. A. Kalyanpur, D. Pastor, S. Battle, and J. Padget. Automatic mapping of owl ontologies into

java. In 16th International Conference on Software Engineering and Knowledge Engineering

(SEKE), 2004.

6. I. Oliver and J. Honkola. Personal semantic web through a space based computing environ-

ment. In Proc. of Middleware for Semantic Web at ICSC’08.

7. P. Wisner and D. N. Kalofonos. A framework for end-user programming of smart homes using

mobile devices. 2007.
