DYNAMIC HAND GESTURE RECOGNITION SYSTEM

USING NEURAL NETWORK

Chitralekha Mahanta, T. Srinivas Yadav and Hemanta Medhi

Department of Electronics and Communication Engineering, Indian Institute of Technology Guwahati

781039 Guwahati, India

Keywords:

MPEG-7 art shape descriptor, Radial basis function, Particle ﬁlter.

Abstract:

Vision-based hand gesture recognition enabling computers to understand hand gestures as humans do is an im-

portant technology for intelligent human computer interaction. In this paper, a recognition system for dynamic

hand gestures is proposed. In dynamic hand gesture recognition, hand is segmented by using background sub-

traction method. MPEG-7 ART based shape descriptors are used to extract spatial information. Our approach

is based on particle ﬁlter to extract trajectory features. After collecting suitable features, Radial Basis Function

neural network is used for classiﬁcation. Gesture recognition rate is in the range of 80% to 98%.

1 INTRODUCTION

Gesture recognitionis an important area of research in

the ﬁeld of computer vision. Gesture recognition per-

tains to recognizing meaningful expressions of mo-

tion by a human, involvingthe hands, arms, face, head

or body with the intention of conveying meaningful

information or interacting with the environment. In

addition to the theoretical aspects, any practical im-

plementation of gesture recognition typically requires

the use of different imaging and tracking devices or

gadgets.

Gestures can be static (the user assumes a cer-

tain pose) or dynamic (with prestroke, stroke, and

poststroke phases). Direct use of the hand as an

input device is an attractive method for providing

natural human computer interaction (HCI)(Pavlovic

et al., 1997). Vision-based techniques, while over-

coming this constraint, need to contend with other

problems related to occlusion of parts of the user’s

body. Vision-based devices can handle properties

such as texture and color for analyzing a gesture,

while tracking devices cannot. Vision-based tech-

niques can also vary among themselves in: the num-

ber of cameras used, their speed and latency, the struc-

ture of environment (restrictions such as lighting or

speed of movement), any user requirements (whether

user must wear anything special), the low-level fea-

tures used (edges, regions, silhouettes, moments, His-

tograms), whether 2-D or 3-D representation is used.

Gesture recognition has wide-ranging applications in

human-computer interaction, sign-language commu-

nication, video surveillance, dance/video annotations,

forensic identiﬁcation and the likes.

The paper is organized as follows: In Section 2,

dynamic hand gesture recognition system is intro-

duced. Simulation results are shown in Section 3. Fi-

nally our work is concluded in Section 4.

2 DYNAMIC HAND GESTURE

RECOGNITION SYSTEM

This section is concerned with the recognition of dy-

namic hand gestures. Since the movement of the

hand conveys important information about the mes-

sage users try to communicate, in addition to the spa-

tial information, temporal features which represent

the motion of the hand are necessary for recognizing

dynamic hand gestures. The recognition strategy as

shown in Figure 1 uses a combination of static shape

recognition (performed using MPEG-7 ART shape

descriptors), particle ﬁlter based hand tracking and a

neural network based classiﬁer. For temporal infor-

mation, the hand is tracked by using the particle ﬁl-

ter(Ionescu et al., 2005). After obtaining temporal in-

formation, integration of tracking algorithm and neu-

ral networks is done for recognizing dynamic hand

gestures, which are varying in global motions.

253

Mahanta C., Srinivas Yadav T. and Medhi H. (2011).

DYNAMIC HAND GESTURE RECOGNITION SYSTEM USING NEURAL NETWORK.

In Proceedings of the 1st International Conference on Pervasive and Embedded Computing and Communication Systems, pages 253-256

DOI: 10.5220/0003299102530256

 SciTePress

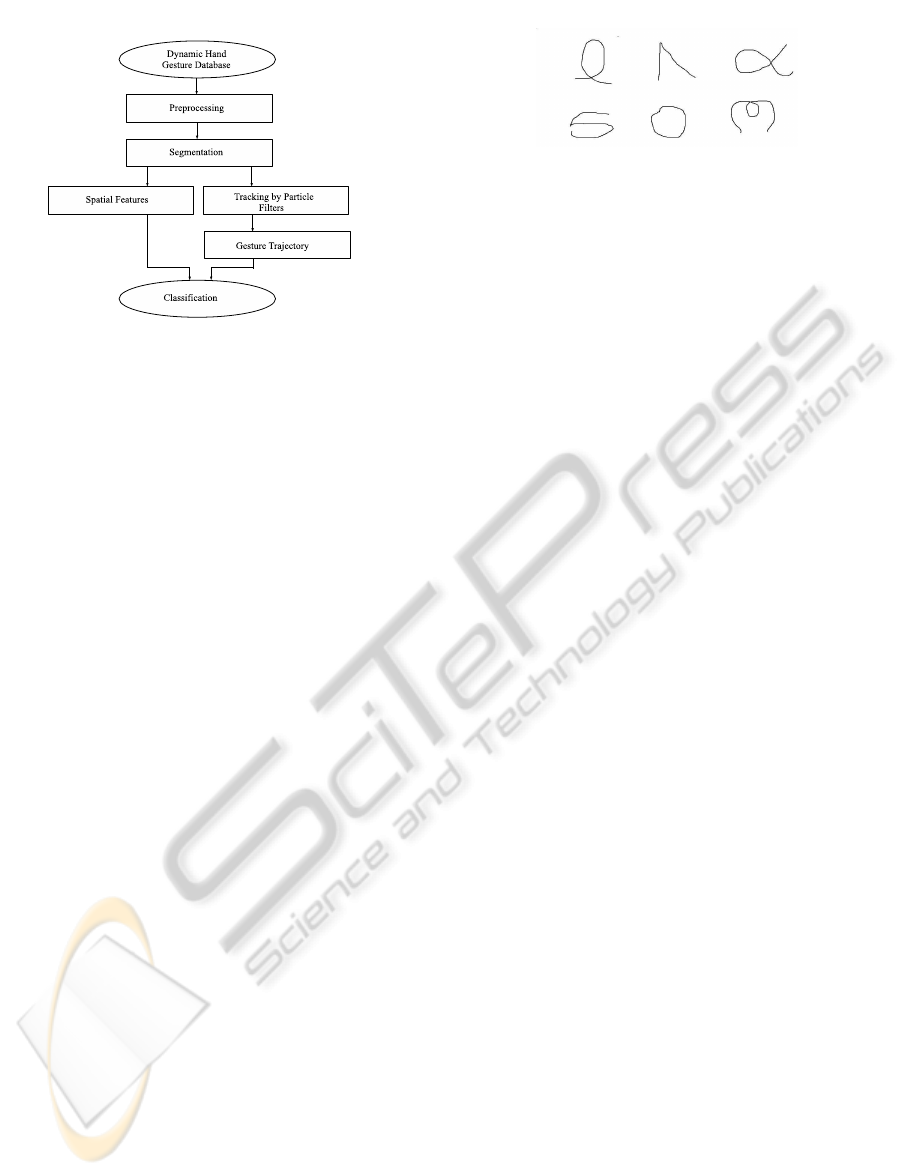

Figure 1: Dynamic Hand Gesture Recognition System.

2.1 Preprocessing

The main aim of preprocessing is to eliminate noise

present in the captured images. Noise creates prob-

lems in hand segmentation and tracking phase, and

hence reduces the performance of the overall system.

Mostly salt and pepper noise and additive Gaussian

noise are present (Gonzalez and Woods, 2002) in the

images. These types of noises can be removed by us-

ing median ﬁlter and mean ﬁlter respectively.

We have collected 20 dynamic gestures which are

captured by using Panasonic handycam having 3.1

mega pixel picture quality and have been chosen for

our experiments. Among them, 8 are ASL gestures

and 12 are control commands. Here the preprocess-

ing is done frame by frame. Some of the dynamic ges-

tures which are collected from (Lee and Kim, 1999)

are shown in Figure 2.

2.2 Segmentation

In order to realize high-precision hand gesture recog-

nition, it is necessary that the hand region is extracted

correctly from the background. The main goal of this

step is to segment the moving hand from the back-

ground. Hand region extraction method is imple-

mented by using background subtraction algorithm.

One major advantage of this method is that it extracts

the gesture region without future frame images.

• Initialization of “Target Image” and “Back-

ground Image”. Here “Target image” is deﬁned

as an image from which the gesture region is ex-

tracted at the present moment, “Background im-

age” is estimated by eliminating the moving ob-

ject. First, 1st frame image is used as background

image. We are going to extract the gesture region

from the images on and after 2nd frame, and thus

2nd frame image is used as the target image.

Figure 2: Gesture Moving Patterns.

• Frame Difference. Image of a candidate of the

gesture region is calculated by the following equa-

tion. The difference between the “Target image”

and “Background image” is calculated and seg-

mented, and this can be written as

F(x, y) = |T(x, y) − B(x, y)| (1)

FD(x, y) =











255 if F (x, y) ≥ Th

0 otherwise

(2)

where T(x, y) represents the Y value of the pixel

with position (x, y) in target image, B(x, y) repre-

sents the Y value of the pixel with position (x, y)

in the background image, and Th is the thresh-

old value to adjust the sensitivity of detecting the

candidate of the gesture region. In our case, the

threshold value equals to the maximum intensity

value divided by 2.

• Division of Gesture Region. The gesture image

obtained may contain other objects. But we need

only the hand part. For this, at ﬁrst edge image is

calculated from the target image through the pro-

cess of edge detection. After obtaining the bound-

ary line, the image of the candidate of the gesture

region is divided into two or more regions.

• Gesture Region. Now multiply the original im-

age with the image obtained in the above step,

then the gesture region is extracted by considering

the regions in which 2/3 or more is ﬂesh-colored

pixel. Later we have removedsmall regions which

are caused by the minute movement which is not

regarded as gesture methods which were used for

the static case. Some of the results are shown in

Figure 3

2.3 Feature Extraction

Feature extraction is a crucial module in any Com-

puter vision (CV) system. The implementation of this

module has a considerable effect on the robustness of

the system. For recognizing global hand motions, in

addition to the spatial information of the hand, tem-

poral features are also necessary. Tracking is used to

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

254

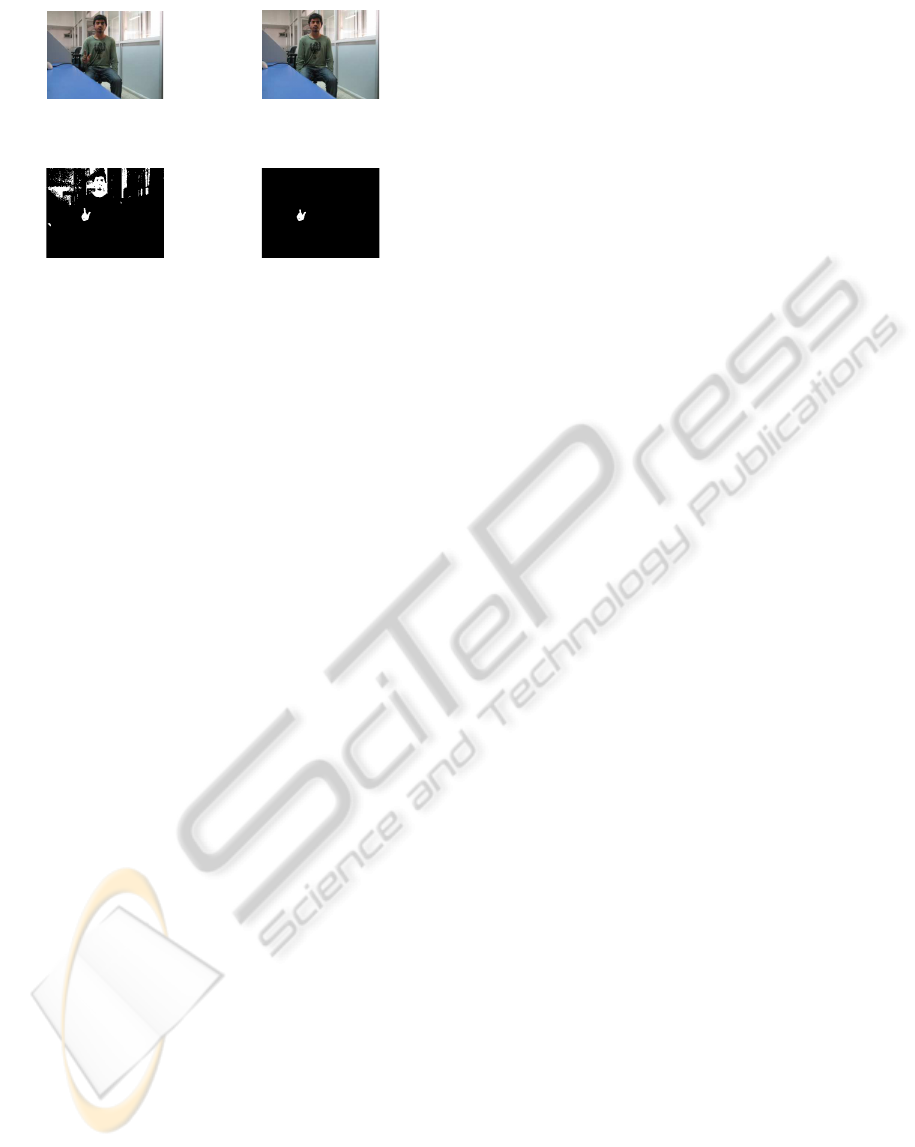

(a) Target Image. (b) Background Image.

gion.

(d) Gesture region.

Figure 3: Different Stages of Segmentation Algorithm.

obtain these motion features of a dynamic hand ges-

ture video. It is the process of estimating the trajec-

tory of hand, as the hand moves in the area of interest.

The tracking algorithm has to estimate the state of the

system at any time instant, given a set of observations.

2.3.1 Spatial Features using MPEG-7 Shape

Descriptors (Azhar and Amer, 2008)

For spatial information, MPEG-7 ART shape descrip-

tors are used. The visual part of MPEG-7 standard

deﬁnes three descriptors with different properties: re-

gion based, contour based and 3D spectrum shape de-

scriptors.

Region based shape descriptors are used here.

These descriptors take into account all pixels consti-

tuting the shape, boundary and inner pixels. Con-

ceptually, a descriptor works by decomposing the

shape into a number of orthogonal 2-D basis func-

tions, deﬁned by Angular Radial Transform (ART).

The MPEG-7 ART descriptor employs a complex An-

gular Radial Transformation deﬁned on a unit disk in

polar coordinates.

2.3.2 Tracking of Hand by Particle Filters

(Arulampalam et al., 2002)

Tracking objects efﬁciently and robustly in complex

environment is a challenging issue in computer vi-

sion. Often dynamic image frames of these hand

regions are tracked to generate suitable features.

Particle-ﬁltering-based tracking and its applications

in gesture recognition systems became popular very

recently. The key idea is to represent probability den-

sities by a set of samples. As a result, it has the

ability to represent a wide range of probability den-

sities, allowing real-time estimation of nonlinear,non-

Gaussian dynamic systems.

2.4 Classiﬁcation and Recognition

Spatial feature vectors and features obtained from

gesture trajectory are given as input to the neural net-

work classiﬁer to classify different dynamic gestures.

Radial basis function (RBFs) neural network(Michie

et al., 1974) is used for classiﬁcation. A total of 20

dynamic hand gestures have been chosen for our ex-

periments. Among them, 8 belong to ASL gestures

and 12 belong to control commands.

A radial basis function network is an artiﬁcial neu-

ral network that uses radial basis function as the ac-

tivation function. Radial basis function (RBF) net-

works typically have three layers: an input layer, a

hidden layer with RBF activation function and an out-

put layer. The hidden units provide a set of functions

that constitute an arbitrary basis for the input patterns

(vectors) when they are expanded into the hidden-unit

space; these functions are called radial-basis func-

tions. Different types of radial basis functions could

be used, but the most common is the Gaussian func-

tion.

3 SIMULATION RESULTS

In this paper we discussed the dynamic hand gesture

recognition system using radial basis function neu-

ral network. A total of twenty dynamic hand ges-

tures have been chosen for our experiments. The

complete system works at a frame rate of about 25

frames/s. 20 dynamic gestures are captured by using

Panasonic handycam having 3.1 mega pixel picture

quality. Among them, 8 are ASL Gestures and 12 are

control commands as shown in Figure 2. The hand re-

gion is extracted by using background subtraction al-

gorithm. One major advantage of this method is that

it extracts the gesture region without future frame im-

ages. Spatial features are extracted by using MPEG-

7 shape descriptors. For temporal information, the

hand is tracked by using particle ﬁlter. Trajectory fea-

tures are extracted only for key points. Spatial and

trajectory features are combined and given as inputs

to the classiﬁer. Radial basis function neural network

is used as classiﬁer. 8 ASL gestures are used for test-

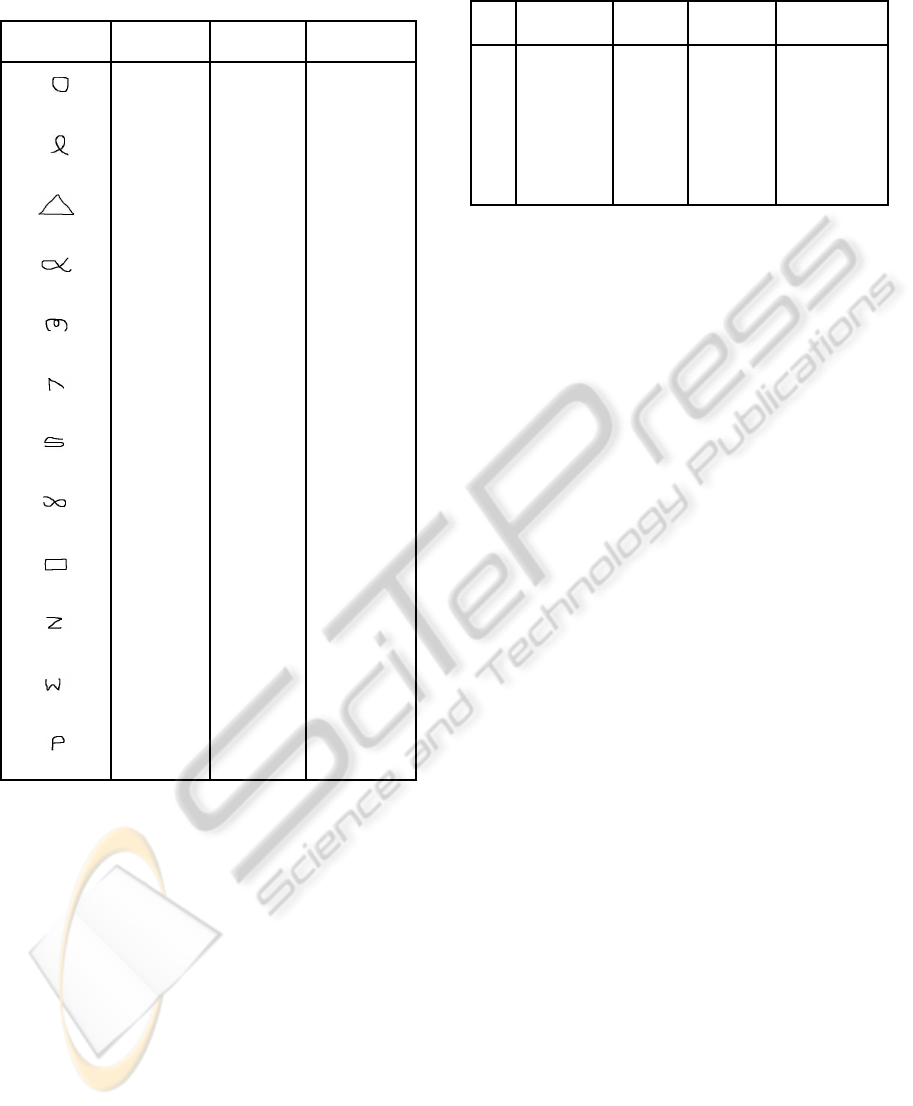

ing. Table 1 presents the results of different dynamic

gestures using RBFs. Table 2 presents the results of

8 ASL gesture recognition using RBFs. Recognition

rates ranged from 80% to 98%.

DYNAMIC HAND GESTURE RECOGNITION SYSTEM USING NEURAL NETWORK

255

Table 1: Recognition rates(%) of dynamic gestures using

RBFs.

Moving

Pattern

No. of at-

tempts

Mis-

classiﬁed

Recognition

rate(%)

20 1 95

20 2 90

20 3 85

20 4 80

20 1 95

20 4 80

20 2 90

20 3 85

20 4 80

20 1 95

4 CONCLUSIONS

Dynamic hand gesture recognition using neural net-

work is presented in this paper. The hand region is

extracted by using background subtraction algorithm.

Video sequences are collected from a stationary cam-

era with complex backgrounds. Spatial features are

extracted by using MPEG-7 shape descriptor. Parti-

cle ﬁlter is used to track a hand under complex back-

ground. After obtaining the temporal information,

the tracking algorithm is integrated with the neural

network for recognizing the dynamic hand gestures,

which are varying in global motions. RBFs are used

for classiﬁcation of different dynamic hand gestures.

Recognition rates range from 80% to 98%.

Table 2: Recognition rates(%) of ASL gestures using RBFs.

No.

Gestures Classif-

ied

Mis-

classiﬁed

Recognition

rate(%)

1 East 55 1 98.18

2 Up 52 1 98.08

3 Away 48 2 95.29

4 Circle 54 1 97.14

5 Down 48 2 95.3

6 Admonish 55 1 98.18

7 Adrift 53 3 85.4

8 West 40 8 80

REFERENCES

Arulampalam, M. S., Maskell, S. S., Gordon, N., and Clapp,

T. (2002). A tutorial on particle ﬁlters for online non-

linear non gaussian bayesian tracking. In IEEE Trans.

Signal Processing.

Azhar, H. and Amer, A. (2008). Chaos and mpeg-7 based

feature vector for video object classiﬁcation. In IEEE

Trans. Pattern Classiﬁcation.

Gonzalez, R. C. and Woods, R. E. (2002). Digital Image

Processing. Prentice Hall of India, India, 2nd edition.

Ionescu, B., Coquin, D., and Lamber, P. (2005). Dynamic

hand gesture recognition using the skeleton of the

hand. In EURASIP Journal on Applied Signal Pro-

cessing.

Lee, H.-K. and Kim, J. H. (1999). An hmm-based thresh-

old model approach for gesture recognition. In IEEE

Trans. Pattern Analysis and Machine Intelligence.

Michie, D., Spiegelhalter, D. J., and Taylor, C. C. (1974).

Machine Learning, Neural and Statistical Classiﬁca-

tion. Ellis Horwood.

Pavlovic, V. I., Sharma, R., and Huang, T. S. (1997). Visual

interpretation of hand gestures for human-computer

interaction: A review. In IEEE Trans. Pattern Anal-

ysis and Machine Intellegence.

PECCS 2011 - International Conference on Pervasive and Embedded Computing and Communication Systems

256
