ON SPEECH RECOGNITION PERFORMANCE UNDER

NON-STATIONARY ECHO CANCELLATION

Mahdi Triki

Philips Research Laboratories, Eindhoven, The Netherlands

Keywords:

Acoustic echo cancellation, Acoustic echo suppression, Non-stationary environment, Automatic speech recog-

nition, Speech enhancement.

Abstract:

During the last decades, performance of speech recognizers signiﬁcantly increased for large vocabulary tasks

and adverse environments. To reduce interference, acoustic echo cancellation has been proposed and exten-

sively investigated. Particular attention was paid to the convergence proprieties and the capability to handle

double talk. However, in time-varying environment, the echo canceller has the additional task to track the vari-

ations of the propagation channel. With this respect, it has been established that algorithms that exhibit fast

convergence do not provide necessarily good tracking performances. In such an environment, performance

assessment is also challenging and the ‘experiment’ design is crucial to provide consistent and interpretable

results. In the present paper, we reproduce time-varying artifacts by altering the surrounding acoustic en-

vironment (using a moving person/robot). The movement characteristics (discrete/continuous) and location

(line-of-sight/background) emphasizes different room/algorithms characteristics and provides deeper insights

on the system behavior.

1 INTRODUCTION

During the last three decades, performance of speech

recognizers signiﬁcantly increased even for large vo-

cabulary tasks (X. Huang and Hon, 2001). The upper-

bound performances of recognizers are generally

achieved when a close-talk microphone is recording

the speech signal, i.e., when no competing speaker,

noise sources and/or reverberation affect the origi-

nal clean speech signal. Many desired settings may

require the speaker to be either far from the micro-

phones or surrounded by one or many noise sources,

or both. Indeed, for many applications, close-talk

recordings (headset solutions) are not desired for aes-

thetic and/or convenience reasons; while in various

environments (e.g. in living-room, car, hospital), sur-

rounding noise cannot be neglected. In these situ-

ations, speech recognizers dramatically fail to reach

the minimal threshold of performance that the usabil-

ity is requiring, even with a small vocabulary size.

Often, prior information about the nuisance

sources (e.g. radio, background music) is available.

These information could be exploited to alleviate

noise, enhance the desired source, and increase the

recognition accuracy. Typically, the interference is

predicted (using an appropriate adaptive processing),

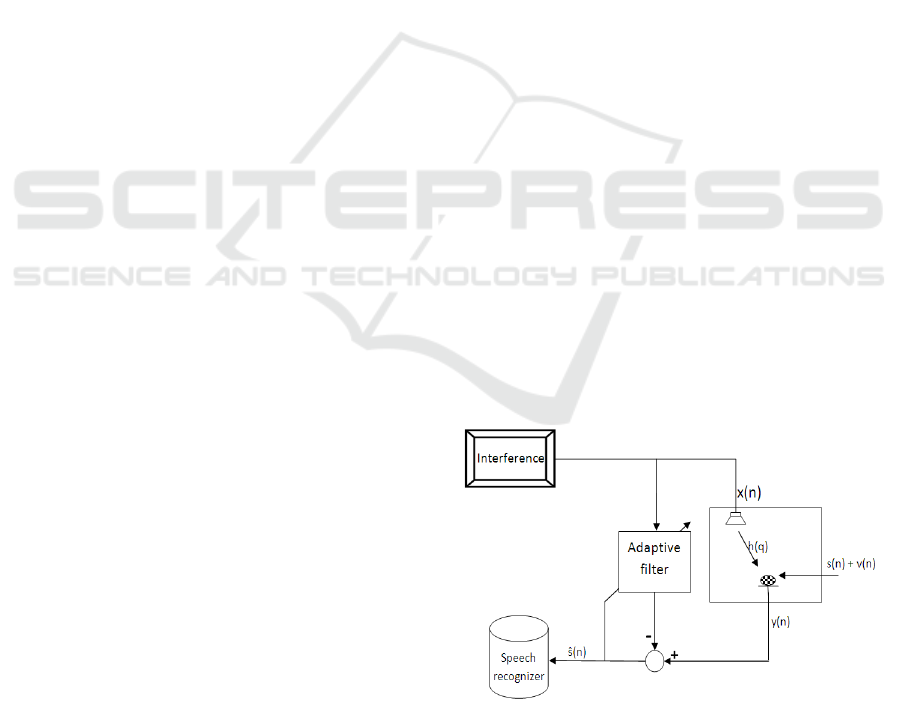

Figure 1: AEC: problem statement.

then subtracted from the received signal (as illustrated

in Figure 1).

The enhancement scheme is referred to as Acous-

tic Echo Cancellation (AEC). AEC was extensively

investigated for both enhancement (J. Benesty and

Gay, 2001) and recognition (J. Picone and Hartwell,

1988) applications. The reported results assume gen-

erally the coupling between the interfering source and

the received echo (the propagation channel) station-

ary. In reality however, this coupling may be time-

varying due to the movement of the desired speaker,

316

Triki M..

ON SPEECH RECOGNITION PERFORMANCE UNDER NON-STATIONARY ECHO CANCELLATION.

DOI: 10.5220/0003182903160321

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2011), pages 316-321

ISBN: 978-989-8425-35-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

other persons present in the same room, or due to the

variations of physical parameters (e.g. temperature).

In such a case, the adaptive processing will have the

additional task of tracking the variation of the prop-

agation channel. With this respect, it has been es-

tablished that adaptive algorithms that exhibit good

convergence properties in stationary environments do

not necessarily provide good tracking performance

in a non-stationary environment; because the conver-

gence behavior of an adaptive ﬁlter is a transient phe-

nomenon, whereas the tracking behavior is a steady-

state property (Haykin, 2002; Triki, 2009).

In this paper, we address some issues related to

the performance evaluation of echo-cancellation in

time-varying environments. Generally, experimen-

tal evaluation should produce meaningful, consistent

and interpretable results. In time-varying environ-

ments, the assessment is particularly challenging and

the ‘experiment’ design is crucial. On one hand, mim-

icking the user experience (moving user/capturing-

device) is difﬁcult to reproduce and to interpret. On

the other hand, simulating the impulse responses

offers ﬂexibility and reproducibility, but gives re-

sults that are difﬁcult to interpolate to real-world en-

vironment. Alternatively, we reproduce the time-

varying artifacts by altering the surrounding acous-

tic environment (while keeping the source and cap-

turing devices ﬁxed). These alterations are intro-

duced by moving person/robot. The movement char-

acteristics (discrete/continuous) and location (line-of-

sight/background) represent degrees of freedom that

emphasis various room/algorithms characteristics and

provide deeper insights on the system behavior.

The remainder of this paper is organized as fol-

lows. In section 2, the experimental setup used for

the data acquisition and performance analysis is de-

scribed. Acoustic echo cancellation and noise sup-

pression building blocks are investigated in sections 3

and 4 respectively. Finally, a discussion and conclud-

ing remarks are provided in section 5.

2 EXPERIMENTAL SETUP

Throughout this paper, we evaluate different speech

preprocessing schemes in order to isolate their per-

formance impact on the recognition rate and motivate

further reﬁnements. In the following, we present our

experimental setup to assist this progressive unfolding

of the speech preprocessing design. Namely, we will

describe the data collection procedure, and specify the

characteristics of our data recording space (reproduc-

ing a living-room environment).

2.1 Data Collection

Deﬁning a formal data collection process is necessary,

as it ensures that gathered data is both deﬁned and ac-

curate and that subsequent ﬁndings and decisions are

valid. The aim of the present work is to investigate

the effect of the extrinsic variabilities (noise, rever-

beration, interference) on the recognition rate. Thus,

the data should be collected such to reduce the effect

of intrinsic variabilities (that may bias the ﬁnal con-

clusions). Speciﬁcally, particular attention was paid

to:

• Linguistic accent: we have chosen North Ameri-

can native speakers (American or Canadian). The

choice was motivated by the fact that our recog-

nition system (that we use for the evaluation) was

trained (optimized) for this particular accent.

• Speech rate changes: the variation of the speech

rate was alleviated with a two step simulation

approach: ﬁrst we collect the input data, next

the various tasks are reproduced using a dummy-

head.

• Additive noise: the data collection was performed

in a noise-free and low-reverberent environment.

North-American native speakers (4 males, 1 female)

were asked to participate in the data collection pro-

cess. Two dictionaries were deﬁned:

• Controls dictionary, e.g., ‘switch on’, ‘is there any

sport program tonight’.

• Artist names dictionary, e.g., ‘Madonna’, ‘Tokio

Hotel’, ‘Laura Pausini’...

The recordings were performed in a noise-free and

low-reverberant room (see Figure 2). The speakers

were seated in a comfortable chair while they read

aloud one-by-one a list of items. The items were dis-

played using a PowerPoint presentation at constant

speed (12 items per minute). The speech signal was

captured at 48 kHz.

2.2 Data Recording

We have investigated the recognition accuracy in a

living-room environment. The recordings were car-

ried out in a four-by-six meters demonstration room.

(see Figure 3 and Figure 5 for schematic representa-

tion). The room reverberation time is T

≈ 300 ms.

In order to account for speech rate variabilities,

the control/search commands (recorded during the

data collection phase) were reproduced by a KE-

MAR (Knowles Electronics Manikin for Acoustic Re-

search). The KEMAR was placed at 3 meters dis-

tance from the TV set. The audio signal was captured

ON SPEECH RECOGNITION PERFORMANCE UNDER NON-STATIONARY ECHO CANCELLATION

317

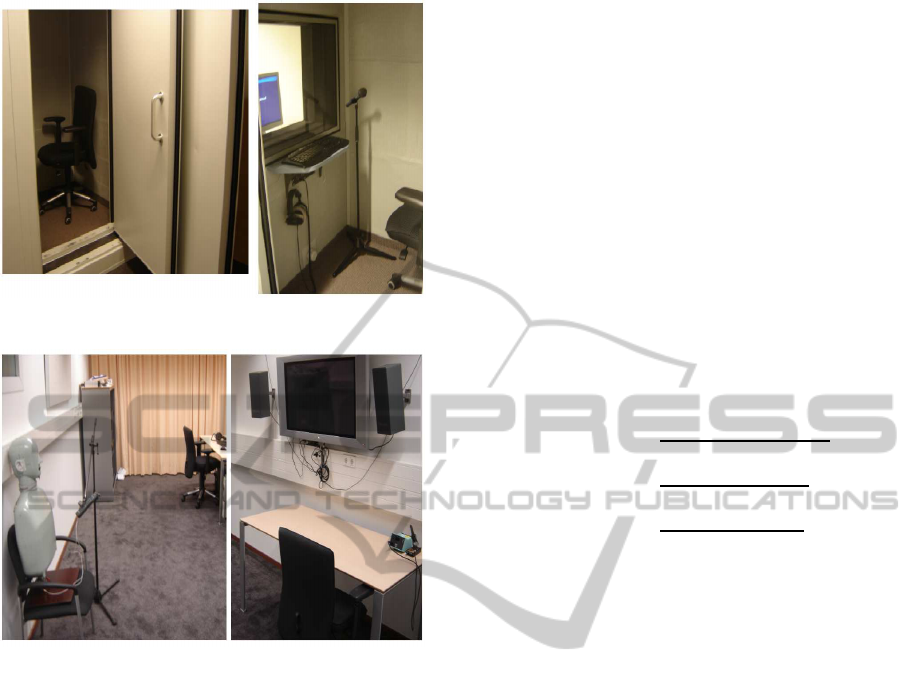

Figure 2: Data collection room.

Figure 3: Recording room.

by an omnidirectional microphone. The signal was

recorded at 48 kHz, then downsampled to 8 kHz (to

meet the speciﬁcations of the speech recognition en-

gine). The omnidirectional microphone was placed at

30 cm distance from the KEMAR loudspeaker. Dur-

ing the recordings, CNN channel was turned on (the

average Signal-to-Interference-Ratio (SIR) was about

10 dB). The North-American accent of CNN speakers

makes the TV interference further challenging.

3 ACOUSTIC ECHO

CANCELLATION FOR ASR

Acoustic echo arises when an interfering sound (here

produced by a TV) is picked up by a microphone,

together with its sound wave reﬂection into the sur-

rounding walls and objects. Usually, the received

signal is decomposed into direct sound, reﬂections

that arrives shortly after the direct sound (commonly

called early reﬂections), and reﬂections that arrive af-

ter the early reverberation (called late reverberation

and often approximated as white, diffuse, exponen-

tially decaying additive noise) (Habets, 2007). Sev-

eral adaptive schemes were proposed to estimate the

room reverberation and compensate for the interfer-

ing TV echo. Among them, the class of the Recur-

sive Least-Squares (RLS) algorithms (Haykin, 2002)

(and their frequency domain implementation (Shynk,

1992)) have shown to exhibit a fast convergence, and

reduced sensitivity to the color of the input signal.

Motivated by the application requirements (fast con-

vergence) and the input characteristics (speech con-

tent), an RLS real-time solution was implemented to

update the echo-canceller scheme, and used to reduce

the interference (TV signal) prior to recognition.

We ﬁrst consider a stationary (time-invariant) en-

vironment. In such conﬁguration, the echo-paths do

not change, and only the steady-state convergence of

the AEC is focal. For recognition performance analy-

sis, we distinguish the substitution, insertion and dele-

tion error rates, deﬁned as:

substitute =

#substituted commands

#total commands

inserte =

#inserted commands

#total commands

delete =

#deleted commands

#total commands

where # denotes the cardinality operator. Intuitively,

insertion and deletion errors refer respectivelyto false

positive and false negative detection errors, while a

substitution occurs when a command is well detected

but misrecognized. The recognition was performed

using a Philips Speech Recognition system. The mod-

els used by the engine were trained with US-English

speech data.

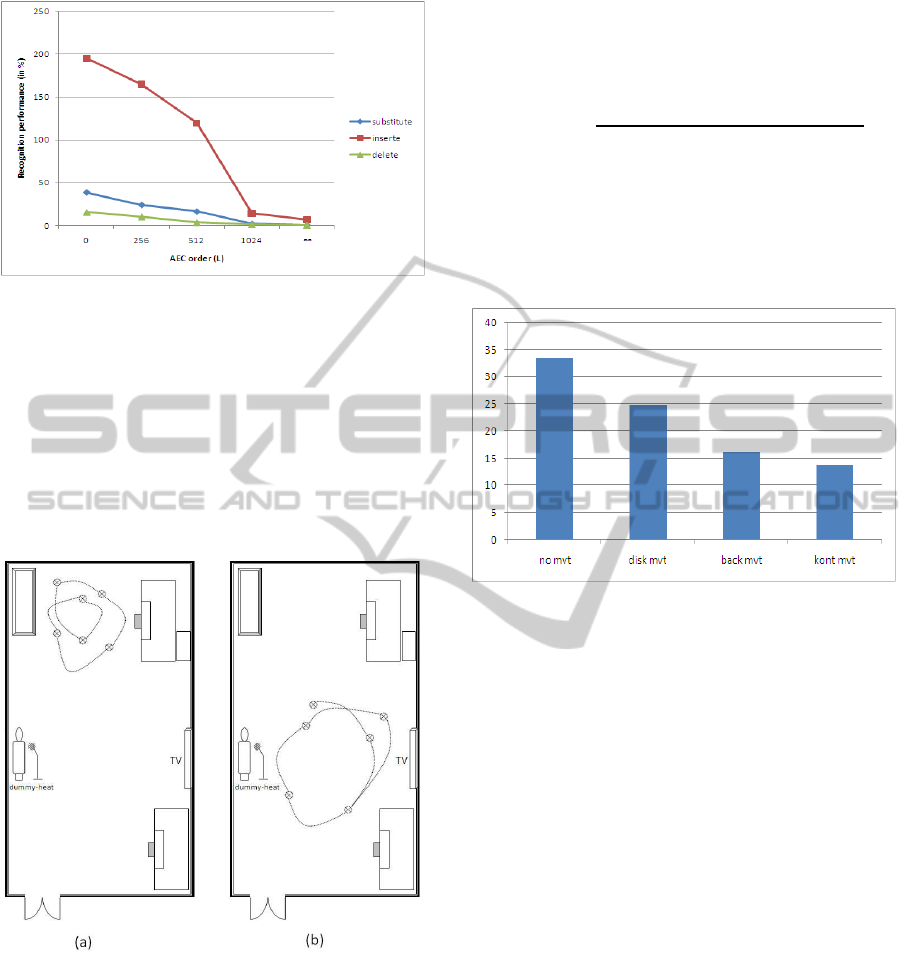

Figure 4 illustrates the recognition accuracy as a

function of the order(length) of the FIR echo can-

celler. We observe that without echo-cancellation

(L = 0), the recognition system do not reach the us-

ability threshold. Moreover, the recognition perfor-

mance increases with the AEC length: the longer the

AEC, the better the echo-path modeling, and the fur-

ther the echo is suppressed. However for AEC length

( L > 1024 ), only minor additional gain was observed

(particularly for ‘substitute’ and ‘delete’ measures ):

in this region, modeling errors are small compared to

estimation and adaptation errors.

Next, we investigate non-stationary (time-varying)

scenarios. We have deﬁned and compared the recog-

nition accuracy in four settings:

• No-mvt: no interferent person (stationary propa-

gation)

• Back-mvt: an interferent person continuously

moving on the background region (Fig 5.(a)). In

such scenario, the direct sound and early reverber-

ation are still time-invariant, only late reverbera-

tion varies.

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

318

Figure 4: Recognition performances (in %) for processed

(echo-cancelled) signal function of the AEC order (L).

• Kont-mvt: an interferent person is continuously

moving on line-of-sight region (Fig 5.(b)). Thus,

all the room reverberation components (direct,

early, and late) are varying.

• Disk-mvt: an interferent person is moving on the

line-of-side region in a discrete fashion (step -

‘immobile’ 5 seconds - step ...).

Figure 5: Recording scenarios for AEC tracking analysis.

In these scenarios,the echo-paths are altered by the

presence of an external disturbance (moving persons).

However, equivalent artifacts may occur when the po-

sition of the source (desired speaker) or the capturing

microphone varies. The predeﬁned scenarios have a

double advantage. First, they are simple to simulate

and reproduce. Second, they decorrelate the effects of

the variation of early vs. late reverberation, as well as

the convergence vs. tracking capabilities of the AEC

solutions.

As the insertion errors could be handled to some

extend, for instance, by a ‘press-to-speak’ button, we

limit our attention to the substitution and the deletion

errors and we deﬁne the recognition error rate as:

RER =

#substituted + deleted commands

#total commands

= substitute + delete

Figure 6 compares the recognition error rate gain, i.e,

RER

Gain

= RER

noisy signal

− RER

with AEC

computed for the four previously described scenarios.

Figure 6: RER

Gain

(in %) for the different non-stationary

scenarios.

One may notice that despite the RLS algo-

rithm has a relatively good steady-state performance

(scenario ‘No-mvt’) and rapid convergence (sce-

nario ‘Disk-mvt’), its tracking capabilities (scenarios

‘Back-mvt’ and ‘Kont-mvt’) is not sufﬁcient to cap-

ture continuous variations of the propagation chan-

nel. To alleviate this problem, spectral-based post-

processing is proposed and investigated in the follow-

ing section.

4 ACOUSTIC ECHO AND NOISE

SUPPRESSION FOR ASR

We have observed that using solely adaptive FIR ﬁl-

ters to perform echo cancellation would require a

large number of coefﬁcients. This results in large

memory requirements and large convergence time.

Moreover, perfect tracking of the non-stationarities

in the propagation channel is problematic. Thus, ad-

ditional measures have to be taken to guarantee ro-

bustness. In communication systems, spectral post-

processing has been proposed at the AEC output. The

basic idea is to estimate the amplitude spectrum of the

desired signal and combine it with the phase available

ON SPEECH RECOGNITION PERFORMANCE UNDER NON-STATIONARY ECHO CANCELLATION

319

from the degraded signal for reconstructing the en-

hanced signal. In practice, a time-varying gain ﬁlter is

designed to reconstruct the desired signal. A number

of well-known gain functions G

( f) can be formu-

lated as (Etter and Moschytz, 1994; Tashev, 2006):

( f) =

(

1− γ



( f)|



if γ



( f)|



< 1

0 otherwise

(1)

where Y

and R

denote the amplitude spectrum of the

receivedand the remaining noise signals. The remain-

ing noise signal originates both from the remaining

interference (after echo cancellation) and the ambient

noise. These approaches have been relatively success-

ful due to their implementation simplicity and their

robustness against non-ideal circumstances. They

were extensively investigated and optimized for com-

munication systems. Particularly, it has been shown

that oversubtraction(γ> 1), smoothing the gain factor

, and constraining the gain minimum (i.e. G

( f) =

min(G

min

( f)) enhances the audio quality and re-

duces the musical noise (M. Berouti and Makhoul,

1979).

However, it is well established that increasing the

audio quality does not lead necessarily to a better

recognition rate. Indeed, recognizers hinge criti-

cally (only) on spectral information. Any process-

ing leading to spectral distortion (especially time-

varying coloration) may seriously affect their perfor-

mance. Moreover as features extraction is performed

in the log spectral domain, computational stability

issues may arise (e.g. log(x) / x → 0), which is

not always well handled with commercial recogni-

tion engines. Thus, the oversubtraction factor γ set

a tradeoff between noise/interference reduction and

stationary spectral distortion, while the gain dynam-

ics (via the choice of G

min

) leads to a compromise be-

tween the noise/interference tracking capability and

dynamic spectral distortion.

We have implemented three post-processing

methods:

1) spectral magnitude subtraction (α = 1,β = 1).

2) minimum mean square error (MMSE) estimation

(α = 2, β = 1).

3) MMSE estimation in the log-spectral domain

(Ephraim and Malah, 1985).

We have compared the recognition performances af-

ter the post-processing for the four tracking scenar-

ios described in Section 3 (‘No mvt’, ‘Back mvt’,

‘Kont mvt’, ‘Disk mvt’). None of the post-processing

schemes consistently outperforms the others. In the

following, we will limit our attention to the spectral

magnitude subtraction technique as it is easier to im-

plement and to interpret.

Next, we focus on the effect of the gain dynamic

on the recognition accuracy. In communication sys-

tems, it has been noticed that noise suppressors suffer

from the rapid ﬂuctuation of the SNR both in time

and frequency domains. It has been shown that re-

ducing the gain dynamic (by introducing a minimum

gain constraint, i.e., G

( f) = min(G

min

( f))) re-

duces auditory artifacts. For speech recognition, our

experiments show that imposing a minimum gain con-

straint is also required. The recognition error rate and

the insertion error rate function of the minimum gain

min

are plotted (‘kont mvt’ scenario) in Figure 7. No

oversubtraction was performed (i.e. γ = 1)

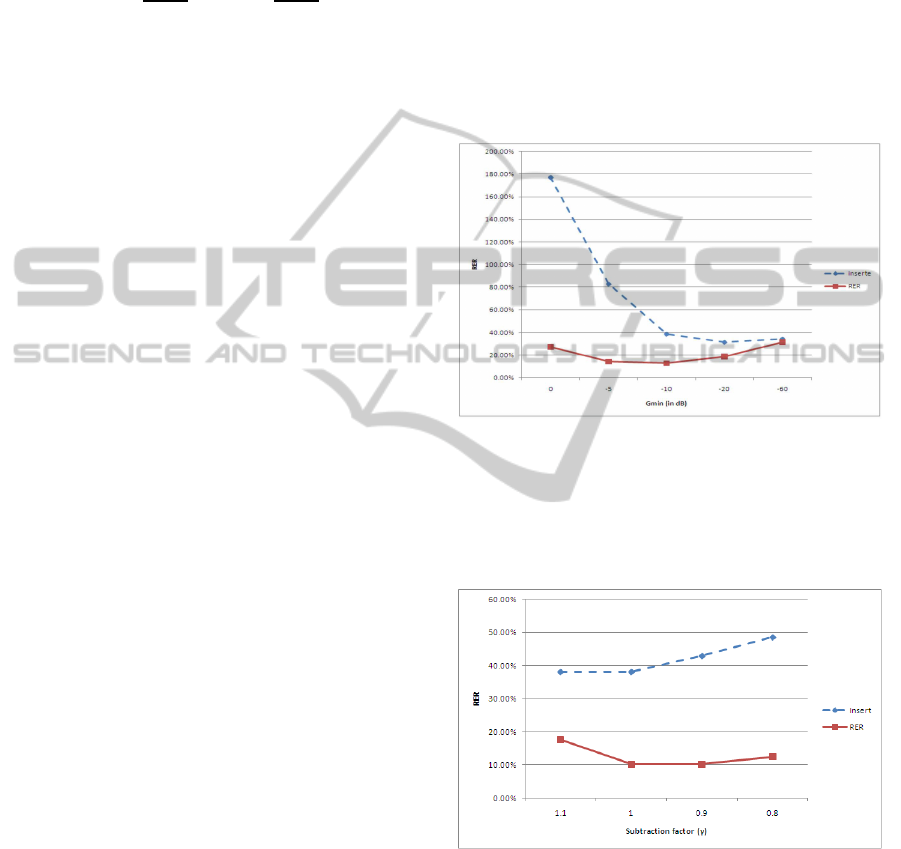

Figure 7: Insertion and Recognition Error Rate function of

the minimum gain G

min

(in dB), for the ‘kont mvt’ scenario.

Finally, we investigate the effect of the subtraction

factor γ. In communication systems, it was shown that

oversubtraction γ > 1 improves the audio quality. We

Figure 8: Insertion and Recognition Error Rate function of

the subtraction factor γ, for the ‘kont mvt’ scenario.

observe (in Figure 8) that oversubtraction improves

the insertion at the expense of recognition error rates,

as it allows for further noise subtraction. On the de-

tection region, undersubtraction seems advantageous

as it allows for less spectral distortions.

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

320

5 CONCLUDING REMARKS

In the present paper, we have investigated the per-

formance of echo-cancellation for voice control de-

vices operating in non-stationary propagation condi-

tions. Four distinct scenarios have been deﬁned and

analyzed. In addition to be simple to simulate and

to reproduce, these scenarios decouple the effect of

early vs. late reverberation as well as the conver-

gence vs. tracking capabilities of the AEC solutions.

This provides additional insights on reverberation ar-

tifacts/effects, and allows better design of the adaptive

schemes.

Our experimental investigation has conﬁrmed that

AEC systems that exhibit good convergence proper-

ties in stationary environment do not necessarily pro-

vide good tracking performance in non-stationary en-

vironment. We have also shown that spectral sub-

traction based post-processing may alleviate non-

stationary reverberations. Moreover, particular atten-

tion should be paid to limit the gain dynamics and to

the subtraction factor selection.

REFERENCES

Ephraim, Y. and Malah, D. (1985). Speech enhancement

using a minimum mean-square error log-spectral am-

plitude estimator. IEEE Trans. on Acoustic, Speech

and Signal Processing.

Etter, W. and Moschytz, G. (1994). Noise reduction by

noise-adaptive spectral magnitude expansion. Journal

of the Audio Engineering Society.

Habets, E. (2007). Single- and Multi-Microphone Speech

Dereverberation using Spectral Enhancement. PhD

thesis, Technische Universiteit Eindhoven.

Haykin, S. (2002). Adaptive Filter Theory. Prentice Hall.

J. Benesty, T. Gansler, D. M. M. S. and Gay, S. (2001). Ad-

vances in Network and Acoustic Echo Cancellation.

Springer.

J. Picone, M. J. and Hartwell, W. (1988). Enhancing the

performance of speech recognition with echo cancel-

lation. In IEEE Int. Conf. Acoustic, Speech, and Signal

Processing (ICASSP).

M. Berouti, R. S. and Makhoul, J. (1979). Enhancement of

speech corrupted by acoustic noise. In IEEE Int. Conf.

Acoustic, Speech, and Signal Processing (ICASSP),

volume 4, pages 208–211.

Shynk, J. (1992). Frequency-domain and multirate adaptive

ﬁltering. IEEE Signal Processing Magazine.

Tashev, I. (2006). Defeating Ambient Noise: Practical Ap-

proaches for Noise Reduction and Suppression. Tuto-

rial at ICASSP.

Triki, M. (2009). Performance issues in recursive least-

squares adaptive gsc for speech enhancement. In IEEE

Int. Conf. Acoustic, Speech, and Signal Processing

(ICASSP).

X. Huang, A. A. and Hon, H. (2001). Spoken Language

Processing. Carnegie Mellon University.

ON SPEECH RECOGNITION PERFORMANCE UNDER NON-STATIONARY ECHO CANCELLATION

321
