A NEW P300 NO EYE-GAZE BASED INTERFACE: GEOSPELL

F.Aloise

, P. Aricò

, F. Schettini

, A. Riccio

, M. Risetti

, S. Salinari

, D. Mattia

F. Babiloni

1,3

and F. Cincotti

Neuroelectrical Imaging and BCI Lab, Fondazione Santa Lucia IRCCS, Rome, Italy

Dept. of Computer Science, Univ. of Rome “Sapienza”, Rome, Italy

Department of Human Physiology and Pharmacology, Univ. of Rome “Sapienza”, Rome, Italy

Keywords: Brain Computer Interface, Covert Attention, P300, Eye Tracker, Workload, Electroencephalogram (EEG).

Abstract: Brain Computer Interface (BCI) is an alternative communication system which allows users to send

commands and/or messages toward the outside not crossing the normal output channels of the brain, but

conveying these outputs from the human brain to a computer (Wolpaw et al., 2002). In an EEG-based BCI

messages are obtained from brain activity. This study presents a novel P300 based Brain Computer Interface

requiring no eye gaze, and so usable in covert attention status, called GeoSpell (Geometric Speller).

GeoSpell performances have been compared with those obtained by the subjects with the standard 6 by 6

P300 Speller (P3Speller) matrix which depends on eye gaze (Farwell and Donchin, 1988). A NASA Task

Load Index (TLX) workload assessment was employed to provide a subjective rating about the task’s

workload and satisfaction with respect to both the interfaces (NASA Human Performance Research Group

1987). Results shown comparable workload values for P3Speller and Geospell; this result has an important

impact in term of efficiency and satisfaction for the use of the BCI devices. Geospell interface has shown an

accuracy comparable with the P3Speller one but with a lower bit-rate.

1 INTRODUCTION

Brain Computer Interfaces (BCIs) are able to

recognize the intention of the subject of completing

a particular action and to translate it into control

signals for technological devices, through particular

transfer algorithms.

The "communicative power" of the BCI systems

is very important for people with physical

disabilities; e.g. Amyotrophic Lateral Sclerosis

(ALS) causes the partial or total loss of the muscles

control, while sensory and cognitive functions

remain usually intact; this disease, in advanced state,

leads to the partial or total loss of the ability to move

eyes. A BCI able to translate specific mental trials in

a control actions could allow such persons to interact

with the surrounding environment improving their

autonomy and their quality of life. Different types of

brain activity are discernible in EEG signals and are

used in EEG based BCIs: e.g., the P300 potential is a

positive deflection (ca. 10-20µV) that occurs about

250-400 ms after the presentation of a target

stimulus (Fabiani et al., 1987; Polich et al., 1995).

This is the case of “Oddball” paradigm during which

rare target items are presented within a sequence of

frequent No-Target (or "standard") items; in this

kind of paradigm the subjects are asked to focus

their attention to the Target stimulus (e.g. mentally

counting the number of Target occurrences or

pushing a button on a keyboard when the user

recognizes the Target), and to ignore the other

stimuli (No-Target).

1.1 Attention: “Covert” vs “Overt”

An important ability of our cognitive system is the

possibility to select, by attentional mechanism, just a

part of the big amount of information we are at any

time subjected to. Selective attention, is the

cognitive process of selectively concentrating on one

aspect of the environment while ignoring other

things (Anderson, 1999). Fixing an object does not

necessarily means to see it and to focus the attention

on it: we can focus the attention on a specific target

of the visual field directing the eyes towards the

stimulus source (overt attention), or mentally

227

Aloise F., Aricò P., Schettini F., Riccio A., Risetti M., Salinari S., Mattia D., Babiloni F. and Cincotti F..

A NEW P300 NO EYE-GAZE BASED INTERFACE: GEOSPELL.

DOI: 10.5220/0003161202270232

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2011), pages 227-232

ISBN: 978-989-8425-35-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

focusing on one of several possible stimuli, without

the necessity of gazing on it (covert attention).

2 STATE OF THE ART

2.1 P3Speller Interface

P3Speller (P300 Speller) is an interface developed

by Farwell and Donchin (Farwell and Donchin,

1988) (Figure 1a). It allows the subject to select 36

alphanumeric characters positioned in a matrix,

using as control feature the P300 event related

potential (ERP). Stimuli are presented to the user on

a computer screen and randomly intensified at an

established frequency. During the stimulation, the

user focuses his attention on the character he intends

to select and then he mentally counts the number of

occurrences while rows and columns are flashing.

The flashing of the selected target elicits a P300

potential, while the others (No-Target) do not.

One of the main problems to recognize the P300

is the lowest signal-to-noise-ratio (SNR); for this

reason, each character is intensified more than once

time (e.g. 8 occurrences for the rows and 8 for the

columns for this study) in order to extract the

components of interest from background noise

averaging the Target and No-Target stimuli.

2.2 P3Speller in Covert Attention

Condition

As mentioned above, ALS patients, in advanced

stage of the illness, could manifest a paralysis of the

ocular muscles losing possibility to freely move the

eyes.

A recent study of Brunner et al. showed that the

P3Speller performances dramatically decrease when

the user is unable to move his eyes (Brunner et al.,

2010).

In this regard, Treder and Blankez tested the

ERP-based Hex-o-Spell, a two-levels speller

consisting of six discs arranged on an invisible

hexagon, which does not require eye gaze. They

reported classification accuracy about 60% (Treder

and Blankez, 2010).

The purpose of this study has been to plan and

evaluate a new speller interface P300-based usable

in covert attention condition too.

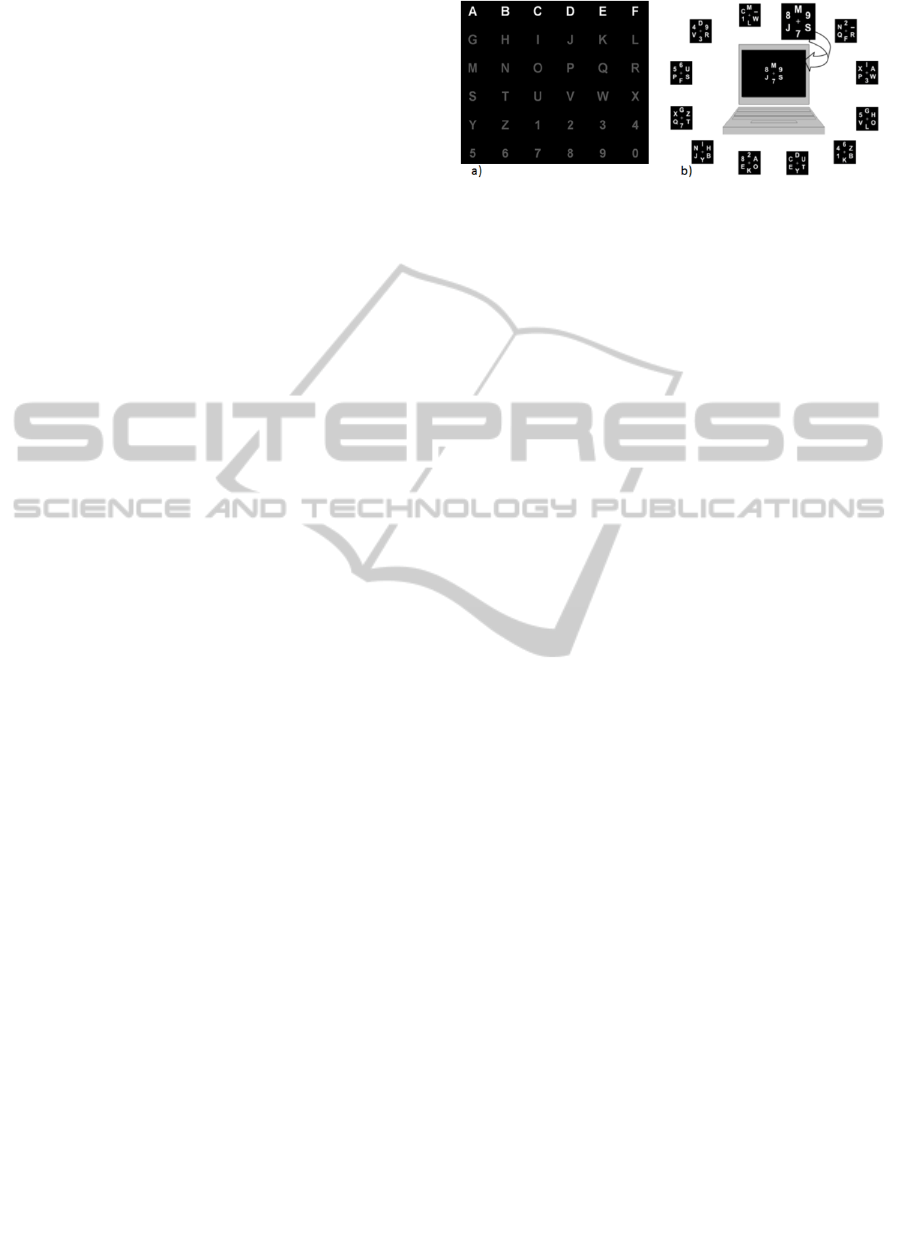

Figure 1: a) Farwell and Donchin speller paradigm P300-

based b) The proposed GeoSpell (Geometric Speller)

interface; each group contain 6 alphanumeric characters,

that are presented in a random sequence to the centre of a

screen.

3 METHODS AND MATERIALS

3.1 GeoSpell

In the GeoSpell interface (Figure 1b) characters are

organized following the same logic of a N by N

matrix: there are a total of N

characters and they are

organized into 2N groups of N characters each.

Characters of the same group are placed at the

vertices of a regular geometric figure, and a fixation

point is placed at its center. Each character belongs

to two groups occupying the same position; the

single selected character will be given by the

intersection of two groups.

The visual angle subtended by the fixation cross

at the center of the visual field and each character

doesn’t exceed 1° ; in this way all characters are

recognizable by the users (Sutter, 1992). The

characters for each group has been chosen so that the

number of white pixels between different groups is

almost constant (Mean=3274.333pixel; Std=2.93%).

This choice allows to avoid the occurrence of no-

ERP potentials (e.g. VEPs) that otherwise would be

elicited during the stimulation. This eventuality is

instead inevitable in the P3Speller interface.

Stimulation consists in a random presentation of all

the groups, in particular every group was enlighten

for 125 ms and a 250 ms lag between the onsets of

two consecutive stimuli.

Seven volunteer subjects (4 male, 3 female,

Median age=27.75, Std=4.6), with no history of

mental or neurological illnesses were involved in

this study. Every subject had previous experience

with BCI and with the P3Speller interface. Scalp

EEG data were acquired using BCI2000 software

(Schalk et al., 2004). The EEG was recorded using a

cap embedded with 16 Ag/AgCl electrodes covering

left, right, and central scalp locations (Fz, FCz, Cz,

CPz, Pz, Oz, F3, F4, C3, C4, CP3, CP4, P3, P4,

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

228

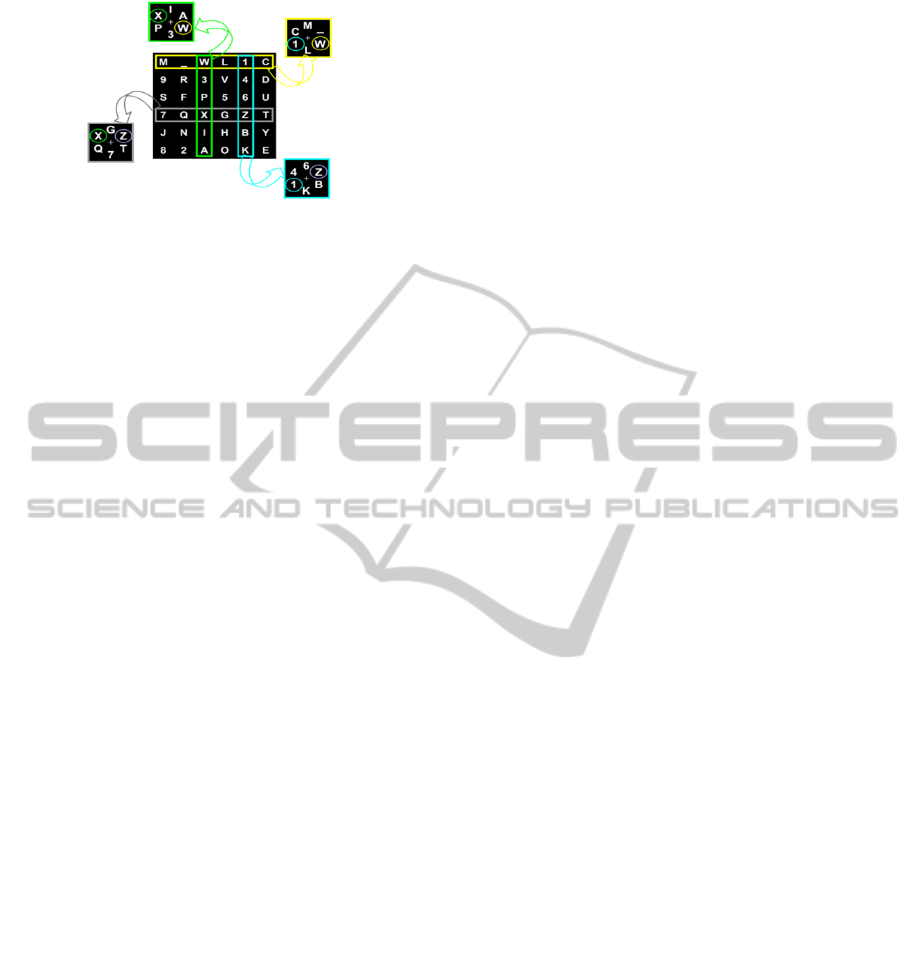

Figure 2: Each group contains the characters of one row or

one column of a matrix.

PO7, PO8) referenced to both earlobes, and

grounded to the right mastoid, based on the 10-10

standard of the International Federation. The

electrode impedance did not exceed 10 kΩ. The

EEG was acquired with a g.Tec gUSBamp

acquisition device (Austria, sampling rate 256Hz).

In order to demonstrate that the GeoSpell interface

does not require eye gaze we have performed

recordings using an eye tracker system (spatial

resolution of 0.5°) constituted by an infrared-light

webcam “Genius iSlim 320” managed by the open

source software “ITU GazeTracker” (San Augstin et

al, 2010). After a phase of calibration, the software,

in START mode returns X and Y screen coordinates

of the eye gaze; through UDP communication, In

this way we synchronized the BCI2000 and the ITU

gaze tracker, and calculated, through offline

analysis, the number of ocular movements and

blinks made by subject during the stimulation, and

Target/s on which he/she has moved the eyes.

3.2 Usability

The introduction of the BCI technology into the

home-place would have a great impact on

opportunities available to severe motor disable

people. From this point of view approaching in the

assessment of BCI technology development in terms

of usability is a first important stage. In this study

we focused on the evaluation of user’s mental

workload in operating the two different interfaces. In

order to compare the workload of the GeoSpell and

the P3speller, we used a subjective workload rating

scale called NASA-tlx (Hart and Staveland, 1988).

The NASA-tlx assesses the workload by considering

six different factors: Mental, Physical and Temporal

Demands, Frustration, Effort and Performance.

The workload has a direct bearing on the

usability of a software interface. If fewer mental

resources are used, then the efficiency, and also the

effectiveness and satisfaction associated with the

interface can be increased.

3.3 Experimental Protocol

As mentioned earlier each participant to the protocol

had previous experience with the interface

P3Speller, instead the GeoSpell was presented them

for the first time; this could represent an intrinsic

bias between the two interfaces. Furthermore recent

work refers that the mental training can significantly

affect attentive stability, brain function, and

selectively reduced cognitive effort (Lutz et al.

2009). So each subject was asked to take part in 4

training sessions without EEG acquisition with the

GeoSpell before to start with the effective data

collecting protocol. The purpose of this sessions was

to get used the subjects to the new interface; in each

training session subjects were asked to attend to

some letters and push a button when they occur;

every letter on the interface was presented as a

Target with the same incidence and we monitored

the number of lost Targets. Every session consists of

9 runs of 6 trials each, where a trial denotes a fixed

number of stimulation sequences during which the

target is the same. We set 8 stimulation sequences

for trials and then each letter is presented 16 times.

Proceeding with the training, we noticed for all the

subjects a diminution of the number of lost Targets

and an arrangement in the reaction times.

Data collecting protocol consists of 5 sessions

during which we compared the 2 different interfaces,

using a visual oddball paradigm as a baseline both

for reaction times and for waveforms features.

During the first 4 sessions we asked the subject to

perform 3 runs with each different stimulation

interface. The system suggested to the user the letter

that he had to concentrate on before that the

stimulation began. We used 6 different words of 6

different characters per word (for a total of 36

different characters) as a text to spell: “AX6L1O”,

“TVM3CH”, “2EWY_8”, “BJZN7G”, “DR5K9Q”,

“FU4SPI”. The characters of the same word were

chosen to occupy all possible positions within a

group. As mentioned earlier, every stimulus was

intensified for 125ms, with an inter stimulus interval

(ISI) of 125 ms, so 250 ms lag between the onset of

two different stimuli. Also we have set of

pseudorandom stimulation sequences to ensure that

at least 500 ms elapsed between two target stimuli.

This avoids the “Attentional Blink” phenomenon

that occurs when the Target to Target Interval (TTI)

is shorter than 500ms (Raymond et al. 1992). We

provided a 2 seconds pre-trial presentation, during

which the target appeared in the its group position;

in this way the subject knew the Target position

before stimulation started. The first 2 sessions were

A NEW P300 NO EYE-GAZE BASED INTERFACE: GEOSPELL

229

about response times and EEG data acquisition was

not required; the subject had to keep his eyes fixed

on the cross at the center of the interface and push a

button every time a Target stimulus appeared. The

last session aimed at a direct comparison of the

online performances of GeoSpell and P3Speller.

Data of third and fourth sessions were used to

extract the control features for each participant; in

particular we used a Stepwise Linear Discriminant

Analysis (SWLDA) to select the most relevant

features that allowed to discriminate Target Stimuli

from NoTarget one (Krusienski et al. 2006). The two

interfaces were put on in the same operational

conditions; particularly, for the P3Speller online

classification, 8 stimulation sequences per trial were

used, and before the beginning of every trial, subject

had 4 seconds of "Presentation" during which the

stimulation was off and he could look for the Target

of interest. For GeoSpell we provided 10 stimulation

sequences: the first 2 sequences (Presentation),

allowed the subjects to find the wanted Target;

during these 2 sequences, each letter was presented 4

times. Rather the following 8 sequences of

stimulation were used for online classification. In

both interface a feedback on classification result was

given at the end of each trial. For text to spell we

select two made sense Italian word that move on all

the different positions in the GeoSpell’s group (as it

happened for the words in previous sessions).

4 RESULTS

4.1 Reaction Time

We used the 2 sessions without EEG acquisition to

compare the reaction times of the 2 text writing

interface with the visual oddball paradigm. Figure 3

shows the mean of reaction time for each stimulation

interface relating to the 2 different sessions.

Geospell interface exhibited an averaged reaction

times statistically different (p< .05) from each other;

such result was expected, because the covert

attention condition increases the difficulty of the

discrimination task with respect to overt attention

condition; the number of missed Targets confirms

this results, in fact GeoSpell interface produced a

greater number of lost Targets with respect to other

interfaces.

4.2 Offline Counting Accuracy

The data collected during third and fourth sessions

were used to determinate counting accuracy. In

particular we performed a cross- validation

exploring all the possible combinations of training

and testing data set from the initial data set. For each

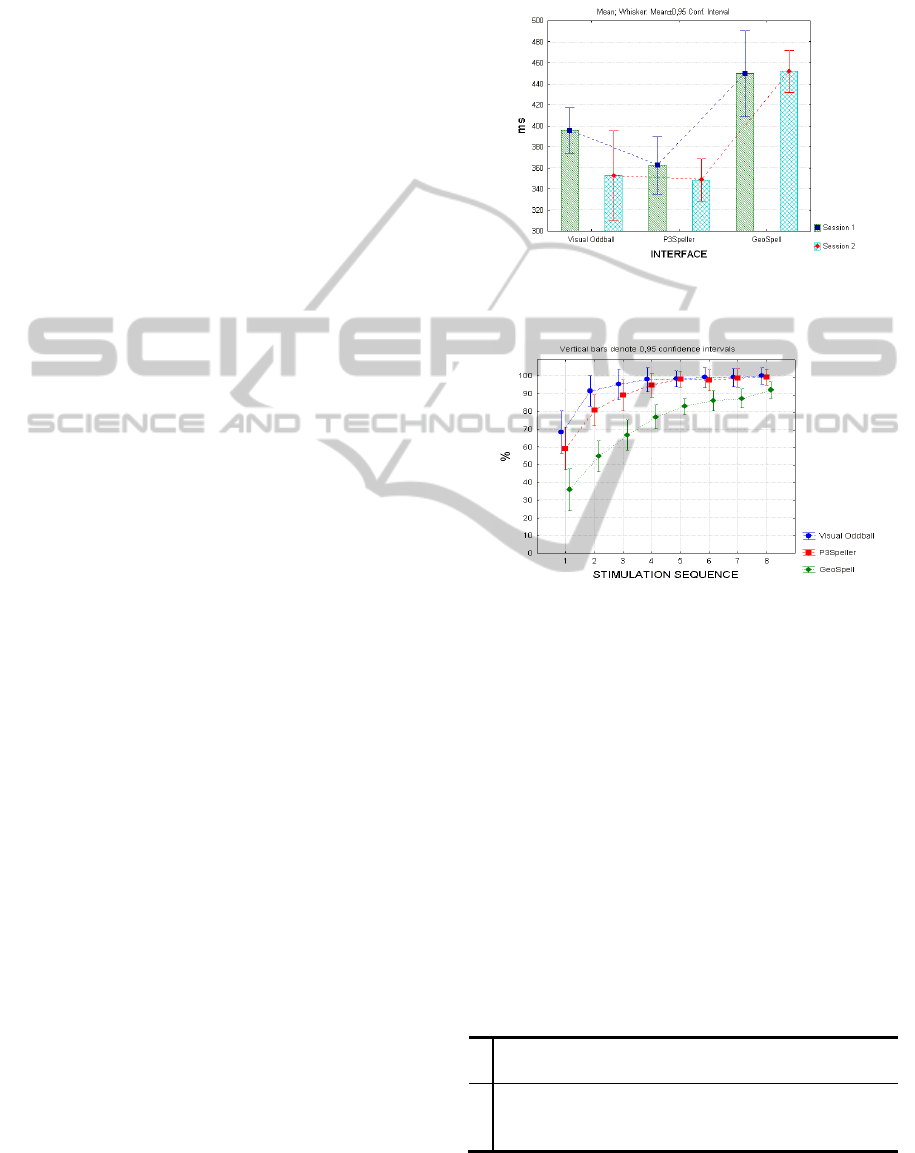

Figure 3: Mean Error (0.95 CI) of reaction times for each

session and the 3 interfaces.

Figure 4: ANOVA test for the accuracy of the 3 different

interfaces depending on the number of stimulation

sequences.

participant, counting accuracy was determined

depending on the number of stimulation sequences

mediated during the trial.

Then, we analyzed accuracy values using two-

way repeated measures ANOVA, using Interface

and Number of Stimulation Sequence as factors

(figure 4). After that, we performed two way t-test

(α = .05) between P3Speller and GeoSpell for each

Number of Stimulation Sequence. Results are

summarized in Table 1: GeoSpell reached

comparable performances with P3Speller after a

high number of stimulation sequences.

Table 1: t and p values of t-test for each stimulation

sequence.

 SeqSt

1

SeqSt

2

SeqSt

3

SeqSt

4

SeqSt

5

SeqSt

6

SeqSt

7

SeqSt

8

p 0,034 0,001 0,006 0,063 0,006 0,050 0,031 0,078



2,52 4,13 3,63 2,16 3,52 2,22 2,74 2,12

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

230

In conclusion, the GeoSpell interface exhibits a

lower bit-rate than P3Speller, but the performances

in terms of accuracy are comparable, since the

differences among the performances using GeoSpell

and the P3Speller decrease when the number of

stimulation sequence increases.

4.3 Event Related Potentials

Some analyses have been performed on the

amplitudes and latencies of the P300 and N200

ERPs (elicited by the Target stimuli). In particular

we compared the P3Speller and GeoSpell with two-

way repeated measures ANOVA, with Interface and

Amplitude/Latency as factors.

Peak amplitude and peak latency were

determined for each subject by picking the largest

positive or negative peak for all the sites within

particular intervals, these were selected through a

Grand-Average on the EEG signal of all the

subjects, for the two interfaces (Table 2).

Table 2: Interest intervals for ERP’s amplitude and

latency.

LATENCY[ms] P3SPELLER GEOSPELL

P300 [220:400]ms [400:600]ms

N200 [150:250]ms [250:400]ms

There were no statistically differences between N2

and P3 amplitudes for the two different spellers

([N2] Interface: F = 0.38462, p = 0.55239; [P3]

Interface: F = 2.0602, p = 0.18911). Instead, N2 and

P3 latencies were longer for GeoSpell than for

P3Speller ([N2] Interface: F = 64.624, p = 0.00004;

[P3] Interface, F = 54.862 p = .00008). The increase

in the N2 and P3 latencies using the GeoSpell

interface, was caused by the increase of the task

difficulty. E.g., changes in ERPs component latency

between different groups and conditions can be

assumed to reflect changes in stimulus processing;

P300 latency is often correlated with task difficulty:

P300 peak latency is longer for the more difficult

compared to the easier tasks (Allison et al., 2003).

4.4 Online Counting Accuracy

We determined the online accuracy basing on the

results of the fifth session. Accuracy per subject and

mean accuracy (AVG) were depicted in figure 5 for

each interface.

The results of the online session, confirm those

of the copy-mode sessions: the use of the P3Speller

allows performances (AVG = 95.75%, Std = 2.45)

more elevated than using the GeoSpell interface

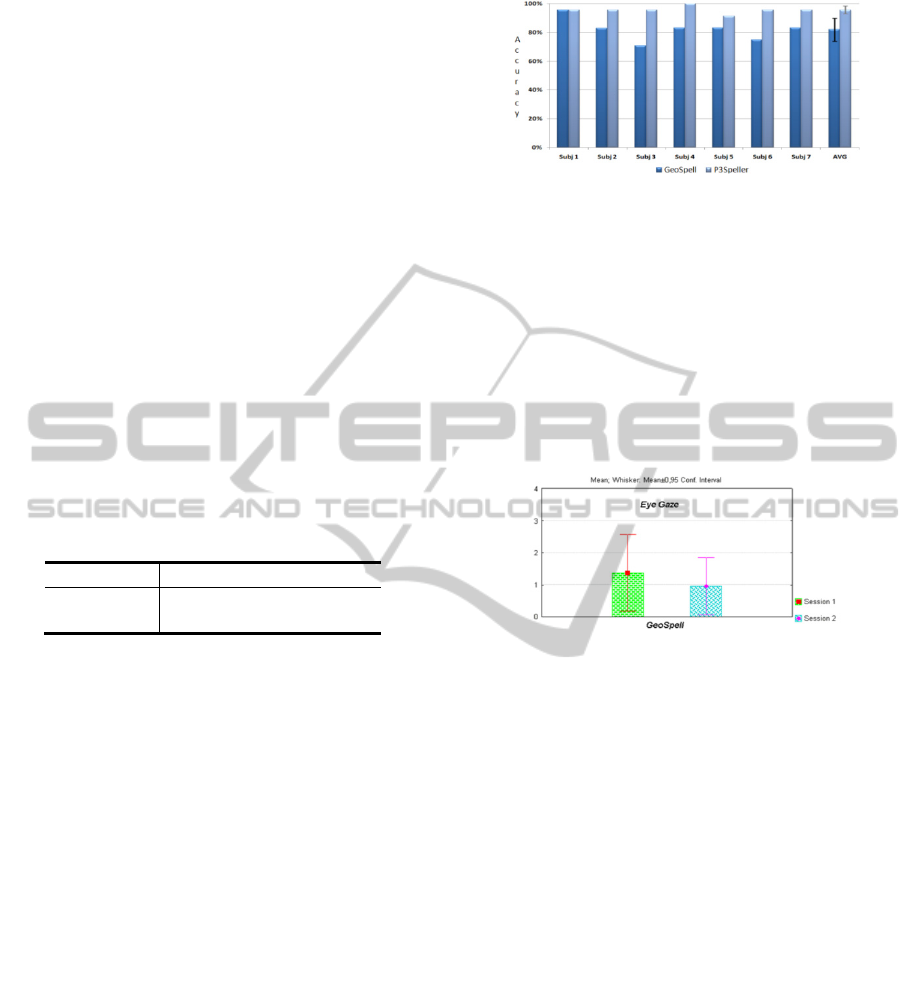

Figure 5: Online classification accuracy for each subject.

(AVG = 83.18%, Std = 8.29); the Std value in the

GeoSpell performances, shows a great variability in

the performances among the subjects respect to

P3Speller. However it must be remembered that the

two interfaces have been used in different attentional

conditions; previous studies (Brunner et al., 2010)

shown that the use of P3Speller in covert attention

condition causes a significant performances decrease

that doesn’t allow to use P3Speller as

“Communicative Mean”.

Figure 6: Mean error (0.95 CI) related to subjects eye

movements during the stimulation for the 2 copy mode

sessions.

On the contrary the performances achieved with

the GeoSpell interface far exceed 70%, value that

represents the threshold above which an interface

can be defined efficient in communication terms

(Kübler et al. 2006).

The small number of eye movements recorded

during the third and fourth capture sessions

confirmed the hypothesis of the covert attention

condition. Figure 6 depicts the mean error (0.95 CI)

referred to the number of ocular movements

performed by the subjects during the 2 copy-mode

sessions. In each run, the number of the stimuli

presented during the last 8 sequences was 96.

4.5 Workload Results

Two repeated measures ANOVAs were conducted

separately for the workload scores of the online and

the offline sessions, with the GeoSpell task and

P3speller task entered as the independent factors.

Although the workload scores of the GeoSpell tasks

(offline: mean=37.2 std=16.21; online: mean=42.4

std=18.4) were higher than those in the P3Speller

A NEW P300 NO EYE-GAZE BASED INTERFACE: GEOSPELL

231

task (offline: mean=26 std=17.6; online: mean=33.1

std=21.7) we didn’t find any significant difference

between them both in the offline condition (p=0.19)

both in online condition (p=0.4).

5 CONCLUSIONS AND

FUTURE DEVELOPMENTS

The eye tracker systems as communicative means

represent the ideal solution for the ALS subjects that

are able to move the eyes, compared to the BCI

P300-based text writers, because the detection of eye

movements is quicker, easier, and more accurate

than the detection of ERPs. A BCI system operable

without the necessity to move the eyes is the only

way to communicate for the ALS subjects,

completely "locked-in."

In this study was shown a new P300-based BCI

system, useable in covert attention status. The

performances using the GeoSpell interface (> 70%),

allow defining it as “Communicative Mean”.

In a future study, it will be tried to bring some

changes to the GeoSpell interface, that allow to

improve the usability and accuracy, giving particular

relief to the training, that could improve the

performances.

ACKNOWLEDGEMENTS

This work is partly supported by the EU grant FP7-

224332 “SM4ALL” project, and FP7-224631

“TOBI” project. This paper only reflects the authors’

views and funding agencies are not liable for any use

that may be made of the information contained

herein.

REFERENCES

Allison, B. Z. & Pineda, J. A., 2003. ERPs evoked by

different matrix sizes: implications for a brain

computer interface (BCI) system. IEEE Transactions

on Neural Systems and Rehabilitation Engineering,

11(2), pp.110-113.

Anderson, J., 1999. Cognitive Psychology and its

Implications Fifth Edition., Worth Publishers.

Brunner, P. et al., 2010. Does the ‘P300’ speller depend on

eye-gaze? Journal of Neural Engineering, 7(5),

p.056013.

Fabiani, M. et al., 1987. Definition, identification and

reliability of measurement of the P300 component of

the event-related brain potential. , 2, pp.1-78.

Farwell, L. A. & Donchin, E., 1988. Talking off the top of

your head: toward a mental prosthesis utilizing event-

related brain potentials. Electroencephalography and

Clinical Neurophysiology, 70(6), pp.510-523.

Hart, S. G. & Staveland, L. E., 1988. Development of

NASA-TLX (Task Load Index): Results of Empirical

and Theoretical Research. In Human Mental

Workload. North-Holland, pp. 139-183.

Krusienski, D. J. et al., 2006. A comparison of

classification techniques for the P300 Speller. Journal

of Neural Engineering, 3(4), pp.299-305.

Kübler, A. et al., 2006. BCI Meeting 2005--workshop on

clinical issues and applications. IEEE Transactions on

Neural Systems and Rehabilitation Engineering: A

Publication of the IEEE Engineering in Medicine and

Biology Society, 14(2), pp.131-134.

Lutz, A. et al., 2009. Mental training enhances attentional

stability: neural and behavioral evidence. The Journal

of Neuroscience: The Official Journal of the Society

for Neuroscience, 29(42), pp.13418-13427.

Polich, J. & Kok, A., 1995. Cognitive and biological

determinants of P300: an integrative review.

Biological Psychology, 41(2), pp.103-146.

Raymond, J. E., Shapiro, K. L. & Arnell, K. M., 1992.

Temporary suppression of visual processing in an

RSVP task: an attentional blink? Journal of

Experimental Psychology. Human Perception and

Performance, 18(3), pp.849-860.

San Agustin, J. et al., 2010. Evaluation of a low-cost open-

source gaze tracker. In Proceedings of the 2010

Symposium on Eye-Tracking Research & Applications

- ETRA '10. the 2010 Symposium.Austin, Texas, p. 77.

Schalk, G. et al., 2004. BCI2000: a general-purpose brain-

computer interface (BCI) system. IEEE Transactions

on Bio-Medical Engineering, 51(6), pp.1034-1043.

Sutter, E., 1992.The brain response interface:

communication through visually-induced electrical

brain responses. J. Microcomput. Appl., 15(1), pp.31-

45.

Treder, M. S. & Blankertz, B., 2010. (C)overt attention

and visual speller design in an ERP-based brain-

computer interface. Behavioral and Brain Functions:

BBF, 6, p.28.

Wolpaw, J. R. et al., 2002. Brain-computer interfaces for

communication and control. Clinical

Neurophysiology: Official Journal of the International

Federation of Clinical Neurophysiology, 113(6),

pp.767-91.

BIOSIGNALS 2011 - International Conference on Bio-inspired Systems and Signal Processing

232
