INTEGRAL SECURITY MODEL FOR THE EXCHANGE OF

OBJECTS IN SERVICES ORIENTED ARCHITECTURE

Emilio Rodriguez-Priego and Francisco J. García-Izquierdo

Universidad de La Rioja, Dpto. de Matemáticas y Computación, Edificio Vives

Luis de Ulloa s/n.E-26004 Logroño, Spain

Keywords: Web services security, Mobile code security, Service Oriented Architecture.

Abstract: Nowadays, security approaches and solutions for SOA focus mainly on messages and data, but they forget

the code security (both service code and exchanged code). Moreover, some security aspects (e.g. validity,

correctness...) are usually forgotten. We state that any security approach will be incomplete if the security of

both data (messages) and code (service code) is not addressed in a general sense. In this paper, we extend a

previous approach about securing code in SOA. We analyze general problems related to the exchange of

code and state in SOA and in the specific case of Web Services architectures. A new general model of

security is presented. This model covers any aspect related to the authorship, distribution, transformation,

execution and validation of both code and data.

1 INTRODUCTION

The current interest in Web Services technology and

Service Oriented Architecture (SOA) (OASIS, 2006,

OASIS, 2008) is notorious. One critical aspect in

SOA is security. SOA and Web Services

Architecture (WSA) (W3C, 2004) share common

concepts. WSA can be seen as a specific application

of SOA model. Currently, most works related to

SOA are developed under WSA. Many web services

standards are evolving, most of them about security.

SOA-RM focuses on the service as a central

concept of interaction between a generic consumer

and a provider. It defines service as a “mechanism to

enable access to one or more capabilities” and “its

implementation is typically hidden from the service

consumer except for (1) the information models

exposed through the service interface and (2) the

information required by service consumers to

determine whether a given service is appropriate for

their needs”.

Policies and contracts are other SOA central

concepts, particularly related to security policies.

Most SOA based solutions are based in web services

technologies and security mechanisms. They put

their focus on end to end integrity, confidentiality,

identity and authentication. These mechanisms work

well and, above all, they are applied to messages.

However, code security is not generally addressed,

despite being well known that most threats to the

integrity of the information are precisely focused not

on the data directly but on the code that manages it

(Whitman, 2003).

This paper is the continuation of a previous work

(Rodríguez and García, 2007) that presented an

approach about code security on SOA environments

that can be applied on web services architectures.

We named that approach “Web Services based

Secure Code” (here-in-after WSbSC) and its

reference model WSbSC-RM. This paper extends it

considering more complex situation in which entities

wish to exchange not only data, but also code to

manage that data. So we are now considering objects

(data + code) as input and/or output of services.

The remainder of the paper is organized as

follows. Section 2 is devoted to show some

background necessary to understand the rest of the

paper. Section 3 describes how WSbSC can be

extended from an object-oriented perspective.

Section 4 covers implementation issues. The paper

finalizes with the conclusions and a future work

outline.

1.1 Related Work

A considerable amount of related work has been

done. (Rubin and Geer Jr. 1998, Claessens, Preneel

and Vandewalle, 2003) studied security aspects

about Mobile code and Mobile agents and diverse

Rodriguez-Priego E. and J. GarcÃ a-Izquierdo F.

INTEGRAL SECURITY MODEL FOR THE EXCHANGE OF OBJECTS IN SERVICES ORIENTED ARCHITECTURE.

DOI: 10.5220/0001838300600065

In Proceedings of the Fifth International Conference on Web Information Systems and Technologies (WEBIST 2009), page

ISBN: 978-989-8111-81-4

solutions for specific security threats were proposed.

Besides, each one of the execution environment

actors that appear in this paper –compilers and

processors, e.g., virtual machines (Franz et al, 2003)

and verifiers (Chang et al, 2005, Bhargavan, Fournet

and Gordon, 2004) – have been presented from

different points of view. Security contracts and

policies were analyzed in (Gutiérrez et al, 2005,

Sekar et al, 2001) and more recently in (European

Project, 2006). (Foster et al, 2008) addresses the

object state modelling with Web Services

technologies but without considering security

aspects. An old debate about distributed objects vs.

Web services underlies this paper (Vogels, 2003,

Birman, K.P., 2004).

2 WSBSC-RM AND PSC-CERT

To make the rest of the paper self contained we are

devoting this section to present some background

already published in (Rodríguez and García, 2007).

WSbSC-RM is an abstract framework for

understanding significant relationships among

service providers and consumers that allows an

integral (data+code) secure interaction. WSbSC-RM

relies on SOA-RM, adding new relationships and

concepts to the modelling of the data and code

exchange between services. A key concept in

WSbSC-RM is code: it can be portable, executed in

any compatible execution environment; the

transmission, load and execution of the code can be

carried out in a safe way, and it can be verified in a

secure way. WSbSC-RM states that the

transmission, reception, execution, loads,

compilation, validation of the code are services that

can be offered by systems potentially remote and

weakly coupled. In WSbSC code is not only

externally verifiable (Seshadri et al 2006); it’s also

externally compilable and executable.

WSbSC-RM distinguishes these actors: author,

the owner and creator of the code and its legal

owner; supplier, provides the code to a consumer

and distributes it with author’s permission; client,

uses the code provided by a supplier; verifier,

verifies the code according to a established security

policy; compiler, given a code, it compiles another

functional equivalent code; and processor, possesses

an execution environment that executes the code. All

WSbSC-RM actors are service consumers or

providers from the point of view of SOA-RM.

Besides, WSbSC-RM allows the modelling of the

actions of a service by composing services offered

by these actors and according to code-centric

policies and contracts. What is a key added factor of

our approach with reference to SOA is that actors

playing the role of consumers in any relationship to

a provider may impose a certain security policy to

regulate the service that the provider is going to

perform. And this policy, and here is the

contribution, does not only affect the data and the

message as SOA does, but also any aspect of the

service implementation. This policy refers to one or

several security aspects (such as integrity,

confidentiality, validity, and so on) and may specify

a mechanism or a set of mechanisms that the

provider must implement in order to accomplish the

policy. The response to each service request will

include, as well as the result, metadata about the

required, and fulfilled, policy.

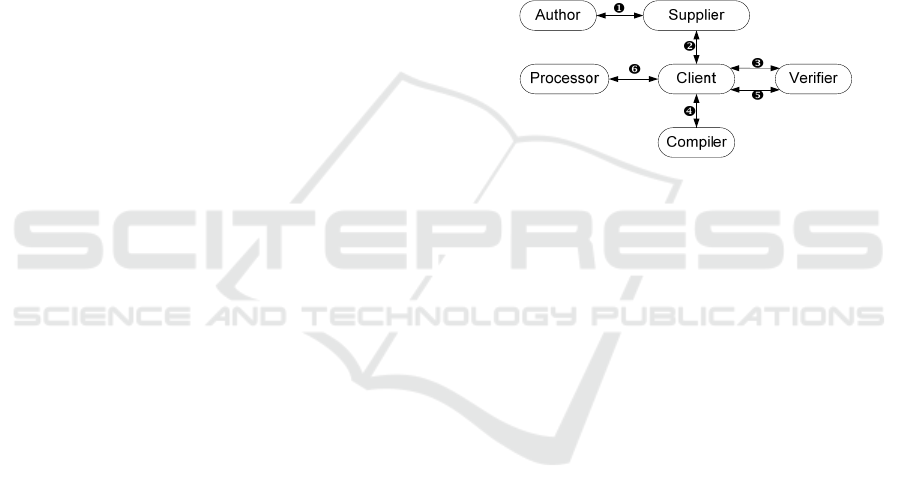

Figure 1: General WSbSC-RM.

We can illustrate the WSbSC-RM relationships

between actors describing a general example. Fig. 1

shows this general scenario. Interactions involve the

next steps: (1) an author creates the code and sends

it to a supplier for distribution. (2) A client localizes

and requests the code that satisfies its needs from the

supplier and the supplier delivers the code. (3) The

client requests the verification of the code according

to the client policy from a verifier and the verifier

delivers the validated code. (4) If code is not

compiled for the architecture in which is going to be

executed then the client requests its generation from

a compiler. The compiler returns the compiled code.

(5) The client can request validity of the compiled

code from the verifier. The verifier returns the

validated code. (6) The client requests to a processor

execution of the code and the processor returns the

result of the process to the client. At point (5) the

code is associated to the verifier's signature that

guarantees its integrity. By means of that signature

the processor can verify code integrity, or even

correctness with respect to a certain specification

before execution. Moreover, the overall process can

be checked if each actor signs its action

Therefore, each step generates metadata signed

by the service provider, as well as its signature; e.g.,

the code that results from the compiler can include

INTEGRAL SECURITY MODEL FOR THE EXCHANGE OF OBJECTS IN SERVICES ORIENTED ARCHITECTURE

metadata related to that compilation. This means that

at the end of the process we can get a code qualified

as "secure" since it is created (author), provided

(supplier), validated (verifier) and generated

(compiler) by trusted identified entities. This code,

that we'll name Portable Secure Code (PSC) is

formally "portable" and "secure". We have that PSC

= Code + PSC-cert (cert stands from certificate).

PSC-cert can be considered as a “metadata security

container” that enables security exchange between

entities providing and using the certified code.

The following listing outlines the structure of a

simple PSC-cert. AuthoredCode block is added

together with author’s signature of that block. All

blocks are added in the same way by each actor

when they finish their tasks. Sections marked with

(*) consist of two main parts: actor related metadata

related (description, e.g., by means of UDDI

business entity; credentials, e.g., SAML

authorization credentials ...) and metadata about its

action, e.g., for the compiler: the compiler

environment, the target language, and so on.

<wsbsc:psc xmlns:wsbsc=..xmlns:ds..>

<wsbsc:code EncodingType="Base64">

cHVibG .. </wsbsc:code>

<wsbsc:psc-cert>

<wsbsc:AuthoredCode>..

</wsbsc:AuthoredCode>

<ds:Signature ..>..</ds:Signature>

<wsbsc:SuppliedCode>.(*).

</wsbsc:SuppliedCode>

<ds:Signature ..>..</ds:Signature>

<wsbsc:CompiledCode>.(*).

</wsbsc:CompiledCode>

<ds:Signature ..>..</ds:Signature>

<wsbsc:VerifiedCode>.(*).

</wsbsc:VerifiedCode>

<ds:Signature ..>..</ds:Signature>

</wsbsc:psc-cert>

</wsbsc:psc>

3 INFORMATION EXCHANGE

SCENARIOS

In the next sections we describe a specific use of

WSbSC-RM to offer an advanced level of end-to-

end service security using objects as elements

exchanged, assuming that an object is data + code.

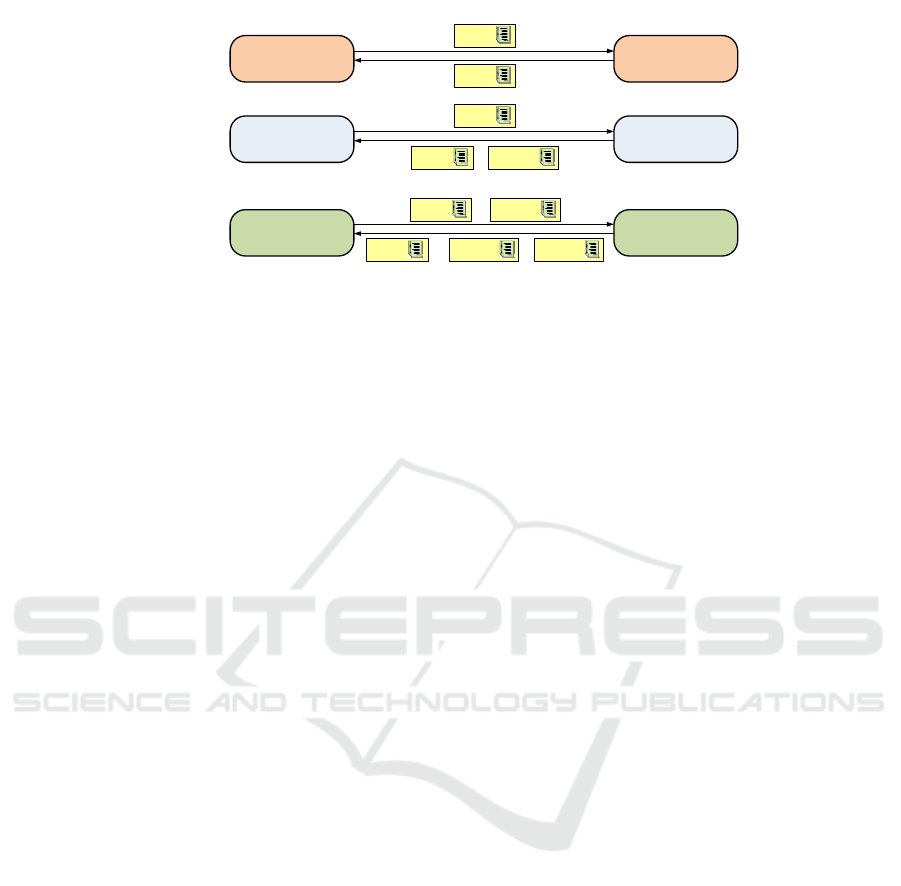

Fig. 2 shows the general picture of the three basic

scenarios where a consumer requests a service from

a provider. In case 2.a, the consumer and the

provider exchange only data. This is the common

information model found in SOA. In it, and for the

particular case of Web Services, common security

mechanisms such as public-key cryptography can be

used to securing only the exchanged data (WS-

Security, SAML, XML-DSIG, WS-Policy…). Case

2.b corresponds to a scenario described in section 2.

So far, we have proposed a model in which the

secured code is located in the service provider. The

next step in the discussion is the study of a scenario

where the code travels between consumers and

service providers. Code may travel and not be

locally executed, e.g., for performance reasons

(Lange and Oshima, 1999). Case 2.c depicts this

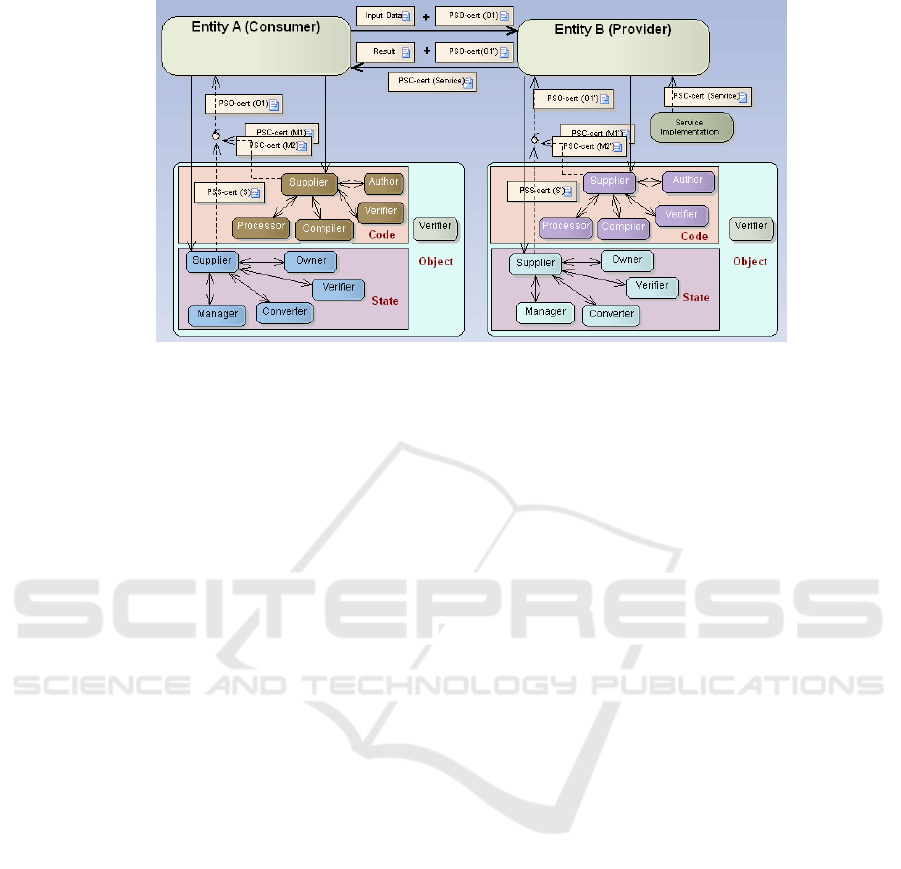

new scenario. The service requires as input an object

from the consumer. During its execution, the service

will interact with this object and eventually it will

modify its state. The object helps the service to fully

accomplish its mission, allowing the service to use

its methods. E.g., imagine that the scenario

corresponds to the interaction between a flight

reservation service and final users, who send their

personal planner object. The service needs to consult

the planner calendar to determine the user

availability, and, once the flight has been selected,

the service inserts a new appointment in the planner.

Consumer entity Provider entity

Input

Consumer entity Provider entity

Input

Result

Consumer entity Provider entity

(a)

(b)

(c)

Result

PSC-certPSO-cert

Result PSC-cert

Input

PSO-cert

Figure 2: WSbSC-RM Information Model Cases.

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

Security requirements in case 2.c are more complex

than for case 2.b, because the consumer and the

provider want to ensure that not only the service

(case 2.b) but its interactions (use and/or

modification) with the input object are secure. So,

they agree to use WSbSC to get a higher level of

security about the performed service. But this is not

enough yet. The security policy of the consumer

requires that the provider accesses and/or modifies

the object state only by means of the object methods.

Fig. 3 shows how we can achieve these high

level security requirements for this scenario using

WSbSC. Interaction begins when the consumer A

requests a service from the provider B. Both A and B

establishes code security policies using WSbSC-

RM. Suppose that the service requires object O1 as

input, being M

and M

the object methods and S its

state. The initial problem is that B does not allow

untrusted code to execute. To address this problem

using WSbSC A gets PSC-cert(M

) and PSC-

cert(M

), proving to B that code from A is secure.

3.1 Securing Object’s State. WSbSS-

A and B could need the same level of security for

state than for code. Apparently, this is similar to case

(2.a) where data is secured by A and B using well-

known security mechanisms. However we can get a

higher level of security for the state.

Similarly to code in section 2, we can distinguish

actors related to object’s state (data). We can

consider that these actors virtually offer services

about state: owner, the owner of the state, A in Fig. 3

(note that state can represent relevant data that an

entity owns); supplier, optionally the owner can

delegate to this actor the action of providing the state

to another entity; client, uses the state provided by a

supplier; verifier, verifies the data consistency (e.g.,

the verifier tests the data structure and its integrity);

converter, optionally it may be necessary to convert

the internal state from one format into another

without changing the state itself (it is similar to code

compilation); and manager, possesses an

environment to manage the state (it’s analogous to

code execution). There is a code/data actors duality

(author-owner; compiler-converter; processor-

manager). In general, these actors can be local o

remote. Using the analogy of WSbSC-RM for code,

we call the dual reference model for the state

WSbSS-RM (Web Services based Secure State –

Reference Model). WSbSS-RM allows providing a

further level of security on data with respect to

scenarios such as the depicted in Fig 2.a.

Consequently, the service consumer gets basic

metadata related to the object state. Continuing the

analogy with code, we will call this metadata PSS-

cert (Portable and Secure State). This certificate will

be generated by the data actors.

3.2 Securing Objects’ State and

Methods: WSbSO-RM

At this point, the service consumer has metadata

about the whole object (state and methods) that can

be offered to another entity to demonstrate that all

the methods have been created (author), provided

(supplier), generated (compiler) and validated

(verifier) by trusted actors that sign their actions

with a certificate. Moreover, the state of the object

has been identified (owner) and, eventually, it has

been converted (converter) and validated (verifier)

Figure 3: Portable and secure objects with WSbSC.

INTEGRAL SECURITY MODEL FOR THE EXCHANGE OF OBJECTS IN SERVICES ORIENTED ARCHITECTURE

by trusted actors also. We call the certificate that

aggregates both state and methods metadata PSO-

cert. In our example, PSO-cert(O

) = PSC-cert(M

)

+ PSC-cert (M

) + PSS-cert (S). Returning to Fig. 3,

A sends O

with PSO-cert(O

) to B. Following the

notation, we name Web Services based Secure

Object Reference Model WSbSO-RM. We assume

that A and B trust actors described above. A and B

may even share some of those actors.

Now, B has received the M

and M

code.

Perhaps this code is not suitable for its execution in

B’s processor, so B has to transform it (e.g., compile

to generate code compatible with its execution

environment). When B returns A the service result, it

will have to certify that the recompiled versions of

and M

’ and M

’), were securely executed in

B as WSbSC mandates, i.e., M

’ and M

’ has been

compiled, verified and executed by trusted actors.

This is necessary because A should not allow the

execution of O

methods, and consequently its state

access/modification, in an untrusted execution

environment. This fact will be returned to A in the

form of M

’ and M

’ PSC-certs. Note that it isn’t

necessary to generate metadata from all WSbSC-RM

actors. For example, if examining original M

and

PSC-certs, B realizes that its compiler

environment is compatible with M

and M

, B does

not need to compile them again and it can use

compiled code offered by A.

B performs the service using M

’ and M

’ to

access and/or modify O

state. We want to borrow

some ideas from SOA and stress the fact that they

are also observed in WSbSC and WSbSS. Surely,

when the service has finished, internal B state has

been modified but as SOA-RM says “internal

actions that service providers and consumers

perform as a result of participation in service

interactions are, by definition, private and

fundamentally unknowable”. In fact, we can

consider that A doesn’t know either B’s internal

actions to realize the service neither its initial nor

final state; and B only handles O

through its

methods, without needing to know the method

details. Although A and B don’t know neither the

process nor the state details, they have shared “facts”

and processes from a “real world” point of view.

Global process is distributed. SOA-RM focuses on

“the sets of facts shared by the parties”. WSbSC-RM

adds the focus on “shared process” too. SOA-RA is

adding now this missing concept including a similar

term (joint action) not present in SOA-RM.

A gets the service result including O

that may

have a new state S’ due to the interaction with B by

means of M

’ and M

’. A also receives the service

implementation PSC-cert, as in Fig.2 case 2.b; and

the PSO-cert(O

’), that certifies that the new version

of the object methods is securely executed, verified,

and eventually recompiled in a trusted environment;

and that the objects state may have been converted

and verified by trusted parties also. Note that,

despite being the same object O

, we denote it O

’ to

stress the fact that, eventually, the state may have

changed by new versions of the methods.

A can check integrity of M

’ and M

’, S’ and the

service implementation as was described previously.

Note that for performance reasons, both consumer

and provider haven’t to get PSO-certs every time.

There is a trade-off between performance and

security. Consumer and provider policies may state

in which cases a PSO-cert update is required.

3.3 Securing Legal Access to State

It must be observed that, for the moment, the

security level that the PSO-cert(O

’) built by B is not

enough. The service consumer A has not the

sufficient guaranty to be sure that the new state S’

has been obtained my means of M

and M

(or their

transformed versions M

’ and M

’). In general, it

must be guaranteed that the object state can only be

managed by means of its methods, wherever the

object is used. To reach such a guaranty, a new

verifier actor is needed. While central problems

about data and code verification have been

addressed from different points of view, the problem

of securing legal access to the state through the

object methods is a more complex task, being the

mobile agents scope the research field where the

problem has been mainly addressed (Claessens,

Preneel and Vandewalle, 2003). The verifier also

adds metadata to the PSO-cert(O

) and sign its

information block in such a way that the consumer

can also verify its identity and the verification itself.

We are planning to address this problem from a

WSbSO-RM perspective using secret sharing

techniques. (Shamir, 1979). Another approach (Miao

and Wei, 2003) may be that the verifier reproduces

the state modification following the same sequence

of operations that B has performed. Therefore, B’s

processor must provide the verifier with this

sequence of actions, e.g. using a log file.

4 IMPLEMENTING THE MODEL

WITH WEB SERVICES

In previous sections, a conceptual framework has

been described based on concepts from SOA and

WEBIST 2009 - 5th International Conference on Web Information Systems and Technologies

WSA. We can outline how we can address the

implementation of this model for each specific

scenario using Web services standards. The central

point in this approach is that both service consumer

and provider have to define their respective security

policies related to WSbS*-RM. Expression of these

policies can be based on WS-Policy. On the other

hand, PSO, PSC and PSS can be transmitted in a

secure manner using WS-Security standard. In order

to define PS*-certs, XML-Dsig, XML-Encryption,

SAML and XML-Schema enable security and

mechanisms to ensure all security issues described.

Finally UDDI, could be used to get a reference for

the identity of each WSbS* actors.

5 CONCLUSIONS

The main contribution of our paper is the definition

of a conceptual framework for the assurance of

integral code and state security in SOA. It is a

framework where not only the message security is

considered, but also the security of the code that

processes it. Besides, we propose an extra level of

security in a service interaction considering both

code and state. Finally, an incremental model of

security based on certificates issued by each model

actor provides a means for ensure security and

achieve a trusted environment.

Our main lines of research are: (1) to work on

the implementation of the model in several real

world scenarios; (2) to improve security between

state and methods using secret sharing techniques

(as commented in section 3.3); (3) we have realized

that both code and state share similar actors. This

has suggested us a new line of research for the

definition of a meta-model that would describe

uniformly the structure and the behaviour of the

state and the code security models.

ACKNOWLEDGEMENTS

Partially supported by project FOMENTA 2008/01

of the Comunidad Autónoma de La Rioja.

REFERENCES

Bhargavan, K., Fournet, C., Gordon, A.D., 2004.

Verifying policy-based security for web services. In

Proceedings of the 11th ACM conference on

Computer and communications security, October 2004

Birman, K.P., 2004. Like it or not, web services are

distributed objects. In Communications of the ACM,

december 2004

Chang, B-Y. E., Chlipala, A., Necula, G.C., Schneck,

R.R:, 2005. The open verifier framework for

foundational verifiers. In Proceedings of the 2005

ACM SIGPLAN international workshop on Types in

languages design and implementation, January 2005

Claessens, J., Preneel, B., Vandewalle, J., 2003. (How)

can mobile agents do secure electronic transactions on

untrusted hosts? A survey of the security issues and

the current solutions, ACM Transactions on Internet

Technology (TOIT), February 2003

European Project, 2006. Security of Software and Services

for Mobile Systems,http://www.s3ms.org, March

2006.

Franz, M., Chandra, D., Gal, A., Haldar, V., Reig, F.,

Wang, N., 2003. A portable Virtual Machine target for

Proof-Carrying Code. In Proceedings of the 2003

workshop on Interpreters, virtual machines and

emulators, June 2003

Foster, I., Parastatidis, S.,Watson, P., Mckeown, M., 2008.

How do I model state?: Let me count the ways. In

Communications of the ACM, september 2008.

Gutiérrez, C., Fernández Medina, E. and Piattini, M.,

2005. Web Services Enterprise Security Architecture:

A Case Study. SWS'05, november 11, 2005

Lange, D.B., Oshima, M., 1999. Seven good reasons for

mobile agents”, Communications of the ACM, v.42

n.3, p.88-89, March 1999

Miao, C.,Wei, R., 2003. Secret Sharing for Mobile Agent

Cryptography. In Communication Networks and

Services Research Conference, Session B

Rodríguez Priego,E., García Izquierdo,F.J., 2007.

Securing Code in Services Oriented Architecture,

ICWE07. LNCS 4607, pp. 450-555. Springer-Verlag

2007.

Rubin, A.D., Geer Jr., D.E., 1998. Mobile Code Security,

IEEE Internet Computing, vol. 02, no. 6, pp. 30-34,

Nov/Dec, 1998

Sekar, R., Ramakrishnan, C. R., Ramakrishnan, I. V.,

Smolka, S. A., 2001. Model-Carrying Code (MCC): a

new paradigm for mobile-code security. In

Proceedings of the 2001 workshop on New security

paradigms, September 2001

Seshadri, A., Luk, M., Perrig, A., van Doorn, L., Khosla,

P., 2006. Externally verifiable code execution. In

Communications of the ACM, september 2006.

Shamir, A., 1979. How to share a secret. Commun. ACM

22, 11 (Nov. 1979), 612-613

Whitman, M.E., 2003. Enemy At The Gate: Threats To

Information Security. In Communications of the

ACM, August 2003

OASIS, 2006. Reference Model for SOA v1.0

OASIS, 2008. Reference Architecture for SOA v1.0

Vogels, W., 2003. Web services are not distributed

objects. In Internet Computing, Dec. 2003

W3C, 2004. Web Services Architecture

INTEGRAL SECURITY MODEL FOR THE EXCHANGE OF OBJECTS IN SERVICES ORIENTED ARCHITECTURE
