FEATURE-BASED ANNEALING PARTICLE FILTER FOR ROBUST

BODY POSE ESTIMATION

Adolfo L

´

opez and Josep R. Casas

Image Processing Group, Technical University of Catalonia, Barcelona, Spain

Keywords:

Pose estimation, Motion capture, Particle ﬁlter.

Abstract:

This paper presents a new annealing method for particle ﬁltering in the context of body pose estimation. The

feature-based annealing is inferred from the weighting functions obtained with common image features used

for the likelihood approximation. We introduce a complementary weighting function based on the foreground

extraction and we balance the different measures through the annealing layers in order to improve the posterior

estimate. This technique is applied to estimate the upper body pose of a subject in a realistic multi-view

environment. Comparative results between the proposed method and the common annealing strategy are

presented to assess the robustness of the algorithm.

1 INTRODUCTION

Markerless human motion capture is a challeng-

ing problem that involves estimating the high-

dimensional conﬁguration of a three-dimensional

non-rigid and self-occluding object. Since a wide

range of applications can be derived from the unobtru-

sive characterization of human activity, this research

area is highly active.

A common model is an articulated body structure

with several degrees of freedom that determine the di-

mensionality of the problem. With these kind of mod-

els one can simply adopt hard kinematic constraints or

can go further restricting the motion, hence conﬁning

the solution to a more tractable subspace at the cost

of generality loss. Regardless of the space in which

we work, human dynamics present multi-modal non-

linear and non-Gaussian statistics. Particle Filters

(Arulampalam et al., 2002) have become a relevant

technique due to their ability to precisely estimate

the statistics of such processes. Several approaches

such as partitioned sampling (MacCormick and Is-

ard, 2000), hierarchical sampling (Mitchelson and

Hilton, 2003) and annealing particle ﬁlter (Deutscher

et al., 2000) have been developed to cope with high-

dimensional limitations of the classical Condensation

algorithm (Isard and Blake, 1998).

This paper presents a new annealing particle ﬁlter

approach based on the properties of image features.

The feature-based annealing concept exploits the at-

tributes of the weighting functions generated by sev-

eral measures constructed with common image fea-

tures. We empirically show the increased robustness

of our approach testing it under challenging condi-

tions for human motion capture such as limited num-

ber of views and low frame rate.

2 PARTICLE FILTER

Particle Filters (PF) (Arulampalam et al., 2002) are

recursive Bayesian estimators derived from Monte

Carlo sampling techniques which can handle non-

linear and non-Gaussian processes. Commonly used

in tracking problems, they aim at estimating the poste-

rior density p(x

t

|z

t

) by means of a set of N

s

weighted

samples or particles:

p(x

t

|z

t

) ≈

N

s

∑

i

w

i

t

δ(x

t

− x

i

t

) (1)

where w

i

t

is the weight associated to the i-th par-

ticle. This discrete approximation of the posterior

requires the evaluation of weights. This is done by

means of the importance sampling principle (Doucet

et al., 2000), with a probability density function (pdf)

q(x

t

|z

t

) from which we generate samples that can be

evaluated with the posterior (up to proportionality).

This pdf is called the importance distribution.

After a certain time, the variance of the weights

increases, causing what is known as particle degener-

acy. This phenomena causes a degradation in the es-

438

López A. and R. Casas J. (2009).

FEATURE-BASED ANNEALING PARTICLE FILTER FOR ROBUST BODY POSE ESTIMATION.

In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, pages 438-443

DOI: 10.5220/0001783404380443

Copyright

c

SciTePress

timation. An effective measure for the particle degen-

eracy is the survival rate (Liu and Chen, 1998) given

by:

α =

1

N

s

N

s

∑

i=1

(w

i

t

)

2

(2)

In order to avoid the estimator degradation, the

particle set is resampled. After likelihood evaluation a

new particle set must be drawn from the posterior es-

timation, hence particles with higher weights are re-

produced with higher probability. Once the new set

has been drawn, all the weights are set to

1

N

s

, lead-

ing to a uniformly weighted sample set concentrated

around the higher probability zones of the estimated

posterior.

2.1 Sampling Importance Resampling

The Sampling Importance Resampling (SIR) Particle

Filter proposed in (Gordon et al., 1993) is a method

commonly used in computer vision problems. It is

characterized by applying resampling at every itera-

tion and by deﬁning the importance distribution as the

prior density p(x

i

t

|x

i

t−1

). By introducing these two el-

ements, the computation of weights only depends on

the likelihood.

w

i

t

∝ p(z

t

|x

i

t

) (3)

Consequently, the design of the particle ﬁlter is

basically a problem of ﬁnding an appropiate likeli-

hood function.

2.2 Annealing Particle Filter

It has been shown in several works that SIR Particle

Filters are a good approach for tracking in low dimen-

sional spaces, but they become inefﬁcient in high-

dimensional problems. Deutscher et. al (Deutscher

et al., 2000) proposed a variation of the SIR frame-

work by introducing the concept of Annealing PF. In

body pose tracking problems, the likelihood approx-

imation is often a function with several peaked local

maxima. Annealing PF deals with this problem by

evaluating the particles in several smoothed versions

of the likelihood approximation. After the weights

are computed via the modiﬁed likelihood, particles

are resampled and propagated with Gaussian noise

with zero mean and a covariance that decreases at

every step. Each one of these steps (weighting with

a smoothed function, resampling and propagation) is

called an annealing run. In the last annealing run the

estimation is given by means of the Monte-Carlo ap-

proximation of the posterior mean:

ˆ

x

t

=

N

s

∑

i=1

w

i

t

x

i

t

(4)

The most usual way to smooth the weighting func-

tion is by means of an exponent β < 1 called the an-

nealing rate. In the ﬁrst layer β is minimum, progres-

sively increasing with each layer, sharpening the like-

lihood approximation. In (Deutscher et al., 2000) a

method for tuning β with the survival rate after each

annealing run is proposed.

The use of a hierarchical model (Canton-Ferrer

et al., 2008) is another possible strategy in order to

have annealing layers due to the exploration in spaces

of increasing dimensionality.

Regarding the likelihood approximation, in

(Deutscher et al., 2000) a matching of the model pro-

jection with foreground segmentation and edges is

proposed. Their ﬂesh model consists of conic sec-

tions with elliptical cross-sections surronding virtual

skeleton segments. Raskin et al. (Raskin et al., 2008)

add the body part histogram as an additional feature.

Other authors use Visual Hull approaches (Lauren-

tini, 1994) to work with voxel data. In that case,

they can use three-dimensional ﬂesh models, like el-

lipsoids (Mikic, 2003) or three-dimensional Gaussian

mixtures (Caillette et al., 2005).

3 OUR APPROACH

3.1 Likelihood Evaluation

For the human body modelling we use an articulated

model, which requires to be ﬂeshed out in order to

evaluate the likelihood of a given pose. In our ap-

proach we cannot rely on a 3D reconstruction that

could be difﬁcult to build and, indeed inaccurate.

Therefore, a projection of the model onto the images

is required. Our proposal is to avoid the computa-

tional cost of projecting the whole set of sampling

points of a 3D ﬂesh model by projecting a reduced set

of points per body part. The ﬂesh model will be a set

of cylinders around all the skeleton segments except

the head, which will be modelled by a sphere (see Fig.

3(a)). Therefore, our reduced set of projected points

will be deﬁned by the vertices of the trapezoidal sec-

tion resulting from the intersection of a plane, approx-

imately parallel to the image plane, with the cylindric

shape modelling the limb (or spherical shape in the

case of the head).

To deﬁne an intersecting plane for a given cylin-

der, we compute the vectors going from the camera

center towards each one of the limit points of the limb.

Then the cross product of these vectors with the one

FEATURE-BASED ANNEALING PARTICLE FILTER FOR ROBUST BODY POSE ESTIMATION

439

deﬁned by the principal axis of the limb itself is com-

puted to determine two normal vectors that lie on the

intersecting plane and along which we will ﬁnd the

key points to project. The head template is handled

with a similar procedure using as limb vector the one

going from the base of the neck to the head center.

Regarding the image features, we propose modi-

ﬁcations on a likelihood approximation like the one

proposed in (Deutscher et al., 2000) while keeping

common features that are easy to extract, like fore-

ground silhouettes, edges and detected skin.

• We extract foreground silhouettes by means of a

background learning technique based on Stauf-

fer and Grimson’s method (Stauffer and Grimson,

2000). A shadow removal algorithm (Xu et al.,

2005), based on the color and brightness distor-

tion, is used to enhance the segmentation.

• Edge detection is performed by means of the

Canny edge detector (Canny, 1986). The result is

dilated with a square 5x5 structuring element, and

smoothed with a Gaussian mask. In order to avoid

background spurious edges, we mask the edge de-

tection provided by Canny’s algorithm with a di-

lation of the foreground mask.

• A simple skin detection method based on evaluat-

ing the likelihood ratio between skin and non-skin

hypothesis is performed. The likelihood functions

are estimated by 8-bins color histograms of sev-

eral skin and non-skin samples.

The ﬁnal likelihood approximation will be a com-

bination of several measures constructed with the

aforementioned features.

N sampling points of the projected ﬂesh model are

matched with the extracted foreground. The weight is

computed as follows:

ω

f l

=

1

N

N

∑

n=1

(1 − I

f

n

) (5)

Since pixel intensities in the foreground masks

(I

f

t

) have 0 or 1 as possible values, the weighting

function is obtained by a normalized sum of the back-

ground pixels falling inside the projected ﬂesh model.

In the case of the head, we add skin detection infor-

mation:

ω

f h

=

1

N

N

∑

n=1

(1 − I

f

n

I

s

n

) (6)

Therefore, the ﬁnal foreground weight ω

f

is the

averaged sum of all the limbs and head weights.

The proposed weighting function for edges is a

sum of squared differences between the contour pix-

els and the edges of the ﬂesh model aligned with the

axis of the limb:

ω

e

=

1

N

N

∑

n=1

(1 − I

e

n

)

2

(7)

where N stands for the sampling points along the

occluding edges of the projected ﬂesh model.

3.1.1 Foreground Divergence Measure

The proposed foreground matching measure shows

how well the model ﬁts the observation, but does

not evaluate how well the observations are being ex-

plained by the model. Suppose the likelihood p(z

t

|x

t

)

is available and that a given pose generates a pdf. A

measure that can be used to assess the similarity of

the likelihood and the generated pdf is the Kullback-

Leibler divergence. At this point, it is important to

remark that the KL divergence will provide different

results depending on the factor order (except if both

pdfs are identical). We can establish an analogy with

our likelihood approximation. We are trying to de-

termine the mutual information of the model and the

observations. Therefore, we propose to include an ad-

ditional divergence measure between the projection of

the ﬂesh model and the foreground masks to see how

well a particle explains the observations.

ω

d

=

1

N

f

N

f

∑

n=1

(I

f

n

(1 − B

n

)) (8)

This divergence basically consists in measuring

the occupancy of the foreground silhouette (compris-

ing N

f

foreground pixels) by the B

n

pixels of the pro-

jection of a given particle.

3.2 Feature-based Annealing

The foreground matching measure produces a smooth

and ﬂat function (in almost every point) in which

many different poses take considerable degrees of

likelihood. However, foreground matching has the

property of being discriminative with several wrong

states. These properties can be observed in Fig. 1(a),

where the weighting function is shown with actual

data as a function of two angles. The foreground di-

vergence measure is a smooth function that presents,

in general, a broad global maximum (see Fig. 1(b)).

Edge matching is the most determinant measure in

the sense that high values can only be reached when

a particle is very close to the true pose. Nevertheless,

spurious edges can also produce high values of the

likelihood approximation (see Fig. 1(c)).

Since foreground measures produce very broad

functions and edge matching tends to produce peaked

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

440

(a) Foreground Matching Weighting

(b) Divergence Weighting

(c) Edges Matching Weighting

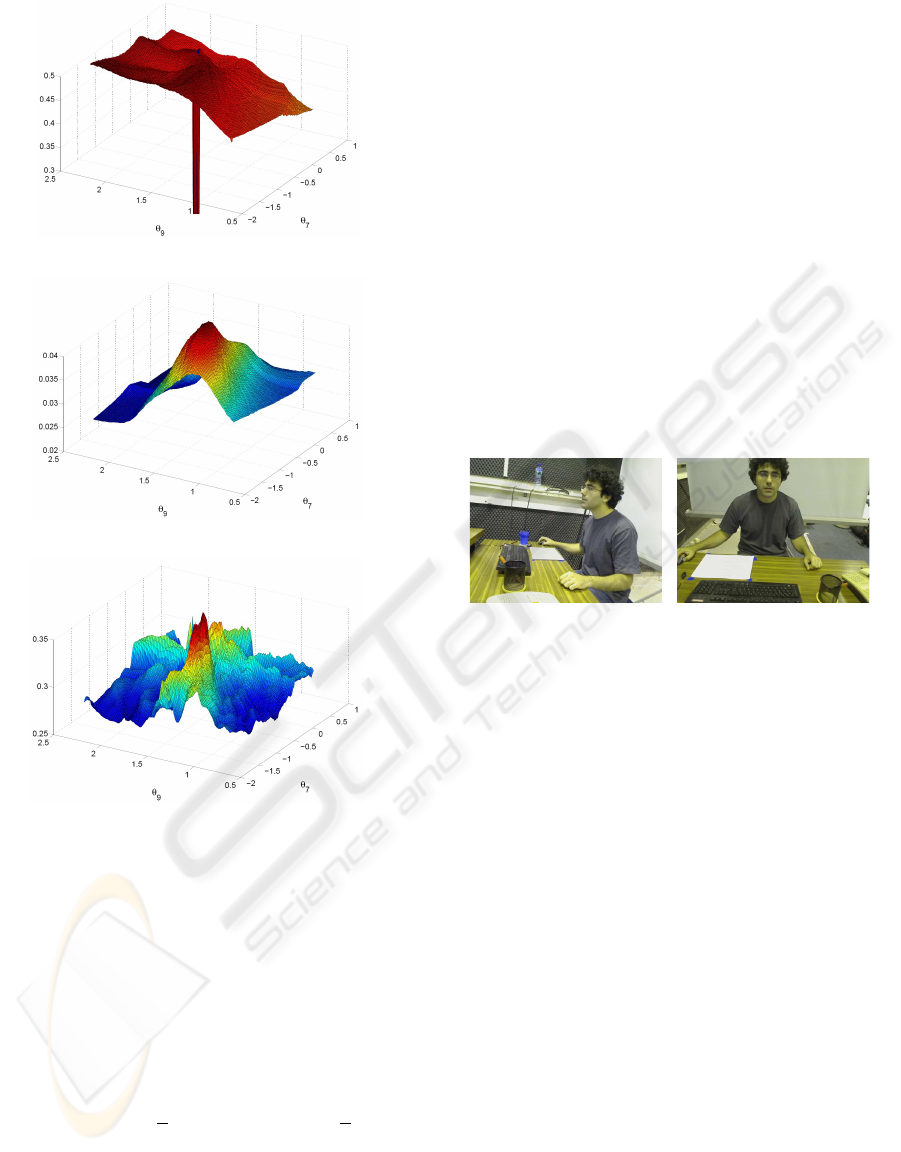

Figure 1: Plots of the different feature weightings repre-

sented as functions of two angles of the left arm. The rest

of parameters are set to values close to the true pose.

functions, we can exploit annealing through the de-

scribed attributes of the measures. We propose to use

the annealing rate β not only as exponent of the like-

lihood approximation but also in the ﬁnal average of

all the measures derived from the image features:

ω = exp

−

C

∑

c=1

(λ

f

c

(

1

β

)ω

f

+ λ

e

c

(β)ω

e

+ λ

d

c

(

1

β

)ω

d

)

!

(9)

where C is the number of views and λ

c

is a weight-

ing coefﬁcient depending on β (allowing to give more

importance to foreground measures in the ﬁrst layers

and to edge measures in the last layers).

4 RESULTS AND DISCUSSION

4.1 Experimental Setup

We have tested our approach in an ofﬁce desktop

environment. During approximately two minutes,

three subjects performed several common actions at a

workplace (mouse dragging, writing, typing and pick-

ing objects). Hence, for our tests, we have focused on

the upper body tracking.

Our setup was built under the premise of being

portable, low cost and easy to conﬁgure. Two cali-

brated webcams, one frontal and one lateral, record-

ing at 9.5 fps provided the frames onto which our

body model has been projected (see Fig. 2). Both

views are relatively close to the subject, thus the ap-

parent size of some limbs in the image can change

notably depending on their 3D position.

Figure 2: Available views for the experimental setup.

4.2 Body Model

A simplistic articulated upper body model fulﬁlls the

requirements of the described scenario. This model

is based on the kinematic chain framework (Bregler

and Malik, 1998) and comprises a set of joints. In

our case, this set of joints are the base of the neck,

shoulders and elbows with a total of nine degrees of

freedom. In order to set the model in a world position,

a three-dimensional coordinate system built with the

base of the neck as origin and a body orientation are

deﬁned. The world reference point for our model is

set to be the base of the neck (see Fig. 3(a)). There-

fore, the body model deﬁnes a thirteen-dimensional

state vector:

x

t

=

{

x

0

, y

0

, z

0

, θ

0

, ...., θ

9

}

(10)

Angle θ

0

is the orientation of the whole body

model while all the other angles are designed follow-

ing hard kinematic constraints.

FEATURE-BASED ANNEALING PARTICLE FILTER FOR ROBUST BODY POSE ESTIMATION

441

(a)

(b)

Figure 3: (a) Articulated upper body model and (b) its pro-

jection for a given particle.

4.3 Experimental Results

3D body part locations (head, shoulders, elbows and

wrists) have been manually annotated in three se-

quences of three different subjects in order to test

the tracker performance. The error is expressed as

the mean distance between the annotated and the esti-

mated joints.

Comparative results between the APF with the

common likelihood approach (comprising edges and

foreground matching) and our proposal are shown in

Fig. 4. In both cases we used the body model and

the projection procedure explained in section 3.1. Fi-

nal mean error obtained by our approach for the three

sequences was 104 mm, 74 mm below the common

case for this difﬁcult scenario. Common likelihood

evaluation makes the tracker vulnerable to track loss,

leading to higher mean error. On the other hand, the

divergence measure and the feature-based annealing

make the tracker more robust under these experimen-

tal conditions.

We found out that some spurious edges due to

clothing and objects caused our tracker to fail in its es-

timation. The apparent motion recorded in the images

was very fast in some of the actions performed, caus-

ing blurs in the image and abrupt translation of body

parts. Since the implemented annealing PF works

0 20 40 60 80

50

100

150

200

250

300

error (mm)

t(s)

APF with Common Likelihood Aproximation

Our approach

Figure 4: Comparative results using 3 layers and 200 parti-

cles per layer with the normal likelihood aproximation and

our proposal.

Figure 5: Tracking samples of a sequence where the subject

types something in the keyboard, picks a pen, writes and

leaves the pen again. The tracker is able to recover the pose

after several errors due to fast apparent motion.

with edges as the most determinant feature and has a

simple propagation model, the algorithm was not able

to track several of these fast motions. However, it was

able to recover some poses after a tracking error.

5 CONCLUSIONS AND FUTURE

WORK

We have presented an approach to exploit some com-

mon image features used in annealed particle ﬁlter

techniques for human body tracking. We have intro-

duced a foreground divergence measure that allows

us to deﬁne a new procedure of annealing based on a

decomposition of the likelihood approximation.

We have tested our proposal with a simple body

conﬁguration and a simpliﬁed projection method in a

challenging scenario. A comparison between our pro-

posal and existing methods has been presented. Some

VISAPP 2009 - International Conference on Computer Vision Theory and Applications

442

interesting results have been achieved in such condi-

tions with a low number of particles and layers.

Like in the simple annealed particle ﬁlter we have

tried to preserve the tracker generality by only adding

hard kinematic constraints to our model. Conse-

quently, our approach is not able to efﬁciently track

fast apparent motions due to low frame rates. This

could be attributed to a limitation of the state-space

model and the common propagation model of the

Sampling Importance Resampling framework from

which annealing particle ﬁlter is derived.

Future research involves further validation of

feature-based annealing with full body models and

several recording conditions, and the extension of

this study to other image features, including spatio-

temporal features. The introduction of image features

in the propagation scheme to avoid “blind” sampling

with respect to the observations is another possible

research line.

ACKNOWLEDGEMENTS

This work has been partially supported by the Span-

ish Ministerio de Educaci

´

on y Ciencia, under project

TEC2007-66858/TCM and by the European Commis-

sion under contract FP7-215372 ACTIBIO.

REFERENCES

Arulampalam, M., Maskell, S., Gordon, N., Clapp, T.,

Sci, D., Organ, T., and Adelaide, S. (2002). A

tutorial on particle ﬁlters for online nonlinear/non-

GaussianBayesian tracking. Signal Processing, IEEE

Transactions on, 50(2):174–188.

Bregler, C. and Malik, J. (1998). Tracking People with

Twists and Exponential Maps. In Proc. CVPR (1998).

Caillette, F., Galata, A., and Howard, T. (2005). Real-Time

3-D Human Body Tracking using Variable Length

Markov Models. British Machine Vision Conference,

1:469–478.

Canny, J. (1986). A computational approach to edge de-

tection. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 8(6):679–698.

Canton-Ferrer, C., Casas, J., and Pardas, M. (2008). Ex-

ploiting Structural Hierarchy in Articulated Objects

Towards Robust Motion Capture. Lecture Notes in

Computer Science, pages 82–91.

Deutscher, J., Blake, A., and Reid, I. (2000). Articulated

body motion capture by annealed particle ﬁltering.

Computer Vision and Pattern Recognition, 2000. Pro-

ceedings. IEEE Conference on, 2:126–133 vol.2.

Doucet, A., Godsill, S., and Andrieu, C. (2000). On se-

quential Monte Carlo sampling methods for Bayesian

ﬁltering. Statistics and Computing, 10(3):197–208.

Gordon, N., Salmond, D., and Smith, A. (1993). Novel

approach to nonlinear/non-gaussian bayesian state es-

timation. Radar and Signal Processing, IEE Proceed-

ings F, 140(2):107–113.

Isard, M. and Blake, A. (1998). CONDENSATION-

Conditional density propagation for visual tracking.

Int. Journal of Computer Vision, 29(1):5–28.

Laurentini, A. (1994). The visual hull concept for

silhouette-based image understanding. Pattern Anal-

ysis and Machine Intelligence, IEEE Transactions on,

16(2):150–162.

Liu, J. and Chen, R. (1998). Sequential Monte Carlo meth-

ods for dynamical systems. Journal of the American

Statistical Association, 93(5):1032–1044.

MacCormick, J. and Isard, M. (2000). Partitioned

Sampling, Articulated Objects, and Interface-Quality

Hand Tracking. Lecture Notes in Computer Science,

pages 3–19.

Mikic, I. (2003). Human Body Model Acquisition and

tracking using multi-camera voxel Data. PhD. The-

sis, University of California, San Diego.

Mitchelson, J. and Hilton, A. (2003). Simultaneous pose

estimation of multiple people using multiple-view

cues with hierarchical sampling. In Proc. of BMVC,

September.

Raskin, L., Rivlin, E., and Rudzsky, M. (2008). Using

Gaussian Process Annealing Particle Filter for 3D Hu-

man Tracking-Volume 2008, Article ID 592081, 13

pages. EURASIP Journal on Advances in Signal Pro-

cessing.

Stauffer, C. and Grimson, W. (2000). Learning Patterns of

Activity Using Real-Time Tracking. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

pages 747–757.

Xu, L., Landabaso, J., and Pardas, M. (2005). Shadow Re-

moval with Blob-Based Morphological Reconstruc-

tion for Error Correction. Acoustics, Speech, and

Signal Processing, 2005. Proceedings.(ICASSP’05).

IEEE International Conference on, 2.

FEATURE-BASED ANNEALING PARTICLE FILTER FOR ROBUST BODY POSE ESTIMATION

443
