AN IMPROVED STEGANOGRAPHIC METHOD

Hyoung Joong Kim and Amiruzzaman Md

Graduate School of Information Management and Security, Korea University, Anam-Dong, Seoul 136-701, Korea

Keywords:

Steganography, Steganalysis, JPEG Coefﬁcient, Image Histogram.

Abstract:

An improved steganographic method is proposed in this paper. Two distinct methods are combined here with

optimized way with possibly high data hiding capability. The proposed method shifts the last nonzero AC

coefﬁcients in each JPEG block, and, changes the magnitude value of the ﬁrst nonzero AC coefﬁcients.

1 INTRODUCTION

Steganography and Steganalysis are advancing at

the same time. The history of steganography and

steganalysis is a history of rat races. Whenever

a steganographic method has been proposed, the

method is about to be broken soon by new steganal-

ysis methods. Therefore, steganographers try to de-

velop new methods fully or partially secure from the

existing steganalysis methods. However, it is not pos-

sible all the time to be able to take all security issues

into account and solve in one method. It is known

that steganography is one of the oldest arts or tech-

niques for hiding data to establish a secure covert

communication channels. However, it is not so long

since the ground of digital steganography techniques

has been formed. Many innovative steganographic

algorithms are available now ((Provos 2001), (Sallee

2004), (Sallee 2005), (Solanki et al. 2007), (Westfeld

and Pﬁtzmann 2000)).

The most important goal of steganography is to

conceal the existence of a secret message. How-

ever, researchers are also having interest to break

steganographic schemes. There are many available at-

tacks (Fridrich, 2004) invented by several researchers.

Among them statistical attack (Westfeld 2001) is one

of the most popular and effective at-tacks in stegano-

graphic world. Another famous at-tack is the cali-

brated statistics attack (Fridrich et al. 2002), (Fridrich

et al. 2003). Data hiding methods have to be designed

to make them secure from statistical attack because

this attack is relatively easy to combat. Simple solu-

tion against this attack is keeping the same or similar

histogram to the original histogram. However, keep-

ing the same shape of a magnitude histogram is not

easy to achieve as long as the coefﬁcient magnitudes

are modiﬁed. Note that one branch of steganography

methods is inventing schemes to preserve the origi-

nal histogram perfectly. Least signiﬁcant bit over-

writing methods including OutGuess (Provos 2001)

can preserve the original histogram almost perfect,

but not absolutely perfect. This method modiﬁes half

of the nonzero coefﬁcients and corrects the distorted

histogram by adjusting with the rest of unused coefﬁ-

cients. In general, perfect preservation is not possible

because data pattern is not ideal.

F5 (Westfeld 2001) also try to narrow the gap

be-tween original and modiﬁed histograms by decre-

menting nonzero JPEG coefﬁcients towards 0 and ap-

plying matrix embedding and permutative straddling.

Sallee models the marginal distribution of DCT coef-

ﬁcients in JPEG-compressed images by the general-

ized Cauchy distribution (Sallee 2004). Thus, the em-

bedded message is adapted to the generalized Cauchy

distribution using arithmetic coding. Arithmetic cod-

ing transforms unevenly distributed bit streams into

shorter, uniform ones. This procedure is known as

MB1. One weak point of the MB1 is that block arti-

fact increases with growing size of the payload. MB2

has presented a method to overcome this weakness

(Sallee 2005). The MB2 embeds message in the same

way as MB1 does, but its embedding capacity is only

half of that of MB1. The other half of the nonzero

DCT coefﬁcients is reserved for de-blocking purpose.

Preserving the perfect shape of histogram of stego

image is a primary target in the ﬁeld of steganogra-

phy. For the ﬁrst time one method (Amiruzzaman and

Kim, 2008) claims that their method can preserve ex-

actly the same shape of histogram in the stego image.

The main drawback of their method is low embed-

ding capacity. In this paper, a combined approach is

introduced to overcome the limitation of embedding

capacity and manage the secret data size.

The rest of this paper is organized as follows:

145

Joong Kim H. and Md A. (2008).

AN IMPROVED STEGANOGRAPHIC METHOD.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 145-150

DOI: 10.5220/0001938901450150

Copyright

c

SciTePress

In Section 2, coefﬁcient magnitude and position his-

tograms are deﬁned. Data hiding method based on

the position histogram is presented. Section 3 sum-

marizes experimental results. Section 4 concludes the

paper.

2 OUR APPROACH

As the proposed method works with a combination of

two different approaches, this method has to be dis-

cussed one by one: each method to hide data into ei-

ther non-sensitive or sensitive JPEG blocks. The sen-

sitive and non-sensitive blocks are separated on the

basis of the number of nonzero AC coefﬁcients. To

select the sensitive and non-sensitive blocks, a thresh-

old value is used. Before further discussion, it is

necessary to deﬁne sensitive and non-sensitive JPEG

blocks.

2.1 Sensitive and Non-sensitive JPEG

Blocks

An image can be divided into 8×8 non-overlapping

blocks and processed in the frequency domain block

by block, where the leftmost and topmost value is a

DC coefﬁcient value, and the other 63 coefﬁcients

are AC coefﬁcient values. The DC coefﬁcient plays

an important role: it maintains an average luminance

value of the block. Hence, the DC coefﬁcient is not

used for embedding data due to serious possibility

of blocking effects between neighboring blocks. The

sensitive and non-sensitive blocks are determined by

the number of nonzero AC coefﬁcients. The leftmost

and topmost AC coefﬁcients close to the DC coefﬁ-

cient are considered to be more important than the

rightmost and bottommost AC coefﬁcients far from

the DC coefﬁcient. Importance of the coefﬁcients

can be measured by the magnitudes of the associated

quantization coefﬁcients. In addition, in general, it

is believed that low-frequency components are more

important than high-frequency components. The pro-

posed method uses a threshold value to determine sen-

sitive and non-sensitive JPEG blocks. If a JPEG block

has less or equal to T

v

number of nonzero AC coefﬁ-

cients, then that block is treated as a sensitive block.

Similarly, if the numbers of nonzero AC coefﬁcients

are more than threshold value T

v

, then that block is a

non-sensitive JPEG block.

Let the DC coefﬁcient be denoted as DC

i

(where,

i = 0), the AC coefﬁcients as AC

i

, (where, i =

1, 2, · · · , n − 2, n − 1, n), and the threshold value T

v

. If

a JPEG block has AC coefﬁcients (i.e., both nonzero

and zero) as follows [16 1 0 0 0 -2 1 0 0 -1 2 EOB],

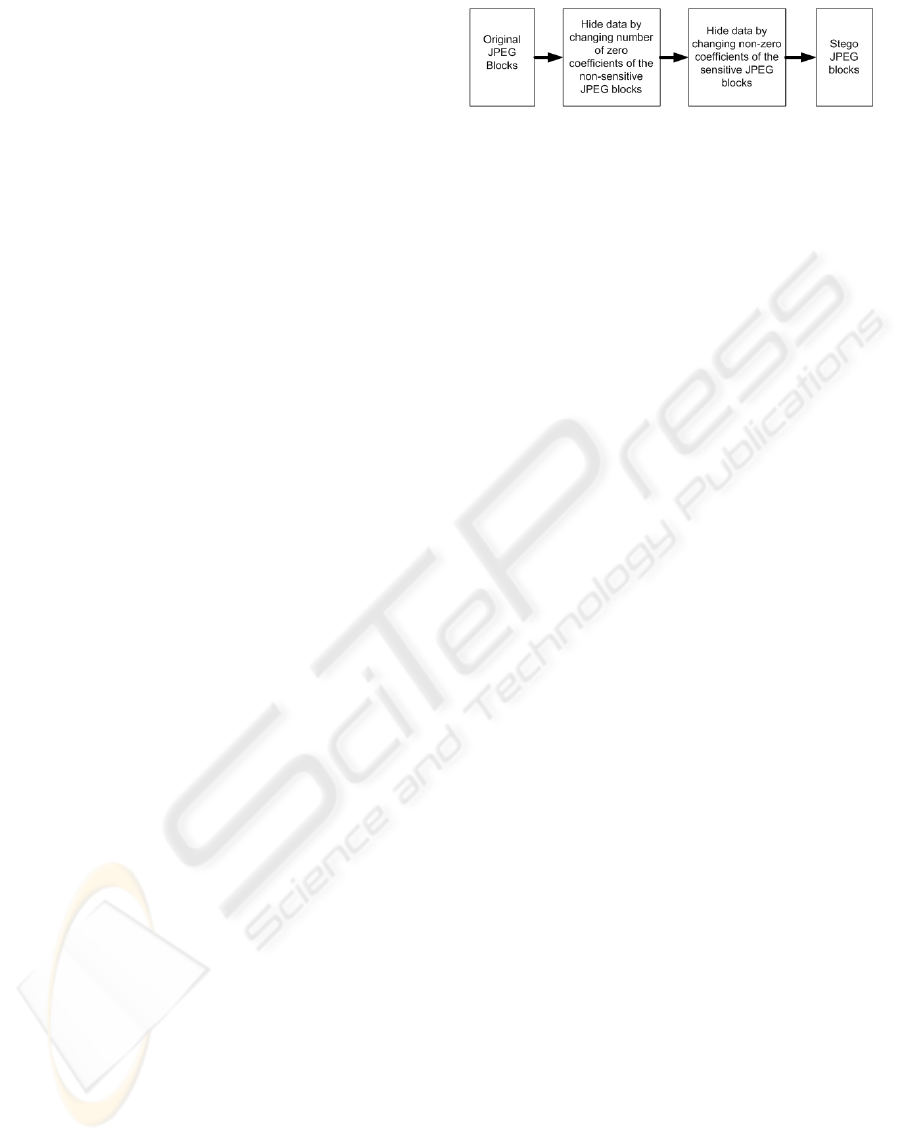

Figure 1: Block diagram of the encoding phase.

we denote them as DC

0

= 16, AC

1

= 1, AC

2

= 0, AC

3

=

0, AC

4

= 0, AC

5

= -2, AC

6

= 1, AC

7

= 0, AC

8

= 0, AC

9

= -1, AC

1

0 = 2, and the end-of-block (EOB) marker

follows. The nonzero AC coefﬁcients are easily iden-

tiﬁed, where there are 5: AC

1

= 1, AC

5

= -2, AC

6

= 1,

AC

9

= -1, and AC

10

= 2. If the value T

v

is 3, then the

number of nonzero AC coefﬁcients in this example is

more than T

v

, which means that this JPEG block is a

non-sensitive block (see Figure 2). Again, in another

example with zigzag-scanned JPEG coefﬁcients [32 5

0 0 0 2 EOB], we can denote them as DC

0

= 32, AC

1

= 5, AC

2

= 0, AC

3

= 0, AC

4

= 0, AC

5

=2, and EOB. The

number of nonzero AC coefﬁcients is 2: AC

1

= 5 and

AC

5

= 2. Note that this block is sensitive when T

v

is 3

(see Figure 3) by the deﬁnition of sensitive and non-

sensitive blocks. The zero coefﬁcients can be shifted

in the non-sensitive blocks to hide data. In addition,

magnitude of the nonzero coefﬁcients of the sensitive

blocks can be modiﬁed. For the modiﬁcation of coef-

ﬁcients, another threshold value T

c

is used. Threshold

values T

v

and T

c

are set according to the embedding

capacity and image quality required.

2.2 Shifting Nonzero AC Coefﬁcients

On basis of the T

v

value, the proposed method shifts

T

c

number of nonzero AC coefﬁcients to make either

even or odd number of zeros in between two nonzero

coefﬁcients in order to hide data into the non-sensitive

JPEG block. This shifting operation results in the

number of zero AC coefﬁcients while nonzero coef-

ﬁcients are unchanged. If the number of AC coefﬁ-

cients in between nonzero AC coefﬁcients is odd and

the message to hide is ”1”, this method does not need

to make any change. But if the number of zero co-

efﬁcients is odd but the message to hide is ”0”, this

method has to make the number of zero coefﬁcients

even by either removing or inserting one zero so that

the next nonzero AC coefﬁcient shifts from its orig-

inal position either to the left or right, respectively.

There are two more cases to make four possible cases.

The other two cases are similar to the previous two

cases in nature.

The overall four cases are summarized in Subsec-

tion 2.3. For the decoder, odd or even number of ze-

ros indicated the hidden message information. The

following block [16 1 0 0 0 -2 1 0 0 -1 2 EOB] is

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

146

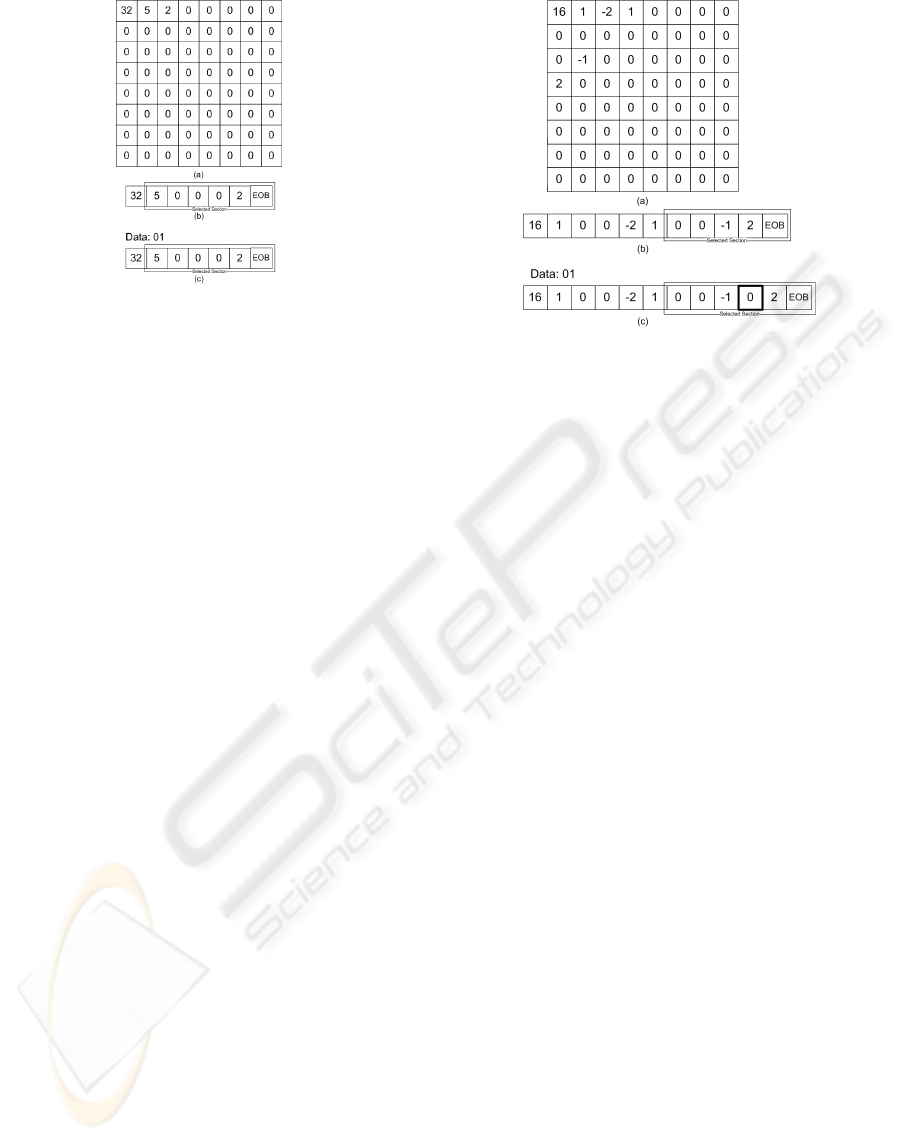

Figure 2: A non-sensitive original JPEG block (a), the

zigzag scanned array of the non-sensitive block (b), and the

changed array after embedding binary data ”01” (c).

a non-sensitive block. Embedding of the secret mes-

sage ”01” into this non-sensitive block changes like

[16 1 0 0 0 -2 1 0 0 -1 0 2 EOB] (see Figure 2). Note

that one zero is forcefully inserted in between AC

9

and

AC

10

. Therefore, the position of the last nonzero AC

coefﬁcient (i.e., 2) has to be shifted to right and will

have new position AC

11

.

2.3 Modifying Magnitude Nonzero AC

Coefﬁcients

Magnitude modiﬁcation is applied to the sensitive

blocks. The magnitude of the ﬁrst T

c

nonzero coef-

ﬁcients is modiﬁed by a very simple rule. While the

hidden bit is 0 and the magnitude value of nonzero

AC coefﬁcient is odd, then the method reduces or in-

creases the magnitude value by 1 in order to make it

even. Similarly, when the method has to hide 1 and

the magnitude is even, this method increases or re-

duces the magnitude by 1 to make it odd. Always the

magnitude value 0 was skipped for modiﬁcation.

The following block [32 5 0 0 0 2 EOB] is a sen-

sitive block. There are two nonzero AC coefﬁcients:

AC

1

= 5 and AC

5

= 2. After embedding the block be-

comes either like [32 4 0 0 0 1 EOB] or [32 6 0 0 0 3

EOB].

2.4 Embedding Algorithm

Embedding algorithm of this paper is summarized as

follows:

Encoder

(1) Separate the sensitive blocks by T

v

.

(2) If the block has less AC coefﬁcients than or equal

to T

v

, this block is sensitive, and otherwise, non-

sensitive.

Figure 3: A sensitive JPEG block (a), the zigzag scanned

array of the sensitive block (b), and the changed array after

embedding binary data ”01” (c).

(3) Change the magnitude values in the sensitive

block (maximum number of changes is not more

than T

c

).

(a) If the message to hide is 0 and the nonzero

coefﬁcient magnitude is odd, make it even by ei-

ther increasing or reducing the magnitude value

by 1.

(b)If the hidden message is 1 and the number

of zeros between two nonzero AC coefﬁcients is

even then to make it odd either one exist-ing zero

was deleted or one extra zero was added.

(4) Change the number of zeros in between the

nonzero AC coefﬁcients (maximum changes not

more than T

c

).

(a) If the hidden message is 0 and the number

of zeros between two nonzero AC coefﬁcients is

odd then to make it even either one extra zero was

added or one existing zero was deleted.

(b) If the message to hide is 1 and the

nonzero coefﬁcient magnitude is even, make it

odd by either increasing or reducing the magni-

tude value by 1.

Decoder The decoding algorithm is given bellow.

(1) Separate sensitive blocks from non-sensitive

blocks by T

v

.

(2) In sensitive block, the magnitude values of T

c

nonzero coefﬁcients are checked to see if they are

odd or even. The odd magnitude values are repre-

sented by 1 and even numbers are represented by

0.

(3) In non-sensitive blocks, the number of zeros in be-

tween last T

c

nonzero coefﬁcients are counted. If

the number is either odd or even, then the hidden

message is either 1 or 0, respectively.

AN IMPROVED STEGANOGRAPHIC METHOD

147

Table 1: Performance over Hiding Capacity, Comparison

between [1]:(Amiruzzaman and Kim, 2008) and the pro-

posed method.

PSNR Capacity

[dB] [bits]

Lena Proposed 38.46 6,558

[1] 39.99 2,798

Barbara Proposed 32.59 7,277

[1] 33.19 3,372

Goldhill Proposed 34.73 3,936

[1] 36.38 1,932

Baboon Proposed 30.61 8,161

[1] 30.19 4,064

3 EXPERIMENT AND

DISCUSSION

3.1 Results

Implementing the proposed method is simple and

easy. For the encoder and decoder, the proposed

method was tested on four images. Performance of

the data hiding methods is compared with different

threshold values. The sample images are 512x512

in size and have 4,096 8×8 DCT blocks. With dif-

ferent threshold values, various numbers of sensitive

and non-sensitive blocks are obtained to hide data.

The threshold values are used to control the capac-

ity as well as image quality (i.e., PSNR). In best

case of Lena image, while T

v

=3 and T

c

= 3, 6,558

bits of data can be hidden with 38.46 dB of PSNR

value (see Table 1). Due to change of both zero co-

efﬁcients and nonzero coefﬁcients, image quality is

slightly worse than the other method (Amiruzzaman

and Kim, 2008), while embedding capacity is more

than twice.

Since Baboon image has many nonzero AC coefﬁ-

cients due to its rich high-frequency components, the

hiding capacity is signiﬁcantly higher than other im-

ages. Note that the embedding capacity of Baboon

image is 8,161 bits with 30.60 dB. Barbara image can

hide 7,277 bits of data with 32.58 dB; In any case, im-

age quality is slightly worse, but embedding capacity

is more than twice. Change in number of zero coefﬁ-

cients does not affect the histogram. However, mag-

nitude change of nonzero coefﬁcients produces un-

noticeable change in the histogram (see Appendix).

By mixing two different methods, the effect of F3-

like method which modiﬁes the nonzero coefﬁcients

in sensitive blocks is attenuated much.

Figure 4: Comparison with an existing method (Amiruzza-

man and Kim 2008) and the proposed method.

3.2 Discussion

The reason of shifting nonzero coefﬁcients from the

last places to forward positions is very simple. The

leftmost coefﬁcient values are more important than

the rightmost in the zigzag scanned array. As a re-

sult, shifting direction from the last to the ﬁrst makes

less distortion in JPEG-compressed images. It is ob-

vious that Inserting or removing at least one zero co-

efﬁcient affects image quality much more. It causes

the change of at least two coefﬁcients: one zero co-

efﬁcient and another nonzero coefﬁcient. In Figure 2,

after data hiding, AC

10

is changed from 2 to 0, and,

AC11 from nothing to 2. Thus, image quality has to

be much worse than just changing magnitude. Mag-

nitude change produces worst case magnitude differ-

ence by 1. On the other hand, difference before and

after data hiding is 2 for AC

10

, and 2 for AC

11

.

Similarly, the reason of modifying the magnitude

values from the ﬁrst places is that they are close to

the DC value and have rich low-frequency compo-

nents. Quantization coefﬁcients closer to the DC co-

efﬁcient are smaller than those opposite to it. Thus,

the same difference in nonzero coefﬁcients produces

much larger error if they are far from the DC coef-

ﬁcient. It is obvious that two data hiding methods

used in this paper compensate each other by making

up the weakness each method has. One of cons of the

changes in number of zero coefﬁcients is relatively se-

riously downgraded image quality. On the other hand,

its advantage is that this method does not change his-

togram at all after data hiding. Change in nonzero

coefﬁcients leaves a trace of data hiding in the his-

togram. However, this method slightly degrades the

image quality. Pros and cons of two techniques are

fully exploited in this paper to achieve high embed-

ding capacity with low image degradation. Figure 4

shows that the proposed method is always better than

an existing method (Amiruzzaman and Kim, 2008) in

terms of embedding capacity. As is mentioned above,

however, image quality is slightly worse that the ex-

isting method.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

148

4 CONCLUSIONS

The proposed method provides signiﬁcantly higher

embedding capacity with slightly worse image quality

in comparison with a method of Amiruzzaman et al.

(Amiruzzaman and Kim, 2008). In terms of security

issue, this method is a little weaker but still can pro-

duce almost the same histogram and distortion is not

signiﬁcant. For the future work, optimization can be

used to develop this method to improve performance

and security issue. Many variations are possible in

combination of two methods. New combination can

improve performance much

ACKNOWLEDGEMENTS

This work was in part supported by Information Tech-

nology Research Center (ITRC), by the Ministry of

Information and Communication, Korea.

REFERENCES

Amiruzzaman Md. and Kim H. J. (2008). Selective block

steganography. In Proceedings of the 3rd Interna-

tional Joint Workshop on Information Security and

Applications, pp. 123-133.

Fridrich J., Goljan M., and Hogea H. (2002). Attacking the

Out-Guess. In Proceedings of the ACM Workshop on

Multimedia and Security, pp. 967-982.

Fridrich J., Goljan M., and Hogea H. (2003). Steganalysis of

JPEG image: Breaking the F5 algorithm. In Lecture

Notes in Computer Science, vol. 2578, pp. 310-323.

Fridrich J. (2004). Feature-based steganalysis for JPEG im-

ages and its implications for future design of stegano-

graphic schemes. In Lecture Notes in Computer Sci-

ence, vol. 3200, pp. 67-81.

Provos N. (2001). Defending against statistical steganal-

ysis. In Proceedings of the 10th USENIX Security

Symposium, pp. 323-335.

Sallee P. (2004). Model-based steganography. In Lecture

Notes in Computer Science, vol. 2939, pp. 154-167.

Sallee P. (2005). Model-based methods for steganography

and steganalysis. In International Journal of Image

and Graphics, vol. 5, no. 1, pp. 167-190.

Solanki K., Sarkar A., and Manjunath B. S. (2007). YASS:

Yet another steganographic scheme that resists blind

steganalysis. In Proceedings of the 9th International

Workshop on Information Hiding, Saint Malo, Brit-

tany, France, pp.16-31.

Westfeld A. and Pﬁtzmann A. (2000). Attacks on stegano-

graphic systems In Lecture Notes in Computer Sci-

ence, vol. 1768, pp. 61-75.

Westfeld A. (2001) F5: A steganographic algorithm: High

capacity despite better steganalysis. In Lecture Notes

in Computer Science, vol. 2137, pp. 289-302.

APPENDIX

After hiding data by the proposed method, small

changes are observed in the histogram of the stego im-

age compared with original image. Two graphs of his-

togram for original image and the difference be-tween

original and stego images. It is observed that the dif-

ference is almost negligible, and, hence, the stego im-

age is relatively secure due to its capability to keep

almost the same histogram. Histogram of the original

image compressed by JPEG has a Cauchy-like distri-

bution as shown in Figures 5 and 6. Difference in the

histogram is almost equal to the number of total non-

zero coefﬁcients changed in the sensitive blocks. By

adjusting the threshold values T

v

and T

c

, histogram of

the difference can be controlled. Note that the differ-

ences between histograms depend on images: Baboon

image produces very little differences while Lena rel-

atively signiﬁcant differences.

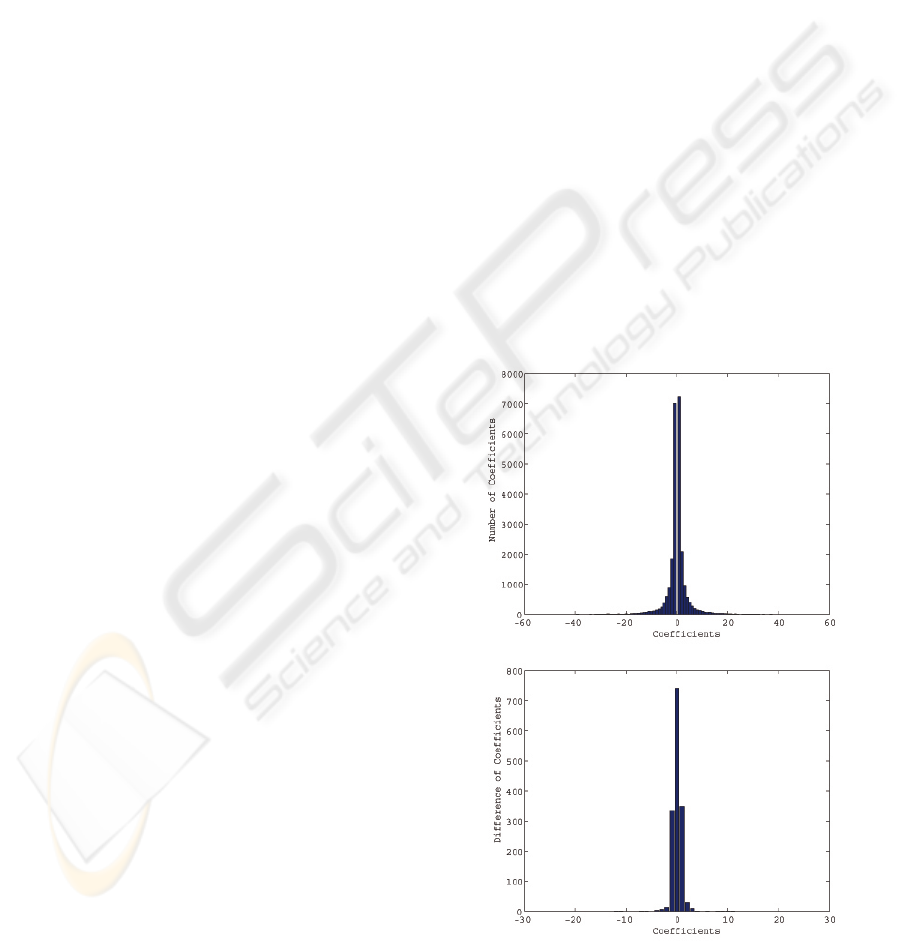

Figure 5: Histogram of the original Lena image (top) and

that of the difference between original and stego images

(bottom).

AN IMPROVED STEGANOGRAPHIC METHOD

149

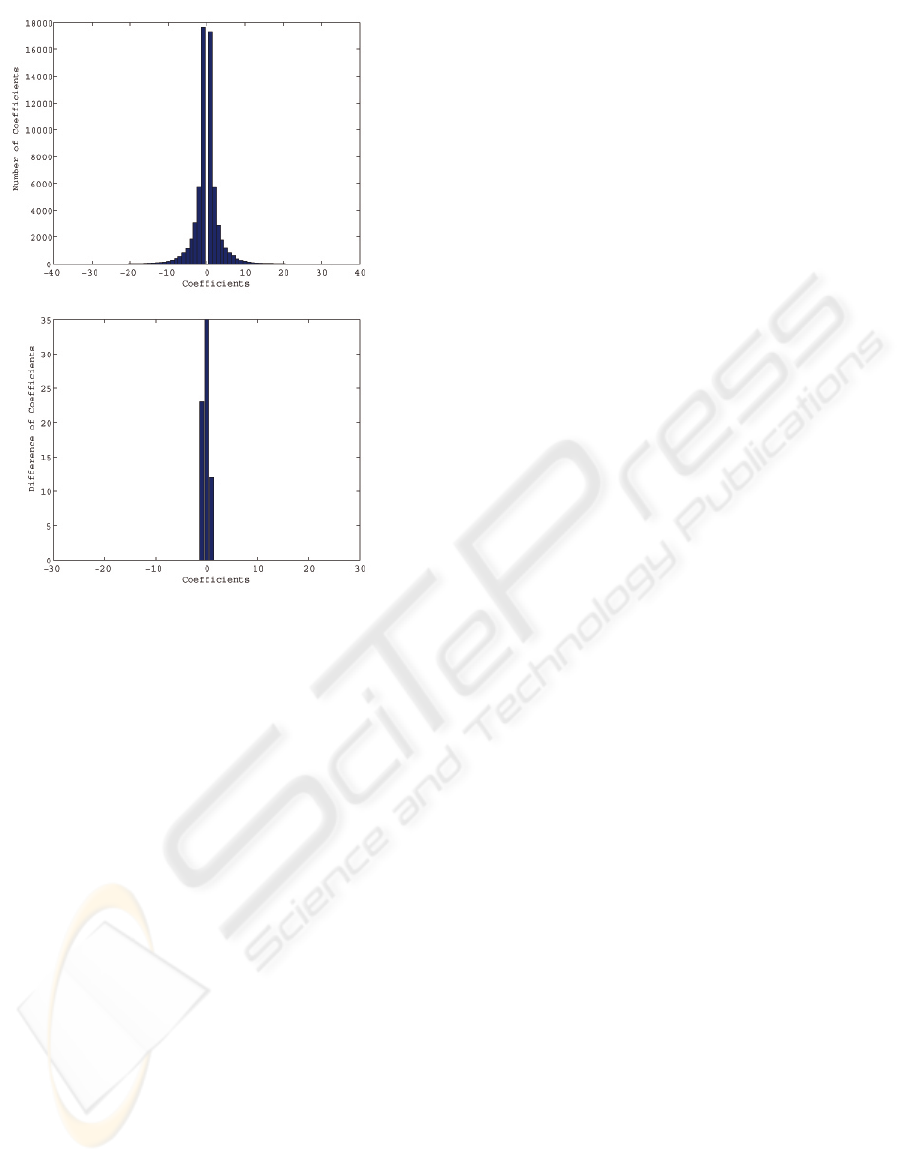

Figure 6: Histogram of the original Baboon image (top)

and that of the difference between original and stego im-

ages (bottom).

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

150
