SECURITY POLICY INSTANTIATION TO REACT TO

NETWORK ATTACKS

An Ontology-based Approach using OWL and SWRL

Jorge E. López de Vergara

Departamento de Ingeniería Informática, Escuela Politécnica Superior, Universidad Autónoma de Madrid

Francisco Tomás y Valiente, 11, E-28049 Madrid, Spain

Enrique Vázquez and Javier Guerra

Departamento de Ingeniería de Sistemas Telemáticos, E.T.S.I. de Telecomunicación, Universidad Politécnica de Madrid

Av. Complutense, s/n, E-28040 Madrid, Spain

Keywords: Attack reaction, policy instantiation, ontology, OrBAC, IDMEF, OWL, SWRL.

Abstract: A quick and efficient reaction to an attack is important to address the evolution of security incidents in cur-

rent communication networks. The ReD (Reaction after Detection) project’s aim is to design solutions that

enhance the detection/reaction security process. This will improve the overall resilience of IP networks to

attacks, helping telecommunication and service providers to maintain sufficient quality of service to comply

with service level agreements. A main component within this project is in charge of instantiating new secu-

rity policies that counteract the network attacks. This paper proposes an ontology-based methodology for

the instantiation of these security policies. This approach provides a way to map alerts into attack contexts,

which are later used to identify the policies to be applied in the network to solve the threat. For this, ontolo-

gies to describe alerts and policies are defined, using inference rules to perform such mappings.

1 INTRODUCTION

Currently, Internet has become an attractive mean

for service delivery. Network operators and provid-

ers are supplying new services such as voice or tele-

vision based on the Internet Protocol (IP). Unfortu-

nately, this has also increased the number of IP-

based attacks to network systems. To address the

evolution of security incidents in current communi-

cation networks it is important to react quickly and

efficiently to an attack. This reaction can range from

blocking the traffic to defining new security policies

that solve the problem if they are applied as long as

the attack is happening.

The ReD (Reaction after Detection) project

(http://projects.celtic-initiative.org/red/) is defining

and designing solutions to enhance the detec-

tion/reaction process, improving the overall resil-

ience of IP networks to attacks and help telecommu-

nication and service providers to maintain sufficient

quality of service and respect service level agree-

ments. This project has defined the architecture of a

ReD node, in charge of finding the best way to react

to an attack, both in the short and long terms. Within

this node, a main component (named policy instan-

tiation engine) is devoted to the instantiation of new

security policies that counteract the network attacks.

This node has to deal with the mapping of the alerts

about attacks in the network into these security poli-

cies, providing the most suitable policy to reduce or

even eliminate the problems caused in the network.

This paper proposes an ontology-based approach

to instantiate these security policies. This technology

provides a way to map alerts into attack contexts,

which are used to identify the policies to be applied

in the network to solve the threat. For this, ontolo-

gies to describe alerts and policies are defined, using

inference rules to perform such mappings.

The use of ontologies for defining policies is not

new. For instance, KAoS (Bradshaw et al., 2003)

and Rei (Kagal et al., 2003) are well known policy

frameworks based on ontologies. On the other side,

attack ontologies have also been described before.

Examples of them can be found in (Undercoffer et

E. López de Vergara J., Vázquez E. and Guerra J. (2008).

SECURITY POLICY INSTANTIATION TO REACT TO NETWORK ATTACKS - An Ontology-based Approach using OWL and SWRL.

In Proceedings of the International Conference on Security and Cryptography, pages 78-83

DOI: 10.5220/0001929300780083

 SciTePress

al. 2003) and (Geneiatakis et al., 2007), providing a

formal modelling of network attacks. However, al-

though we also use ontologies, the approach pro-

posed in this paper is focused on a new problem: the

mapping from attack alerts to security policies. For

this, we adapt in this scope the translation process

presented in (Guerrero et al., 2006). One interesting

property of ontologies is the ability to deal with sev-

eral information models, allowing an easy integra-

tion of them. The work presented here exploits this

capacity to integrate in the same view alert and pol-

icy instances, making the mapping process feasible.

The rest of this paper is structured as follows.

First of all, the technologies used in ReD project are

presented. Then, the mapping steps to perform the

policy instantiation are defined. Next, the ontology-

based representation of OrBAC (Organization Based

Access Control) and IDMEF (Intrusion Detection

Message Exchange Format) are provided, as well as

mapping rules to derve information from IDMEF to

OrBAC. Finally, some conclusions are given.

2 RED DESCRIPTION

Following sections present the ReD architecture, as

well as some technologies used in it. This informa-

tion will be valuable to understand the solution ad-

dressed in this paper.

2.1 ReD Architecture

To provide the detection and reaction functionalities,

ReD proposes a node containing a set of elements,

depicted in Figure 1:

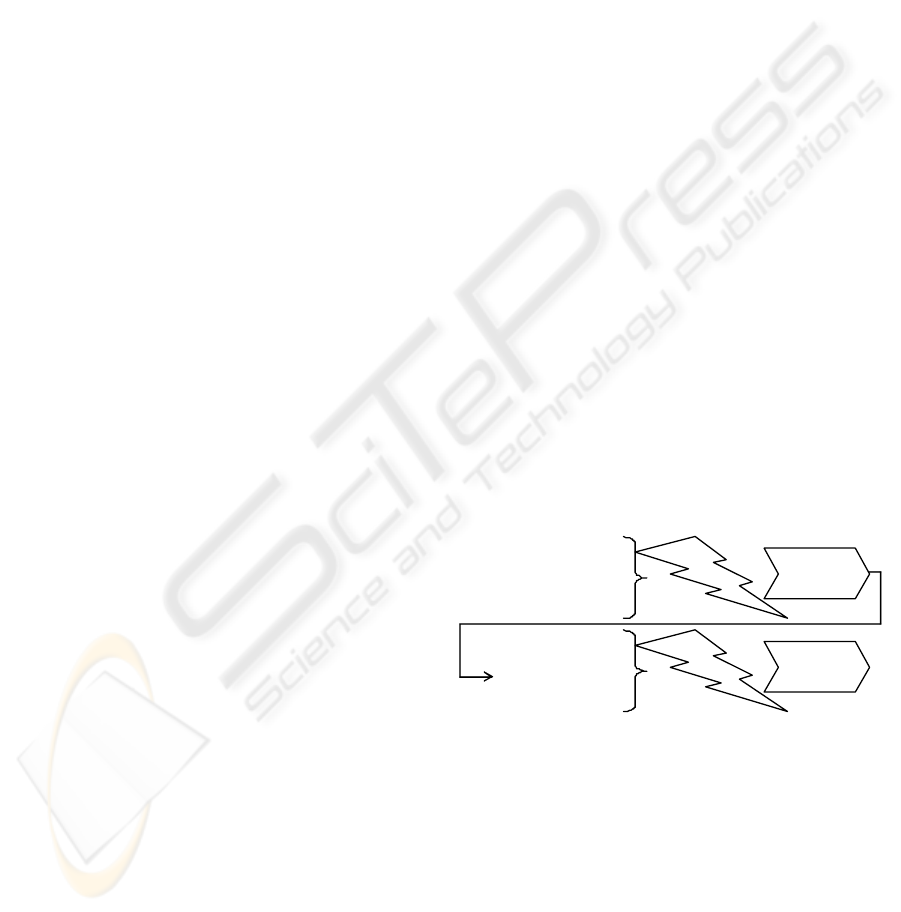

Figure 1: ReD architecture.

 ACE (Alert Correlation Engine): this element is

in charge of receiving alerts from network

nodes, and enhances the detection of attacks

by combining several diagnosis combinations.

 PIE (Policy Instantiation Engine): this element

receives the information about attacks from

the ACE and instantiates new security policies

to react to the attack in a long-term reaction

loop. This paper is focused on this element.

 PDP (Policy Decision Point): this element re-

ceives the new security policies defined by the

PIE and deploy them in the enforcement

points.

 RDP (Reaction Decision Point): this element

receives the information about attacks from

the ACE and decides a reaction in a short-term

reaction loop.

 PEP/REP (Policy Enforcement Point/Reaction

Enforcement Point): This component, outside

the ReD node, enforces the security policies

provided by the PDP and reaction provided by

the RDP. It also performs an immediate reac-

tion.

As stated when defining the RED components,

three type of reactions have been defined, based on

the time when they are applied: immediate reactions

are directly decided by the PEP/REP, short-term

reactions are decided by the RDP based on the in-

formation provided by the ACE and without instan-

tiating new security policies, and finally, long-term

reactions are decided by the PIE, generating new

security policies based on the ACE alerts that are

passed to the PDP to deploy them in the PEPs.

2.2 Alerts and Policies in ReD

To propagate alerts from the PEP to the ACE, and

from the ACE to the REP and PIE, messages are

sent using the Intrusion Detection Message Ex-

change Format (IDMEF) (Debar et al., 2007). This

format, based on XML, is defined to report alerts

about events in an Intrusion Detection System, and it

is composed of a set of tags that describe the differ-

ent properties that an alert can contain, such as time-

stamps, source and target of the attack, and its classi-

fication. At this point, it is important to remark that

the vulnerability exploited is commonly used to

classify the attacks, using CVE (Common Vulner-

abilities and Exposures) identifiers (Martin, 2001).

Several languages can be used to define the secu-

rity policy, including Policy Core Information

Model (PCIM) (Moore et al., 2001), Ponder

(Damianou et al. 2001), or Organization Based Ac-

cess Control (OrBAC) (Abou-El-kalam et al., 2003).

After an analysis of existing policy languages, Or-

BAC was selected as the policy language to be used

ReD node

ACE

RDP

PIE

PEP/

REP

PDP

Immediate reaction

Short-term reaction

Long-term reaction

Alert

message

Policy

SECURITY POLICY INSTANTIATION TO REACT TO NETWORK ATTACKS - An Ontology-based Approach using

OWL and SWRL

in ReD because it is expressive enough to specify a

large variety of security requirements. In fact, it has

been successfully applied to specify network access

control policies and translation mechanisms have

been defined to automatically generate firewall con-

figuration rules that are free of inconsistency and

redundancy.

In OrBAC, security policies are specified as sets

of security requirements that correspond to permis-

sions, prohibitions or obligations. Moreover, in Or-

BAC, these requirements may depend on contexts

that express temporal, location or provisional condi-

tions, which is very useful to specify new security

requirements to be triggered in reaction to an intru-

sion. Contexts are used in ReD to express also an

attack condition, this is, when an attack happens, a

context about that attack is activated. Then, given a

context attack from a source to a target, and about an

action, an OrBAC condition is held, activating new

security rules.

2.3 Ontologies: OWL and SWRL

An ontology is defined in (Gruber, 1993) as “a for-

mal specification of a shared conceptualization”. In

practical terms, an ontology is a hierarchy of con-

cepts with attributes and relations that defines a ter-

minology to define in consensus semantic networks

of inter-related information units. An ontology pro-

vides a vocabulary of classes and relations to de-

scribe a domain, stressing knowledge sharing and

knowledge representation.

With the advent of the Semantic Web, OWL

(Smith et al., 2004), the Web Ontology Language

has gained relevance. It is a general purpose ontol-

ogy language defined for the Semantic Web that

contains all the necessary constructors to formally

describe classes and properties, with hierarchies, and

range and domain restrictions. An OWL ontology

contains a sequence of axioms and facts. It includes

several types of axioms, such as subclass axioms,

equivalent Class axioms and property constraints.

The Semantic Web Rule Language (SWRL)

(Horrocks et al., 2004) extends OWL with rule axi-

oms. In the “human-readable” syntax of SWRL, a

rule axiom has the form: antecedent → consequent.

Informally, a rule may be read as meaning that if the

antecedent holds, then the consequent must also

hold. Using this syntax, a rule asserting that the

composition of parent and sister properties implies

the aunt property would be written:

Father(?x,?y)

∧

Sister(?y,?z) → Aunt(?x,?z)

In this work, OWL will be used as the ontology

language to describe both IDMEF and OrBAC con-

cepts, and SWRL will be used to map information

from IDMEF to OrBAC.

3 POLICY INSTANTIATION

ENGINE PROCESS

Once the ReD main concepts have been introduced,

the goal of this section is to describe the way ID-

MEF alerts are mapped into OrBAC contexts. For

this, three steps have been defined:

1. First of all, it is necessary to define ontologies

both for the IDMEF alerts (AO, Alert Ontology)

and OrBAC (OO, OrBAC Ontology).

2. Then, it is also necessary to establish relation-

ships between AO and OO with OWL proper-

ties and SWRL rules. OWL relationships are de-

fined to link an attack to a context. SWRL rules

can be used to map from one ontology to the

other thanks to the established relationships.

SWRL rules can then be considered as meta-

policies, because they allow the creation of

policies. The SWRL rules used for mapping will

look like:

AOproperty1(?classAindividual)

∧

interoperablityrelationship1(?classOindividual,

?classAindividual)

→ OOProperty1(?classOindividual)

3. Finally, an inference engine can be used to de-

rive the necessary information mappings in or-

der to add data to OO based on the information

of the AO.

Figure 2: Policy instantiation with ontologies.

Figure 2 shows the information involved in the

policy instantiation when ontologies are used. An

inference engine needs the OrBAC and the Alerts

ontology, new alert instances as well as SWRL rules

to map those alerts into OrBAC hold instances,

which are selected thanks to the reasoning process

(upper side of the figure). These OrBAC hold in-

stances are then used to obtain the security policy

rules to be activated (lower side of the figure). It

should be noted that this last operation can be ob-

•

OrBAC ontology

• IDMEF ontology +

alert instances

• SWRL Rules

Reasoner

Hold

instances

•

OrBAC ontology

instances:

Holds, roles,

activities, views, rules

• SWRL Rules

Reasoner

Policy

instances

SECRYPT 2008 - International Conference on Security and Cryptography

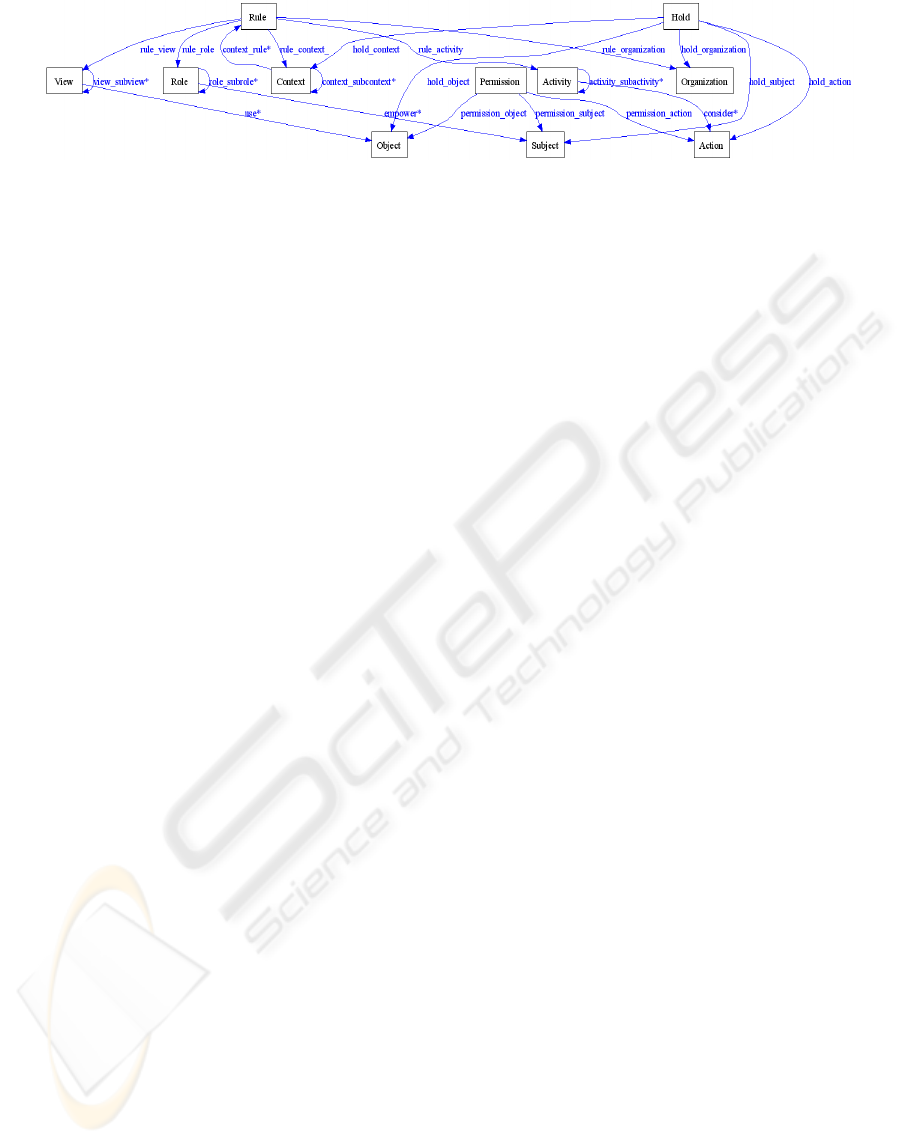

Figure 3: OrBAC ontology.

tained directly using MotOrBAC (the OrBAC en-

gine implemented at Telecom Bretagne,

http://motorbac.sourceforge.net/), but our approach

is complete in the sense that given an alert message,

policy rules are generated by using the set of ontol-

ogy classes and instances, as well as the SWRL

rules.

It is also important to remark that for this process

it is necessary to convert existing information into

ontologies, including OrBAC contexts and rules and

IDMEF alerts. With respect to OrBAC, in this ap-

proach it is supposed that these contexts and rules

are defined using an ontology editor by the manager

of the system. However, IDMEF alerts are coming

to the system in XML messages. Then, an IDMEF

parser has been implemented that translates these

alerts into instances of the Alerts ontology. Another

issue is to translate OrBAC rules to be deployed in

the PEPs, but this problem is independent of using

ontologies.

4 REPRESENTING

INFORMATION WITH

ONTOLOGIES

As stated above, a first step in the policy instantia-

tion process is to define ontologies for both OrBAC

and IDMEF alerts. Next sections provide such defi-

nitions.

4.1 OrBAC Ontology Representation

An OrBAC context ontology has been presented in

(Coma et al., 2007). Nevertheless, the work pre-

sented here is different, as it is not focussed on the

definition of different types of contexts. In this paper

we define a set of classes to describe in an ontology

the constructions used in OrBAC (see Figure 3):

 View: this class models the views contained in

OrBAC. It has a relationship with an object,

and a view can be derived from another view.

 Object: this class specifies the objects contained

in OrBAC.

 Role: this class models the roles contained in

OrBAC. It has a relationship with a subject,

and a role can be derived from another role.

 Subject: this class specifies the subjects con-

tained in OrBAC.

 Activity: this class specifies the activities con-

tained in OrBAC. It has a relationship with an

action, and an activity can be derived from

another activity.

 Action: this class models the objects contained

in OrBAC.

 Organization: this class models the views con-

tained in OrBAC.

 Hold: this class specifies the OrBAC holds. A

hold will have a subject, an object, an action, a

context and an organization to be asserted.

 Context: this class specifies the contexts con-

tained in OrBAC. A context will have a name.

Four auxiliary properties have been defined:

the first one, context_actived, provides which

alerts activate this context, based on the CVE

or BugTrack classification of the alert. The

second one is used to know if the context is

active or not. Context_granularity indicates

the mapping strategy when receiving an alert,

taking the information for Subject, Object

and/or Action. Finally, context_level indicates

the level of mapping, which can be system,

network or application. Depending on such

level, the information taken from the IDMEF

message in the mapping will be different.

 Rule: this class models the rules contained in

OrBAC. A rule will have a number, a type

(permission, prohibition, obligation), and rela-

tionships with a context, a view, a role, an ac-

tivity and an organization. An auxiliary prop-

erty has been included to know if a rule is ac-

tive or not.

 Permission: this class models the concrete poli-

cies. That is, if an action is permitted, prohib-

ited or obligated for a subject on an object.

SECURITY POLICY INSTANTIATION TO REACT TO NETWORK ATTACKS - An Ontology-based Approach using

OWL and SWRL

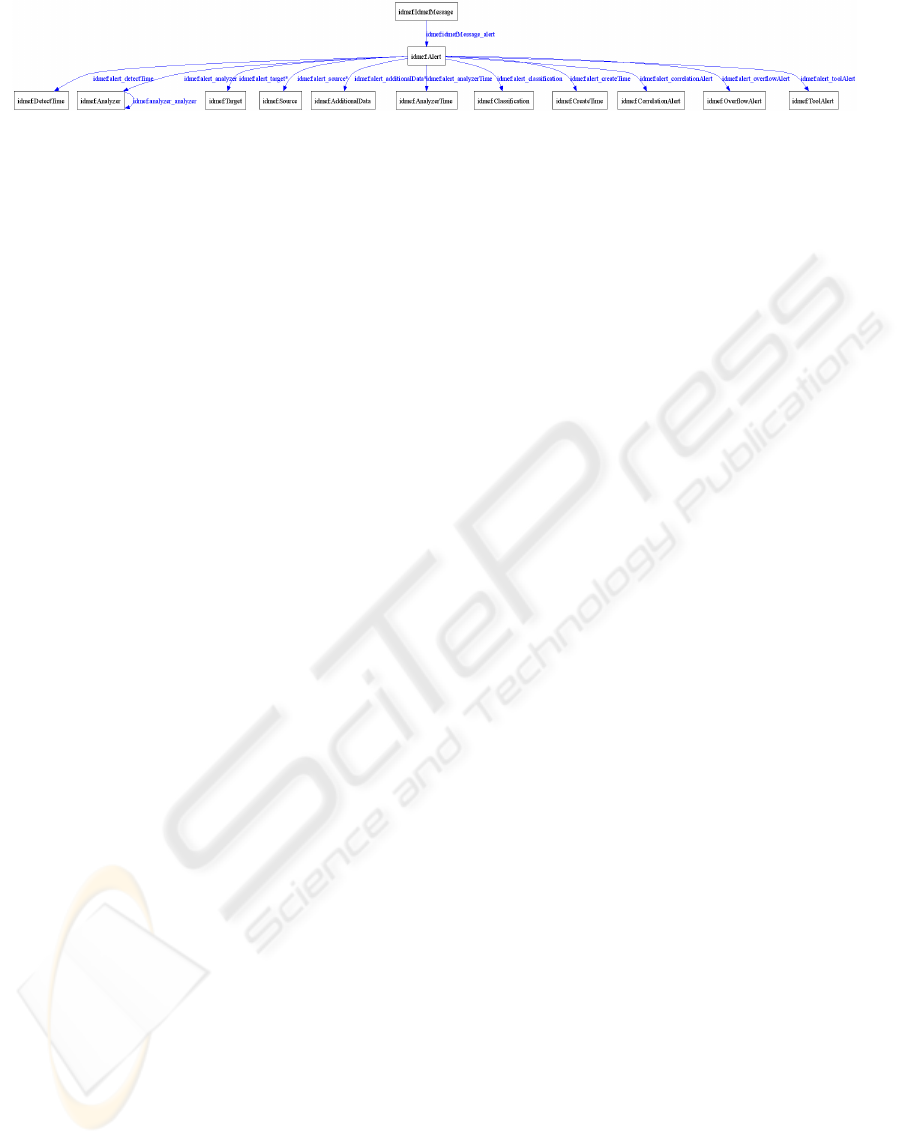

Figure 4: Alert ontology (alert relationships).

4.2 IDMEF Ontology Representation

With respect to the classes of the alerts ontology, our

approach tries to reduce as much as possible the

translation problems from real IDMEF alerts to the

alert ontology. Thus, an alert ontology has been de-

fined that maps the IDMEF alerts structure. This

means that the alerts ontology is much more com-

plex than the OrBAC ontology, with many more

classes and relationships.

For instance, the Alert class, depicted in Figure

4, has relationships with Message, CreateTime, Ana-

lyzerTime, DetectTime, Source, Target, Additional-

Data, Assessment, Analyzer, Classification, Correla-

tionAlert, OverflowAlert, and ToolAlert. Then,

Source and Target have also some relationships with

other classes such as User, Process, Service and

Node, which has an Address.

5 LOGIC RULES DEFINITION

Once the ontologies have been defined, it is also

important to define the logic rules to be used in the

inference engine. Three types of rules have been

defined: rules to infer hierarchy information in the

OrBAC model, rules to perform the mapping from

IDMEF alerts to OrBAC holds, and rules to obtain

the security policies.

With respect to the first type of rules, based on

the relationships defined in section 4.1, it is possible

to infer information from the hierarchy model of

ORBAC. For instance, for Role and Subrole, the

following rule is defined to empower a subject for

subrole, given that it empowers its parent role:

orbac:Role(?role) ^ orbac:role_subrole(?role,

?subrole) ^ orbac:empower(?role, ?subject)

→ orbac:empower(?subrole, ?subject)

Similar rules are defined for Activity and Subac-

tivity with respect to Action, as well as for View and

Subview with respect to Object.

To perform the mapping from an IDMEF alert

message to an OrBAC hold (see Figure 2), proper-

ties context_actived, context_granularity and con-

text_level are taken into account:

 context_actived. This property will be used to

select the context from a list of existing con-

texts, by comparing it with the IdmefMessage.

Alert.Classification.Reference.name. It is nec-

essary to populate this property in all context

instances. Then, if more than one context is

activated with an alert, both contexts will hold

and a conflict resolution should be defined.

 context_granularity and context_level.

Different rules will be defined based on the

granularity, to map information of the alert to

a Subject, an Object, or/and an Action. At the

same time, these rules will map a specific part

of the IDMEF message based on the level. For

instance, if the level is system, then,

Object.name is obtained from IdmefMessage.

Alert.Target.Process.name, and Subject.name

is taken from IdmefMessage.

Alert.Source.User.UserId.name.

If the level is network, Object.address is

derived from IdmefMessage.

Alert.Target.Node.Address.address and

Subject.address is obtained from

IdmefMessage.Alert.Source.Node.Address.

address.

Finally, if the level is application, Object.

name is taken from IdmefMessage.

Alert.Target.Node.name and Subject.name is

derived from IdmefMessage.

Alert.Source.Node.name

As stated, a set of SWRL rules are defined for

the mappings, following the approach proposed in

section 2.3. The SWRL rules are more complex in

this case because they have to follow the structure of

the IDMEF message. The rules are not presented

here due to space constraints, but to show a little

example of their verbosity, to reference the

IdmefMessage.Alert.Classification.Reference.name

property the following atoms have to be defined:

idmef:IdmefMessage(?im) ^

idmef:idmefMessage_alert(?im, ?a) ^

idmef:alert_classification(?a, ?c) ^

idmef:classification_reference(?c, ?r) ^

idmef:reference_name(?r, ?rn)

Note that SWRL does not have any built-in func-

tion to generate a new instance, which is necessary

to generate new Hold instances. To solve this prob-

SECRYPT 2008 - International Conference on Security and Cryptography

lem the swrlx:makeOWLThing function has been

used, as proposed in (Protégé, 2007).

Once a Hold is obtained, and based on the de-

fined instances of Role, Activity and View, it is also

possible to obtain the policy security rules, indicat-

ing permission, prohibition and obligation. For this,

SWRL rules are also defined. In this case, their

complexity is caused because these rules resemble

the behaviour of MotOrBAC.

6 CONCLUSIONS

This paper has presented a new approach to react to

network attacks in which a set of alerts are used to

automatically generate new security policies. For

this, an ontology-based approach has been used, in

which the alert and the policy information models

can be combined to help in the instantiation of the

policies. The use of OWL and SWRL provides sev-

eral advantages, including the availability of generic

tools for parsing and reasoning. The nature of OWL

as a Semantic Web component allows merging dis-

tributed ontologies. Moreover, there are many works

on mapping different knowledge bases that can be

leveraged for our purpose.

Some issues have also been found when doing

the experimentation. The expressivity of SWRL is

limited, not allowing some logic operators, such as

OR or NOT. Moreover, SWRL supports only mono-

tonic inference, which means that SWRL rules can-

not be used to modify or remove information in the

ontology. This fact reduces the possibility to invali-

date OrBAC holds when a new hold is asserted.

Future works include the validation of the im-

plemented prototype in a test scenario, and integrat-

ing the PIE with the rest of the components in ReD

architecture.

ACKNOWLEDGEMENTS

This paper has been partially funded by the Euro-

pean CELTIC Project ReD (CP3-011). The authors

would like to thank the rest of the partners for their

opinions and ideas.

REFERENCES

A. Abou-El-kalam, P. Balbiani, S. Benferhat, F. Cuppens,

Y. Deswarte, R. El-Baida, A. Miège, C. Saurel, G.

Trouessin, 2003. Organization based access control. In

IEEE 4th International Workshop on Policies for Dis-

tributed Systems and Networks (POLICY 2003), Lake

Como, Italy.

J. M. Bradshaw, A. Uszok, R. Jeffers, N. Suri, P. Hayes,

M. H. Burstein, A. Acquisti, B. Benyo, M. R. Breedy,

M. Carvalho, D. Diller, M. Johnson, S. Kulkarni, J.

Lott, M. Sierhuis, R. Van Hoof, 2003. Representation

and reasoning for DAML-based policy and domain

services in KAoS and Nomad. In Proc. Autonomous

Agents and Multi-Agent Systems Conference (AAMAS

2003), Melbourne, Australia.

C. Coma, N. Cuppens-Boulahia, F. Cuppens, 2007. A

context ontology based approach for secure interop-

erability. In 2007 Workshop of HP Software Univer-

sity Association. HP SUA. Munich, Germany.

N. Damianou, N. Dulay, E. Lupu, M. Sloman, 2001. The

Ponder Policy Specification Language. In Workshop

on Policies for Distributed Systems and Networks

(POLICY2001). Lecture Notes in Computer Science,

Vol. 1995.

H. Debar, D. Curry, B. Feinstein, 2007. The Intrusion

Detection Message Exchange Format (IDMEF). IETF

Request for Comments 4765.

D. Geneiatakis, C. Lambrinoudakis, 2007. An ontology

description for SIP security flaws. Computer Commu-

nications, Vol. 30, Issue 6, pp. 1367-1374

T. R. Gruber, 1993. A Translation Approach to Portable

Ontology Specifications. Knowledge Acquisition, Vol.

5, No. 2, pp. 199-220

A. Guerrero, V. Villagrá, J.E. López de Vergara, A. Sán-

chez-Macián, J. Berrocal:, 2006. Ontology-based Pol-

icy Refinement Using SWRL Rules for Management

Information Definitions in OWL. Lecture Notes in

Computer Science, Vol. 4269, pp. 227-232

I. Horrocks, P. F. Patel-Schneider, H. Boley, S. Tabet, B.

Grosof, M. Dean, 2004. SWRL: A Semantic Web Rule

Language Combining OWL and RuleML. W3C Mem-

ber Submission.

L. Kagal, T. Finin, A. Johshi, 2003. A Policy Language

for Pervasive Computing Environment. In Proceed-

ings of IEEE 4th International Workshop on Policies

for Distributed Systems and Networks (POLICY 2003),

Lake Como, Italy.

R.A. Martin, 2001. Managing Vulnerabilities in Net-

worked Systems. IEEE Computer Magazine, Vol. 34,

No. 11, pp. 32-38

B. Moore, E. Elleson, J. Strassner, A. Westerinen, 2001.

Policy Core Information Model - Version 1 Specifica-

tion. IETF Request For Comments 3060.

Protégé, 2007. Extensions Built-ins Library, Stanford Uni-

versity. Available at http://protege.cim3.net/cgi-

bin/wiki.pl?SWRLExtensionsBuiltIns.

M. K. Smith, C. Welty, D. L. McGuinness, 2004. OWL

Web Ontology Language Guide. W3C Recommenda-

tion.

J. Undercoffer, A. Joshi, A. Pinkston, 2003. Modeling

computer attacks: an ontology for intrusion detection,

Lecture Notes in Computer Science, Vol. 2820, pp.

113-135.

SECURITY POLICY INSTANTIATION TO REACT TO NETWORK ATTACKS - An Ontology-based Approach using

OWL and SWRL
