PROTOCOL OF AUTHENTICITY TO PROVIDE LEGAL

SECURITY IN E-CONTRACTS

A Prototype

João Fábio de Oliveira, Cinthia O. de A. Freitas and Altair Santin

Pontifical Catholic University of Parana - PUCPR

R. Imaculada Conceição, 1155, Prado Velho, 80215-901, Curitiba - PR, Brazil

Keywords: Law and Internet, Consumer Protection, Authenticity.

Abstract: This paper discusses the security problems on the contracts deals over the Internet and describes a protocol

of authenticity that will keep audit trails from the activities during the Web hiring. These audit trails will be

stored digitally, either on the side of the provider or on the consumer. It is understood that it is legal

obligation of the provider to logs and ensure the integrity of the data related to the operations on the

Internet-based commerce. because in situations of dispute can occur a reversal of the burden of proof. Thus,

this prototype ensures confidence on the e-contracts, logging relevant information that help in the

identification of the parties, using a Plug-in software installed on the e-commerce provider and in the

consumer machine, executable in the Web. Moreover, it is important to remind about the security in

contracts agreements over the Internet is an essential feature because it allows the consumer a guarantee of

contract award, since it maintains the integrity of the document, and also can be presented as evidence to the

Judiciary, helping in litigation and satisfying the premises of the legal acceptance of digital documents.

1 INTRODUCTION

The increased use of Internet in people's daily lives

is already a reality as a basic and essential tool in

day-to-day of the societies, for things like paying

bills, consulting phone catalogs and maps,

relationship between people, electronic messaging

and even to buy objects and consumer services.

According to the Center for Studies of

Information and Communications Technology

(Brazilian Internet Management Committee, 2006),

about 14.49% of Brazilian homes already have

Internet access, this information are from the last

poll done in 2006, which represents a 1.56% growth

over the 12.93% of 2005. This growing universe of

users and potential consumers of online products

represents a great concern from the technical and

legal point of view, due to the yearly increase in the

number of problems that need to be handled by each

of the related sciences.

On the other hand, Internet brings some

information security concerns, since the

documentation is no longer kept in physical form,

such as paper, but rather stored electronically

through digital means. While the Internet simplifies

commercial operations that take place in the digital

environment, it introduces a restricting factor and

leads us to a universe of studies on the security,

trustworthy, confidentiality, integrity, and

authenticity aspects. As well as the legality of such

operations given the doubtful facts questionable by

any of the parties involved in the transaction (e-

contract).

In face of this, there is a search for technical

solutions for security infrastructure for e-business

including the security of the information exchanged

and the storage of this information, especially when

it comes to making it trusted as far as accuracy of

the content stored. In this sense, the cryptography

and digital signing methods have contributed for the

security of online transactions: e-contract, e-

commerce, e-business (Behrens, 2007) (Garfinkel,

1997).

Thus, this paper discusses our prototype for

authentication protocol based on the consumer–

provider relationship on the contracts over the

Internet, since this protocol defines technical and

traceable parameters of the transaction, and provides

legal security in e-contracts, both in the provider's

server and in the consumer's equipment. We discuss

our prototype for demonstrating the practical

feasibility of the proposed protocol. This protocol

378

Fábio de Oliveira J., O. de A. Freitas C. and Santin A. (2008).

PROTOCOL OF AUTHENTICITY TO PROVIDE LEGAL SECURITY IN E-CONTRACTS - A Prototype.

In Proceedings of the International Conference on e-Business, pages 378-383

DOI: 10.5220/0001907903780383

 SciTePress

must be used along with the web server of the

provider and the Web browser of the consumer, and

is been developed as a Web Plug-in.

This paper is divided into five sections. Section 2

highlights the security issues on the web. Section 3

summarizes the e-contracts since its definition and

the relevant aspects for the protocol of authenticity,

which provides legal security in e-contracts. The

proposed protocol is presented in Section 4. Some

final considerations are given in Section 5.

2 SECURITY ISSUES ON THE

WEB

There are different aspects of security issues on the

web, such as physical security, personal security,

operations security, communications security, and

network security. Normally, the systems are

concerned about the application of the protection in

e-anything or e-initiative, or specifically e-business,

taking into account the state of the art technological

infrastructure. The main goal of security for e-

business applications is to protect networks and their

applications against attacks, ensuring information

availability, confidentiality, integrity, auditing,

authorization, and authentication (Huang et al.,

2008) (Meier, 2003). This paper goes beyond to

provide a secure environment. We are here

considering legal security of e-contracts.

A secure environment is ensured by combination

of different factors, such as data security,

networking security, policy, and management of

information system security (ISS) (Akhter & Kaya,

2008). Therefore, we need discuss the basis of the

information transferred during transactions over the

Internet.

The starting point of the information transferred

on Internet is the TCP/IP (Transmission Control

Protocol/Internet Protocol) protocol. This protocol,

in its version 4, has been consolidated for using in

Internet (Comer, 1991). This protocol does not

include security mechanisms for information

transfer, leaving this for the applications which are

developed for the end users, which is the reason for

the concern about the related criteria to the

protection of the content in transit. This means that

the transferred information between two different

places on Internet, regardless of its physical location,

can be captured by a protocol analyser (WireShark,

CommView, Ghost). So the desired information can

be visualised.

The TCP/IP protocol specification has a

conceptual segmentation into five layers, as shown

in Table 1 (Comer, 1991). Each layer solves a set of

problems involving the transmission of data, and

provides a well-defined service to the upper layer

protocols based on using services from some lower

layers. Upper layers are logically closer to the user

and deal with more abstract data, relying on lower

layer protocols to translate data into forms that can

be physically transmitted. Layer 5, nominated as

application layer, specifies and implements the

software which interact with the end users. It is at

this level that all concerns related to the information

security should be implemented, in other words, the

applications at the user level must include treatment

mechanisms that are considered secure enough to,

on one hand, give the end user the assurance that his

network transaction is secure, free of risks of content

modifications, and on the other hand, provide

verified technical conditions of mechanisms

considered secure, such as the use of cryptography

algorithms at the applications level (Schneier, 1996).

Table 1: The 5-Layer TCP/IP Model.

er Protocol

–

Application HTTP, DNS, SMTP,...

–

Transpor

TCP, UDP, DCCP...

–

etwor

IP, IGMP, ICMP...

–

Data Ethernet, Wi-Fi,

802.11(WLAN)...

–

Physical Modem, PLC, optical fiber...

Traffic on the Internet is a client-server software

application, which is executed through a direct user

interface, known as the web browser. In this

environment, several applications are written in the

application layer protocol of the TCP/IP known as

http (hypertext transfer protocol) (Garfinkel, 1997).

Since there are no mechanisms defined in the

TCP/IP protocol itself, the application is responsible

to define and implement additional security

algorithms; minimizing the impact of the

vulnerabilities that exist on the internet protocol.

Thus, the security issues on the Web are divided into

three categories (Garfinkel, 1997):

• Security of the Web server, the server's

activities, and stored data: guarantee that

the information was not modified or

distributed without user authorization;

• Data security in the computers network:

guarantee that the transmission of

information between the server and the

Web browser has a security level based

on well-known standards, such as

cryptography or digital signature (Meier,

2003). Cryptography refers to how your

application enforces confidentiality and

integrity. Digital signature corresponds a

PROTOCOL OF AUTHENTICITY TO PROVIDE LEGAL SECURITY IN E-CONTRACTS - A Prototype

379

countermeasure techniques that can be

used to reduce risk of tampering with

data (Meier, 2003);

• Data security in the user computer:

guarantee that user’s computer is as

protected as possible (firewalls,

antivirus, anti-spyware, anti-spam, etc.).

A typical firewall helps to restrict traffic

to HTTP, but the HTTP traffic can

contain commands that exploit

application vulnerabilities (Meier, 2003).

Therefore, taking into consideration the security

problems on Internet, these vulnerabilities can be

analyzed from the point of view of the contracts

deals over the Internet. In this case, it is not

necessary provide information security but is

primordial provide legal security for e-contracts.

3 E-CONTRACT

A contract is a legally binding agreement.

Agreement arises as a result of offer and acceptance,

but a number of other requirements must be satisfied

for an agreement to be legally binding as following

(Martin, 2003):

• The parties must have an intention to

create legal relations;

• The parties must have capacity to

contract;

• The agreement must comply with any

formal legal requirements (it may be

oral, written, partly oral and partly

written, or even implied from conduct);

• The agreement must be in accordance of

the law;

• The agreement must not be rendered

void either by some common-law or

statutory rule or by some inherent defect,

such as operative mistake.

However, when such a contract becomes valid,

that is, legally binding and enforceable, is regulated

by contract law that may differ from country to

country, even if subject to International Law. Based

on these considerations, an e-contract is a valid

contract deals over the Internet. Simplest example is

Amazon book store buying. When everything goes

right, it is of no major importance when exactly a

contract is concluded and according to which law.

However, when something goes wrong such as, the

product does not delivery, payment is not

effectuated or is wrongly charged, or the product is

damaged; then information about the contract

conclusion as well as governing law may be crucial.

This is the main problem of cross-border e-

commerce, but this topic is beyond this paper.

Recognising the value of arbitration as a method

of settling disputes arising in the context of

international commercial relations and being

convinced that the establishment of rules for ad hoc

arbitration that are acceptable in countries with

different legal, social and economic systems would

significantly contribute to the development of

harmonious international economic relations; the

United Nations Commission on International Trade

Law (UNCITRAL) was established by the United

Nations General Assembly in 1966 to promote the

progressive harmonization and unification of the law

of international trade. Brazil not adopts these rules

and there are no clear rules or a specific law for

litigation situations involving e-commerce.

Chiu et al. (2003) presents that e-contract

enforcement can be divided into multiple layers and

perspectives, which has not been adequately

addressed in the literature. This problem is

challenging as it involves monitoring the enactment

of business processes in counter parties outside an

organization's boundary. The authors present an

architecture for e-contract enforcement with three

layers: document layer, business layer, and

implementation layer. In the document layer,

contracts are composed of different types of clauses.

In the business layer, e-contract enforcement

activities are defined through the realization of

contract clauses as business rules in event-condition-

action (ECA) form. In the implementation layer,

cross-organizational e-contract enforcement

interfaces are implemented with contemporary

Enterprise Java Bean and Web services. They

present a methodology for the engineering of e-

contracts enforcement from a high-level document-

view down to the implementation layer based on this

architecture, using a supply-chain example. As a

result, e-contracts can be seamlessly defined and

enforced.

This paper present an authentication protocol to

provide legal security in e-contracts implemented in

application layer based on document-view. The idea

is to be able answering some questions such as:

Does the consumer want to buy, is s/he able to buy?

When is the contract considered to be concluded?

There is no clear rule. To avoid problems and

protect the consumer (as provided in the Brazilian

Consumer Code) we are developing the protocol to

capture and save a set of data from consumer and

provider. This set of data can be easily visible and

accessible by the consumer and accepted by him/her.

Thus, when constituting the contract elements in a

virtual environment, the following fundamental

ICE-B 2008 - International Conference on e-Business

380

structure items must be established: user-consumer,

provider, e-contracts and contract location.

4 PROTOCOL OF

AUTHENTICITY

In e-contract, such as in the purchase of consumer

goods from e-commerce Web sites, the consumer

will be taking advantage all infra-structure of

communication defined in the Internet network.

When the consumer performs a purchase operation

on the providers’ server through her Web browser,

she lacks the mechanisms to provide physical and

legal evidence of the content accepted during the

transaction at a technical level. In other words, there

are no effective logs on your computer that store or

restore the history of transaction between the

consumer and the provider. Therefore, this Section

presents the theoretical aspects explored in the

proposed protocol and the implementation issues.

4.1 Theoretical Aspects

In practice the hiring conducted on the Internet can

be done by e-mail or directly at the Web site (e.g. in

clicking a button "I accept"). This implies that

specifically in the context of Web communication,

the level of information security applied in http

protocol guarantees a minimum of security based on

mechanisms of encryption. Indeed, the use of SSL

(Secure Sockets Layer) in Web applications applies

encryption namely, point-to-point, so that the

information is transferred ciphered on the Internet

(Garfinkel, 1997). The encryption point-to-point

means doing a cryptographic channel between the

provider and consumer applications layers.

The applications developed for the Internet

environment, following the client-server

architecture, employ the standard TCP/IP protocol

infra-structure, remaining however, vulnerable to the

various problems typical to this environment.

Specifically in Web communication, when

communications between the server and the

contractors’ web browser employ the SSL protocol

in the cryptography of the data transferred over the

network, the risk of fraud in the transferred content

is reduced by the cryptography (Garfinkel, 1997).

However, in litigation situations it is necessary

restore the history of transaction between the

consumer and the provider and there is no protocols

or tools that capture, store and restore this kind of

information, specially providing legal security. In

this context, legal security represents the consumer’s

guarantees that the transaction hired on the Internet

can be presented in Judicial processes. Thus, the

proposed protocol of authentication (Plug-in) is

organized in two parts:

• Server: is installed on the Web server

provider and follows the standards of the

http protocol and Java-web, and is

configured as an extension of the services of

the server and offered to the consumer as a

Plug-in for web browser of provider;

• Client: is installed on the consumer’s

computer and follows a specific procedure

for initial installation of the Plug-in,

considering the consent of the consumer to

accept the installation of this software on her

computer. The Java programming language

was chosen due to its flexibility in selecting

of information on Internet environment.

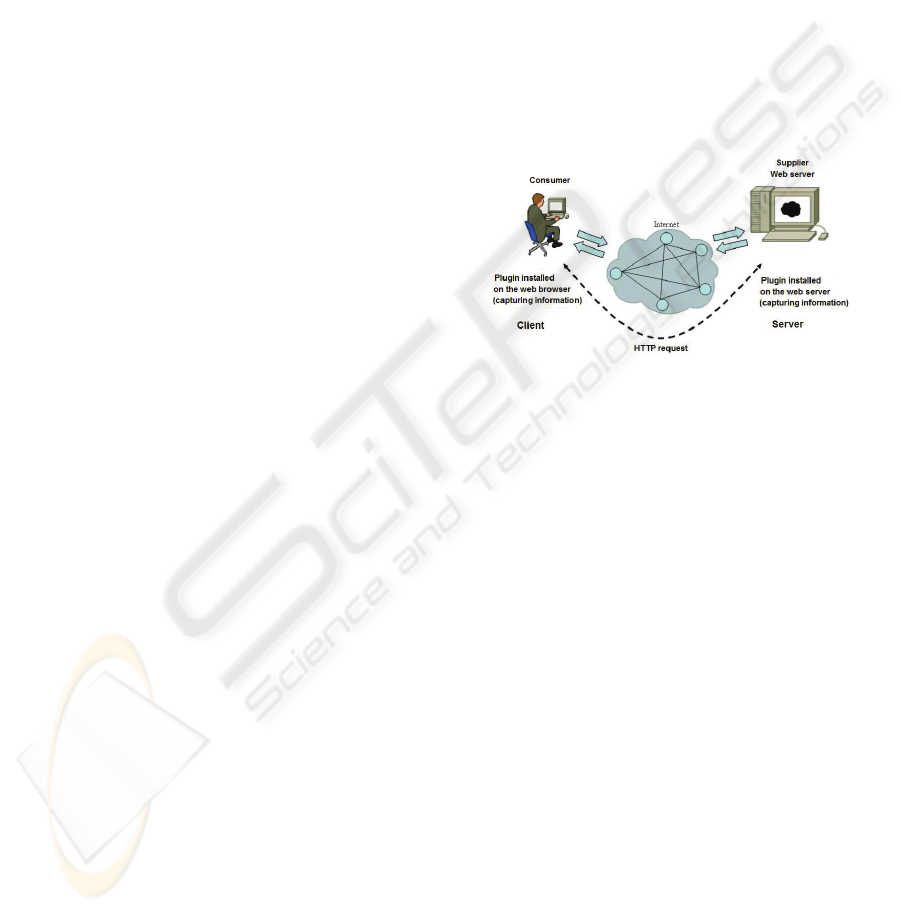

Figure 1: Plug-in model.

It is possible, therefore, to present an overview of

the authentication protocol, in which the consumer

possesses in her computer the record of the

transactions done in the web site of the providers, in

order to extract a report with the information

regarding such transaction. On the other hand, the

protocol allows to confront the information

transferred between both parties, as shown on Figure

1. The request done by the consumer is based on the

http protocol, then the Plug-in captures the packages

on this level of the protocol as well as other

technical information on the TCP/IP level and stores

all data in the log files.

4.2 Implementation Issues

Considering the theoretical aspects presented before,

the proposed protocol defines that the consumer,

when accessing the web site of the providers through

her browser, has an icon with information about the

authentication protocol available in order to allow

her with explicit consent and authorization, to

download the Plug-in to her computer.

The protocol determines the capture of consumer

information, as shown in Table 2, which takes place

during the initial interaction process when the

consumer accepts the installation of the Plug-in.

PROTOCOL OF AUTHENTICITY TO PROVIDE LEGAL SECURITY IN E-CONTRACTS - A Prototype

381

This initial registration makes up the official

identification of the consumer.

Table 2: Consumer Information – Initial Registration.

Field Description

name

cont

Consumer’s name

address_cont

Consumer’s address

hone_home_cont

Consumer’s Home

Telephone

hone

celular

cont

Consumer’s Mobile Phone

id_cont

Consumer’s Legal

Identification

type_i

ID, Drivers License,

Passport, Workin

Papers

tax

cont

Consumer’s tax ID

After this initial registration, the algorithm

provides verification of the Plug-in installed on the

equipment of the provider, installing it when it is not

already done. From this point on, the operations

performed by the consumer on the web site of the

provider keep all information stored in a log file

recorded on both sides (provider and consumer), as

specified in Table 3.

The log file is encrypted through the Triple DES

(Triple Data Encryption Standard) algorithm,

developed at IBM and published as a standard in

1977 (Schneier, 1996). Generally TDES uses three

different keys and has a key length of 168 bits (3 x

56-bit DES), resulting in a symmetric algorithm.

Thus, by being symmetric, the key used for

encryption and decryption of the file is the same,

making it a fast processing algorithm, considering

the log file to be processed and ensuring access to

the information.

In this way, the consumer will be able to

generate her report directly through her computer,

without depending on the information saved in the

server of the provider, as is the case with the use of

other cryptography algorithms that apply

asymmetric keys (which relies on the exchange of

public between both parties).

In the Plug-in installed on the computer of the

consumer is the function to visualize the log file

stored, allowing her extracting the information about

the operations accomplished in printed format as

evidence of the various Web interactions performed

at the web site of the providers. In legal terms, this

report will allow the consumer to provide evidence

as an official document registered at Notary's Office

(Rezende, 1997).

The capture data follows the structure defined in

Figure 2, which is an example of the data capture

using the Wireshark software, keeping the reference

to the TCP/IP protocol. The information necessary

to comply with the fields defined in the

authentication protocol are available in the data

package captured in the Ethernet frame, as shown in

Figure 3. The information captured are stored in the

log file in a sequence and logically structured in data

files in encrypted text format.

Table 3: e-Contracts Information.

Field Description

IP_consumer_Interne

Consumer’s IP number as

an Internet use

IP_consumer_real Consumer’s IP number

(consumer machine)

Mask_IP_consumer_re

etworking mas

(consumer machine)

Gateway_consumer_re

Default gateway

(consumer machine)

DNS_consumer_real DNS configured

(consumer machine)

IP_provider_Interne

Provider’s IP number

(provider server)

IP_ provider_real Provider’s IP number

(LAN server)

Mask_IP_provider_rea

etworking mas

(

rovider server)

Gateway_provider_real Default gateway

(provider server)

DNS_provider_real DNS configured

(provider server)

date_acess Date: DD/MM/YYYY

time

acess

consume

Hour: HH:MM:SS

time

acess

provide

Hour: HH:MM:SS

ort_acess_consume

Consumer’s TCP or UDP

ort numbe

orta_acess_provide

Provider’s TCP or UDP

ort numbe

URL_provide

web address accessed by

the consume

route_IP Route between

consumer’s IP and

rovider’s IP

Figure 2: Capturing the Data Package.

The technique for capturing the packages is

based on the use of the libpcap/winpcap libraries,

which are low level software libraries available for

ICE-B 2008 - International Conference on e-Business

382

programming code of development. These libraries

come from network traffic information according to

the interface used, for example, Ethernet and

Wireless WIFI.

Global Package Package Package Package Package Package

Header Header Data Header Data Header Date

Figure 3: Format of the Captured Data Package.

This library provides functions that capture

packages in the format of the basic network, on

which there are the header and the individually

separate data. Inside of the TCP/IP protocol in its

didactic classification, it is possible to separate the

various levels of information (protocol and user

information) allowing for the recording of this

information to the log file (Comer, 1991).

In future work, we plan to conduct case studies

to evaluate our protocol taking into consideration the

following parameters:

• Performance: computing the impact of

the protocol in the consumer machine

and on the e-commerce provider based

on CPU use. The data collecting will be

done using the SNMP (Simple Network

Management Protocol);

• Response time: which is the time a

generic system or functional unit takes to

react to a given input. In this case, we

will verify the response time between the

consumer machine and e-commerce

provider. The data collecting will be

done using the ICMP (Internet Control

Message Protocol) considering the echo-

request and echo-reply facilities.

This evaluations can demonstrate potential

scenarios that may benefit from this research.

5 FINAL CONSIDERATIONS

In litigation situations involving e-commerce, the

greatest difficulty is in verifying proof of the

contract established. This difficulty arises due to the

fact that the relations are no longer necessarily face-

to-face, therefore requiring the use of additional

mechanisms to carry out these contracts as well as

computer tools that allow the registration and

evidence that the contract was made. Thus, the

authentication protocol proposed in this article

allows both interested parties, consumer and

provider, to keep registry logs with information

about the dealing contract. This audit trail is

composed of a variety of information, such as the IP

record of the equipment involved in the transaction.

Therefore, the consumer can issue reports on the

access to the providers, as well as the contracts over

the Internet. In this situation, is important that the

consumer can restore, from her own computer, data

and information on the litigated web site. Or,

furthermore, the consumer should be in condition to

validate the information given by the provider. Thus,

the use of the authentication protocol will be, in fact,

mapping the operation accomplished through the

Internet by means of the log file, with a full and

secure record of the main elements of the e-contract.

ACKNOWLEDGEMENTS

The authors wish to thank Dr. Antonio Carlos Efing

(PPGD-PUCPR) which have collaborated to this

work. This work has been supported by CNPq (grant

471627/2006-2 and grant 476637/2006-6).

REFERENCES

Atkins, D., Buis, P., Hare, C., Kelley, R., Nachenberg, C.,

Nelson, A.B., Phillips, P., Ritchey, T., Sheldon, T.,

Snyder, J. (1997). Internet security professional

reference, New Riders Publishing, 2

edition.

Behrens, F. (2007). Digital signature and legal business.

Jurua, 1

edition.

Brazilian Internet Management Committee (Comitê

Gestor da Internet Brasil), Center for Studies of

Information and Communications Technology (2006).

TIC Domicílios e Usuários (ICT Homes and Users.

Available: http://www.cetic.br/, [11-march-2008].

Chiu, D.K.W., Cheung, S.C., Till, S. A. (2003). Three-

layer architecture for e-contract enforcement in an e-

service environment. In 36th Annual Hawaii

International Conference on System Sciences.

Comer, D. E. (1991). Internetworking with TCP/IP:

principles, protocols, and architecture, Prentice-Hall

International, Inc., 2

edition, Vol. 1.

Garfinkel, S., Spafford, G. (1997). Web security &

commerce. O’Reilly & Associates, Inc.

Martin, E.A. (2003). A Dictionary of Law. Oxford

University Press.

Meier, J.D., Mackman, A., Vasireddy, S., Dunner, M.,

Escamilla, R., Murukan, A. (2003). Improving web

application security: threats and countermeasures,

Microsoft.

Rezende, A.C.F. (1997). Notary's Office and the perfect

notary: property law and notary’s activities. Copola

Livros. 1

edition.

Schneier, B. (1996). Applied cryptography: protocols,

algorithms, and source code in C. John Wiley & Sons,

Inc., 2

edition.

PROTOCOL OF AUTHENTICITY TO PROVIDE LEGAL SECURITY IN E-CONTRACTS - A Prototype

383
