A COMPARISON STUDY OF TWO KNOWLEDGE

ACQUISITION TECHNIQUES APPLIED TO THYROID

MEDICAL DIAGNOSIS DOMAIN

Abdulhamed Mohamed Abdulkafi and Aiman Subhi Gannous

Faculty of Information Technology, Garyounis University, Benghazi, Libya

Keywords: ID3, C4.5, Backpropagation.

Abstract: This study compares the performance of two famous methods used in knowledge acquisition and machine

learning; the C4.5 (Quinlan 1986) algorithm for building the decision tree and the Backpropagation

algorithm for training Multi layer feed forward neural network. This comparison will be based on the task of

classifying thyroid diagnosis dataset. Both methods will be applied on the same data set and then study and

discuss the results obtained from the experiments.

1 INTRODUCTION

Knowledge acquisition from databases has long

been recognized as an essential feature of artificial

intelligence. When the data formatted, one or more

algorithms must be applied to extract patterns,

regularities or general laws from the data. It’s a

challenge with extracting knowledge when the

expert is not consciously aware of the knowledge

used. Artificial Intelligence (AI) has been working

on problems of Knowledge Acquisition and has

made a great contribution to the understanding and

application of neural nets and decision trees.

Techniques include relatively recent algorithms like

neural nets and decision trees increased computer

power to work on the huge volumes of available

data. (Levia, 2002).

1.1 Research Problem

The process of choosing method for acquiring

knowledge from a set of data is still vague and need

more experiments to do. The comparison process

can not be done in general but in specific domain

because the differences of the data types, and

according to (Touretzky, 1989, 1990), ''we still lack

an understanding of the situations for which method

is appropriate''(Thomas, Hild, and Ghulum, 1995).

This lack is the motivation for conducting the

comparison of C4.5 with Backpropagation in the

field of Thyroid medical diagnosis and to discover

the differences between these two algorithms that

may or may not be enough to decide which is better

to chose.

1.2 Objectives

Compare the test results in knowledge acquisition of

the medical diagnosis applied in Thyroid data set

and shows the advantages and disadvantages of each

method when used in this domain.

1.3 Related Work

Scientists paid a great attention to Artificial

Intelligence field and its applications, one of the

most application is the knowledge acquisition from a

large set of data bases; many of them had done

researches about comparing and studying the

differences between various methods used in this

application.

(Thomas, Hermann and Ghulum, 1995) conduct

a comparative study of ID3Algorithm with

Backpropagation in the task of mapping English text

to phonemes and stresses their experimental

comparison shows that Backpropagation

consistently out-performs ID3 on this task by several

percentage points.

(Berkman, Lubomir, Ping, Chuan, Wei, 2005)

compare the performance of prediction accuracy of a

learning classifier system based on Wilson's XCS

with Decision trees, Artificial Neural Networks and

support Vector Machines. The experiments are

360

Mohamed Abdulkaﬁ A. and Subhi Gannous A. (2008).

A COMPARISON STUDY OF TWO KNOWLEDGE ACQUISITION TECHNIQUES APPLIED TO THYROID MEDICAL DIAGNOSIS DOMAIN.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 360-365

DOI: 10.5220/0001880503600365

 SciTePress

performed on the forest Cover type database. They

find that C5 Decision trees perform significantly

better than other techniques.

(Bagnall, Cawley, 2000) conducted a

Comparison of decision tree classifier with neural

network and linear discriminant analysis(LDA)

classifiers for computer-aided diagnosis and studied

the comparison of performance of decision tree (DT)

classifiers with artificial neural network (ANN) and

linear discriminant analysis classifiers under

different conditions for the class distributions,

feature space dimensionality, and training sample

size using a Monte Carlo simulation study. Three

types of feature space distributions were studied: the

Gaussian feature space, a mixture of Gaussians, and

a mixture of uniform distributions. The results

indicated that, in the Gaussian feature space, the

(LDA) outperformed the other two classifiers. The

authors conclude that a (DT) can be a viable

alternative to (ANN) and (LDA) classifiers in certain

feature spaces.

2 THYROID DATASET

Thyroid disease records supplied by the Garavan

Institute and J. Ross Quinlan, New South Wales

Institute, Sydney, Australia. 1987. Experiments are

performed on the Thyroid datasets that available at

the university of California archive (UCI KDD

archive, www.uci.edu, 2007) for researchers to study

and carry on such experiments in the artificial

intelligence field.

The data contains 2800 cases with 29 Attributes, 7

attributes are continues and 22 are binary.

The Class attribute(Outputs) of the dataset:

Negative(class 1),

Increased binding protein(class 2),

and decreased binding protein(class 3).

3 PRACTICAL WORK

3.1 Applying C4.5 Algorithm on

Thyroid Dataset

C4.5 is a program for inducing classification rules in

the form of decision trees from a set of given

examples. The program expects to find at least two

files: a names file defining class, attribute and

attribute value names, and a data file containing a set

of objects, each of which is described by its values

of each of the attributes and its class. All trees

generated in the process are saved. After each tree is

generated, it is pruned in an attempt to simplify it.

All trees produced, both pre- and post-

simplification, are evaluated on the training data.

3.2 Experiment on Decision Tree

When we apply the algorithm to Construct Decision Tree

for predicting the bending protein in the Thyroid the

results were as follows:

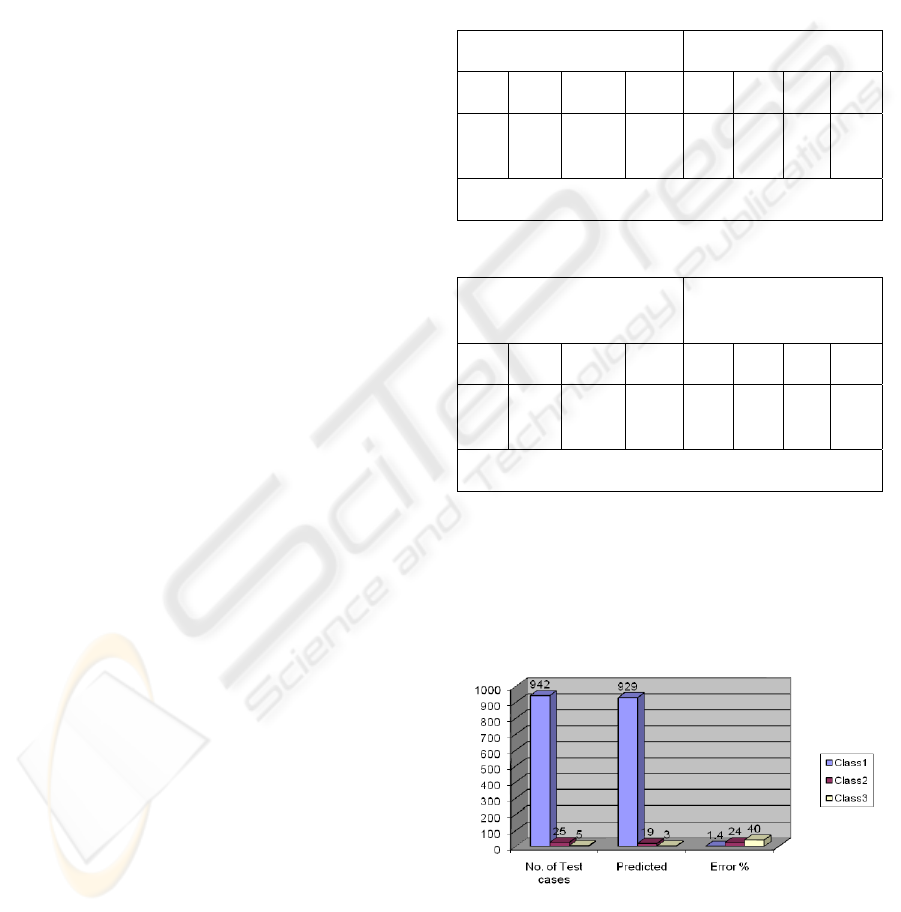

Table 1: Evaluation on training data (2800 items).

Before Pruning After Pruning

S C MC E S C MC E

127

277

0.9% 51

276

2 38

1.4

S-Size E- Error. C- Classified. M C.- MisClassified

Table 2: Evaluation on Test data (972 items).

Before Pruning

After Pruning

S P MP E S P MP E

127 941

2.3%

51 951 21 2.2%

S-Size E- Error. P- Predicted. M P.- MisPredicted.

As shows in figure (1) the percentage in

prediction is not equal in all classes. class1 has a

better ratio of error than class2 and class3 because

the allowance in the number of records in each

classes, class1 had(2667) records, class2 had (124)

and class3 had (9) records. Figure(5.1) shows the

relation in predicting and diagnosed cases.

Figure 1: Shows the prediction percentage with 972 Test

cases.

As noticed from Table (3) C4.5 Decision tree

algorithm gives a better results in prediction phase

A COMPARISON STUDY OF TWO KNOWLEDGE ACQUISITION TECHNIQUES APPLIED TO THYROID

MEDICAL DIAGNOSIS DOMAIN

361

on unseen data set when pruning is applied on the

constructed tree that decrease the error ratio from

3.2% to 2.2% , also the algorithm was fast and easy

to apply.

3.3 Experiment on Artificial Neural

Network

3.3.1 Preparing the Thyroid Dataset

The data must be processed before applying the

(ANN) approach because the data set used contains

missing values and from the observations we noticed

some modifications we can do on the data set to

perform better in the training phase.

Reduction of Attributes. The attribute (TBG

measured) has only one value for all records that it

can not be useful for learning because it will not

affect or help the (ANN) for better classification so

we can delete the attribute from the data set and also

we can delete the attribute (TBG) because it

correlated to the value of (TBG measured) attribute

that if the (TBG measured) value is (f) then it leads

that the patient did not do this test so the values of

the (TBG) attribute will considered as missing value

and not useful because all values of (TBG measured)

attribute have one single (f) value.

Coding Attributes. The (referral source) attribute

had six categories (WEST, STMW, SVHC, SVI,

SVHD, other) and these attributes are coded as

follows (1, 2, 3, 4, 5, 0). The class attribute of the

bending protein dataset are coded for each value as

follows: (negative 1, Increased binding protein 2,

Decreased binding protein 3).

3.3.2 Designing the Network

The network was designed according to feed

forward structure for the experiments as the figure

below:

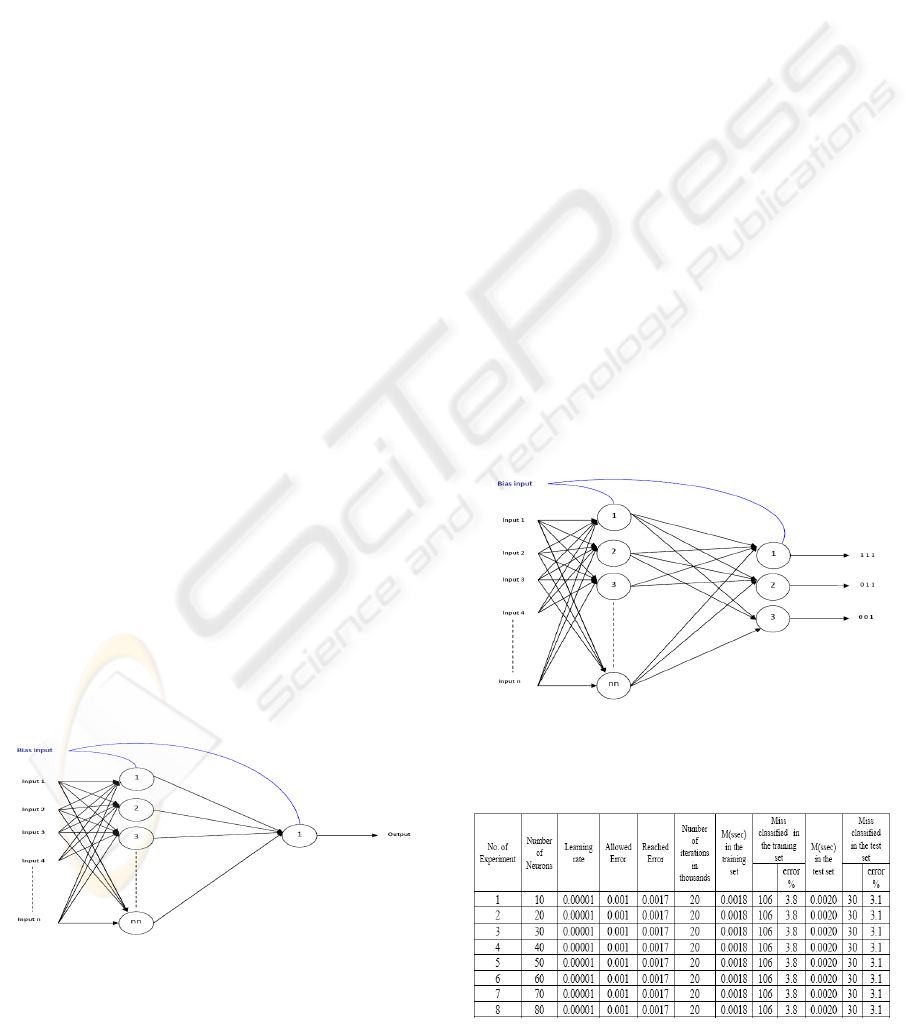

Figure 2: Feed forward neural network design.

3.3.3 Train a Feed forward Neural Network

for Predicting the Bending Protein in

the Thyroid

The network was designed according to a multi layer

feed forward structure, it contains a two layers with

linear function in the hidden layer and nonlinear

(sigmoid) function in the output layer with

considering the first layer as an input layer, the

training is done using Back propagation algorithm

programmed with the scientific programming

language 'Mat lab'.

The first experiment used all records of the data

set considering that any missing data are replaced by

a value of -1. After many training tests, learning rate

was determined by 0.00001 as a best value to train

the network and number of iterations determined by

20000 iterations. The best results were at 20 neurons

with 12.5% of error in classification accuracy and

12.2% of error in prediction accuracy when applied

on unseen data set.

In the second experiment, the outputs were

changed to binary output to simplify the training

process and it shows an improvement in the results

at 10 neurons that gives 5.4% of error in

classification accuracy and 3.7% of error in

prediction accuracy, but in the third experiment all

missing data are deleted and this effects the results

in a good way that at 10 neurons the classification

accuracy was 3.8% of error and 3.1% of error in

prediction accuracy.

Figure 3: Designed network for training with binary

outputs.

Table 3: Training after removing all missing data.

ICSOFT 2008 - International Conference on Software and Data Technologies

362

Also experiments are carried out on the data set

after ranging the data set between 0 and 1, and that

did not shows any improvement in the results, also

using High Order Inputs with data set attributes did

not show any enhancement on the classification or

prediction accuracy.

In the forth experiment the inputs changed by

calculating the mean for these inputs and train the

network to learn this process using the mean of

inputs as an outputs for the network, the results were

very poor at this side, but when using the mean of

inputs(output) as an inputs for the network to

classify the bending protein cases the results in

classification were perfect with 0% of error but a

100% of error in prediction accuracy, which led that

the network was overfitting the training set.

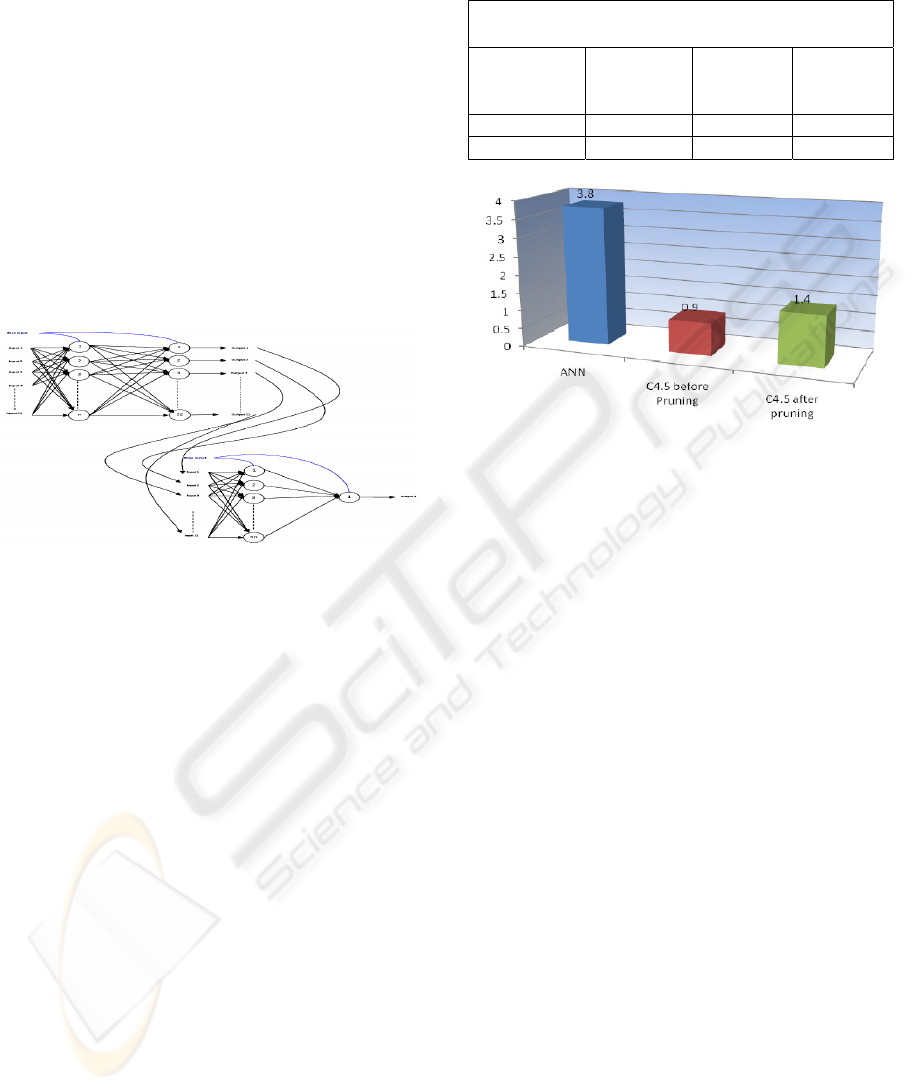

Figure 4: The structure of training network using mean of

input data set.

The last step of the experimental work was an

explanation of the weakness in learning process in

Artificial Neural Network, from the observations the

network was good in learning how to predict class

(negative) in thyroid binding protein with a less

value of error rather than the other classes, because

class1 contains a plenty of examples were enough to

learn this case well

4 COMPARISONS

4.1 Classification Accuracy

The classification accuracy is tested by both models

constructed, the tree that constructed using C4.5

algorithm have a better results as shown in table

(8.1) C4.5 have a 0.9% of error before pruning the

decision tree and 1.4% of error after pruning that

beat ANN 3.8% of error in classifying the dataset

results.

Table 4: Shows the classification percentage of both

methods.

Training dataset

ANN C4.5

before

Pruning

C4.5 after

pruning

Misclassified 106/1947 26/2800 38/2800

Error% 3.8 0.9 1.4

Figure 5: Shows the classification percentage of both

methods.

However, the affecting of the number of

examples in constructing the classification model

using ANN method should not be ignored. The most

correct classification was in class1, and also very

accurate because it have a rich and plenty of

examples that made the ANN model classify it very

well, but in classifying class2 and class3 there were

not as much as necessary examples to the ANN

model to make a good classification. In general

C4.5 decision tree model was better and more

accurate in classification results, but in comparing

the classification accuracy of each class individually,

ANN model is better in classifying class 1, but C4.5

model is better in classifying class 2 and class3 that

ANN model misclassified 106 patterns of 1947 and

all of them in class2 with 99 patterns, and in class3

with 7 patterns, but C4.5 model misclassified 26 of

2800 patterns and obviously it has a correct

classification in both classes 2 and 3.

4.2 Prediction Accuracy

After conducting the ability of prediction test on

both methods under study using unseen dataset

contains 972 records, ANN have 3.1% of error and

C4.5 have 3.2% of error before pruning, both results

is almost equal with a little bit difference for the

ANN model, but when testing the C4.5 decision tree

model after pruning process it gives a 2.2% of error

A COMPARISON STUDY OF TWO KNOWLEDGE ACQUISITION TECHNIQUES APPLIED TO THYROID

MEDICAL DIAGNOSIS DOMAIN

363

that overcome the ANN test results as shown in table

(5) and figure (6).

Table 5: Shows the prediction percentage of both methods.

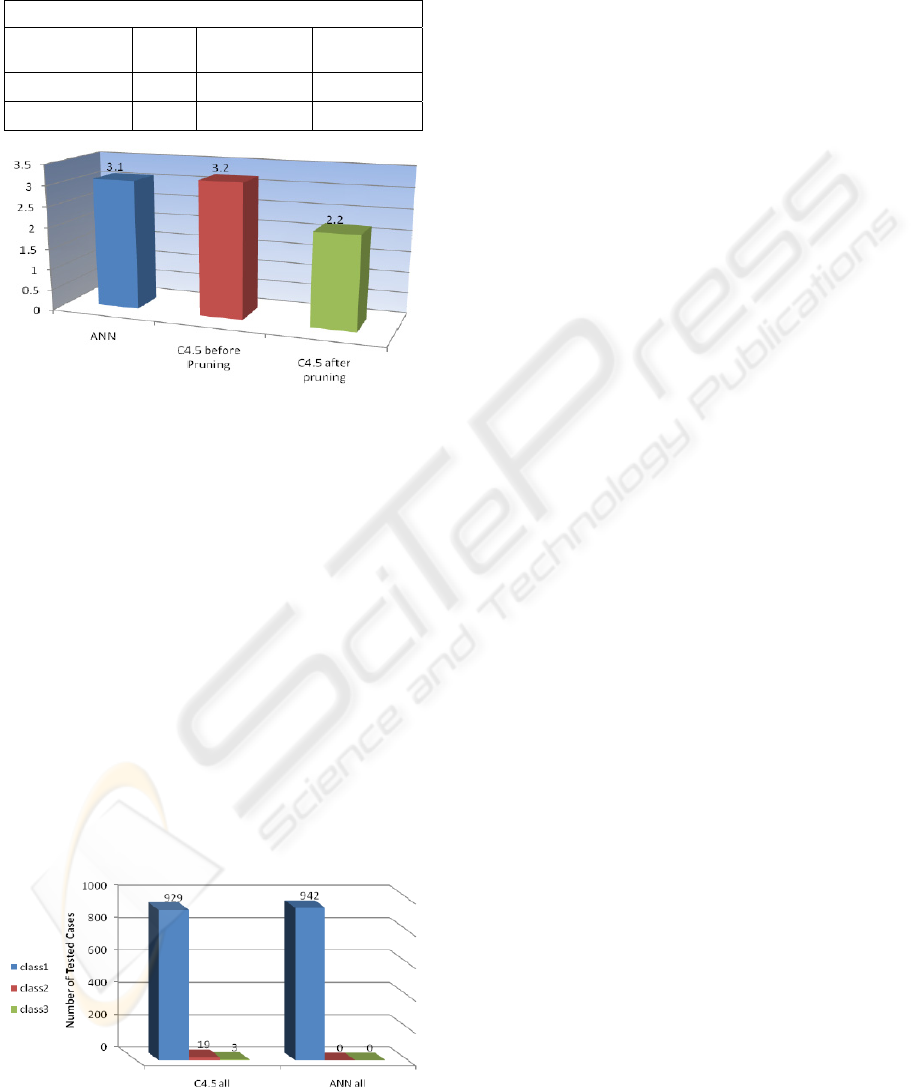

Figure 6: Shows the prediction percentage of both

methods.

It is worth saying that the pruning process which

available in C4.5 algorithm has a clear effect on the

model constructed to predict or diagnose the patients

cases. It was expected that C4.5 overcome the ANN

model according to its overcome in constructed the

basic classification tree model for the fact that there

is a shortage in the number of examples.

In general C4.5 is overcome on ANN, but in the

prediction of class 1 ANN is overcome because

class1 is available in a plenty of numbers of

examples. ANN model is better in predicting class 1,

but C4.5 model is better in predicting class 2 and

class3 that ANN model miss predicted 30 cases of

972 and all of them in class2 with 25 cases and in

class3 with 5 cases, but C4.5 model miss predicted

21 of 972 cases and obviously it has a 22 correct

prediction of 30 cases in both classes 2 and 3.

Figure 7: Shows differences in ability to predict each

class.

4.3 Speed of Attainment

From the experiments conducted using both

methods, C4.5 was less time consuming than ANN

for the reason that C4.5 counts on selecting the best

attribute to divide the dataset using Entropy Gain

theory, but ANN counts on training the network

using all the examples and reach the smallest error

as could as possible by altering the weights and that

what makes it very slow when compared with C4.5.

In fact speed of implementation is not important in

this type of application as the accuracy of prediction

that if the model constructed gives us a very accurate

diagnosing with a very small error ratio it does not

care too much about which one is more speedy than

the other.

4.4 Dealing with Missing Data

C4.5 algorithm has the ability to use the dataset

records in constructing the decision tree directly

even when it contains missing data. The missing

values is filled by (?) symbol so the algorithm can

recognized it as a missing value and process it using

a certain function, but ANN method needs to

preprocess the data separately and remove all the

missing values before using the data set in training

that makes C4.5 overcome on ANN in dealing with

missing data.

4.5 Knowledge Expanding

Expanding the knowledge base in both methods can

be done by restart applying the methods from the

beginning if we get more records or examples or

changing the dataset with another good quality one.

However in this criteria of comparison if the speed

and simplicity of implementation are concerned,

then C4.5 algorithm will overcome on the Back

propagation algorithm.

5 CONCLUSIONS AND FUTURE

WORK

The prediction accuracy of C4.5 (DT) was better

than Back propagation neural network but also not

accurate. In fact it has a large value of error, the

reason is the shortage of examples in class2 and

class3 in the dataset. The missing data effects the

process of training the neural network that forced to

remove it completely which led to reduce the

number of training examples, while C4.5 can handle

Test dataset

ANN

C4.5 before

Pruning

C4.5 after

pruning

Mispredicted 30 31 21

Error% 3.1 3.2 2.2

ICSOFT 2008 - International Conference on Software and Data Technologies

364

the missing data problem using processing function

included in the algorithm. The pruning process has a

great effect on the decision tree that improved the

results of prediction after applying it on the tree by

reducing the error of prediction from 3.2% to 2.2%.

The learning rate 0.00001 leads to the best

training results in ANN and 20000 iterations was

enough to run the training that the error is decreased

very slowly after 10000 iterations. Changing the

output to binary offered improvement on the

classification and prediction process using ANN that

reduced the error of prediction the state of bending

protein from 12.2% to 3.7%. Removing the missing

data reduced the number of training examples from

2800 example to 1947 examples made the network

faster in training phase and improved the error of

prediction from 3.7% to 3.1%. Finding the mean of

data set for each class as applied in section 6.3.3 was

not helpful in any way but also have a poor results in

prediction, also rearranging the input values between

0 and 1 shows no improvement on the results or the

speed of learning. Increasing the number of neurons

more than 20 neurons effects the results of

prediction in a bad way that decrease the speed of

learning and increase the error of prediction.

In this study it was obvious that the dataset

quality is not good, it have a lot of missing values

and there are a shortage of examples in class 2 and

class 3, but the comparison in this data

circumstances shows that C4.5 decision tree is more

reliable method to use but In future it is worth trying

to run these experiments again using another data

sets in many aspects of medical diagnosis domain

that have better quality examples with less numbers

of missing values and rich examples in each class

attributes and then run the comparison again to see

which method will overcome in the field of medical

diagnoses domain.

REFERENCES

Leiva, H., 2002. A multi-relational decision tree learning

algorithm ,Msc, Iowa State University Ames.

Thomas, D., Hild, H., and Ghulum Bakiri, G., 1995. A

Comparison of ID3 and Backpropagation for English

Text-to-Speech Mapping Machine Learning, Kluwer

Academic Publishers, Boston.

Berkman, S., Lubomir, H., Ping, C., Chuan, Z., Wei Jun,

W,. 2005. Comparison of decision tree classifiers with

neural network and linear discriminant analysis

classifiers for computer-aided diagnosis: a Monte

Carlo simulation study, Medical Imaging: Image

Processing, Volume 5747.

Bagnall, A., Cawley, G., 2000. Learning Classifier

Systems for Data Mining: A Comparison of XCS with

Other Classifiers for the Forest Cover Data Set,

University of East Anglia, England.

The UCI KDD archive. Irvine, University of California,

Department of Information and Computer Science,

http://kdd.ics.uci.edu. Last access September 2007.

Mitra, S., Tinkuacharya ., 2003, Data mining multimedia,

soft computing, and Bioinformatics, John Wiley &

Sons, Inc.

Ye, N., 2003. Hand book of data mining, Arizona State

University, Lawrence Erlbaum Associates, Inc, New

Jersey.

Kantardzic, M., 2003. Data Mining: Concepts, Models,

Methods, and Algorithms, John Wiley & Sons.Inc.

Larose, D., 2005, Discovering Knowledge in data, an

introduction to data mining, John Wiley & Sons.Inc.

Michael, A., Berry, S., 2004. Data mining Techniques,

John Wiley & Sons.Inc, 2nd edition.

Paplinski, A., 2004. Basic structures and properties of

Artificial Neural Networks.retrivedfrom:

lsc.fie.umich.mx/~juan/Materias/ANN/Papers/basic

structures-and-properties.pdf, last access June 2006.

Zurada, J., 1992. Introduction to Artificial Neural

Systems, West publishing Company, Singapore.

A COMPARISON STUDY OF TWO KNOWLEDGE ACQUISITION TECHNIQUES APPLIED TO THYROID

MEDICAL DIAGNOSIS DOMAIN

365
