A HYBRID DIAGNOSTIC-RECOMMENDATION SYSTEM FOR

AGENT EXECUTION IN MULTI-AGENT SYSTEMS

Andrew Diniz da Costa, Carlos J. P. de Lucena

Pontifícia Universidade Católica do Rio de Janeiro, Rio de Janeiro, Brazil

Viviane T. da Silva

Universidad Complutense de Madrid, Madrid, Spain

Paulo Alencar

University of Waterloo, Waterloo, Canada

Keywords: Multi-Agent Systems, Trust, Reputation, Diagnosis, Recommendation.

Abstract: Open multi-agent systems are societies with autonomous and heterogeneous agents that can work together

to achieve similar or different goals. Agents executing in such systems may not be able to achieve their

goals due to failures during system execution. This paper’s main goals are to understand why such failures

occurred and what can be done to remediate the problem. The distributed, dynamic and open nature of

multi-agent systems calls for a new form of failure handling approach to address its unique requirements,

which involves both diagnosing specific failures and recommending alternative plans for successful agent

execution and goal attainment. In this paper, we discuss solutions to the main challenges of creating a

system that can perform diagnoses and provide recommendations about agent executions to support goal

attainment, and propose a hybrid diagnostic-recommendation framework that provides support for methods

to address such challenges.

1 INTRODUCTION

Open multi-agent systems (Jennings and

Wooldridge, 1999) are societies with autonomous

and heterogeneous agents that can work together to

achieve similar or different goals (Boella and Torre,

2004). In many cases, the agents are unable to attain

their goals due to failures during system execution.

When an agent tries to attain its desired goal, but

faces execution failures that prevent achievement, it

becomes relevant to understand why such failures

occurred and what can be done to remediate the

problem.

This paper focuses on the diagnosis of failures

and on the recommendation of alternative plans for

successful agent execution and goal attainment.

Some proposals that have recently appeared in the

literature suggest different ways for agents to

diagnose system execution failures. Li et al. (Li et

al., 2004) present a decentralized system to monitor

and diagnose the agents’ behavior. Although this is

an interesting idea, in open multi-agent systems it is

not applicable because when the execution of an

agent is monitored its privacy is violated.

Another interesting work, which was proposed

by Horling et al. in (Horling et al., 2000), examines

how an independent domain for diagnoses can

behave in multi-agent systems and compares the

hoped result of an execution with the result obtained.

However, the approach does not offer a large data

set to define the expected behaviors, and there is no

control of the reputation of the agents when an agent

is detected as guilty of some failure.

In this paper we describe a new hybrid

diagnostic-recommendation system of agents’

executions that does not violate the agents’ privacy

and that defines a set of facts that can be used to

provide information about the reasons for failing to

achieve a goal. Diagnosis is assumed as the process

of determining the reason why agents do not achieve

159

Diniz da Costa A., J. P. de Lucena C., T. da Silva V. and Alencar P. (2008).

A HYBRID DIAGNOSTIC-RECOMMENDATION SYSTEM FOR AGENT EXECUTION IN MULTI-AGENT SYSTEMS.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 159-168

DOI: 10.5220/0001879401590168

 SciTePress

their goals. Recommendations are provided on how

to achieve the desired goals that agents have failed

to achieve.

A diagnostic system must be able to analyze

different sets of information related to the agents’

executions and point out the (main) problem that has

occurred. Recommendations are provided based on

the diagnosis and indicate alternatives to the agent’s

execution to try to achieve the same goal. A

recommendation system can recommend, among

others, the use of another resource, the execution of

another plan and the interaction with other agents. In

order to recommend other partners to interact with

the agent, the recommendation system bases its

choice on the agents’ reputations. The reputation of

an agent is evaluated according to its past behavior.

Several reputation systems have been proposed to

collect, distribute, and aggregate feedback about

agents’ past behavior. In this paper we use the

Governance Framework (Silva et al., 2007) to

provide agent reputations.

The hybrid diagnostic-recommendation

framework called DRP-MAS (Diagnosing and

Recommending Plans in open Multi-Agent Systems)

proposed in this paper can be instantiated to perform

different kinds of diagnoses and to provide

recommendations (advices) to help agents achieve

their desired goals. This framework uses the

Governance Framework to receive the agents’

reputations that are used to offer advice about

partners with which to interact.

This paper is structured as follows. In Section 2

we discuss some of the main difficulties of

diagnosing and providing alternative execution

strategies for agents to achieve their goals. In

Section 3 we provide an overview of the DRP-MAS

framework. Since our framework uses the

Governance Framework to represent the reputation

concept, in Section 4 we briefly explain how it was

used. Section 5 illustrates the applicability of the

framework through a case study and Section 6

presents some related work. Finally, in Section 7,

conclusions and future work are discussed.

2 DIFFICULTIES OF PROVIDING

DIAGNOSES AND

RECOMMENDATIONS

In this section, we describe some of the challenges

and requirements related to the process of

performing diagnoses and providing

recommendations to help agents to achieve their

goals. These challenges and associated requirements

include:

1. Deciding how to Analyze the Behavior of the

Agents

The first challenge was to determine an appropriate

way to analyze the behavior of the agents. Two

solutions could be adopted. In the first, the execution

of each agent is monitored. Since we are working

with open multi-agent system environments and

with heterogeneous agents, one of our requirements

is to not violate the agents’ privacy. In the second

possibility, each agent analyzes its own execution.

By using such an approach, the agent’s privacy is

not violated and the information stored in past

analyses can be used by the agent in future ones.

Due to these two reasons, our approach adopted the

second solution.

2. Selecting Data for Diagnosing

One major challenge was to define which data is

necessary to perform diagnoses related to the

execution of agents. To perform the diagnoses, the

following information can be used: problem which

occurred due to limited memory space, the list of

resources used and the ones that the agent tried to

use, etc. In this paper we are considering a

predefined list of information to be used in the

framework composed of the plan executed, desired

goal, norm violated, roles of the agents and the

agents that provided some information during the

execution of the plan, among others. Since different

domains can require different information, such a

list can be extended.

3. Determining Strategies for Diagnoses

Different domains can require different strategies to

provide diagnoses. The challenge was to define

services or strategies that could be used by different

domains and to make available an infrastructure that

could be extended to accept new strategies.

4. Determining Trustworthy Agents

The reason for the failure regarding the execution of

plan can be related to the behavior of the partner

with whom the agent has interacted. For instance,

the partner may have provided a bad service or

inadequate information. Therefore, when a diagnosis

is formulated and it is verified that a specific agent

was responsible for the unsuccessful execution, the

recommendation system will try to avoid selecting

such agent in the next advice. To solve the problem

of distinguishing whether an agent is good or bad

with respect to some criteria we are making use in

this paper of agents’ reputations.

ICSOFT 2008 - International Conference on Software and Data Technologies

160

5. Providing Recommendations

We meant to create a framework that could provide

alternative ways of execution to achieve the same

goal. Therefore, the big challenge was to define a

strategy, which could be used in different domains

and an infrastructure that could be extended to

accept new strategies.

6. Representing Profiles of Agents

The same diagnostic can be associated with two

different recommendations, depending on the

characteristics of the agents that will receive such

advices. The challenge is to define how to represent

profiles of agents and how they could influence the

recommendations provided by the proposed

framework. The framework makes available a basic

agent profile that specifies the minimum global

reputation of partners to be considered in advices.

3 THE DRP-MAS FRAMEWORK

In this section, we describe the DRP-MAS

framework that performs diagnoses about the failure

to achieve the goals; moreover, it provides

recommendations for agents about how to achieve

their goals. Initially, the general idea of the

framework is presented, followed by its architecture,

and in the sequel we discuss the central concepts on

which it is based.

3.1 The General Idea

The DRP-MAS framework is used when an agent

does not achieve one of its goals after the execution

of one of its plans. The agent of the application, the

Requester agent, requests to the Mediator agent a

Diagnostic agent. When the Mediator receives the

message, it creates a Diagnostic agent (responsible

for providing diagnoses) and a Recommendation

agent (responsible for providing recommendations)

and sends a message to the Requester informing

which Diagnostic agent will work for it (Figure 1).

Subsequently, the Requester requests diagnoses

to the Diagnostic agent in order to receive advices

from the Recommendation agent to achieve the

desired goal. For this purpose, it sends a message to

the Diagnostic agent with the values of a set of

attributes that can help it in the analyses, such as:

plan executed, goal not achieved, the agents used in

the negotiations with their played roles, its profile,

and a number that represents the quality of the

execution performed (details in Section 3.3). This

idea of quality was based on the works (Horling et

al., 2000) and (Horling et al., 2007).

When the Diagnostic agent receives the

message, it tries to find the reason (s) why the

Requester agent was unable to achieve the desired

goal. At the end of the analysis, it provides the

diagnosis to the Recommendation agent. Even if a

diagnosis could not be provided, the Diagnostic

agent sends a message to the Recommendation agent

informing that it was not possible to detect the

reason for the Requester agent not to have achieved

the desired goal. In this case, when the

Recommendation agent receives the message

informing that it was not possible to meet a

diagnosis, it simply selects another plan that

achieves the desired goal.

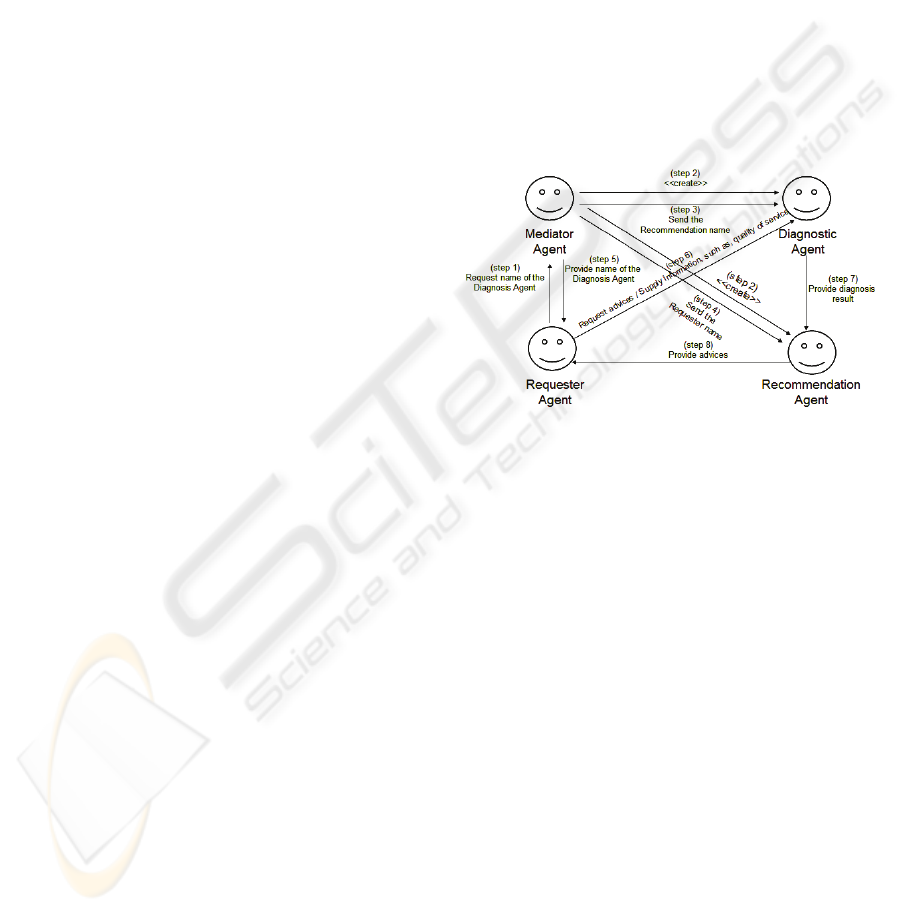

Figure 1: Conceptual Model for requesting the name of the

diagnosis agent.

In the case that some diagnosis is met, the

Recommendation searches alternative plans to

achieve the goal (details in Section 3.4) by

considering the data in the diagnosis. When the

diagnosis indicates a problem with agent interaction,

an analysis is made to decide which other agents

could be used to perform the interactions (analysis

performed based on the roles played).

From the set of agents that can perform the same

roles in those interactions, the Recommendation

agent uses the agents’ reputations to select the

“best” agents, i.e., the agents with the top

reputations. The profile of the Requester agent can

be an important piece of information to define which

agents should be selected. When the execution of the

Recommendation agent ends, a message to the

Requester agent is provided with the selected

recommendations.

To help in representing agents’ reputations, we

are making use of the Governance Framework (Silva

et al., 2007), which is based on testimonies provided

by witnesses about facts or events that they know are

related to norms that have been violated. Since

A HYBRID DIAGNOSTIC-RECOMMENDATION SYSTEM FOR AGENT EXECUTION IN MULTI-AGENT

SYSTEMS

161

agents know the application’s norms (laws), they

can judge whether an agent violated a norm.

Besides, it is possible to attribute a reputation to

each agent of the system (details in Section 3.2).

Before a Requester requests some recommendation

from the DRP-MAS agents, the possible plans that

the Recommendation agent can recommend to an

agent must be defined by the application. Not only

the plans themselves but also their related data (such

as resources to be used in the execution and the roles

of the agents with whom the agent executing the

plan will need to interact) must be provided. Such

plans are stored in a plan base that the

Recommendation agents can access in order to

perform the advices.

3.2 Architecture

In this section we describe the architecture of our

approach that is composed for two layers: DRP-

MAS and Reputation. The DRP-MAS is composed

of four models: Mediation, Diagnosis,

Recommendation and Artificial Intelligence Toolset.

The mediation module is responsible for

providing the Mediator agent, which creates a

Diagnostic agent and a Recommendation agent for a

Requester agent defined in the Application, as

described in Sub-Section 3.1. The Diagnosis module

performs the process of diagnosis, while the

Recommendation module aims to provide

recommendations to achieve some desired goal. The

Artificial Intelligence Toolset module defines an

API (Application Public Interface) interface called

BIGUS (Bigus, 2001), which allows using different

kinds of reasoning algorithms to perform the

processes mentioned: forward chaining, backward

chaining and fuzzy logic.

The Reputation layer supplies reputations to the

DRP-MAS and can also supply them to the

Application layer, when requested. In the current

implementation, we are using the Governance

Framework to implement the Reputation layer. The

framework defines three modules: judgment,

reputation and punishment. The judgment module is

responsible for receiving the testimonies and for

providing a verdict to the punishment module, i.e.,

for verifying whether an agent violated a norm. The

module can make use of different strategies to judge

the violation of the different norms. Such strategies

may use the reputation module to help in providing

the decision about the violations.

The reputation module is responsible for

calculating the reputation of the agents and provides

them to the judgment module and to other

application agents. The reputations are updated

based on the testimonies provided by the judgment

module about violated norms. This module already

offers calculations to provide the reputations. In

addition, the instances of the framework can define

new calculations. The final module, punishment, is

responsible for determining the penalties applied to

agents that have violated the norms of the

environment.

For better comprehension of the DRP-MAS

framework, two key concepts are elaborated as

follows: how to perform diagnoses and how to

provide recommendations.

3.3 Performing Diagnoses

As was already explained in Sub-Section 3.1, the

diagnosis is performed by the Diagnostic agent

offered by the proposed framework. Such analyses

are performed based on a set of information

provided by the Requester agent. The set is used in

different diagnosing processes and in different forms

of recommending alternative ways to achieve some

goal. The information provided in the set

encompasses:

1. Resources and associated problems - In

(Horling et al., 2000) it is defined that resources

are important data to support diagnoses. In some

situations the reason why an execution cannot

be successfully performed could be the absence

of some resource, or perhaps an insufficient

amount of resources used to perform something.

Therefore, the diagnostic agent should receive

information about the used resources (their

identification) and the amount used.

2. Norm violated - The violation of a norm could

be a reason for not achieving a goal. Thus, the

diagnosis may depend on the norm violated.

Note that a norm can be considered a law that

must be followed by one or more agents. Some

data are provided about the norm violated: (i)

the agent responsible for the failure and (ii) a

value that represents the importance of said

violation from the agent’s point of view, called

degree of violation.

3. Quality of service – The quality of service

should be defined based on the TAEMS model

(Horling et al., 2000) (Horling et al., 2007). The

model represents a goal/task language that

provides an explicit representation for goals and

the available sub-goal pathways that are able to

achieve them from methods (plans). Each

branch in the tree can have an expected quality

based on the execution of the plans. Therefore,

ICSOFT 2008 - International Conference on Software and Data Technologies

162

to verify whether a goal was achieved, the

quality of the execution of the plan must be at

least equal to the minimum acceptable degree.

In order to represent this idea, each plan

contains the following data: (i) maximum

degree of quality related to the execution of the

plan; (ii) minimum acceptable degree of quality

to achieve the goal; and (iii) the degree

attributed after the execution of the plan.

4. Goal - The execution of an agent plan is always

associated with a goal that the agent wants to

achieve (Silva et al., 2003). To know the goal

that the agent is trying to achieve it is

fundamental not only to provide a diagnosis but

also to make advices. The advices about other

plans to be executed will be provided

considering the goal the agent was trying to

achieve

5. Plan executed - To know the plan executed by

the Requester agent it is important to

understand the reason of the failure and to

provide alternative execution to achieve the goal

that was not achieved.

6. Agents with whom the agent interacted - The

diagnosis can indicate that an agent is guilty of

having provoked the failure on the execution of

a plan. For this reason, it is important to know

the agents with whom the Requester has

interacted during the execution of such plan.

7. Roles - The roles played by the agents that have

interacted with the Requester can be important

to update reputations, and to serve as

recommendations for other agents that play the

same roles.

8. Profile - Agents can have profiles that represent

some of their characteristics. A profile can, for

instance, stipulate the minimum acceptable

degree of reputation of the agents that provide

information to the Requester agent. This

information can be useful in the process of

providing recommendations, especially when

there is a need to advise another partner to

interact with the Requester.

9. Problems met by the Requester - The

information that can be provided by the

Requester is not limited to the set mentioned

previously. The Requester can also send

domain-dependent information that will be used

by the domain-dependent strategies to perform

diagnoses and providing recommendations.

The DRP-MAS framework defines the

performance of diagnoses as a hot spot (or flexible

point) (Fayad et al., 1999) that can be implemented

by applications to provide domain-dependent

strategies. Therefore, different applications can

define different strategies to deal with the domain-

independent and domain-dependent sets of

information provided by the Requester agent.

Nevertheless, the framework makes available a

default strategy to provide diagnosis based on the

domain-independent information set.

In order to illustrate a situation when some

failure of a goal happens, let’s focus on the domain

of making coffee. An agent has a goal to make

coffee for its friends and to achieve this goal it

executes a specific plan. Suppose that the agent

noticed that the coffee is not good but does not know

why. There are several reasons leading to making

bad coffee: the quality of the coffee powder is poor,

the water used was cold, the quantities of coffee and

water were not adequate, etc. To find out what has

happened, the Requester agent should send to the

Diagnosis agent information about its goal (to make

coffee for three persons), the plan it has executed to

make the coffee, the coffee itself, the quantity of

water, the temperature of the water and the quality

and the description of the coffee powder used. The

Diagnosis agent must know how much water and

coffee powders are required to make a cup of coffee,

the ideal temperature of the water and which coffee

powders are good. One possible simple strategy

combines the information the agent has received

with the beliefs of the Diagnosis agent related to

make coffee. The more information the strategy

receives, the more precise the diagnosis will be.

To help defining domain-dependent strategies

three different algorithms (backward chaining,

forward chaining and fuzzy logic) are available in

the Artificial toolset module defined in the

framework. The strategies can use the BIGUS API

to access such algorithms. In Section 6 an example

of a strategy that used the forward chaining

algorithm is presented.

3.4 Providing Recommendations

The Recommendation agent incorporates the process

of advising alternative ways to achieve a goal. The

process is composed of three steps: to select plans,

to verify if the plan requires that agents request

information, and to choose good agents.

The first step is executed when the

Recommendation agent receives the diagnosis from

the Diagnostic agent. It first verifies which plans can

be used to achieve the desired goal. Second, the

Recommendation agent uses the diagnosis and the

information sent by the Requester agent to select a

plan. If no plan is encountered, then a message is

A HYBRID DIAGNOSTIC-RECOMMENDATION SYSTEM FOR AGENT EXECUTION IN MULTI-AGENT

SYSTEMS

163

sent to the Requester. Otherwise, the second step is

executed.

The second step verifies if the selected plan

needs the assistance of agents in order to request

information. If it is not necessary, then the process is

concluded and a message with the recommended

plan is sent. Otherwise, the reputations of the agents

are requested using the reputation module offered by

the Governance Framework. The third step is

executed after receiving all reputations (control

performed by the DRP-MAS). In the third step, the

Recommendation agent selects the agents to be used

by the chosen plans according to their reputations.

At the end, the selected plans and agents are

provided to the Requester agent.

3.4.1 Selecting Plan

The step Selecting Plan is responsible for choosing

alternative plans to achieve the desired goal. This

task is a domain-dependent one since the selection

of a plan may depend on the domain-dependent

information provided by the Requester agent.

Therefore, each application that uses the DRP-MAS

can define its own strategy to select plans. The task

for selecting plans is defined in the DRP-MAS as a

flexible point that should be extended by the

application.

The application should provide the possible

plans that the agents can execute and the expected

configuration that each one has. These expected

configurations are available in a plan base that can

be accessed by the application’s Recommendation

agents. Each plan can have the following data

associated with it: resources used during the

execution, desired goal, profiles of agents that accept

executing the plan, quality of service that determines

how the previous execution of the plan was

performed, related diagnoses, roles played by agents

in the execution of the plan, and a collection of

possible problems that the plan can resolve. Note

that the set of data used to configure a plan is the

same set that comprises the information described in

Sub-Section 3.3, i.e., the information provided by

the Requester agent.

Although the selection of a plan may be domain-

dependent, the framework provides a default

strategy for selecting a plan based on the domain-

independent set of information that the Requester

agent can provide. As a default strategy, the

framework provides plans that achieve the same

desired goal, excluding the plan used by the

Requester agent.

3.4.2 Verifying Selected Plans

After the selection of the alternative plans, it is

verified whether some plan needs to interact with

other agents. To perform this analysis, each plan

must have been associated with a list of the roles to

be played by agents with whom the agent executing

the plan may interact. If the list of roles in a plan is

empty, it means that no communication is needed

between agents while executing the plan. In the case

the lists of all plans are empty, a message can be

sent to the Requester agent with the recommended

plans. Otherwise, the Recommendation agent must

decide which agents should be used in the

interactions. This decision is based on the

reputations of agents that will be selected as partners

to play the roles. The Recommendation agent

requests the reputations of all agents that can play

the roles identified in the plans from the Governance

Framework. Although we propose the use of the

Governance Framework to provide the agents’

reputation, any other approach that is able to provide

the reputation of agents while playing a role can be

used. After receiving all reputations, the third step is

executed.

3.4.3 Choosing Agents

As in the two previous steps, the strategy in this step

is also a flexible point of the framework and

different kinds of strategies can be used. However,

the framework offers a default strategy that selects

the agents based on the minimum acceptable

reputation defined in the Requester agent profile.

Note that a profile can specify other information

that can also be useful when choosing agents. Multi-

agent systems can have heterogeneous agents with

different behaviors and characteristics that can

define several different profiles. We stimulate the

use of profiles to help on deciding about which plans

should be executed, and which agents the Requesters

accept to interact with.

Consider the application of buying and selling

goods to understand how the profiles of agents can

influence the selection of agents. If a buyer desires

to buy a given product, it can determine that it will

negotiate only with sellers that have good

reputations. Therefore, the buyer can determine a

minimum reputation in order to select the acceptable

sellers to future transactions.

After the selection of the advised agents, a message

is sent to the Requester agent with the

recommendations. For each plan, the possible agents

and the resources to be used are defined.

ICSOFT 2008 - International Conference on Software and Data Technologies

164

4 THE USE OF GOVERNANCE

FRAMEWORK

As mentioned in Section 3.1, the DRP-MAS uses the

Governance Framework in order to represent

reputations. The judgment module is used to update

reputations, while the reputation module is used to

request agents’ reputations These situations are

better explained as follows.

1. Updating reputations - To change the reputation

of selected agents, the Diagnostic agent of the

DRP-MAS can send testimonies to the

judgment module. The testimonies point out,

according to the information in the diagnoses,

the agents that have violated norms. Since the

testimonies provided by such agents are always

truth testimonies, the judgment module does not

judge them. For this reason, when the judgment

module receives the testimonies, the reputations

of the accused agents are automatically

modified by the reputation module.

2. Using reputations - When the Recommendation

agent needs to meet agents to provide

information about a plan, it requests the

reputation of the selected candidates from the

Reputation Module. When the Recommendation

agent receives all reputations requested, it

performs the analyses and decides which agents

are good or bad from the negotiation point of

view.

5 INTELLIGENT HOME

The example used to instantiate the DRP-MAS

framework is the intelligent home that also is used in

(Horling et al., 2000). From a set of possible cases

about the intelligent home, two were chosen for

illustration: dishwasher and to make coffee.

5.1 Dishwasher

In one of the analyzed scenarios of the intelligent

home, an agent representing a dishwasher receives

hot water from another agent representing a water

heater. The water heater is also able to provide hot

water to the shower of a person. Suppose that while

the dishwasher is on, a person starts to take a

shower. Since the dishwasher needs hot water to

work properly, the dishwasher should adapt its

behavior by choosing one of the following options:

(i) to wait for the water heater to be free and provide

hot water again, (ii) to search for another available

water heater, if any, or (iii) to wash the dishes with

cold water. However, in this latter situation the agent

does not achieve the desired goal since the dishes are

not properly washed.

Let us suppose that the dishwasher has chosen

the latter option because there no water heaters are

available and that it is programmed to save energy.

When the dishwasher finishes its work, it notices

that the dishes are not properly washed. When this

happens, the dishwasher agent decides to request a

Diagnostic agent from the Mediator agent. In

sequel, the Requester agent (dishwasher) provides

six different pieces of data to the Diagnosis agent

about the execution performed: (i) the quality of

service on the plan, (ii) its profile, (iii) the norm

violated, (iv) the agent used during the execution,

(v) the role played by such agent and (vi) the

temperature of the water used. The first five pieces

of information are pre-defined by the framework

(Section 5.1), and the sixth is defined by the

application. On the profile of the agent it is informed

that only agents with reputations higher than 0.8 can

provide information to the Requester.

When the Diagnostic agent receives the message

supplied by the Requester, it begins to perform the

diagnosis. To perform it, we chose to use the well-

known Forward Chaining algorithm offered by the

Artificial Intelligence Toolset module of the

framework. This algorithm uses inference rules from

a set of available data in order to extract more data

while seeking an optimal goal. Therefore, we had to

create a rule base with all the possible rules that

allow meeting the diagnoses from the data provided

by the Requester agent. These rules are shown in

Figure 2.

The rule base uses six attributes: quality_service,

violated_norm, role_agent_used, temperature_water,

conclusion and problem. The values of the first four

attributes are provided by the Requester agent, while

the values of the two last ones are automatically

attributed by the forward chaining algorithm, which

tries to infer new data (conclusion and problem)

from available ones (quality_service, violated_norm,

role_agent_used and temperature_water). The

quality_service attribute represents the quality of the

execution performed by the plan. The violated_norm

informs the norms violated during the execution of

the plan. The role_agent_used informs the role

played by the partner agent (water heater) that

interacted with the Requester agent, and the

temperature_water attribute informs the temperature

of the water used to wash the dishes. The conclusion

attribute will inform if the dishwasher used hot

water during the washer, and the problem attribute

A HYBRID DIAGNOSTIC-RECOMMENDATION SYSTEM FOR AGENT EXECUTION IN MULTI-AGENT

SYSTEMS

165

will point out the final diagnosis. The rules

presented in the rule base lead to only two possible

diagnoses: the dishwasher did not succeed in

washing the dishes because the communication with

the water heater has failed, or some unknown

problem occurred.

Let’s suppose that the data provided by the

Requester agent were: quality_service=5, norm=

to_wash_dishes_with_hot_water, role_agent_

used=water_heater and temperature_water=30. After

applying the rules, the attributes conclusion and

problem receive the data without_hot_water and

problem_communication_waterheater, respectively,

indicating that the water heater did not provide hot

water correctly.

After meeting the desired diagnosis, a message

with the diagnosis is sent to the Recommendation

agent, in order to search for alternative executions to

the Requester agent. The Recommendation agent

analyzes the diagnosis and concludes that it is

necessary to select another agent to provide hot

water. The conclusion is that the selected plans need

to request hot water from a water heater agent. For

this reason, the Recommendation agent requests the

reputation of the water heaters, and therefore decides

which of them have reputations higher than 0.8

(defined in the profile supplied by the Requester).

After the analysis process, the selected agents and

plans are sent to the Requester agent.

Problem_Communication_WaterHeater:

IF conclusion=without_hot_water AND

violated_norm=to_wash_dishes_with_hot_water

AND role_agent_used=water_heater AND

quality_service <10 THEN

problem= problem_communication_waterheater

Problem_Unknown_in_the_Plan:

IF conclusion=com_agua_quente AND

quality_service <10 THEN

problem= problem_unknown_in_the_plan

With_Hot_Water:

IF temperature_water>39 THEN

conclusion=with_hot_water

Without_Hot_Water:

IF temperature_water<40 THEN

conclusion=without_hot_water

Figure 2: Rule base of the domain Dishwasher.

5.2 To Make Coffee

Another scenario chosen was the coffee maker,

whose goal is to make 20 cups of strong coffee.

While an agent represents the coffee maker, another

one represents a tester, which is responsible for

testing whether the coffee was made correctly.

Initially, the coffee maker executes a plan to make

the coffee. When the coffee is ready, a message is

sent to a Tester agent. It analyzes the coffee and

sends a response message informing that the coffee

is not good. For this reason, the coffee maker

decides to request recommendations from the

Analysis Module.

The first step performed by the coffee maker is

to request a Diagnostic agent, and then to request

the recommendations, informing some data about its

execution: quality of the execution of the plan

(provided by the framework), amount of the water

and amount of coffee powder used (provided by the

instance), which are the resources used by the plan.

As in the case of the dishwasher presented

previously, we have also used the Forward Chaining

algorithm to make the diagnoses. Part of the rule

base defined in this example is shown in Figure 3.

Six data were defined: amount_water,

amount_powder, quality_service, conclusion_

coffee, conclusion_cups and problem. The first data

represents the amount of water used by the plan to

make the 20 cups of coffee. The second data is the

quantity of coffee powder used, while the

quality_service represents an assigned degree to the

execution of the plan. If the value attributed is lower

than 10, then some problem occurred during the

execution. Another data used was the

conclusion_coffee that informs whether the coffee

that was made used too little or too much coffee

powder, while the conclusion_cups verifies whether

the correct amount of water was used to make 20

cups. The problem attribute will represent the

diagnosis.

Let’s suppose that the Requester agent (coffee

maker) provided the following data:

quality_service=0, amount_water=600 (mL), and

amount_powder=20 (grams). As the goal of the

coffee maker is to make 20 cups of strong coffee, we

can see that applying these values in the rule base,

the problem met is

problem_amount_powder_and_cups. In other words,

the amount of powder and the amount of water were

incorrect to make 20 cups of strong coffee. For this

reason, the quality of service came with a value

lower than 10.

ICSOFT 2008 - International Conference on Software and Data Technologies

166

Problem_Strong_Coffee _20_Cups:

IF conclusion_coffee= weak_coffee AND

conclusion_water = Coffee_Incorrect_Water

AND quality_service <10 THEN

problem= problem_amount_powder_and_cups

Weak_Coffee:

IF amount_powder <30 THEN

conclusion_coffee= weak_coffee

Strong_Coffee:

IF amount_powder >29 THEN

conclusion_coffee= strong_coffee

Coffee_Correct_Water:

IF amount_water=1000 THEN

Conclusion_water= Coffee_Correct_Water

Coffee_Incorrect_Water:

IF amount_water!=1000 THEN

Conclusion_water= Coffee_Incorrect_Water

Figure 3: Rule base for the domain of coffee making.

After reaching the diagnosis, a message is sent to the

Recommendation agent. The strategy adopted in this

case was to verify the amount of necessary resources

to make 20 cups of strong coffee, and to search other

plans with the same goal. With the selected plans,

the correct quantity of powder and water to make the

coffee is informed to the plans. Later, it is verified

that the plans need a Tester agent to test the coffee.

As there is only one available tester (defined by the

application), this one is chosen. Finally, the

recommendations are provided to the coffee maker

(the Requester agent).

6 RELATED WORK

In this section, we describe some related work and

make a comparison with the proposed DRP-MAS. In

particular, we consider works reported in (Li et al.,

2004), (Horling et al., 2000) and (Roos et al., 2002).

6.1 Application of MAS in Control and

Fault Diagnosis Systems

In (Li et al., 2004), a decentralized system is

proposed in order to perform diagnosis and

monitoring. Each component has a monitor

(Monitoring Agent), which is responsible for

collecting information about it. When obtained, the

data are provided to agents offered by the proposed

system, which are responsible for working together

in order to find the diagnoses.

One of the drawbacks of this approach is that it

violates the privacy of the agents. For this reason,

the DRP-MAS does not create monitors, but waits

for the agents of the application to request for

diagnoses.

6.2 Diagnosis as Part of Adaptability

The authors in (Horling et al., 2000) examine the use

of domain-independent diagnoses in multi-agent

systems. They argue that the initial step is to make

available information describing the correct, or at

least expected, behavior of agents. They state that

useful method execution and goal achievement

information can be succinctly encoded in a domain-

independent way with a goal/task decomposition

language called TAEMS.

In the DRF-MAS the methods defined by the

TAEMS in order to achieve the desired goals are

represented by plans that are used to attain goals.

Each plan defines a set of possible related

information, such as resources used and their

expected amount, desired goal, expected quality,

etc., as described in Section 3.3. If a plan has a

problem, it is possible to verify the causes of the

failure.

Comparing with (Horling et al., 2000), our

approach offers a bigger information set, making it

possible to perform more and different diagnoses.

Another distinguishing characteristic of the DRP-

MAS is the use of agents’ reputations, which helps

during the selection of future partners.

6.3 An Analysis of MAS Diagnosis

In (Roos et al., 2002), the authors define an

information set to be used by a global system to

provide diagnoses. This set is:

S = (C, M, Id, Sd, Ctx, Obs)

where C is a set of components, M is a specification

of possible fault per component, Id is a set of

identifiers of points that connect components, Sd is

the description of the system, the Ctx is a

specification of input values of the system that are

determined outside the system by the environment,

and Obs is a set of observed values of the system.

DRP-MAS follows a similar idea by extracting the

necessary information to perform diagnoses from the

set of information used by the process of diagnosis

presented in Sub-Section 3.3.

7 CONCLUSIONS

In the present paper we have outlined the main

challenges and associated requirements as well as

A HYBRID DIAGNOSTIC-RECOMMENDATION SYSTEM FOR AGENT EXECUTION IN MULTI-AGENT

SYSTEMS

167

the design strategy to create a hybrid diagnostic-

recommendation system for agent execution in open

multi-agent systems. This system helps to perform

diagnoses and to recommend alternative ways for

executions to achieve goals. The intelligent home

domain was presented as a case study to illustrate

the applicability of our approach.

Two important lessons were learned in the

process of analyzing and developing the proposed

system. The first lesson relates to the diagnosis

process. We have realized that to define a

universally efficient solution to perform diagnoses in

different domains is very difficult, because some

domains have particular characteristics that

influence the result of the diagnoses.

The second lesson relates to the use of the

reputation concept. Depending on the situation, to

adequately select the agents that will be used to

request some information can be important, because

some provided information can determine the

success or failure of some execution.

Our plan for future work is to focus on case studies

involving ubiquitous computing, because it can

present complex situations where we can perform

diagnoses and provide recommendations.

REFERENCES

Bigus, J., Bigus, J., 2001. Constructing Intelligent Agents

Using Java, 2

edition.

Boella, G., Torre, L., 2004. Regulative and Constitutive

Norms in Normative Multi-Agent Systems. In Proc. of

9th Int. Conf. on the Principles of Knowledge

Representation and Reasoning. California.

Fayad, M., Johnson, R., Schmidt, D., 1999. Building

Application Frameworks: Object-Oriented

Foundations of Framework Design (Hardcover), Wiley

publisher. 1

edition.

Horling, B., Lesser, V., Vincent, R., Bazzan, A. Xuan, P.,

2000. Diagnosis as an Integral Part of Multi-Agent

Adaptability, DARPA Information Survivability

Conference and Exposition, DISCEX’00, Proceedings,

Volume 2, pp. 211-219.

Horling, B., Lesser, V., Vincent, R., Wagner, T., Raja, A.,

Zhang, S., Decker, K., Garvey, A. 1999. The TAEMS

White Paper.

http://dis.cs.umass.edu/research/taems/white/. Last

access in November, 2007.

Jennings, N., Wooldridge, M., 1999. Agent- Oriented

Software Engineering. In Proc. of the 9th European

Workshop on Modeling Autonomous Agents in a

Multi-Agent World: Multi-Agent System Engineering

Vol. 1647, Springer-Verlag, pp. 1-7.

Li, T., Peng, Y., Zhao, H., Li, K., 2004. Application of

Multi-Agent in Control and Fault Diagnosis Systems.

In Proc. of the Third Int. Conf. on Machine Learning

and Cybernetics, Shanghai, pp. 26-29.

Roos, N., Teije, A., Bos, A., Witteveen, C., 2002. An

Analysis of Multi-Agent Diagnosis, AAMAS’02.

Silva, V., Cortês, M., Lucena, C., 2004. An Object-

Oriented Framework for Implementing Agent

Societies, MCC32/04. Technical Report, Computer

Science Department, PUC-Rio. Rio de Janeiro, Brazil.

Silva, V.; Duran, F.; Guedes, J., Lucena, C., 2007.

Governing Multi-Agent Systems, In Journal of

Brazilian Computer Society, special issue on Software

Engineering for Multi-Agent Systems, n. 2 vol. 13, pp.

19-34.

Silva, V.; Garcia, A.; Brandao, A.; Chavez, C.; Lucena,

C.; Alencar, P., 2003. Taming Agents and Objects in

Software Engineering" In: Garcia, A.; Lucena, C.;

Zamboneli, F.; Omicini, A; Castro, J. (Eds.), Software

Engineering for Large-Scale Multi-Agent Systems,

Springer-Verlag, LNCS 2603, pp. 1-26.

Vicent, R., Horling, B., 2000; Experiences in Simulating

Multi-Agent Systems Using TAEMS, Proceedings

Fourth International Conference on MultiAgent

Systems, Volume, Issue, pp. 455-456.

ICSOFT 2008 - International Conference on Software and Data Technologies

168
