REPLICATION IN SERVICE ORIENTED ARCHITECTURES

Michael Ameling, Marcus Roy

SAP Research CEC Dresden,Chemnitzer Str. 48, Dresden, Germany

Bettina Kemme

School of Computer Science, McGill University, 3480 University Street, Montreal, Canada

Keywords:

Application server, replication, Web Service, simulation.

Abstract:

Multi-tier architectures have become the main building block in service-oriented architecture solutions with

stringent requirements on performance and reliability. Replicating the reusable software components of the

business logic and the application dependent state of business data is a promising means to provide fast local

access and high availability. However, while replication of databases is a well explored area and the implica-

tions of replica maintenance are well understood, this is not the case for data replication in application servers

where entire business objects are replicated, Web Service interfaces are provided, main memory access is

much more prevalent, and which have a database server as a backend tier. In this paper, we introduce possible

replication architectures for multi-tier architectures, and identify the parameters inﬂuencing the performance.

We present a simulation prototype that is suitable to integrate and compare several replication solutions. We

describe in detail one solution that seems to be the most promising in a wide-area setting.

1 INTRODUCTION

Multi-tier architectures are the main building block

of modern business applications. Clients submit re-

quests to application server tier which implements

the application logic (e.g., purchase orders, bookings,

etc.). The persistent data is stored in a backend tier.

As businesses open their applications to a wide range

of clients the infrastructure is put on stringent require-

ments. Firstly, it has to follow a service-oriented ar-

chitecture (SOA) where the business logic is exposed

as services through well deﬁned interfaces. Secondly,

the platform must be able to support an increasingly

heavy and complex load. Thirdly, it has to provide a

certain QoS level not only to local clients but to clients

across the globe. Finally, the platform must be avail-

able around the clock. One of the main techniques

to achieve these objectives is replication. It allows

the system to distribute the load, to provide fast ac-

cess to close-by replicas and to increase availability

as clients can connect to any of the available replicas.

A main challenge of replication in data intensive en-

vironments is replica control, that is, the task to keep

the data copies consistent.

Replication has been widely used in database sys-

tems and the implications of using replication are well

understood (Gray et al., 1996; Pedone et al., 2003; Lin

et al., 2005; Plattner et al., 2008). Similarly, object-

based systems have explored replication as a tool

to either increase fault-tolerance (Narasimhan et al.,

2001; Killijian and Fabre, 2000; Frølund and Guer-

raoui, 2002) or improve performance (Othman et al.,

2001). However, only recently replicating the middle-

tier of a complex multi-tier system has been con-

sidered (Felber and Narasimhan, 2002; Narasimhan

et al., 2001; Barga et al., 2002; Wu and Kemme, 2005;

Salas et al., 2006; Perez-Sorrosal et al., 2007). So far,

the proposed solutions have been developed for very

speciﬁc scenarios, and it has become clear that no sin-

gle solution will ﬁt all. The reason is that the impact

of replication on performance depends on many dif-

ferent parameters such as the required degree of con-

sistency, the distribution within LANs or WANs, the

workload, etc. As implementing replica control into

a complex multi-tier architecture is a non-trivial task,

one has to understand the implications of the different

replication alternatives in order to choose the best so-

lution for the given scenario.

In this paper we present a step by step a framework

that allows reasoning about replication alternatives.

We ﬁrst discuss the many different ways applications

103

Ameling M., Roy M. and Kemme B. (2008).

REPLICATION IN SERVICE ORIENTED ARCHITECTURES.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 103-110

DOI: 10.5220/0001874701030110

 SciTePress

System

Application Server

SCM CRM PM

Database

Client 1 Client 2 Client 3 Client 4 Client 5 Client 6 Client 7 Client 8 Client 9

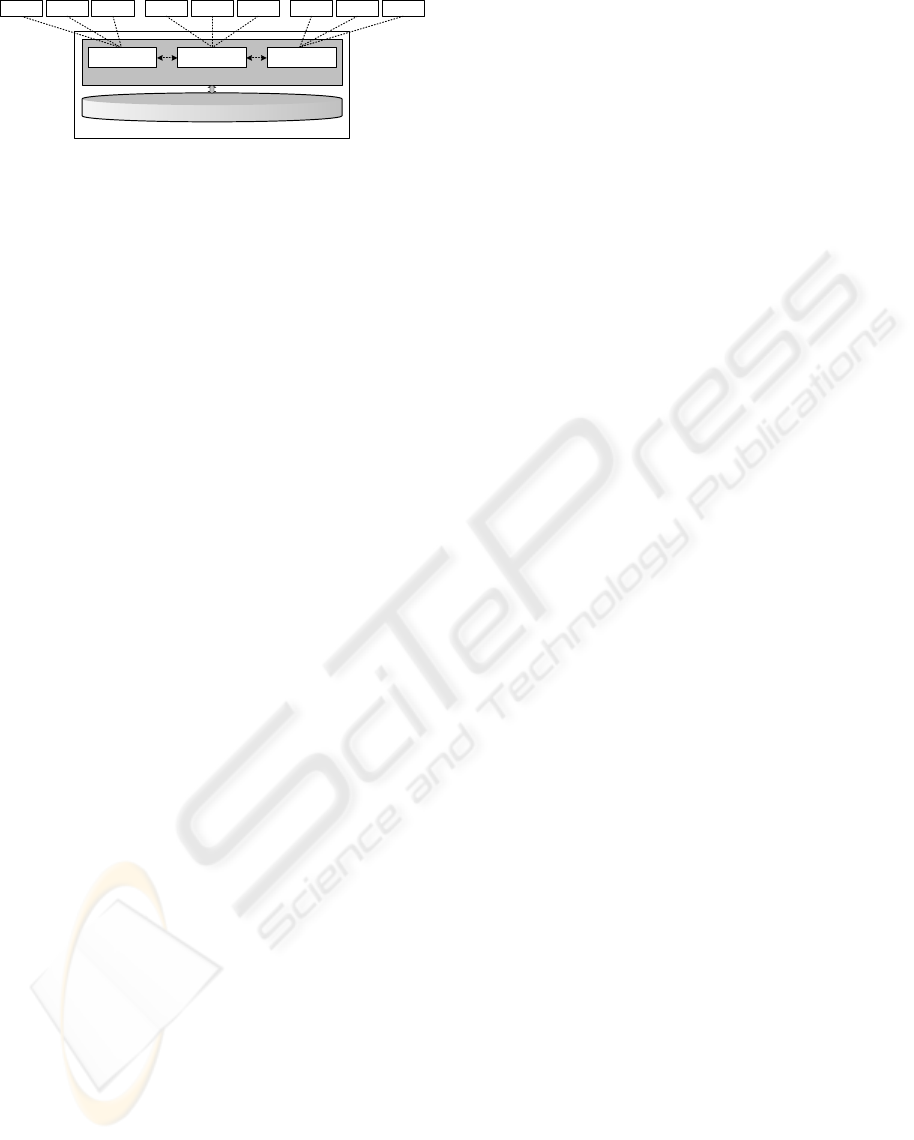

Figure 1: Multi-tier Architecture.

are deployed within a SOA, and how replication can

be deployed in these environments (Section 2). Sec-

ondly, we discuss a range of replication solutions de-

veloped within the database community, and discuss

their suitability for SOA (Section 3). Thirdly, we have

developed a simulation framework that captures the

most signiﬁcant characteristics of SOA (Section 4).

Thus, it serves as a ﬁrst analysis platform and pro-

vides a means to compare different replication alter-

natives before any real, and thus complex and cum-

bersome implementation is done. We show an initial

evaluation using our simulator (Section5).

2 REPLICATION IN SOA

2.1 Basic Architecture

A business application maintains a set of business

objects, and deﬁnes a set of services as its inter-

face. Clients can call these services to create, delete,

access and manipulate the business objects. In or-

der to provide interoperability and support heteroge-

neous environments, the interfaces usually follow the

web-service standard. Examples of applications are

“customer relationship management (CRM)”, “sup-

ply chain management (SCM)” or “project manage-

ment (PM)”. A typical example of a service within

a CRM is “customer data management” providing a

set of methods that allow the customer to change cus-

tomer related information such as the address. A busi-

ness object in this context would assemble all infor-

mation related to the customer.

Figure 1 shows the architecture in which these ap-

plications are embedded. An application server (AS)

is a software engine hosting one or more applications.

It provides the computing environment to control and

schedule service executions on the applications. The

applications hosted on an AS can belong to the same

or different companies (e.g., in the case of data cen-

ters). In any case, the usage of AS allows for an ef-

ﬁcient sharing of resources. In standard computing

environments, an AS can host up to 20 different ap-

plications each serving up to 100 clients concurrently.

AS and backend tier, typically a database system

(DBS) are usually located close to each other, often

even on the same machine. AS and DBS share the

responsibility of maintaining the state of the business

objects. The DBS provides the persistence of business

objects. However, during service execution, the AS

loads the objects from the DBS into its main mem-

ory cache. While the database maintains the data in

form of records of tables, the AS provides an object-

oriented view. Often, a business object is assem-

bled from many different database records providing a

more appropriate abstraction for application program-

ming. Changes on business objects are written back

to the database when service execution completes.

Most commonly, each application has its own dis-

tinct business objects, and maintains its own database

(or at least its own tables) within the DBS. This allows

for a clear separation of components and is neces-

sary to guarantee reusability. In order to exchange in-

formation between the applications, they have to call

each others’ services through the standard interfaces

making one application the client of the other.

2.2 Replication

Replication can boost performance in two ways. In

cluster replication, server replicas are used for scala-

bility. A load-balancer component distributes incom-

ing service requests to the replicas. As more repli-

cas are added, the system is able to handle more load.

Alternatively, replicas can be located at distant geo-

graphic locations. Thus, clients can connect to the

closest replica, avoiding high-latency WAN commu-

nication between client and server. Also, the system

remains available even if remote servers (e.g., head

quarters) are currently not accessible.

As SOA environments maintain a considerable

amount of data, we cannot simply replicate server

instances – we also have to replicate data. As data

can change, this requires some form of replica con-

trol whose task it is to keep the data copies consistent.

Since the maintenance of data is distributed across AS

and DBS the question arises who is responsible for

replica control. There exists a large body of database

replication solutions, making it attractive to rely on

replica control at the DBS level. However, this does

not seem practical in SOA because it either affects

efﬁciency or consistency. The business objects main-

tained by the AS layer can be viewed as a cache of

the data stored at the DBS. If only the DBS layer is

responsible for keeping data copies consistent, each

access to a business object has to be redirected to the

DBS in order to guarantee to read the latest version of

the data or to make sure that all copies are updated.

With this, the efﬁciency advantages of the AS object

ICSOFT 2008 - International Conference on Software and Data Technologies

104

System 1

Application Server 1

SCM 2 CRM 1 SCM 1

Database 1

System 2

Application Server 2

PM 1 SCM 1 CRM 1

Database 2

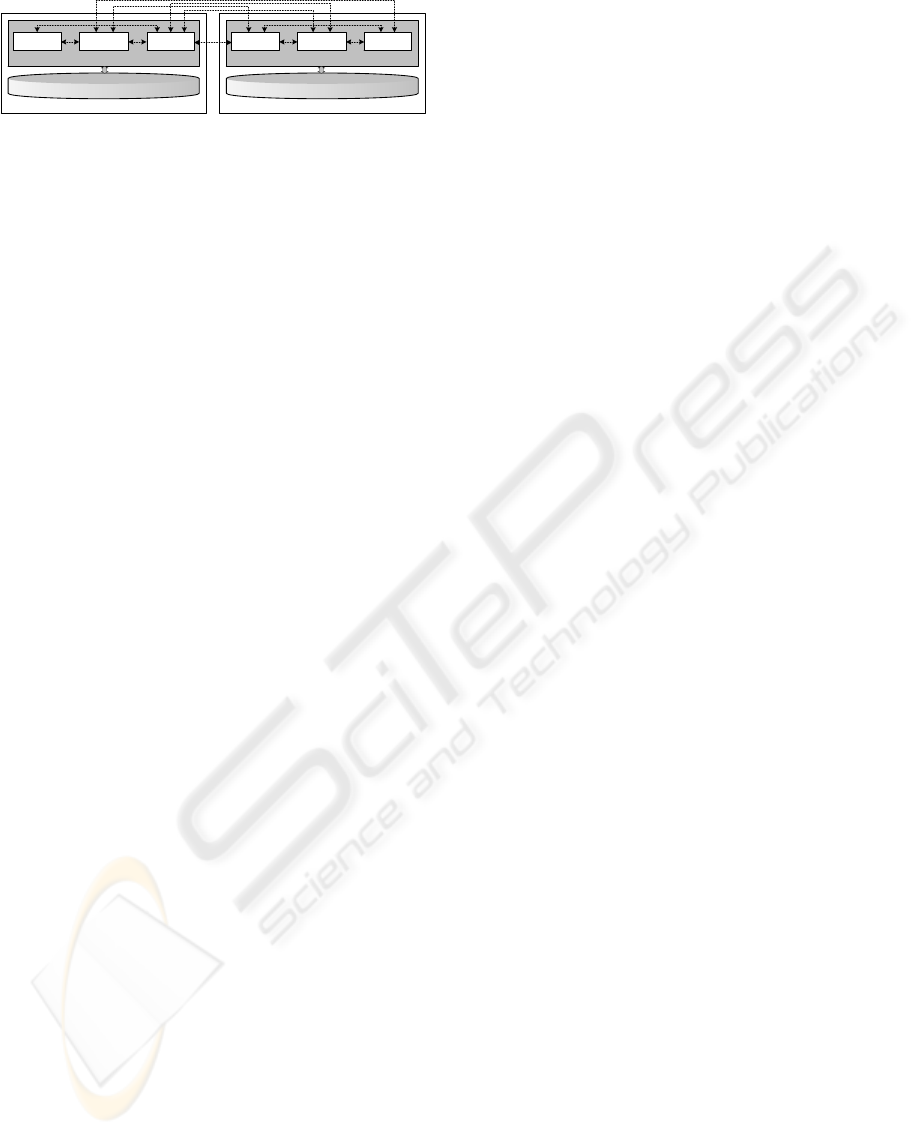

Figure 2: Replication in SOA.

cache are lost. Alternatively, one could choose to use

the cache anyways instead of accessing the database.

However, then, no guarantees could be given in regard

to the freshness or the consistency of the data.

Therefore, we envision an architecture, where the

AS layer is responsible for replica control (Figure 2).

There are several AS instances, and each is connected

to its own DBS which can be off-the-shelve software

without replication semantics. Each application can

run on several AS instances. The objects associated

with an application are replicated across the AS in-

stances. The AS layer performs replica control.

In principle, there does not seem to be a differ-

ence in architecture if the connection between the AS

instances is a LAN or a WAN. However, the funda-

mental latency difference between LANs and WANs

and the different purposes for which cluster replica-

tion and WAN replication are applied, require very

different replica control solutions and we will discuss

them shortly. In practice, large SOA are likely to in-

tegrate both cluster and WAN replication. At each

location, a cluster solution distributes the load locally

submitted. The different locations are then connected

via a WAN replication solution.

3 REPLICATION STRATEGIES

Replica control has been well explored in the database

community and a wide range of replica control solu-

tions exist that have fundamental inﬂuence on non-

functional properties such as availability, data consis-

tency, reliability as well as system performance. Al-

though the replica control algorithms themselves are

not directly applicable to AS replication, the design

space is similar at both layers.

3.1 Categorization

Wiesman et al. (Wiesmann et al., 2000) categorizes

replica control algorithms by four parameters, par-

tially taken from (Gray et al., 1996), developing a

replication hierarchy.

Architecture. In a primary copy approach, each

data item has a primary copy. Updates are always

ﬁrst executed on the primary copy which is respon-

sible of propagating any changes to the secondary

copies. Different data items might have their primary

copies at different sites. However, often a single DBS

replica has the primary copy of all data items. This

makes concurrency control easier: this primary site

determines the serialization order and all others ap-

ply changes according to this order. However, the site

can become a bottleneck. In an update everywhere

approach, each site accepts update transactions and

propagates updates to other sites. This makes the ap-

proach more ﬂexible since clients can submit their re-

quests anywhere. However concurrency control re-

quires now complex coordination among the replicas.

In the context of AS replication, an additional chal-

lenge is that the different AS instances might cache

different data (the most recently used) while the re-

maining data only resides in the database. This makes

coordination more difﬁcult.

Synchronization. Eager replication synchronizes all

replicas within the context of the transactions. There

are no stale replicas. However, communication and

trafﬁc complexity is high. In contrast, in lazy repli-

cation, a transaction with all its updates is ﬁrst exe-

cuted at one site, and then the changes are propagated

to other replicas in a separate transaction. Transac-

tion response time is shorter but the data copies are

not always consistent. While eager replication is, in

principle, more desirable than lazy replication, the po-

tential response time increase might not be acceptable

in WAN environments. Also, eager replication, if not

designed carefully, might more easily lead to unavail-

abilities. However, eager replication is likely to be

feasible in cluster replication.

Interaction. The third parameter interaction decides

how often synchronization is done. In a linear inter-

action approach, typically each write operation within

a transaction leads to a communication step. In con-

trast, in constant interaction the number of messages

exchanged does not depend on the number of opera-

tions in a transaction. While constant interaction is es-

sential in WAN environments where communication

is likely to be the main bottleneck, it is less crucial in

LAN environments.

Termination. The ﬁnal parameter decides on whether

a transaction is terminated via voting or non-voting.

Voting requires an additional exchange of messages

in order to guarantee that all replicas either commit or

abort the transaction.

AS replication solutions can be categorized by

similar means, and we can use the categorization to be

aware of the solution spectrum that is possible. How-

ever, two things have to be considered. First, one has

REPLICATION IN SERVICE ORIENTED ARCHITECTURES

105

WAN

AppServ 1 [A, B’, C’]

System 1

AppServ 2 [B, A’, C’]

System 2

AppServ 3 [C, A’, B’]

System 3

AppServ 4 [D]

System 4

DB DB

Figure 3: Primary Copy Replication on Object Level.

to be aware that the protocols have to be adjusted to

work at the middle-tier layer. Secondly, we cannot

simply assume that the general performance of the

different algorithms will be the same as if they were

implemented at the database level, given the particu-

larities of AS replication.

3.2 Example Algorithm

We now describe one AS replication protocol in de-

tail. We later use this algorithm to explain how an

algorithm can be integrated into the simulator frame-

work. Our algorithm is designed for a WAN environ-

ment where communication latencies are high.

3.2.1 Lazy Primary Copy

The algorithm we describe is lazy. This seems the

most attractive in a WAN to avoid long client response

times. We choose a primary copy approach since

it simpliﬁes concurrency control. Concurrency con-

trol at the AS layer is not yet well explored, doing it

in a distributed and replicated setting would be even

more challenging. Furthermore, the inconsistencies

that can occur in a lazy environment if two differ-

ent AS instances update the same item concurrently

can quickly become a nightmare. A lazy approach

makes constant interaction a natural choice because

all updates are known at commit time, and thus, be-

fore propagation is initiated. Furthermore, voting can

be avoided if the serialization order for each transac-

tion can be determined by a single site. This is pos-

sible if all data items updated by this transaction have

their primary copies at the same site.

Lazy replication provides only then fast response

times for updates if the submitting client is close to

the primary site. In order to keep the number of re-

mote accesses low, the primary copy of a data item

should be located at a site that is close to most of the

clients that want to update this data item. For instance,

if the data item refers to a speciﬁc client, then the pri-

mary copy should reside on the AS that is close to the

client’s home location.

3.2.2 Replication on Object Level

The natural granularity for replication in an AS envi-

ronment is a business object (BO) because it builds

a logical unit within the business semantics. Note

that this might be quite different to the logical unit

in the database, i.e., a database record. Therefore we

refer to our approach as primary copy on the object

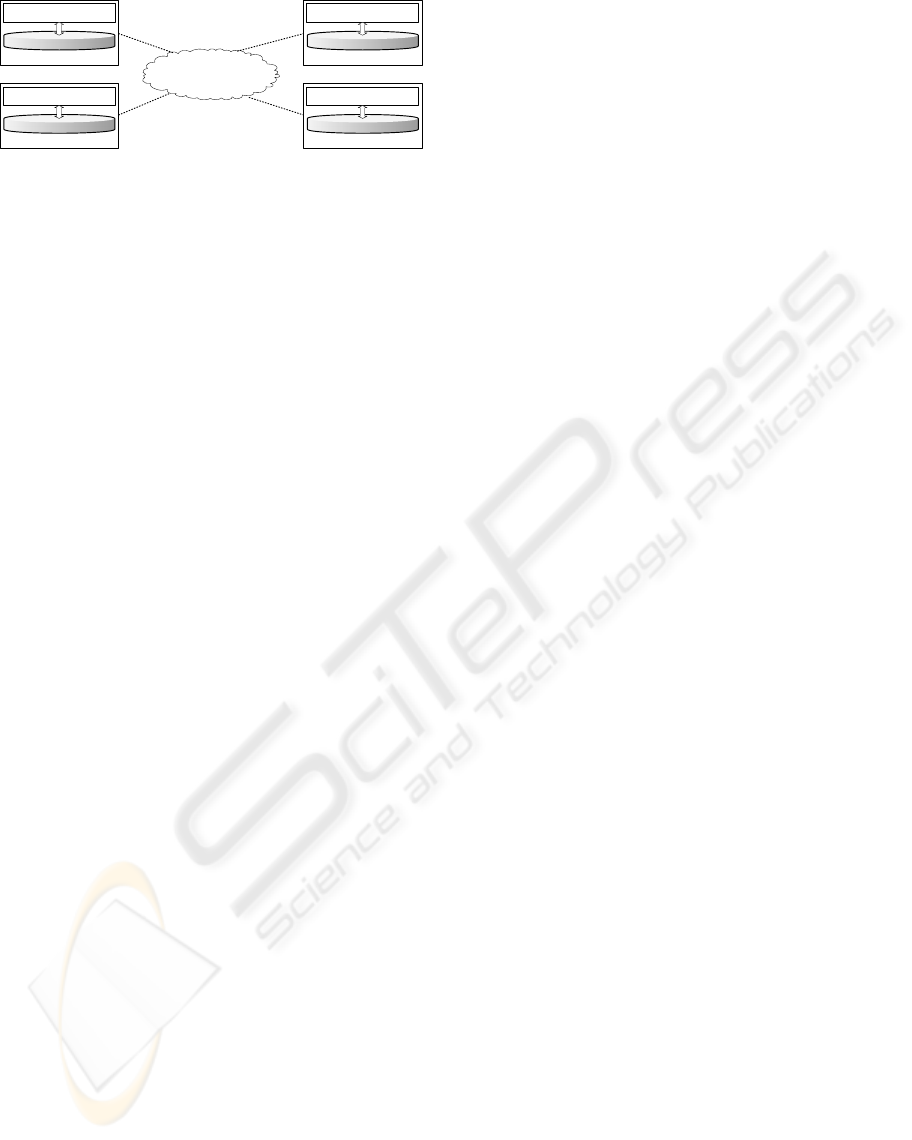

level. Figure 3 shows an example setup. There are

four AS instances with their local DBS connected via

a WAN. There are four business objects with primary

copies A,B,C, D, and the respective secondary copies

(D does not have a secondary copy). Each

of the four AS instances is the primary for one of the

BOs. The assignment of BO can be based on vari-

ous conditions e.g., semantical or geographical. We

assume that each transaction only updates BOs for

which a single site has the primary copies.

3.2.3 Protocol Description

We assume that each client request triggers a trans-

action within the AS. The transaction can consist of

several read and write operations accessing local BO

copies. The protocol proceeds as follows. When a

client submits a read-only transaction to an AS in-

stance, the local instance executes the request locally

and returns to the client. No communication with

other AS instances is needed. If the client submits

an update transaction, e.g., updating A in the ﬁgure,

if the AS instance has the primary copies of the BOs

updated by the transaction (i.e., if it is system 1), the

transaction executes and commits locally. The AS

instance returns the result to the client and then for-

wards the update on the BOs to the secondary copies.

If an update transaction is forwarded to a secondary

copy (e.g., system 3), the secondary could either re-

ject the transaction or transparently redirect it to the

primary. The primary executes it and then forwards

the changes and the response to the secondary (who

sends them to the client) and all other secondaries.

The details of what exactly is forwarded (e.g., en-

tire object, only changes, or the operation which then

needs to be reexecuted at the secondaries), and how

this forwarding takes place (via special communi-

cation mechanism or via web-services itself), might

have a big impact on the performance. The simula-

tion framework that we present in the next section is

ﬂexible enough to model such differences.

ICSOFT 2008 - International Conference on Software and Data Technologies

106

Routing

Table

Data

Service

Neighbor

Service

UPL

CSL

Node 2

Node 3

Node 4

Transport

Synchronization Manager

Replication Manager

Transaction Manager

Database

Monitor

ApplicationCache

Node 1

Client 1

Client 3

Client 2

Figure 4: Node Architecture.

4 SIMULATION

A simulation, compared to a real implementation, has

several advantages. Firstly, implementation is fast

and does not require a real distributed environment

as testbed. In contrast, implementing even a proto-

type replication tool into a real SOA is very com-

plex, making it hard to implement several algorithms

within a reasonable time frame. Secondly, prototype

implementations are often not optimized, leading to

bottlenecks and overheads that would not occur in

any well-engineered implementation. A simulation

can abstract from such artifacts. Finally, a simula-

tion framework allows for a greater variety of param-

eters, and thus, a more versatile evaluation compar-

ison. Therefore, we have designed a simulation ar-

chitecture that captures the most important aspects of

SOA, in particular in regard to performance implica-

tions. We show along one example how an algorithm

can be implemented into our simulation framework,

and how performance results can be derived showing

the inﬂuence of various parameters.

4.1 Simulation Architecture

Our framework is based on J-Sim (Sobeih et al.,

2006), a component-based simulation environment.

J-Sim offers the concept of a core service layer (CSL)

which implements already the basic services of a net-

work layer. On top of this the upper protocol layer

(UPL) provides the infrastructure for the replica con-

trol algorithms and emulates the standard AS compo-

nents. Our solution maintains the component-based,

loosely coupled architecture of J-Sim, and thus, is

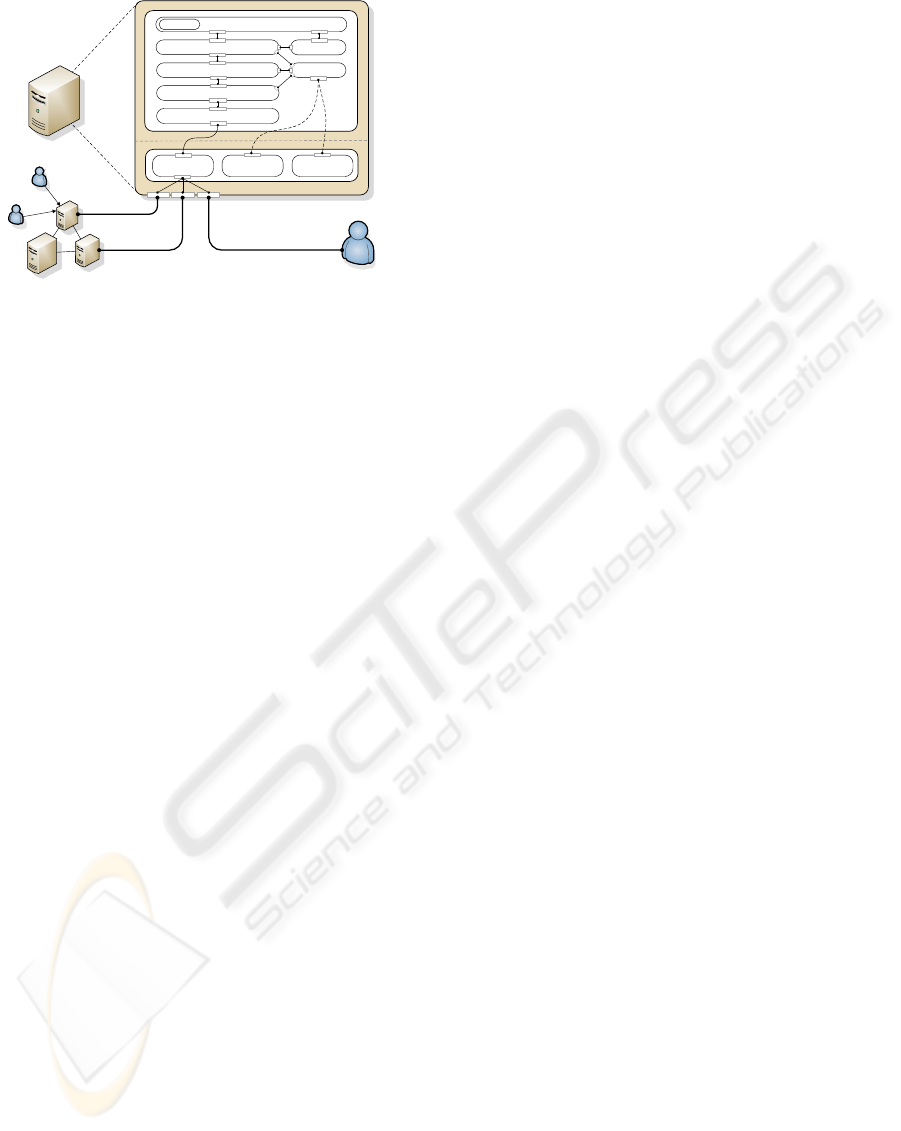

easily customizable and extensible. Figure 4 illus-

trates the architecture of one individual node (AS in-

stance plus database).

4.1.1 Components of UPL

The Transaction Manager component is responsi-

ble for transaction management. The Application

component simulates the business logic and main-

tains the BOs. It has its own Cache. BOs can

be created, read, updated and deleted. The AS is

also connected to the Database for the persistence

of BOs. These three components are also found in

a non-replicated multi-tier architecture. The other

components implement the replication functionality.

They basically intercept requests from clients and re-

sponses sent to clients in order to control the repli-

cation process. The Transport component, imple-

ments the transport protocol, e.g., TCP. It is connected

to the Data Service provided by the CSL of J-

Sim. The next higher layer is the Synchronization

Manager which is responsible to handle the propa-

gation of replication messages. The Replication

Manager component implements the main tasks and

execution ﬂow of the replica control algorithm, e.g.,

the lazy, primary copy scheme.The Monitor watches

all components for monitoring reasons. It also con-

tains concepts that are needed by all other replication

components, e.g., routing tables. The architecture re-

sembles the interceptor-based approach used to plug-

in functionality into web- and application servers.

4.1.2 Resource Consumption

In order to measure and estimate the CPU usage, ev-

ery component is additionally equipped with a time

module. Each time the component is triggered to do

something, the time module collects the time of pro-

cessing and relatively computes a percentage that mir-

rors the CPU usage. That is, we do not simulate time

but measure the actual time the execution requires.

4.1.3 Topology

The above node architecture is used by all servers

(both primary and secondaries in the example proto-

col). The nodes are connected through the port con-

nected to the Data Service. Clients use the same

port to send their requests. (e.g., Client 1 to Node

1). A client is always connected to one of the servers.

4.2 Execution

Clients generate requests and send them to the server

to which they are connected. We show here the exe-

cution ﬂow using the implemented lazy, primary copy

approach on object level. Other protocols will follow

a similar ﬂow but perform different actions at differ-

REPLICATION IN SERVICE ORIENTED ARCHITECTURES

107

ent time-ponts. A request is either a read-only or up-

date transaction accessing several BOs.

Let’s ﬁrst look at a read-only transaction. A client

submits the request in form of a byte stream to its

local server. The request goes through the data ser-

vice and is forwarded to the transport manager which

implements a TCP abstraction. Thus, it models suf-

ﬁciently well a web service request over a standard

network and transport layer. The transport layer trans-

forms the byte stream back into a request. The re-

quest goes through the synchronization mechanism

(which usually does not have anything to do for client

requests). Then it goes to the replication manager

(nothing has to be done for a read request). When

the request arrives at the transaction manager, a new

transaction is started and the operations are submitted

to the application layer which simulates some execu-

tion. If the requested BOs are not in the cache, they

have to be loaded from the database, otherwise they

can directly be read from the cache. After comple-

tion, the response moves back through the different

layers. The transaction manager commits the transac-

tion, the other layers don’t have to do anything for a

read request, and the client receives the answer.

Let’s now discuss the steps when the client sub-

mits an update transaction directly to the server that

contains the primary copies. As the request moves

up the layers, nothing has to be done by the synchro-

nization and replication managers since the approach

is lazy and replication tasks are triggered after com-

mit (eager replication might already perform some

actions at this time point). The transaction manager

again starts a transaction and the application simu-

lates the processing of the write request. At the latest

at transaction commit time the changes to the BOs

are written to the database. When the result is re-

turned to the replication manager, it detects a change

state. It receives via the monitor all secondaries of

the updated BOs (this meta-information is maintained

by the monitor). It initiates via the synchronization

manager the propagation of the state changes to these

secondaries. At the same time, the result is also re-

turned to the client. Secondaries receive the propa-

gation messages also through the data service. The

synchronization manager at the secondary determines

that this is a propagation message (and no client re-

quest). An appropriate refresh transaction is started at

the secondary to apply the changes on the BO copies.

In case the client submits a write request to a

server that does not have the primary copies, the

replication manager catches this request and it is for-

warded to the primary which executes it as above.

When the secondary receives the refresh transaction

from the primary, the synchronization manager sends

Table 1: Overview of Parameters.

Domain Parameter

System N

: Number of Servers

: Number of simultaneous Clients

: Total Number of Objects

: Replication Factor

Network B

: Bandwidth WAN/LAN

: Latency WAN/LAN

Transport P: Packet Size

MTU: Maximum Transmission Unit

MSS: Maximum Segment Size

Transaction C

Interval of Client Transactions

R/W

: Read/Write Ratio

: Number of Operations

: Transaction per Client

Database D

: Delay Read, D

: Delay Write

Replication R

: Replication Algorithm

the response to the client and at the same time for-

wards the update upwards so that it is applied on the

BO copies and in the database.

4.3 Parameters

The behavior of an algorithm is inﬂuenced by many

parameters. Our simulation framework should help

evaluating the system under varying conditions and

understand the implications of each parameter. So far,

we focus on the impact on performance based on the

parameters depicted in Table 1.

is the number of

servers in the system. Each server can have a different

number of clients, thus, N

is actually a list of size N

indicating the number of clients for each server. The

total number of BOs in the system is N

while R

de-

picts the replication factor, i.e., the number of copies

per object. If R

= N

than all objects are replicated

at all servers (full replication), otherwise the copies

are equally distributed across the servers.

We distinguish the bandwidth and latency of WAN

, L

) and LAN (B

, B

) messages. The system

takes as input a topology graph that indicates whether

links are WAN or LAN. For instance, all client/server

links could be LAN while all server/server links are

WAN. The transport layer has the typical TCP re-

lated parameters. For transactions, the overall load in

the system is determined by the time C

between two

consecutive transactions submitted by an individual

client. Furthermore, each transaction has a number

of operations N

and a ratio T

R/W

of read operations

Semantics is also inﬂuenced by the parameters. For

instance, using a lazy, update everywhere scheme in a WAN

with high message is likely to lead to higher inconsistencies

than in a LAN where updates are propagated faster.

ICSOFT 2008 - International Conference on Software and Data Technologies

108

Packet Size: 1000 Byte

Average ≈ 110 pps

195

pps

Packet Size: 100 Byte

Average ≈ 195 pps

110

pps

Figure 5: Packet Throughput.

among all its operations. Each operation accesses one

of the BOs randomly. When executing an operation

in the application, each read and write causes a delay

for the database access (D

and D

If behavior over time should be measured, one can

indicate T

as the number of transactions per client

until the simulation terminates. If averages should be

calculated (e.g., average response time), the simula-

tion runs until a conﬁdence interval is achieved. Fi-

nally, the chosen replication algorithm is an important

parameter inﬂuencing the performance.

5 SELECTED RESULTS

In this section, we shortly show how our simulator

can be used to analyze the performance using the lazy,

primary copy implementation. Figure 5 shows the im-

pact of packet size assembled for transmission over

the network. The experiment shows how a rather low

level parameter can have a tremendous effect on per-

formance. There is one primary and one secondary

server. Each server has a single client submitting a

transaction every two seconds. Each transaction has

three write operations and two read operations. Each

write operation triggers a change on a BO resulting

in 5000 Bytes that have to be transferred to the sec-

ondary. We distinguish packet sizes of 100 Bytes

(Workload A) and packet sizes of 1000 Bytes (Work-

load B). This means, the application message (15000

Bytes) has to be split into several network messages.

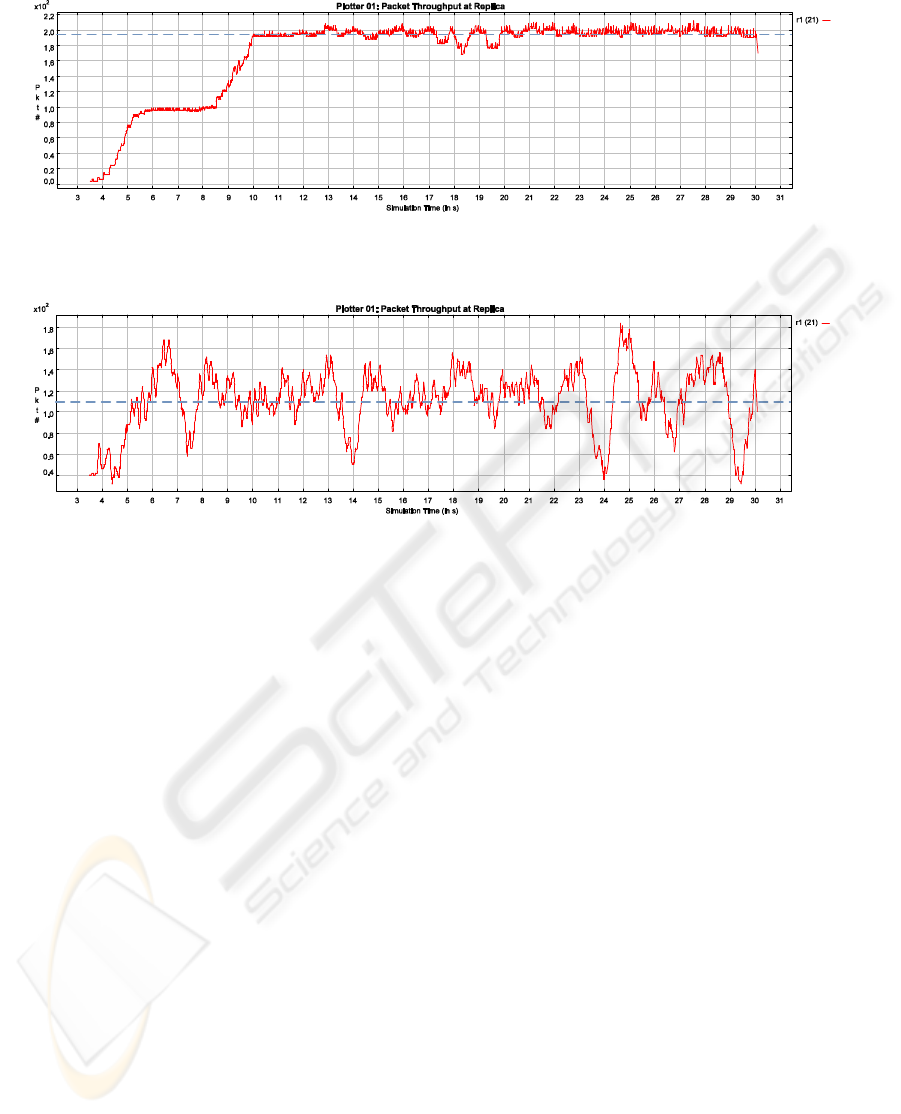

The ﬁgure shows the packet throughput for 100

and 1000 Bytes packet sizes over a time period of

30 seconds. A packet size of 100 Bytes leads to a

rather steady amount of 195 pps (packets per second)

with a variance of roughly ±10 pps. In contrast, 1000

Bytes leads to only 110 pps with a much higher vari-

ance. Having a small packet size where the applica-

tion content is split in many network messages leads

to a steady stream of small messages. In contrast,

large package sizes lead to a much more bursty be-

havior since message exchange is concentrated to the

time periods the application wants to send a message.

Also, considerably less messages are sent in total.

Summarized, a small packet size produces an

even, continuous and high packet stream which keeps

network and server busy. However, peaks are not as

high as with large message sizes. If the system is not

able to manage the peaks created by large message

sizes, small message sizes are preferable. The Byte

throughput (bytes sent per time unit) behave similarly.

REPLICATION IN SERVICE ORIENTED ARCHITECTURES

109

6 RELATED WORK

In the last decade, many different database replication

strategies have been proposed (Pacitti et al., 1999; Pe-

done et al., 2003; Lin et al., 2005; Plattner et al.,

2008). Some of them integrate replica control di-

rectly into the database kernel while others use a

middleware-based approach.

In J2EE components like session and entity beans

keep the application state. The invocation of objects is

intercepted by the server and transactions are handled

by the transaction manager. Basically all application

events are exposed to the application server, making

a non-intrusive integration of an replication algorithm

feasible. ADAPT (Babaoglu et al., 2004) is a frame-

work for application server replication providing an

abstract view of the J2EE components in the server. It

is based on the JBoss AS. Nevertheless, implementing

a single algorithm using the framework is still likely

to take months of developments.

Most industrial (such as WebSphere, Weblogic

or JBoss) and many research solutions for applica-

tion server replication (Felber and Narasimhan, 2002;

Narasimhan et al., 2001; Barga et al., 2002; Wu and

Kemme, 2005) use the primary copy approach. In

many cases, however, the AS replicas share a sin-

gle database and/or the business objects are not repli-

cated. The database cache is often inactivated. The

approaches are mainly designed for fault-tolerance.

(Salas et al., 2006; Perez-Sorrosal et al., 2007) pro-

vide replication of business objects and represent very

speciﬁc algorithms.

7 CONCLUSIONS

This paper discusses replication alternatives for busi-

ness objects at the application server layer. We

present a simulation framework that allows for a fast

initial comparison of replication solutions before in-

tegrating them into an industrial system. In our future

work we are planning to perform a thorough compar-

ison of algorithm alternatives and the impact of net-

work conﬁgurations and workloads. We aim at devel-

oping an online advising system, making suggestions

for reconﬁguration, in order, e.g., to handle a change

in workload.

REFERENCES

Babaoglu,

O., Bartoli, A., Maverick, V., Patarin, S., Vuck-

ovic, J., and Wu, H. (2004). A framework for proto-

typing J2EE replication algorithms. In Int. Symp. on

Distributed Objects and Applications (DOA).

Barga, R., Lomet, D., and Weikum, G. (2002). Recovery

guarantees for general multi-tier applications. In IEEE

Int. Conf. on Data Engineering (ICDE).

Felber, P. and Narasimhan, P. (2002). Reconciling repli-

cation and transactions for the end-to-end reliability

of CORBA applications. In Int. Symp. on Distributed

Objects and Applications (DOA).

Frølund, S. and Guerraoui, R. (2002). e-transactions: End-

to-end reliability for three-tier architectures. IEEE

Trans. Software Eng., 28(4):378–395.

Gray, J., Helland, P., O’Neil, P., and Shasha, D. (1996). The

dangers of replication and a solution. In SIGMOD

Conf.

Killijian, M.-O. and Fabre, J. C. (2000). Implementing a

reﬂective fault-tolerant CORBA system. In Int. Symp.

on Reliable Distributed Systems (SRDS).

Lin, Y., Kemme, B., Pati

no-Mart

ınez, M., and Jim

enez-

Peris, R. (2005). Middleware based data replication

providing snapshot isolation. In SIGMOD Conf.

Narasimhan, P., Moser, L. E., and Melliar-Smith, P. M.

(2001). State synchronization and recovery for

strongly consistent replicated CORBA objects. In Int.

Conf. on Dependable Systems and Networks (DSN).

Othman, O., O’Ryan, C., and Schmidt, D. C. (2001). Strate-

gies for CORBA middleware-based load balancing. In

IEEE(DS) Online.

Pacitti, E., Minet, P., and Simon, E. (1999). Fast algo-

rithm for maintaining replica consistency in lazy mas-

ter replicated databases. In Int. Conf. on Very Large

Data Bases (VLDB).

Pedone, F., Guerraoui, R., and Schiper, A. (2003). The

database state machine approach. Distributed and

Parallel Databases, 14(1):71–98.

Perez-Sorrosal, F., Pati

no-Mart

ınez, M., Jim

enez-Peris, R.,

and Kemme, B. (2007). Consistent and scalable cache

replication for multi-tier J2EE applications. In Int.

Middleware Conf.

Plattner, C., Alonso, G., and T.-

Ozsu, M. (2008). Extending

DBMSs with satellite databases. The VLDB Journal.

Salas, J., Perez-Sorrosal, F., Pati

no-Mart

ınez, M., and

Jim

enez-Peris, R. (2006). WS-replication: a frame-

work for highly available web services. Int. WWW

Conf.

Sobeih, A., Hou, J. C., Kung, L.-C., Li, N., Zhang, H.,

Chen, W.-P., Tyan, H.-Y., , and Lim, H. (2006). J-sim:

A simulation and emulation environment for wireless

sensor networks. IEEE Wireless Communications,

13(4).

Wiesmann, M., Schiper, A., Pedone, F., Kemme, B., and

Alonso, G. (2000). Database replication techniques:

A three parameter classiﬁcation. In Int. Symp. on Re-

liable Distributed Systems (SRDS).

Wu, H. and Kemme, B. (2005). Fault-tolerance for stateful

application servers in the presence of advanced trans-

actions patterns. In Int. Symp. on Reliable Distributed

Systems (SRDS).

ICSOFT 2008 - International Conference on Software and Data Technologies

110
