GENERATION OF ERP SYSTEMS FROM REA SPECIFICATIONS

Nicholas Poul Schultz-Møller

Department of Computing, Imperial College London, 180 Queen’s Gate, London, U.K.

Christian Hølmer

Upsido, Kgs. Lyngby, Denmark

Michael R. Hansen

Department of Informatics and Mathematical Modelling, Technical University of Denmark, Kgs. Lyngby, Denmark

Keywords:

Enterprise Resource Planning systems, REA, domain speciﬁc language, Web-applications.

Abstract:

We present an approach to the construction of Enterprise Resource Planning (ERP) Systems, which is based

on the Resources, Events and Agents (REA) ontology. Though this framework deals with processes involving

exchange and ﬂow of resources, the conceptual models have high-level graphical representations describing

what the major entities are rather than how they engage in computations.

We show how to develop a declarative, domain-speciﬁc language on the basis of REA, and for this language

we have developed a tool which automatically can generate running web-applications. A main contribution is

a proof-of-concept result showing that business-domain experts can, using a declarative, REA-based domain-

speciﬁc language, generate their own applications without worrying about implementation details.

In order to have a well-deﬁned domain-speciﬁc language, a formal model of REA has been developed using

the speciﬁcation language Object-Z. This formalization led to clariﬁcations as well as the introduction of new

concepts. The compiler for our language is written in Objective CAML and as implementation platform we

used Ruby on Rails. The aim of this paper is to give an overview of whole construction of a running application

on the basis of a REA speciﬁcation.

1 INTRODUCTION

In this paper we present an approach to the construc-

tion of Enterprise Resource Planning (ERP) Systems,

which is based on the Resources, Events and Agents

(REA) ontology (Geerts and McCarthy, 2000; Hruby,

2006; McCarthy, 1982). REA is a domain-speciﬁc

conceptual framework which has its use, for example,

in the design of accounting and enterprise information

systems. Though this framework deals with processes

involving exchange and ﬂow of resources, the concep-

tual models have high-level graphical representations

describing what the major entities are rather than how

they engage in computations.

We show how to develop a declarative, domain-

speciﬁc language on the basis of the REA ontol-

ogy, and together with a compilation tool, how to

generate running web-applications. Hence, a main

contribution is a proof-of-concept result showing

that business-domain experts can, in principle, us-

ing a REA-based domain-speciﬁc language, generate

their own applications without, in principle, worrying

about any implementation details. This has a clear ad-

vantage compared to current technologies where the

domain-speciﬁc languages have a much more impera-

tive ﬂavor (e.g. Microsoft Dynamics’ C/AL language

(Studebaker, 2007)).

The REA ontology is not formalized and the in-

formal explanations of REA are in many ways un-

derspeciﬁed. In order to have a well-deﬁned domain-

speciﬁc language and an associated tool we develop

a formal model of REA using the speciﬁcation lan-

guage Object-Z (Smith, 2000; Spivey, 2001). This

object-oriented and formal speciﬁcation language

proved well-suited for our purpose as the underlying

computational model should describe the changing

state of resources in ERP systems. The formalization

process led to clariﬁcations as well as the introduction

of new concepts.

The formal model exhibits in a succinct way fun-

Poul Schultz-Møller N., Hølmer C. and R. Hansen M. (2008).

GENERATION OF ERP SYSTEMS FROM REA SPECIFICATIONS.

In Proceedings of the Third International Conference on Software and Data Technologies - ISDM/ABF, pages 12-19

DOI: 10.5220/0001872600120019

 SciTePress

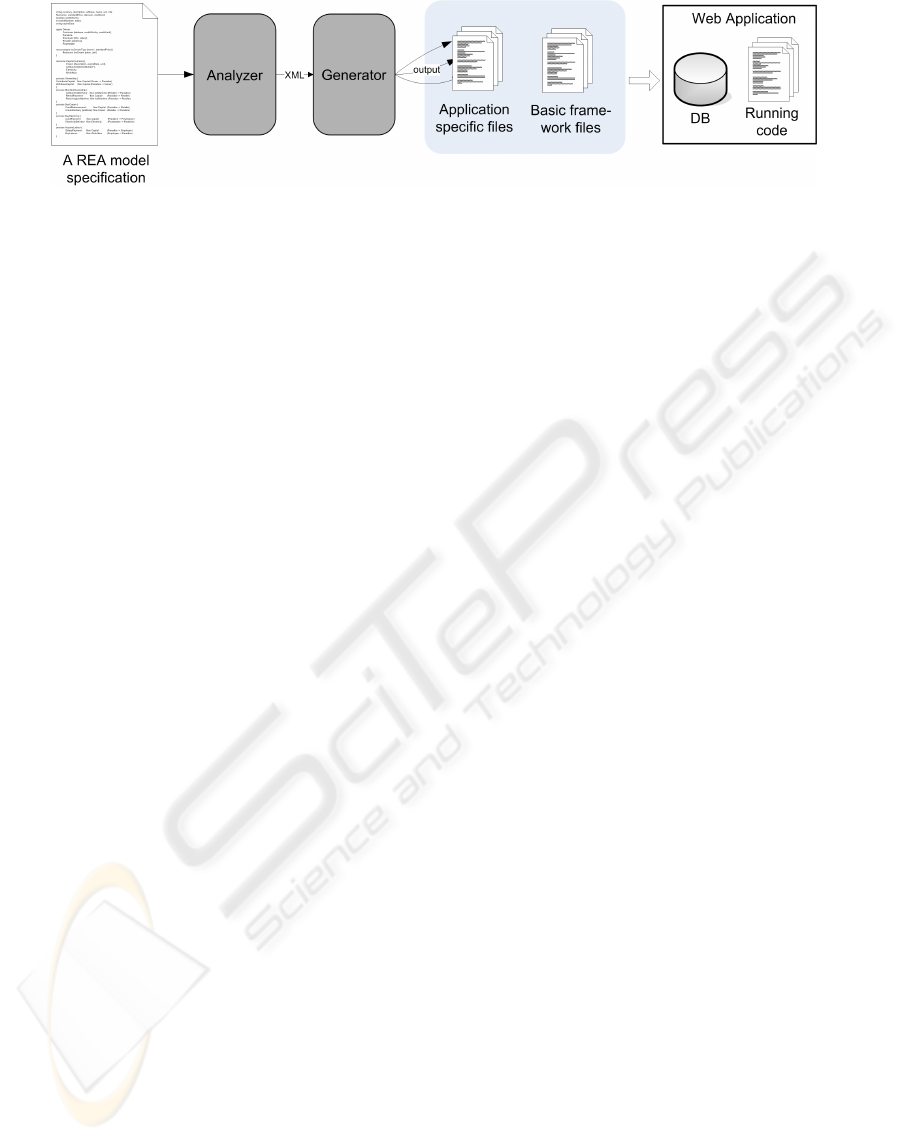

Figure 1: From REA model speciﬁcation to web application.

damental properties of resources, event and agents,

which any implementation of a REA-based system

should satisfy. In order to achieve this, the com-

piler for our language is written in Objective CAML

(Smith, 2006), which is a functional programming

language with object-oriented features. The Object-

Z model of REA could be represented in Objective

CAML in a direct manner, and the functional part of

the programming language proved very useful in con-

nection with handling the properties of the model and

for the compiler construction as such. As implemen-

tation platform we used Ruby on Rails (Thomas and

Hansson, 2006).

The aim of this paper is to give an overview of the

whole construction of a running application on the ba-

sis of a REA speciﬁcation, and to justify the thesis that

a running application can be automatically generated

from a declarative, REA-based speciﬁcation. We will

sketch the ﬂavor of the Object-Z model and how it re-

lates to the Objective CAML implementation, to em-

phasize the adequacy of this approach. Furthermore,

we will hint at the use of the implementation platform

Ruby on Rails.

Current ERP systems try to satisfy the majority of

their customers’ requirements and customize the last

15-20% by using various domain speciﬁc languages

such as C/AL. These languages are usually impera-

tive and are used for various purposes such as imple-

mentation of windows, dialogs, algorithms, etc. As a

result many resources are spent on customization and

the extensions are tightly coupled to the basic ERP

system. This prohibits the existing systems from ben-

eﬁtting from new advantages in language technolo-

gies and architectural designs.

We suggest another approach for creating cus-

tomized ERP systems. By declaring the customer’s

business processes and then generate the ERP system,

it will be possible to consistently extend the function-

ality as business processes develop. Furthermore, the

approach decouples the design and implementation

from the business processes. This enables transparent

commissioning of new technologies.

This paper, which is based on (Schultz-Møller and

Hølmer, 2007), is organized as follows: In the next

section we give a brief introduction to REA on the

basis of a simple example. Thereafter, in Section 3,

we introduce a formal Object-Z model for REA. In

Section 4 and 5 we describe the domain speciﬁc lan-

guage for REA, how it is analyzed and how web-

applications are generated automatically. The overall

idea is illustrated on Figure 1. The last section con-

tains a discussion of our work. In the paper we will

sketch the main ideas only, for further details we refer

to (Schultz-Møller and Hølmer, 2007).

2 AN INTRODUCTION TO REA

The ontology Resources, Events and Agents (REA)

(Geerts and McCarthy, 2000; Hruby, 2006; Mc-

Carthy, 1982) can be used for describing business pro-

cesses, such as the exchange of resources between

economic agents, and the conversion (or transforma-

tions) of resources. REA is an ontological framework

where the models typically are presented graphically

like, for example, in Figure 2.

An example of an exchange process for a ﬁc-

tive company ”Paradice”, that produces and sells ice

cream, is shown on Figure 2. To produce ice cream

it is necessary to purchase cream from a retailer. This

ﬁgure describes that the resource Cream is exchanged

in a duality for Capital in the events Cream Delivery

and Cash Disbursement, respectively.

As can be seen from the relationships, the agent

Paradice provides the capital and receives cream. The

inﬂow and outﬂow relationships between an event and

a resource describe whether or not value ﬂows into

(an increment event) or out of the enterprise (Par-

adise) (a decrement event). Here the enterprise’s cap-

ital resources decrease their value, while its cream

resources increase their value – simply because the

amount of each resource changes. Thus, Cash Dis-

bursement is a decrement event and Cream Delivery

is an increment event. The ﬁgure also contains an op-

tional Discount event modelling that a retailer might

GENERATION OF ERP SYSTEMS FROM REA SPECIFICATIONS

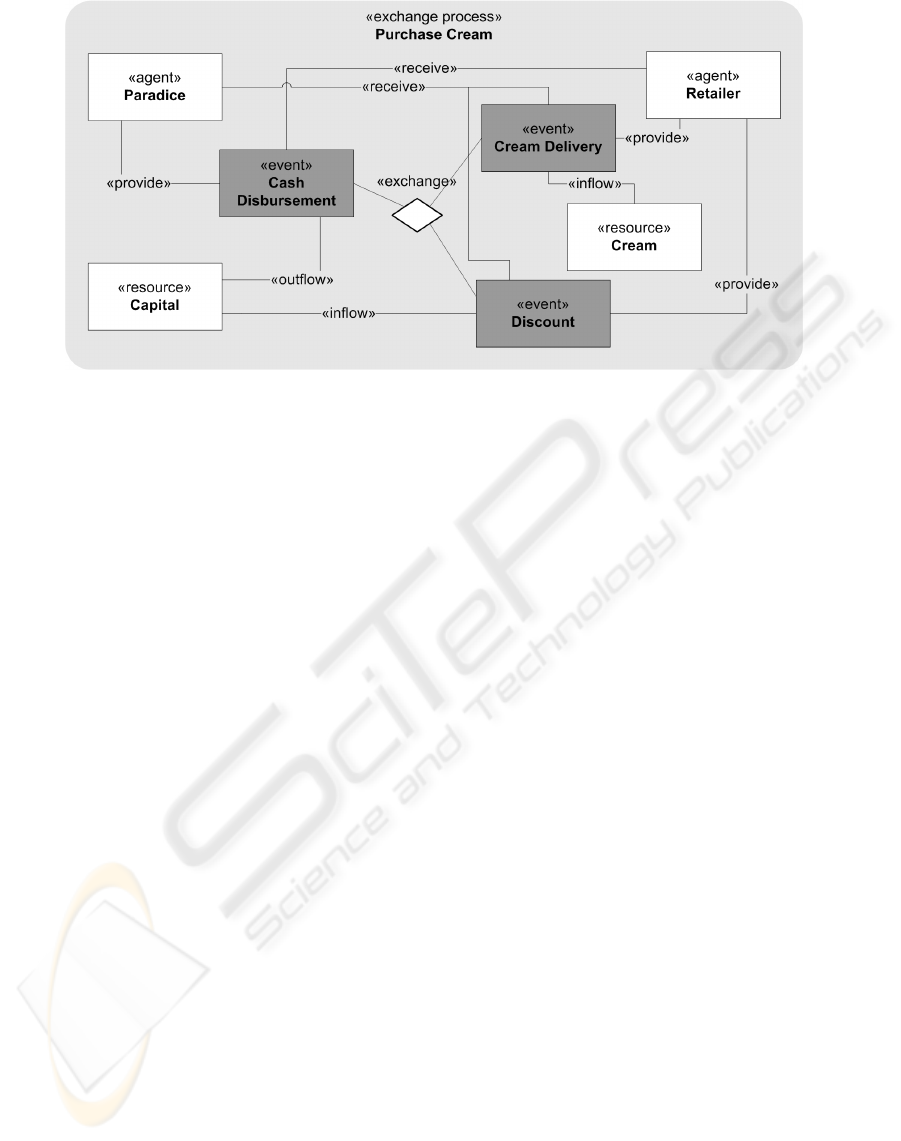

Figure 2: Modelling the purchase of cream in REA.

give a discount on a purchase. Notice that it is not

possible to infer from the diagram that the discount

event is optional.

Using REA, one can model a business process

by deﬁning distinct events involving agents and re-

sources. REA has several rules that must apply to

a model for it to be valid, for example: (1) Any re-

source must be part of at least one increment and one

decrement event, and (2) Any increment event must

be in a duality relationship with at least one decre-

ment event and vice versa. Rule (1) ensures that no

resource ”piles up” or is sold but never purchased, and

rule (2) ensures that it is always possible to track what

other resources a speciﬁc resource was exchanged for.

The REA ontology does, however, not have a pre-

cise deﬁnition in a formal sense. This is a problem

when a system is implemented on the basis of an on-

tology, as the developer may take wrong decisions

which can lead to inconsistent design.

Example problems in REA are: (1) It is unclear

how to distinguish two resources of the same type

from each other as distinguishable resources have no

notion of identity and (2) It is not possible to dis-

tinguish events that must occur in a business process

and events which are optional (as the Discount event).

These and other problems which have been con-

sidered and solved in (Schultz-Møller and Hølmer,

2007). We will elaborate on that in the next section.

3 AN OBJECT-Z MODEL

In this section we will sketch a formal model for

REA. For the full detail we refer to (Schultz-Møller

and Hølmer, 2007). The object-oriented speciﬁcation

language Object-Z (Smith, 2000; Spivey, 2001) was

chosen for the formalization as business processes to

a large extend concern the changing states and ex-

changes of resources. The model is divided in two

parts: A meta-model deﬁning the concepts of the REA

ontology and their properties, and a runtime model

deﬁning the dynamic behavior of applications based

on REA-model speciﬁcations.

We will not give a special introduction to Object-

Z, but we give brief informal explanations to the

shown speciﬁcations.

3.1 The REA Meta-Model

In the Meta-Model we deﬁne an Object-Z class for

each entity in the REA ontology, and we formalize

the rules all instances of these classes must obey. We

ﬁrst deﬁne free types in the meta-model for names and

ﬁeld types:

NAME ::= nil | charseqhhseq

CHARii

FTYPE ::= sType | iType | fType | bType

where NAME is either undeﬁned (nil or a sequence

of characters, and FTYPE, a ﬁeld type, is one of the

following string, integer, float and Boolean. Fields

are used for augmenting the entities – e.g. an address

ﬁeld on a Retailer agent entity. Furthermore, ﬁelds

are modelled as partial functions from names to ﬁeld

types:

FIELDS == NAME 7→ FTYPE

The entities in the meta-model share many prop-

erties and these are speciﬁed in the BasicEntity class:

ICSOFT 2008 - International Conference on Software and Data Technologies

BasicEntity

name : NAME, ﬁelds : FIELDS

INIT

name = nil, ﬁelds = ∅

InitData

∆(name, ﬁelds)

name? : NAME, ﬁelds? : FIELDS

name = nil ∧ name? 6= nil

name

= name? ∧ ﬁelds

= ﬁelds?

The precondition of InitData ensures that an entity

can only set data once (and in that respect works as

a constructor in an object-oriented language) and that

each entity is named.

A class for resources is deﬁned by extending Ba-

sicEntity:

Resource

 (name, ﬁelds, atomic, InitData)

BasicEntity

atomic : B, key : NAME

atomic ⇔ key ∈ (dom ﬁelds)

INIT

atomic = false, key = nil

...

where the variable atomic speciﬁes whether a real

world resource object is distinguishable from another

of the same type. If so, there must be a way to identify

a resource uniquely in the Enterprise Information Sys-

tem. This solution to the problem of distinguishing

two resources from each other was chosen to adapt

the key concept from databases.

A class for agents is deﬁned as follows:

Agent

 (name, ﬁelds, InitData)

BasicEntity

For the deﬁnition of the Event class we introduce

two additional free types STOCKFLOW (the relation-

ship between an event and a resource) and MULTI-

PLICITY (the number of occurrences of an event in a

process):

STOCKFLOW ::= none | ﬂow

| produce | use | consume

MULTIPLICITY ::= hhN

ii | infty

Observe that inﬂow and outﬂow have been general-

ized to ﬂow, as the direction can be inferred from the

provide/receive relationship. E.g., an agent providing

in an event is an outﬂow of a resource under posses-

sion of that agent.

A class for events is deﬁned in Figure 3, where we,

for example, observe that an exchange event can have

ﬂow only as stock ﬂow type. Several Events consti-

Event

 (name, ﬁelds, provider, receiver, stockFlowType,

resource, minOccurs, maxOccurs, InitData,

IsExchange, IsConversion)

BasicEntity

provider, receiver : Entity ∪ Agent

stockFlowType : STOCKFLOW

resource : Entity ∪ Resource

minOccurs, maxOccurs : MULTIPLICITY

¬(maxOccurs = 0) ∧ minOccurs 6= infty

maxOccurs ∈ N ⇒ minOccurs ≤ maxOccurs

INIT

provider, receiver = Entity.INIT

stockFlowType = none

resource = Entity.INIT

minOccurs, maxOccurs = 0

...

IsExchange

stockFlowType = ﬂow

IsConversion

stockFlowType ∈ {use, consume, produce}

Figure 3: The Object-Z class Event.

tute a process as sketched in Figure 4, with the most

interesting invariant being [a], which states that one

of the agents, called the enterprise-agent, must be re-

ceiver or provider in all events. The enterprise-agent

is a new central concept that represents the enterprise

described in a model. As will be apparent below, our

system can automatically infer

which agent in a con-

sistent model is the enterprise-agent.

All instances in a REA model are collected in the

MetaModel class shown in Figure 5. The formulas [b]

and [c] state that all agents and resources must be part

of at least one event. Formula [d] expresses that the

Very unrealistic business models can be constructed

which prohibit automatic inference. In these cases the user

is prompted for selection of one agent.

GENERATION OF ERP SYSTEMS FROM REA SPECIFICATIONS

Process

 (name, dualities, INIT, InitData)

name : NAME, dualities : F Event

∃e

: dualities • e

.IsExchange ⇒ [a]

(∀e

: dualities • e

.provider = e

.provider ∨

.provider = e

.receiver) ∨

(∀e

: dualities • e

.receiver = e

.provider ∨

.receiver = e

.receiver)

...

INIT

name = nil, dualities = ∅

...

Figure 4: The Object-Z class Process.

enterprise-agent must be either provider or receiver in

any exchange events. It is, therefore, possible to infer

the enterprise-agent in a REA model. Formula [e] is

central to the model presented in (Schultz-Møller and

Hølmer, 2007). In the meta-model a ﬂow of resources

is interpreted as resources that either leave or enter the

enterprise – not as a ﬂow of value. Thus, any resource

must both leave the enterprise and enter the system in

a decrement and an increment event, respectively.

3.2 The Runtime Model

The runtime model addresses the dynamic aspects of

a REA-model speciﬁcation. We will not present de-

tails here – for that we refer to (Schultz-Møller and

Hølmer, 2007). We will just mention two aspects:

• An execution of a REA-model speciﬁcation is

a (possibly inﬁnite) sequence of states, where a

state (among other things) records the available

resources in the system. The runtime model de-

ﬁnes all legal executions of a system, where, for

example, a decrement event can happen in the cur-

rent state only if there are sufﬁcient available re-

sources for that event.

• An agent is a person or organization, but e.g. a

person may act as different agents in different

events, e.g. as an employee in one event and as

a customer in another. To cope with this, a con-

cept legal entity is introduced, where a legal en-

tity (person or organization) is associated a set of

agents that the legal entity can act as in a given

event.

MetaModel

 (enterpriseAgent, resources, processes,

agents, events, InitData,

SpecifyEnterpriseAgent, IsValid)

enterpriseAgent : Entity ∪ Agent

resources : F Resource, agents : F Agent

events : F Event, processes : F Process

...

{p : Process | p ∈ processes • p.dualities}

partitionsevents

∀a : agents; ∃ e : events •

e.receiver = a ∨ e.provider = a [b]

∀r : resources; ∃ e : events • e.resource = r

[c]

∀e : events • e.IsExchange ⇒ [d]

(e.receiver = enterpriseAgent xor

e.provider = enterpriseAgent)

∀r : resources; ∃ e

, e

: events • [e]

.resource = r ∧

.stockFlowType = consume ∨

.stockFlowType = ﬂow ∧

.provider = enterpriseAgent))) ∧

.resource = r ∧

.stockFlowType = produce ∨

.stockFlowType = ﬂow ∧

.receiver = enterpriseAgent)))

...

INIT

enterpriseAgent = Entity.INIT

resources = ∅, agents = ∅

events = ∅, processes = ∅

...

Figure 5: The Object-Z class MetaModel.

4 A DOMAIN SPECIFIC

LANGUAGE

A domain speciﬁc language for specifying REA mod-

els has been designed so that business domain ex-

perts can express business processes. The concepts

of Meta-Model are directly reﬂected in the language.

We just give part of an example here. Consider Fig-

ure 6, which gives the speciﬁcation corresponding to

Figure 2.

ICSOFT 2008 - International Conference on Software and Data Technologies

string currency, description, address, unit, expireDate

agent Paradise, Retailer [address]

resource Capital [currency], Cream [description, expireDate, unit]

process BuyCream { CashDisbursement: 1 flow Capital(Paradice -> Retailer)

CreamDelivery: 1 flow Cream (Retailer -> Paradice)

Discount: 0..1 flow Capital(Retailer -> Paradice)

}

Figure 6: Speciﬁcation corresponding to Figure 2.

The types of ﬁelds are declared in the ﬁrst line.

Two agents, Paradice and Retailer, are declared in the

second line and two resources, Capital and Cream

with their ﬁelds, are declared in line 3. Then the

process, BuyCream, is declared. It consists of three

events. The declaration of the ﬁrst event, CashDis-

bursement, can be read as: ”CashDisbursement must

occur exactly once in a BuyCream process and is a

ﬂow of Capital from Paradice to a Retailer.” This ex-

ample also shows an optional Discount event, where

the multiplicity is 0..1. The full speciﬁcation has

six other processes: OwnerShip, MachineOwner-

Ship, BuyElectricity, AquireLabour, MakeIcecream

and SellIcecream. These are omitted here for brevity

as they have a similar structure.

4.1 Language Implementation

The language is implemented using Objective Caml

(Smith, 2006; May, 2006), which is a programming

language supporting functional as well as object-

oriented programming. This makes it particularly

suitable for constructing a programming model on the

basis of a REA speciﬁcation – the classes in the pro-

gram are related to the speciﬁcation and the classes in

the Object-Z meta-model in a very direct manner.

The implementation is divided into two parts.

First, the speciﬁcation is analyzed to check whether it

satisﬁed all properties of the meta-model. The func-

tional part of Objective Caml proved very useful for

this purpose as, for example, the properties in the

meta-model, e.g. [b], [c], [d] and [e] in Figure 5, are

programmed in a straightforward way. If the speci-

ﬁcation is consistent, then an XML representation is

generated. In the second part, which is addressed in

the next section, a web-application is generated on the

basis of that XML representation.

5 AUTOMATED GENERATION

OF APPLICATIONS

Having a consistent REA model, given now as an

XML document, we can generate an application au-

tomatically. We have chosen to implement the appli-

cation in the web-framework, Ruby on Rails (Thomas

et al., 2004; Thomas and Hansson, 2006), which let

us focus on developing the features of the application

instead of Model-View-Control plumbing.

The generation of the implementation has three

major steps:

• generation of a database schema,

• generation of classes for the speciﬁed entities, and

• generation of a runtime storage system.

The main idea is that each of the REA entities:

resources, events, agents, resource types, legal en-

tities and processes have a table with relations cor-

responding to those from the runtime model. We

use the technique of Single Table Inheritance, so that

when the database structure is generated all ﬁelds

for the REA entities will be added to the table (e.g.

ﬁeld description, ﬁeld serial number). This gives us

the ﬂexibility of having just one database table for all

speciﬁed types of the individual entities, but still let-

ting them have individual properties. Especially when

loading and saving it is useful to be able to treat them

the same way. Note however that a different approach

is needed for real-life ERP systems in order for the

system to scale. Figure 7 gives an overview of the

database.

We also generate a Ruby class for each

of the Single Table Inheritance types (e.g.

CreamDeliveryEvent a subclass of Event),

which will refer to the entries in a database table

with the same entity name (CreamDeliveryEvent in

events table).

The generated entities constitute a running web-

application and Figure 8 shows the web-interface gen-

erated from the Paradice example of which a part of

the speciﬁcation is shown in Figure 6.

A user can register an event, e.g. a purchase of

cream, by simply clicking on the relevant business

process, click on the event and enter the details as

shown on Figure 8. If the resources are available in

the current state of the database and the entered data

are correct (e.g. type check of input ﬁelds) then the

event is registered and the database will change state

as described in the runtime model given in Object-Z.

The implementations of these events are derived

GENERATION OF ERP SYSTEMS FROM REA SPECIFICATIONS

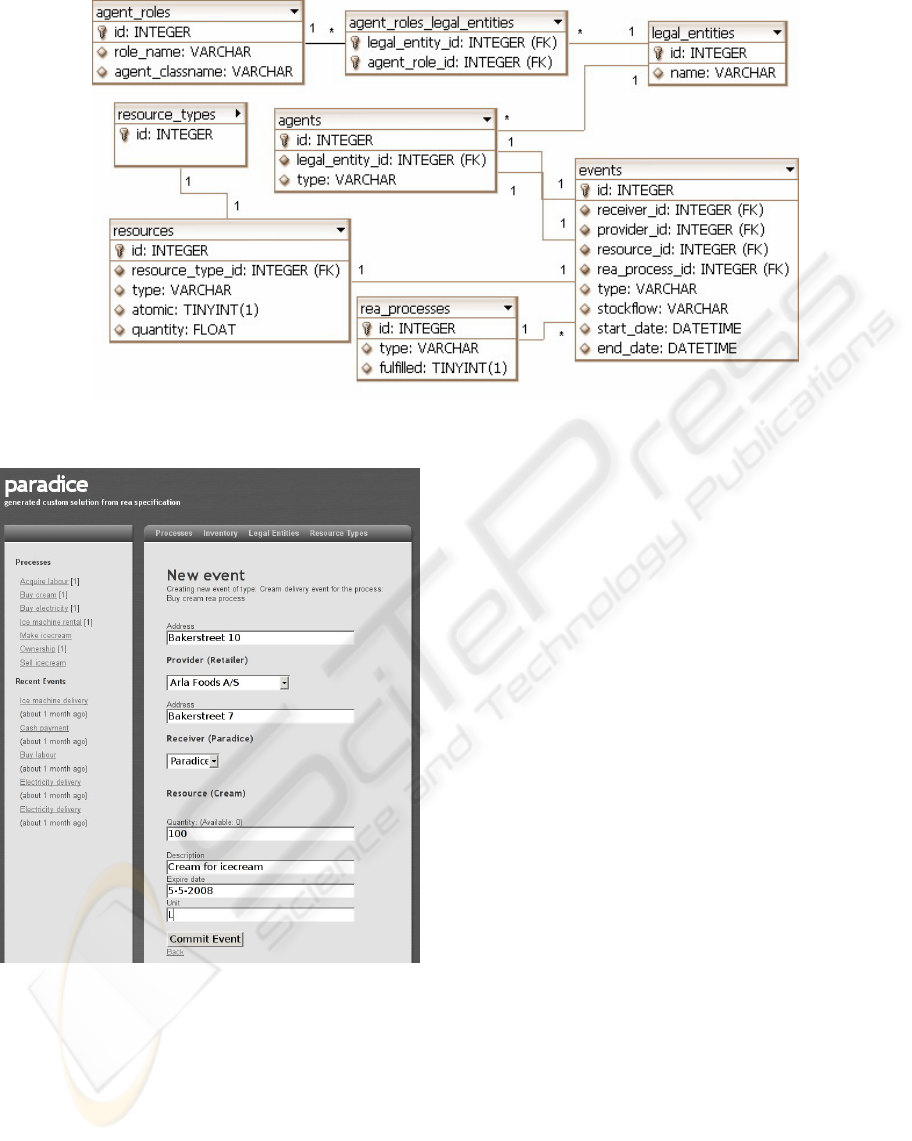

Figure 7: Database overview.

Figure 8: Screenshot of a generated application.

from the speciﬁcation of the runtime model; but we

will not give further details here.

Extensions to the Automatic Approach. All enter-

prises are ever changing and the possibility of extend-

ing a running application would be beneﬁcial. The

problem with this is that all the recorded data must

stay intact and the current business processes must

therefore not be changed. The simplest solution was

therefore only to allow addition of new business pro-

cesses and prohibit changes in the current entities in

the application. In this way enterprises can adapt to

changes in their business by marking old entities as

outdated and replace them with new.

6 SUMMARY

We have justiﬁed the thesis of this paper, i.e. that

business applications can be developed from a do-

main speciﬁc language based on the REA ontol-

ogy. The justiﬁcation is based on a prototype sys-

tem which can generate web-based applications from

REA speciﬁcations. So far the fundamental entities

of the REA ontology, Resources, Events and Agents,

have been considered and formalized, but we see no

principal difﬁculties in extending the system to the

full ontology. The prototype system is for proof-

of-concept only. Currently it is not possible to ex-

press constraints on the temporal ordering of events.

E.g. a system designer might want to specify that

a Cash Disbursement should only take place after a

Cream Delivery. However, this can also be solved in

a declarative way by deﬁning a partial ordering on

events. In the speciﬁcation this could be expressed

as process BuyCream {...}[CashDisbursement

≺ CreamDelivery], where e

≺ e

means that e

causally depends on e

In order to get a fully functional ERP system many

other aspects need to be addressed, for example work-

ﬂow, access control, the possibility of creating custom

reports etc. Integrating these aspects into the frame-

work is future work.

Our method is the following: ﬁrst a formal model

ICSOFT 2008 - International Conference on Software and Data Technologies

of REA is expressed in Object-Z. This clariﬁed many

vague points about REA, and forms the basis for the

deﬁnition of a domain speciﬁc language for declaring

business processes and its implementation. The im-

plementation consists of an analyzer and a compiler,

both written in Objective Caml. Objective Caml is

a functional programming language with object ori-

ented features, and with this language we can express

the Object-Z model for REA (classes, operations and

rules) in a straightforward way. The analyzer per-

forms the consistency checks as stated in the formal

model, and the compiler generates a web-based appli-

cation satisfying the rules of REA. As implementation

framework Ruby on Rails was used.

ACKNOWLEDGEMENTS

We are grateful for comments and suggestions from

Ken Friis Larsen.

This work is partially funded by ARTIST2 (IST-

004527), MoDES (Danish Research Council 2106-

05-0022) and the Danish National Advanced Technol-

ogy Foundation under project DaNES.

REFERENCES

Geerts, G. L. and McCarthy, W. E. (2000). The ontological

foundation of rea enterprise information systems.

Hruby, P. (2006). Model-Driven Design Using Business

Patterns. Springer.

May, J. H. (2006). Introduction to the Objective Caml Pro-

gramming Language.

McCarthy, W. E. (1982). The rea accounting model: A gen-

eralized framework for accounting systems in a shared

data environment. The Accounting Review, (3).

Schultz-Møller, N. P. and Hølmer, C. (2007). Bachelor The-

sis: Tool Support for Business Processes – REAML,

The REA Language and Metamodel.

Smith, G. (2000). The Object-Z Speciﬁcation Language.

Kluwer Academic Publishers, University of Queens-

land, Australia.

Smith, J. B. (2006). Practical Ocaml. APress.

Spivey, J. M. (2001). The Z Notation, A Reference Man-

ual. Prentice Hall International (UK) Ltd, 2nd edition

edition.

Studebaker, D. (2007). Programming Microsoft Dynamics

NAV. Packt Publishing.

Thomas, D., Fowler, C., and Hunt, A. (2004). Programming

Ruby. Pragmatic Bookshelf, 2nd edition edition.

Thomas, D. and Hansson, D. H. (2006). Agile Web Devel-

opment with Rails. Pragmatic Bookshelf, 2nd edition

edition.

GENERATION OF ERP SYSTEMS FROM REA SPECIFICATIONS
