Optimization of Log-linear Machine Translation Model

Parameters Using SVMs

Jes´us Gonz´alez-Rubio

1

, Daniel Ortiz-Mart´ınez

1

and Francisco Casacuberta

2

1

Instituto Tecnol´ogico de Inform´atica

Universidad Polit´ecnica de Valencia, Camino de Vera S/N, Valencia, Spain

2

Departamento de Sistemas Inform´aticos y Computaci´on

Universidad Polit´ecnica de Valencia, Camino de Vera S/N, Valencia, Spain

Abstract. The state-of-the art in statistical machine translation is based on a

log-linear combination of different models. In this approach, the coefﬁcients of

the combination are computed by using the MERT algorithm with a validation

data set. This algorithm presents high computational costs. As an alternative, we

propose a novel technique based on Support Vector Machines to calculate these

coefﬁcients using a loss function to be minimized. We report the experiments on

a Italian-English translation task showing encouraging results.

1 Introduction

Machine Translation (MT) is a research ﬁeld of great importance in the European Com-

munity, where language plurality implies both a very important cultural richness and

not negligible obstacle towards building a uniﬁed Europe. Because of this, a growing

interest on MT has been shown both by politicians and research groups, which become

more and more specialised in this ﬁeld. In addition, Statistical Machine Translation

(SMT) systems have proved in the last years to be an important alternative to rule-

based MT systems, even outperforming commercial MT systems in the tasks they have

been trained on. Moreover, the development effort behind a rule-based MT system and

an SMT system is dramatically different, the latter being able to adapt to new language

pairs with little or no human effort, whenever suitable corpora are available.

SMT is a pattern-recognition approach to MT. The grounds of modern SMT were

established in [1], where the problem of MT was deﬁned as following: given a sentence

f from a certain source language, an adequate sentence ˆe that maximises the posterior

probability is to be found.

ˆe = argmax

e

P r(e)P r(f |e) . (1)

At the origins of SMT, only word-based translation models P r(f |e) and target lan-

guage models P r(e) were used, but since their introduction in SMT by Och and Ney

[2], log-linear models have been a standard way to combine sub-models in MT systems.

A log-linear model implies the following decision rule:

ˆe = argmax

e

(

X

i

ω

i

θ

i

(f, e)

)

, (2)

González-Rubio J., Ortiz-Martínez D. and Casacuberta F. (2008).

Optimization of Log-linear Machine Translation Model Parameters Using SVMs.

In Proceedings of the 8th International Workshop on Pattern Recognition in Information Systems, pages 48-56

Copyright

c

SciTePress

where θ

i

are features of the hypothesis e and ω

i

are weights associated with those

features.

Selecting appropriate weights ω

i

is essential in order to obtain good translation per-

formance.In [3] the Minimum Error Rate Training (MERT) was introduced. The MERT

technique allows to ﬁnd the values of the weights that minimize a given error rate mea-

sure. This has become much more standard than optimizing the conditional probability

of the training data given the model (i.e., a maximum likelihood criterion), as was com-

mon previously. In [3] was also stated that system performance is best when parameters

are optimized using the same objective function that will be used for evaluation; BLEU

[4], which computes the precision of unigrams, bigrams, trigrams and 4-grams

3

with

respect to a reference translation, remains common for both purposes and is often re-

tained for parameter optimization even when alternative evaluation measures [5, 6] are

used.

The MERT technique relies on data sets in which source language sentences are

paired with (sets of) reference translations. This technique applies an iterative and (lo-

cally) convergent strategy to ﬁnd a set of weights which optimizes the BLEU score;

a n-best list of translations provided by the decoder is exploited for this purpose after

each translation step. At each iteration of the MERT procedure, the whole corpus is

translated, and this process continues until convergence is reached.

The main disadvantage of the MERT procedure consists in its high time complex-

ity. Such time complexity is due to the above mentioned iterative nature of the MERT

procedure.

1.1 Support Vector Machines

Support Vector Machines (SVMs) are a learning method introduced by Vapnik in [7]

and [8]. SVMs are a set of related supervised learning methods used for classiﬁcation

and regression. They belong to a family of generalized linear classiﬁers. A special prop-

erty of SVMs is that they simultaneously minimize the empirical classiﬁcation error and

maximize the geometric margin, hence they are also known as maximum margin clas-

siﬁers.

SVMs are well-founded in terms of computational learning theory and very open to

theoretical understanding and analysis. In [9] a generalization of the multiclass SVM

learning [10,11] was introduced. Such a formulation involves features extracted jointly

from inputs and outputs. The naive approach of treating each structure as a separate

class is often unfeasible, since it leads to a multiclass problem with a very large number

of classes. This problem is overcome by specifying discriminant functions that exploit

the structure and dependencies within the outputs.

SV M

struct4

[9] is a SVM algorithm for predicting multivariate or structured out-

puts. It performs supervised learning by approximating a mapping

H : X → Y , (3)

3

A n-grams is a sequence of n consecutive words.

4

http://svmlight.joachims.org/svm struct.html

using labeled training examples (x

1

, y

1

), . . . , (x

n

, y

n

). However, unlike regular SVMs

which consider only uni-variate predictions like in classiﬁcation, SV M

struct

can pre-

dict complex objects like trees, sequences, or sets. Examples of problems with complex

outputs are natural language parsing, sequence alignment in protein homology detec-

tion, and Markov models for part-of-speech tagging. The SV M

struct

algorithm can

also be used for linear-time training of binary and multiclass SVMs under the linear

kernel [12].

The 1-slack cutting-plane algorithm implemented in SV M

struct

V3.00 uses a new

but equivalent formulation of the structural SVM quadratic program which allows a

cutting-plane algorithm that has time complexity linear in the number of training exam-

ples. The n-slack algorithm of SV M

struct

V2.50 is described in [13,9]. The SV M

struct

implementation is based on the SV M

light

quadratic optimizer [14].

SV M

struct

can be thought of as an API for implementing different kinds of com-

plex prediction algorithms, e.g. Multiclass classiﬁcation [9], Label sequence learning

[9], Natural language parsing [9] and Protein Sequence Alignment [15].

1.2 Motivation

The aim of this work is to replace the slow iterative MERT procedure by a new non-

iterative algorithm based on the SV M

struct

algorithm. The proposed algorithm is able

to perform the log-linear model parameter optimization with a linear time complexity.

2 Structured SVMs for Log-linear Model Parameter Optimization

This paper introduces a new proposal to perform the optimization of parameters of a

log-linear translation model using the SV M

struct

algorithm.

A log-linear model implies the following decision rule:

ˆe = argmax

e

(

X

i

ω

i

θ

i

(f, e )

)

, (4)

where θ

i

are features of the hypothesis e and ω

i

are weights associated with those

features. The problem consists on selecting the appropriate vector of weights ω so an

objective function is optimized. SVMs are used to accomplish this optimization.

The vector ω has a crucial inﬂuence on the quality of the translations. In the follow-

ing, we aim to learn ω from a set T of training examples:

T = ((f

1

, e

1

), (f

2

, e

2

), . . . , (f

n

, e

n

)) , (5)

where (f

i

, e

i

) are sentence pairs.

This training set is assumed to be generated independently and identically dis-

tributed according to some unknown distribution P(F, E). A MT algorithm can be

seen as a function:

h

ω

(f) = argmax

e∈E

{ω · Ψ (f, e)} , (6)

which maps a given source sentence f to a target sentence e. Our goal is to ﬁnd a pa-

rameter vector ω so that the predicted translation h

ω

(f) matches the correct translation

on new test data as well as possible. In particular, we want to ﬁnd the values of ω that

minimizes the expected loss (also called risk) for the data distribution P(F, E):

R

P

(h

ω

) =

Z

∆(e, h

ω

(f))dP(F, E) , (7)

where ∆(e, e

′

) is a user deﬁned (non-negative)loss function that quantiﬁes how ’bad’ it

is to predict e

′

when e is the correct translation. For example, one may choose ∆(e, e

′

)

to be equal to 1 minus the BLEU score for e

′

.

Following the principle of (Structural) Empirical Risk Minimization [16], ﬁnding a

value of ω that predicts well on new data can be achieved by minimizing the empirical

loss (i.e the training error) on the training set T .

R

T

(h

ω

) =

n

X

i=1

∆(e

i

, h

ω

(f

i

)) . (8)

This minimization lead to the computational problem of ﬁnding the value of ω

which minimizes R

T

(h

ω

). This vector ω is the vector of optimized weights for the

log-linear combination of models.

The problem of ﬁnding the value of ω that minimizes the empirical loss R

T

(h

ω

) of

the translation algorithm was formulated as a minimization problem [9]:

min

ω,ξ

(

1

2

||ω||

2

+

C

n

n

X

i=1

ξ

i

)

s.t ∀i : ξ

i

≥ 0 ,

∀i, ∀e ∈ E : ω · δΨ

i

(e) ≥ ∆(e

i

, e) − ξ

i

, (9)

where δΨ

i

(e) = Ψ (e

i

, f

i

) − Ψ(e, f

i

).

The objective is the conventional regularized risk used in SVMs. The constraints in

Equation 9 state that the score ω · Ψ (e

i

, f

i

) of the correct translation e

i

must be greater

than the score ω · Ψ(e, f

i

) of any other alternative translation e.

This formulation includes a loss function ∆(e

i

, e) that scales the desired difference

in score. Intuitively, the larger the loss of an alternative translation e, the further should

the score be away for that of the correct translation e

i

. ξ

i

is a slack variable shared

among constraints from the same example, since in general the constraint system is

not feasible. In [17] is proved that this formulation minimizes training loss, while the

SVM-style regularization with the norm ω in the objective provides protection against

over-ﬁtting for high-dimensional ω. The parameter C allows the user to control the

trade-off between training error and regularization.

The general training algorithm [9] can be seen in Figure 1. This algorithm requires

the implementation of the feature mapping function Ψ (f, e), the loss function ∆(e

i

, e)

and the maximization given in the 6

th

line of the algorithm in order to be adapted to a

speciﬁc task.

Following sections explain how to adapt the SV M

struct

algorithm to perform the

log-linear model parameter optimization.

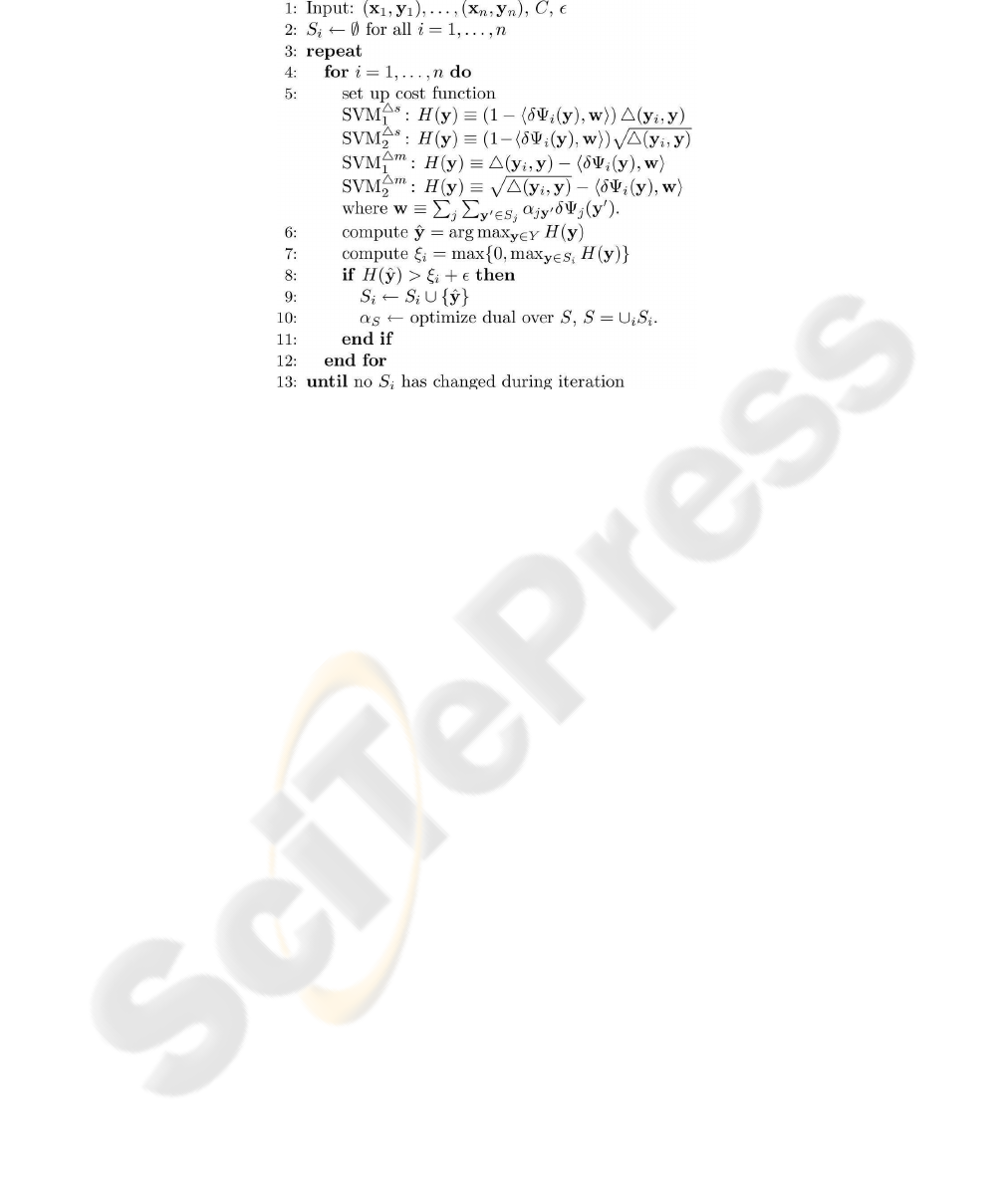

Fig.1. General training algorithm for structured SVMs.

2.1 Feature Mapping

The feature mapping function is a combined feature representation of the inputs and

outputs. In our case, the mapping function takes a pair of input/output sentences and

returns a vector with the scores of each of the models in the log-linear combination for

this pair of sentences.

2.2 Loss Function

The MERT algorithm performs an optimization of the log-linear parameters in order

to obtain the translation which maximizes the BLEU [4] score. Speciﬁcally, the BLEU

score measures the precision of unigrams, bigrams, trigrams, and 4-grams between two

sentences. Since the BLEU measure is a score instead of an error rate, the following

loss function is used:

∆(e

i

, e) = 1 − BLEU (e

i

, e) . (10)

As said in this section, the training algorithm (Figure 1) minimizes the training loss,

so BLEU will be maximized.

Other measures, as for example, TER (Translation Edit Rate) [6] or WER (Word

Error Rate), can be used as well.

2.3 Maximization

While the modeling of the feature mapping and the loss function is more or less straight-

forward, solving the maximization problem typically requires exploiting the structure

of the output values.

In our case, the maximization is stated as follows:

ˆe = argmax

e∈E

H(e) . (11)

Among all possible target sentences E, we have to be able to choose that one which

maximizes H(e). The set of all possible target sentences is inﬁnite so we approximated

this maximization by using n-best lists.

3 Implementation Details

This section describes the implementation details of the proposed optimization algo-

rithm. In our implementation, publicly-available well-known software in the ﬁeld of

SMT has been used.

To calculate the feature function Ψ(e, f ), the score of each model in the log-linear

combination for the pair of sentences has to be computed. To calculate these scores we

have used an extension of the THOT toolkit [18], which is a toolkit for SMT to train

phrase-based models. The above mentioned extension of the THOT toolkit allows to

obtain the alignment for a pair of sentences which maximizes the probability given by

the log-linear model. It uses the current vector of weights ω (see section 2) to calculate

this alignment and returns the score of each model for this pair of sentences given this

alignment.

Regarding the maximization problem described in section 2.3, given a source sen-

tence e

i

we have used the MOSES toolkit [19] to calculate a n-best list of translations

according to the current vector of weights ω. Then these n-best hypothesis are re-scored

according to H(e), and the one with the maximum score is returned as the required tar-

get sentence.

The THOT toolkit and the MOSES toolkit use slightly different translation tables.

Speciﬁcally, the MOSES toolkit allows to work with one or more score components for

each phrase pair while the THOT toolkit only allows to work with one. By this reason,

it is necessary to keep two translation tables, one for the MOSES toolkit where the

score for each component appears separately and one for the THOT toolkit where all

the components are gathered in only one value.

4 Experiments

We have carried out an experimentation in order to verify the effectiveness of our pro-

posal. In our experiments we have compared the performance of both the MERT pro-

cedure and our proposed technique. All the experiments have been carried out with the

FUB corpus.

4.1 The FUB Corpus

The FUB corpus [20], is a bilingual Italian–English corpus with a restricted semantic

domain. The application is the translation of queries, requests and complaints that a

tourist may make at the front desk of a hotel, for example, asking for a booked room,

requesting a service of the hotel, etc. The statistics of the corpus are shown in Table 1.

Table 1. FUB corpus statistics.

Training Development Test

Language Italian English Italian English Italian English

#Sentences 2900 138 300

#Words 51902 62335 2609 3119 6121 7243

Vocabulary size 2480 1671 534 443 715 547

#Out of vocabulary — 55 31 129 84

Perplexity (trigram) — 19.9 10.6 19.6 10.2

4.2 Results

The experimentation consists on training a MT model with the MOSES toolkit using

the Training set. Then the Development set is used to optimize the parameters of the

trained log-linear model. The MERT procedure and our algorithm are used to perform

the optimization. Finally the translation results of each of them with the Test set are

compared.

As ﬁrst step, a log-linear model is trained using the MOSES toolkit. This log-linear

combination is composed of eight models: the distortion (reordering) model, the target

language model, the translation model which is also composed of ﬁve sub-models and

the word penalty model.

As said in Section 3, the THOT toolkit works with translation tables with only one

score for each phrase pair. So a new translation table has to be built. The score of a

phrase pair in that table is the weighted average (the MOSES default weights are used)

of the ﬁve scores in the MOSES translation table for that phrase pair. Once the transla-

tion scores have been gathered, a log-linear combinationof four models is obtained. The

new table with the gathered scores is used to perform the optimization of parameters.

To optimize the parameters the MERT procedure is used with its default options

values. It uses a 100-best list of translations.

Our proposal uses the extension of the THOT toolkit to perform the feature map-

ping. The maximization described in Section 2.3 is carried out using 10-best lists of

translations. The 10-best translations list is re-scored using the following equation:

H(e) = ∆(e

i

, e) − hδΨ

i

(e) · ωi . (12)

This H(e) function corresponds to the margin re-scaling (SV M

∆m

1

) on Figure 1

[9].

SV M

struct

allows to modify a great amount of parameters relative to the SVMs

optimization process. Different combinations of values of some parameters have been

tested to choose those values with better performance.

Table 2 shows the BLEU scores for the different models after translating the Test

set. Baseline corresponds with the log-linear model before any parameter optimization,

MERT corresponds with the model after being optimized using the MERT procedure

and SVMs corresponds with a model which parameters had been optimized using our

proposal.

The results on Table 2 show that our proposal is able to outperform the MERT pro-

cedure. But, if we optimize the parameters using the MERT procedure and the original

Table 2. BLEU score results summary.

Baseline MERT SVMs

64.46 64.93 65.38

table (the one with eight scores per phrase pair), the BLEU score raises to 65.8 9. In

this case, the MERT procedure is able to optimize the weights for each of the sub-

models in the translation model independently. So, the relative signiﬁcance of each of

this sub-models can vary. Our proposal optimizes the weight of the gathered translation

model, so the relative importance of each of the sub-models do not change respect to

the non-optimized model.

5 Conclusions

This work have introduced a new method to optimize the parameters of a log-linear

translation model using SVMs. Our proposal is based on the SV M

struct

algorithm

which is an SVM optimization algorithm for multivariate or structured outputs. The

obtained results are very promising: using only a 10-best translations list, we outper-

form the MERT procedure when using equal number of components in the log-linear

combination.

As future work, our main goal is to compare our proposal with a standard imple-

mentation of the MERT procedure in terms of time complexity; to achieve such a goal

it is necessary to integrate the functionalities of the THOT, MOSES and SV M

struct

toolkits, so the efﬁciency of the algorithm will be dramatically increased. In addition,

we also plan to accomplish experiments with larger corpora, to use other measures as

WER or TER as loss function, to use word graphs instead of n-best lists to perform the

maximization and ﬁnally to ﬁnd the best way to go through the differences between the

THOT toolkit and the MOSES toolkit.

Acknowledgements

This work has been partially supported by the Spanish Ministerio de Educaci

´

on y Cien-

cia (MEC) under FPU scholarship AP2006-00691, the Spanish MEC under grant Con-

solider Ingenio 2010 CSD2007-00018 and the EC (FEDER) and the Spanish MEC

under grant TIN2006-15694-CO2-01.

References

1. Brown, P.F., Pietra, S.A.D., Pietra, V.J.D., Mercer, R.L.: The mathematics of machine trans-

lation. In: Computational Linguistics. Volume 19. (1993) 263–311

2. Och, F., Ney, H.: Discriminative training and maximum entropy models for statistical ma-

chine translation (2002)

3. Och, F.J.: Minimum error rate training in statistical machine translation. In: Proc. of the

Association for Computational Linguistics, Sapporo, Japan (2003)

4. Papineni, K., Kishore, A., Roukos, S., Ward, T., Zhu, W.: Bleu: A method for automatic eval-

uation of machine translation. In: Technical Report RC22176 (W0109-022), IBM Research

Division, Thomas J. Watson Research Center, Yorktown Heights, NY (2001)

5. Banerjee, S., Lavie, A.: METEOR: An automatic metric for MT evaluation with improved

correlation with human judgments. In: Proceedings of the ACL Workshop on Intrinsic and

Extrinsic Evaluation Measures for Machine Translation and/or Summarization, Ann Arbor,

Michigan, Association for Computational Linguistics (2005) 65–72

6. Snover, M., Dorr, B., Schwartz, R., Micciulla, L., Makhoul, J.: A study of translation edit

rate with targeted human annotation. In: Proceedings of AMTA. (2006)

7. Cortes, C., Vapnik, V.: Support-vector networks. Mach. Learn. 20 (1995) 273–297

8. Vapnik, V.N.: The nature of statistical learning theory. Springer-Verlag New York, Inc., New

York, NY, USA (1995)

9. Tsochantaridis, I., Hofmann, T., Joachims, T., Altun, Y.: Support vector machine learning for

interdependent and structured output spaces. In: ICML ’04: Proceedings of the twenty-ﬁrst

international conference on Machine learning, New York, NY, USA, ACM (2004) 104

10. Weston, J., Watkins, C.: Multi-class support vector machines (1998)

11. Crammer, K., Singer, Y.: On the algorithmic implementation of multiclass kernel-based

vector machines. J. Mach. Learn. Res. 2 (2002) 265–292

12. Joachims, T.: Training linear svms in linear time. In: KDD ’06: Proceedings of the 12th

ACM SIGKDD international conference on Knowledge discovery and data mining, New

York, NY, USA, ACM (2006) 217–226

13. Joachims, T.: Learning to align sequences: A maximum-margin approach (2003)

14. Joachims, T.: Making large-scale support vector machine learning practical. In B. Sch´olkopf,

C. Burges, A.S., ed.: Advances in Kernel Methods: Support Vector Machines. MIT Press,

Cambridge, MA (1998)

15. Yu, C.N.J., Joachims, T., Elber, R., Pillardy, J.: Support vector training of protein alignment

models. In: RECOMB. (2007) 253–267

16. Vapnik, V.N.: Statistical Learning Theory. Wiley-Interscience (1998)

17. Tsochantaridis, I., Joachims, T., Hofmann, T., Altun, Y.: Largemargin methods for structured

and interdependent output variables. Journal of Machine Learning Research 6 (2005) 1453–

1484

18. Ortiz-Mart´ınez, D., Garc´ıa-Varea, I., Casacuberta, F.: Thot: a toolkit to train phrase-based

statistical translation models. In: Tenth Machine Translation Summit. AAMT, Phuket, Thai-

land (2005)

19. Koehn, P., Hoang, H., Birch, A., Callison-Burch, C., Federico, M., Bertoldi, N., Cowan, B.,

Shen, W., Moran, C., Zens, R., Dyer, C., Bojar, O., Constantin, A., Herbst, E.: Moses: Open

source toolkit for statistical machine translation. Annual Meeting of the Association for

Computational Linguistics (ACL), demonstration session (2007)

20. Casacuberta, F., Ney, H., Och, F.J., Vidal, E., Vilar, J.M., Barrachina, S., Garcia-Varea, I.,

D. Llorens, C.M., Molau, S., Nevado, F., Pastor, M., Pico, D., Sanchis., A.: Some approaches

to statistical and ﬁnite-state speech-to-speech translation. Computer Speech and Language

18 (2004) 25–47
