MICROFORMATS BASED NAVIGATION ASSISTANT

A Non-intrusive Recommender Agent: Design and Implementation

Anca-Paula Luca and Sabin C. Buraga

Department of Computer Science, “A.I. Cuza” University of Iasi – 16, Berthelot, 700483 Iasi, Romania

Keywords: Recommender system, prediction, microformats, semantic markup, web interaction.

Abstract: The multiple ways in which we rely on the information available on the web to solve increasingly more

tasks encountered in day-to-day life has led to the question whether machines can help us parse the amounts

of data and bring the interesting closer to us. This kind of activity, most often, requires machines to

understand human defined semantics which, fortunately, can be easily done in today’s web through

semantic markup. The purpose of the proposed project is to build a flexible tool that understands the

behaviour of a user on the web and filters out the irrelevant data, presenting to the user only the information

he/she is most interested in, while being as discreet as possible: the user is required no preference settings,

no explicit feedback.

1 PREAMBLE

Navigating the web each day, accessing numerous

websites containing information from various

domains can be overwhelming sometimes, making

the obvious or the interesting hard to get, due to the

huge amount of useless data surrounding it. The

explosion of the amount of information on the web

from the past few years has satisfied our need of

information, but also invaded our web lives with

considerable amounts of unnecessary data we must

surf through in order to get to the things we really

want.

In the actual stage of the web, some patterns in

published information and users’ requests have

emerged: there are numerous sites for blogs, social

groups, collaborative bookmarks, collaborative

knowledge, products/companies presentations, news

portals – all aligned to the social web (O’Reilly,

2005; Shadbolt, Hall & Berners-Lee, 2006). There

also are a lot of users taking advantage of this

information: relying on the web for communicating

with friends and family, researching different topics,

staying up-to-date with most recent news and events.

In this context, semantics tend to repeat on the

web: either it is the semantic of the published

information (a publisher’s point of view); either it is

the semantic of the needed information – a user’s

point of view. The patterns are reflected in the

markup of the information as well: resembling

elements, attribute names and values, and

imbrications can be noticed (Celik & Marks, 2004).

In the actual circumstances, the microformats

initiative (Microformats, 2008) tries to specify a

frame for this kind of patterns: standards of

publishing information with these most frequent

semantics (thus semantically marking the data) and

push the web to the new stage where information is

equally accessible for humans as well as for

machines. With more and more websites adapting

their markup to follow these standards to produce

semantic markup, the idea of a tool that

comprehends and simulates a user’s behavior on the

web becomes a need, it gets consistent and closer to

implementation. Such an instrument can increase the

efficiency of a user’s sessions on the internet,

measured as a proportion of the information gained

per time spent on internet.

The existing tools focus either on microformats

processing – detection, presentation and storage –

without trying to assimilate them from a semantic

point of view, either on the detection of semantics

using the “classical” semantic web methods (such as

RDF description of metadata and/or ontology

specifications), or parsing hypertext as ordinary text,

using standard text classification methods. Most of

the tools require as well configurations, training data

or explicit feedback from the user.

The innovations of our approach are in using

microformats as semantic sources in the task of

Luca A. and Buraga S. (2008).

MICROFORMATS BASED NAVIGATION ASSISTANT - A Non-intrusive Recommender Agent: Design and Implementation.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - HCI, pages 54-61

DOI: 10.5220/0001696600540061

 SciTePress

“understanding” the web – for the arguments

sustaining this decision see also (Celik & Marks,

2004). The purpose is to achieve our goal without

human effort: the user is not requested to change

his/her navigation behavior to adapt to the new tool

or to provide it training data.

This paper is structured as follows: first, in

section 2, we will define the microformat term and

we will describe it’s possible usage in the context.

Then, in the next section, we will present the model

used for data and the recommending system

(Adomavicius & Tuzhilin, 2005) that constitute the

foundation of the project. Section 4 focuses on the

presentation of the application to the user: the user

interface – design and, most important, interaction.

After enumerating different related approaches, the

paper ends with an outline of the discussed topics

and presents the further research ideas.

2 MICROFORMATS

According to the microformats.org website, the

microformats definition is: Designed for humans

first and machines second, microformats are a set of

simple, open data formats built upon existing and

widely adopted standards.

A more accessible definition is the following:

Microformats are simple conventions for embedding

semantics in HTML to enable decentralized

development.

Even more precise than this, microformats are

conventions for XHTML (Extensible HyperText

Markup Language) elements names, attribute names

and associated values, with precise semantics – see

also (Allsopp, 2007), (Haine, 2006) and (Suda,

2006).

2.1 Important Features

The key principles in designing microformats are the

simplicity – they are designed to solve a specific

problem – and the loose connectivity – they

represent small pieces loosely joined together to

form larger blocks and to express increasingly

complex semantics, without decreasing their

semantic expressivity through connections.

Microformats achieve their goal either by adding

to the (X)HTML markup (elemental microformats),

either by specifying a set of attribute values for

XHTML existing elements and imbrications of such

elements to be the frame for a piece of content

(compound microformats). Certain microformats are

definitively specified, while others are in work in

progress.

Regardless of this, microformats are widely

spread – either explicit or through the semantic of

content and similar structure of markup, with the

possibility of actually being explicited.

2.2 Representative Microformats

The list of the current official microformats is:

hCalendar, hCard, rel-license, rel-nofollow, rel-tag,

VoteLinks, XFN, XMDP, XOXO, adr, geo, hAtom,

hResume, hReview, rel-directory, rel-enclosure, rel-

home, rel-payment, Robots Exclusion, xFolk.

The microformats useful for a navigation assistant

are the ones that encapsulate the content as well as

properties of the specific content:

 rel-tag specifies that the current page or a

portion of is marked with a tag. The tag for a

piece of content is, usually, a single word that

expresses a keyword for the content, or the topic

of the content. It is a frequent practice to use

multiple tags for a piece of content.

 geo allows the description of a location using

geographic coordinates (latitude and longitude).

This microformat can be embedded into other

microformats such as hCard or hCalendar, to

mark the location of an entity or an event.

 adr specifies an address, properly marked with

fields for country, city, street and so on. This

microformat is also embeddable into other

microformats such as hCard or hCalendar,

either joined or not by a geo microformat.

 hCard denotes a full description of an entity: a

person (most often), an organization, a

company, etc. It specifies fields for the name of

the entity, the nickname, an address, a website

and other information.

 hCalendar encapsulates a calendar entry (an

event): date, description, address, etc.

 hReview is defined to be used in publishing

reviews for different items. It contains fields for

title, description, hCard of reviewer, hCard of

reviewed, date of review, etc.

 hAtom mirrors the Atom syndication method,

enabling the embedding of an Atom feed in

(X)HTML.

Other details are provided by (Allsopp, 2007)

and (Suda, 2006).

2.3 Example

The following is an example of using hCalendar to

mark the ICEIS 2008 conference:

MICROFORMATS BASED NAVIGATION ASSISTANT - A Non-intrusive Recommender Agent: Design and

Implementation

<a class="url"

href="http://www.iceis.org/">

ICEIS '08

</span>

</a> –

10th International Conference on

Enterprise Information Systems

</div>

takes place between

<abbr class="dtstart"

title="20080612">12</abbr> and

<abbr class="dtend"

title="20080616">16</abbr>

June 2008 in

Barcelona

</span>

Spain

</span>

</div>

Note that it is easy to extract the information of

the event by both a human user (who will actually

see the result of the browser processing of the

HTML) and an automated tool (that can process

markup to extract the URL of the event, a

description, a summary and the dates for the event).

3 PROPOSED RECOMMENDING

SYSTEM

In this section, we will present the models used for

determining the users’ preferences and the

prediction algorithms.

We start with a presentation of the collected data

and the associated data model and then we describe

the definition the program associates with the notion

of preferred content and the methods used to

determine which piece of content is of interest and

which is not.

3.1 Data Model

Although there are multiple sources for content

information in a web page, our purpose is to build a

tool that will only use content semantics provided by

microformats markup. Because of this, the following

discussion will refer to microformatted web pages –

documents that have associated various

microformats.

A web page is assumed to be composed by one or

more blocks of data: pieces of content that belong

each to certain categories of topics (one topic or

more) and, most important, which are separable

from the rest of the blocks – a program can identify

and extract such a block from the web page.

Consider, for example, a web page that contains

news and each piece of news is properly marked (by

using hAtom or hCalendar) – see also Figure 1. All

the pieces of news represent blocks of data in the

model described above.

Such a block of content is considered to be the

unit of content: from a web page, the algorithm will

recommend one or more such blocks of content (in

the presented example it seems natural to

recommend a piece of news, as the unit of

information). Naturally, a block will be considered

to be the piece of content encapsulated by a

microformat (e.g., hCalendar, hAtom, hReview, and

hCard).

Given a web page, the flow of the recommending

program is the following: first, the blocks are

identified in the web page. Then, for each block, a

preference score is computed (the algorithms are

described in section 3.2) and then the

recommendation algorithm is updated to take into

account the new blocks as well.

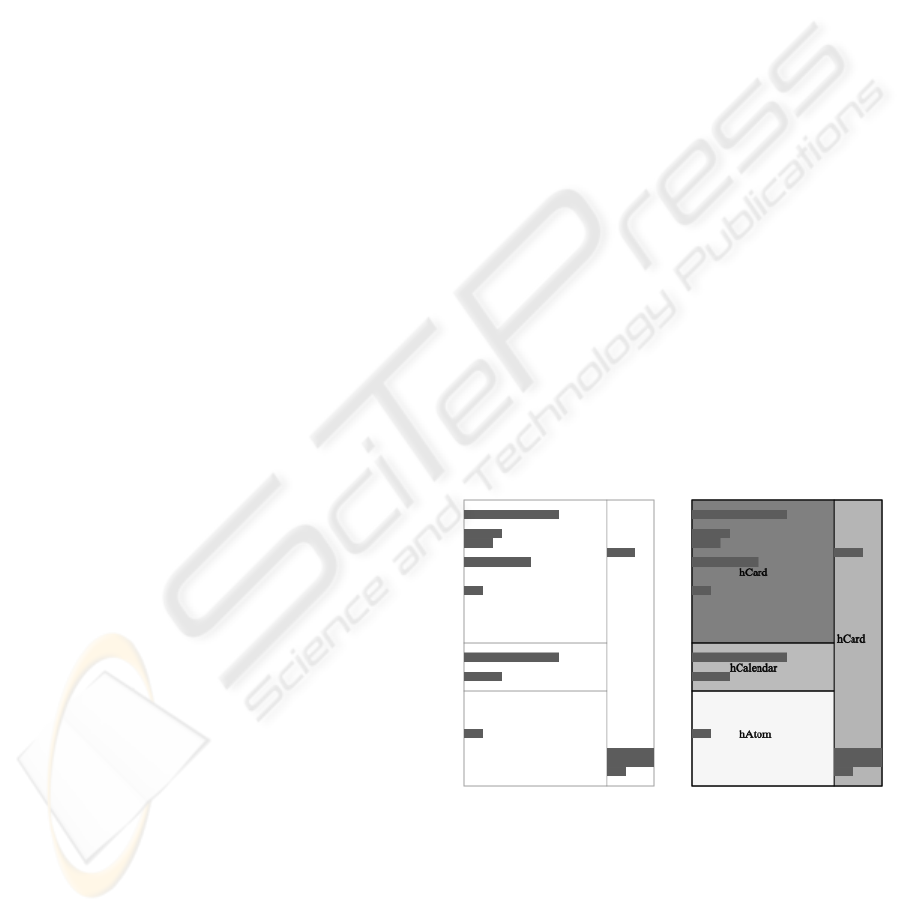

Figure 1: Detecting blocks of data.

3.2 Algorithms

Certain assumptions have been used in order to build

the preference model – partially elaborated from

(Chakrabarti, 2003):

 The entire semantic markup is semantically

correct: any value assigned, through markup, to

ICEIS 2008 - International Conference on Enterprise Information Systems

an attribute of the content is the real value of

that attribute, for the specific content. This

assumption might not always hold (it depends

on the quality of the markup) but there is no

general way to detect or correct such errors in

an automated manner.

 In the context of liking or disliking content, a

user operates with blocks, as defined in the

subsection above. The validity of this

assumption is highly correlated with the way the

blocks are built, which in turn depends as well

on the quality of the markup.

 The user’s preferences are expressed in terms of

attributes values rather than items and the user

tends to associate a greater importance to some

attributes.

 A user accesses more often items he/she likes

and ignores items he/she does not like.

In consequence, we propose a solution inspired

from machine learning methods (Mitchell, 1997)

that estimates the degree of interest for a given item

by combining two components: the preference for an

attribute and the preference for the particular value

of that attribute, for the current item:

1. For each property of each type of block, an

associated weight is computed as follows:

initially, all weights are set equal for all

attributes and then they are adjusted using

the following assumption: the more the user

“trusts” an attribute, the more liked items

specify a value for that attribute (the user

looks for the items that specify values for

the properties he/she trusts more).

2. For each attribute and a given value, we can

compute the user preference for that value as

the probability that the value is among the

values of that attribute for all preferred

items.

3. The final estimation of the interest for an

item is the weighted sum of values described

at 2, by using the weights explained at 1.

We have opted for a memory-based approach:

items are stored and then the needed values are

computed when a new estimation is required –

instead of transforming data into hypotheses of

preference and then testing the items against them –

for flexibility and data reusability reasons.

This algorithm is able to handle a set of issues

that might appear in the recommendation process:

 It can efficiently learn the preferences

incrementally, without the necessity of

providing “training data”. Of course, the results

in the first stages will be poor but, as data is

collected, they will improve;

 The assumption made about the user behavior

regarding liked and disliked items allows the

algorithm to work, even if no explicit feedback

is provided by the user. As we have mentioned

before, this is a key feature of the designed tool;

 By simply setting an expiring date for the stored

items (after a period of time they no longer

influence the recommending process), the

algorithm can deal with dynamic preferences: a

user’s preferences can change and the agent

must change its recommendations accordingly.

3.3 User Interaction

One of the first requirements regarding this aspect is

the fact that the application must present its

suggestions in real time (when a new web page is

accessed) and this must not be done in a master

manner: the agent only suggests the content to be

accessed, not dictates.

Related to these aspects we will discuss two

options for the application: a standalone application

and a browser extension.

The interaction model for this application is the

observable-observer one: first the agent (the

observer) must be notified that the user (the

observable) has accessed a new web page and then

the user (observer this time) has to be notified about

the agent’s recommendations (the observable). Two

types of observing can be used: push (the observable

notifies the observer when the state changes) and

pull (the observer reads the observable’s state from

time to time). We can assume that, in both cases, a

push paradigm can be used for obtaining the current

web page (the user must not notify the agent that a

new page was accessed) and this is the method to be

used in any of the cases since the agent would not

require pointless user assistance.

As a standalone application, the agent exists

outside the navigation process, in a browser external

application. If the agent is built as a push observable

then it will have to notify the user, from time to

time, that its state has changed (using a dialog

window or any other method), which can disturb the

user from his/her navigation activity. If the agent is

designed using a pull paradigm, thus eliminating the

disturbing factor, then the user would be required to

switch from one application to another to check the

state of the agent, which would causes an overhead

big enough to eliminate this option.

The most important note to be made in the case of

a browser extension is that the agent can act like a

component of the navigation process itself,

transparent to the user, whose behavior is not

MICROFORMATS BASED NAVIGATION ASSISTANT - A Non-intrusive Recommender Agent: Design and

Implementation

required to change to manage the new application

he/she is using.

Clearly, the best option is the implementation as

a browser extension, but there are a few other

choices to be made, regarding the way the

application presents its results to the user. We have

chosen to highlight the interesting blocks (using

background colours, tool-tips and combinations of

the two), in the web page, in the exact place where

they appear, for a sum of reasons:

 The model of this interaction corresponds to a

push-pull combination: the agent is a push

observable that allows a pull behavior from the

user: it will alter the web page highlighting the

interesting items, but will still provide the whole

page to the user so he/she can access any piece

of content he/she feels to;

 It does not use page space as a side panel would

(frequently used by many applications);

 It does not require a change of focus from the

page itself to another area of the screen;

 The recommended items can be observed as the

page is scrolled down, it does not require

permanently referring a recommendations list;

 Though somehow discrete, the results returned

by the application still stand out from the rest of

the web page, thus allowing one to easily notice

them if this is the desired goal.

Optionally, the recommendations list can be also

displayed in a side bar list, for faster access of the

user to the recommendations and a greater freedom

of choosing the manner he/she browses the

recommendations: either as a pull or as a push

observer.

4 ASPECTS REGARDING THE

IMPLEMENTATION

We will describe our approach to design and

implement a “smart” navigation assistant, using the

new web technologies and aiming the largest

possible public. The goals are the platform

independence and the wide spread standards.

Two main modules of the application can be

distinguished: a module that interacts with the

navigation process (data collecting and results

display) and the module that encapsulates the

recommendation engine (storage and prediction).

The implementation of the two as loosely

connected components is a key feature, thus

enabling independent testing and improvement, and

also facilitating reusability in similar contexts. Loose

connectivity has been achieved in this situation

through a moderator component (a “data manager”)

that enables bidirectional communication between

the two modules.

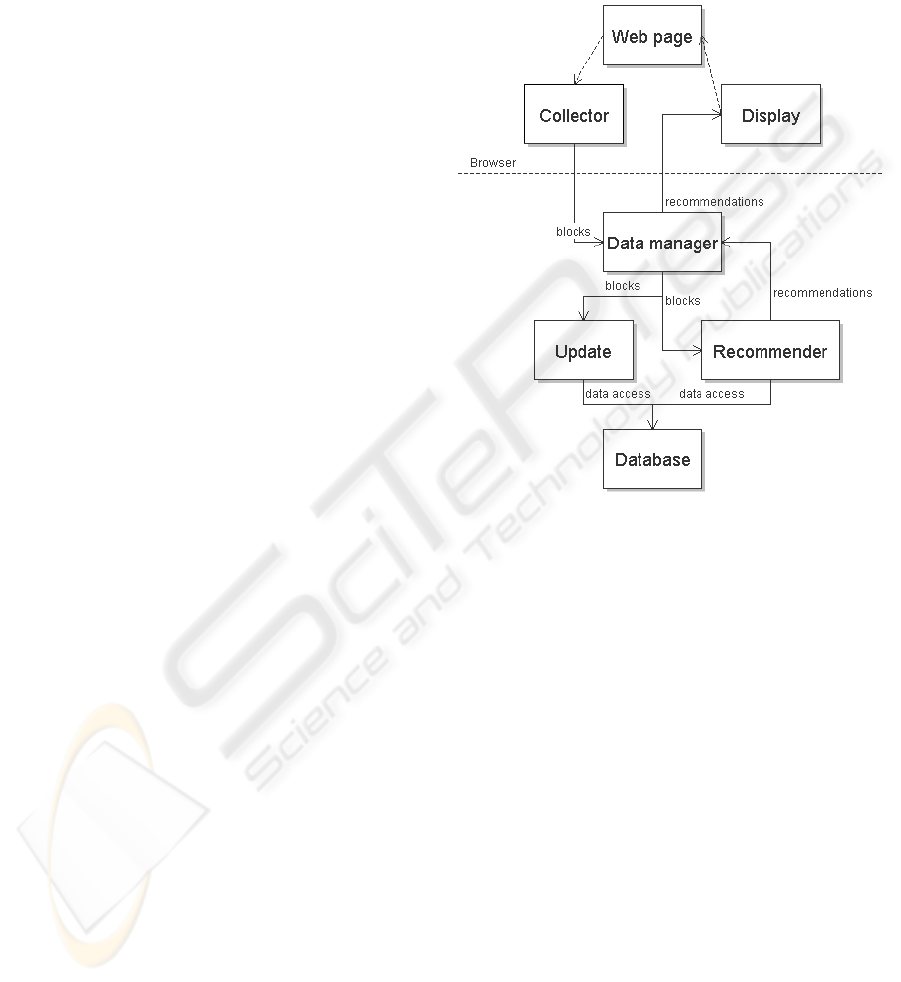

An illustration of the architecture presented

above is depicted in Figure 2.

Figure 2: Modules and data flow.

4.1 Data Collecting and Display

Module

This component must be analyzed in the context of

the extension development interface available from

the browser.

As a platform at this level, we have chosen the

Firefox web browser, whose advantages are in the

direction of wide platform availability, extended

support for current web standards and the

encouragement of extension development through

the clear structure imposed for the sub-application,

the large development community and

documentation and the possibilities of

communicating with external modules (native

libraries, Java programs).

The implementation of the collecting and display

module takes some advantages from a browser

embedded approach. Data collecting is done using

the web documents downloaded by the browser; no

new Internet connection and distinct request to the

server are required for this activity. Extracting the

ICEIS 2008 - International Conference on Enterprise Information Systems

data from HTML documents takes place at the DOM

(Document Object Model) tree level, built by the

browser for its internal use but made available to the

extensions developers. Displaying the results takes

place in the same context of preprocessed data, thus

decreasing the running time and the complexity of

the programs.

We can now summarize the activity of the agent

as follows: when a new web page is accessed, the

DOM tree is processed in search of microformatted

content and a list of blocks is built. This list is then

sent to the data storage and prediction module.

When the response from this module arrives (which

represents a list of preference scores associated with

the blocks), the display module is being called to

modify the properties of the DOM tree associated

with the page to highlight the recommended blocks.

4.2 Data Storage and Prediction

Module

The data storage module relies on the physical

storage engine which is, in our case, a native XML

database engine, chosen for the management of

concurrent access, the advantages in storing

unstructured data and the programming interface

based on actual XML technologies. Our choice was

Berkeley DB XML (Brian, 2006) which is a fully

embeddable database engine, available on multiple

platforms and which provides programming

interfaces in a large variety of languages.

The prediction sub-module implements the

algorithm presented in the section 3.2, as a

standalone module – most liable to future

improvement –, in a platform independent language

to increase portability. A solution for this

implementation is the Java language that offers

platform independency, compatibility with the XML

documents management libraries (the native XML

database, Saxon XML processing library), and

moderate requirements for installed interpreters on

the client machine.

Thus the activity of this module can be

summarized as follows: when the data manager

receives – from the collecting module – a list of

blocks, it sends it to the recommending module

whose results are stored in order to be sent to the

display module. Then, the blocks are sent to the

update module and finally, the response for the

browser is elaborated from the recommending

module’s results and sent.

4.3 Scenario

A usage scenario for such an application is as

follows: when the user accesses a new webpage, the

tool analyzes the content of the page and discovers

the blocks of data the user might be interested in.

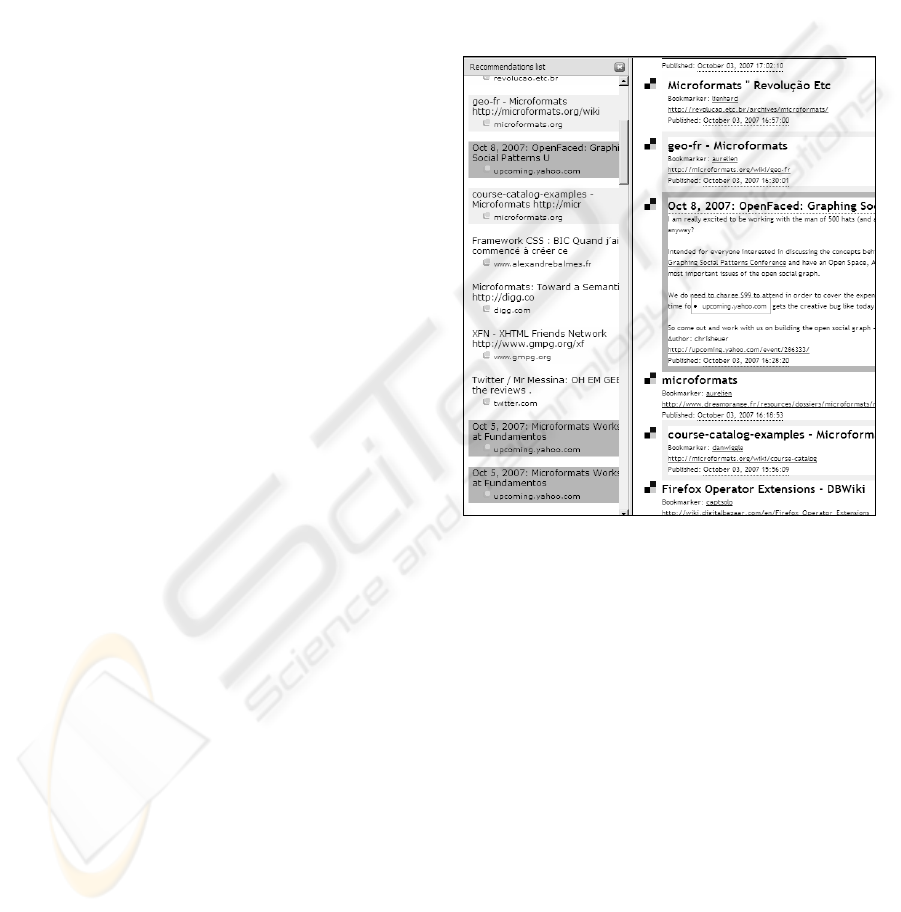

Then, it highlights these blocks, and attaches

tool-tips containing related preferred data – see

Figure 3.

The blocks are marked in the place where they

appear on the webpage, thus minimizing the

interference of the agent in the navigation process.

Figure 3: Highlighting the information of interest.

The results of such an activity are a decrease in

the user effort to parse large documents in search of

the interesting content, an increased efficiency in

discovering preferred content (blocks that would

have been missed otherwise can be emphasized

through the use of such a tool), and better semantic

comprehension in the process of discovering new

data on the web, provided by the permanent

connections between current data and previously

accessed information.

5 RELATED APPROACHES

5.1 Tools

We will briefly describe in the following some of the

tools that serve purposes related to this application:

MICROFORMATS BASED NAVIGATION ASSISTANT - A Non-intrusive Recommender Agent: Design and

Implementation

 Tails is a Firefox extension that collects

microformats from the web page and allows

users to execute miscellaneous actions through

the Tails scripts.

 Operator is a Firefox extension as well, that

brings as improvement the combination of the

microformats with other services aligned to the

social web: Del.icio.us, Flickr, Google Maps,

Google Calendar or Upcoming.org.

 Greasemonkey is a Firefox extension that allows

the execution of user scripts, offering – via

JavaScript programs like microformat-find-gm5

and XFN Viewer – support for microformats

extracting and processing.

 The Firefox browser considers, for future

versions, the detection and parsing of

microformats.

 Magpie (Domingue, Dzbor & Motta, 2004) is a

tool that proposes a semantic navigation by

detecting, from a web page, all the items

(words) that correspond to a user specified

ontology.

 WebIC represents a recommender system

which, using the words from the visited

documents, determines the user preferences and

helps the user achieve his goal by retrieving

similar documents containing similar content.

5.2 Websites

There are various websites that use microformats in

the generated markup, and their number is

continuously rising (the expansion of microformats

is facilitated by their fast assimilation by all web

developers with basic XHTML knowledge), thus

contributing to the success of microformats a source

of semantics for the web. A list of implementations

is online available – for example, Upcoming.org and

Last.fm which use hCalendar to mark events,

Yahoo! Tech and Cork’d use hReview for products

and services review, many social websites (including

Last.fm, LinkedIn, Flickr) use hCard to mark the

profiles of the users.

In this context we must also mention that there

are various tools dedicated to the microformats

authoring and publishing – from editors to content

management systems of blogs (for example,

WordPress) and wikis like XWiki (Dumitriu, Girdea

& Buraga, 2007; XWiki, 2008) –, thus widening the

set of possible microformatted content authors.

6 CONCLUSIONS

6.1 Contributions

One of the main goals of the microformats initiative

is to facilitate the machine access to the information

published by humans, to enable them to assist

humans in the web browsing process.

Although tools that use microformats have been

developed with the emergence of microformats, the

attempts have settled in extracting – manually or

semi-automated – the (meta)data marked through

microformats, leaving the comprehension and

semantic parsing to the human users. Our paper

takes a step further and tries to emphasize automated

semantic detection as the first usage of the semantic

markup, in the context of human computer

interaction.

Such an approach has real applicability in better

web browsing experience (by increasing efficacy),

information retrieval, products or services

recommendation, social networks recognition, user

assistance for various tasks and others.

6.2 Further Development

An important direction to follow is towards

collaborative recommending: the application can

automatically correlate two users based on the

detected browsing preferences, and can use these

correlations to improve its recommendations – using

collaborative filtering (Chakrabarti, 2003) or

association rules.

Also, the recommending principles presented in

this paper can be improved by elaborating superior

category building techniques (by taking into account

new properties or new similarity measures).

Since microformats are in continuous evolution

and new microformats proposal is open to the web

community, the specification of new structures that

would encapsulate new semantics represent a

possibility of improvement for the dedicated tools,

by offering access to data which is presently

“hidden” by the lack of appropriate markup.

By combining this type of instrument – that uses

exclusively microformats – with the applications

focused on the “classical” semantic web methods

and with standard text classification methods, we

can go further in the direction of processing all kind

of information on the web: practically, any page on

the web could be understood by the navigation

assistant, thus achieving one of the goals of the “new

web” – according to (

Khare & Celik, 2006) and

ICEIS 2008 - International Conference on Enterprise Information Systems

(

Shadbolt, Hall & Berners-Lee, 2006): the equality of

humans and machines as information consumers.

REFERENCES

Adomavicius, G., Tuzhilin, A., 2005. Toward the Next

Generation of Recommender Systems: A Survey of

the State-of-the-Art and Possible Extensions. IEEE

Transactions on Knowledge and Data Engineering,

17(6).

Allsopp, J., 2007. Microformats: Empowering Your

Markup for Web 2.0, Friends of ED.

Brian, D., 2006. The Definitive Guide to Berkeley DB

XML, APress.

Celik, T., Marks, K., 2004. Real World Semantics. ETech

Conference, O’Reilly.

Chakrabarti, S., 2003. Mining the Web – Discovering

Knowledge from Hypertext Data. Morgan Kaufmann.

Domingue, J.B., Dzbor, M., Motta, E, 2004. Collaborative

Semantic Web Browsing With Magpie. In

Proceedings of the First European Semantic Web

Symposium (ESWS), Lecture Notes in Computer

Science – LNCS 3053, Springer.

Dumitriu, S., Girdea, M., Buraga, S., 2007. Knowledge

Management in a Wiki Platform via Microformats. In

FLAIRS 2007 Conference Proceedings, AAAI Press.

Haine, P., 2006. HTML Mastery. Semantics, Standards,

and Styling. Apress.

Khare, R., Celik, T., 2006. Microformats: a Pragmatic

Path to Semantic Web. Proceedings of the 15th

International Conference on World Wide Web, ACM

Press.

Mitchell, T., 1997. Machine Learning, McGraw-Hill.

O’Reilly, T., 2005. What is Web 2.0 – Design Patterns

and Business Models for the Next Generation of

Software. O’Reilly.

Shadbolt, N., Hall, W., Berners-Lee, T., 2006. The

Semantic Web Revisited. IEEE Intelligent Systems,

3(21).

Suda, B., 2006. Using Microformats. O’Reilly Short Cuts.

Atom Specifications, 2008. http://www.atomenabled.org/.

Berkeley DB XML, 2008.

http://www.oracle.com/database/berkeleydb/xml.

Firefox Extensions, 2008. https://addons.mozilla.org/

firefox/extensions/.

Magpie, 2006.

http://kmi.open.ac.uk/projects/magpie/main.html.

Microformats Support in Firefox.

http://wiki.mozilla.org/Firefox/Feature

Brainstorming:Microformat Handling.

Saxon, 2008. http://saxon.sourceforge.net/.

Microformats Initiative, 2008. http://microformats.org/.

WebIC, 2007. http://www.web-ic.com/.

WordPress, 2008. http://www.wordpress.org/.

XWiki, 2008. http://www.xwiki.org/.

MICROFORMATS BASED NAVIGATION ASSISTANT - A Non-intrusive Recommender Agent: Design and

Implementation
