IMPLEMENTING CONTENT SHARING AND SESSION
HAND-OFF BETWEEN WEB BROWSERS
An Integration of SIP Stack into Mozilla Firefox Web Browser
Michael O. Adeyeye and Neco Ventura
Department of Electrical Engineering, University of Cape Town, Private Bag X3, Rondebosch 7701, South Africa
Keywords: Web Browser, Session Mobility, User Agent Client Architecture.
Abstract: A new idea referred to as HTTP (Hypertext Transfer Protocol) Mobility is introduced into web browsing. It
entails transferring existing web session between Web Browsers or User Agents. This HTTP mobility will
be achieved by extending present-day Web Browsers to support Session Initiation Protocol (SIP). Both
HTTP and SIP are application layer protocols in the OSI (Open System Interconnection) Layer Model. SIP
can be used to establish, modify and terminate multimedia sessions or calls. It has been chosen because it
has clearly defined session mobility types namely Third-party Call Control and Session Hand-off. This
paper identifies the modifications that will be made to the present-day Web Browsers Architectures and
exhaustively explains the implementation of HTTP Mobility with the aid of SIP Stack integration. The two
services that can be provided between two user agents during HTTP Mobility are Content Sharing and
Session Hand-off.
1 INTRODUCTION
Though HTTP can be made stateful (Kristol and
Montulli, 2000), session continuity between User
Agents has been achieved by varying approaches
resulting in the need for standardization. Session
Initiation Protocol (SIP) is a signalling protocol that
has been adopted for the IP Multimedia Subsystem
(IMS) by the 3rd Generation Partnership Project
(3GPP). It has been extended to provide instant
messaging and presence services through SIP Instant
Messaging and Presence Leveraging Extensions
(SIMPLE) (Campbell et al, 2002). The intention of
this research is to implement HTTP Session
Mobility based on SIP Mobility (Shacham, 2007).
Mozilla Firefox web browser will be used to
implement the client side of this research because it
is FOSS, has rich documentations on the internet and
a large community of contributors.
2 THE PROPOSED HTTP
SESSION MOBILITY SERVICE
In this research, HTTP session mobility using SIP
will be achieved by extending the capabilities of a
User Agent Client and implementing a SIP
Application Server which provides HTTP session
transfer or content sharing without violating
HTTP/1.1 security. This scheme is referred to as a
Hybrid-based Architectural Scheme whereby the
client and the proxy or application server are
modified and improvised respectively. This service
can be adapted to the 3G IMS because it also uses
SIP for signaling and communication with the
application server. The HTTP session transfer and
content sharing will be achieved using SIP Session
Hand-off and Third-party Call Control respectively.
Excerpt of HTTP messages can be sent in the form
of SIP instant messages.
3 DISCUSSIONS
3.1 The User Agent Client Architecture
Fig. 1 shows the modifications made to a User
Agent Client Architecture. The bold rectangular
boxes and the SIP stack represent parts of the
architecture that will be extended and a new feature
that will be integrated respectively. The Extension
found in HTML Manager represents the User
Interface (UI). When buttons on the UI are clicked,
278
O. Adeyeye M. and Ventura N. (2008).
IMPLEMENTING CONTENT SHARING AND SESSION HAND-OFF BETWEEN WEB BROWSERS - An Integration of SIP Stack into Mozilla Firefox
Web Browser.
In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 278-282
DOI: 10.5220/0001525302780282
Copyright
c
SciTePress

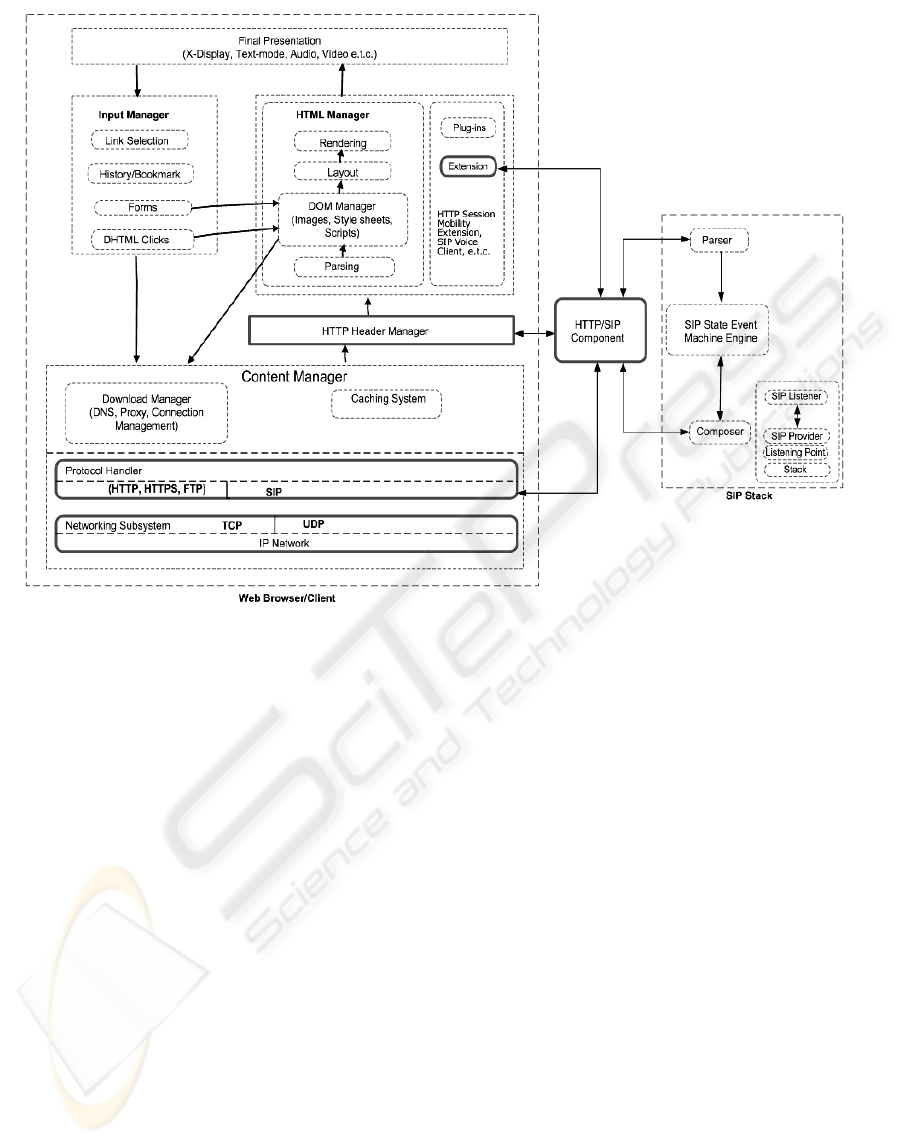

Figure 1: The User Agent Client Architecture.
they trigger events such as registering the client and
sending excerpt of the HTTP request/response
in form of SIP MESSAGE. It can be sent as a
session mode Instant Messaging (IM) (Campbell et
al, 2002) or a page mode IM. These processes take
place inside the HTTP/SIP Component block. SIP
transactions are handled by the SIP Stack and work
seamlessly with the HTTP/SIP Component which
helps in building the SIP messages. The HTTP
Header Manager is required to interact with the
HTTP/SIP Component by providing the HTTP
Request/Response excerpts. The Protocol Handler
implements new SIP protocol alongside with the
existing protocols such as HTTP and HTTPS. In the
same manner, the Networking Subsystem integrates
User Datagram Protocol (UDP) which is required
during the SIP transactions. The other blocks such as
Input Manager remain unmodified.
3.2 The Mozilla Firefox Extension
Fig. 2 shows the UI of the extension which is
currently under development. The two supported
services are Content Sharing and Session Transfer.
Content sharing refers to the process of sending
same Universal Resource Locator (URL) to another
User Agent. It does not require transferring session
objects like cookies or hidden elements between
User Agents. Session Transfer requires identifying
which mechanism has been used to make HTTP
stateful connection to a web server. It requires
transferring session objects like cookies, URL and in
some cases information in the entire HTTP
Response. When Session Transfer is performed, the
initiator loses stateful connection to the web server
and he will be required to log in again should he
want to continue.
Fig. 2 also shows the Preferences window where the
User Agent can be used in an IMS context or with a
SIP AS.
3.2.1 The Implementation and its Toolkits
These are customized User Agents in which
additional functionalities are provided such as
integrating SIP stack into them. It is required that the
excerpts of the HTTP request/response header are
sent in an XML format. There will be predefined
tags that wrap up information such as URL
(Universal Resource Locator), session ID or cookies
IMPLEMENTING CONTENT SHARING AND SESSION HAND-OFF BETWEEN WEB BROWSERS - An Integration
of SIP Stack into Mozilla Firefox Web Browser
279

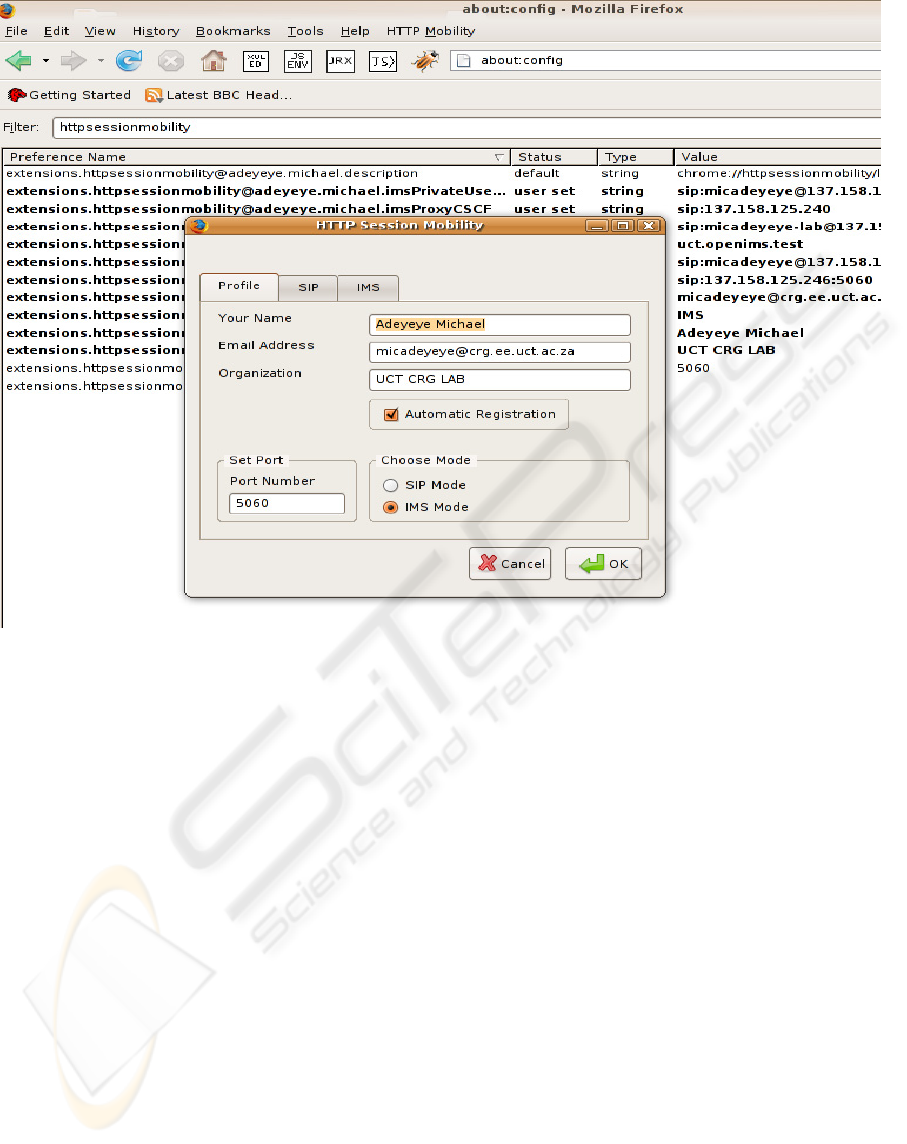

Figure 2: The Mozilla Firefox Extension.
information per request. The UAC is an extension to
existing web browsers. It will query the XML,
extract the relevant information and insert it into the
web browser where appropriate.
The proof of concept will be based on Mozilla
related technologies. The needed software is
classified as Free and Open Source Software
(FSOSS) and Mozilla Corporation™ has a large
community of developers and contributors that can
help in the implementation.
Some of the toolkits are Cross-Platform Component
Object Model (XPCOM), Cross-Platform Interface
Definition Language (XPIDL) and Cross-Platform
Front End (XPFE). Mozilla web browser Firefox has
over 600 components which were writing as
XPCOM and seamlessly integrated into it. XPCOM
makes it possible to write language-agnostic
components thereby separating the implementation
from the interface (David, 2002). Some of the
components required in this implementation are the
Preferences Manager (Components.classes
[‘mozilla.org/preferences-service;1’]), the
Authentication Component (Components.classes
[‘@mozilla.org/loginManager;1’]) and the Cookies
Component (Components.classes [‘Component
@mozilla.org/cookieService;1’]). Fig. 2 shows the
User Interface of the extension after installing on
Mozilla web browser Firefox. There are numerous
Application Program Interfaces (APIs) to help
integrate SIP stack into an application. Examples are
Osip, Exosip and reSIProcate. Recently, a Mozilla
based SIP Client called Zap (Zap, 2007) and Mozilla
thunderbird extension for telephony services called
Cockatoo (Cockatoo, 2007) integrated a SIP stack.
This project will leverage on these existing solutions
in order to prove the concept.
3.2.2 The Implementation Plan
Fig. 3 shows the flowchart of how this solution will
be implemented. Where a user has successfully
registered with the SIP AS and makes a request,
typically a session hand-off, the mechanism used in
making HTTP stateful has to be detected. There are
many ways of making HTTP stateful. These include
the use of session IDs or cookies, use of HTML
hidden fields and URL encoding (Hal, 2002). The
UAC and the SIP AS will have the intelligence to
WEBIST 2008 - International Conference on Web Information Systems and Technologies
280
detect what mechanism is used to make HTTP
stateful. This feature will help in determining what
excerpt of the HTTP header request needs to be
transferred. For example, cookies or session ID and
its associated URL can be encapsulated and sent
between two UACs. Since web applications can
implement more than one of these mechanisms, it
will be ideal to search for all relevant information
such as cookies, HTML hidden fields and transfer all
with the entire URL via SIP MESSAGE.

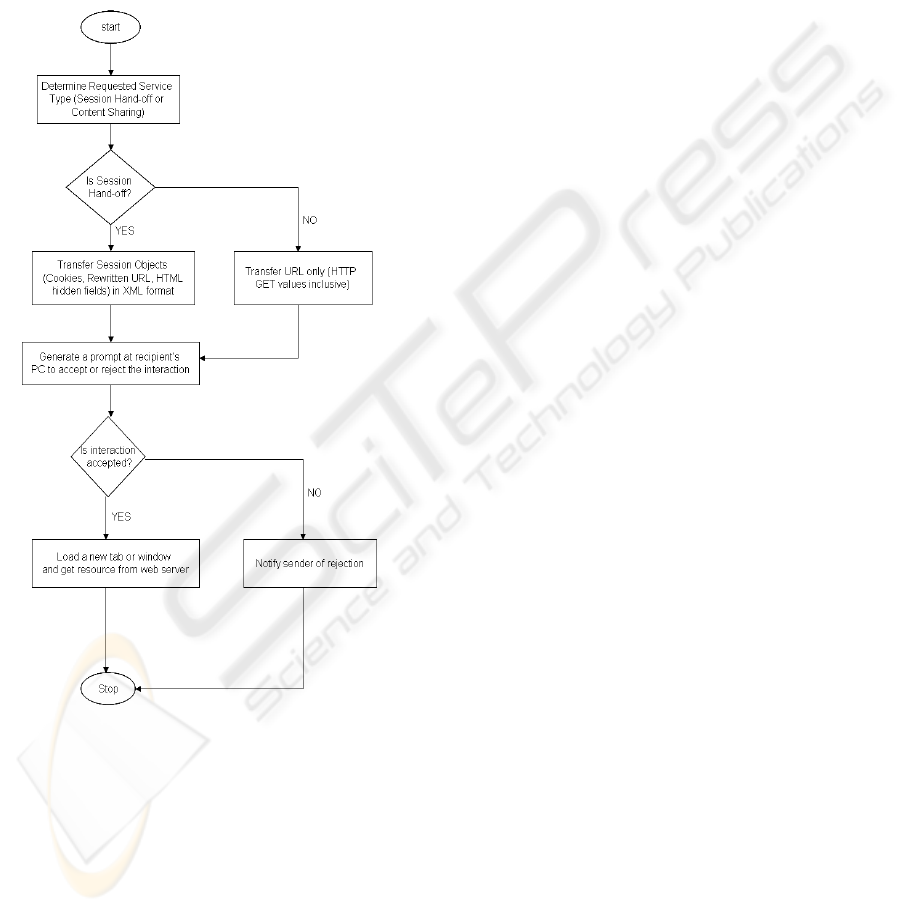

Figure 3: Flowchart of Content Sharing and Session Hand-
off.
Fig. 4 shows the XML document format as message
carrier. A native code in JavaScript or C++ will be
written to extract necessary information from the
message carrier and pass to the appropriate XPCOM
in the browser. The built-in XML parser in Mozilla
Firefox Web Browser can also be used to extract the
necessary information from the message carrier. In
addition to detecting what mechanism is used,
another open problem is how session transfer can be
achieved when accessing a secured website that
implements security measures like SSL. Though
SSL works between the Application Layer and the
Transport Layer of the OSI Layer Model and helps
encrypt data before transmission, there would be
need to use a protocol such as TLS to encrypt data
transferred between two UACs whenever it is
discovered that SSL is used on a website whose
content is about to be shared or handed-off. SIP
supports most of the security features available in
HTTP such as TLS, SMIME and SSL. Logically, it
can be assumed that there will not be a problem
since the extension works at the Application Layer
where raw HTTP Header Request and Response are
formed and transferred.
<xml version = “1.0”>
<http-session>
<encodedURL>http://www.adinterax.com/request
.php</encodedURL>
<cookies>
<cookie_name>adxf</cookie_name>
<cookie_content>80047@1@799.98629@817.80072@
1@804.98706@7@817.8258@</cookie_value>
<cookie_domain>.adinterax.com</cookie_domain
>
<cookie_path>/</cookie_path>
<cookie_sendFor>Any type of
connection</cookie_sendFor>
<cookie_expires>30/12/15
17:01:16</cookie_expires>
</cookies>
<hiddenElement>
<element_name>categories</element_name>
<element_value>Microsoft</element_value>
<element_size>15</element_size>
<hiddenElement>
</http-session>
Figure 4: Message Carrier in XML format.
4 CONCLUSIONS
In this paper, only the client-side implementation
strategies have been discussed. Also effort has been
made to reduce assumptions that could make the
paper vague and doubtful of its implementation. It is
expected that many built-in interfaces/components
of Mozilla Firefox Browser will be used. These
include nsIPromptservice interface which will be
used in creating prompt messages for users,
nsIDOMDocument interface which will be used in
tracing HTML Hidden fields and XBL (XML
Binding Language) which will be used in
automatically launching new tabs when an
acceptance of Content Sharing or Session Hand-off
request is made by clicking OK button of a prompt
message.
IMPLEMENTING CONTENT SHARING AND SESSION HAND-OFF BETWEEN WEB BROWSERS - An Integration
of SIP Stack into Mozilla Firefox Web Browser
281
How Content-Sharing and Session Hand-off are
mapped to Third Party Call Control and Session
Hand-off SIP mobility types respectively has been
discussed in another paper owing to restriction in the
number of pages of this paper. This is a research
work in-progress which aims at developing an
extension with a SIP stack for a web browser and a
SIP Application Server in order to achieve Content
Sharing and Session Hand-off. At present, effort is
on integrating a SIP stack into the User Agent or
Web Browser (Mozilla Firefox). Both of them are
two autonomous applications and their integration
requires an API that provides another abstraction of
the SIP Stack so that the web browser can interact
with it. The SIP Stack already provides a layer of
abstraction by hiding the daunting task of composing
SIP messages from scratch but making it possible to
generate the SIP messages through simple
procedural or object-oriented programming.
REFERENCES
D. Kristol, L. Montulli, 2000. “HTTP State Management
Mechanism,” IETF RFC 2109.
B. Campbell, J. Rosenberg, H. Schulzrinne, C. Huitema,
D. Gurle, 2002. “Session Initiation Protocol (SIP)
Extension for Instant Messaging,” IETF RFC 3428.
R. Shacham, H. Schulzrinne, S. Thakolsri, W. Kellerer,
2007. “Session Initiation Protocol (SIP) Session
Mobility,” Internet-Draft.
B. Campbell, R. Mahy, C. Jennings, 2007. “The Message
Sessions Relay Protocol (MSRP),” Internet-Draft.
David Boswell, Brian King, Ian Oeschger, Pete Collins,
Eric Murphy, 2002. Creating Applications with
Mozilla, O’Reilly Press, USA, First Edition.
Mozilla based Sip Client “Zap”, 2007. http://
www.croczilla.com/zap.
Mozilla based Telephony Extension “Cockatoo”, 2007.
http://cockatoo.mozdev.org.
Hal Berghel, 2002. “Hijacking the Web,”
Communications of the ACM, Vol. 45 No. 4.
WEBIST 2008 - International Conference on Web Information Systems and Technologies
282
