LOW-LEVEL FUSION OF AUDIO AND VIDEO FEATURE

FOR MULTI-MODAL EMOTION RECOGNITION

Matthias Wimmer

Perceptual Computing Lab, Faculty of Science and Engineering, Waseda University, Tokyo, Japan

Bj¨orn Schuller, Dejan Arsic, Gerhard Rigoll

Institute for Human-Machine Communication, Technische Universit¨at M¨unchen, Germany

Bernd Radig

Chair for Image Understanding, Technische Universit¨at M¨unchen, Germany

Keywords:

Emotion Recognition, Audio-visual Processing, Multi-modal Fusion.

Abstract:

Bimodal emotion recognition through audiovisual feature fusion has been shown superior over each individual

modality in the past. Still, synchronization of the two streams is a challenge, as many vision approaches work

on a frame basis opposing audio turn- or chunk-basis. Therefore, late fusion schemes such as simple logic or

voting strategies are commonly used for the overall estimation of underlying affect. However, early fusion is

known to be more effective in many other multimodal recognition tasks.

We therefore suggest a combined analysis by descriptive statistics of audio and video Low-Level-Descriptors

for subsequent static SVM Classiﬁcation. This strategy also allows for a combined feature-space optimization

which will be discussed herein. The high effectiveness of this approach is shown on a database of 11.5h

containing six emotional situations in an airplane scenario.

1 INTRODUCTION

Automatic recognitionof human emotion has recently

grown an important factor in multimodal human-

machine interfaces and further applications. It seems

commonly agreed that a fusion of several input cues is

advantageous, yet most efforts are spent on uni-modal

approaches (Pantic and Rothkrantz, 2003). The main

problem remains synchronization and synergistic fu-

sion of the streams. This comes, as speech is mostly

processed at turn-level while vision-based emotion

or behavior modeling mostly operates at a constant

frame or macro-frame-basis. In speech processing,

a turn denotes an entire phrase or a similar contigu-

ous part of the audio stream. (Schuller and Rigoll,

2006) shows that the analysis of speech at such a

constant rate is less reliable. For this reason, vision

and audio results are mostly synchronized by late fu-

sion, e.g. majority voting, to map frame results to a

turn-level-based interpretation. Likewise, most works

unite audio and video in a late semantic fusion.

As addressed in this paper, early feature fusion is

known to provide many advantages, such as keeping

all knowledge for the ﬁnal decision process and the

ability of a combined feature-space optimization. We

therefore suggest to statistically analyzing multivari-

ate time-series as used in speech emotion recognition

for a combined processing of video-based and audio-

based low-level descriptors (LLDs). This approach

represents early feature fusion, which promises to ex-

ploit more semantical information from the given data

and thus provides more accurate results. The paper is

structured as follows: Section 2 and Section 3 explain

the acquisition of LLDs for video and audio. Sec-

tion 4 describes the functional-based analysis and the

optimization of the combined feature space. Section 5

introduces the evaluation data and elaborates on our

experiments conducted. Summary and outlook is ﬁ-

nally given in Section 6.

145

Wimmer M., Schuller B., Arsic D., Rigoll G. and Radig B. (2008).

LOW-LEVEL FUSION OF AUDIO AND VIDEO FEATURE FOR MULTI-MODAL EMOTION RECOGNITION.

In Proceedings of the Third International Conference on Computer Vision Theory and Applications, pages 145-151

DOI: 10.5220/0001082801450151

 SciTePress

2 VIDEO LOW-LEVEL

DESCRIPTORS

Model-based image interpretation exploits a priori

knowledge about objects, such as the shape or the

texture of a human face. Therefore, these techniques

serve as a good workhorse for extracting the vision-

based LLDs from our emotion recognition system,

see Figure 1. They reduce the large amount of im-

age data to a small set of model parameters, which fa-

cilitates and accelerates image interpretation. Model

ﬁtting is the computational challenge of ﬁnding the

model parameterization that best describe a given im-

age. Our system consists of six components that are

common parts of model-based image interpretation:

the model itself, the localization algorithm, the skin

color extraction, the objective function, the ﬁtting al-

gorithm, and the extraction of the video-based LLDs.

The Model. Contains a parameter vector p that repre-

sents the possible conﬁgurations of the model, such as

position, orientation, scaling, and deformation. They

are mapped onto the surface of an image via a set of

feature points, a contour, a textured region, etc. Re-

ferring to (Edwards et al., 1998), deformable models

are highly suitable for analyzing human faces with all

their individual variations. Our approach makes use

of a statistics-based deformable model, as introduced

by (Cootes and Taylor, 1992). The model param-

eters p = (t

, t

, s, θ, b)

contain the translation, the

scaling factor, the rotation, and a vector of deforma-

tion parameters b = (b

, ..., b

)

. The latter compo-

nent describes the facial pose, opening of the mouth,

roundness of the eyes, raising of the eye brows, etc.,

see Figure 3. In this work, we set m = 17 in order to

cover all necessary modes of variation.

The Localization Algorithm. Automatically starts

the interpretation process in case the intended object

is visible. It computes an initial estimate of the model

parameters that is further reﬁned by the subsequent

ﬁtting algorithm. Our system integrates the approach

of (Viola and Jones, 2004), which is able to detect the

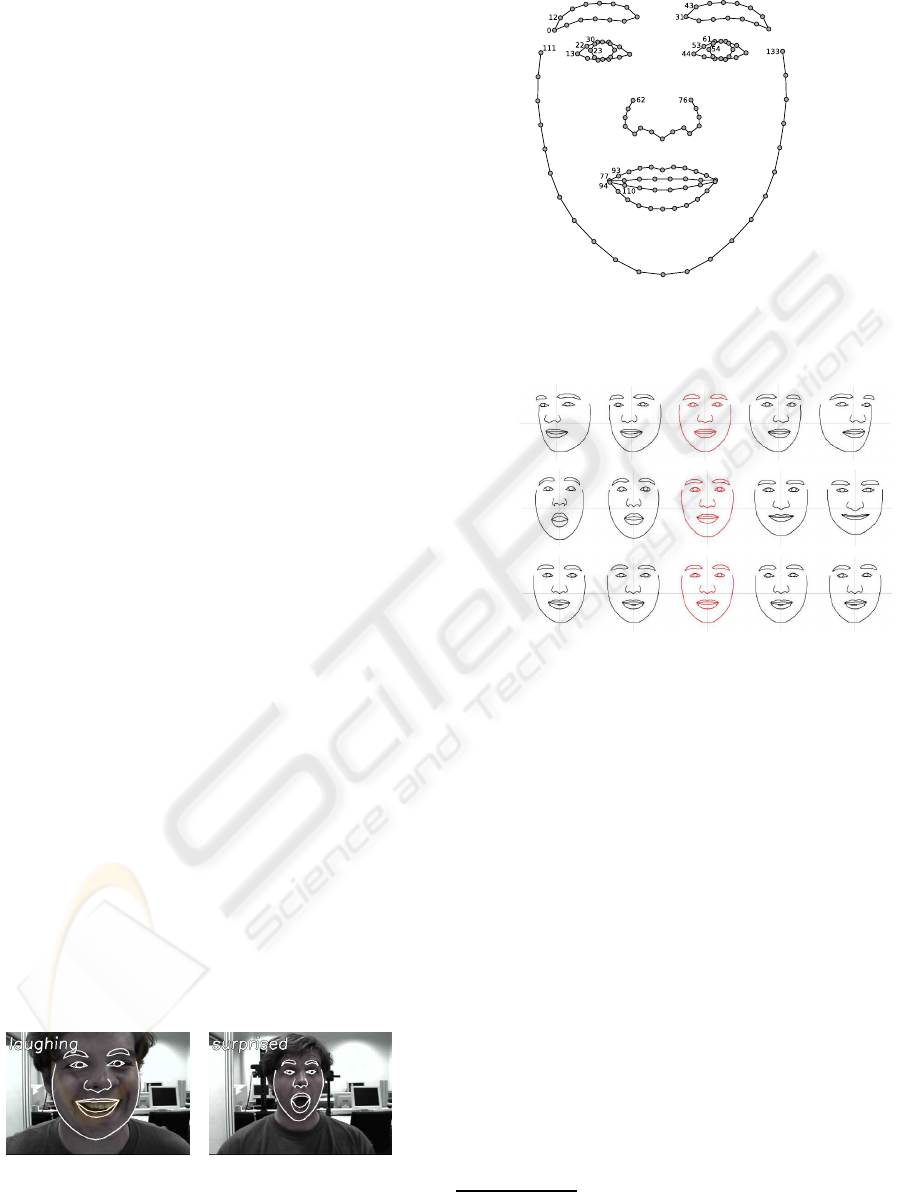

Figure 1: Model-based techniques greatly support the task

of facial expression interpretation. The parameters of a de-

formable model give evidence about the currently visible

state of the face.

Figure 2: Our deformable model of a human face consists

of 134 contour points and represents the major facial com-

ponents.

Figure 3: Changing individual model parameters yields

highly semantic facial deformation. Top-most row: b

af-

fects the orientation of the head. Center row: b

opens the

mouth. Lower-most row: b

moves pupils accordingly.

afﬁne transformation parameters (t

, t

, s, and θ) of

our 2D face model in case the image shows a frontal

view face.

We also integrated the ability to roughly estimate

the deformation parameters b to obtain higher accu-

racy. For this reason, we apply a second iteration of

the Viola and Jones object detector to the previously

determined image region that contains the face. We

speciﬁcally learned the algorithm to localize the fa-

cial parts, such as eyes and mouth, within this iter-

ation. In the case of the eyes, our positive training

images show the eye region only, whereas the nega-

tive training images contain the vicinity of the eyes,

such as the cheek, the nose, or the brows. Note that

the resulting eye detector

is not able to extract the

eyes from a complex image, because most content of

these images was not part of the training data. How-

Our system integrates object detectors for several facial

parts. We make them accessible at the following web page:

www9.in.tum.de/people/wimmerm/se/project.eyeﬁnder

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

146

ever, the it is highly appropriate to determine the lo-

cation of the eyes given a pure face image or a face

region within a complex image. To some extent, this

approach is similar to the Pictoral Structures, Felzen-

szwalb et al. (Felzenszwalb and Huttenlocher, 2000)

elaborate on, because we also deﬁne a tree-like struc-

ture where a superordinate element (face) contains the

subordinate elements (eyes, mouth, etc.) and where a

geometric relation between these elements is given.

Skin Color Extraction. Acquires reliable informa-

tion about the face and the facial components, as

opposed to pixel values. It gives evidence about

the location and the contour lines of skin colored

parts, on which subsequent steps rely. Unfortunately,

skin color varies with the scenery, the person, and

the technical equipment, which challenges the auto-

matic detection. As in our previous work (Wimmer

et al., 2006), a high level vision module determines

an image-speciﬁc skin color model, on which the ac-

tual process of skin color classiﬁcation bases. This

color model represents the context conditions of the

image and dynamic skin color classiﬁers adapt to it.

Therefore, our approach facilitates to distinguish skin

color from very similar color, such as lip color or eye-

brow color, see Figure 4. Our approach makes use

of this concept, because it clearly extracts the borders

the skin regions and subsequent steps ﬁt the contour

model to these borders with high accuracy.

The Objective Function. f(I, p) yields a compara-

ble value that speciﬁes how accurately a parameter-

ized model p matches an image I. It is also known as

the likelihood, similarity, energy, cost, goodness, or

quality function. Without losing generality, we con-

sider lower values to denote a better model ﬁt. Tra-

ditionally, objective functions are manually speciﬁed

by ﬁrst selecting a small number of simple image fea-

tures, such as edges or corners, and then formulating

mathematical calculation rules. Afterwards, the ap-

propriateness is subjectively determined by inspect-

ing the result on example images and example model

parameterizations. If the result is not satisfactory the

function is tuned or redesigned from scratch. This

heuristic approach relies on the designer’s intuition

about a good measure of ﬁtness. Our earlier publica-

tions (Wimmer et al., 2007b; Wimmer et al., 2007a)

show that this methodology is erroneous and tedious.

To avoid this, we propose to learn the objective

function from annotated example images. Our ap-

proach splits up the generation of the objective func-

tion into several independent steps that are mostly

automated. This provides several beneﬁts: ﬁrst, au-

tomated steps replace the labor-intensive design of

the objective function. Second, this approach is less

Sequence 4 s: 64% b: 50% s: 67% b: 99%

Sequence 6 s: 100% b: 11% s: 89% b: 100%

Sequence 8 s: 89% b: 11% s: 87% b: 99%

Sequence 11 s: 37% b: 98% s: 69% b: 100%

Sequence 15 s: 100% b: 11% s: 84% b: 94%

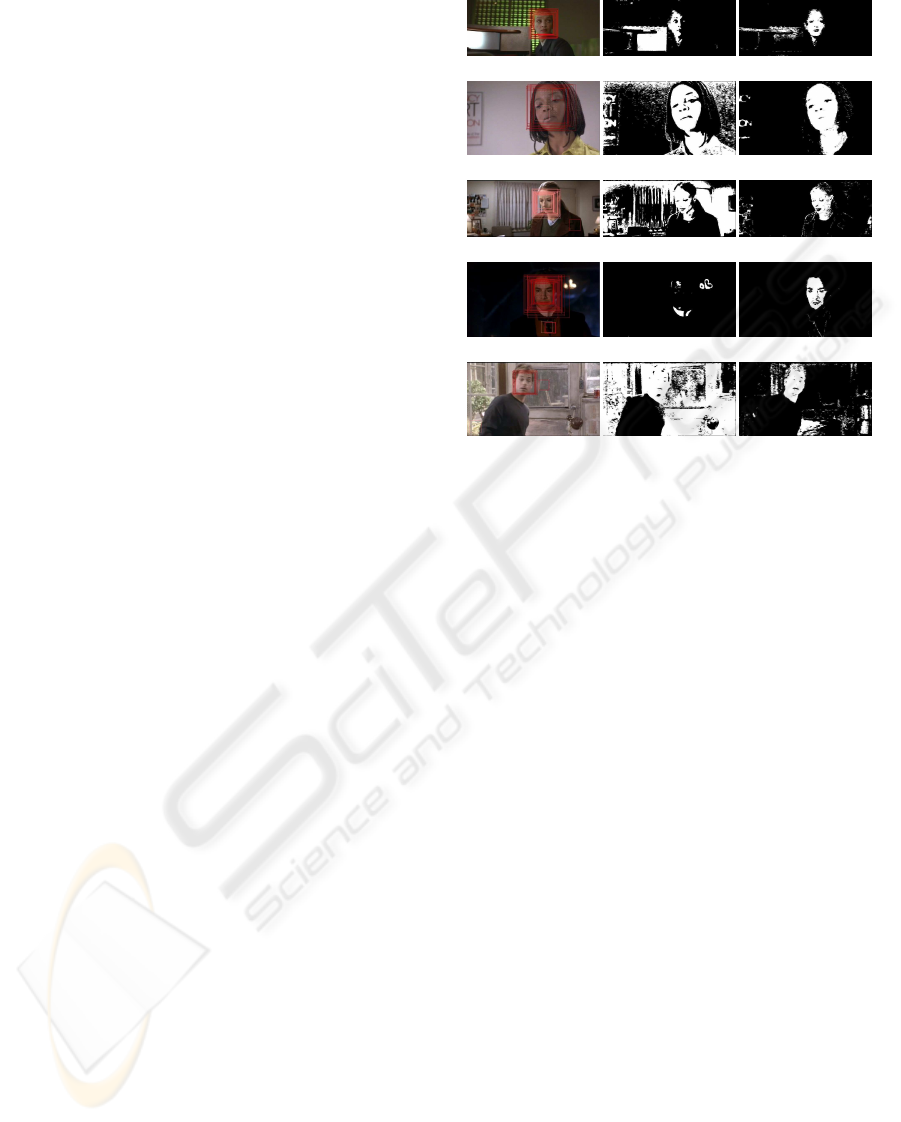

Figure 4: Deriving skin color from the camera image (left)

using the non-adaptive classiﬁer (center) and adapting the

classiﬁer to the person and to the context (right). The num-

bers indicate the percentage of correctly identifying skin

color (s) and the background (b). These images have been

extracted from some image sequences of the Boston Uni-

versity Skin Color Database (Sigal et al., 2000).

error-prone, because giving examples of good ﬁt is

much easier than explicitly specifying rules that need

to cover all examples. Third, this approach does not

need any expert knowledge and therefore, it is gener-

ally applicable and not domain-dependent. The bot-

tom line is that this approach yields more robust and

accurate objective functions, which greatly facilitate

the task of the ﬁtting algorithms. For a detailed de-

scription of our approach, we refer to (Wimmer et al.,

2007b)

The Fitting Algorithm. Searches for the model that

best describes the face visible in the image. There-

fore, it needs to ﬁnd the model parameters that min-

imize the objective function. Fitting algorithms have

been the subject of intensive research and evaluation,

e.g. Simulated Annealing, Genetic Algorithms, Parti-

cle Filtering, RANSAC, CONDENSATION, and CCD.

We refer to (Hanek, 2004) for a recent overview and

categorization. Since we adapt the objective function

rather than the ﬁtting algorithm to the speciﬁcs of the

face interpretation scenario, we are able to use any of

these standard ﬁtting algorithms.

Emotion interpretation applications mostly re-

quire real-time capabilities, our experiments in Sec-

tion 5 have been conducted with a quick hill climb-

LOW-LEVEL FUSION OF AUDIO AND VIDEO FEATURE FOR MULTI-MODAL EMOTION RECOGNITION

147

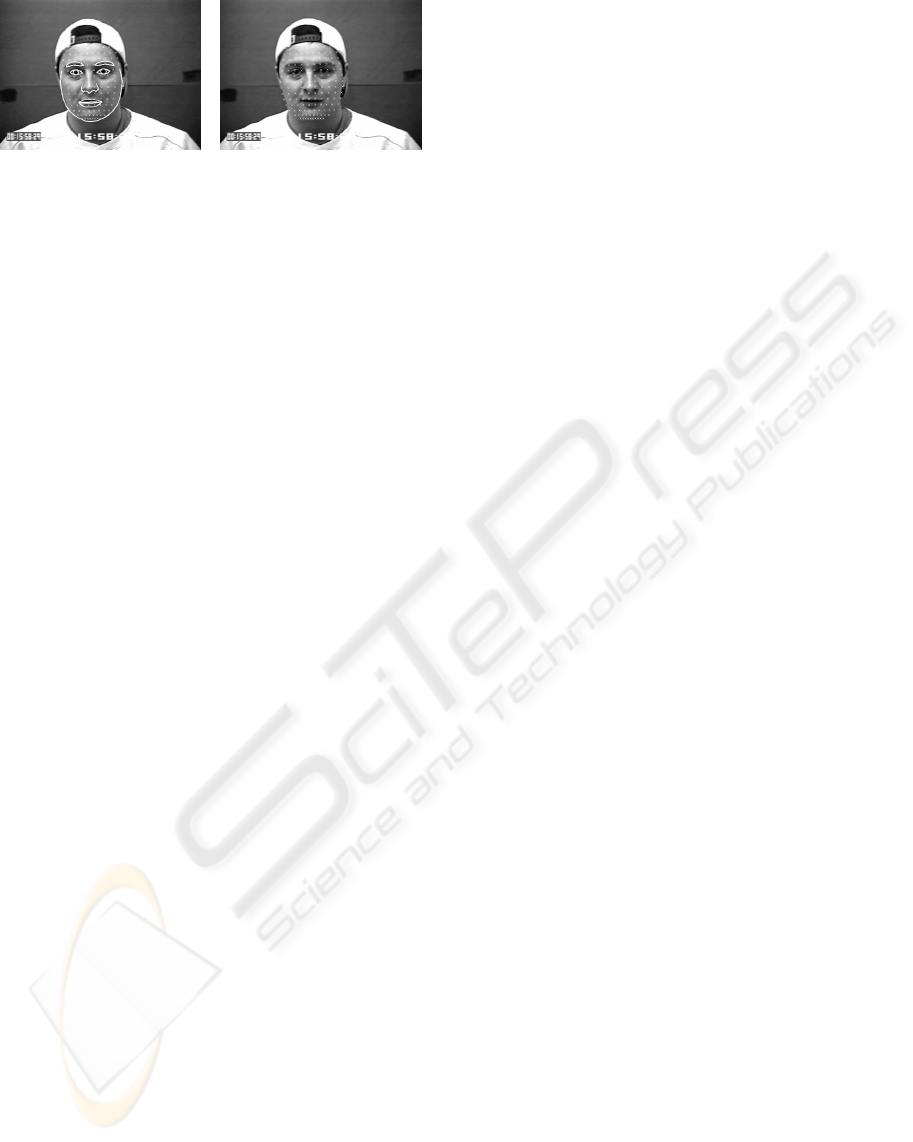

Figure 5: Model-based image interpretation for facial ex-

pression recognition: Fitting a deformable face model to

images and inferring different facial expressions by taking

structural and temporal image features into account.

ing algorithm. Note that the reasonable speciﬁcation

of the objective function makes this local optimiza-

tion method nearly as accurate as global optimization

strategies.

The Extraction of Vision LLDs. Infers information

that is descriptive for facial expressions considering

the content of the current image and the entire im-

age sequence as well as the model parameters. Two

aspects characterize facial expressions: ﬁrst, they turn

the face into a distinctive state (Littlewort et al., 2002)

and second, the involved muscles show a distinctive

motion (Schweiger et al., 2004; Michel and Kaliouby,

2003). Our approach considers either aspect by ex-

tracting both structural and temporal features. This

large amount of feature data provides a fundamen-

tal basis for the subsequent sensor fusion step and,

in turn, for recognizing human emotion.

Structural features: The deformation parame-

ters b describe the constitution of the visible face. The

examples in Figure 3 illustrates the relation between

the facial expression and the components of b. Since

it provides structural information, we consider b for

the interpretation process. In contrast, the afﬁne trans-

formation parameters t

, t

, s, and θ do not give evi-

dence about the facial expression. They represent the

position and orientation of the face model instead and

therefore, we do not consider them as features for the

interpretation process.

Temporal features: Facial expressions also

emerge from muscle activity and therefore, the mo-

tion of particular feature points within the face is de-

scriptive as well. Again, real-time capability is im-

portant and therefore, a moderate number of feature

points within the area of the face model is consid-

ered only. The relative location of these points is

connected to the structure of the face model. Note

that we do not specify these locations manually, be-

cause this assumes a good experience of the designer

in analyzing facial expressions. In contrast, we au-

tomatically generate a moderate number of G feature

points that are equally distributed, see Figure 5. We

expect these points to move uniquely and predictably

in the case of a particular facial expression. As low-

level features, we sum up the motion g

x,i

and g

y,i

each point 1 ≤ i ≤ G during a short time period. We

set this period to 2 seconds to cover slowly expressed

emotions as well. The motion of the feature points

is normalized by the afﬁne transformation of the en-

tire face (t

, t

, s, and θ) in order to separate the facial

motion from the rigid head motion.

= (b

, ..., b

, g

x,1

, g

y,1

, ..., g

x,140

, g

y,140

)

(1)

The vision-based LLD feature vector t

describes

the currently visible face and it is assembled from the

structural and the temporal features mentioned. The

time series T

is constructed from a sequence of t

sampled at frame rate. It is established for a certain

amount of time which is determined by speech pro-

cessing.

3 AUDIO LOW-LEVEL

DESCRIPTORS

In our former publication (Schuller et al., 2005),

we compared static and dynamic feature sets for the

prosodic analysis and demonstrated the higher perfor-

mance of derived static features by multivariate time-

series analysis. As an optimal set of such global fea-

tures is broadly discussed by (Pantic and Rothkrantz,

2003), we consider an initially large set of 38 audio-

based LLDs, which cannot all be described in detail,

here. However, the target is to become utmost in-

dependent of the spoken content and ideally also of

the speaker, but model the underlying emotion with

respect to prosodic, articulatory and voice quality as-

pects. The feature basis is formed by the raw contours

of zero crossing rate (ZCR), pitch, ﬁrst seven for-

mants, energy, spectral development, and Harmonics-

to-Noise-Ratio (HNR). Duration-based features rely

on common bi-state dynamic energy threshold seg-

mentation and voicing probability.

In order to calculate the according low-level de-

scriptors, we analyze 20 ms frames of the speech

signal every 10 ms using a Hamming window func-

tion. Pitch is detected by the auto correlation func-

tion (ACF) with window compensation and dynamic

programming (DP) for global error minimization.

HNR also relies on the ACF. The values of energy re-

semble the logarithmic mean energy within a frame.

Formants base on 18-point LPC spectrum and DP. We

use their position and bandwidth, herein. For spec-

tral development we use 15 MFCC coefﬁcients and

a FFT-spectrum out of which we calculate spectral

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

148

Table 1: Distribution of acoustic features.

Type Pitch Energy Duration Formant HNR MFCC FFT ZCR

[#] 12 11 5 105 3 120 17 3

ﬂux, Centroid and 95%-roll-off-point after dB(A)-

correction according to human perception. Low-pass

SMA ﬁltering smoothes the raw contours prior to the

statistical analysis. First and second order regression

coefﬁcients are subsequently calculated for selected

LLDs resulting in a total of 88 features.

These low-level descriptors are combined to the

audio-based feature vector t

. Again, the time se-

ries T

is constructed from sampling t

over a certain

amount of time.

4 EMOTION CLASSIFICATION

The preceding sections shows the extraction of raw

audio and video low-level descriptors. Here, we de-

scribe the fusion of these features in our early fusion

approach.

4.1 Combining Audio and Video

Descriptors

As stated in Section 3, these LLDs can be directly

processed by dynamic modeling as Hidden Markov

Models (HMM) or Dynamic Bayesian Nets (DBN).

Yet, streams usually need to be synchronized for

this purpose. We therefore prefer the application

of functionals f to the combined low-level descrip-

tors T

=[T

, T

] in order to obtain a feature vec-

tor x ∈ R

, see Equation 2. As opposed to the time-

series data, this feature vector is of constant dimen-

sion d, which allows for an analysis with standardized

techniques.

f : T

→ x (2)

The higher-level features are likewise derived by

means of descriptive statistical analysis as linear mo-

ments, extremes, ranges, quartiles, or durations, and

normalized. Overall the ﬁnal per-turn feature vec-

tor consists of 276 audio features, see Table 1, and

1,048 video features.

This feature vector x is now classiﬁed by use

of Support Vector Machines (SVM) with polynomial

Kernel and a couple-wise multi-class discrimination

strategy.

4.2 Optimizing Feature Space

Apart from the choice of an optimal classiﬁer, selec-

tion of the most relevant features is important as well.

It saves computation time considering real-time pro-

cessing and boosts performance as some classiﬁers

are susceptible to high dimensionality. We chose Se-

quential Forward Floating Search (SFFS) with SVM

as wrapper to employ classiﬁcation error as optimiza-

tion criterion and avoid NP-hard exhaustive search

recommended in (Schuller et al., 2005). A set is like-

wise optimized rather than ﬁnding single attributes

of high relevance. As an audiovisual super vector

is constructed, we can select features in one pass to

point out the importance of audio and video features,

each. The optimal number of features is determined

in accordance to the highest accuracy throughout se-

lection.

5 EXPERIMENTAL EVALUATION

This section describes the evaluation conducted upon

the system introduced. Since there is no sufﬁcient

public data for our purpose, we acquired a sufﬁcient

data base by our own.

5.1 Airplane Behavior Corpus

As public audiovisual emotion data is sparse, we de-

cided to record a database, which is crafted for our

special target application of public transport surveil-

lance. To obtain data in equivalent conditions of sev-

eral subjects of diverse classes we decided for acted

behavior, see Table 2. There is a broad discussion

in the community with respect to acted vs. sponta-

neous data, which we will not address herein. How-

ever,it is believed, that mood induction proceduresfa-

vor realism in behavior. Therefore a script was used,

which leads the subjects through a guided storyline

by automatically played prerecorded announcements.

Table 2: Distribution of behaviors, database ABC.

aggressive

cheerful

intoxicated

nervous

neutral

tired

TOTAL

[#] 87 100 31 70 68 40 396

LOW-LEVEL FUSION OF AUDIO AND VIDEO FEATURE FOR MULTI-MODAL EMOTION RECOGNITION

149

The framework is a vacation ﬂight with return ﬂight,

consisting of 13 and 10 scenes respectively, such as

takeoff, serving of wrong food, turbulences, falling

asleep, conversation with a neighbor, or touch-down.

The setup is an airplane seat for the subject in front of

a blue screen. A camera and a condenser microphone

were ﬁxed without occlusions of the subject.

In the acquizition phase, 8 subjects in gender-

balance from 25 years to 48 years with a mean of

32 years took part. A total of 11.5 hours of video

was recorded, pre-segmented, and annotated by 3 ex-

perienced labelers independently with a closed set as

seen in Table 3. This segmentation process yields a

total of 396 clips that contain both emotional audio

and video data with an average length of 8.4 seconds.

This table also shows the ﬁnal distribution with to-

tal inter-labeler-agreement. This set is referenced as

ABC (Airplane Behavior Corpus).

5.2 Experiments

We use j-fold stratiﬁed cross validation (SCV), be-

cause it allows for testing and disjunctive training on

the whole corpus available. Table 3 shows individual

class-wise f

-measures for each feature stream and

optimization with respect to combined and individual

strategy. Most confusions occur between nervous and

neutral, and intoxicated and cheerful behavior. Note

that intoxicated behavior is a complex behavior, as it

can be aggressive as well as joyful.

Table 4 summarizes the results: Features are

ﬁrstly selected by SVM-SFFS as described in Sec-

tion 4.2, separately for audio and video as a pre-

selection step to keep computation effort in reason-

able limits. Subsequently, the combinedset is reduced

by another SVM-SFFS selection. As can be seen au-

dio standalone is superior to video standalone. How-

ever, a remarkable overall gain is observed for the fu-

sion of these two sources. Table 3 illustrates the con-

fusion of our classiﬁcation scheme with respect to the

different emotional states. These results clearly show

the superiority of the combined audiovisual approach.

According to the description in Section 4.2, we

further reduce the total number of features by the

combined feature selection. Table 4 shows that this

also leads to overall higher accuracy, and the com-

bined time-series-analysis approach to audiovisual

behavior modeling proved highly promising.

6 SUMMARY AND OUTLOOK

Former publications show both that early sensor fu-

sion is advantageous over late fusion and that the in-

Table 3: Behavior confusions and f

-measures by use of

SVM in a 10-fold SCV, optimized audiovisual feature set,

database ABC.

ground truth

aggressive

cheerful

intoxicated

nervous

neutral

tired

[#] f

[%]

aggressive 83 1 0 1 2 0 87 91.7

cheerful 6 87 1 3 2 1 100 82.9

intoxicated 0 8 19 1 3 0 31 73.1

nervous 2 5 0 49 13 1 70 73.7

neutral 2 8 0 4 52 2 68 74.3

tired 1 1 1 5 0 32 40 84.2

tegration of audio and video information greatly sup-

ports emotion recognition. However, previous ap-

proaches mostly apply late sensor fusion to this ap-

plication because of the obstacles that these different

types of sensor information pose.

The presented approach integrates state-of-the-art

techniques in order to acquire a large range of both

audio and video low-level features at frame rate. It

applies well-known functionals to obtain representa-

tive and robust feature set for emotion classiﬁcation.

Our experiments show that this combined feature set

is superior over the individual audio or video feature

set. Furthermore, we conduct feature selection that

again indicates that the combination outperforms the

stand-alone approaches.

We are currently conducting explicit comparison

to late fusion approaches that empirically prove our

statements. In future work, we aim at testing our ap-

proach on further data sets and in-depth feature anal-

ysis. We will also investigate the accuracy and run-

time performance of asynchronous feature fusion and

the application of hierarchical functionals. Further-

more, we intend to dynamically model the emotional

expression on a meta basis including both video and

audio aspects.

ACKNOWLEDGEMENTS

This research is partly funded by a JSPS Postdoc-

toral Fellowship for North American and European

Researchers (FY2007).

It has been jointly conducted by the Perceptual

Computing Lab of Prof. Tetsunori Kobayashi at

Waseda University, the Chair for Image Understand-

ing at the Technische Universit¨at M¨unchen, and the

Institute for Human-Machine Communication at the

Technische Universit¨at M¨unchen.

VISAPP 2008 - International Conference on Computer Vision Theory and Applications

150

Table 4: Behavior confusions and f

-measures by use of SVM in a 10-fold SCV, optimized audiovisual feature set.

database ABC dim [#]

aggressive

cheerful

intoxicated

nervous

neutral

tired

RR [%] CL [%] F

[%]

audio 276 87.3 65.7 52.6 63.1 61.0 76.3 69.4 66.9 68.1

audio opt. 92 90.4 71.4 40.0 66.7 70.4 81.1 73.7 68.8 71.2

video 1048 55.4 62.1 37.7 51.4 41.5 44.2 51.8 48.2 49.9

video opt. 156 59.4 65.3 47.5 65.2 60.2 58.8 61.1 58.4 59.7

av 1324 85.9 72.1 47.3 67.2 62.9 74.7 71.2 67.5 69.3

av ind. opt. 248 90.6 80.0 61.0 71.8 65.1 81.0 77.3 74.6 75.9

av comb. opt. 200 91.6 81.0 71.2 80.6 73.8 85.3 81.8 79.8 80.8

REFERENCES

Cootes, T. F. and Taylor, C. J. (1992). Active shape models

– smart snakes. In Proc. of the 3

British Machine

Vision Conference 1992, pages 266 – 275. Springer

Verlag.

Edwards, G. J., Cootes, T. F., and Taylor, C. J. (1998).

Face recognition using active appearance models. In

Burkhardt, H. and Neumann, B., editors, 5

Euro-

pean Conference on Computer Vision, volume LNCS-

Series 1406–1607, pages 581–595, Freiburg, Ger-

many. Springer-Verlag.

Felzenszwalb, P. and Huttenlocher, D. (2000). Efﬁcient

matching of pictorial structures. In International Con-

ference on Computer Vision and Pattern Recognition,

pages 66–73.

Hanek, R. (2004). Fitting Parametric Curve Models to Im-

ages Using Local Self-adapting Seperation Criteria.

PhD thesis, Department of Informatics, Technische

Universit¨at M¨unchen.

Littlewort, G., Fasel, I., Bartlett, M. S., and Movellan, J. R.

(2002). Fully automatic coding of basic expressions

from video. Technical report.

Michel, P. and Kaliouby, R. E. (2003). Real time facial

expression recognition in video using support vector

machines. In Fifth International Conference on Mul-

timodal Interfaces, pages 258–264, Vancouver.

Pantic, M. and Rothkrantz, L. J. M. (2003). Toward an

affect-sensitive multimodal human-computer interac-

tion. Proceedings of the IEEE, Special Issue on

human-computer multimodal interface, 91(9):1370–

1390.

Schuller, B., Mueller, R., Lang, M., and Rigoll, G. (2005).

Speaker independent emotion recognition by early fu-

sion of acoustic and linguistic features within ensem-

bles. In Proc. Interspeech 2005, Lisboa, Portugal.

ISCA.

Schuller, B. and Rigoll, G. (2006). Timing levels in

segment-based speech emotion recognition. In Proc.

INTERSPEECH 2006, Pittsburgh, USA. ISCA.

Schweiger, R., Bayerl, P., and Neumann, H. (2004). Neu-

ral architecture for temporal emotion classiﬁcation. In

Affective Dialogue Systems 2004, LNAI 3068, pages

49–52, Kloster Irsee. Elisabeth Andre et al (Hrsg.).

Sigal, L., Sclaroff, S., and Athitsos, V. (2000). Esitmation

and prediction of evolving color distributions for skin

segmentation under varying illumination. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition (CVPR 2000).

Viola, P. and Jones, M. J. (2004). Robust real-time face

detection. International Journal of Computer Vision,

57(2):137–154.

Wimmer, M., Pietzsch, S., Stulp, F., and Radig, B. (2007a).

Learning robust objective functions with applica-

tion to face model ﬁtting. In Proceedings of the

29th DAGM Symposium, volume 1, pages 486–496,

Heidelberg, Germany.

Wimmer, M., Radig, B., and Beetz, M. (2006). A person

and context speciﬁc approach for skin color classiﬁca-

tion. In Procedings of the 18th International Confer-

ence of Pattern Recognition (ICPR 2006), volume 2,

pages 39–42, Los Alamitos, CA, USA. IEEE Com-

puter Society.

Wimmer, M., Stulp, F., Pietzsch, S., and Radig, B. (2007b).

Learning local objective functions for robust face

model ﬁtting. In IEEE Transactions on Pattern Anal-

ysis and Machine Intelligence (PAMI). to appear.

LOW-LEVEL FUSION OF AUDIO AND VIDEO FEATURE FOR MULTI-MODAL EMOTION RECOGNITION

151
