A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE
INDUSTRY IN ADDRESSING REQUIREMENTS CHALLENGES
FOR EARLY ADOPTION OF IWARP IN LINUX
1
Venkata Jagana,
2
Claudia Salzberg,
1
Renato Recio and
3
Bernard Metzler
1
STG, IBM
2
S&D, IBM
3
Zurich Research, IBM
Keywords: Business process, iWARP, RDMA, OpenSource, OpenFabrics.
Abstract: As customers are embracing Linux in solving business-critical problems, the demand to support innovative
and cutting edge technologies is also increasing at a dramatic pace. This has forced the system vendors to
offer these technologies much sooner than the traditional cycles allowed. In addition, the open source of
different implementations of the same technology by different vendors poses a significant risk in getting an
agreement on the common implementation. In order to address the multitude of problems and get an open
source implementation of new technology for acceptance into Linux main kernel sooner, we have adopted
an innovative method. This method allowed us to work on a common implementation for Linux by avoiding
the clash of multiple implementations right from the beginning but of bringing all the relevant vendors,
much before the technology gains foothold in the market with any proprietary implementations. In this
paper, we'll clearly describe in detail the success story of iWARP support for Linux
1
right from the start of
how we have formed a community, generated the requirements that are agreeable to all vendors and open
source developers, how it further drove an industry standard to define a programming interface in parallel
with the implementation and how the code convergence should happen with an existing Infiniband
technology. We’ll also describe further how this model can be applied for faster adoption of the upcoming
future technologies into Open source-based implementations after addressing the new technology
challenges.
1
Linux – Registered Trademark of Linus Torwalds
1 INTRODUCTION
The Linux operating system has matured from
serving simple mail, print, and web services to
solving business-critical problems within datacenter
environments and thus today has become the
mainstream operating system in customer
deployments across various industry segments.
However, without the active participation and
contributions from major vendor companies in the
IT industry, Linux wouldn’t have matured to the
level it is today. In fact, this active involvement
from the industry and from end customers was a
primary factor in changing how Linux adds newer
technologies at a rapid pace within its core operating
system. Even though this is a good thing for Linux
overall it also brought with it a set of problems, such
as causing significant delays in the support of new
technologies that requires upstream code support
within the core operating system. One of the major
causes for this type of delay was due to the conflicts
between different implementations of the code
submitted by different vendors promoting the same
technology. Additionally, these conflicting
implementations put Linux at a disadvantage when
competing with other competitive OSes within the
industry because these other OSes could dictate a
specific implementation and thereby enable faster
adoption of these leading edge technologies.
Obviously, this issue was considered serious and
640
Jagana V., Salzberg C., Recio R. and Metzler B. (2007).
A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS CHALLENGES FOR EARLY
ADOPTION OF IWARP IN LINUX.
In Proceedings of the Ninth International Conference on Enterprise Information Systems - ISAS, pages 640-645
DOI: 10.5220/0002418806400645
Copyright
c
SciTePress
required to be solved with any of the upcoming
leading edge technologies for Linux.
An example of leading edge technology, for
which multiple conflicting implementations were
being pursued in the industry for Linux, was
iWARP support using RNICs (RDMA enabled
Ethernet adapters). Before describing the solution
approach we pursued for this problem, we will
briefly introduce the concepts of this technology.
We will then describe in subsequent sections the
various steps we took to: form a community for
developing the code, obtain requirements for the
Linux iWARP implementation, define the process
for creating the iWARP implementation, execute
that process, and ultimately merge the efforts on the
iWARP stack with the IB stack. We’ll also describe
how we ensured the agreed requirements are being
carried over in each of these steps.
2 RDMA AND IWARP
OVERVIEW
RDMA is a data transfer model that enables out of
user space operations to a previously registered user
space memory buffer without involvement from
either the source or destination’s operating system
(OS). The RDMA model is dependent on
registrations that are stored in memory translation
and protection tables (MTPT), which reside in
system or adapter memory. These registrations can
be used to translate and validate data that is being
transmitted from or placed into the registered buffer.
The RDMA model provides three basic data transfer
mechanisms: Sends, RDMA Writes and RDMA
Reads. These data transfer mechanisms are provided
to an RDMA-capable adapter through the Send
Queue associated with one of many Queue Pairs.
InfiniBand is an example of a protocol stack that
supports the RDMA model. Unfortunately, most
data center communications use the IP/Ethernet
networks stack. Adaptec, Dell, Intel, Broadcom,
EMC, Microsoft, Cisco, Hewlett-Packard, NetApp,
and IBM founded the RDMA Consortium to create
an initial set of specifications for supporting RDMA
over existing IP/Ethernet networks. The intention
was twofold: to allow vendors to support these
initial specifications as is and to seed the IETF’s
Transport Area’s Remote Direct Data Placement
Working Group with Internet Drafts that could form
the basis for iWARP protocol Request for
Comments. The RDMAC specifications are
available at the RDMAC Website
(http://www.rdmaconsortium.org/home) and the
IETF RFCs are available at the IETF Website
(http://www.ietf.org/html.charters/rddp-
charter.html).
Unlike the IB version of RDMA, iWARP
requires integration with the host OS’s TCP/IP
stack. For example, it requires the handoff of a
TCP/IP connection from the host OS to an iWARP
QP at the start of an RDMA Stream. An RDMA
based stack with defined interfaces to the host OS’s
TCP/IP stack was required. This stack included
defining the required: APIs, interfaces between
internal OS components, and interfaces between the
OS and the RNIC. The following section will
describe the methodology used to create this stack.
3 LAUNCHING AN OPEN
SOURCE PROJECT
IBM uses a System I/O Networking team that is
responsible for generating the strategic mission and
roadmap of IBM servers and storage. The goal of
the work is to generate a roadmap that, for the most
part, proves to be accurately in line with the
unfolding of I/O networking technology
improvements and advances. The process used by
this team requires input from a diverse set of thought
leaders from several disciplines. The input includes:
application environment and workload
requirements; basic and derivative technology
trends; system platform requirements; competitor
directions; business model innovations; applicable
new and substitute technologies/products;
technology/product risk analysis; and the team’s
capabilities. Additional input is obtained from the
larger I/O networking technical community within
IBM and outside of IBM. The strategy created by
this team is used to drive architecture work,
standards work, create plan line items and/or
provide input to plan line items. The plan line items
are used in the IBM System’s Integrated Product
Development Process (Grzinich et al., 1997) to drive
technologies and products from conception through
launch and marker support.
The Systems I/O Networking team discussed
the need for an Open Source stack that would
support RDMA-enabled NICs (RNICs). A small
sub-team was created to define how to enable an
Open Source iWARP stack. The team evaluated
several alternatives, including having RNIC vendors
create their own stacks, leveraging the IB stack, and
launching an Open Source project.
A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS
CHALLENGES FOR EARLY ADOPTION OF IWARP IN LINUX
641
In order to avoid the problem of independent
implementations of iWARP support for Linux, we
decided to launch a community collaborated open
source project that would be used as a common
platform to gather the requirements and further to
implement code in addressing those requirements.
Before launching this community collaborated
project, we understood that it was critical to gather
the requirements from the interested external system
and adapter vendors and then have discussions to
come up with an agreed list of common
requirements that would ultimately become the basis
for the launch of the project.
Having laid out that strategy, several system
vendors, adapter vendors, and key customers were
invited to participate in this collaborative project.
Each participating member company was expected
to contribute resources to not only discuss and agree
upon the requirements, but also help in the
subsequent phases to make the overall project a
success.
Participating members agreed to pool together
the requirements from their respective companies
and then came up with a common set of
requirements. During this process, members agreed
that the process must be flexible enough to change
the requirements based on changing needs of the
customers and the technology direction. In order to
get a better understanding on the approach being
discussed, it was important to identify the following
key requirements, and some of which will be
referenced in later sections.
Requirement R1 – Use Standards defined interface
to support the portability aspect
Requirement R2 – RNICPI (RNIC-Programming
Interface) is the preferred path for both kernel and
user-level APIs. There is no need to provide the
user-level APIs direct access (for example,
bypassing the kernel) to hardware and Requirement
R3 - Agreed to have a thin intermediate user-level
access layer to hide the underlying kernel
implementation details to avoid the changes in the
APIs every time there are changes in kernel code
and also to address some inefficiencies through
optimizations provided.
Requirement R4 - Agreed to collect all potential
major issues (such as TOE service, kernel stack
intrusion, ...) internally before going public to
discuss with maintainers.
Requirement R5 - OpenRDMA project should aim
to support OS version independent of RDMA
enablement support, because it would be good for
the device drivers porting.
Requirement R6 - Convergence of IB and RDMA
interfaces to satisfy the ultimate goal of having a
single interface supporting both IB and iWARP. For
example, the convergence path needed to be defined
for VAPI/IB and RNICPI/iWARP. The expectation
was that we could have a single user access layer
supporting IB and iWARP interfaces to have single
uDAPL or MPI API implementations supporting
both types of fabrics.
Having achieved the first and foremost step of
arriving at a common set of requirements helped the
project to move forward with the architecture
definition which was the next big next step before
proceeding with the code design and

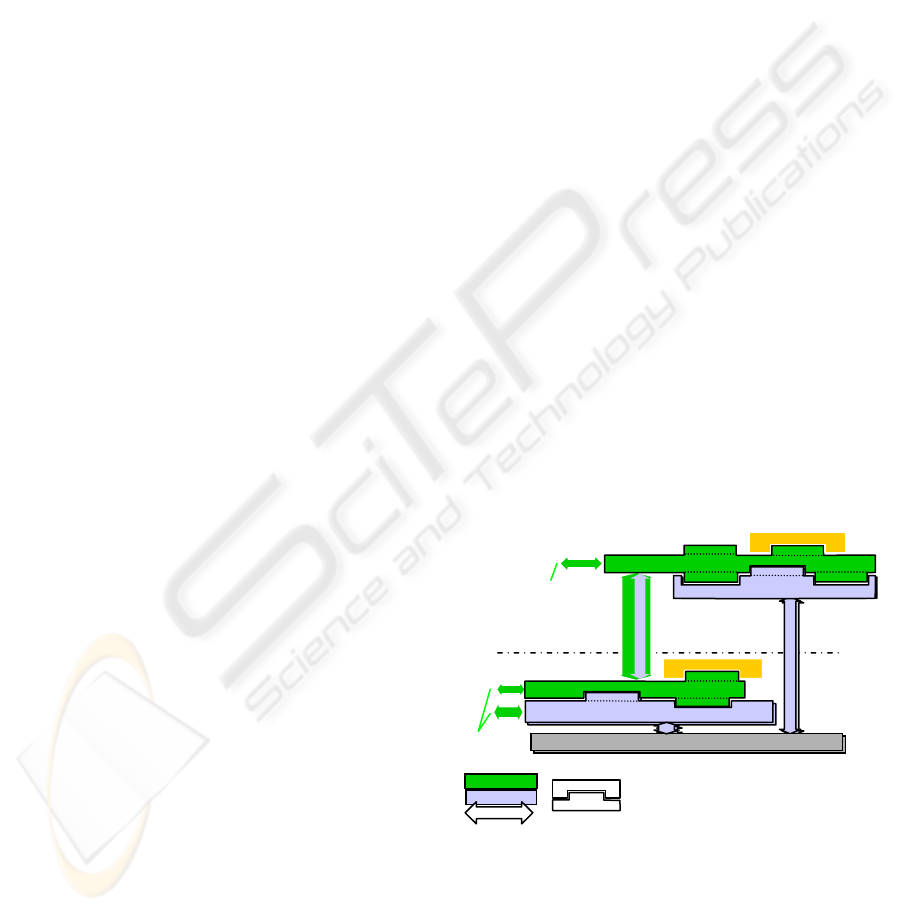

implementation. The architecture for iWARP
enablement along with coexistence of Infiniband
support was put together by some of the key
members of the community and then it was
thoroughly reviewed by the broader community of
this project to ensure the relevant requirements were
taken into consideration. Before proceeding with the
next step, we’ll briefly discuss the high level design
of this architecture to provide a view of the
complexity of the requirement dependencies
involved in driving this project to success.
4 OPENRDMA ARCHITECTURE
OVERVIEW
Figure 1: OpenRDMA Architecture.
Fig. 1 summarizes the high level design of the
OpenRDMA software architecture. It provides a
generic infrastructure (green in Fig. 1) for the
integration of IHV (Independent Hardware Vendor)
private code (blue in Fig. 1) into the Linux OS. This
OS
Services
IT-API
OS generic code
IHV private code
Private Interface
A
B
Interface
B exports Interface to A
Kernel
User
Kernel Consumer
Kernel RDMA Verbs Provider (kVP)
Privil. Ops + Conn/Res Mgmt
Non-privil. Ops: Fast Path
User RDMA Access La
y
er
(
uAL
)
uDAT
User RDMA
Verbs Provider (uVP)
P-RNICPI
NP-RNICPI
Resource Handles
SVC-RNICPI
IT-API
Kernel RDMA Access Layer (kAL)
RNIC Hardware
1 .. 10 Gb RNIC (ENIC with iWARP support)
SVC-RNICPI
OS
Services
SYS-RNICPI
DDI
Consumer
ICEIS 2007 - International Conference on Enterprise Information Systems
642
infrastructure offers RDMA services for both user
level and kernel level RDMA applications also
known as RDMA consumers (grey in Fig. 1).
4.1 OS Generic OpenRDMA
Components
The IHV independent infrastructure for RDMA
support consists of a kernel level Access Layer
(kAL) and a user level Access Layer (uAL). On a
host system, only one instance of the kAL may exist.
The uAL is a loadable library module instantiated by
each user level application that is accessing
OpenRDMA services. kAL and uAL’s are
interacting through a generic, but OS-private
interface. This interface is further used to support
interaction between user-level and kernel-level
software components of an IHV.
The implementation of the RDMA API’s is part
of the OS generic infrastructure. Thus, the kAL may
implement DAPL and/or IT-API to serve kernel-
level consumers and uAL may implement and
expose these services to the non privileged
consumer.
4.2 IHV Private OpenRDMA
Components
The architecture expects that every RNIC vendor
will provide a kernel-level RDMA Verbs Provider
module. Optionally, it may provide a user-level
RDMA Verbs Provider library for efficient user-
level RDMA services. RDMA Verbs Provider
modules encapsulate functions that are private to the
RNIC implementation, such as QP management and
conversion of work requests into WQEs.
The kVP module provides vendor-specific
software implementing the semantics of the RDMA
verbs as defined in (Jeff et al., 2003). It translates
the verb calls issued by the kAL into appropriate
actions such as the creation and management of QPs
and the insertion and removal of WQEs. All QP,
CQ, and SRQ data structures are under direct
control of the module and are not accessible to the
consumer. While the module’s interfaces to the
RNIC hardware are IHV-private, its upper interface
to the kAL will implement the RNICPI (RNICPI,
2005) as defined by the Open Group.
The uVP contains vendor-specific software for
the provision of user-accessible RDMA Verbs
services to the uAL and for direct access to the
RNIC hardware. It establishes a fast path to the
RNIC hardware for all performance critical
operations that can be performed without holding
exclusive access permissions. This includes all send-
and-receive type operations. As with the Kernel
RDMA Verbs Provider, all QP, CQ and SRQ data
structures are under direct control of the library and
are not accessible to the consumer.
Even though the architecture focus has been
primarily around Linux, it was easily adaptable to
other OS variants for meeting adapter vendor needs.
5 PARTICIPATION IN RNICPI
STANDARD EFFORT
There have been several assumptions made within
the architecture about the use of either existing or
new internal interfaces within the OS kernel and
also at the user space. One of the critical internal
interfaces required for supporting RNIC verbs is a
standard-based interface that would ensure the
adapter vendors could easily port their driver across
OSes. Since the standardization of this interface
required broader industry support, for example,
through a standard-based organization such as
OpenGroup, a separate effort was needed to be
driven outside of this community.
Interestingly enough, at around the time that the
OpenRDMA project was launched, there was also
an effort brewing within the industry to create a
workgroup under OpenGroup to standardize the
interface for Unix systems. The objective of this
workgroup was to provide an abstract interface
based on RNIC verbs and coincidentally, this effort
was in line with OpenRDMA community
requirement R1. Some of the key community
members from this project had started working with
OpenGroup in not only providing the requirements
of this interface but also contributed to the evolution
of this interface definition. Another significant
impact that this OpenRDMA community made in
the interface definition was to convince the
OpenGroup to allow, which is not its normal
practice, its draft versions of the standard to be
reviewed by this OpenRDMA community to provide
its input early in the process before it becomes a
standard. This was made possible simply because
OpenGroup understood that this OpenRDMA
community could develop an early prototype that
would validate the interface but also this community
established credibility with OpenGroup right from
the start of forming this WG through requirements
input.
A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS
CHALLENGES FOR EARLY ADOPTION OF IWARP IN LINUX
643
Because there was a good representation of
OpenRDMA community members participating in
the standard effort of this interface, it made it
simpler to get its requirements met in terms of what
the broader community would like to see in the
interface function calls and the related required
arguments. This type of participation and
collaborative effort further proves that there can be
significant advantages in a collaborative model over
traditional development models.
Based on an early definition of RNICPI interface
available to the OpenRDMA community, the
developers started to contribute the code for
components defined in the agreed architecture. In
fact, a separate code maintainer for the project was
identified and made responsible for ensuring the
contributions not only met the required opensource
guidelines but also ensured the conformity for
agreed architectural definition such that the original
requirements were continuing to be met.
6 MERGE OF OPENIB AND
OPENRDMA
The project was making good progress but in order
to meet the requirement R6 of converging Infiniband
(OpenIB) and OpenRDMA for a single common
stack, the strategy was to merge these two projects
before these independent stacks had fully evolved.
However, the challenge, which was recognized as a
major issue later, was to find a common ground in
merging the different interface APIs adopted for
both of these implementations. Since RNICPI was
evolving to support both IB and RNIC verbs, but the
OpenIB interface API was supporting only IB verbs
at that time and the interface APIs were different, it
was perceived that the possible convergence
approach might be to support through RNICPI
rather than modifying the existing OpenIB verbs.
However, it was realized that this could be a
challenge in getting this approach being accepted
upstream as the OpenIB API was already made
upstream.
Since the OpenRDMA implementation is
completely based upon RNICPI supporting both
transport-independent and transport-dependent
functions, it was critical to have both transport
modes supported in the merged interface. Hence,
this approach was absolutely taken into
consideration during the merge effort by developing
a separate connection manager for each of the
underlying transport of Infiniband and iWARP and a
generic RDMA connection manager. Even though
the Linux implementation ultimately did not pick up
the RNICPI primarily because changing to a new
interface in supporting the existing IB drivers and
upper layer protocols meant more changes
everywhere in the stack which is not realistic, it did
pick up some of the good concepts from RNICPI.
As the progress of this OpenRDMA project
reached a good pace, the OpenIB community was
also making good progress in its code acceptance
upstream. Although this was good news, it
inherently put pressure on OpenRDMA to merge
both of the projects sooner rather than later. This
merge was required sooner to avoid the discreet
implementations of two independent stacks, one for
Infiniband and the other for iWARP, to exist in
Linux and also to avoid the duplication of the
similar components of two stacks.
In order to have a successful merge of these two
emerging stacks into a single common stack, the
need was to bring in the key community members of
both communities onto common ground and quickly
agree upon the requirements in a collaborative
manner. The leaders of both communities had come
to an absolute understanding that this convergence
effort must be clearly driven with urgent timelines to
avoid further confusion of overlapping projects in
the communities.
This agreement has further allowed for quick
progress on the convergence aspects from an
architecture, interface and implementation
standpoint with the better commitments from both
communities. This was only possible after ensuring
the corresponding requirements were being
discussed first and agreed upon by the combined
collaborative community. For example, to be
specific on the set of requirements agreed upon, one
of the few requirements (a) is to combine the best
features of both stacks to generate a unified stack
that would allow applications and Upper Layer
protocols to use a single set of interfaces rather than
using a different set of interfaces for Linux. Another
requirement (b) is to ensure the existing IB stack
functionality is not impacted while the code
convergence happens from both of the projects.
The key here was to ensure the set requirements
were taken into consideration during the actual code
merge process. After agreeing on how to satisfy
these requirements, it paved the clear path for the
projects to merge, forming the OpenFabrics
community (OpenFabrics Alliance). Through the
OpenFabrics community, the infrastructure code for
ICEIS 2007 - International Conference on Enterprise Information Systems
644
supporting iWARP in an incremental fashion is
currently made into Linux mainline kernel.
7 SUMMARY
In summary, the success of this project really proved
that the collaboration effort among the vendors and
customers through an early participation in an open
source project for addressing the requirements
meeting most of the needs would really work. But
also, this success has set a new trend for vendors
who could use the resources much more efficiently
without having to duplicate the software effort to
enable new hardware and thus avoiding the
migration from their own proprietary stacks to an
open source stack and this further reduces the
burden on the customers in their environments. In
the future, this requirement model could easily be
applied to other emerging technologies.
ACKNOWLEDGEMENTS
We would like to thank the following folks for their
contributions to this effort: Kanoj Sarcar, Krishna
Kumar, Pradipta Kumar, Leonid Grossman, Aaron C
Brown., Caitlin Bestler, Michael Krause, Thomas
Talpey, Tom Tucker and Steve Wise.
LEGAL STATEMENT
This work represents the view of the author and
does not necessarily represent the view of IBM.
IBM and IBM (logo) are trademarks or registered
trademarks of International Business Machines.
Corporation in the United States and/or other
countries.
Linux is a registered trademark of Linus Torvalds.
Other company, product, and service names may be
trademarks or service marks of others.
REFERENCES
Grzinich, J. C.; Thompson, J H.; Sentovich, M.F.;
“Implementation of an Integrated Product
Development Process for Systems”, PICMET '97: pp:
427 -430,1997
Jeff, H; Paul, C; Jim, P; Renato, R; “RDMA Protocol
Verbs Specification (Version 1.0)”, Apr, 2003
“RNIC Programming Interface (RNICPI) Version 1.0”,
OpenGroup, Sep, 2005
“OpenFabrics Alliance”, www.openfabrics.org
A SUCCESS STORY: COLLABORATIVE EFFORT WITH THE INDUSTRY IN ADDRESSING REQUIREMENTS
CHALLENGES FOR EARLY ADOPTION OF IWARP IN LINUX
645
