UNDERSTANDING THE DYNAMICS

OF INFORMATION SYSTEMS

Abdelwahab Hamou-Lhadj

Electrical and Computer Engineering, Concordia University, 1455 de Maisonneuve West, Montreal, Canada

Keywords: Software Engineering, Information Systems, Program Comprehension, Dynamic Analysis, Reverse

Engineering.

Abstract: Information systems are in the process of undergoing significant transformations triggered by the Internet

technology. However, most existing systems suffer from poor to non-existent documentation, which makes

the maintenance process a daunting task even for a skilled software engineer. As a result, software engineers

are often faced with the inevitable problem of understanding different aspects of the system before

undertaking a simple maintenance task. This paper describes ongoing research in the area of program

comprehension that aims at investigating efficient techniques for the understanding of the dynamics of

software systems with a particular emphasis on information systems. The proposed approach is based on the

analysis of system’s execution traces. The long-term objective is to create effective tool support for software

engineers working on maintenance tasks.

1 INTRODUCTION

Today’s information systems are object-oriented,

component-based, and distributed in multi-tier

architectures. Maintaining such systems is often a

complex task; software engineers must understand

various aspects of a system before they can make

changes that preserve reliability and other system

attributes. The problem is further exacerbated by the

fact that documentation of the system under study is

rarely updated while key developers, knowledgeable

of the system's design, commonly move to new

projects or companies.

Understanding a software system requires both

static and dynamic analysis techniques. The former

focuses on exploring the structure of the system by

analysing its source code whereas the latter provides

insight into its behavioural properties. Both

approaches aim to extract the system’s components

and their relations at different levels of abstraction.

Today’s most prominent maintenance activities

in the context of information systems consist of the

migration of existing systems into Web technology,

and the integration of the system’s components

using Web Services. Both activites necessitate the

understanding of the way the system functions, i.e.

software maintainers must understand the behavior

of the system before they can undertake the

previsously mentioned maintenance tasks.

In this paper, we describe ongoing research that

focuses on techniques that permit the analysis of the

dynamics of a software system. These techniques

revolve around efficient analysis of execution traces.

Traces have the advantage of being precise and

sensitive to the input data (Ball 1999). Unlike static

analysis, where the analyst needs to go through the

many different relationships of all the system

artefacts, traces can be collected in such a way that

they contain only the information needed to perform

the maintenance activity at hand. In addition, system

execution can be driven by specific input data which

provides a powerful mechanism for relating program

inputs, outputs, and behaviour.

Traces, however, have historically been

difficult to work with since they may contain

millions of events. There is a need to find ways to

“shrink” their content while keeping as much of

their essence as possible.

The proposed research aims at investigating

how to best represent traces. The long-term

objective is to integrate the results into reverse

engineering tools that can be used by software

maintainers to efficiently analyse the content of

traces while performing maintenance tasks.

498

Hamou-Lhadj A. (2007).

UNDERSTANDING THE DYNAMICS OF INFORMATION SYSTEMS.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 498-502

DOI: 10.5220/0002399904980502

 SciTePress

This paper is organised as follows: The next

section discusses briefly the components of an

execution trace. In Section 3, we present our

research framework and the particular topics that are

being investigated by our research team. In Section

4, we present related work. We conclude the paper

in Section 5.

2 EXECUTION TRACES

Traces are often generated by executing the features

of the system under study. Test cases have also been

used at a less extent. There are different techniques

for generating traces. The first is based on

instrumenting the source code, i.e. inserting probes

such as print-out statements at different locations in

the source code. In the context of object-oriented

systems, probes are usually inserted at each entry

and optionally each exit of every method.

Instrumentation is usually done automatically. The

second approach consists of instrumenting the

execution environment in which the system runs.

For example, the Java Virtual Machine can be

instrumented to generate events of interest. The

advantage of this technique is that it does not require

the modification of the source code. Finally, it is

also possible to run the system under the control of a

debugger. In this case, breakpoints are set at

different locations (e.g. entry and exit of a method).

This technique has the advantage of not modifying

the source code and the environment; however, it

can slow down considerably the execution of the

system.

To reproduce the execution of a distributed

object-oriented system, we need to collect the events

related to object construction/destruction, method

entry/exit, and process execution and

synchronization (De Pauw 2002, Richner 2002).

The latter usually requires a global clock in order to

replay the execution of the system accurately.

There are various sorts of traces depending on

the type of analysis performed. For example, traces

of methods calls are often used to understand object

interactions. Statement-level traces represent the

information at a lower level of abstraction allowing

software maintainers to detect potential defects in

the system. Some researchers suggest using traces of

inter-component interactions to depict the system’s

behaviour at the architectural level, e.g. (Walker

1998). The distributed and object-oriented nature of

today’s information systems might require the

combination of multiple types of traces. One aspect

of our research is to determine which traces are most

suitable for the comprehension of the dynamics of

information systems.

3 RESEARCH FRAMEWORK

Figure 1 depicts our approach for trace analysis.

Traces are generated through code instrumentation.

They are then visualized using a visualization

environment. Due to the extraordinary size of typical

traces, we need to develop simplification algorithms

that can help software engineers explore the content

of traces in an easy way. In addition, we would like

to explore traces so as to recover behavioural design

models that are usually lost as the system undergoes

several ad-hoc maintenance tasks.

The bulk of the proposed research is three-fold

that we present here and elaborate in more detail in

the subsequent sections:

• Trace-Simplification Techniques: This research

tackles the problem of reducing the complexity

of traces while keeping as much of their essence

as possible.

• Design Recovery: This work focuses on the

recovery of high-level behavioural design

models from traces.

• Trace Visualization: This work focuses on

techniques for efficient representation of trace

information.

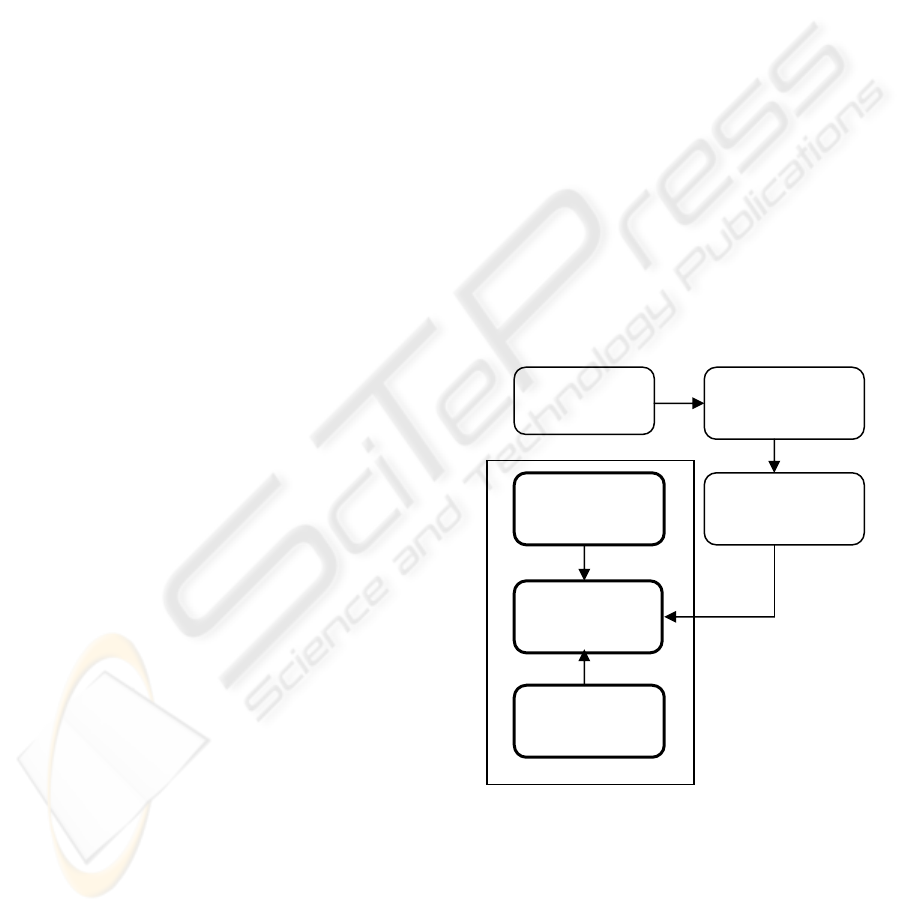

Figure 1: Framework of Proposed Research.

3.1 Trace Simplification Techniques

This work focuses on the problem of ‘compressing’

traces, thus enabling software engineers to better

understand the behaviour of software. The term

‘compressing’ is not used here to refer to the well-

known concept of data compression, but rather to

Source

Code

Instrumented

Code

Simplification

Algorithms

Different Types

of Traces

Visualization

Environment

Design

Recovery

UNDERSTANDING THE DYNAMICS OF INFORMATION SYSTEMS

499

making a trace appear simpler and smaller so that

software engineers can understand relevant parts

more easily. The objective of the proposed project is

to develop a number of algorithms for compression,

particularly focusing on criteria by which various

parts of a trace can be treated as the same pattern.

For example, consider a portion of a trace of routine

calls, T1: A(B(CCCCCD)(B(DCC)), where A(B)

denotes “A calls B”. This trace can be transformed

into T2: A(B(CD)) if the contiguous repetitions of

“C” and the order of calls from “C” to “D” are

ignored when comparing the two subtrees rooted at

“B”. At a high level, the information contained in T2

might be sufficient for the programmer’s purposes.

Existing trace analysis tools, e.g. (Jerding 1997,

Systä 2000, De Pauw 2002), support a variety of

matching criteria that software engineers can use

during the exploration of the trace. However, the

sheer size of typical traces makes this exploration

process a daunting task, further complicated by the

fact that some criteria require, in advance, the setting

of specific parameters. In addition, the order in

which they are applied can have a significant impact

on the resulting trace. Automated assistance is

clearly needed. We propose developing a set of

algorithms that will combine several criteria and

automatically suggest appropriate settings for the

rapid exploration of the trace content. The

algorithms should be designed by taking into

consideration the nature of the trace being studied

(e.g. trace of routine calls, inter-process messages,

etc.), as well as the current goals and experience of

the maintainer. They will vary depending on the

criteria used, the order in which they are applied,

and input parameters specific to each criterion.

The proposed approach encompasses several

steps. First, we need to conduct a comprehensive

study of the most cited criteria in order to identify

the ones that are best suited to the analysis of

information systems. The study will involve

applying these criteria to several large traces and

using statistical techniques to analyse the results.

Next, we will design and implement the algorithms

starting with a few matching criteria. The remaining

steps are performed iteratively: (1) Experiment with

the algorithms using a multitude of traces generated

from various information systems, (2) Validate the

results by involving software engineers with

different levels of knowledge of the system under

study working on different maintenance tasks, (3)

Refine the algorithms by modifying their input

parameters, adding new matching criteria, etc, and

finally going back to Step (1).

3.2 Design Recovery

The objective of this work is to develop efficient

techniques for the recovery of high-level

behavioural design views from execution traces.

These views record the essence of traces in terms of

a few abstracted elements, making it easier for an

engineer to comprehend the information. In previous

work, we introduced the concept of trace

summarization (Hamou-Lhadj 2005) so as to extract

summaries from large traces. The process relies on

successive filtering of trace content by removing

utilities. We worked with software engineers from

the telecom. industry on developing a ‘utilityhood’

metric in order to assess, in the absence of proper

documentation, the extent to which a component

(e.g. class, method, etc) can be considered a utility

(Hamou-Lhadj 2004, Hamou-Lhadj 2005). This

metric is based on the idea that a component with

higher fan-in is more likely to be a utility especially

if the calls come from diverse parts of the system. In

contrast, a component that is called from only a few

places but calls many other components would most

likely be an important component of the system.

The first step of the proposed project is to

continue the work with the utilityhood metric in

order to improve its effectiveness when applied to

information systems. The second step is to

experiment with the utilityhood concept so as to

detect additional types of utility components,

including processes, classes, packages, etc. The

experiment will require the use of different target

systems. The validation should involve the original

designers of the systems if available or whatever

other valid documentation is available. Furthermore,

we need to experiment with traces generated from

these systems and assess the accuracy of the high-

level models extracted using the utility removal

approach. The most important challenge we

anticipate is to determine a proper utility threshold

that can lead to views that are neither too abstract

nor too detailed; in other words, views that are as

informative as possible to software engineers.

3.3 Trace Visualization

The objective of this research is to develop a

visualization environment for representing trace

information using multiple views in order to provide

effective support for program comprehension across

a wide range of maintenance tasks. The main

practical result we expect to achieve is a working

tool that incorporates various views of the system’s

behaviour. The views will be linked to allow

software engineers to navigate from one to another,

ICEIS 2007 - International Conference on Enterprise Information Systems

500

enabling them to analyse the system dynamics at

different levels of abstraction.

The first step of this work will focus on

determining the types of traces necessarily for the

understanding of the behaviour of information

systems. Due to the nature of today’s information

systems, we anticipate that the following views will

be in use:

• Call View: A trace will be viewed as a call tree

exhibiting the call relationship between the

system components.

• Process View: This view will show a trace as a

set of processes interacting by exchanging

messages.

• Object View: This view will focus on object

creation and deletion. It is particularly interesting

for maintenance tasks that revolve around defect

detection, performance analysis, etc.

• Component View: This view will allow software

engineers to understand the interaction among

the system components. This is important for

information systems since they tend to be

component-based.

• Data View: This view will focus on the way

particular items in databases are updated.

In addition, the tool is expected to have

supporting views. The main ones that we envision to

be useful are: The Source Code View, which will be

used to map trace elements to the source code, and

the Statistics View, that will display statistical

information to orient the user during the exploration

of traces. The tool will allow the traditional

browsing capabilities as well as the simplification

algorithms discussed earlier. We anticipate building

our tool as an Eclipse plug-in, so most of the tool

infrastructure will be provided.

There are a number of key research challenges

associated with this design. First, we need to have an

internal model to represent the information

displayed. This model must be scalable to handle

lengthy traces and must have a sufficient power of

expression to characterise the data generated from

information systems. The second issue is related to

the user interface widget that represents the traces.

The problem is that most user interface elements for

displaying large amounts of information build a

complete representation of the display in memory,

and then make sections of it visible as the user

scrolls through the information. This is further

complicated by the fact that when the user applies

the compression algorithms, or simply changes some

parameters, the entire display will need to be re-

created; despite the fact that only a tiny fraction will

be visible. In the context of this research, we will

investigate a new type of browsing widget that will

generate the display for only that part of the trace

that can currently be viewed. Furthermore, we will

investigate the best way to represent traces in the

user interface. We anticipate usability challenges

related to the ability of each view to convey

massive amounts of data. Research into software

visualization and usability engineering will need to

be carried out.

4 RELATED WORK

Existing trace simplification techniques can be

grouped into four categories. The first focuses on

grouping similar sequences of events invoked in a

trace as instances of the same pattern (Jerding 1997,

De Pauw 1998, Systä 2000, Richner 2002). Patterns

are not easily exploitable unless generalized. A set

of pattern matching criteria have been proposed by

many authors, e.g. (Jerding 1997, De Pauw 1998).

However, the use of these criteria has raised many

research issues. One of the main objectives of the

proposed research is to address these issues. The

second category encompasses techniques that

operate by limiting the amount of trace data gathered

(Systä 2002). These techniques assume that software

engineers have some knowledge of the system under

study. This assumption is not valid in practice.

Sampling techniques, which are representative of the

third category, suggest that only a sample of the

trace is needed for comprehension, eliminating the

need to generate the entire trace (Chan 2003).

Sampling is still at its early research stages. The

main issue lies in determining appropriate sampling

parameters. Finally, the last techniques suggest that

trace simplification could be performed by

clustering various trace components and only

visualizing the interaction among these clusters

(Walker 1998).

Another alternative to trace-simplification

consists of generating summaries from large traces.

Software engineers can use these high-level views to

look at the big picture (i.e. main content) first and

then delve into the detailed if desired. Amyot et al.

suggest tagging the source code at particular places

in order to generate a trace that can later be

represented using a Use Case Map (Amyot 2002).

Systä proposes a semi-automatic technique in which

state diagrams can be synthesized using various

UML sequence diagrams, extracted from traces

(Systä 2002). Her approach combines static and

dynamic analysis techniques. Wilde et al. propose a

simple method for the recovery of design threads

from inter-process systems by identifying, using

UNDERSTANDING THE DYNAMICS OF INFORMATION SYSTEMS

501

dynamic analysis, the implementation components

relevant to each thread (Wilde 1997).

We have previously published a survey of the

many existing trace visualization tools; this included

descriptions of their advantages and limitations

(Hamou-Lhadj 2004). These tools support features

ranging from simple trace exploration techniques to

more sophisticated types of analysis (e.g. querying

of trace model, etc). Traces have been represented in

various ways depending on their type. Traces of

routine (method) calls are often visualized using tree

structures (De Pauw 1998), UML sequence diagrams

(Jerding 1997, Systä 2000, Richner 2002), and Use

Case Maps (Amyot 2002). Traces of inter-process

messages are usually represented using crossing

lines among the processes (De Pauw 2002). Tools

that support traces of architectural components use

boxes and lines to represent the components and

their dynamic interactions (Walker 1998).

5 CONCLUSIONS

In this paper, we discussed ongoing research in the

area of reverse engineering of software systems with

an emphasis on information systems. Our approach

is based on analysing the content of large traces.

Traces, however, can be extremely large.

Therefore, there is a need to investigate ways to

reduce their size and complexity while keeping as

much of their essence as possible. We discussed

three research topics that we are currently

investigating. The first one focuses on shrinking

traces by grouping various sequences as instances of

the same pattern. The key challenges consist of

finding the proper matching criteria as a measure of

similarity. We proposed developing a set of

simplification algorithms based on these criteria.

Design recovery techniques, which are

representative of the second category, focus on

recovering behavioural design models from large

traces. These models can be used by software

engineers to explore a trace by looking at the main

content first and then dig into the details.

Finally, the last research topic focuses on

developing a visualization environment for

representing traces. The environment should support

multiple views so as to allow software engineers

browse the content of traces at different levels of

abstraction.

REFERENCES

Amyot, D., Mussbacher, G., and Mansurov, N., 2002.

Understanding Existing Software with Use Case Map

Scenarios. In SAM’02, 3rd SDL and MSC Workshop,

LNCS Vol.2599, Springer-Verlag.

Ball T, 1999. The Concept of Dynamic Analysis. In

ESEC’99, 7th European Software Engineering

Conference, Springer-Verlag.

Chan A., Holmes R., Murphy G. C., and Ying A. T. T.,

2003. Scaling an Object-Oriented System Execution

Visualizer through Sampling. In IWPC’03, 11th

International Workshop on Program Comprehension,

IEEE Computer Society.

De Pauw W., Lorenz D., Vlissides J., and Wegman M.,

1998. Execution Patterns in Object-Oriented

Visualization. In USENIX’98, 4th Conference on

Object-Oriented Technologies and Systems.

De Pauw W., Jensen E., Mitchell N., Sevitsky G., and

Vlissides J., Yang J., 2002. Visualizing the Execution

of Java Programs. In LNCS Vol. 2269, Springer-

Verlag.

Hamou-Lhadj, A., Braun, E., Amyot, D and Lethbridge,

T.C., 2005. Recovering Behavioral Design Models

from Execution Traces. In CSMR’05, 9th European

Conference on Software Maintenance and

Reengineering, IEEE Computer Society.

Hamou-Lhadj, A., and Lethbridge T., 2004. A Survey of

Trace Exploration Tools and Techniques. In

CASCON’04, 14th Annual IBM Centers for Advanced

Studies Conferences, IBM Press.

Hamou-Lhadj, A., and Lethbridge, T.C., 2004. Reasoning

About the Concept of Utilities. In ECOOP-PPPL’04,

1st International Workshop on Practical Problems of

Programming in the Large, LNCS Vol 3344,

Springer-Verlag.

Jerding D., Stasko J. and Ball T., 1997. Visualizing

Interactions in Program Executions. In ICSE’97, 19th

International Conference on Software Engineering,

ACM Press.

Richner T. and Ducasse S., 2002. Using Dynamic

Information for the Iterative Recovery of

Collaborations and Roles. In ICSM’02, 18th

International Conference on Software Maintenance,

IEEE Computer Society.

Systä T., 2000. Understanding the Behaviour of Java

Programs. In WCRE’00, 7th Working Conference on

Reverse Engineering, IEEE Computer Society.

Walker R. J., Murphy G. C., Freeman-Benson B.,

Swanson D., and Isaak J., 1998. Visualizing Dynamic

Software System Information through High-level

Models. In OOPSLA’98, 13th Object-Oriented

Programming Systems, Languages, and Applications,

ACM Press.

Wilde N., Casey C., Vandeville J., Trio G., Hotz D.,

1997. Reverse Engineering of Software Threads: A

Design Recovery Technique for Large Multi-Process.

The Journal of Systems and Software, Elsevier.

ICEIS 2007 - International Conference on Enterprise Information Systems

502
