USING SEMANTIC WEB AND SERVICE ORIENTED

TECHNOLOGIES TO BUILD LOOSELY COUPLED SYSTEMS

SWOAT – A Service and Semantic Web Oriented Architecture Technology

Bruno Caires

Department of Communications and Computing, University of Madeira, Penteada, Funchal, Portugal

Jorge Cardoso

Department of Mathematics and Engineering, University of Madeira, Penteada, Funchal, Portugal

Keywords: Information Integration, Semantic Web, Ontology, Web Services, Middleware.

Abstract: The creation of loosely coupled and flexible applications has been a challenge faced by most organizations.

This has been important because organization systems need to quickly respond and adapt to changes that

occur in the business environment. In order to address these key issues, we implemented SWOAT, a

‘Service and Semantic Web Oriented Architecture Technology’ based middleware. Our system uses

ontologies to semantically describe and formalize the information model of the organization, providing a

global and integrated view over a set of database systems. It also allows interoperability with several

systems using Web Services. Using ontologies and Web services, clients remain loosely coupled from data

sources. As a result, data structures can be changed and moved without having to change all clients, internal

or external to the organization.

1 INTRODUCTION

A middleware for data integration should allow

users to focus on ‘what’ information is required and

leave the details on ‘how’ to obtain and integrate

information hidden from users. Thus, in general,

data integration must provide mechanisms to

communicate with data sources, handle queries

across heterogeneous data sources and combine the

results in an interoperable format, returning it to the

clients (Silva and Cardoso, 2006). During the

software lifetime, several changes that occur are

caused by maintenance tasks, either corrective,

adaptative, preventive or perfective (Vliet, 2000).

Client applications, when directly connected to the

database system, remain vulnerable to database

changes, most of them motivated by maintenance

tasks. To address these issues, we needed a solution

that takes all the advantages from the data

integration middleware, decoupling client

applications from database systems. We believe that

in order to achieve the above-mentioned objectives,

the solution resides in developing middleware with

two emerging technologies: Semantic Web

Technologies (SWT) and Service Oriented

Architectures (SOA).

Several reasons motivated the use o SWT in our

middleware. The four main reasons are (Noy and

McGuinness, 2001): (1) To share common

understanding of the structure of information among

people or software agents. This way, the model can

be understood by humans and computers; (2) to

enable reuse of already specified domain knowledge.

(3) To make domain assumptions explicit; this

means that concepts defined in the model have a

well defined an unambiguous meaning; (4) Analyze

domain knowledge is possible once a declarative

specification of the terms is available.

To prove that SWT has already some successful

and useful projects implemented, ten application

areas have been identified and described (Cardoso

and Sheth, 2006). Five examples are: (1) Semantic

Web Services; (2) Semantic Integration of Tourism

Information Sources; (3) Semantic Digital Libraries;

(4) Semantic Enterprise Information Integration; (5)

Semantic Web Search.

226

Caires B. and Cardoso J. (2007).

USING SEMANTIC WEB AND SERVICE ORIENTED TECHNOLOGIES TO BUILD LOOSELY COUPLED SYSTEMS - SWOAT – A Service and

Semantic Web Oriented Architecture Technology.

In Proceedings of the Ninth International Conference on Enterprise Information Systems - DISI, pages 226-232

DOI: 10.5220/0002386902260232

 SciTePress

Ontologies, applied on middleware, in spite of not

having been identified as one of the ten potential

application areas, can be used in order to provide a

global virtual view over a set of database servers

(Alexiev et al., 2005). Our implementation has

shown that the use of SWT added value to our

middleware system, semantically describing

(focussing on ‘how’ and not on ‘what’) and

centralizing the information model of the

organization.

The other emerging technology used in SWOAT

is SOA. It provides a universal access mechanism to

all systems via Web Services (WS) and a universal

data representative via XML (Taylor, 2004). Based

on Web technologies, WS gain several advantages.

One of them is that being based on SOAP-over-

HTTP (Web based protocols), WS are designed to

work over public Internet. Another Web aspect is

that interoperability is achieved using SOAP that

defines a common standard allowing differing

systems to interoperate. Also, the XML is a standard

framework for creating machine-readable documents

(Fremantle et al., 2002). The Service (Web +

Service) main aspects of WS are that services are

available to all systems that wish to use them.

Another aspect is that services have a machine-

readable description that can be used to identify the

interface of the service, its location and access

information. Finally, the service interface is

available independently of the ultimate system

implementation (Fremantle et al., 2002).

Taking advantage of SWT and SOA, we

implemented SWOAT in order to use the synergy of

these two technologies. Using SWOAT to deploy

Information Systems (IS) we have identified three

main advantages:

• The request done by clients, formulated to

get the required data, specifies ‘what

information is needed’ and nothing about

‘how’ information is obtained. ‘How’

related aspects like database location and

SQL statements are transparent to the

clients.

• Changes that occur in the database are not

necessarily propagated to all clients. In this

way, clients are not aware of the database

changes, either syntactic (ex.: change of a

table name) or structural (added or deleted

table).

• Hides the local databases vocabulary,

providing a common vocabulary across

several databases. This way semantic

heterogeneity (Cardoso and Sheth, 2006) is

solved.

In the next section, we are going to describe the

scenario that motivated the development of

SWOAT.

2 MOTIVATING SCENARIO

Let us consider an organization with three thousand

users, where more than ninety percent of them use

the organization main information systems. The

organization owns several systems, either developed

internally or externally (COTS), and all of them

store their data on relational databases. Examples of

COTS are the human resource management system

and accounting system. The organization core

business is developed in-house and because it is the

main organization’s system, needs to extract and use

data stored in several other database systems (like

the human resource management system and the

accounting system). The core business system has

two types of clients: GUI and Web. GUI

applications are typically developed in java and used

by organization employees in order to perform

specific tasks (like insert the personal data in the

human resource management system). On the other

side, Web applications are typically developed using

languages such as php, asp, etc. These are used in

specific cases in other to allow access to applications

for all authenticated users, from internally or

externally of the organization.

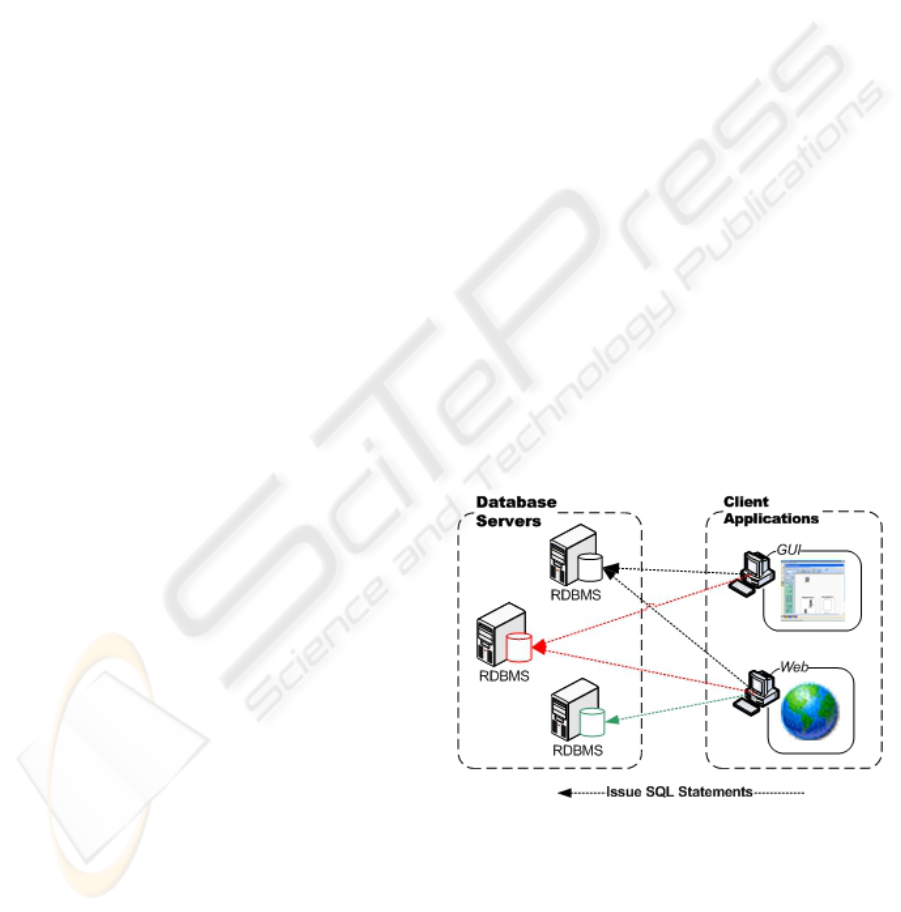

Figure 1: Connections between clients and relational

databases.

As illustrated in Figure 1, in the current scenario

clients are directly connected to databases, which

mean that are vulnerable to database changes. For

example, changes in a table name may require

changes in several application clients and/or in

several database views.

USING SEMANTIC WEB AND SERVICE ORIENTED TECHNOLOGIES TO BUILD LOOSELY COUPLED

SYSTEMS: SWOAT – A Service and Semantic Web Oriented Architecture Technology

227

In this scenario, SWOAT will provide a global

and integrated view over the set of relational

databases and an abstraction layer, decoupling

clients (either GUI or Web) from database servers.

Client applications either distributed geographically

or not can interact with databases mediated by

SWOAT, using WS.

3 SWOAT TECHNOLOGIES

SWOAT middleware is based on Semantic Web

(Lassila and Swick, 1999), that is an extension of the

current Web in which information is given well

defined meaning, better enabling computers and

people to work in cooperation (Berners-Lee et al.,

2001). From the middleware perspective, SW

definition contains concepts that are particularly

useful in providing a global virtual view over a set

of databases: ‘well defined meaning’ and ‘enabling

computer and people’. In order to achieve the above-

mentioned concepts, ontologies are the solution

proposed. An ontology is specification of a

conceptualization (Gruber, 1993). A

conceptualization is the way we think about a

specific domain and a specification provides a

formal way of writing it down. Ontology represents

agreement and common terminology / nomenclature

and is in turn the centre price that enables resolution

of semantic heterogeneity. Ontology defines a

common vocabulary for researchers who need to

share information in a domain, including machine-

interpretable definitions of basic concepts in the

domain and relations among them. Our system

represents ontologies using the Web Ontology

Language (OWL), a semantic mark-up language for

publishing and sharing ontologies on the World

Wide Web. Other alternative formal languages can

also be used to express ontologies, for instance CycL

(CyCorp, 2006), KIF (Genesereth, 2006) or RDF

(Lassila and Swick, 1999). We choose OWL

because it is a W3C recommendation, designed for

use by applications that need to process the content

of information instead of just presenting information

to humans (McGuinness and Harmelen, 2004).

How are ontologies, specified in OWL, used in

SWOAT? An ontology is used to provide a unified

view over a set of relational database systems,

providing a common vocabulary. The ontology is

stored in the middleware, therefore centralized and

used by all applications that intent to extract data

from databases. As is going to be described in the

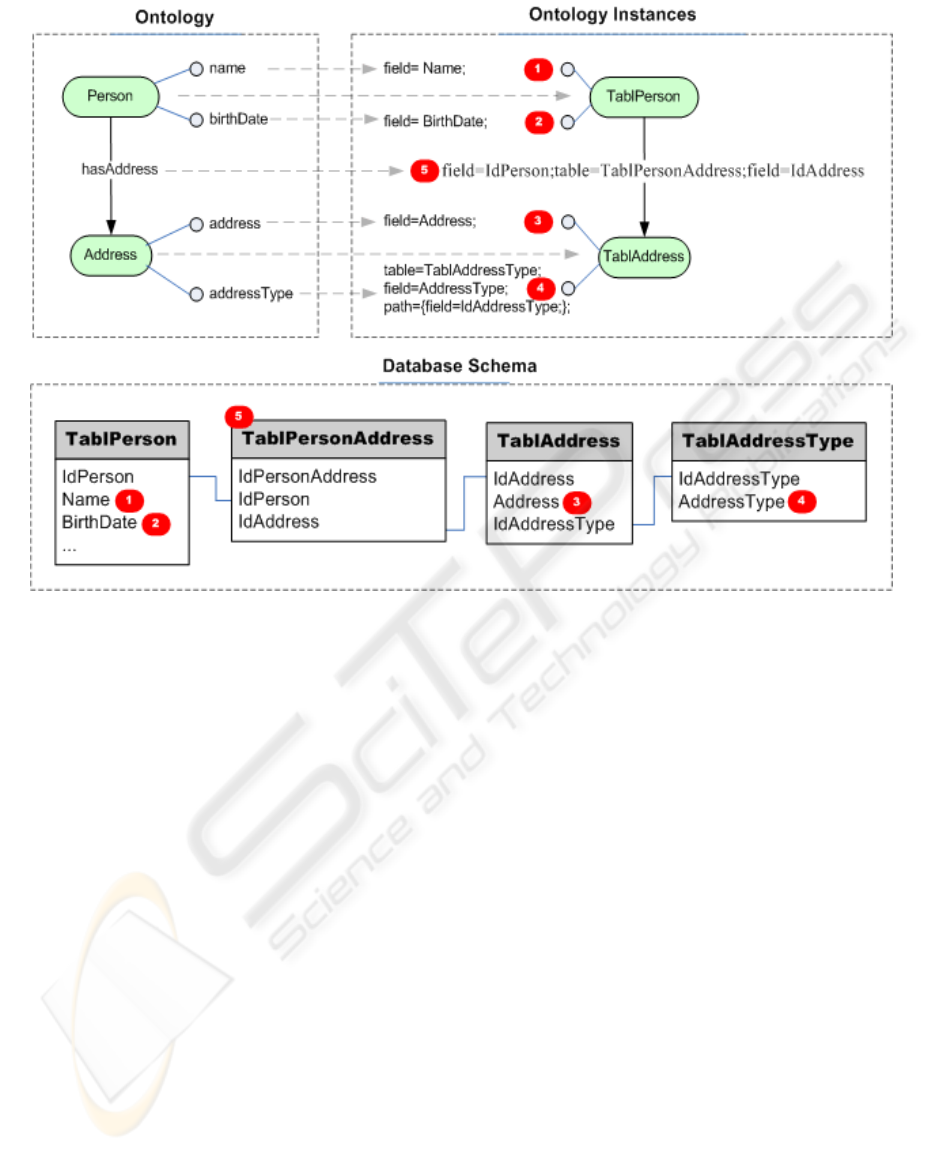

following sections, the mappings from the ontology

to the database are stored in the ontology instances.

Several languages that allow to query ontologies

exist, namely: RQL, RDQL, N3, SeRQL, SPARQL,

Versa, Triple, SquishQL, RxPath and RDFQL

(Haase et al., 2004). In SWOAT, we use SPARQL,

which is an effort of standardization to OWL query

languages, by W3C. A standardized query language

offers developers and end users a way to write and

to consume the results of queries across this wide

range of information (SPARQL-W3C, 2005).

SWOAT uses SPARQL to extract information from

the OWL instances in order to generate the SQL

statement that allows getting the required data from

the database. This is going to be illustrated in more

detail in the following sections.

SWOAT allows interoperability through Web

services. SWOAT has an interface described in a

machine-processable format (specifically WSDL,

which describes the services provided). Other

systems interact with SWOAT using SOAP

messages (which is intended for exchanging

structured information in a decentralized, distributed

environment), typically conveyed using HTTP.

4 SWOAT ARCHITECTURE

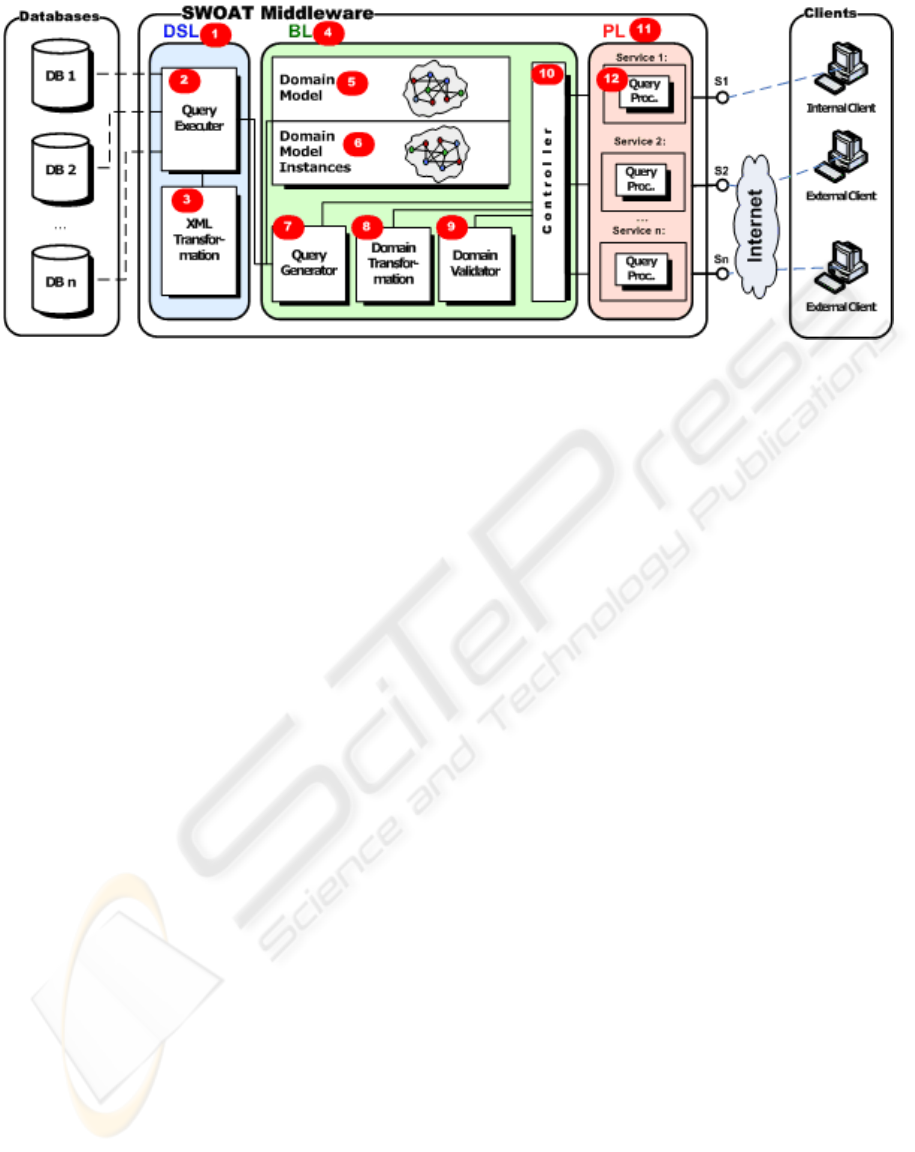

SWOAT is the middle-tier that is deployed between

the database tier and the client tier, as illustrated in

Figure 2. The database tier contains the databases that

store the data and the client tier represents the client

applications, internal or external to the organization

that invokes the services available by SWOAT,

which is the middle-tier.

SWOAT middle-tier is organized in three layers:

Data Source Layer (DSL), Business Layer (BL) and

Presentation Layer (PL). As illustrated in

Figure 2,

DSL is identified by (1), BL by (4) and DSL by (11).

We are going to describe each layer separately,

referring to the numbers illustrated in

Figure 2 to

facilitate the presentation.

4.1 Data Source Layer

This layer (1) is responsible for the communication

with the relational database management systems. In

SWOAT, this layer is implemented using Hibernate

(Hibernate, 2006), which is an open-source product

developed in java. It increases the developer

productivity enabling developers to focus more on

the business problem (Hibernate, 2006). It is

interoperable with any JDBC compliant database

and supports more than 20 popular dialects of SQL

including Oracle, DB2, Sybase, MS SQL Server,

PostgreSQL, MySQL, HypersonicSQL, Mckoi SQL,

SAP DB, Interbase, Pointbase, Progress, FrontBase,

Ingres, Informix and Firebird (Hibernate, 2006).

ICEIS 2007 - International Conference on Enterprise Information Systems

228

The Query Executer (2) allows executing SQL

queries on the databases. The returned data from the

‘Query Executer’ (2) is then transformed to XML in

the ‘XML Transformation’ (3). Two main reasons

motivated this transformation. The first one is that

having the data structured in XML is easier to

manipulate it in the ‘Business Layer’ (4), with the

final objective of returning XML to the clients. The

other reason is that with XML we decouple the DSL

from the DL, which means that independently from

the implementation of the DSL, the only thing that

has to be assured is the XML structure.

4.2 Business Layer

The BL (4) is where the domain model, described in

OWL is stored. The domain model (5) represents the

important concepts, its attributes, and relations

between concepts. The concepts are mapped to the

DSL, which allows access to the data described by

the concept, by creating instances (6) of the OWL

model. The instances contain the necessary

information (database, table, attribute) in order to

build the SQL queries that allows retrieving the

required data from the databases. It is the ‘Query

Generator’ (7) that is responsible for extracting the

necessary information from the ‘Domain Model

Instances’ (6) and ‘Domain Model’ (5) and generate

the SQL statement that is going to be executed in the

‘Query Executer’ (2) of the DSL. The language used

to query the OWL, in order to extract the data to

build the SQL expression, is SPARQL.

The ‘Controller’ (10) is responsible for

interacting with the ‘Query Generator’ (7) in order

to obtain the returned data, formatted in XML. The

data returned from the DSL is then transformed, in

the ‘Domain Transformation’ (8), and structured in a

format that reflects the OWL model. For example, if

in the domain model is specified that one person has

at least one address, the result XML will reflect this

hierarchical structure. This is going to be illustrated

in the running example section.

The ‘Domain Validator’ (9) is responsible for

validating the data accordingly to the specified

business rules (ex. one person must have at least one

address, which means that a person record without

the address is not a valid record). In this case, the

business rules represent the validations that have to

be verified in order to insert and retrieve data from

the databases.

4.3 Presentation Layer

The PL (11) is responsible for receiving and

processing the requests from the clients. Requests

are structured in XML, as is going to be described in

detail in the next section.

The ‘Query Processor’ (12) is responsible for

validating the request from the client, and interacting

with the ‘Controller’ (10) in order to get the desired

data.

Requests and responses are encapsulated in

SOAP, and exposed as Web Services. SWOAT Web

Services are implemented using JBoss (JBoss,

2006). JBoss Application Server is one of the most

used Java application server on the market, and it is

an open source project (JBoss, 2006).

5 RUNNING EXAMPLE

Let us suppose that we are interested in getting the

name of all persons and their address stored in a

relational database system. For this example, we will

describe the ontology that describes the personal

data, namely Person and Address. The database

Figure 2: SWOAT Architecture.

USING SEMANTIC WEB AND SERVICE ORIENTED TECHNOLOGIES TO BUILD LOOSELY COUPLED

SYSTEMS: SWOAT – A Service and Semantic Web Oriented Architecture Technology

229

structure that stores the data is also presented. It

follows with the ontology instances that contain the

mapping to the database layer. XML request and

response of the service layer are also illustrated.

Figure 3 we illustrate the ontology classes and

their attributes (top left), the ontology instances that

contain the mappings to the database tables (top

right), and the database schema that contains the

data described by the ontology (bottom).

As depicted in the ontology (top left of

Figure 3),

for this example, a Person has a name and a

birthDate. In the case of the Address, it contains an

address description (address) and an addressType.

The relation between them is hasAddress, which

means that a person has an address.

Illustrated at the bottom of Figure 3, the table

TablPerson, TablPersonAddress, TablAddress and

TablAddressType represent the database structure

that store the data described by the ontology. The

table TablPersonAddress is used because it is a

relation from n to m (which means that one person

may have one or more addresses and one address

may belong to one or more persons).

The ontology instances, illustrated at the top

right of

Figure 3 contains the mappings from the

concepts of the ontology to the database tables.

There are instances of the ontology class Person and

Address. The name of the instances is equal to the

name of the database respective table, as illustrated

Figure 3. For example, TablPerson is an instance

of the domain class Person, and its name represents

the database table name. The attributes ‘name’,

‘birthDate’ and ‘address’ are stored on the database

table that is equal to the ontology instance name, as

illustrated by (1), (2) and (3) in

Figure 3. Since the

‘addressType’ attribute is not contained on the

TablAddress, but instead on the table

TablAddressType, a special mapping has to be done:

table=TablAddressType;

field=AddressType; path={field=IdAddressType;};

(4). The ‘table=’ contains the table name that stores

the data, ‘field=’ contains the attribute and ‘path=‘

contains the path from the table TablAddress (name

of the instance) to TablAddressType (name of the

attrubute in the mapping). As described in the

‘path=’ the attribute that related the two tables is

‘IdAddressType’.

Until now all tables and attributes are mapped,

but it is remaining the intermediary table:

TablPersonAddress. This type of mapping is

addressed in the relation property named hasAddress

(5). So, the property hasAddress, that directionally

connects two classes, will contain the flowing

Figure 3: SWOAT Mapings.

ICEIS 2007 - International Conference on Enterprise Information Systems

230

mapping:

field=IdPerson;table=TablPersonAddress;

field=IdAddress;. The field=IdPerson connects the

table TablPerson with the table TablPersonAddress.

The field IdAddress connects the table

TablPersonAddress with TablAddress.

This is all the information that is needed in order

to generate the SQL statement with the objective of

executing it to return the required data.

5.1 SWOAT Requests and Responses

Requests are structured in XML and allow clients

(applications, internal or external, and users) to

interact with SWOAT in order to get the desired

data. XML requests allow users to specify:

• Fields that should be returned, using the

XML outputFields element. It is a required

element.

• The order of the output fields (ascending,

descending) is specified using the XML

orderFields element.

• Filters (for example, return only names

started by letter A) are specified using the

XML filters element.

• Choose the path that connects domain

classes, using the outputProperties element.

For example, in order to get the name and

address information, the request would be structured

like:

<get_request version="1.0">

</outputFields>

</outputProperties>

</get_request>

In the output fields, all required fields and the

classes, which contain the attribute, are specified. In

this particular case, we are interested in the name of

the person and in its address. The output property is

hasAddress, which means that the class Person and

Address are related by hasAddress. The data

returned would be:

<Root>

</hasAddress>

</Person>

</Root>

This response is structured ‘like’ the domain

model, as described in the top left of

Figure 3. As

already depicted the domain class Person is

connected with the class Address through the

relation hasAddress.

6 RELATED WORK

Several tools and approaches to integrate

heterogeneous data sources and create an abstraction

layer exist today (Alexiev et al., 2005). Examples

are Corporate Ontology Grid, the Mediator

envirOnment for Multiple Information Systems,

OBSERVER, the Knowledge Reuse And

Fusion/Transformation and InfoSleuth.

Some of the approaches, like InfoSleuth and

KRAFT, are based on agents. InfloSleuth is a multi-

agent system for semantic interoperability in

heterogeneous data sources. Agents are used to

query and instance transformations between data

schemas (Nodine et al., 1999).

In the KRAFT project, users typically have their

own local ontology, which is mapped to the central

ontology. The basic philosophy of KRAFT is to

define a “communication space” within certain

communication protocols and languages must be

respected (Grayy et al., 1997).

OBSERVER uses multiple pre-existing

ontologies to access heterogeneous distributed and

independently developed data repositories. It is a

component based approach to ontology mapping and

provides brokering capabilities across domain

ontologies to enhance distributed ontology querying

(Mena et al., 1996).

COG aims to create a semantic information

management in which several heterogeneous data

sources are integrated into a global virtual view

(Bruijn, 2004).

MOMIS goal is to give the user a global virtual

view of the information coming from heterogeneous

data sources (Beneventano and Bergamaschi, 2004).

None of the solutions described are based on

Semantic Web technologies defined and specified by

W3C. In the described solutions, the ontology,

which describes the domain model of the

application/organization is described in a non-

standard language, most of the times proprietary or

adapted in order to address the needed requirements.

Interoperability of the described solutions with other

applications / organizations is not fully addressed. In

fact, XML and Web Services are not used. Getting

the data from the data sources involves questioning

the middleware. Most of the times, a proprietary

“SQL like” query language is used to get the data

USING SEMANTIC WEB AND SERVICE ORIENTED TECHNOLOGIES TO BUILD LOOSELY COUPLED

SYSTEMS: SWOAT – A Service and Semantic Web Oriented Architecture Technology

231

from the databases, leading to a specific and

proprietary query language.

7 CONCLUSION

SWOAT was implemented in order to address the

advantages of the three tier architecture. In fact, it

acts like an abstraction layer between the client and

the database servers. This way, aspects like database

location, database technology among others, are

transparent to clients. The main objective is that the

clients focus on ‘what information’ and not on ‘how

to get it’ and ‘where to get it’. The other objective is

to impede that changes on database be propagated to

all clients, generating unnecessary maintenance.

Our developed system uses Semantic Web

Technologies (SWT), more precisely ontologies, to

formally describe the domain model, which is stored

and centralized in the middleware. Being a formal

model, it is particular suitable to describe and be

used by humans and computers.

With the use of service-oriented technology,

using Web services, SWOAT allows interoperability

with other clients, either internal or external to the

organization.

SWOAT is a good solution to quickly create an

abstraction layer between clients and database

servers, exposing its services as Web Services.

Mappings to database are achieved by creating

instances of the ontology, allowing that the OWL

model can be distributed and reused. Independently

of the database structure, the domain model can be

mapped to the database tables, exposing information

in a format that described the domain model and not

the database structure.

To sum up, we can state three main SWOAT

characteristics. The first one is that it is an

interoperable solution through Web Services (open

standards). The second is that it uses OWL to

describe the domain model, which is a W3C

recommendation that semantically describes the

domain model. The third one is that SWOAT XML

requests allow clients to specify ‘what’ information

they need, in a non-technical way. These three

characteristics will allow the construction of loosely

coupled systems.

REFERENCES

Alexiev, V. et al., 2005. Information Integration with

Ontologies. John Wiley &Sons, Ltd.

Beneventano, D. and Bergamaschi, S., 2004. The MOMIS

Methodology for Integrating Heterogeneous Data

Sources.

Berners-Lee, T., Hendler, J. and Lassila, O., 2001. The

Semantic Web, Scientific America.

Bruijn, J.d., 2004. Semantic Integration of Disparate

Sources in the COG Project.

Cardoso, J. and Sheth, A., 2006. Semantic Web Services,

Processes and Applications. Springer.

CyCorp, 2006. Cyc KNowledge Base

Fremantle, P., Weerawarana, S. and Khalaf, R., 2002.

Enterprise Services. In: C.o.t. ACM (Editor), pp. 77-

82.

Genesereth, M., 2006. Knowledge Interchange Format

(KIF).

Grayy, P.M.D. et al., 1997. KRAFT: Knowledge Fusion

from Distributed Databases and Knowledge Bases.

Gruber, T., 1993. A Translation Approach to Portable

Ontology Specifications. In: http://ksl-

web.stanford.edu/KSL_Abstracts/KSL-92-71.html

(Editor).

Haase, P., Broekstra, J., Eberhart, A. and Volz, R., 2004.

A Comparison of RDF Query Languages, Third

International Semantic Web Conference.

Hibernate, 2006. Hibernate Reference Documentation.

Horridge, M., Knublauch, H., Rector, A., Stevens, R. and

Wroe, C., 2004. A Practical Guide To Building OWL

Ontologies Using The Protégé-OWL Plugin and CO-

ODE Tools Edition 1.0.

JBoss, 2006. JBoss Application Server.

Lassila, O. and Swick, R., 1999. Resource Description

Framework (RDF) model and syntax specification.

McGuinness, D.L. and Harmelen, F.v., 2004. OWL Web

Ontology Language Overview.

Mena, E., Kashyap, V., Sheth, A. and Illarramendi, A.,

1996. OBSERVER: An Approach for Query

Processing in Global Information Systems based on

Interoperation across Pre-existing Ontologies

Nodine, M. et al., 1999. Active Information Gathering in

InfoSleuth

Noy, N.F. and McGuinness, D.L., 2001. Ontology

Development 101: A Guide to Creating Your First

Ontology

Silva, B. and Cardoso, J., 2006. Semantic Data Extraction

for B2B Integration, International Workshop on

Dynamic Distributed Systems.

SPARQL-W3C, 2005. SPARQL Query Language for

RDF - W3C Working Draft 20 February 2006.

Taylor, J., 2004. Enterprise Information Integration: A

New Definition. In: I. Consortium (Editor), Thoughts

from the Integration Consortium.

Vliet, H.V., 2000. Software Engineering - Principles and

Practice. John Wiley & Sons.

ICEIS 2007 - International Conference on Enterprise Information Systems

232
